GTMEDIA 4K Android Smart HDTV Box ATSC-J.83B Sat Receiver Media Stream Player US

Description

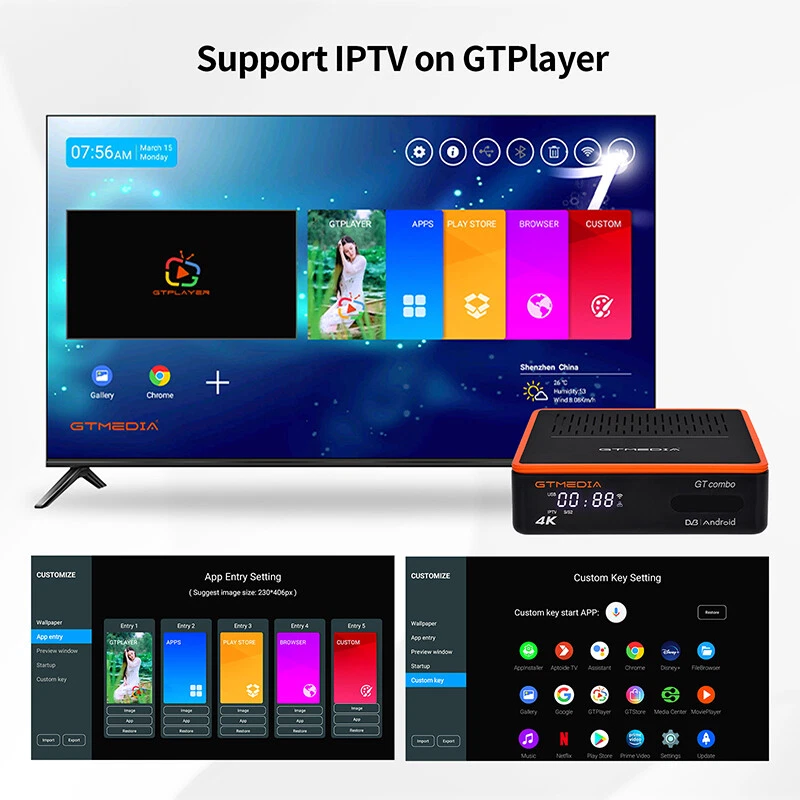

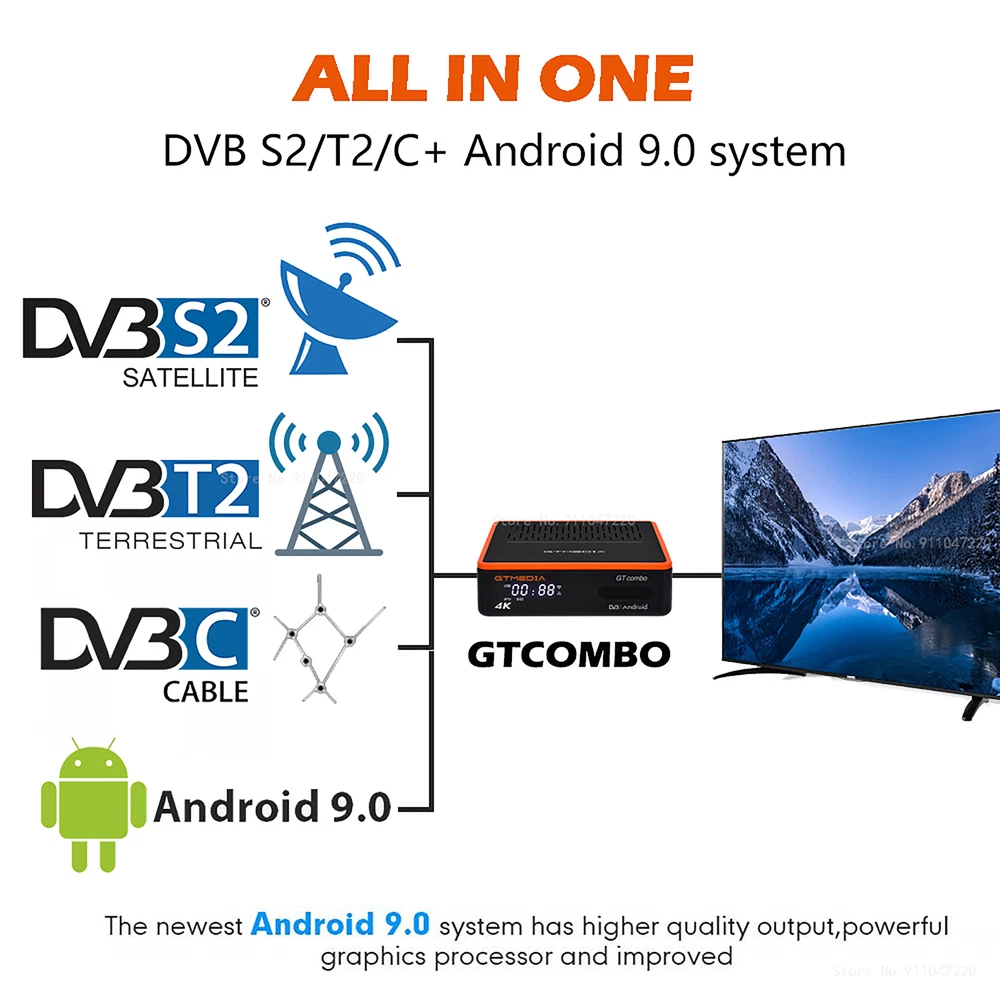

Android 9.0 TV BOX+DVB-S/S2/S2X,DVB+T/T2/Cable/ATSC-C(J.83B)/ISDBT 1.Android 9.0 TV BOX+DVB-S/S2/S2X,DVB+T/T2/Cable/ATSC-C(J.83B)/ISDBT, AVS+, HEVC main 10 profile(10bit), AUTO BISS, T2MI, YUV422; 2.Amlogic S905X3 2GBRAM +16GBROM; 3.Support 4K ultra-high definition display and decoder, Dual-core MIPS75Kf processors; 4.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support; 5.Support Full PowerVu, DRE &Biss key; AUTO BISS; 6.Built-in Wifi 2.4G/5G+BT4.1, 802.1.1b/g/n/ac; 7.System is GT UI, GTStore Addons pre-installed. Netflix, Youtube, Prime-Video, Disney Plus, Online movies, etc.; 8.Support IP-TV on GTPlayer, SAT2 IP, GTshare APP; 9.Support CC-CAM, NEW-CAM, MG-CAM, and CA card decoding; Note: We reserve the right to change the design and OEM/ODM supported. Specifications CPU: Amlogic S905X3, 64-bit quad core ARM Cortex A55 CPU up to 2.0GHz(DVFS) GPU: Daul-core Mali-G31 MP2, up to 850M (DVFS) RAM: 2G DDRIII ROM: 16G EMMC 3D Graphics: OpenGL ES 1.1/2.0 and Open VG 1.1 support Video Decode: 4KP75 10B, H.265,VP9 Profile 2 , AVS2 4Kp30 H.264, MPEG-4, DIVD/DIVX, Real8/9/10, RM,RMVB, PMP, FLV, MP4, M4V, VOB, WMV, 3GP, MKV 8KH265_Main10@L6.2@Main_7680x4320_24fps_30.9Mbps_10bit_AAC2ch]Sanaipei_Tande_Amina-NIo74zd6Nn4.mp4 8KVP9_7680x4320_23.976fps_22.2Mbps_8bit_opus2ch]World's_Best_Jump_Roper-Hawaii_Style_in_8K-nCBwEaB1eQU.webm Audio Decode: Stereo DACs, 2x I2S in, 8x I2S out, 8x DAIC, MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC,Dolby+ Panel display: 4-digit white LED display,With multiple function indicators LED Indicator: Power ON - Green; Standby - Red Button: NOT Wifi: Built in 2.4G/5G WiFi Support IEEE 802.1.1b/g/n/ac Blutooth: BT4.1 IR: Bluetooth and infrared dual-purpose remote control Rear Panel: ANT IN ( EC-type IEC169-2 Female) LNB IN (Frequency Range950MHz to 2150MHz) HD OUT(HDMI2.1 , 8Kx4K@24 max resolution output ) 1*USB2.0+1*USB3.0 HOST 1*TF CARD 1*SPDIF 1*RJ45 1*CA Card Power (DC 12V/1.5A) 【DVB-S/S2 specifications】 System standard: ETS 302 307 Frequency Range: 950~2150MHz for DVB-S/S2/S2X baseband demodulator LNB Power and Polarization: DiSEqC1.0/1.1/1.2/USALS Motor fully support, Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection Input Level Range: -80dBm ~ -20dBm (average power) Symbol Rates: DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK Forward error correction rate: 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates Symbol range: QPSK/8PSK/16APSK 56M, 32APSK 49.6M, 64APSK 41.3M Roll-off factors: Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 for DVB-S, 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates Features: Supporting CCM/VCM/ACM, PLHEADER Scrambling (AMC), Integrating LDPC and BCH decoders ANT. Connector: Connector:IEC TYPE F Input Impedance:75 Ω 【DVB-T/T2 specifications】 System standard: ETSIEN 302 755 Frequency Range: VHF: 174~230mhz, UHF: 470~862mhz for DVB-T/T2 Demodulation: COFDM,16QAM,64QAM,256QAM Bandwidth model: 6MHZ,7MHZ and 8MHZ Country: Italy, Poland, Russia, Spanish, Sweden, United Kingdom, Germany,Greek, Slovenia, Argentina, Australia, Denmark, Finland, France, England, Brazil, Chile, Peru, Colombia, India, Georgia, Indonesia. FEC Code Rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 FFT: 2K and 8K Guard interval: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128 Input Signal level: Min -80dbm max -20dbm (64QAM,8K 1/8,7/8) Antenna Power: 5V DC@150mA MAX ANT. Connector: IEC 169-2, female. Input Impedance:75 Ω 【ISDB-T specifications】 System standard: ISDB-T broadcast (1, 3, 13 segment),MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX Frequency Range: VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz Country: Brazil and Japan FFT: 2K/ 8K/32K Demodulation: QPSK / 16QAM / 64QAM/QPSK or DQPSK+ FEC Code Rate: 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic Guard interval: 1/4,1/8,1/16,1/32 【DVB-Cable specifications】 Frequency Range: 50--858MHz For DVB-Cable (J.83A/B/C) Demodulation: 16QAM,32QAM,64QAM,128QAM,256QAM FEC Code Rate: 1/2 , 2/3 , 3/4 , 5/6 , 6/7 or 7/8 Input Signal level: Min -80dbm max -20dbm Country (ATSC-C): U.S.ATSC Cable STD/U.S.ATSC Cable IRC/U.S.ATSC Cable HRC for ATSC-C Sortware Features Standard: Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite), DVB-T/T2/Cable(J83.A/B/C)/ISDBT, MPEG-2/4 H.265 Standard Channel Search: Supports Automatic network search for newly added transponders, and Supports NIT Search for DVB-T/Cable. Channels Number: 10000 channels TV and Radio programmable Channel: Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) Favorites: 8 different favorite groups selection OSD Multi-language for options: Arabic, Catalan, Czech, Dansk, Deutsch, Eapanol,English,Euskar,Farsi,French, Finnish,Galego,Greek,Hrvatska,Italian,Magyar,Nederlands, Polska,Spanish,Slovakian,Svenska,Portuguese,Russian, Ukrainian,Turkish,Thai and etc.) EPG: Fully support to 7 days Electronic Program Guide(EPG) OSD Color: 256 color/32-bits OSD with anti-flickering Parental Ctrl: Parental control for channels Easy Menu: Plug and Play installation, with an easy to use Menu System PAL/NTSC: Automatic PAL/NTSC conversion Subtitle: support DVB EN300743 and EBU Teletext: support DVB ETS300472 by VBI and OSD Time Set: Time set by GMT offset automatic and manual,Summer Time support Timer: 5 event timers,off/Once/Daily/Weekly Mode USB 3.0/2.0: Support FAT/FAT32/NTFS big capacity hard disk PVR Option: USB for PVR,TIMESHIFT,media files playback Media Codec: S/MPG/MKV/AVI/ASF/FLV/MP4/WMA/WMV/VOB/MOV/DAT/SRT/SUB/BMP/JPG/JPEG/GIF/PNG/M4A files Audio Codec: WMA,MP3,AAC (wma,mp3,m4a) Photo Codec: JPEG,BMP,PNG,GIF Supported SoftUpgrade: Software upgrades through USB port. Package included 1*GTCombo Box 1* Adapter 1* IR remote control 1* HDMI Cable 1* User Manual
