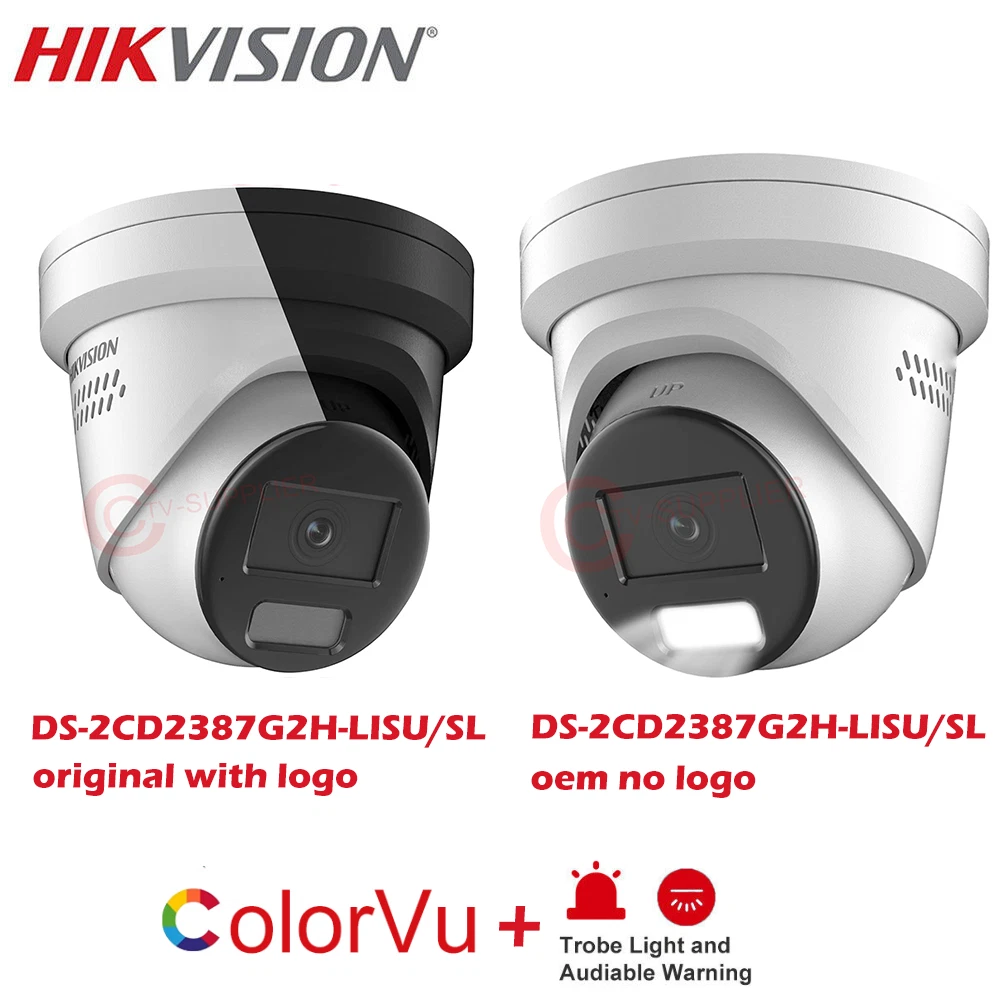

HIKVISION DS-2CD2387G2H-LISU/SL 8MP White Black IP Camera PoE Sound Light Alarm

Description

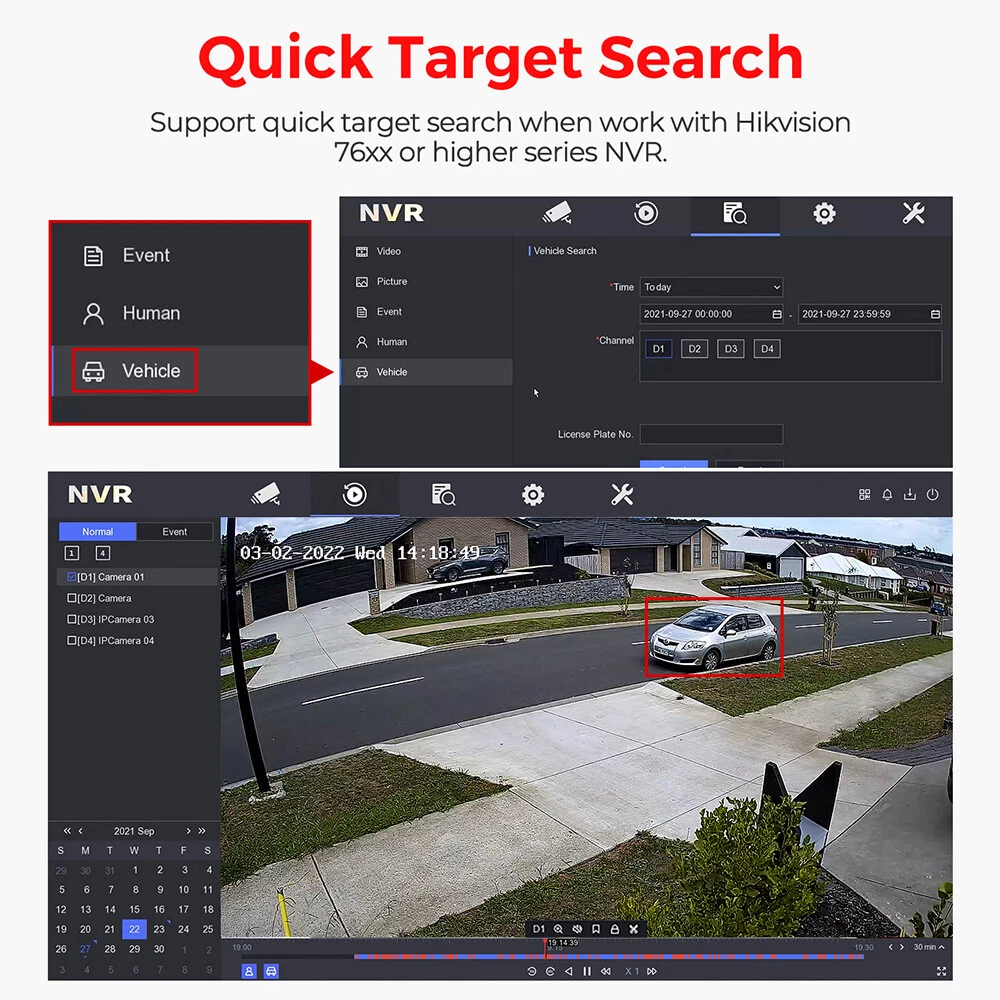

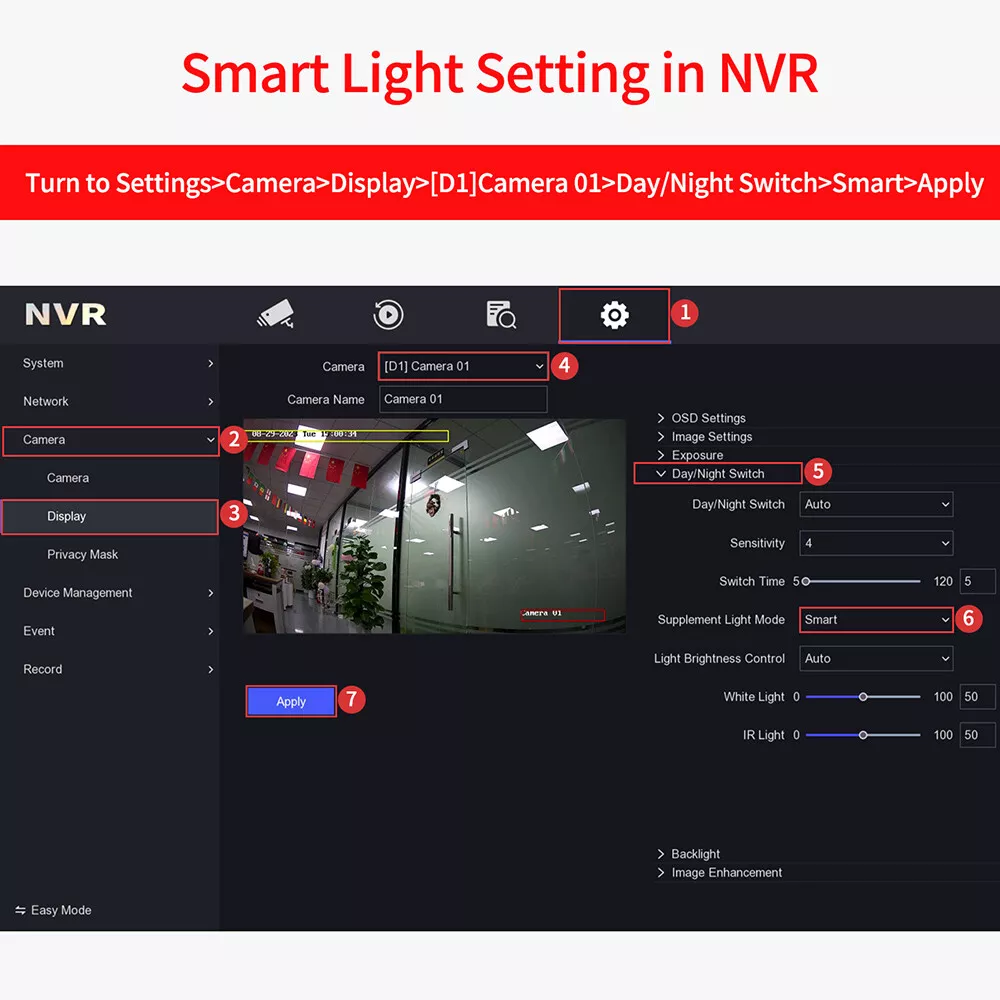

1 OEM Version no logo 8 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera High quality imaging with 8 MP resolution Smart Hybrid Light: advanced technology with long range Clear imaging against strong back light due to 130 dB WDR technology Efficient H.265+ compression technology Focus on human and vehicle classification based on deep learning Provide real-time security via built-in two-way audio Active strobe light and audio alarm to warn intruders off Support on-board storage up to 512 GB (SD card slot) Water and dust resistant (IP67) Audio and alarm interface available Camera Image Sensor 1/1.8" Progressive Scan CMOS Max. Resolution 3840 × 2160 Min. Illumination Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2° Lens Mount M16 Iris Type Fixed Aperture F1.0 Depth of Field 2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞ DORI DORI 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m Illuminator Supplement Light Type IR,White Light Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength 850 nm Video Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 1 fixed region for main stream and sub-stream Audio Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Type Mono sound Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP User/Host Up to 32 users 3 user levels: administrator, operator, and user Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) Client iVMS-4200,Hik-Connect Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Image Image Parameters Switch Yes Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Day/Night Switch Day,Night,Auto,Schedule Image Enhancement BLC,HLC,3D DNR,Defog SNR ≥ 52 dB Wide Dynamic Range (WDR) 130 dB Privacy Mask 4 programmable polygon privacy masks Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Built-in Microphone Yes,1 built-in microphone Built-in Speaker Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB. Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) Reset Key Yes Event Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light Smart Event Scene change detection Deep Learning Function Face Capture Yes Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) General Power 12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W Material Cover: metal, main body: metal Dimension Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") Package Dimension 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") Weight Approx. 820 g (1.8 lb.) With Package Weight Approx. 1316 g (2.9 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian Approval EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 Environment CE-RoHS: 2011/65/EU Protection IP67: IEC 60529-2013 💯 Payment All orders need to be paid in advance. 💯 Shipping Detail Please make sure that your Recipient Information includes your Phone Number . And please make sure the Address and Post Code is correct , if you want to change your shipping address, please email us in time. We are not responsible for wrong or undeliverable address. Your patience for International Shipping Order will be highly appreciated. 💯 Feedback We have always been trying to provide the best service and reliable products for every customer, however, accident may happen sometimes, please contact us to resolve any issue before leaving a negative feedback. We greatly appreciate your POSITIVE Feedback . Please do NOT leave negative feedback without asking for help. If you have any question , you can send message to us , we will try our best effort to solve it. 💯 About us We sincerely hope you like the item and are satisfied with our customer services. Your support and recognition will be our great motivation in developing our business and serve you better on eBay. Hope you had a great shopping experience in our store! Expect to have more opportunities to work with you!
