HY-D23130 Water Dispenser Pump Self Priming DC 12V 1.6 LPM 35 PSI Replacement Pa
$ 22.27
Description

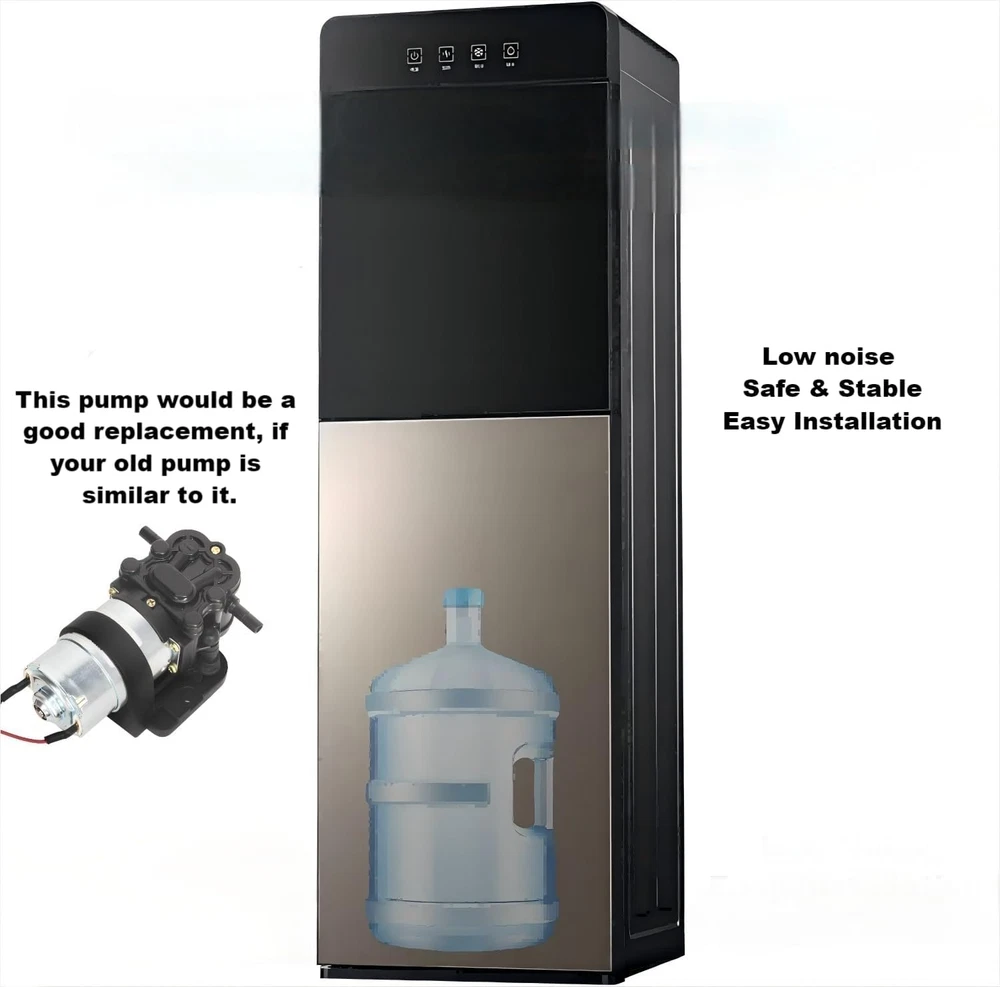

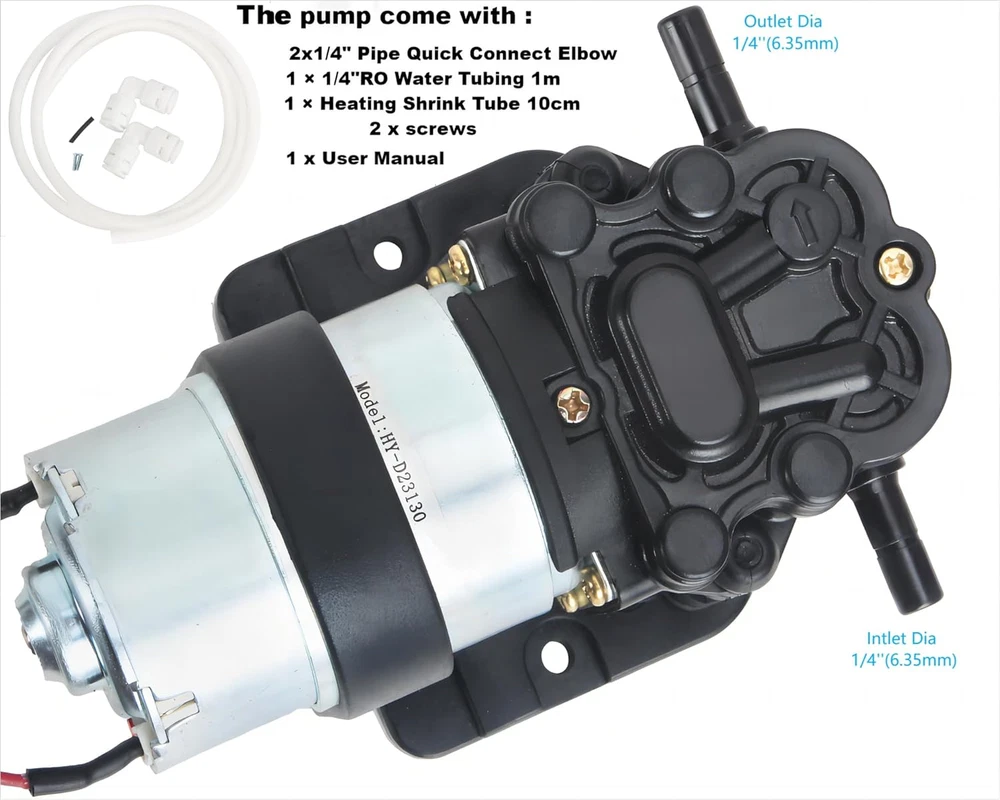

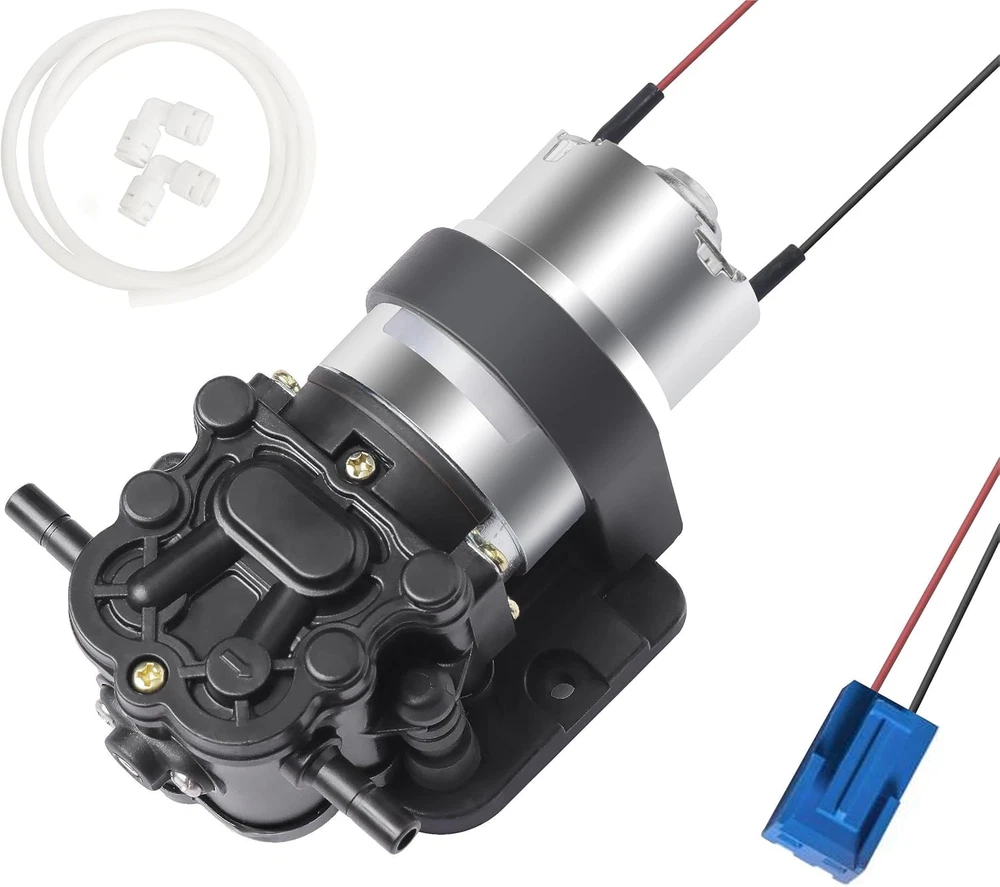

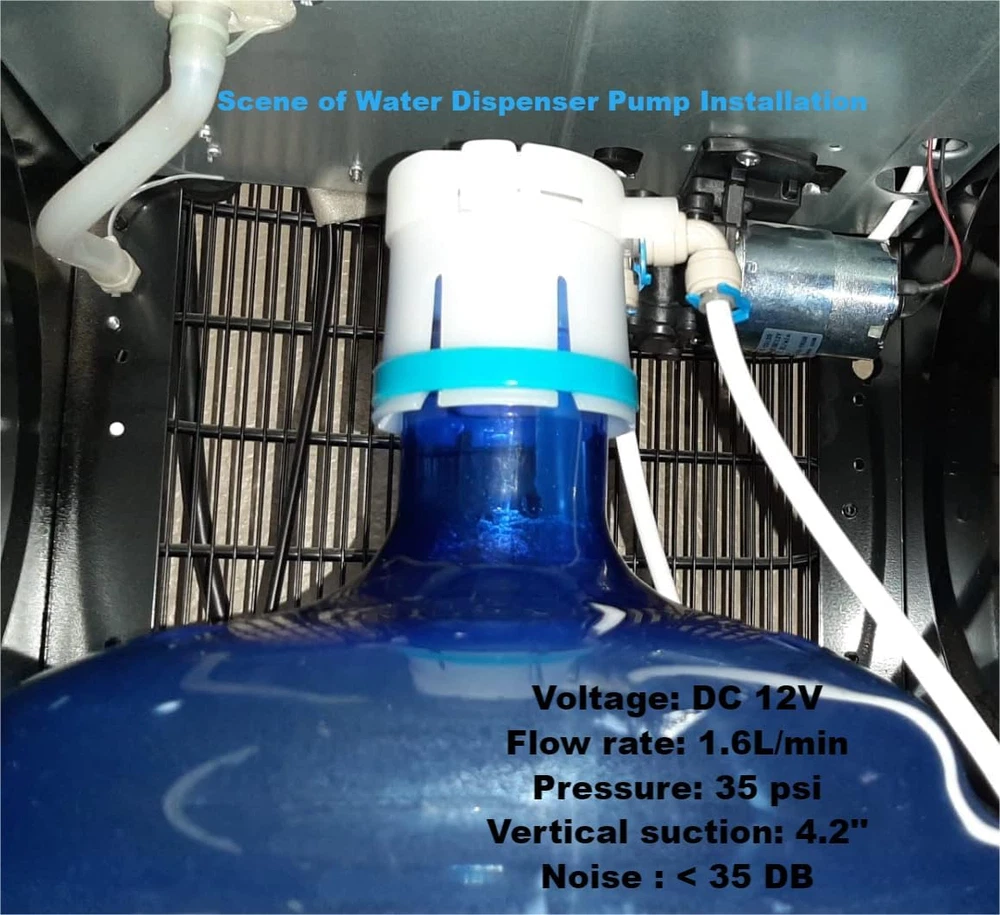

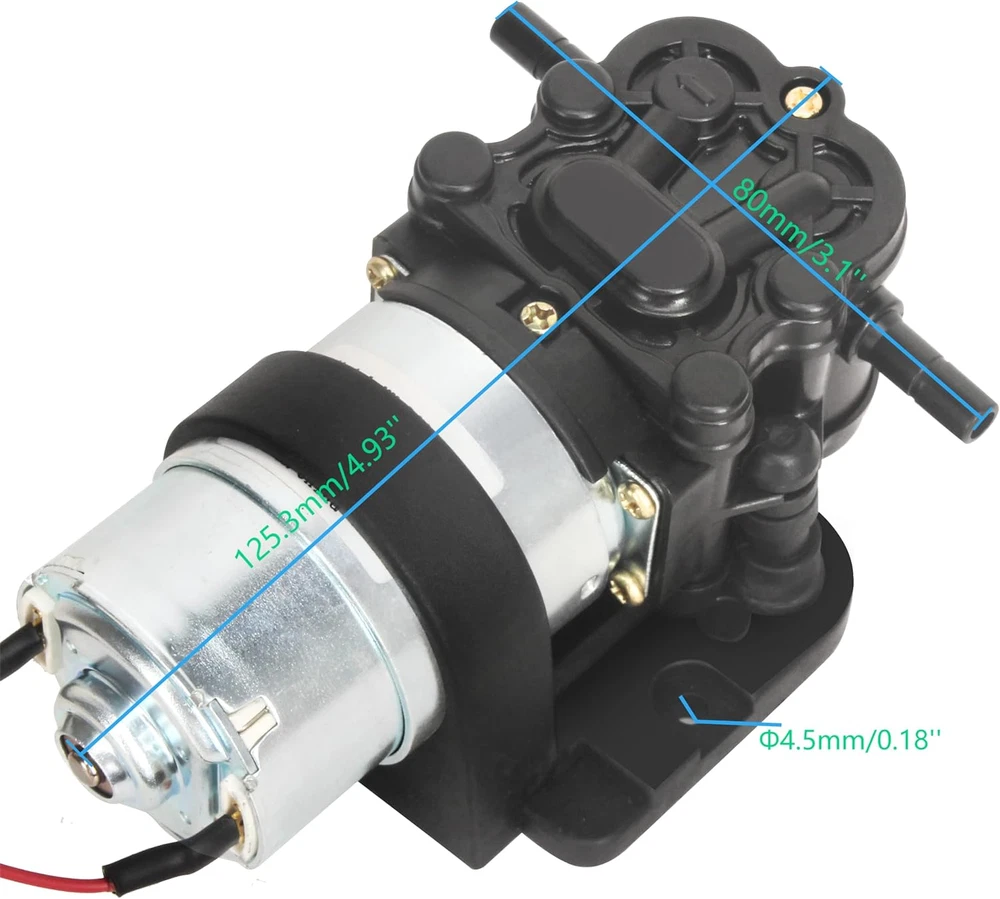

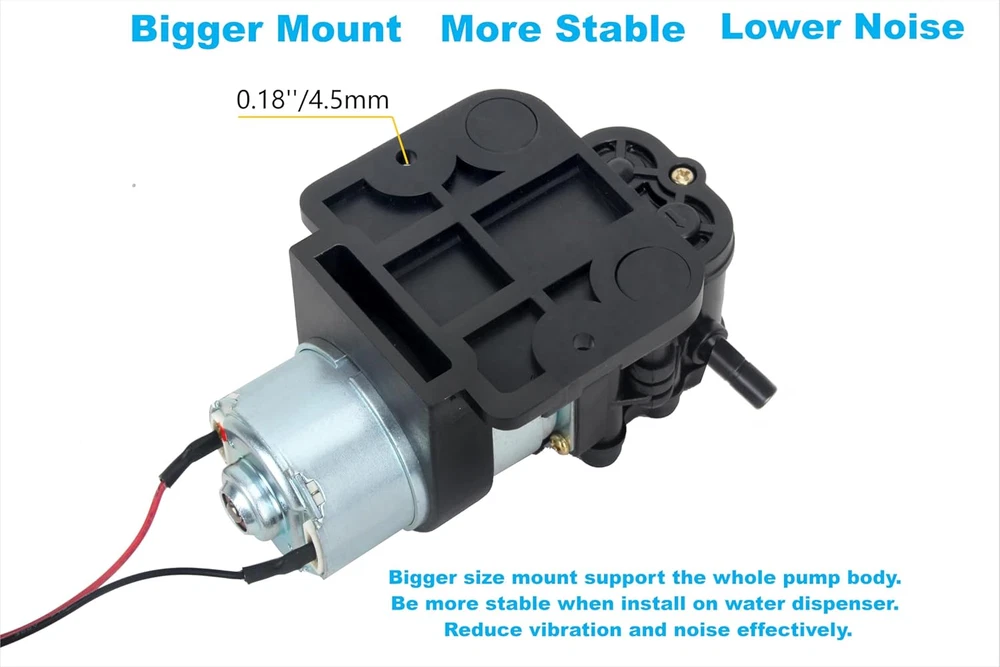

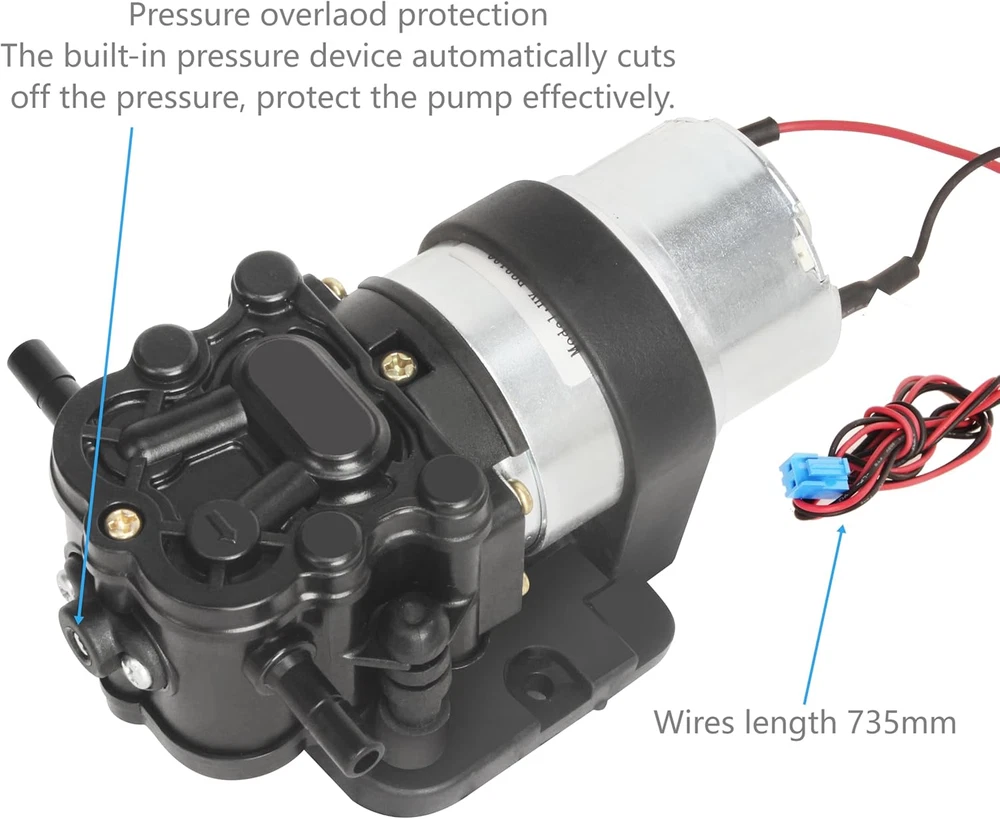

Rated Volt: DC 12V, Max flow rate: 1.6L Pressure: 35 psi. It doesn't mean 1.6L/min at 35PSI.Self priming function allows it to be mounted above water tank, Vertical Suction Lift: 3.3ft (1m). Amp Draw 0.35-0.5A Please do not use AC power source. This water dispenser pump come with pipe quick connect elbow, RO water tubing,heating shrink tube and screws. Full accessories make the installation easily.Inlet and Outlet: 1/4’’ . Size: 4.93’’x 3.1’’ x 2.38’’. Item weight: 500 grams Pump with self-priming function: Max. Vertical Suction Lift: 6.5ft(2m). Max. Flow: 1.6LPM, Head(High Lift):≥100ft (30m). Built-in pressure valve automatically shut-off when the pressure exceed. Bigger size mount support the whole pump body, more stable when install on water dispenser, reduce vibration and noise effectively. Please connect the water pump correctly. Red wire for positive pole and black wire for negative pole. Product Description DC 12V Water Dispenser Pump This water dispenser pump has self priming function, it is specially designed for bottom-loading Water Dispenser, Water Coolers, Water Purification , Hot & Cold Water Dispenser, Refrigerator, Ice Maker, Coffee Machine, Fish tank. Why do I choose it? Easy insatllation Stable performance Food Grade, Long life This water pump has built-in pressure valve automatically shut-off when the pressure exceed. Protect the pump and avoid damage to water dispenser. High-quality motor ensure durable and stable work. Low heat: The pump can work continuously for a long time and won't be hot. Safe Food Grade, Stable performance, Long life Rated Volts DC 12V Amp Draw 0.35-0.5AMP Max Flow rate 1.6 L/min Pressure 35PSI Vertical Suction 4.2ft (1.3m) Working Temperature Range 0~70°C /32~158°F Noise <35DB Inlet/Outlet 1/4" (6.5mm) Pressure Over-load Protection Built-in pressure valve automatically shut-off when the pressure exceed. Effectively protect the water dispenser and pump and avoid leakage caused by excessive pressure. Bigger Mount More Stable Lower Noise Bigger size mount support the whole pump body, more stable when install on water dispenser, reduce vibration and noise effectively. Full Range of Accessories Easy to Install The pump come with qucik connect elbow, silicone tube,screws and heat shrink tubing for your easy and quick installation on water dispenser. Package Includes: 1 x Water Dispenser Pump 2 × 1/4" Pipe Quick Connect Elbow 1 × 1/4"RO Water Tubing 1m 1 × Heat Shrink Tube 2 x screws 1x manual Easy Replacement for Your Drinking Water Equipment This pump will be a good replacement if your water dispenser's old pump is similar to it. It is quite and durable, give more smooth operation on your water dispenser. Warm Tips: Before make deicision, you may check the pump size , voltage, flow rate , loading current , suction lift and flow head. If they are simialar to your old pump. It should be a good replacement for your water dispenser. Please connect the pump correctly. Red wire for positive pole and black wire for negative pole. If the connector of leads is same, just plug in the connector of water dispenser. If not ,cut the power cord from old pump and connect it to the new one. It is better to leave the red wire and black wire about an inch from the new pump. Please try to keep the pump stable when install. Improper installation may generate vibration and noise during operation. The pump can not run continuously more than 6 hours.
