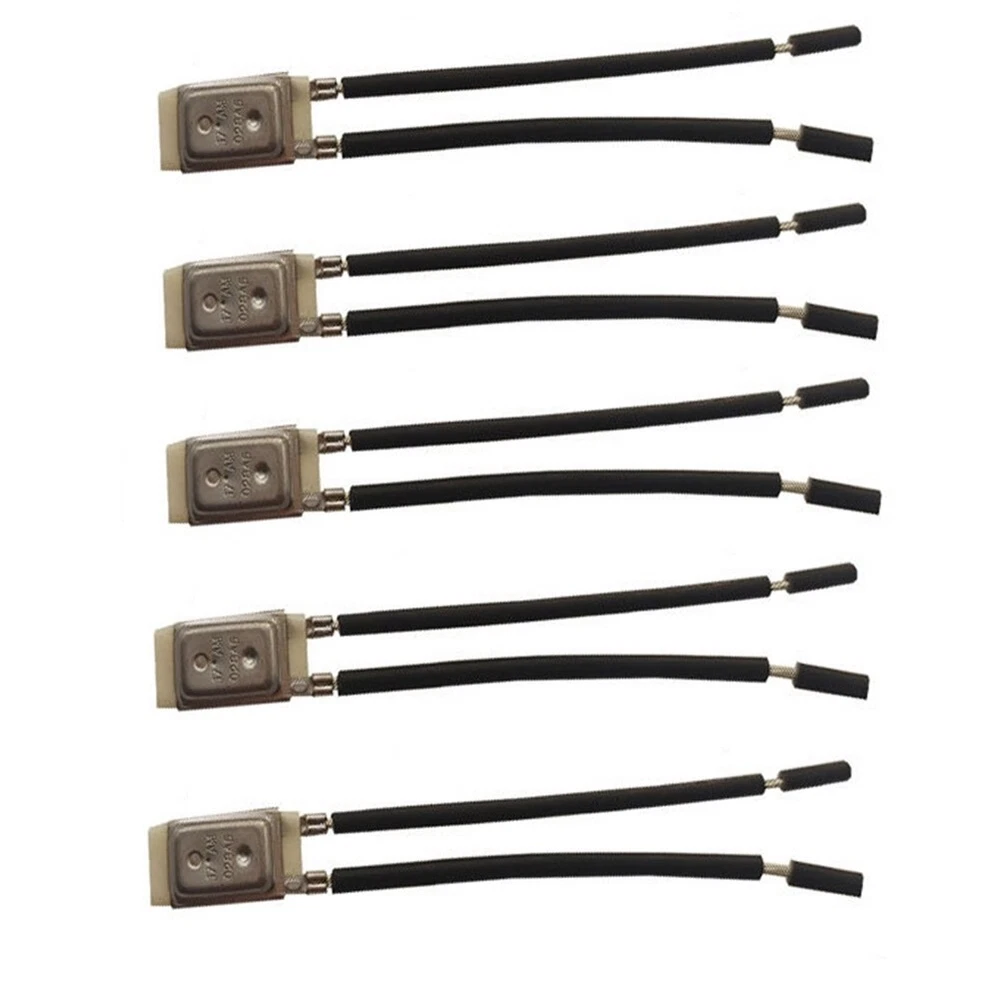

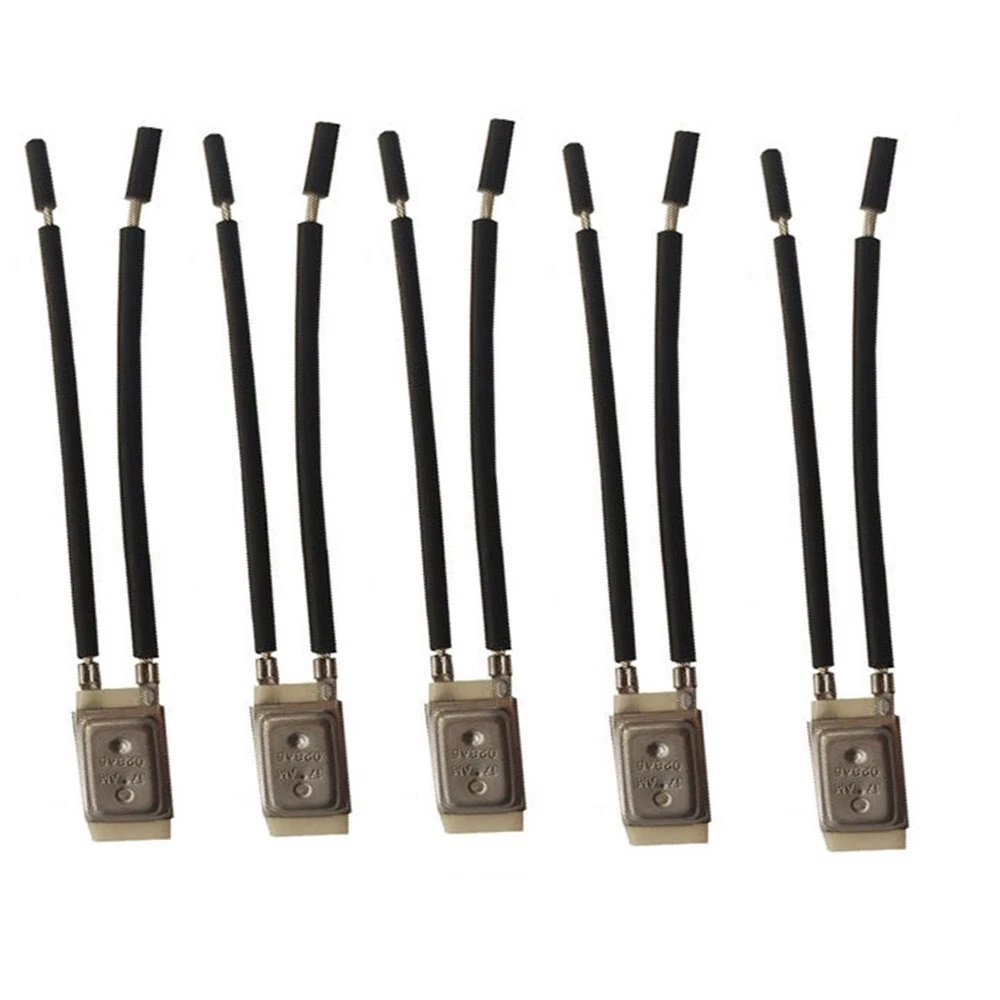

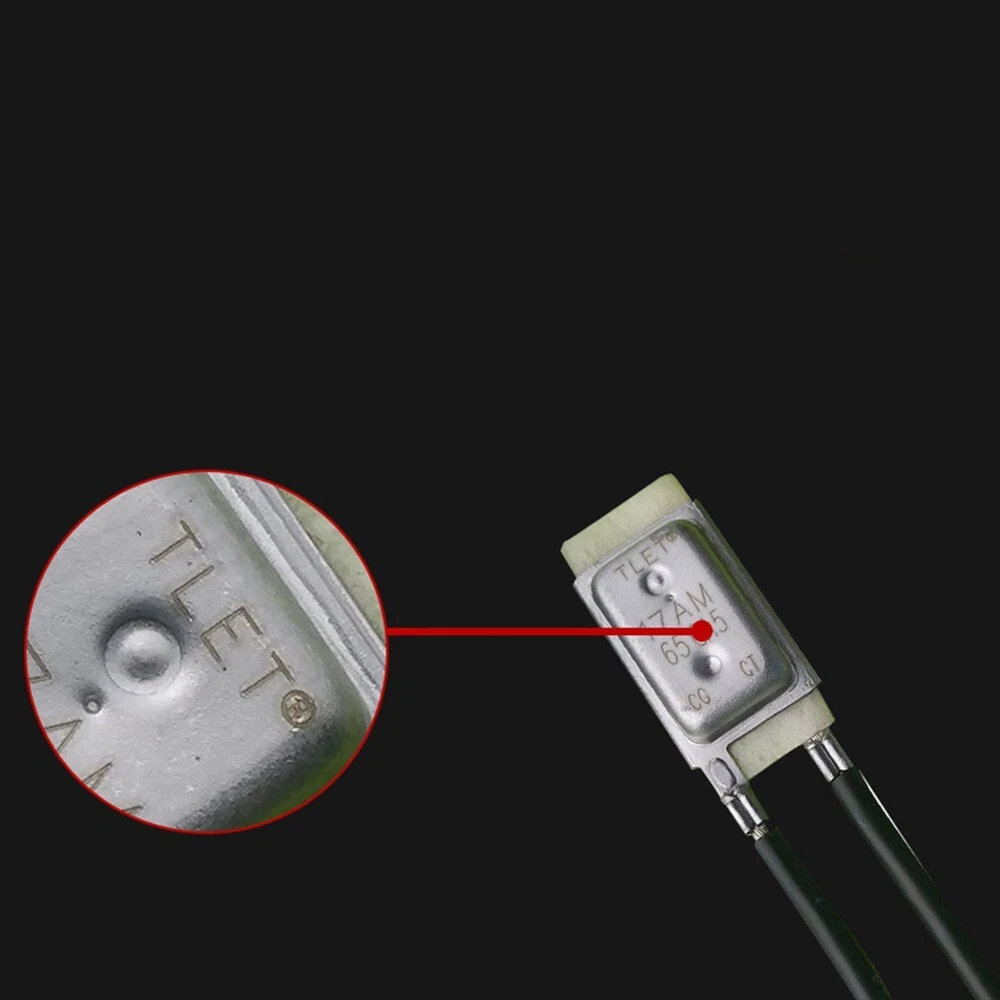

High Performance Temperature Controller Set of 5 for Electrical Safety Needs
$ 4.16
Description

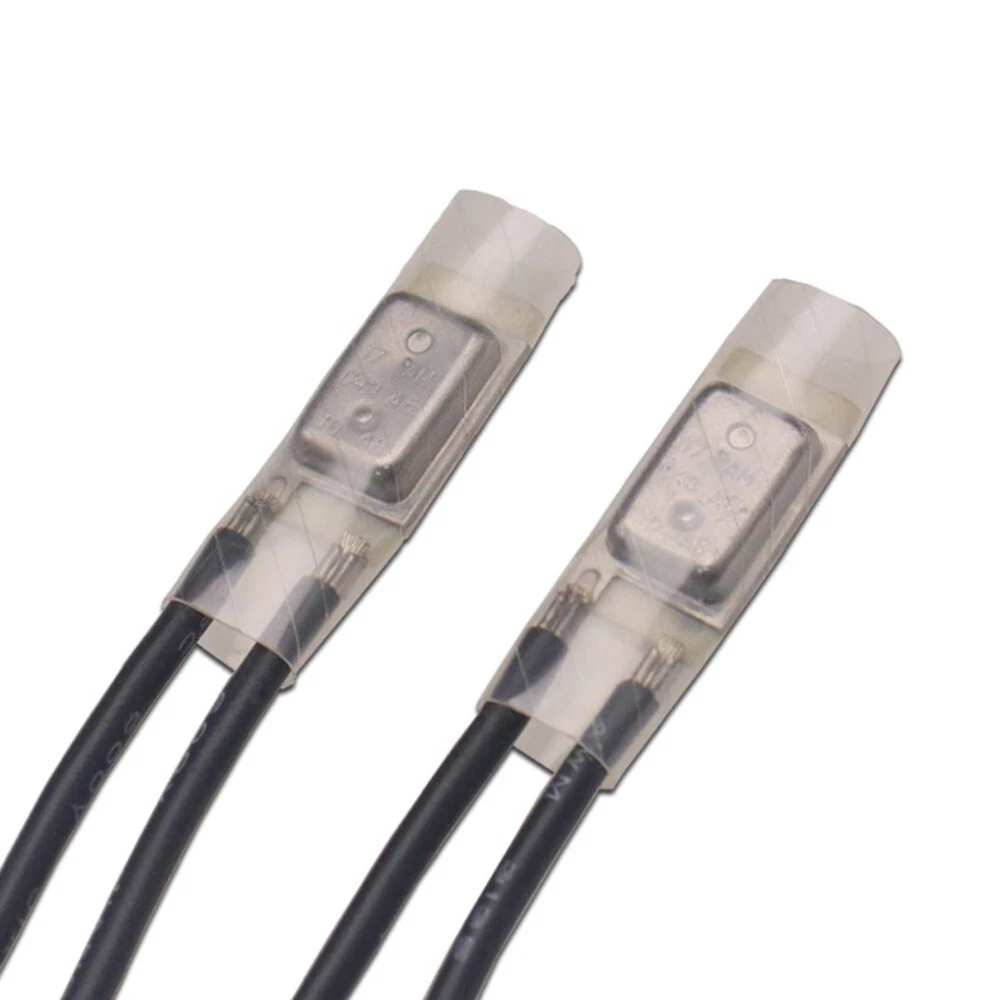

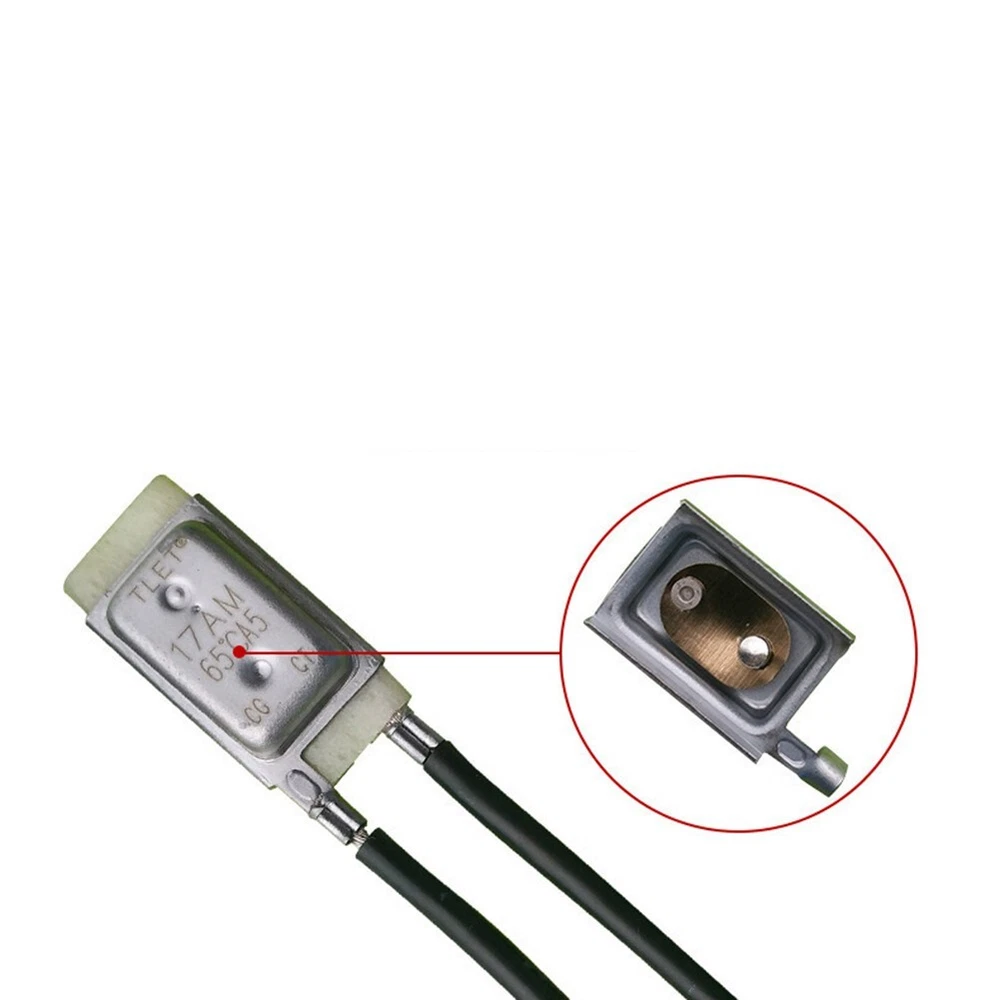

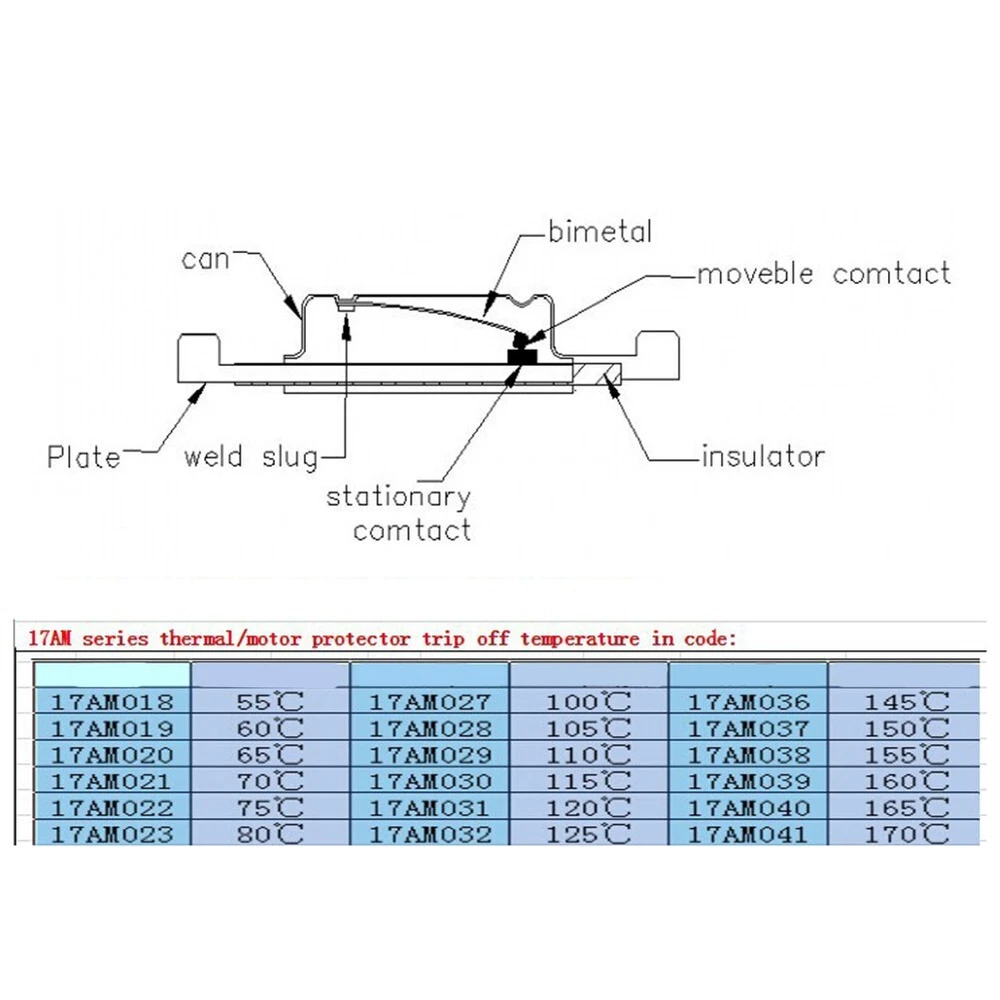

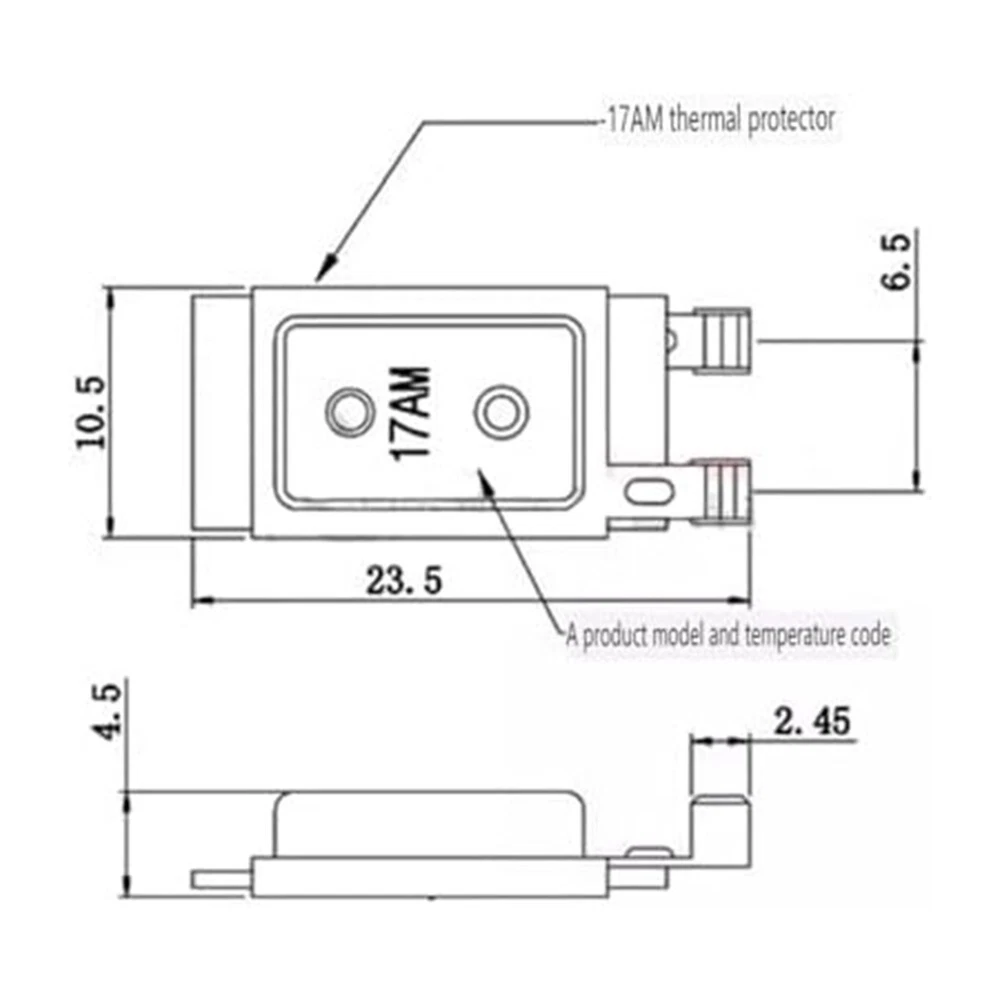

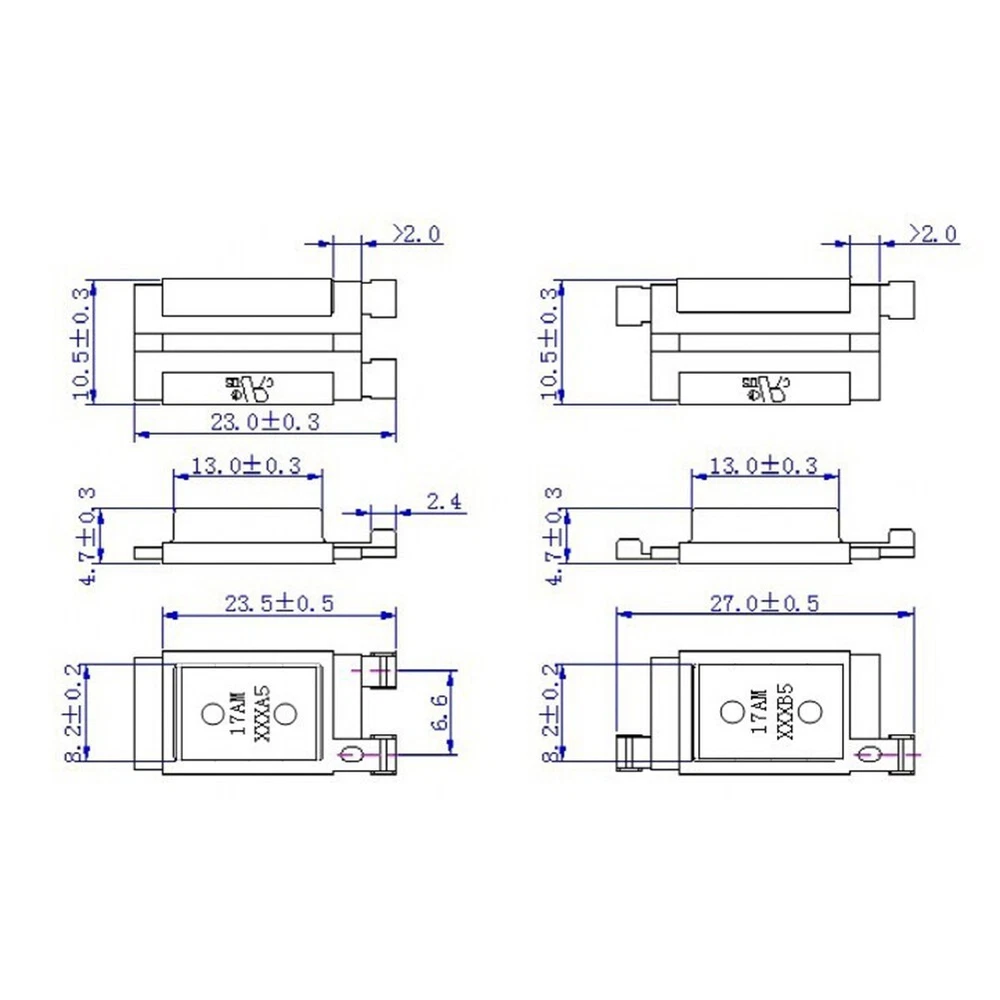

High Performance Temperature Controller Set of 5 for Electrical Safety Needs DESCRIPTION Features: Temperature switch The temperature control switch is an over-temperature and over-current protector with a small size, large contact capacity and fast jumping action. Motor size is less than 1HP; Applied to ballasts of fluorescent lamps; Transformers; Lighting fixtures; Automobile engines; Seafood machines; Daily electrical appliances; Tropical blankets and electric blankets Specifications: Part name: Temperature switch Material: Stainless steel Color: Black Size: As shown in the figure (1) Product name: Thermostat (2) Product model: KSD9700 series (3) Product type: Thermal bimetallic strip jump type automatic reset thermostat (4) Product model meaning: KSD9700-口口口/05P(C) Shell material is Metal Casing material is plastic Working current (5) Operating temperature range: 40-150℃ (each 5℃ interval is 1 level) Operating temperature (6) Operating temperature tolerance: ±5℃ (7) On-off temperature difference: 10-50℃ (8) Electrical performance: AC.250V.50-60Hz.5A (9) Contact resistance: not more than 100m (length is less than 80mm) (10) Normal insulation resistance: greater than 2MQ (DC500 megohmmeter) (11) Normal electrical strength: AC1500V150-60 Hz. No breakdown or flashover for 1 minute (12) Contact state: Normally closed (temperature rises, contacts open; temperature drops, contacts close) (13) Contact form: single-pole single-throw (14) Action type: 1B (15) Durability: 10,000 times at rated current of resistive load. (16) Heat resistance: The installation temperature does not exceed 120% of the operating temperature. (17) Structure: built-in (18) Implementation standard: GB14536.1-1998, GB14536.10-1996 Package Content: 5× temperature switch Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data. POLICES Shipping Payment WARRANTY We only ship to confirmed ebay Order addresses. Please comfirm that your Order address is in line with your shipping address. Please kindly note that the c ombined shipping is not provided because the shipping fee is calculated by weight. Also, the each additional item means exactly the the same color and size. It takes about 7 -15 working days to US; about 10-30 working days to other countries. Transit time may be a little delayed because of the bad weather and customs inspection . If you do not receive your item within 30 working days since payment finished, please contact us immediately for further assistance. Payment must be completed within 5 days. If you have any problems about payment, please contact us via ebay message. We strive for 100% customer satisfaction! Positive Feedback is very important to us. If you have any questions, p lease feel free to contact us via "Ask seller a question" . We will reply your email within 24 working hours.
