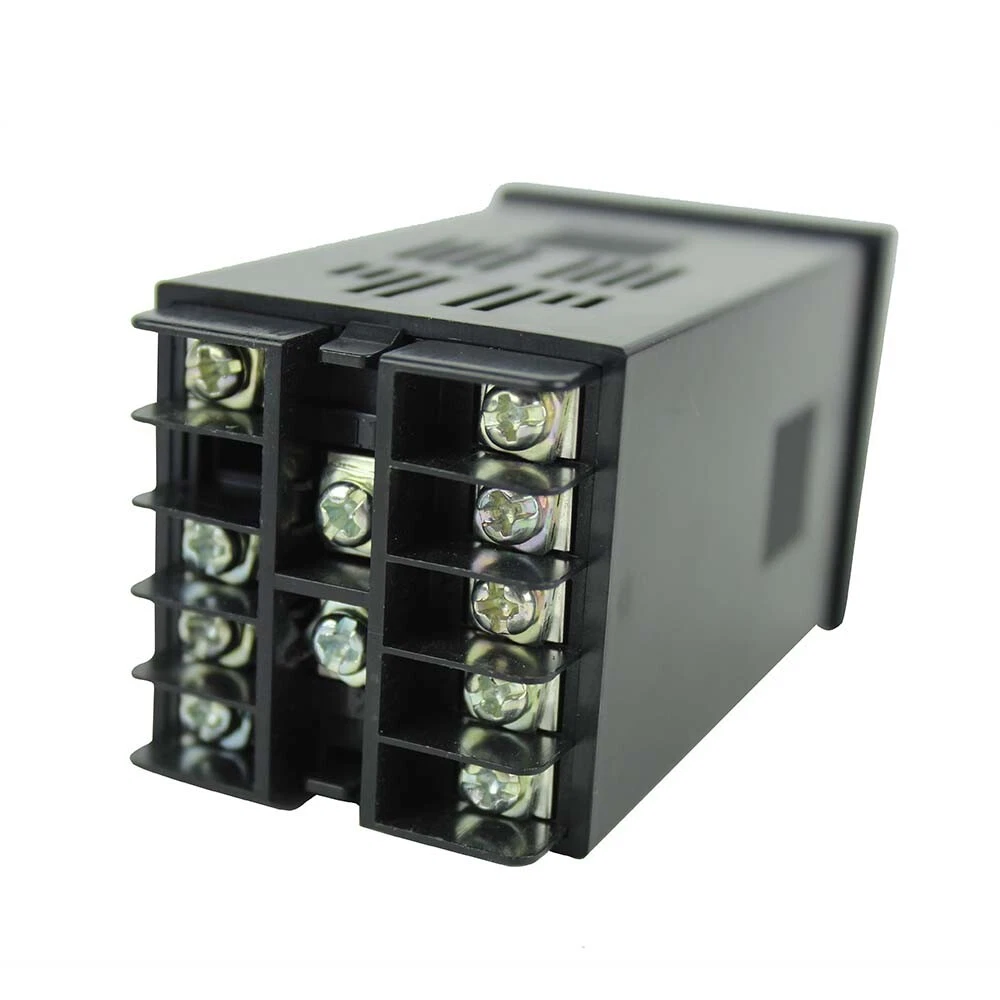

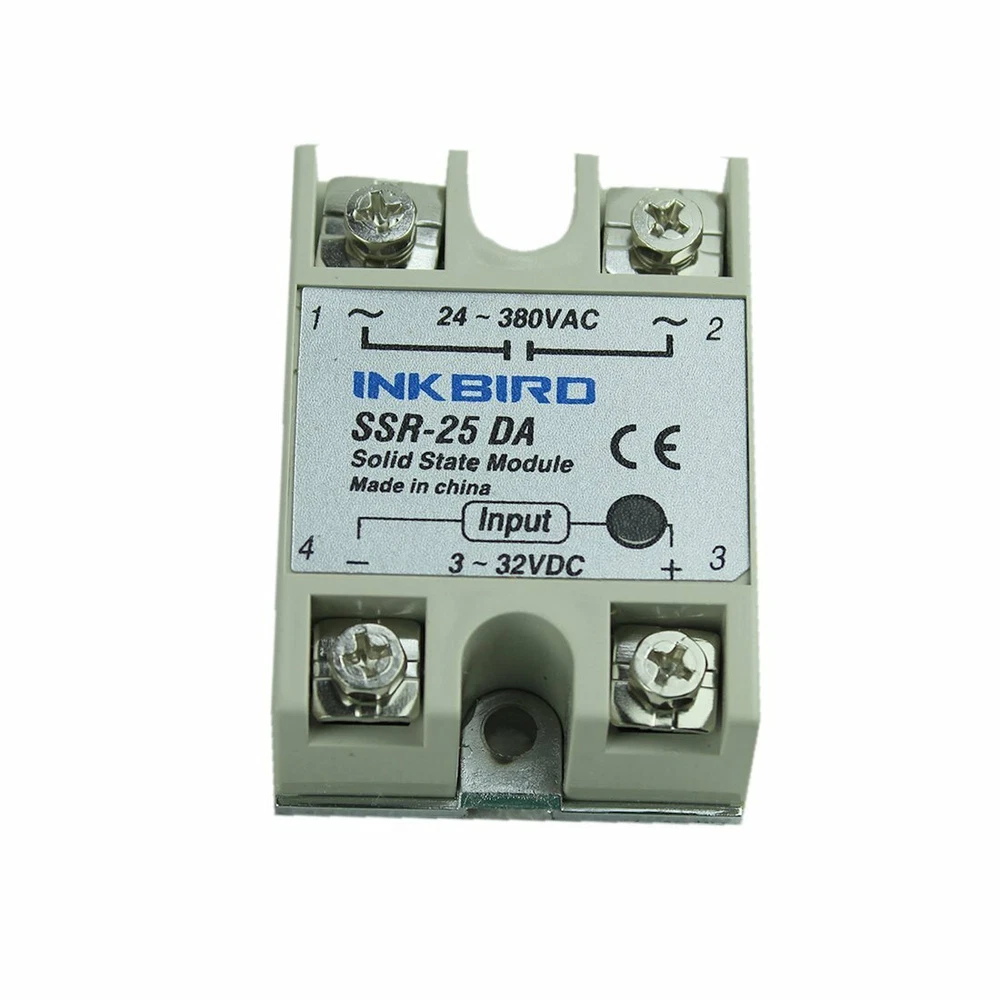

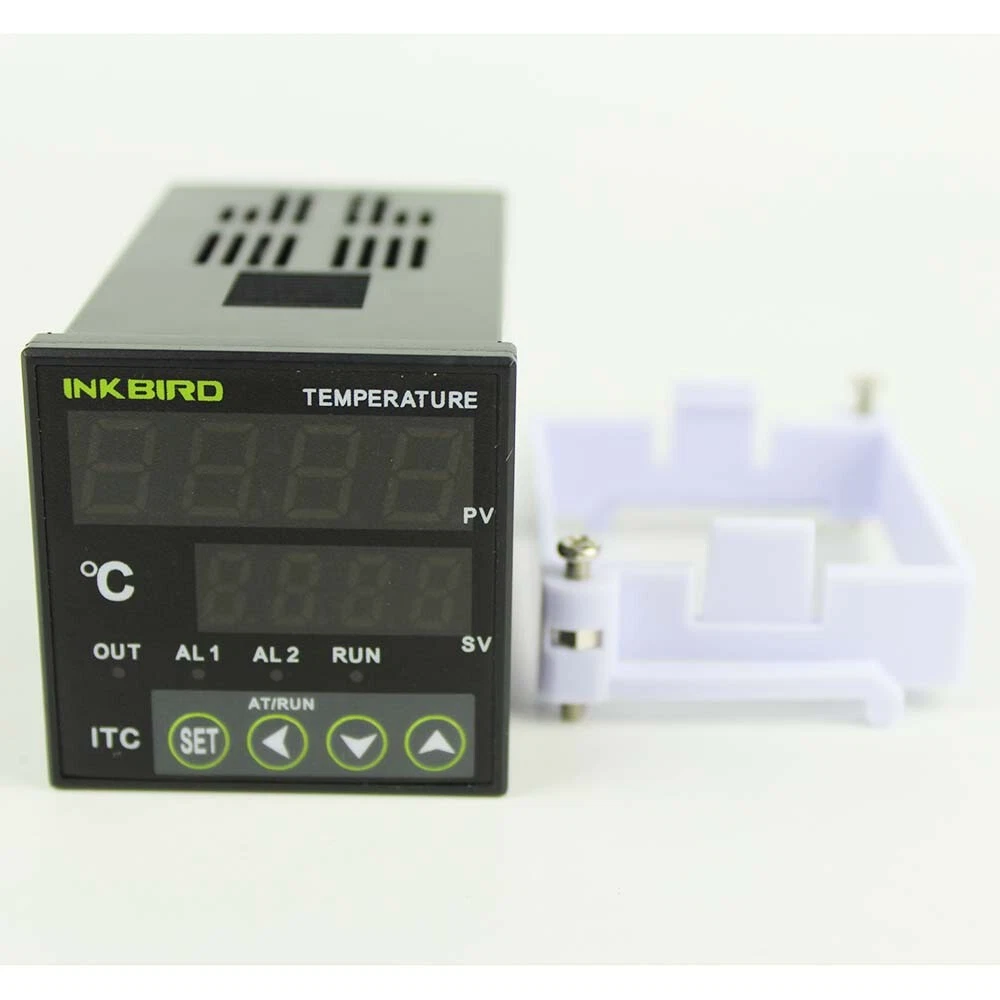

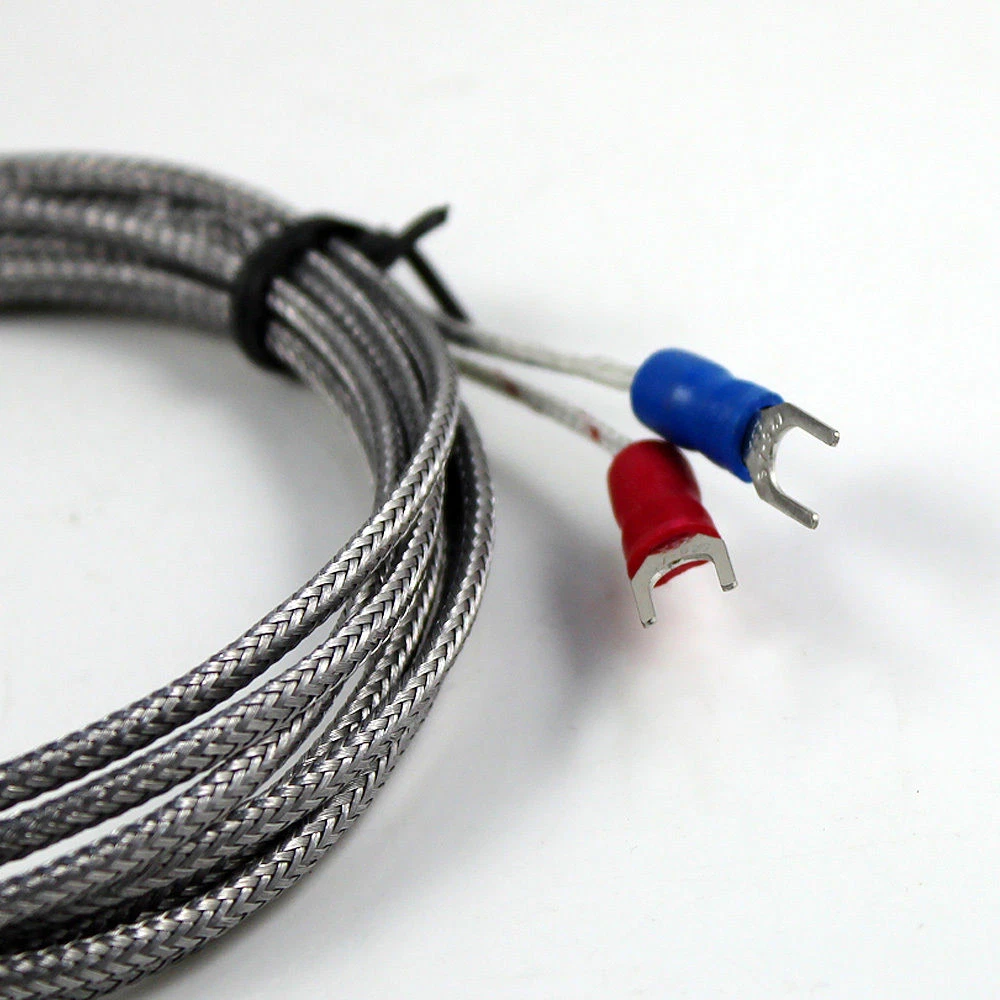

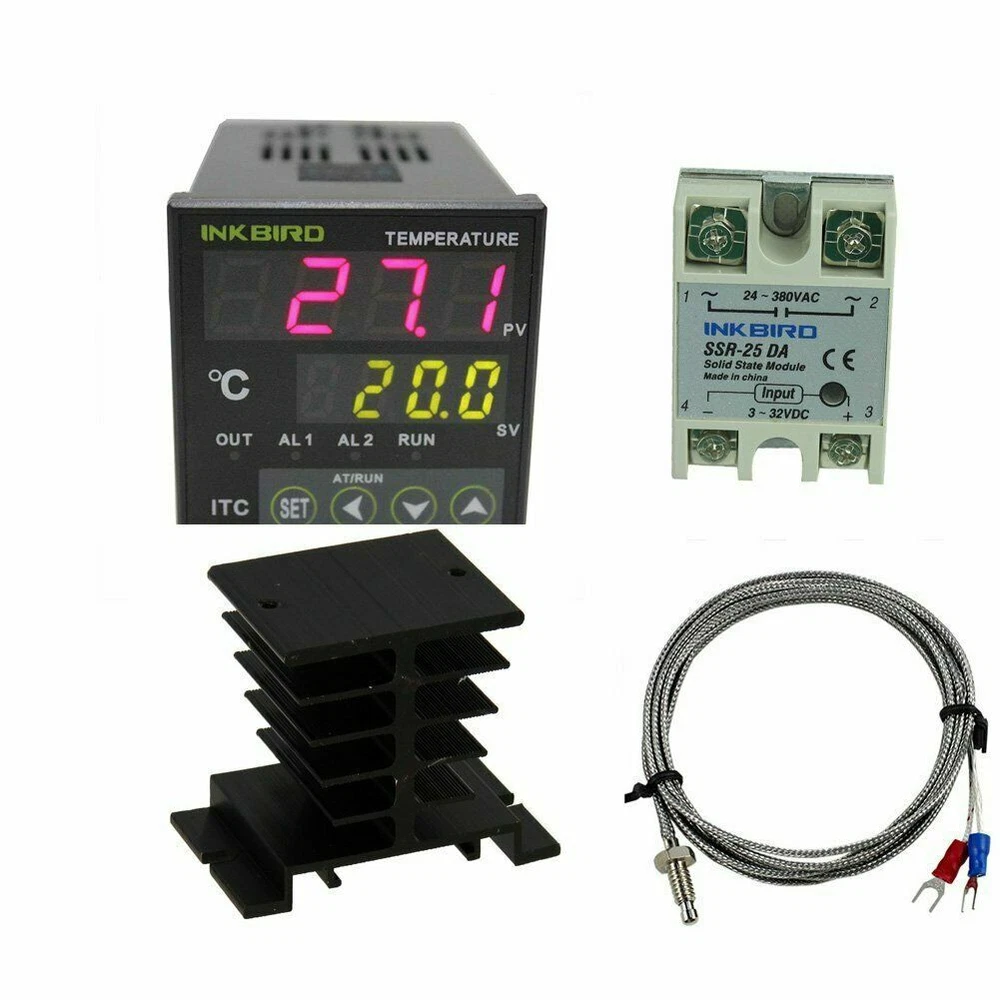

Inkbird 110V~240V PID Temperature Controller Thermostats 25DA SSR K Sensor Probe
$ 18.18
Description

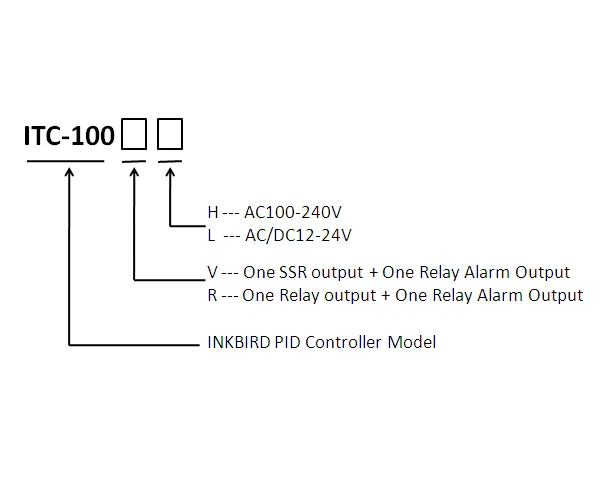

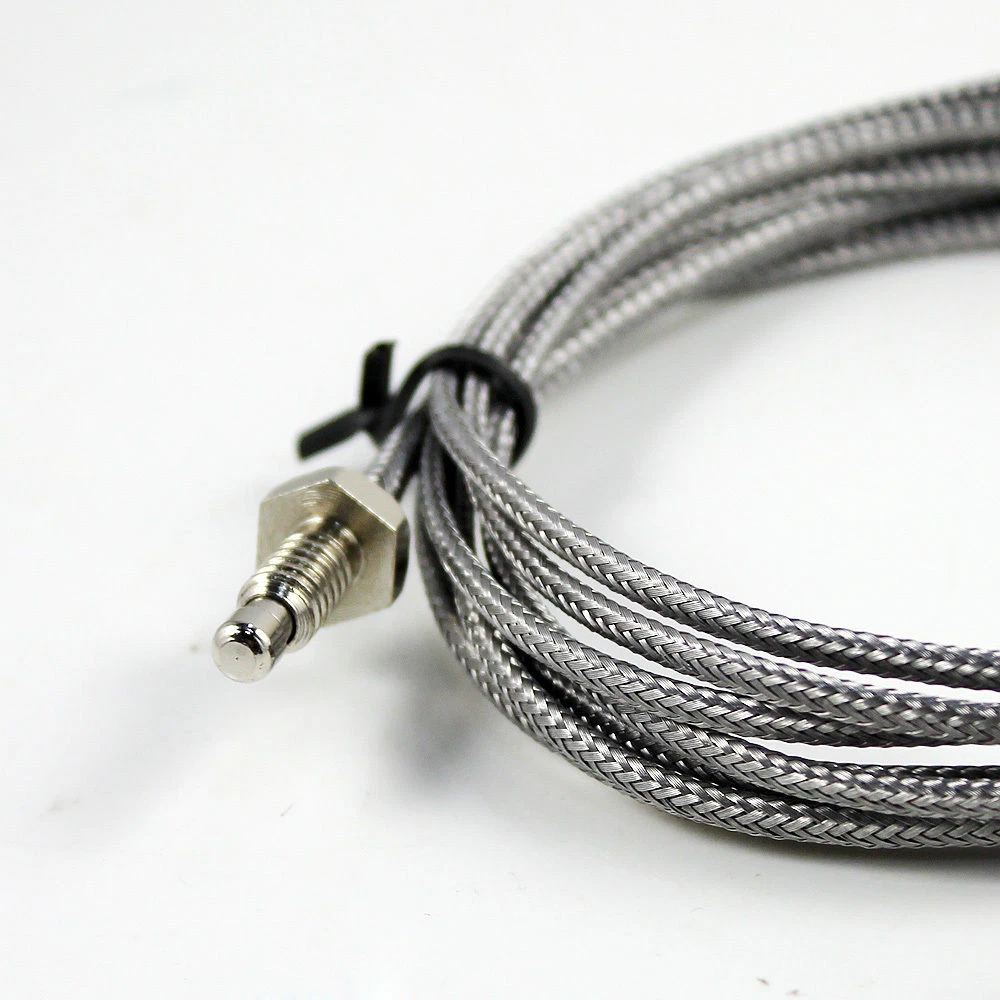

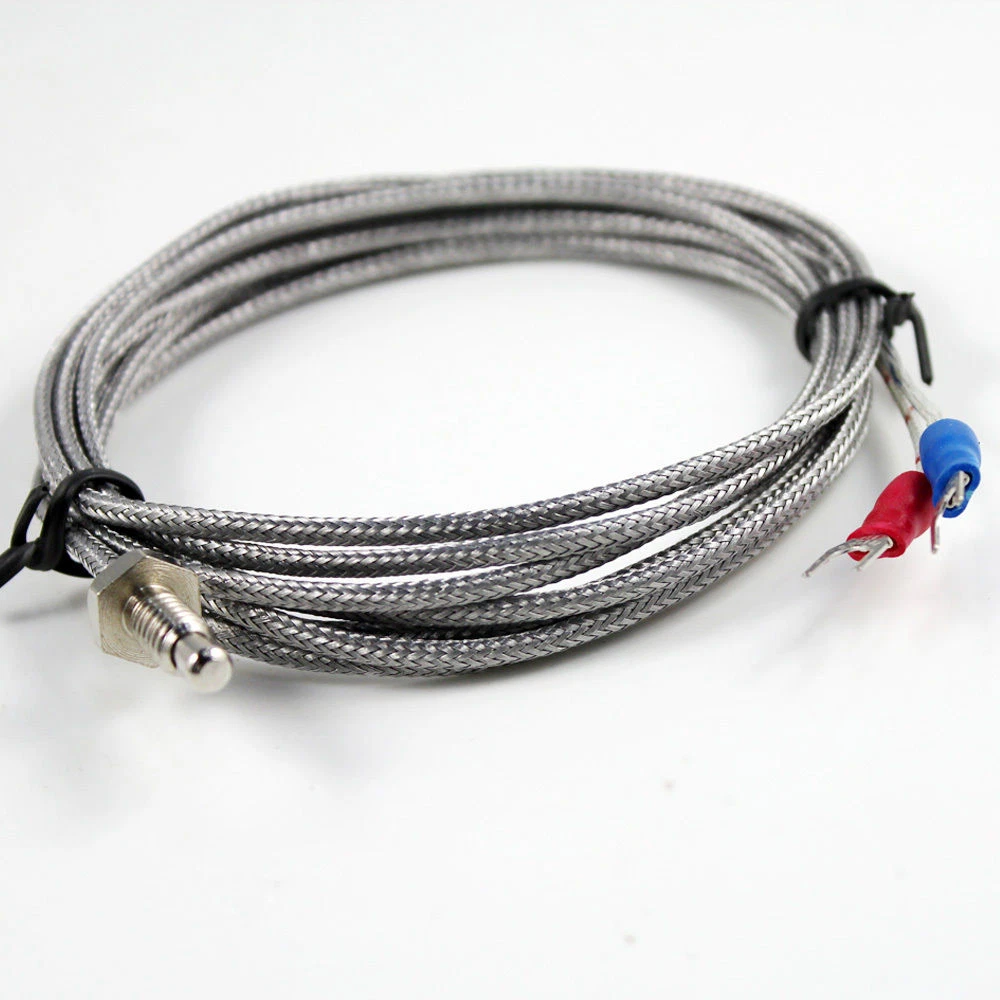

ITC-100VH One SSR Output + One Relay Alarm Output 100V-240V AC Warranty: 1 Year Main Features: ●Front Panel Dimension: DIN (48WmmX48Lmm), Cutout size: 45x45mm ●Support Multiple Thermocouples and Resistance Sensors (K, S, Wre, T, E, J, B, N, CU50, PT100) ● Wide Controlling Range: -50～1300ºC(Please note the k sensor temperature range: 0~400℃) ●Power Supply Voltage: AC 100-240V ±10% 50/60Hz ●Main Output: Voltage Pulses Output (ITC-100V): DC 12V, 30mA; Alarm 1 AC250V 3A (Resistive load) ON/NC ● High Accuracy of Displaying and Controlling 0.1ºC, Accuracy of Measurement ±0.2%FS ● PID and ON/OFF Control Mode, High Standard Self-adjusting Function ● Multiple Outputs and Alarm Modes ● Build-in Adjustable Digital Filter Reduce Interference ● The Self-adjusting Function and Intelligent Control of the Instrument Ensure the Long-term Stability ● High Luminance, 0.39” height LED display, Anti-glare panel ● Built-in Switch Power Supply, Wide Voltage Range and Low-power Consumption Specification： ●Units: Degree Celsius (＜1000ºC) ●Operating voltage range: 85～110% Rated voltage ●Power Consumption: Approx. 5VA（100～240VAC） Approx. 4VA（12～24VAC） Approx. 3W（12～24VDC） ●Display Character: PV: 4 digital 9.9mm height Red LED Letters SV: 4 digital 8mm height Green LED Letters ●Display Accuracy: ±0.2%FS 0.1ºC(＜1000ºC)；1ºC(≥1000ºC) ●Period of Sampling: 0.5S ●Temperature Compensation: 0-50ºC ●Life Expectancy of Relay: Mechanical≥10,000,000 operations Electrical≥10,000,000 operations ● Weight: Approx. 140g ●Environmental Conditions: -10～55ºC(no icy or condensation), RH 35-85% Humidity ●Storage Temperature: -25～65ºC(no icy or condensation) ●Data Storage: 10year ●Mounting Method: Flush mounting and screw terminals K-Type Thermocouple Temperature Sensing For Temperature Controller . - Temperature rang : 0-400 ºC - Sensor Dia: 4.5mm - Cable Length: 2m(6.6ft) - External Shielding: Insulated Shielding - Internal Insulation: Fiberglass 25A SSR SOLID STATE RELAY for temperature controller About SSR: - A solid state relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. - The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. - A photo-coupled SSR is controlled by a low voltage signal which is isolated optically from the load. - The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. - The diode turns on a back-to-back thyristor,silicon controlled rectifier, or MOSFET transistor to switch the load. Features: - Reliable SMT technology - High ultra insulation resistance over 50Mω/500V DC - High dielectric over more than 2.5KV - Low enable current less than 7.5mA/12V DC, compatible with CMOS IC or TTL - Low EMI/EFI & surge by zero cross trigger method - High surge current over 410A/one cycle (60Hz) - High surge voltage duration by snubber circuit Specifications: - Load Voltage: 24-380VAC - Load Current: 25A - Input Voltage: DC 3-32V Package included: 1pcs × INKBIRD AC 220V Dual PID Digital Temp Controller ITC-100VH 1pcs × K Sensor 2M 1pcs × 25DA SSR SOLID STATE RELAY 1pcs × Heat Sink On May-27-21 at 01:18:10 PDT, seller added the following information:
