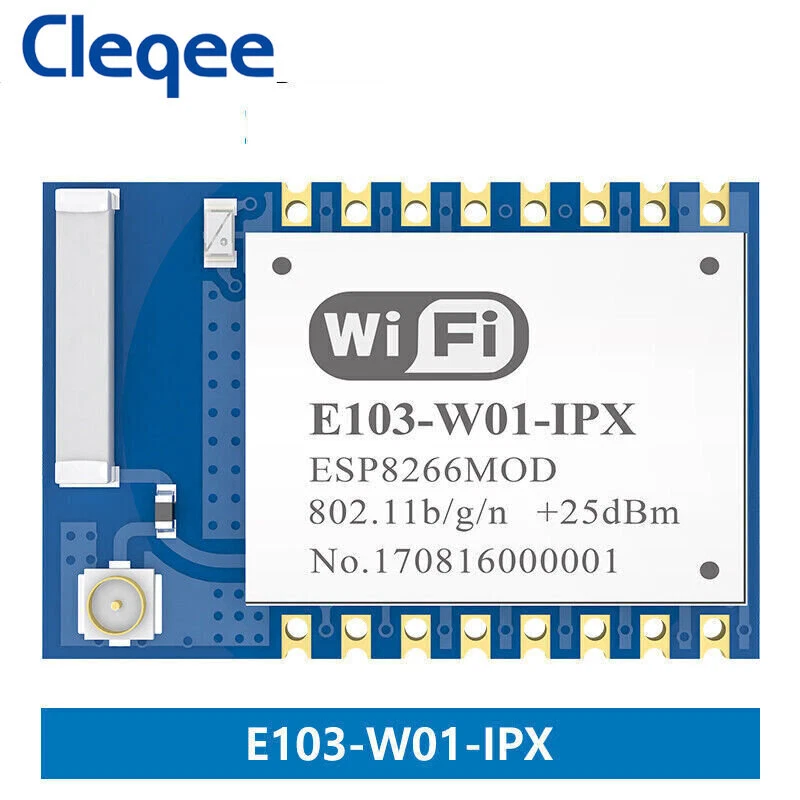

IoT ESP8266 Wireless UART-Wifi Module Transceiver 2.4ghz 20dBm WLAN E103-W01-IPX

$ 3.79

Communication interface: UART Antenna type: Ceramic antenna / IPEX Model: E103-W01-IPX Range: 100m Frequency: 2.4GHz Size: 16 * 24 mm Non-Domestic Product: No Type: WiFi Module IC: ESP8266EX Brand: Peakelect gtin13: Does not apply UPC: Does not apply Modified Item: No Power: 20dBm WiFi version: 802.11 b/g/n Country/Region of Manufacture: China MPN: Does Not Apply Custom Bundle: No

Description

IoT ESP8266 Wireless UART-Wifi Module Transceiver 2.4ghz 20dBm WLAN E103-W01-IPX RF Parameter Value Remark Working frequency 2402~2483 MHz Default: 2.4GHz Transmitting power 20 dBm About 100mW WiFi version 802.11 b/g/n Test distance 100 meter In open and clear air, with maximum power, 5dBi antenna gain, height of 2m Hardware Parameter Value Remark Size 16 * 24 mm Antenna type Ceramic antenna / IPEX 50Ω characteristic impedance Communication interface UART Package SMD Electronic parameter Min. Typ. Max. Unit Condition Power supply 3.0 3.3 3.6 V Communication level 3.0 3.3 3.6 mA Transmitting current 165 170 180 mA 20dBm（100mW） Sleep current 0.4 0.5 0.6 mA Operating temperature -40 20 +85 ℃ Operating humidity 10 60 90 % Storage temperature -40 20 +125 ℃
