LED Warning Light For Sliding Gate Opener Alarm Lamp Signal Flash Light 12-265V
$ 9.71
Description

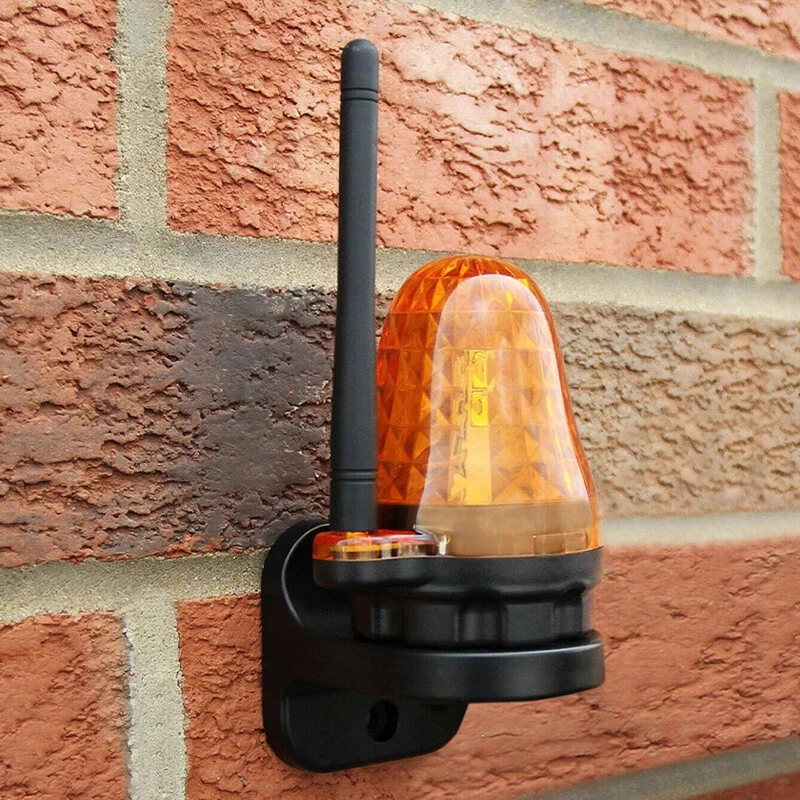

Product Description If you have any questions, please contact customer service first, do not open disputes easily, thank you! Safety Instruction: 1. For security, please read the user manual carefully before initial operation; 2. Please be sure the power is off before connecting, the product is produced without fuse; 3. This system must not endanger life or property during the running failure or its security risks have been eliminated. Notice: 1. Terminal 1 is for connectino thepower input; working voltage is 12-265VAC/DC. 2. Terminal 2 is for connecting the antenna of RF controller to extend the effective working distance. Instruction: 1. After power the lamp on, LED will start fashing in 1HZ(default setting). 2. sW1 is the switch for selecting flashing or on mode of the lamp.CAP short connectsthe 2 pins; the lamp is in flashing mode. Remove the CAP from 2 pins, the lamp is inon mode. 3. Be Careful, the whole board includes the components are with high voltage. Alwaysmake sure power is off before you open the cover Installation: 1. Open the package; take out the products and all the accessories. Removing the antenna by rotatinganticlockwise. 2. Mark 2 holes on the wall by using the fixing hole of bracket. 3. Drilling two 6mm diameter holes and one 10mm diameter hole. Then put the expansion plug intothe 6mm diameter holes. Put the wires through 10mm diameter hole. 4. Put the power wire and antenna through the cable holes in the holder. And fix the holder to thewall by provided 4mm*30mm self-taping screws. 5. Connect the wire and antenna to the correct terminals. 6. Put the cover back and make sure the cover is fastened with the bottom base without any gap.Then screw the antenna up and turn clockwise to make it tight. 7. Always install the holder and lamp upright to the ground. Horizontally installation may cause therain go inside the lam and damage the board. Specification: Operating voltage: 12-265V AC/DC Load capacity: 1.5W Flashing Frequency: 1 Hz Installation Vertical/Horizontal Operating temperature: -20°C~+60°C Waterproof rating: IP54 Size: 60*85 mm Package Includes: 1 Set*Flash Lamp Kit Note: 1. Please allow 1-3 mm error due to manual measurement. Please make sure you don't mind before ordering. 2. Please allow 1-3g weight error. Please make sure you don't mind before ordering. 3. Due to the lighting of the photos and the difference of monitors, the pictures may not reflect the actual color of the real item. Please make sure you don't mind before ordering, thank you! About Us We accept all payments authorized by eBay. About Us We accept all payments authorized by eBay. powered by
