Lot 50 Clear Lens Amber Light T-1-3/4 (5MM) 2.5V LEDs AllnGaP 1500MCD MVL-514UYL
$ 4.75
Description

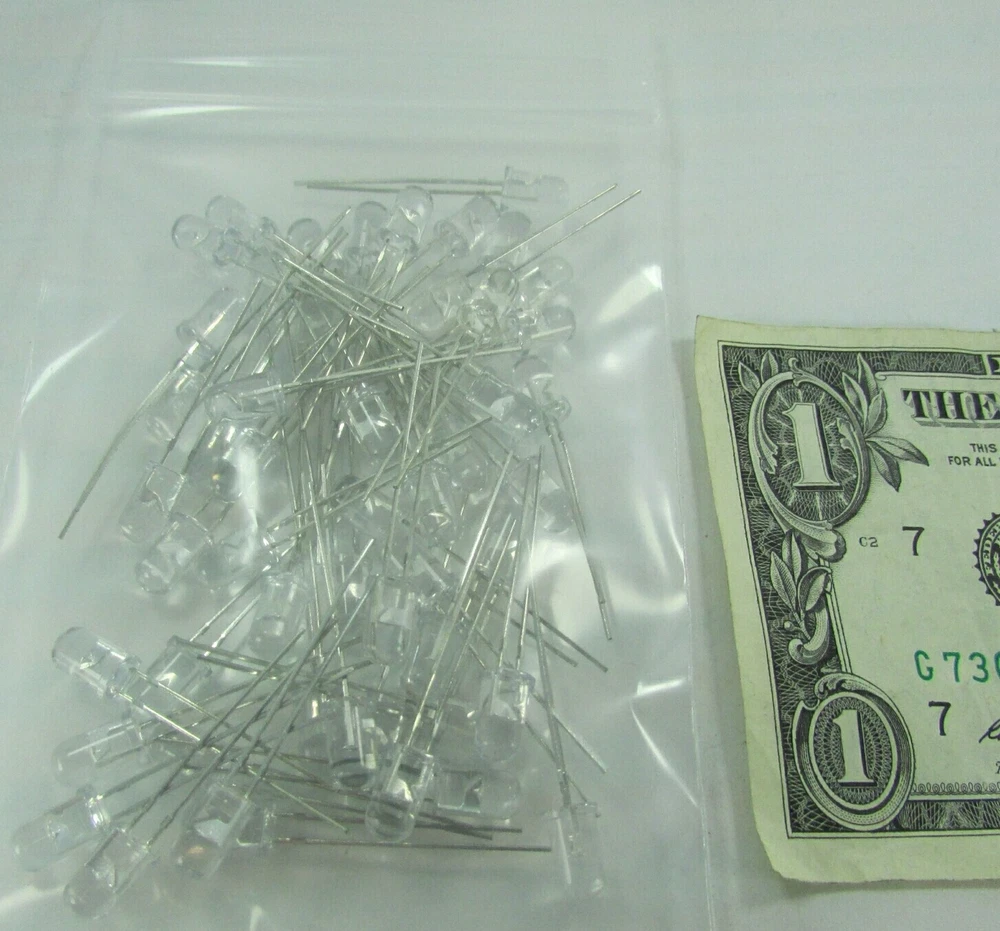

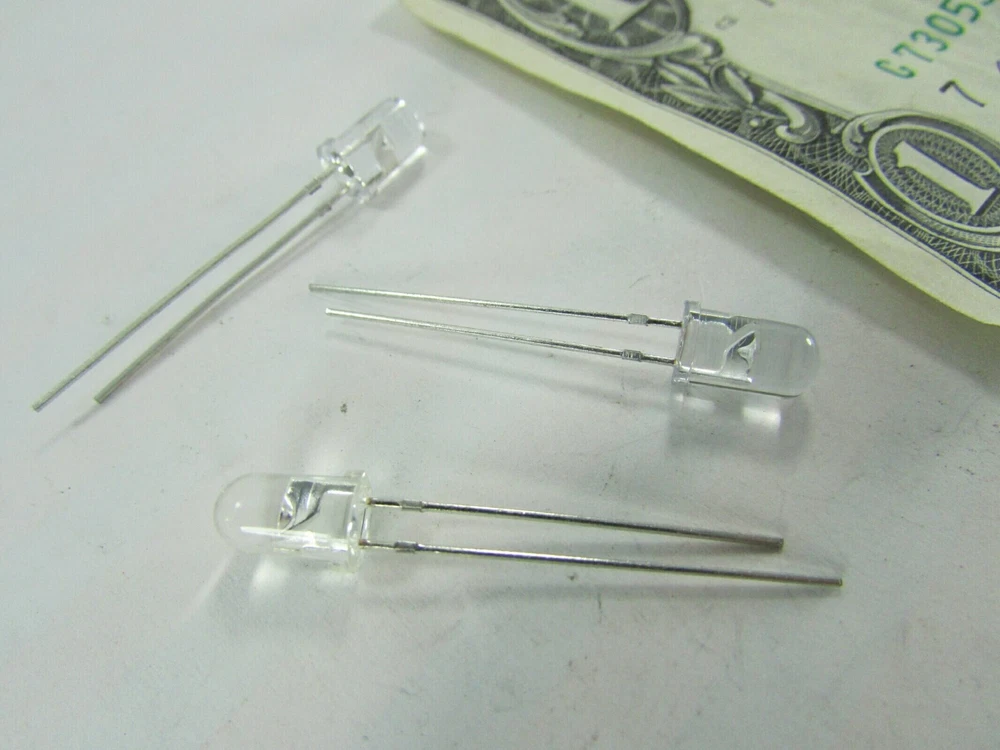

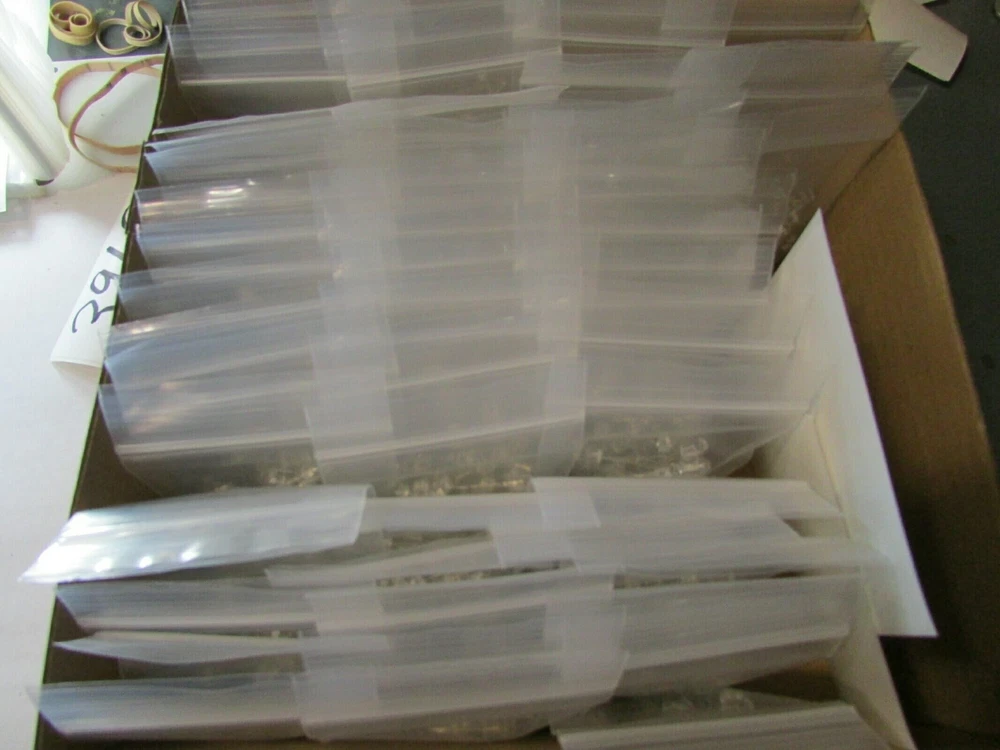

3969SD3J.04 New High Performance Clear Lens / Amber Light T-1-3/4 (5MM) 2.5V (+/-) LEDs, AllnGaP / 1500MCD, Part Number MVL-514UYL. Each bid quantity is for a Lot of Fifty (50) LEDs. You may bid / buy any number of lots, up to the total quantity available above. These were purchased at an electronics supplier sale earlier this year, and they were brand new in bulk bags. We packaged them in heavy Ziplok bags for resale. According to the manufacturer : T-1 3/4 ( f 5mm) High Performance AllnGaP LED Lamps MVL-514UYL Description The MVL-514UYL utilizes the latest absorbing substrate aluminum indium gallium phosphide (AllnGaP) LED technology. This LED material has outstanding light output efficiency over a wide range of drive current. The package is T-1 3/4 (f5mm) water clear standard type. Features - Ultra - brightness - Low power consumption - TTL compatible - Reliable Power Dissipation: 125 mW Peak Forward Current(1/10 Duty Cycle100ms pulse): 100 mA Continuous Forward Current: 50 mA Reverse Voltage: 5 V Operating Temperature Range: -40oC to + 100oC Storage Temperature Range: -40oC to + 100oC Soldering Temperature: 1.6 mm from body for 5 seconds at 260oC Luminous Intensity: 1500 mcd Forward Voltage: 2.0 - 2.6 V Reverse Current: 100 mA Dominant Wavelength: 590 nm Spectral Line Half Width: 20 nm Viewing Angle: 30 deg.
