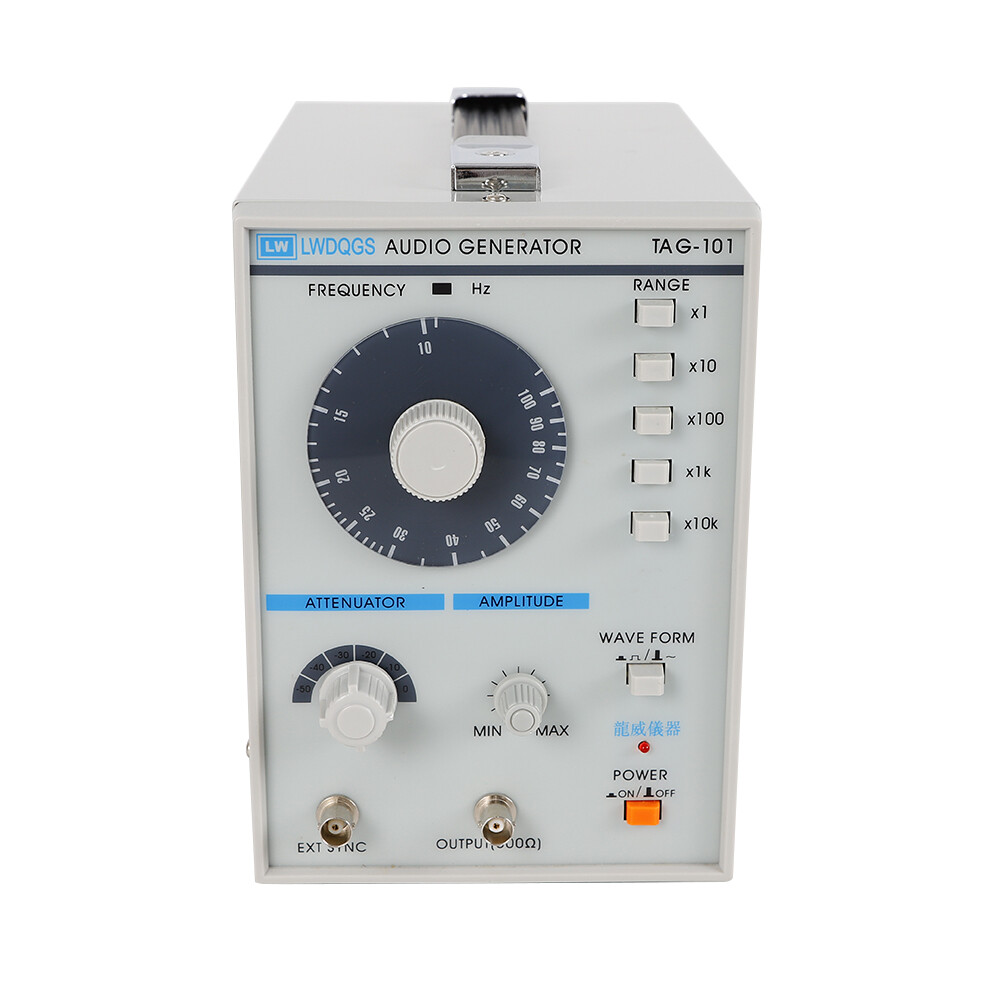

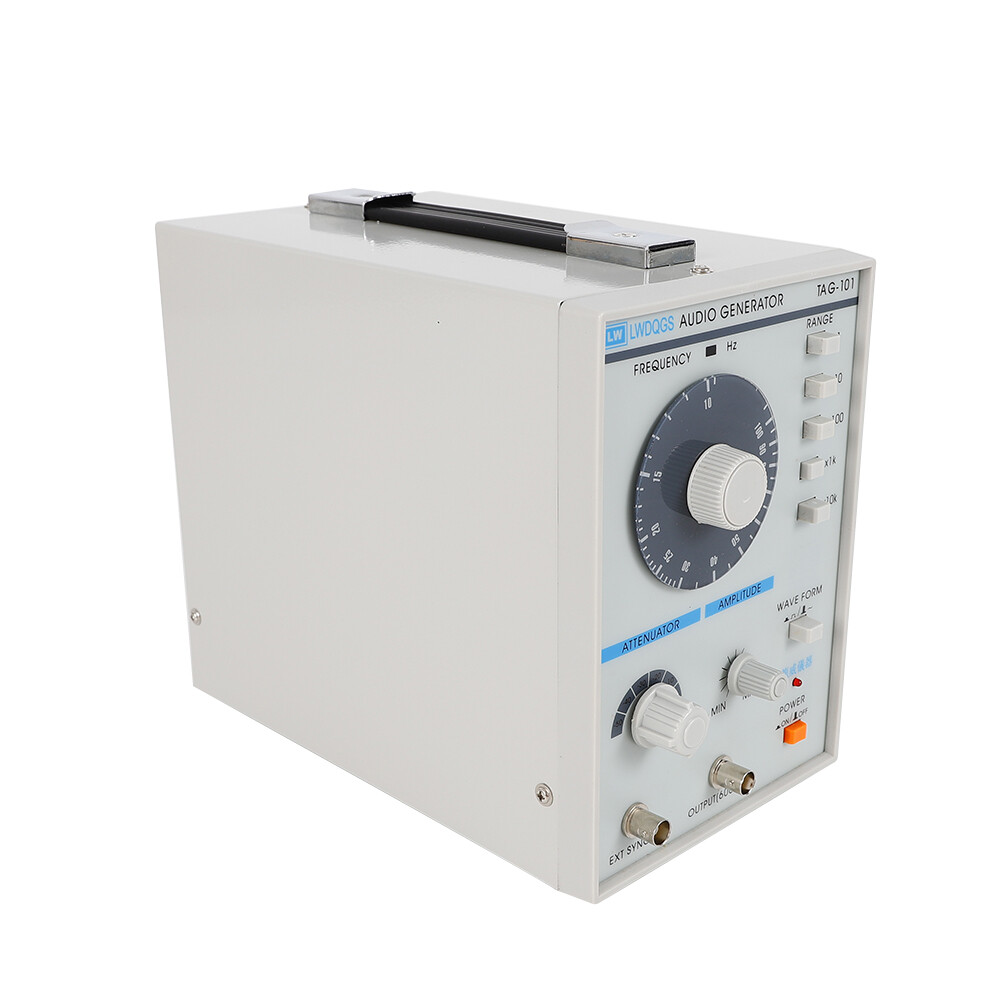

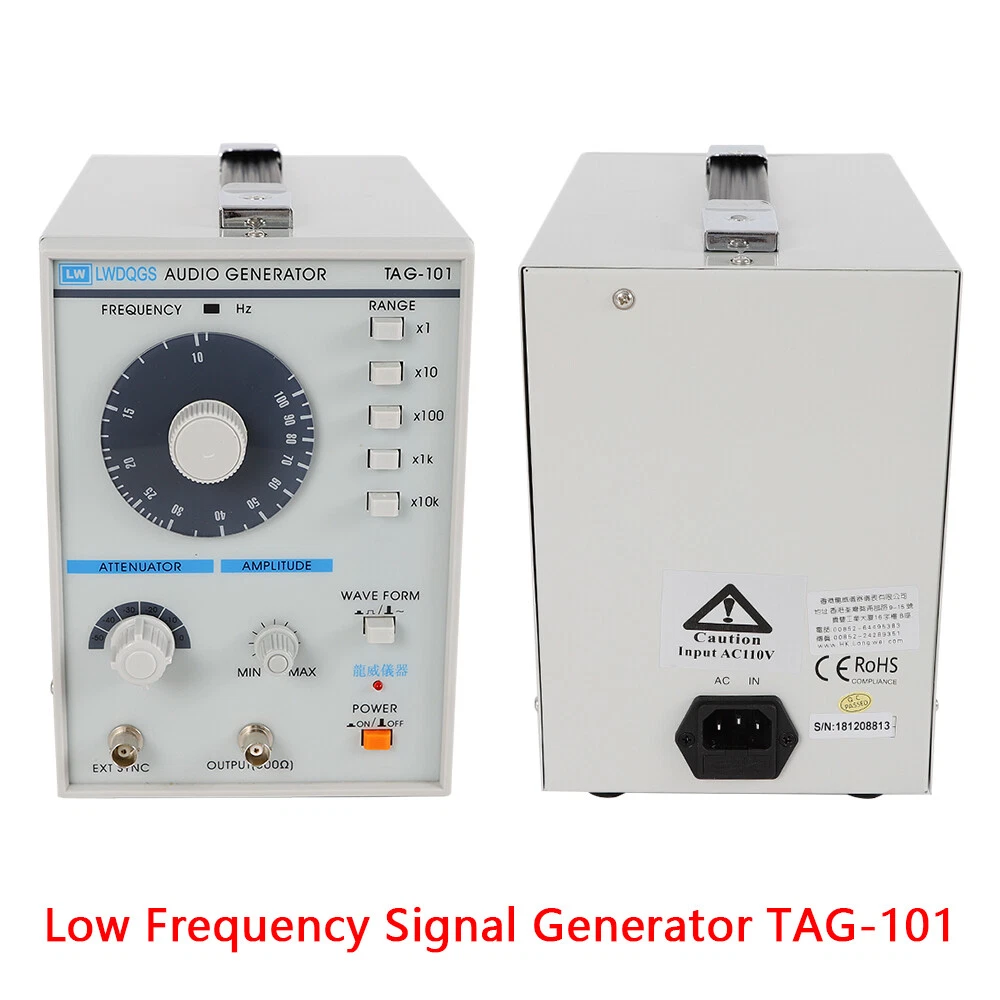

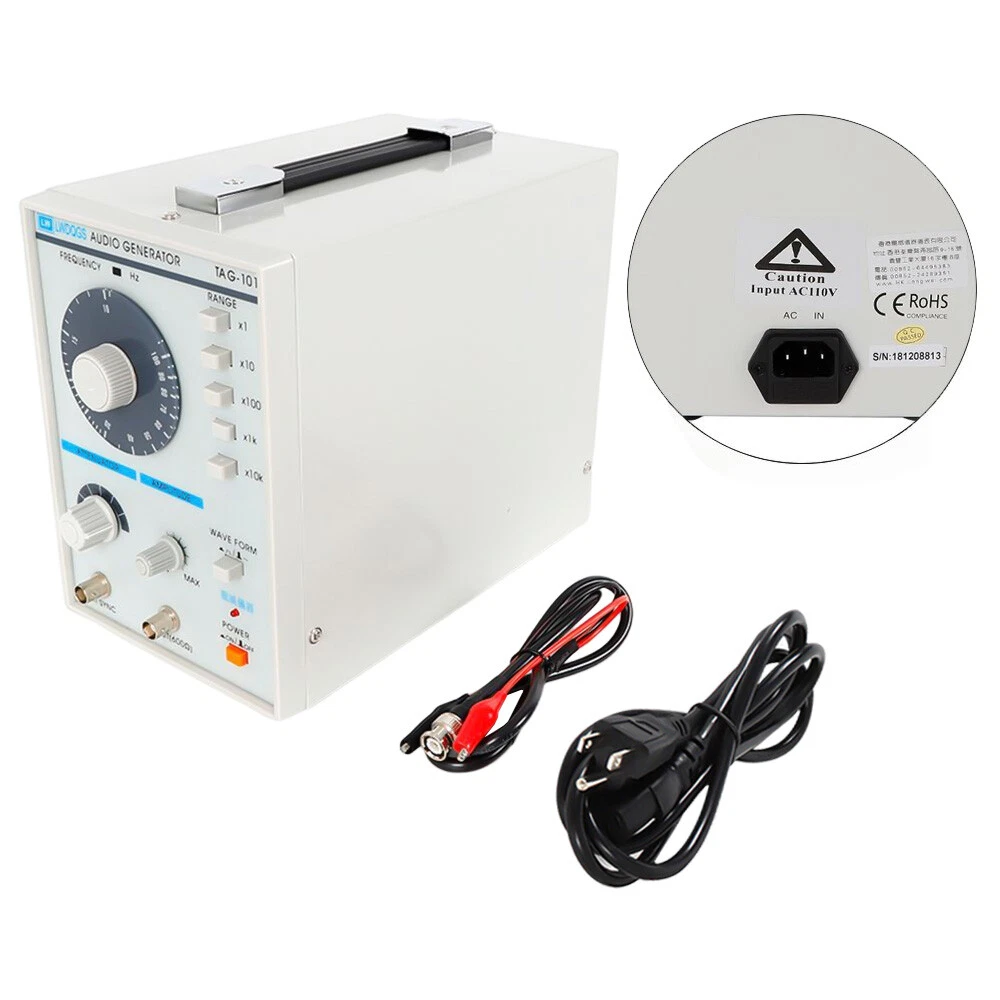

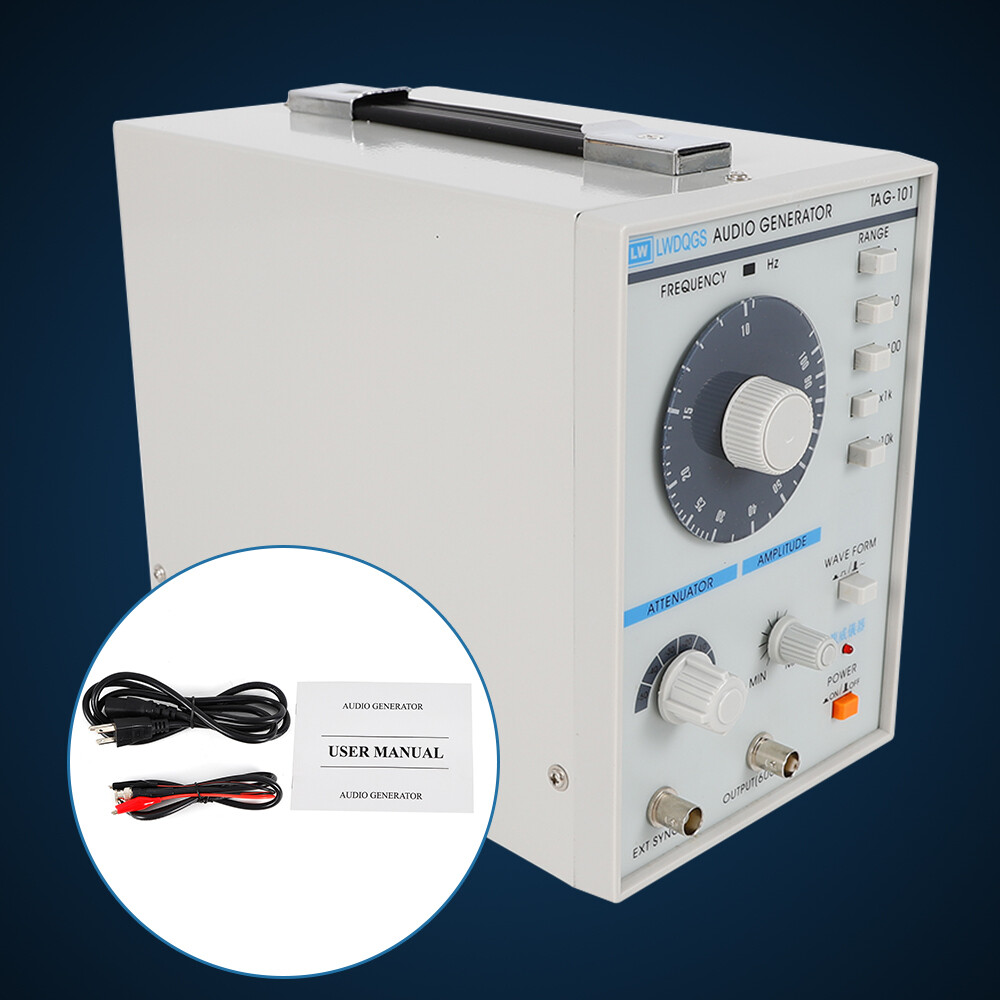

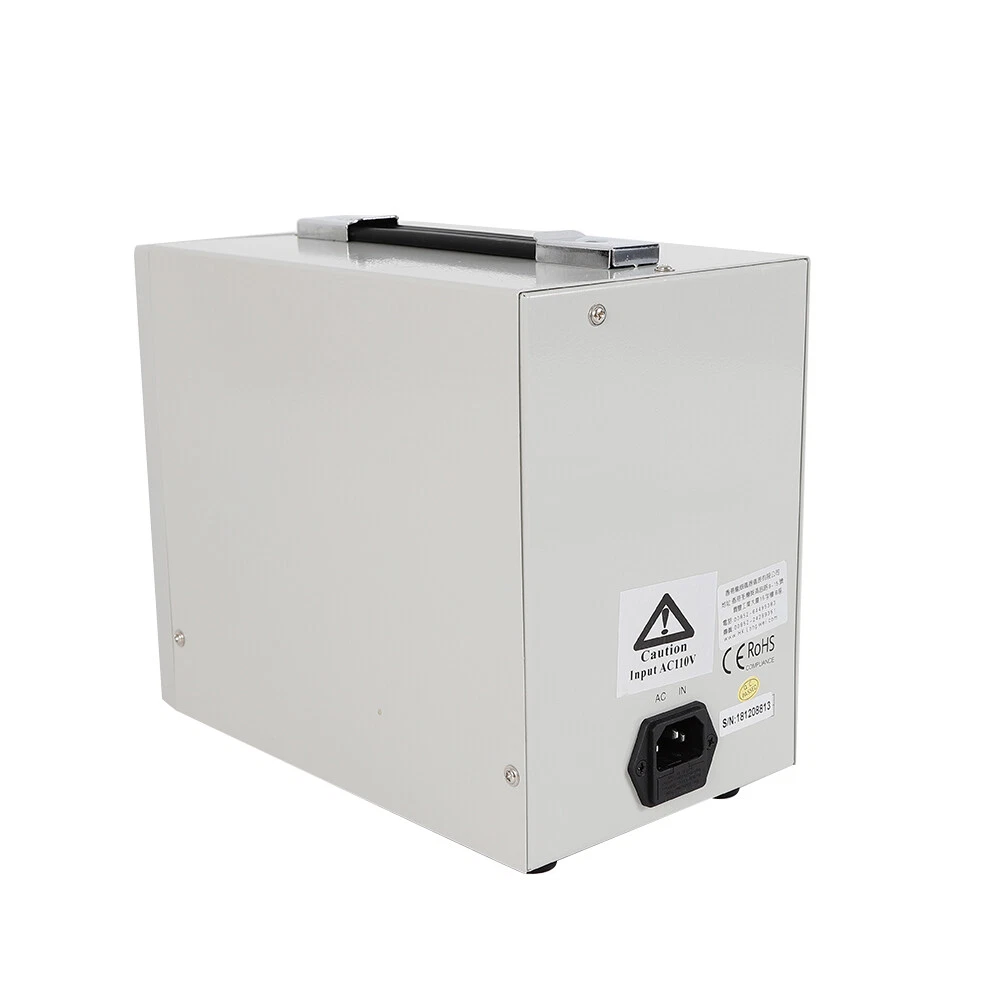

Low Frequency Signal Generator 10Hz-1MHz Audio Signal Source

Description

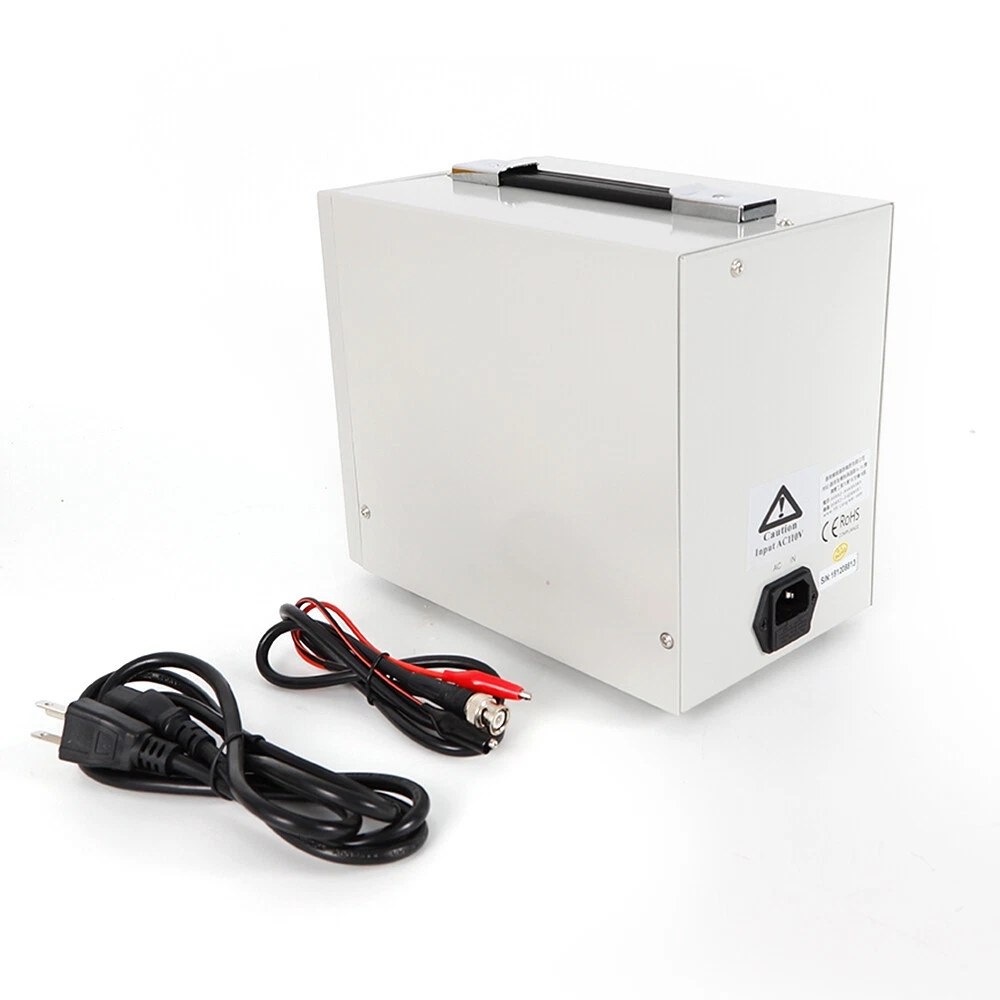

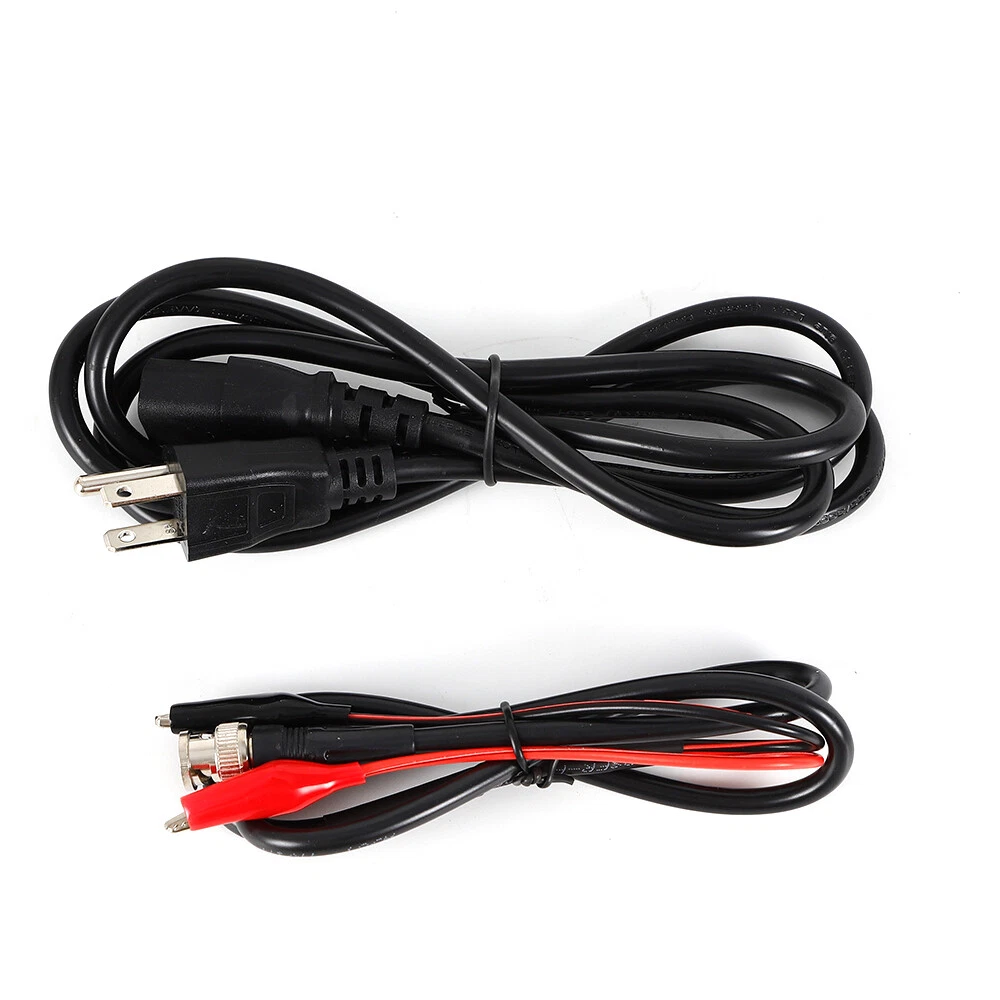

Audio Signal + Generator Signal Source Low Frequency Signal Generator 10Hz-1MHz Low Frequency Audio Signal Generator Power cord Test clip + Instruction manual Specifications： Frequency range: X1 range: 10Hz-100Hz X10 range: 100Hz-1KHz X100range: 1KHz-10KHz X1K range :10KHZ-100KHz X10K range: 100KHz-1MHz Sine wave characteristics Output voltage: 5V rms or more Output distortion: 400Hz-20KHz, 0.1% or less (X100 range for 1KHz) 50Hz-500KHz 0.5% or less OutputFlatness: ±1.5 dB (refer to 1KHz) Square wave characteristics: Output voltage: 10Vp.p or more Rise time: 0.25 us or less Duty ratio: 50%±5%(referto1KHz) External synchronization characteristics Range±3% of oscillator frequency Inpu impedance: 10K approximate Maxi mun input: 10V rms Output characteristics: Impedance: 600Ω±10% Attenuator: 0dB, -10dB, -20dB, -30dB, -40dB, and -50dB in 6 steps (accuracy +1 dB at 600Ω load) Input: AC 110V or 220V, 50/60Hz Consumption: 5 Watt Dimension: 142(w)*233(D)*197(H) mm Weight: 3.5Kg Highlights: Reliable circuitry insure high stability and accuracy Easy operation on vertical type panel assembling Frequency range from 10Hz to 1MHz selectable in 5 ranges are calibrated with single-scale graduations. More than 5Vrms at no load and more than 2.8Vrms on 600Ω loading (sine wave). Output level can be adjusted by a 10dB-step, 6 range attenuator and a level adjuster. Sine wave and square waves is available. Synchronizing input terminal Accessories: 1pc Power cord 1pc Test clip 1pc Instruction manual Payment Delivery details Terms of sales About us Contact us Payment We accept ebay payment 。 Fees such as import duties, taxes are not included in the item price or shipping costs. These charges are the buyer's responsibility. Delivery details Shipping: 2-9 working days to: USA Terms of sales We maintain high standards of excellence and strive for hundred percent customer satisfaction. Feedback is very important to us. We hope that you contact us immediately before you give neutral or negative feedback, so that we can address your concerns. It is impossible to address issues if we do not know about them! About us Your satis faction is our ultimate goal. We work hard to earn your trust and future business. Our certified technicians have tested each item before shipping. The unit comes with 1 year limited warranty on all manufacturing defects. a) If you receive a defective item, you may return it or ask for a discount. Please contact us within 14 days after you receive the package. b) What you returned must be intact and in its original packaging as re? u. Customer is responsible for shipping costs of the returned item. c) We will cover the cost of shipping back t with the shipping rate indicated in the registration page. We will send you a new unit or refund the full payment you paid. Thank you. Contact us Business Hour Business Hour: Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time) Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply your email within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday. Please contact us with ebay message. Please feel free to contact us if you have any questions. Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time) Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply your email within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday. Please contact us with ebay message. Please feel free to contact us if you have any questions. Features1 stable performance,Durable Current Rating Does Not Apply EAN Does Not Apply Transportation does not include canarias Manufacturer Warranty Yes Brand Unbranded Features Fast shipping ISBN Does Not Apply OE/OEM Part Number Does not apply MPN ( MPN ) n/a UPC Does not apply System Configuration Does Not Apply MPN Does Not Apply Features 4 Fast shipping Features 1 stable performance,Durable Custom Bundle No Feature * Convenient Use，Unique Appearance，reliable quality Matetial1 high quality &Duable Signal Generator Type Audio Signal Generator Output Resistance 600Ω±10% Type TAG-101 Frequency Range 10Hz -1MHz Country/Region of Manufacture China Bundle Listing Yes
