M5Stack M5StickC PLUS2 - ESP32-PICO Mini IoT Development Kit with IR, WiFi
$ 22.39
Description

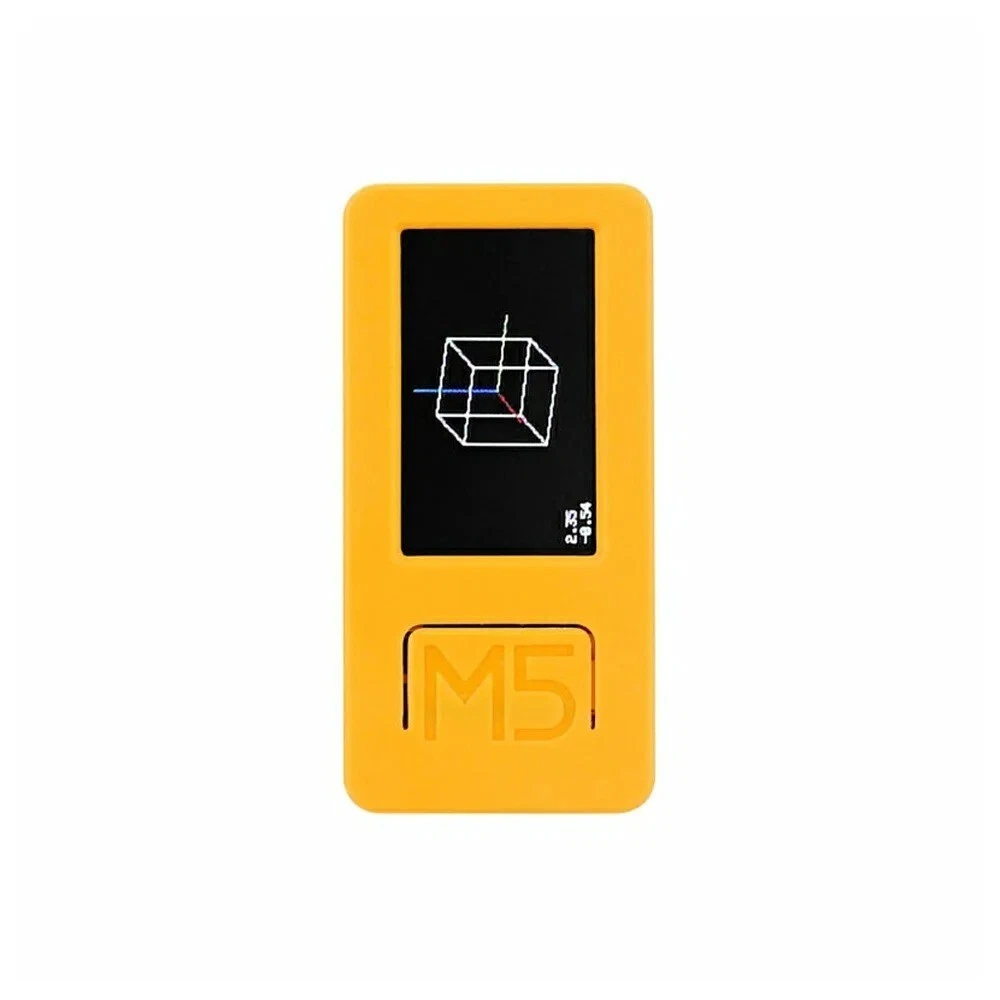

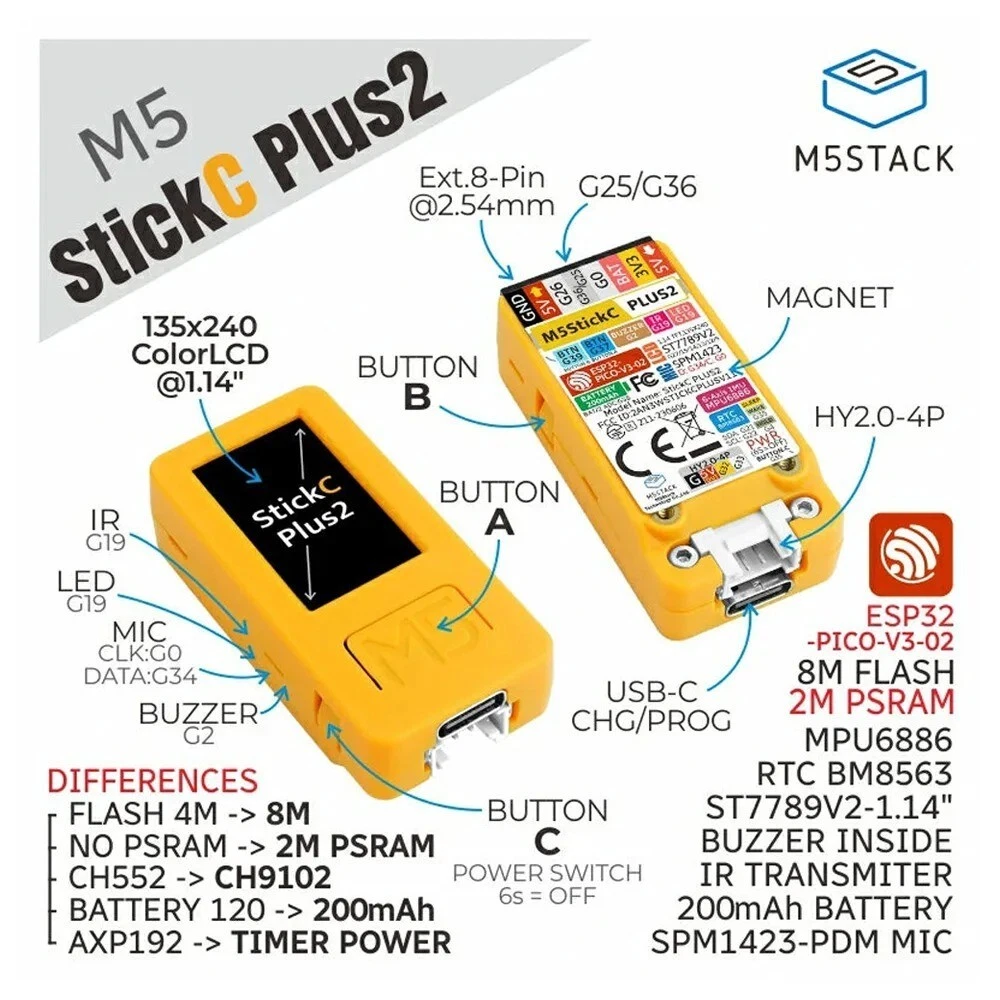

Description M5StickC PLUS2 is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip as the main controller with built-in WiFi functionality. The compact device integrates a wealth of hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU, buttons, buzzer, and more. It boasts a 1.14-inch TFT screen with a resolution of 135*240, driven by the ST7789V2. The battery capacity has been increased to 200mAh, and the interface also supports HAT and Unit series products. This compact and versatile development tool is designed to spark limitless creative possibilities. M5StickC PLUS2 facilitates the rapid prototyping of IoT products, streamlining the entire development process. Even beginners in programming can easily build interesting applications and apply them to real-life scenarios using M5StickC PLUS2. Features ESP32-PICO-V3-02-Base，support WiFi Built-in 6-Axis IMU IR transmitter Microphone RTC Buttons, LCD(1.14 inch) Built-in Lithium Polymer Battery@200mAh Extendable Socket Built-in Passive Buzzer Wearable & Wall mounted Compatible with multi-platform development: UIFlow MicroPython Arduino NET nanoFramework Applications Internet of things terminal controller Wearable devices Stem education product DIY creation Specification ESP32: ESP32-PICO-V3-02, 240MHz dual core, support wifi, 2 MB SPI PSRAM, 8 MB SPI flash PSRAM: 2 MB PSRAM Flash: 8 MB flash Power Input: 5V @ 500mA Port: TypeC x 1, GROVE(I2C+I/0+UART) x 1 LCD screen: 1.14 inch, 135*240 Colorful TFT LCD, ST7789v2 Button: Custom button x 3 Power indicator LED: GREEN LED(non-programmable) MEMS: MPU6886 Buzzer: built-in buzzer MIC: SPM1423 RTC: BM8563 Battery: 200mAh @ 3.7V Antenna: 2.4G 3D Antenna PIN port: G0, G25/G36, G26, G32, G33 Operating Temperature: 0°C to 40°C Case Material: Plastic ( PC ) Product Size: 48*25*13mm Package Size: 114*64*23mm Product Weight: 17g Package Weight: 24.8g Color : PLUS2 Standard
