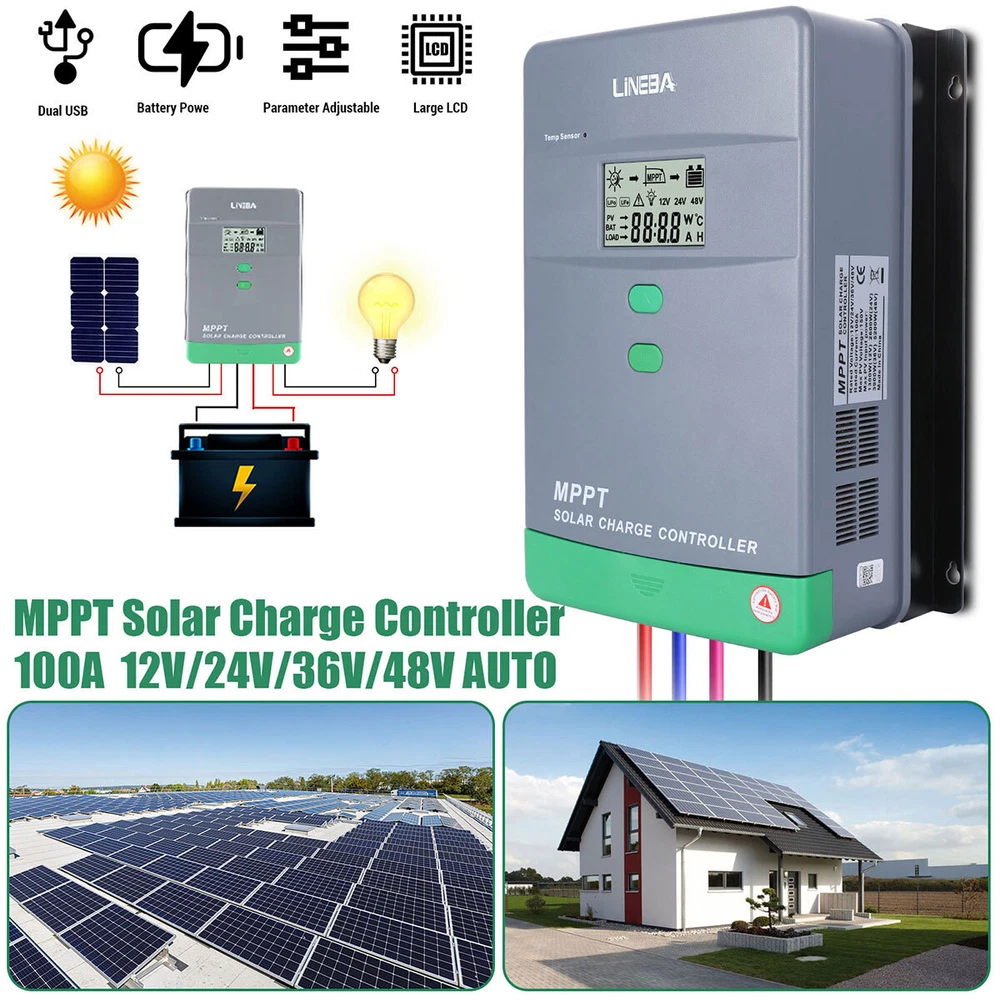

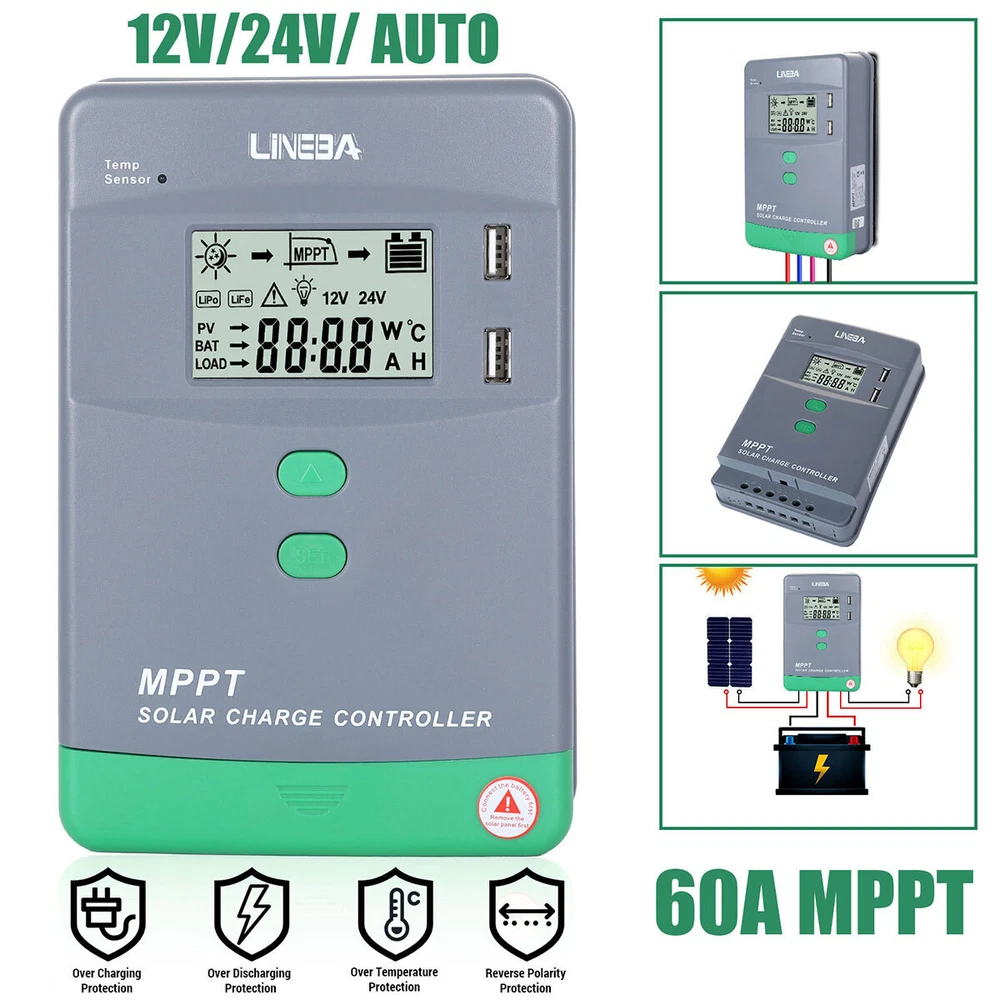

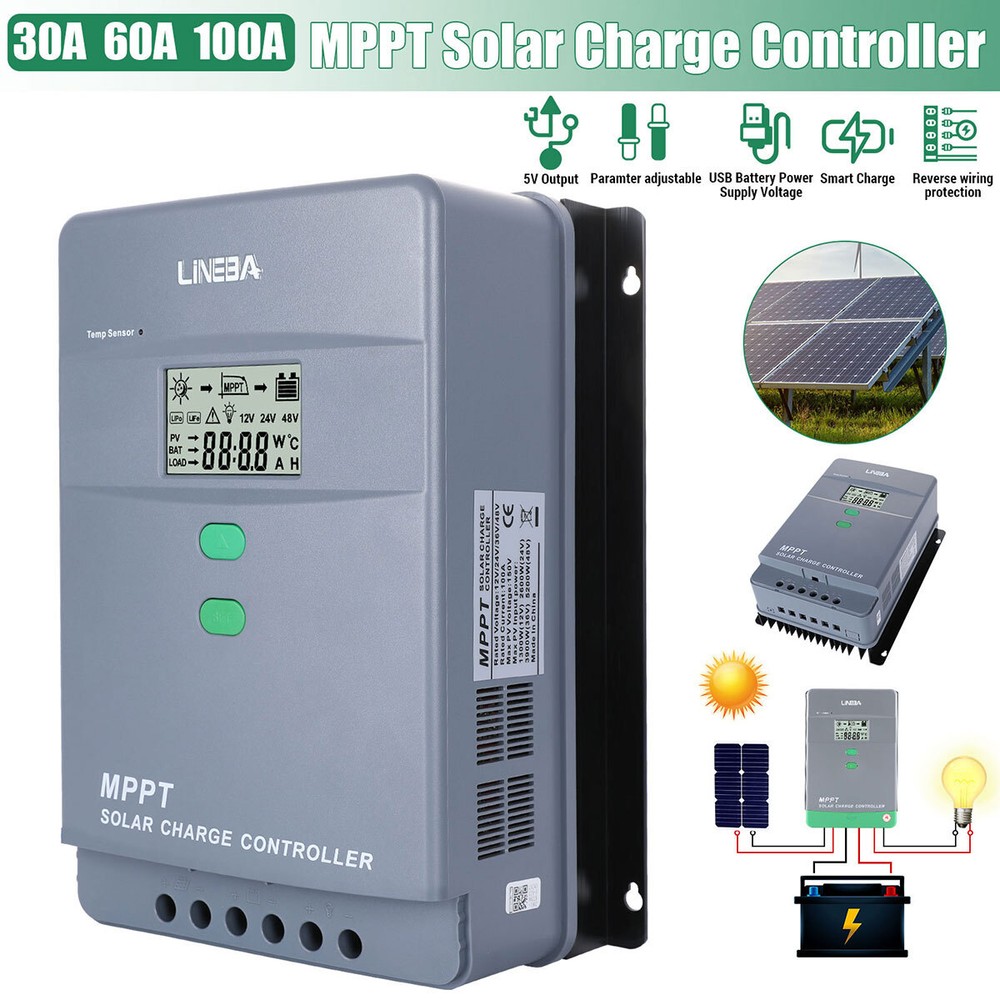

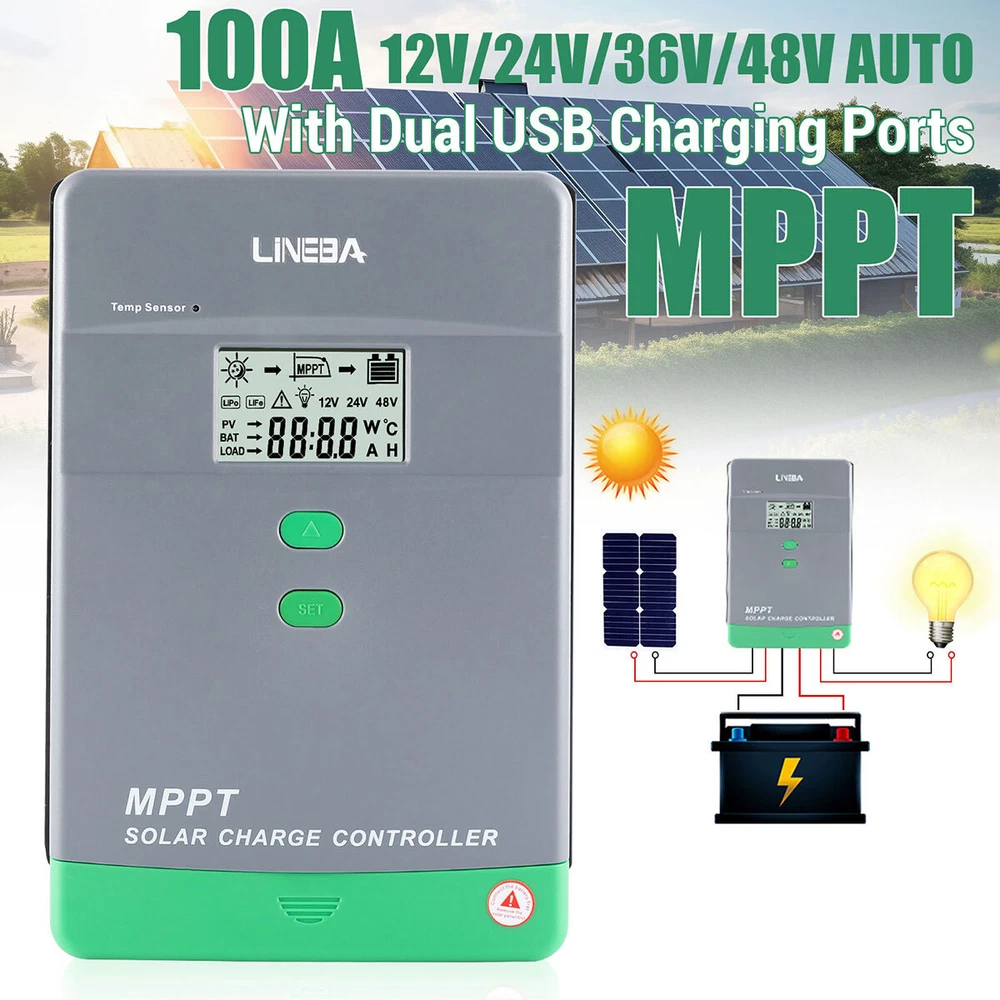

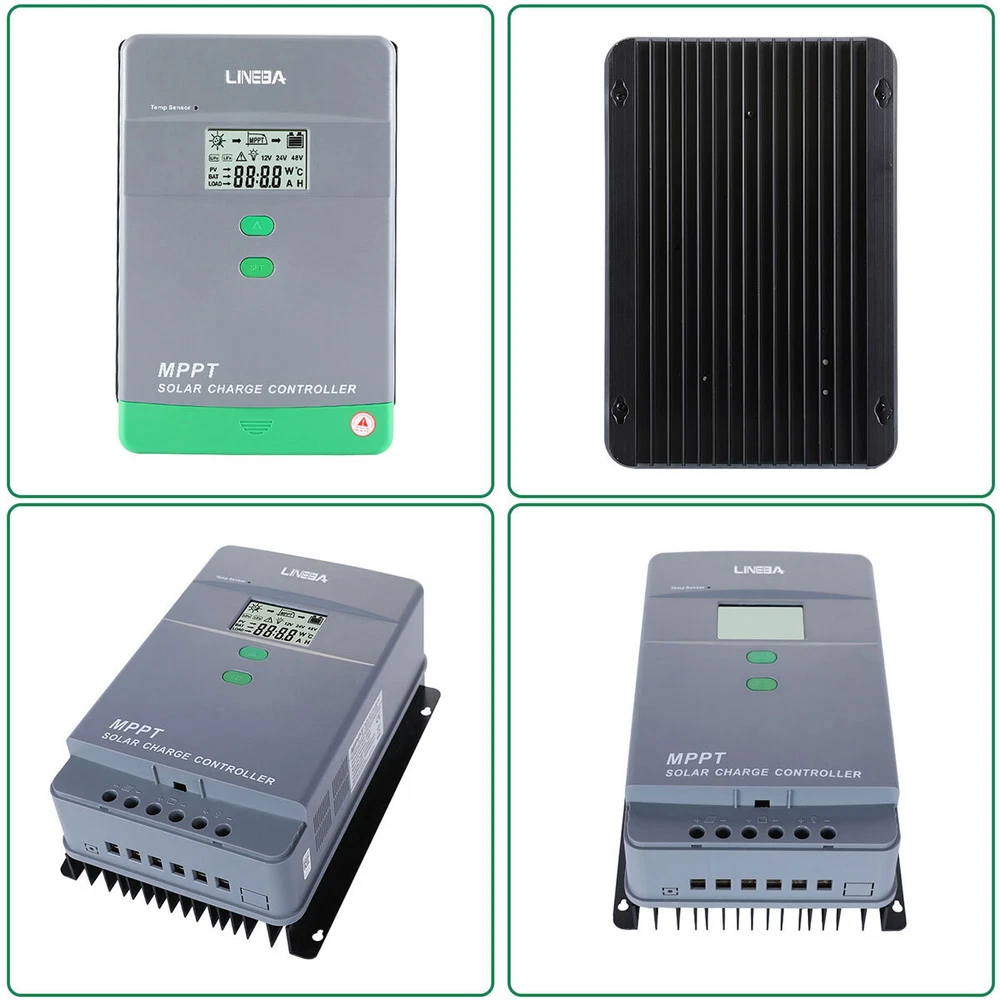

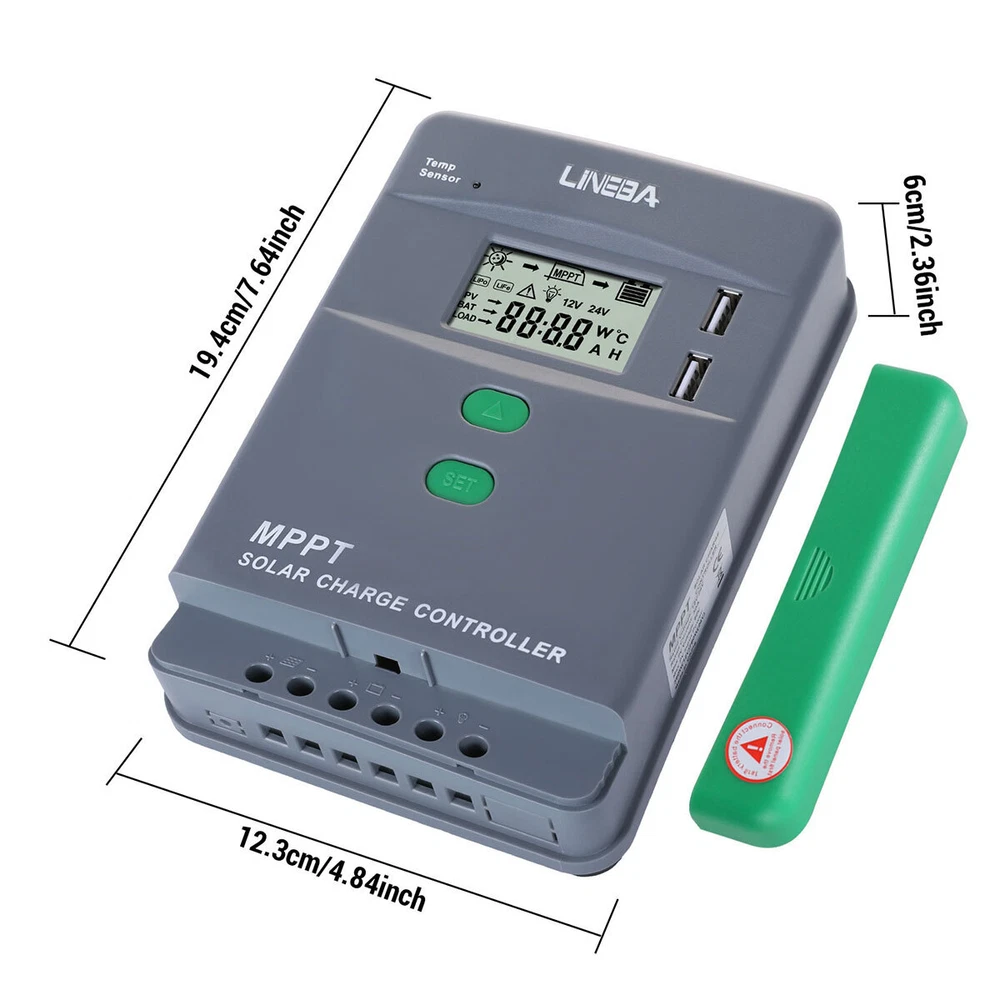

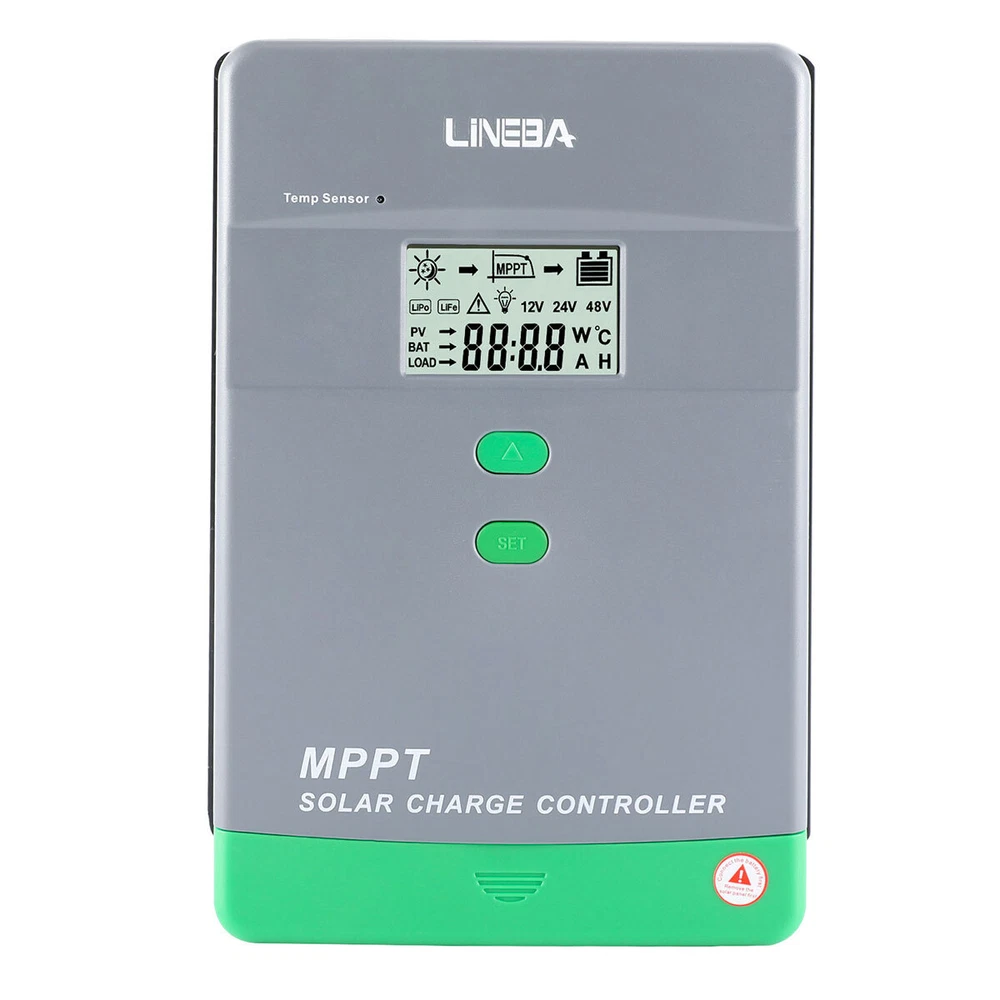

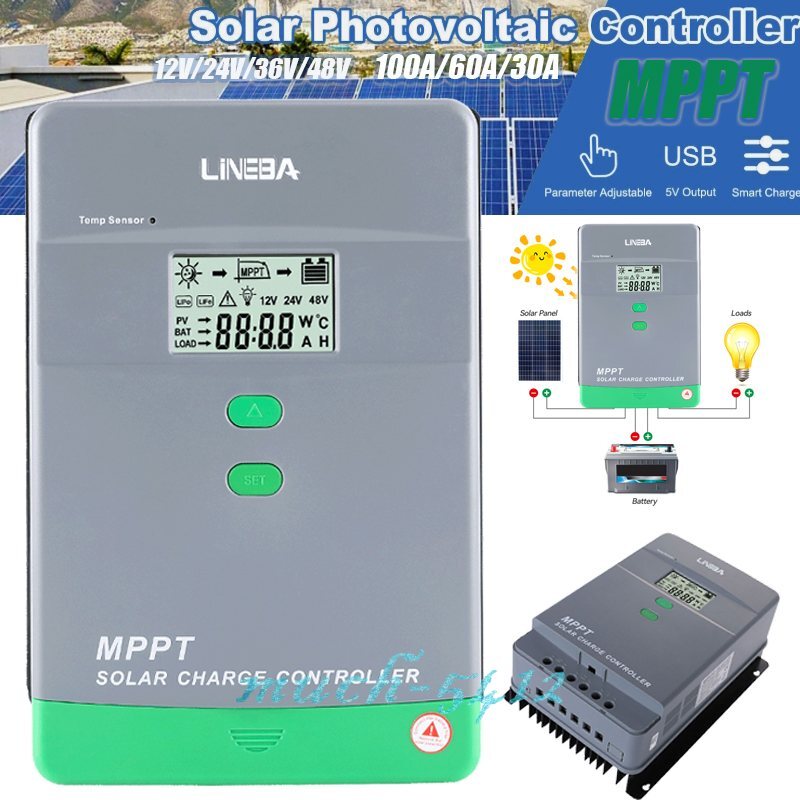

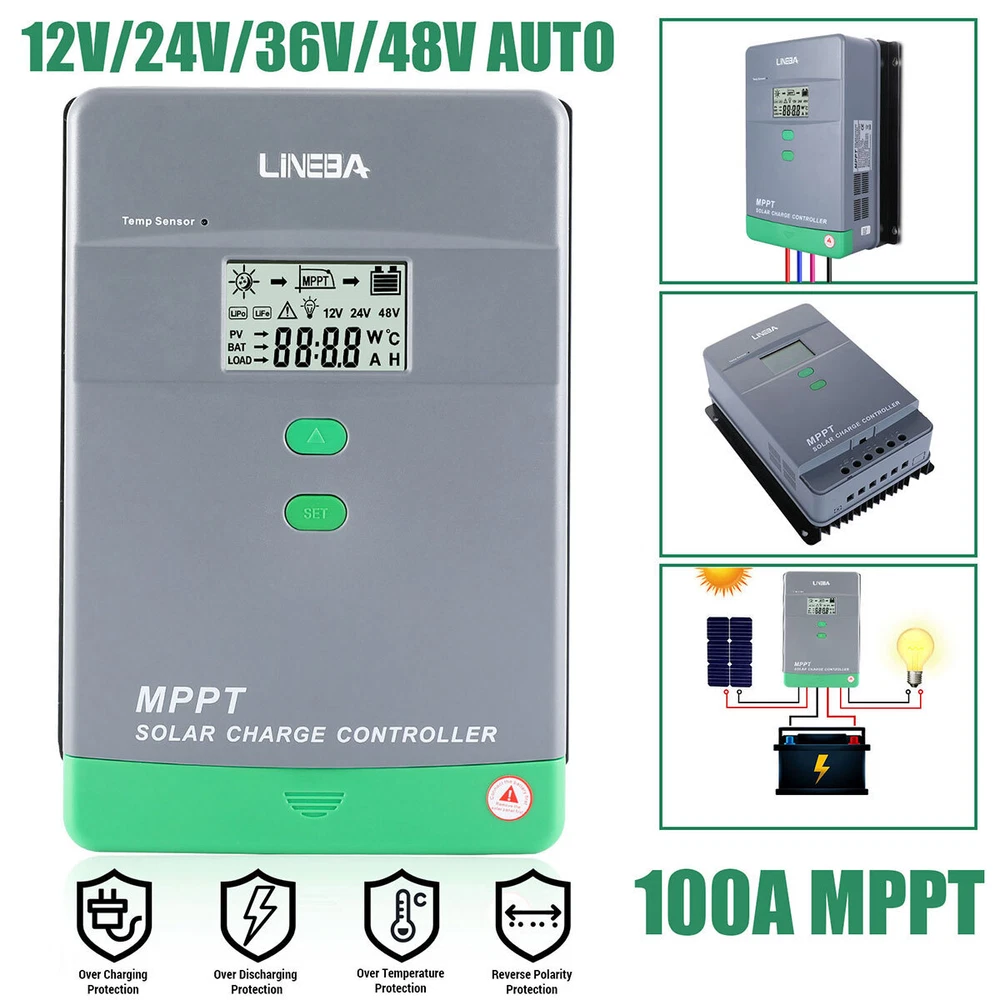

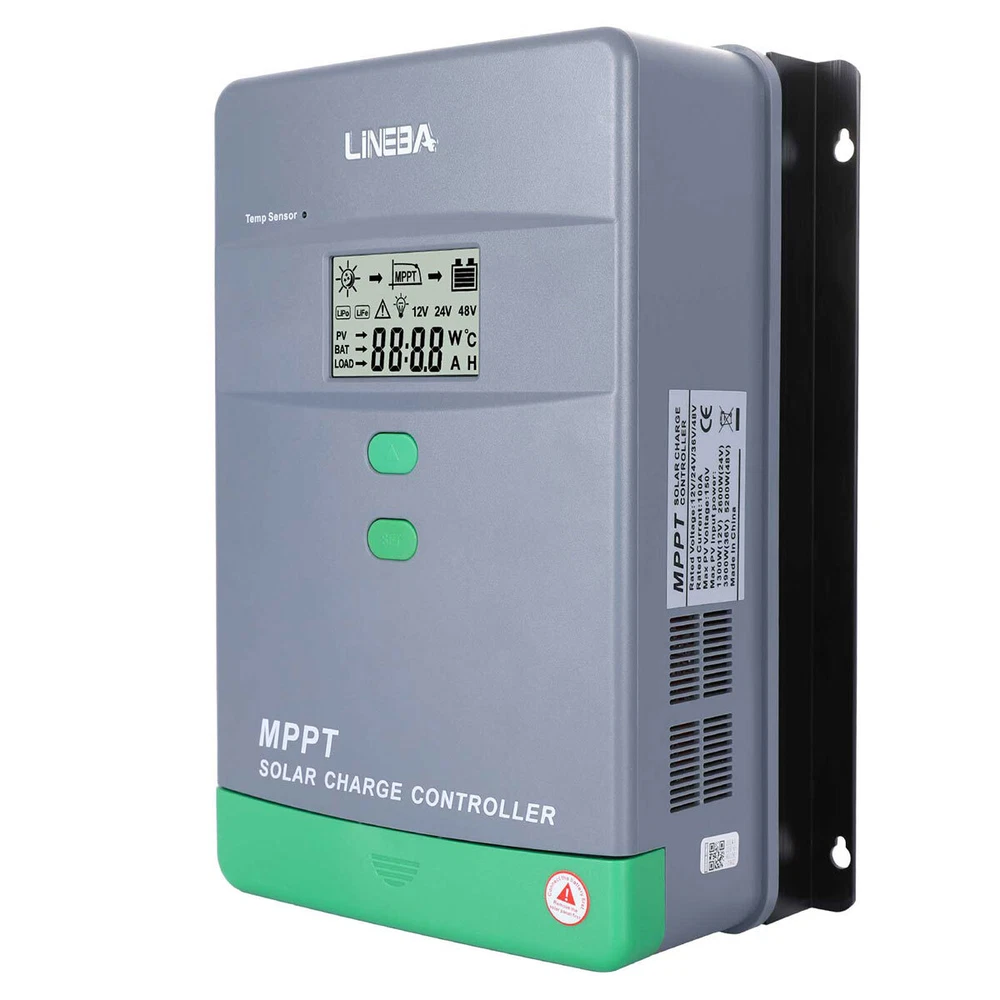

MPPT Solar Charge Controller 12V-48V Auto with LCD Display

Description

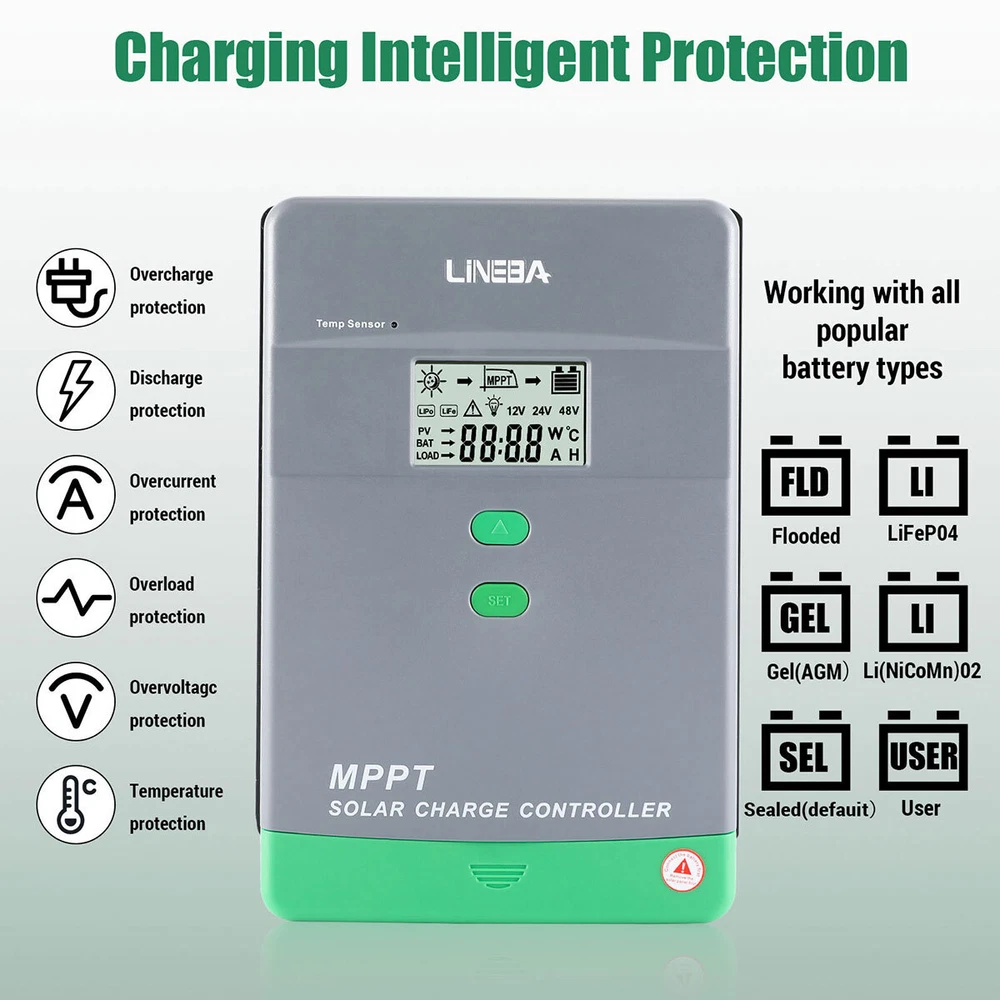

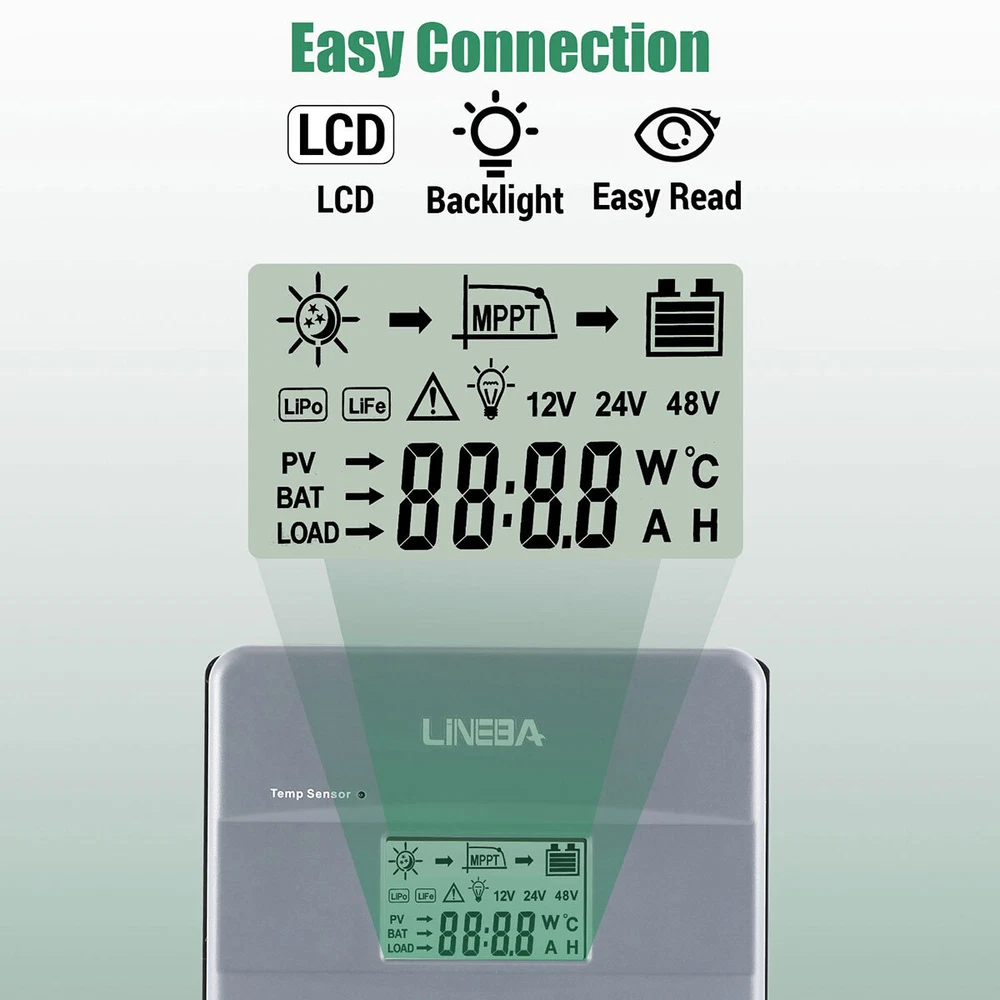

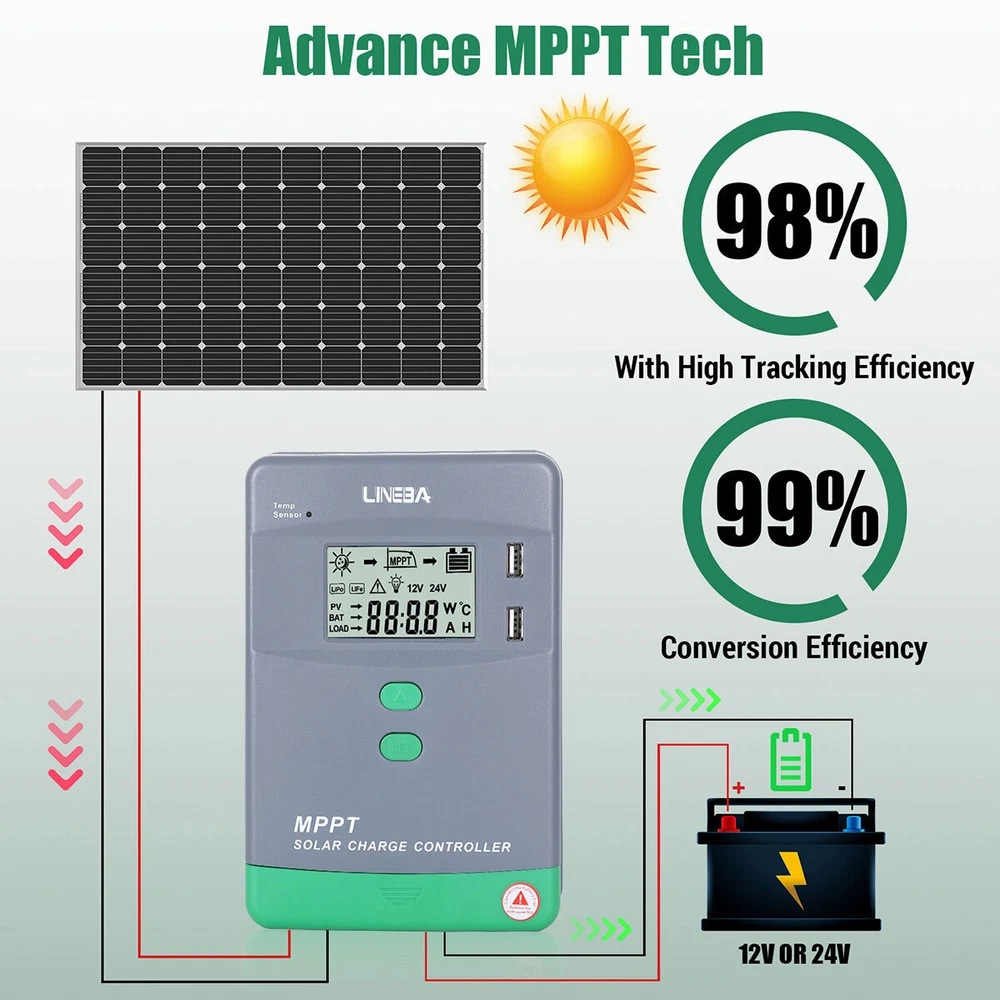

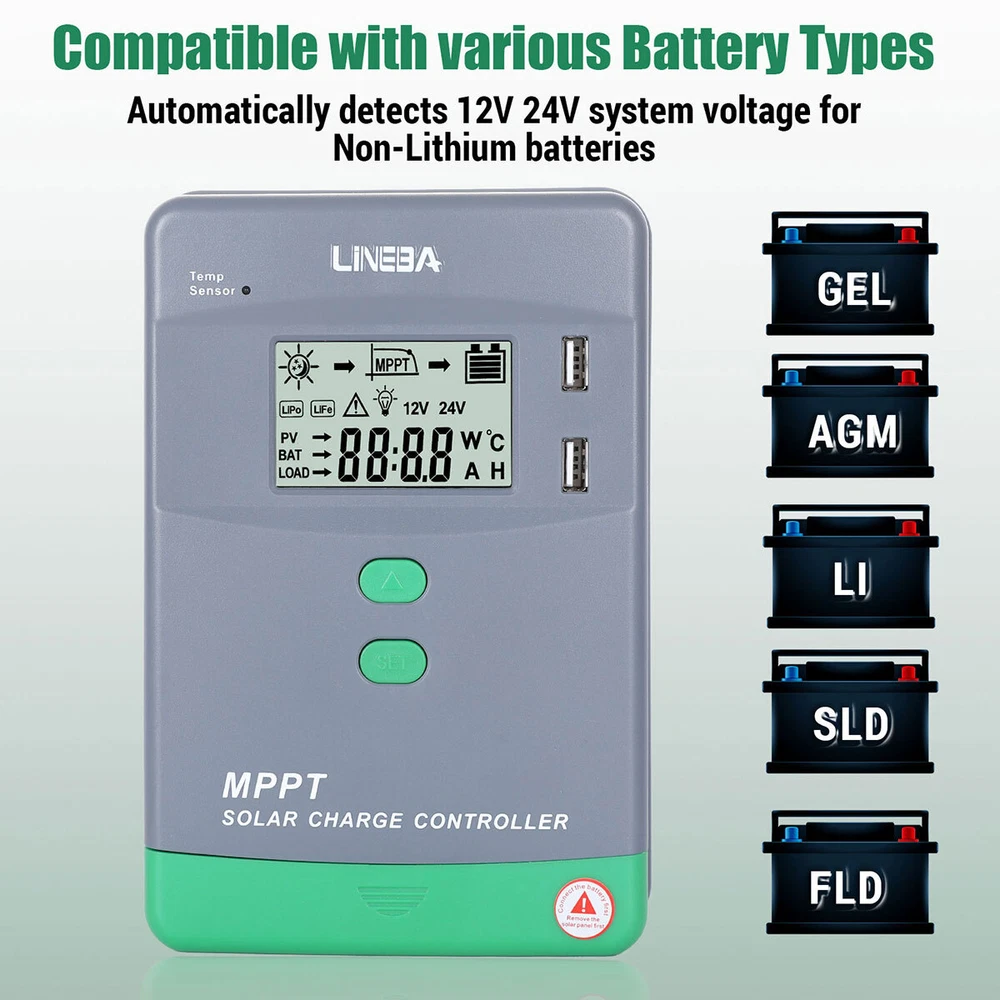

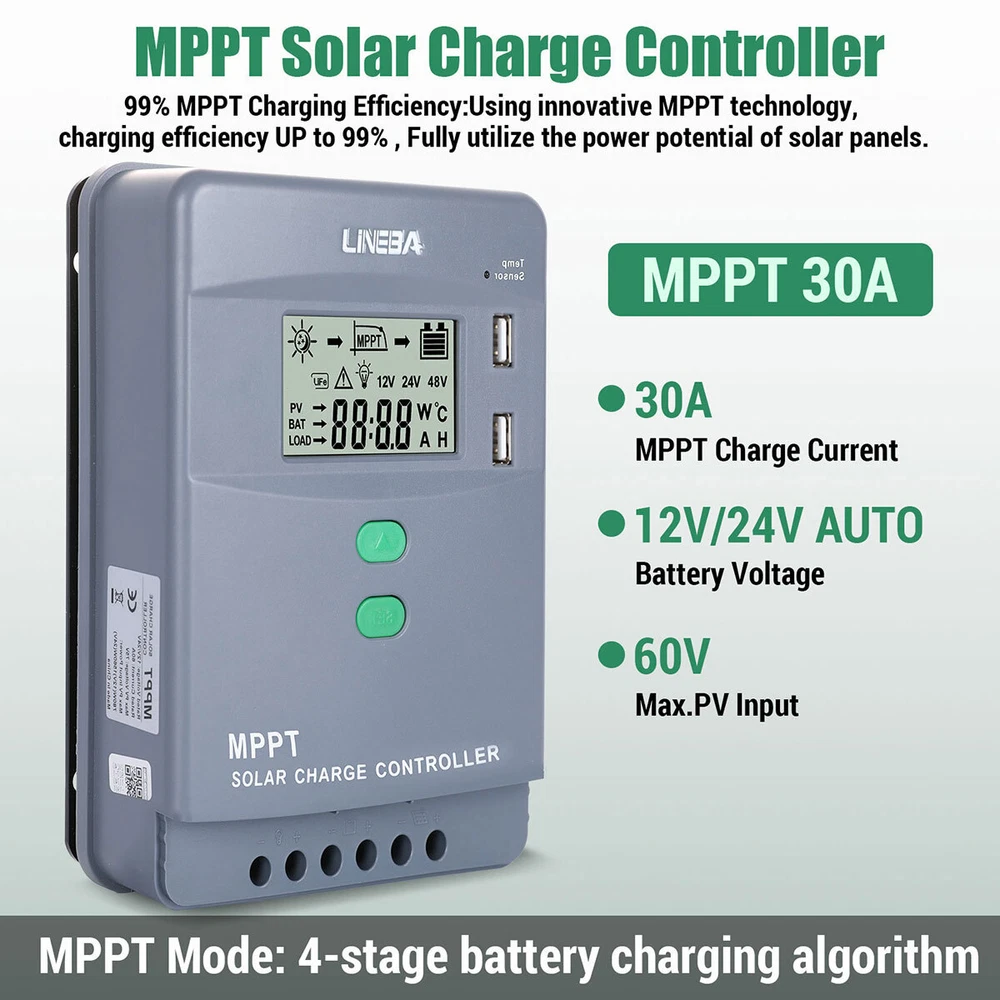

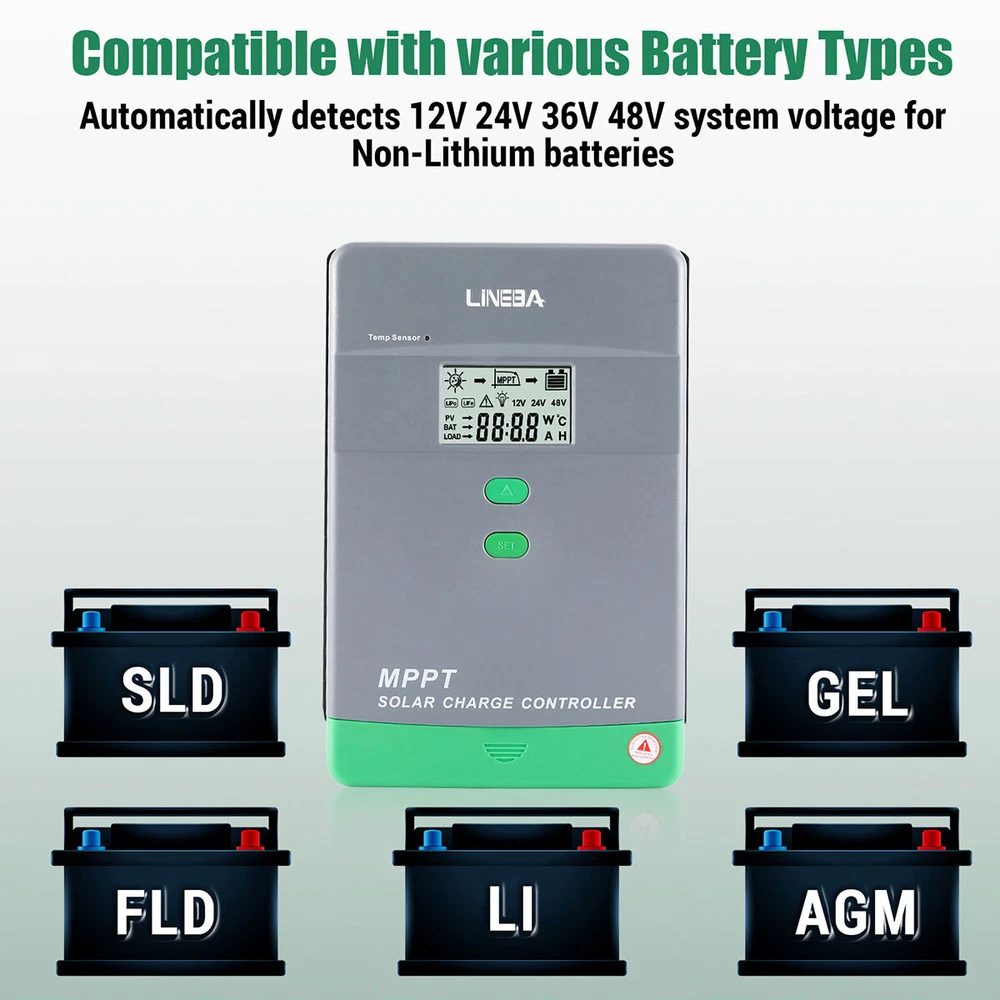

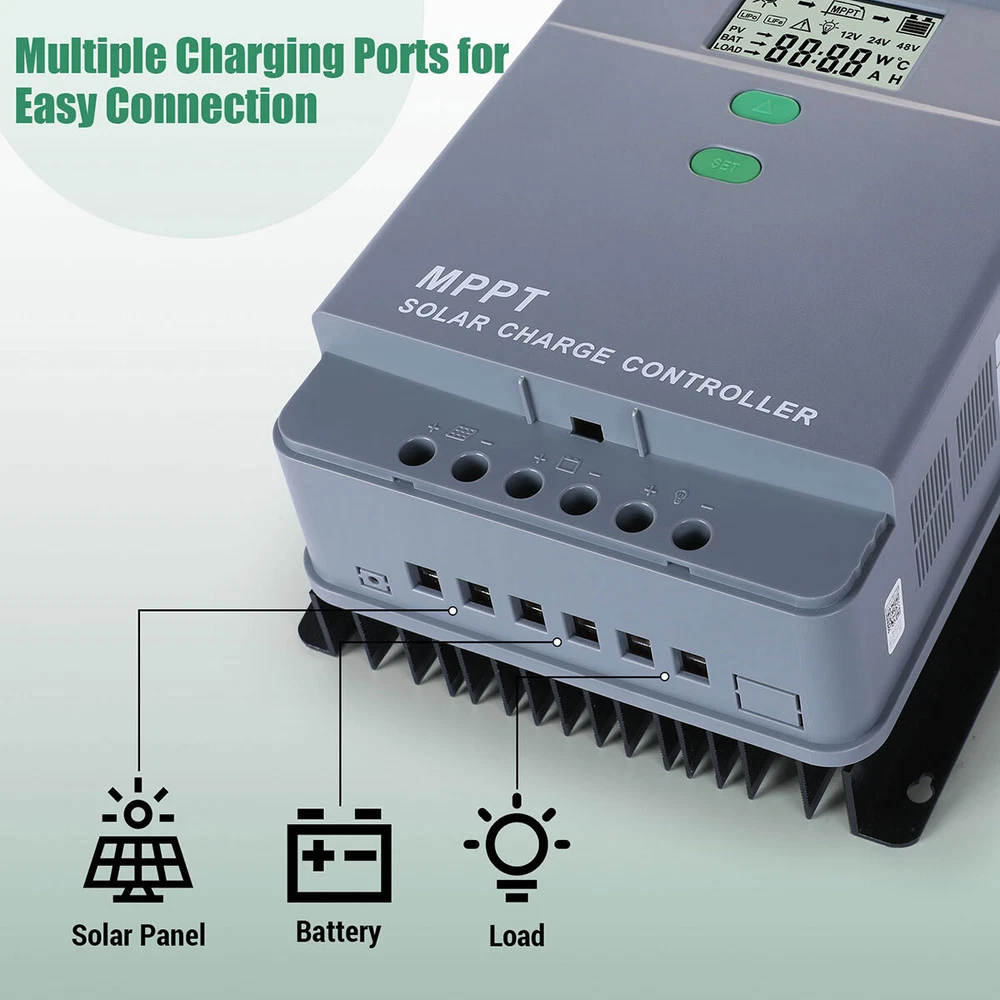

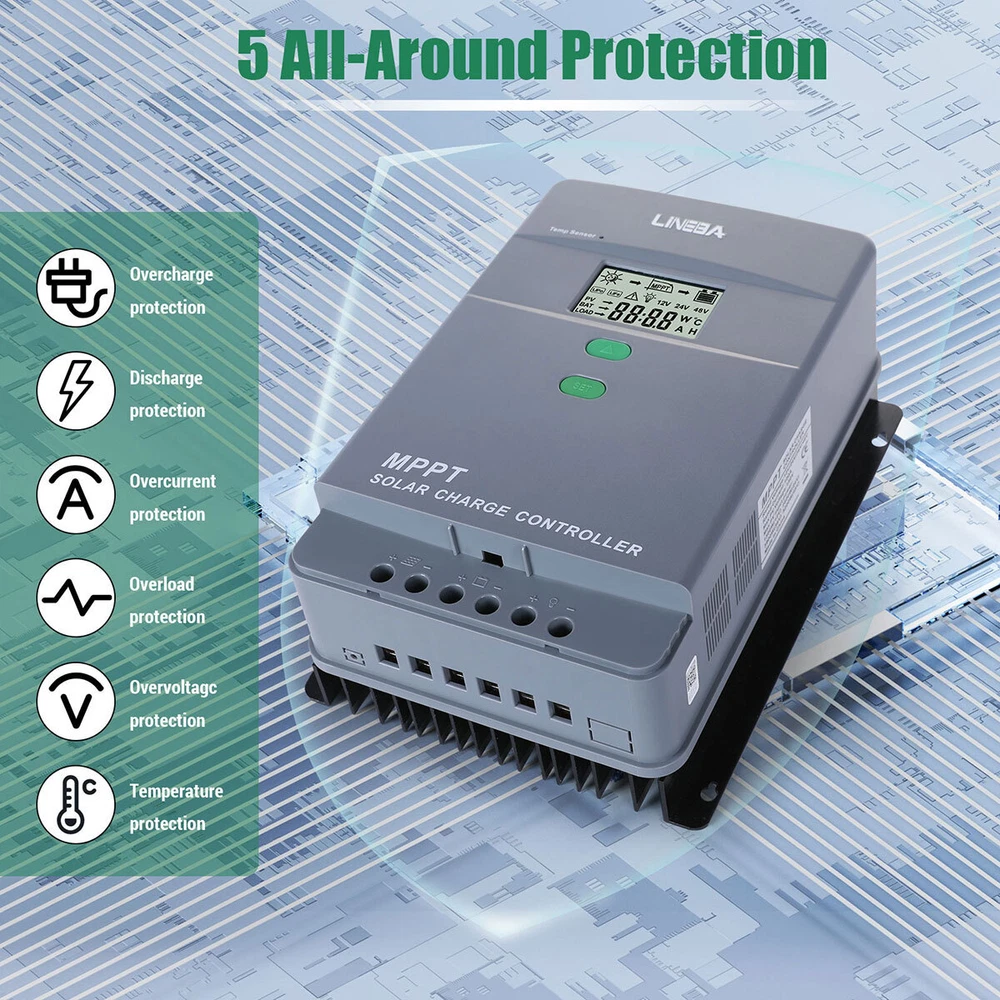

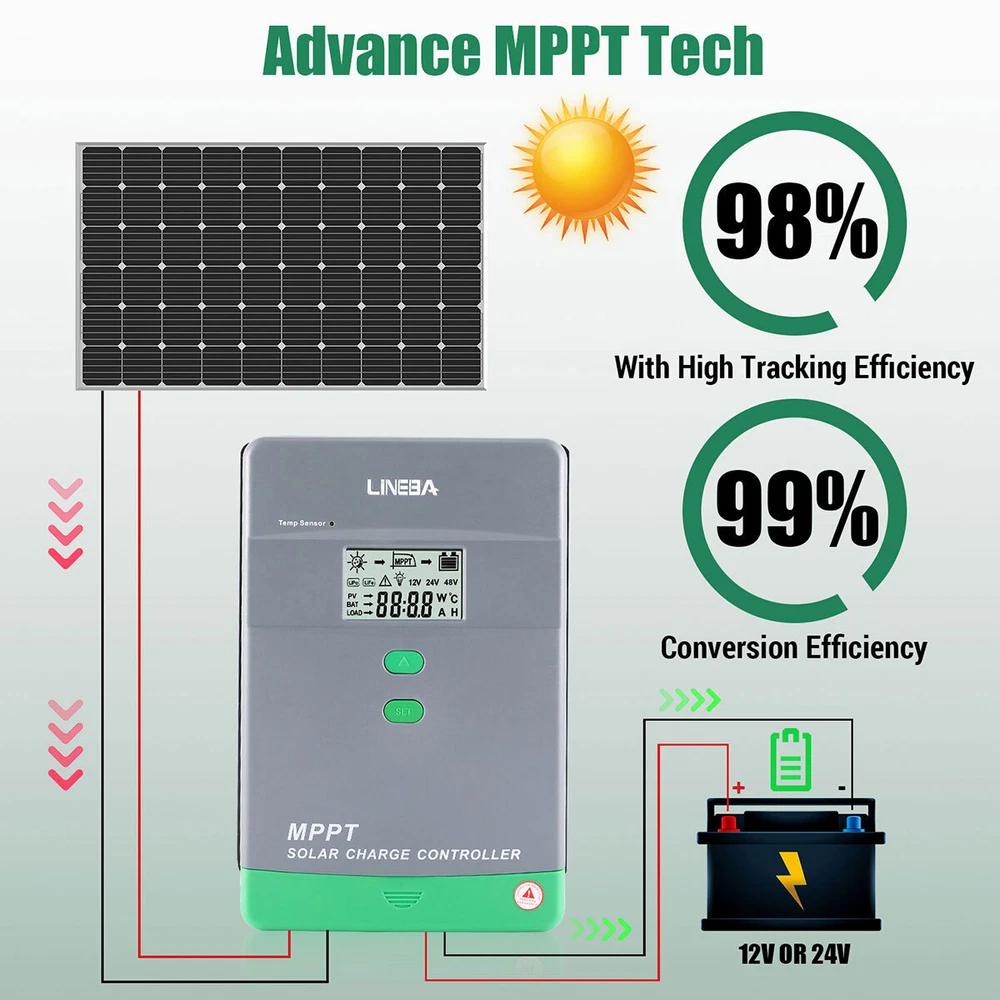

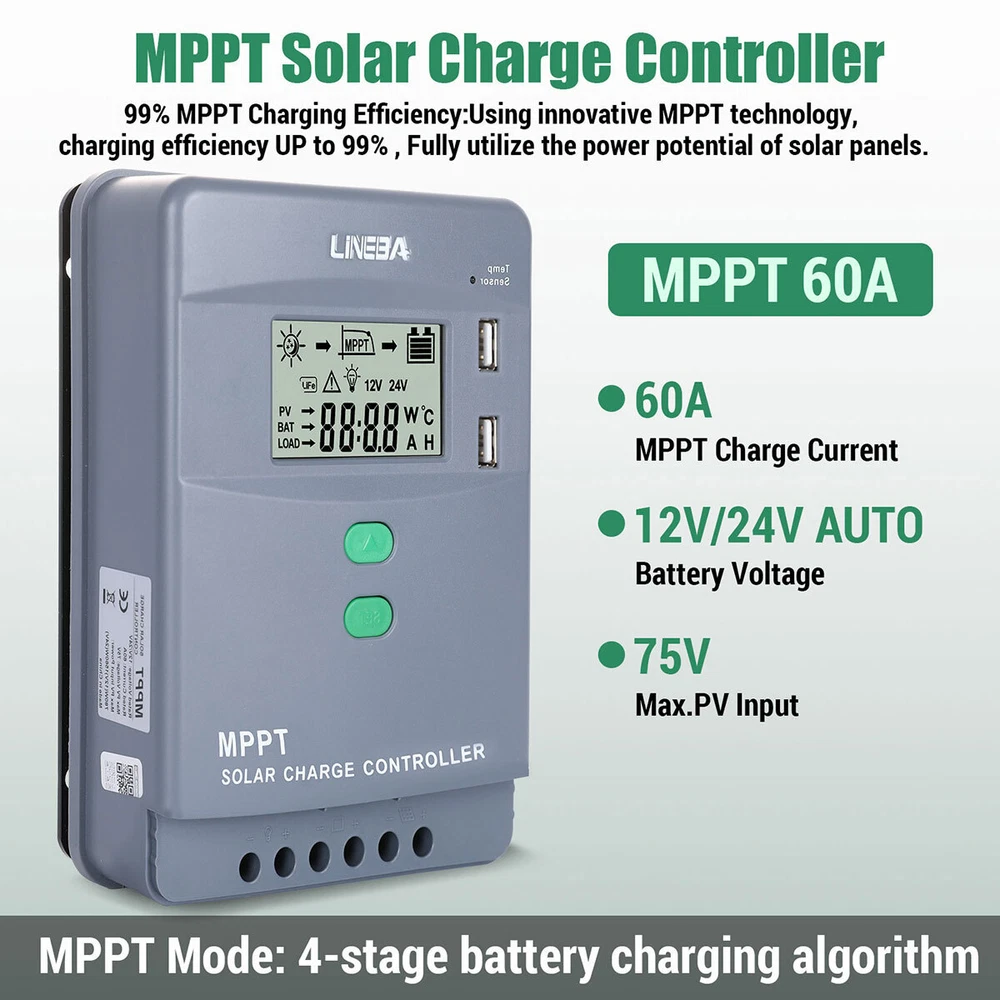

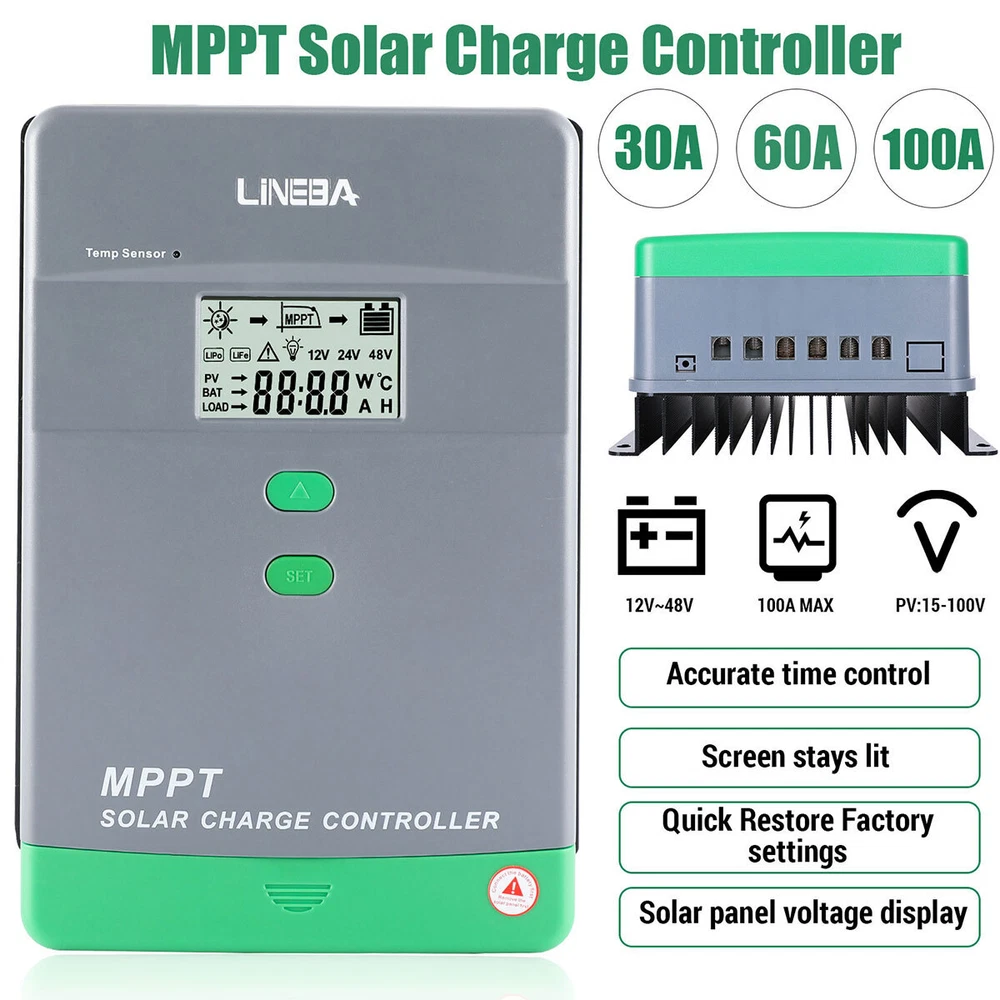

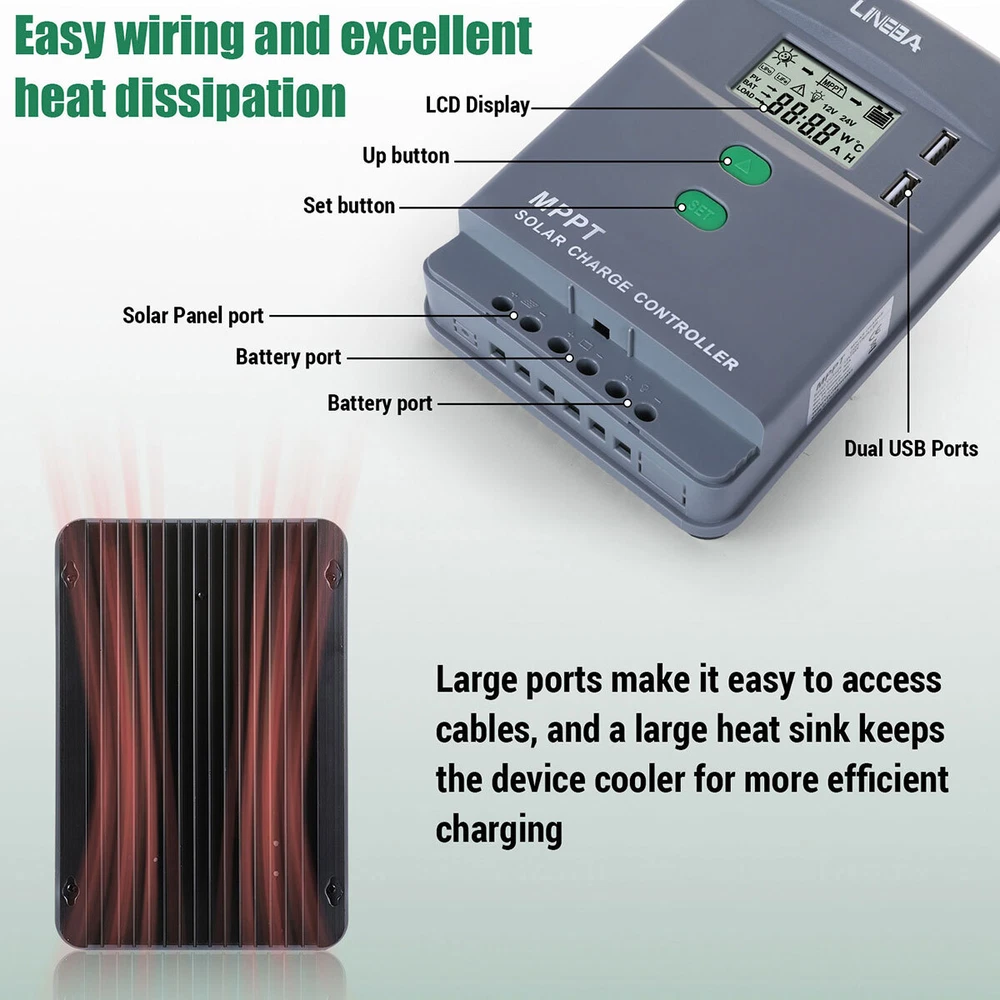

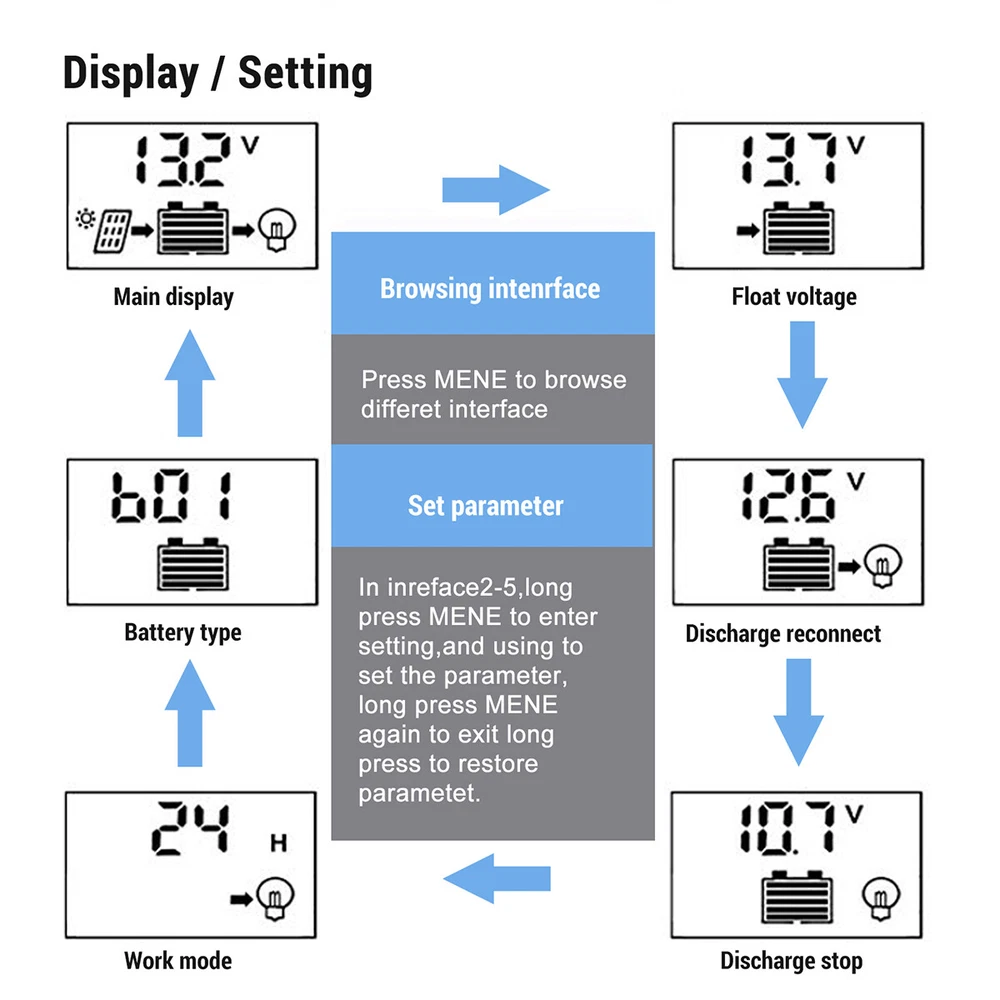

100A 60A 30A MPPT Solar Charge Controller 12V 24V Auto Solar Panel Controller Product Feature ☀️ Multiple Protection Functions: Protection for overcharge, reverse current, overheat and reverse wiring. ☀️ 99% MPPT Charging Efficiency: Using innovative MPPT technology, charging efficiency UP to 99%, Fully utilize the power potential of solar panels. ☀️ MPPT CHARGING CONTROLLER： 4-stage battery charging algorithm for a rapid, efficient , safe charging(Bulk Charge, Boost Charge, Float Charge,and Equalization), 30/60/100amp Rate Charging current ☀️ Fit for USER (can be set Lithium, Lifepo4, Li(NiCoMn)O2)/Vented/Flooded/Sealed/Gel/NiCd battery.User programmable for absorption voltage/Floating voltage/Low voltage disconnect./Load Timer. Real-time energy recording. ☀️ Fit for solar Panel: 1300W(12V);2600W(24V);3900W(36V);5200W(48V); MPPT best working voltage range: DC18V-DC80V(12V);DC30V-DC100V(24V);DC65V-DC150V(48V) ☀️ Blacklight LCD Dispaly PV voltage/output power/Battery voltage/charging current/working mode/Temperature, ☀ TROUBLESHOOTING function and LCD display and can help users not only check the whole system operating data and statuses but also quickly identify system faults and modify parameters. ☀️ Mute and Excellent Heat Dissipation: Integrated heat sink, instead of cooling fan, provides a 0 dB surrounding for relax and ensures maximum charging efficiency and safety. ☀️ Compact in Size： Which makes it easy to install virtually anywhere. MPPT 100A Specification： * Display mode：LCD * System voltage: 12V/24V/36V/48V AUTO * Rated Charge Current: 100A * Max PV open circuit voltage : 150V * PV max input power:1300W(12V) 2600W(24V) 3900W(36V) 5200W(48V) * Colour：Grey * Material：PC+Aluminum Alloy * Waterproof rating: IP30 * Dimension：263*192*111/10.35”*7.59”*4.37” * Installation size:215mm*180mm / 8.46”*7.09” * Aperture for installation:ф5mm * Battery Over Voltage Protection:Lead-acid battery 16V * Light control voltage:5V/10V/15V/20V * Static loss：<50MA * Temperature Compensation:-4mV/℃ for 12V system * Light control voltage: 5V * Temperature Compensation Coefficient: -4mV/°C/2V(25°C) * Charge loop voltage drop: ≤0.2v * LCD Temperature: -20°C~+70°c * Operating Temperature: -20°C~+55°C (To run at full rated current continuously) * Working humidity: ≤90% No condensation * Grounded type:Positive grounded * Battery type: User defalt,GEL,SLD,FLD,LiFePO4,Li(NiCoMn)O2 MPPT 60A Specification： * System voltage: 12V/24V AUTO * USB output：2 USB [5V/2A] * Rated Charge Current: 60A * Maximum PV open * circuit voltage : 75V * PV max input power:780W(12V) 1560W(24V) * Colour：Grey * Material：PC+Aluminum Alloy * Waterproof rating: IP30 * Dimension：194*123*60mm / 7.64*4.84*2.36inch * Installation size:140mm*118mm / 5.51*4.64inch * Aperture for installation:ф5mm * Battery Over Voltage Protection:Lead-acid battery 16V * Light control voltage:5V/10V/15V/20V * Static loss：<50MA * Working temperature range:-20℃-55℃ * Temperature Compensation:-4mV/℃ for 12V system * Grounded type:Positive grounded * Battery type: User defalt,GEL,SLD,FLD,LiFePO4,Li(NiCoMn)O2 * Charge loop voltage drop: ≤0.2v * LCD Temperature: -20°C~+70°c * Working humidity: ≤90% No condensation * Charging control mode: MPPT 【Float charge】: Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery:13.8V 【Absorption charge】: Maintenance-free lead-acid battery:14.4V, GEL:NO, lead-acid Flooded battery:14.6V, Duration:2hours 【Equalization charge】: Maintenance-free lead-acid battery:14.6V, GEL:NO; lead-acid Flooded battery:14.8V, Duration:2hours 【Load disconnection(LVD)】: Maintenance-free lead-acid battery，GEL，lead-acid Flooded battery:10.8V 【Load reconnection(LVR)】: Maintenance-free lead-acid battery，GEL，lead-acid Flooded battery:12.6V MPPT 30A Specification： * Display mode：LCD * Charging control mode: MPPT * System voltage: 12V/24V AUTO * Rated Charge Current: 30A * Maximum PV open circuit voltage : 60V * PV max input power:390W(12V), 780W(24V) * Colour：Grey * Material：PC+Aluminum Alloy * USB output：2 USB [5V/2A] * Waterproof rating: IP30 * Dimensions：179*123*50 / 7.0”*4.84”*1.97” * Installation size:120mm*108mm * Aperture for installation:ф5mm * Battery Over Voltage Protection: Lead-acid battery 16V * Light control voltage:5V/10V/15V/20V * Static loss：<50MA * Light control voltage: 5V * Temperature Compensation Coefficient: -4mV/°C/2V(25°C) * Charge loop voltage drop: ≤0.2v * LCD Temperature: -20°C~+70°c * Operating Temperature: -20°C~+55°C (To run at full rated current continuously) * Working humidity: ≤90%No condensation * Grounded type:Positive grounded * Battery type: User defalt,GEL,SLD,FLD,LiFePO4,Li(NiCoMn)O2 * Charging control mode: MPPT 【Float charge】: Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery:13.8V 【Absorption charge】: Maintenance-free lead-acid battery:14.4V, GEL:NO, lead-acid Flooded battery:14.6V, Duration:2hours 【Equalization charge】: Maintenance-free lead-acid battery:14.6V, GEL:NO; lead-acid Flooded battery:14.8V, Duration:2hours 【Load disconnection(LVD)】: Maintenance-free lead-acid battery，GEL，lead-acid Flooded battery:10.8V 【Load reconnection(LVR)】: Maintenance-free lead-acid battery，GEL，lead-acid Flooded battery:12.6V Charging control mode: MPPT 【Float charge】: Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery:13.8V 【Absorption charge】: Maintenance-free lead-acid battery:14.4V, GEL:NO, lead-acid Flooded battery:14.6V, Duration:2hours 【Equalization charge】: Maintenance-free lead-acid battery:14.6V, GEL:NO; lead-acid Flooded battery:14.8V, Duration:2hours 【Load disconnection(LVD)】: Maintenance-free lead-acid battery，GEL，lead-acid Flooded battery:10.8V 【Load reconnection(LVR)】: Maintenance-free lead-acid battery，GEL，lead-acid Flooded battery:12.6V Products Include: 1x Solar Controller 1x User Manual #52001 PWM 30A 12V/24V【2 USB】 1.【Multiple Protection Functions】：Protection for overcharge, reverse current, overheat and reverse wiring. 2. 【UPGRADED SOLAR CHARGE CONTROLLER】: Auto detects 12V 24V system, Max PV input voltage 50 volts, Max. Input Power: 30A: 390W(12V) 780W(24V). 3. 【Dual USB Port】: Built-in Dual USB output 5V/2A, charging for your mobile phone, tablet, and PCs. 4. 【3-STAGE PWM Technology】: The controller is equipped with advanced smart PWM technology with high charging efficiency, through three stages of charge modes(Direct, boost, float), fast, efficient, and safe battery charge, effectively extending the battery life; the combination of solar light control and time control, freely adjust the load enable duration. 5. 【Various battery COMPATIBILITY】: Compatible with various 12v 24V batteries, such as ternary lithium battery, lithium iron phosphate battery, gel battery, sealed battery, open battery, etc. 6.【LCD Display】: Large LCD display, easy to read the data. 7.【Mute and Excellent Heat Dissipation】: Integrated heat sink, instead of cooling fan, provides a 0 dB surrounding for relax and ensures maximum charging efficiency and safety. 8.【Compact in Size】：Which makes it easy to install virtually anywhere. Product Parameter Display mode：LCD System voltage: 12V/24V AUTO Rated Charge Current: 30A Maximum PV open circuit voltage : 50V PV maximuminput power:390W(12V) 780(24V) Colour：Blue Material：PC+Aluminum Alloy Waterproof rating: IP32 Dimension：135x70x35mm/5.31”*2.75”*1.38” self-consumption：<12MA Dual USB output：5V/2A Working temperature range：-35℃-60℃ Temperature Compensation：-24mV/℃ for 12V system Battery Type: Lithium batteries, customization, GEL,SLD,FLD Load control mode: 24 hours work, light control, light and timing control Charging control mode:PWM Float charge:13.7V / 27.4V Equalization charge:12.6V-14.4V / 25.2V-28.8V Load disconnection(LVD):10.0V-10.4V / 20V-20.8V Load reconnection(LVR):11V-11.6V / 22V-23.2V Battery Over Voltage Protection：16.5V / 33V Products Include 1x Solar Controller 1x User Manual Payment Delivery details Terms of sales About us Contact us Payment Payments: Paypal, Google Pay, Visa, Master Card, Amerian Express, Discover. Delivery details All items are shipped from US warehouse. 😉😉 😉 We have 2 wharehouse in US, one is in NJ and the other is in CA. 😉😉 😉 We will ship from the warehouse closest to the buyer's delivery address. Don't hesitate make orders ! We ship to your eBay or Paypal address. Please make sure your eBay or Paypal address is correct before you pay. Terms of sales Free return About us Pls contact our customer service firstly if have any problems , we will help to solve the issue, and could offer free return service for full refund or free replacement after confirming. You can buy from us with confidence Contact us If have any problems, please feel free to contact us.
