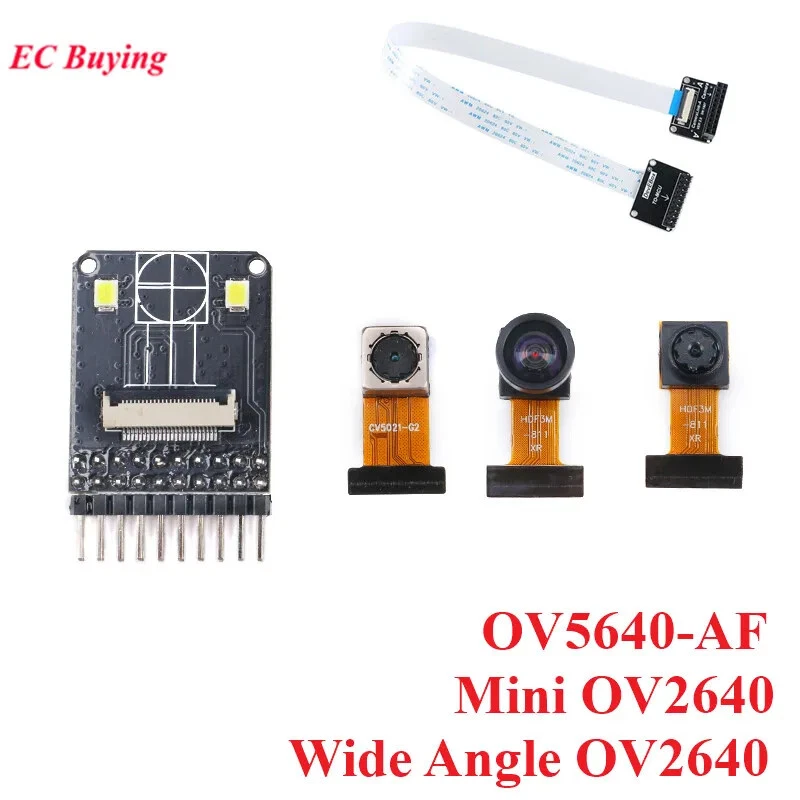

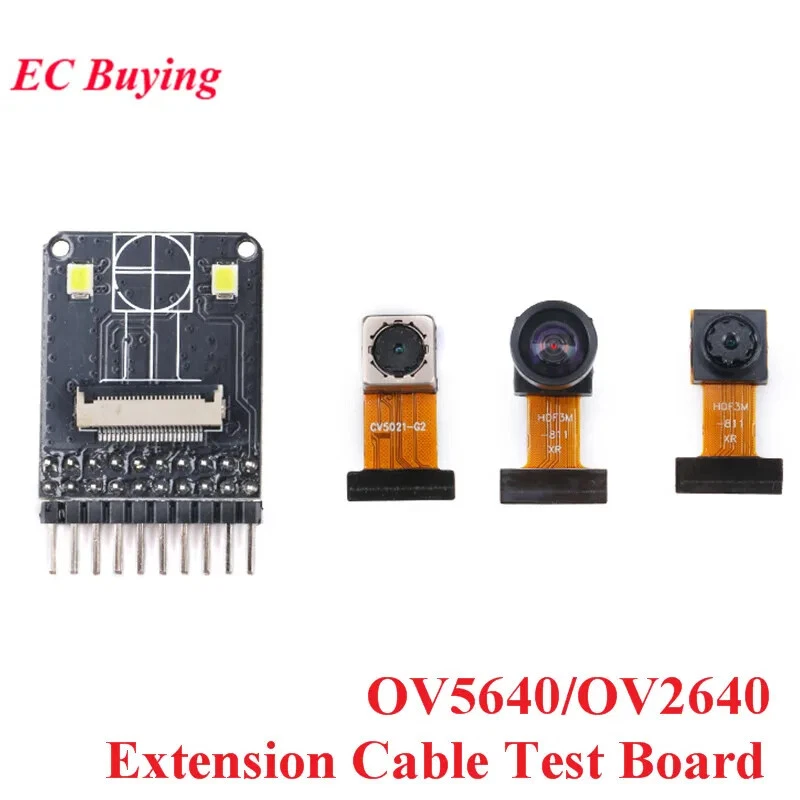

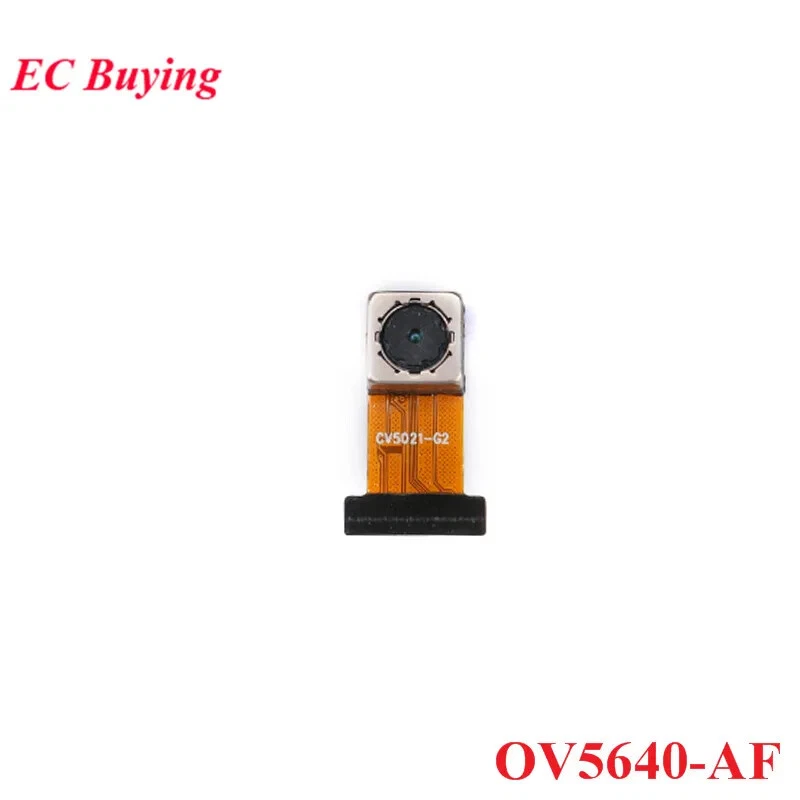

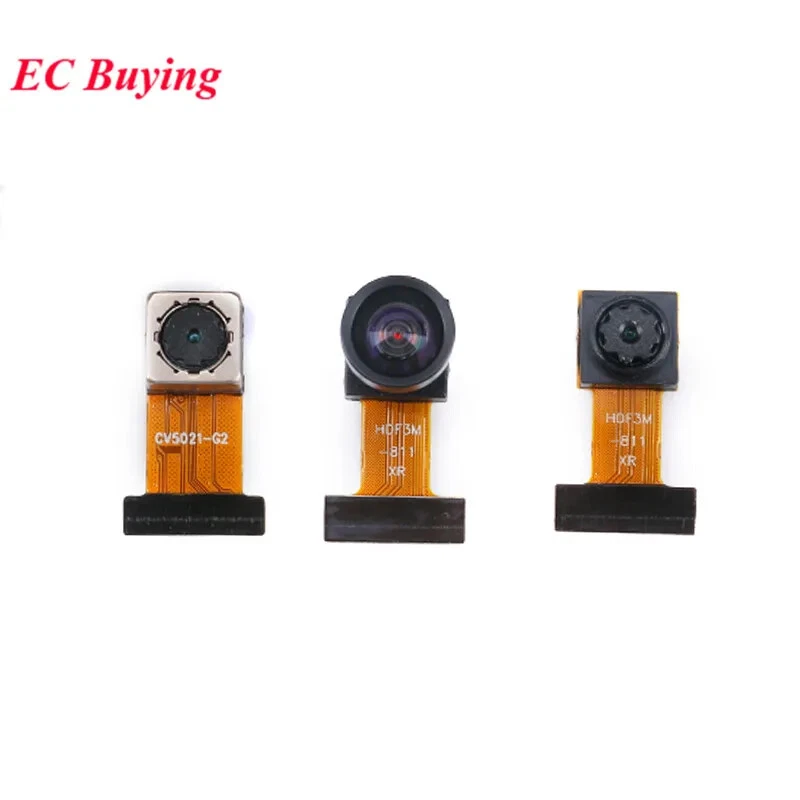

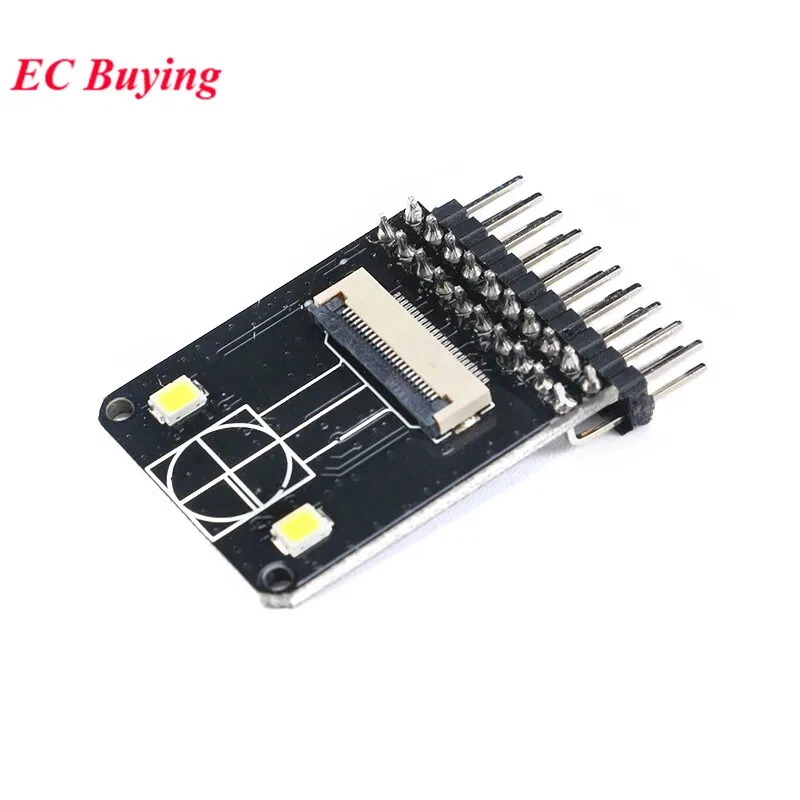

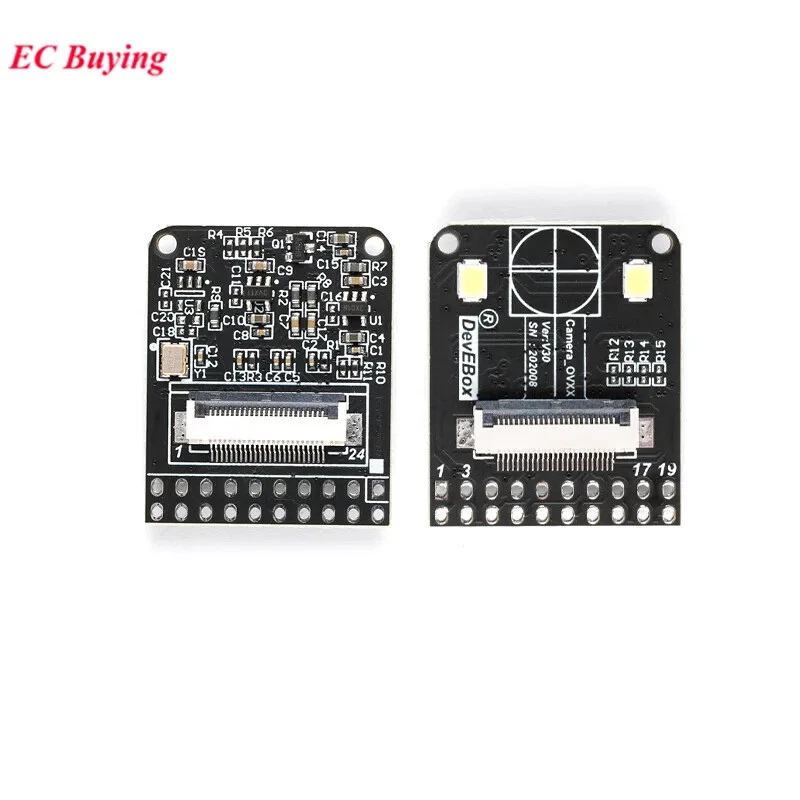

Mini Camera Module OV2640 OV5640 CMOS Sensor Wide Angle 24P Connector
$ 3.03
Description

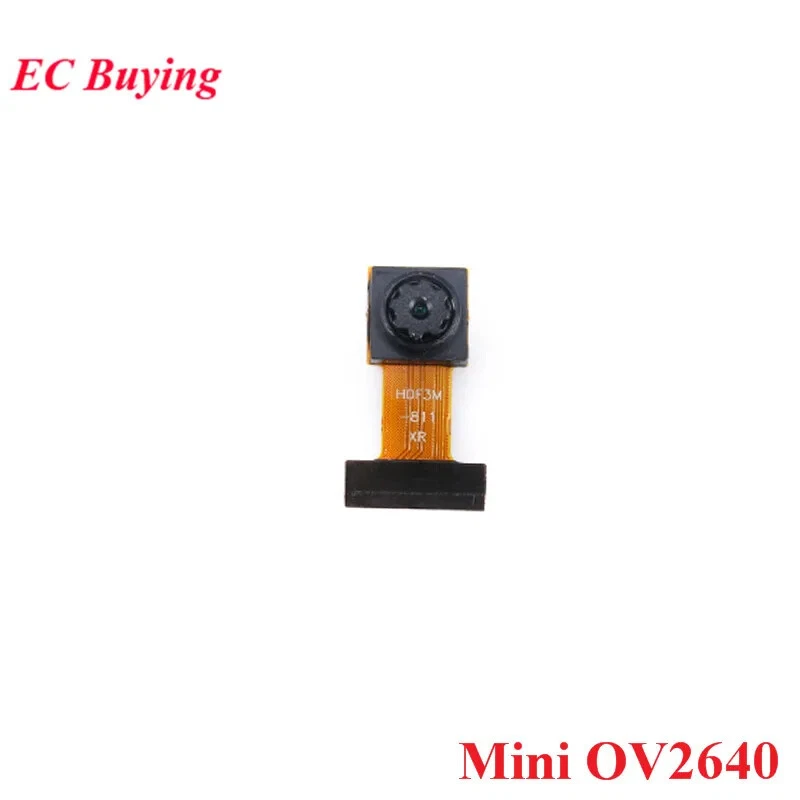

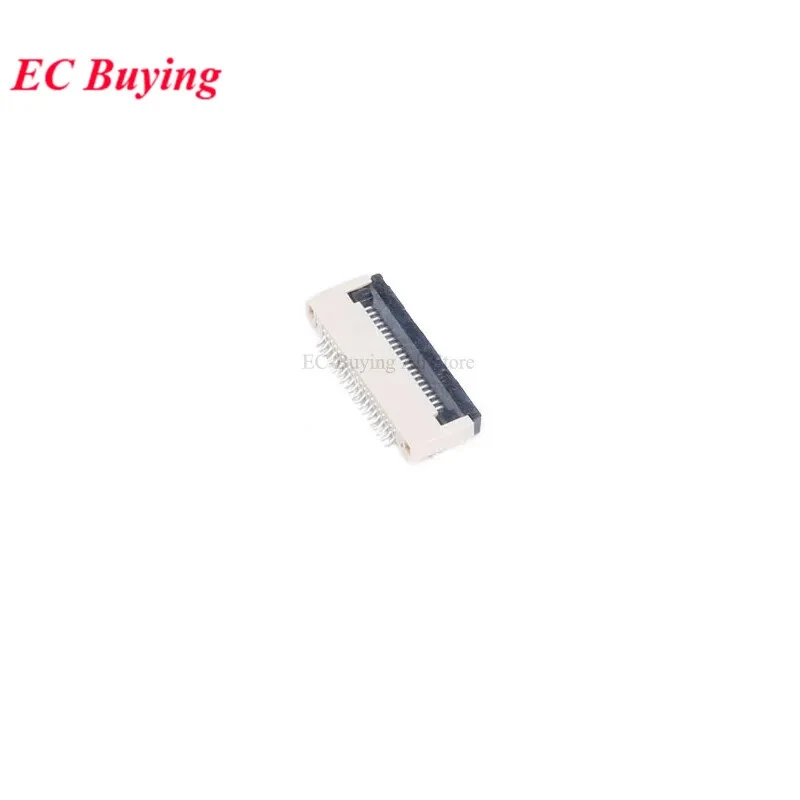

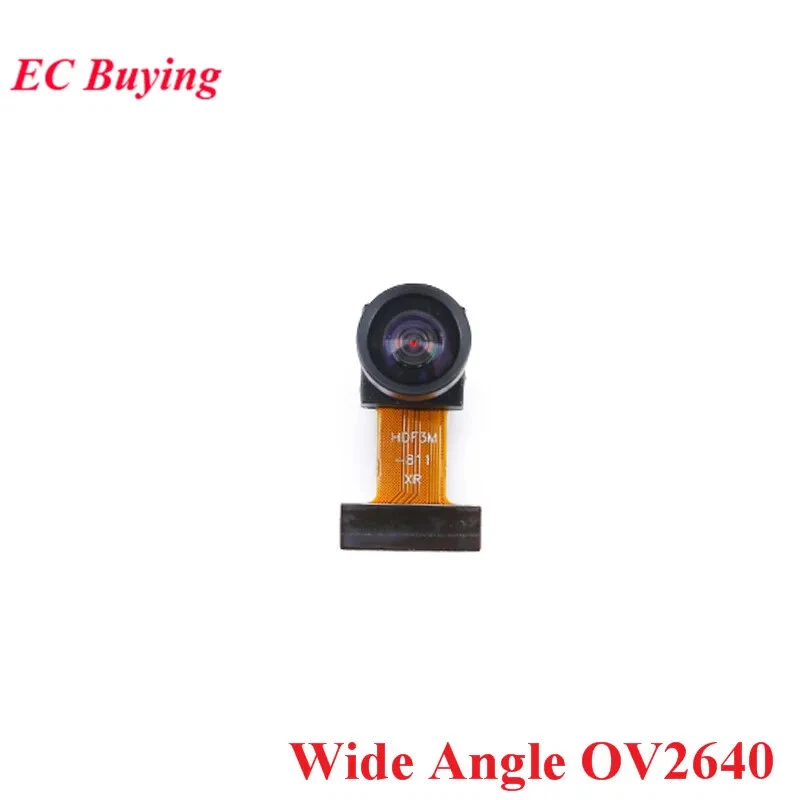

Note: 10pcs 24P 0.5MM, place an order for the customers who need it, and do not select the ones who don't need it, thank you! OV2640 Mini The OV2640 is a 1/4-inch CMOS UXGA (1632*1232) image sensor. The sensor's small size and low operating voltage provide all the features of a single UXGA camera and image processor. Through the SCCB bus control, it can output 8/10-bit image data of various resolutions such as full frame, sub-sampling, zooming and windowing. The UXGA image of this product can reach up to 15 frames per second (up to 30 frames for SVGA and 60 frames for CIF). Users have complete control over image quality, data format and transmission. All image processing functions including gamma curve, white balance, contrast, chroma, etc. can be programmed via the SCCB interface. Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, smearing, and floating. This camera module only leads to some pins of the CSP package sensor chip and an optical lens. Without integrated peripheral components, it needs to be designed by itself. OV2640 Wide Angle OV2640, OV200 megapixel camera, 1/4 with ISP, support JPEG output. OV5640 The OV5640 is a 1/4-inch CMOS QSXGA (2592*1944) image sensor that provides a complete 500W pixel camera solution with integrated autofocus (AF) capability. The price/performance ratio. The sensor is small in size and low in operating voltage. All the features of a single QSXGA camera and image processor. Through the SCCB bus control, it can output 8/10-bit image data of various resolutions such as full frame, sub-sampling, zooming and windowing. The QSXGA image of this product can reach up to 15 frames per second (up to 30 frames for 1080P images, 60 frames for 720P images, and 120 frames for QVGA resolution). Users have complete control over image quality, data format and transmission. All image processing functions including gamma curve, white balance, contrast, chroma, etc. can be programmed via the SCCB interface. Image sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, smearing, and floating. Parameter: Uses 1.4μm*1.4μm pixel size and uses technology for higher performance (high sensitivity, low crosstalk and low noise) Automatic image control functions: automatic exposure (AEC), automatic white balance (AWB), automatic elimination of light streaks, Automatic black level calibration (ABLC) and automatic band pass filter (ABF). Support image quality control: color saturation adjustment, tone adjustment, gamma calibration, sharpness and lens calibration Standard SCCB interface, compatible with IIC interface Support RawRGB, RGB (RGB565/RGB555/RGB444), CCIR656, YUV (422/420), YCbCr (422) and compressed image (JPEG) output formats Support QSXGA (500W) image size output, and scale down to any other size Flash support Support for image scaling, panning, and window settings Support image compression to output JPEG image data Support for Digital Video Interface (DVP) and MIPI interfaces Support auto focus Built-in embedded microprocessor This camera module only leads to some pins of the CSP package sensor chip and an optical lens. Without integrated peripheral components, it needs to be designed by itself. Extension cable installation method (bend needle version) Extension cable installation method (straight needle version) Extension cable STM32H7XX installation method (straight needle version)
