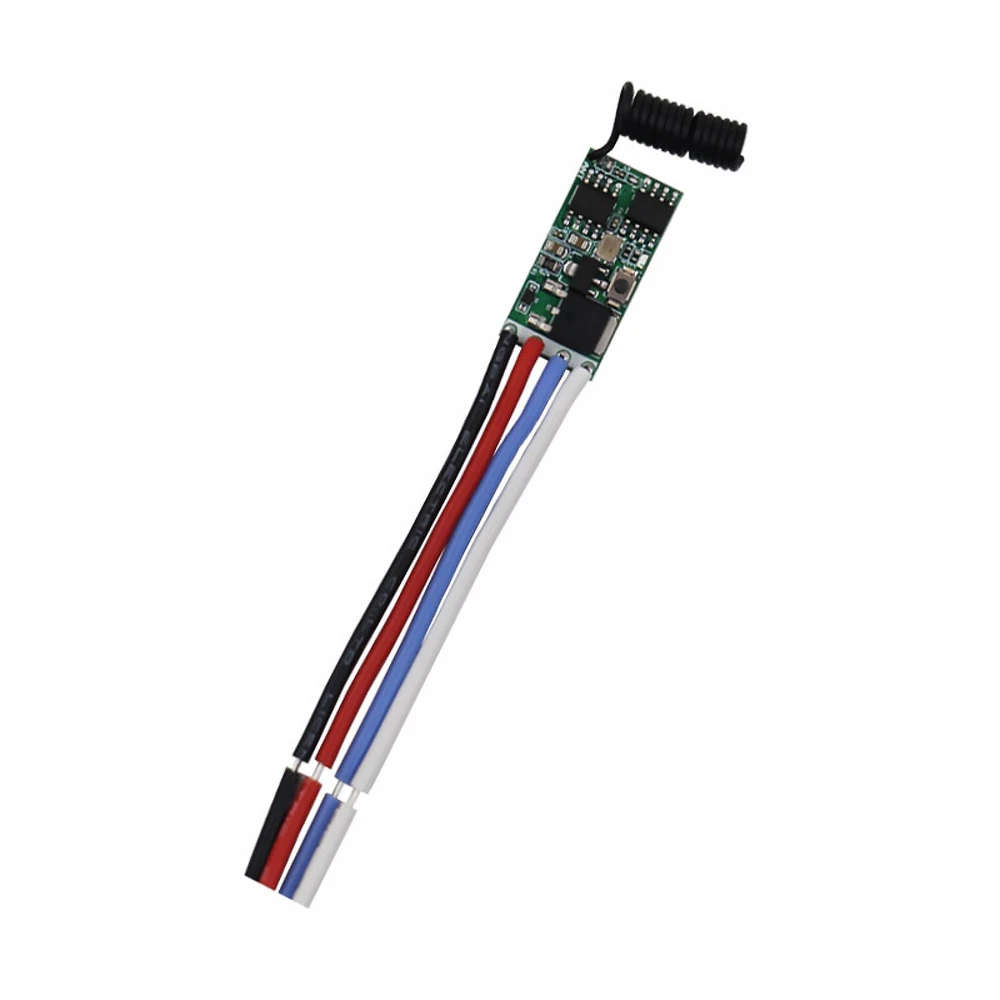

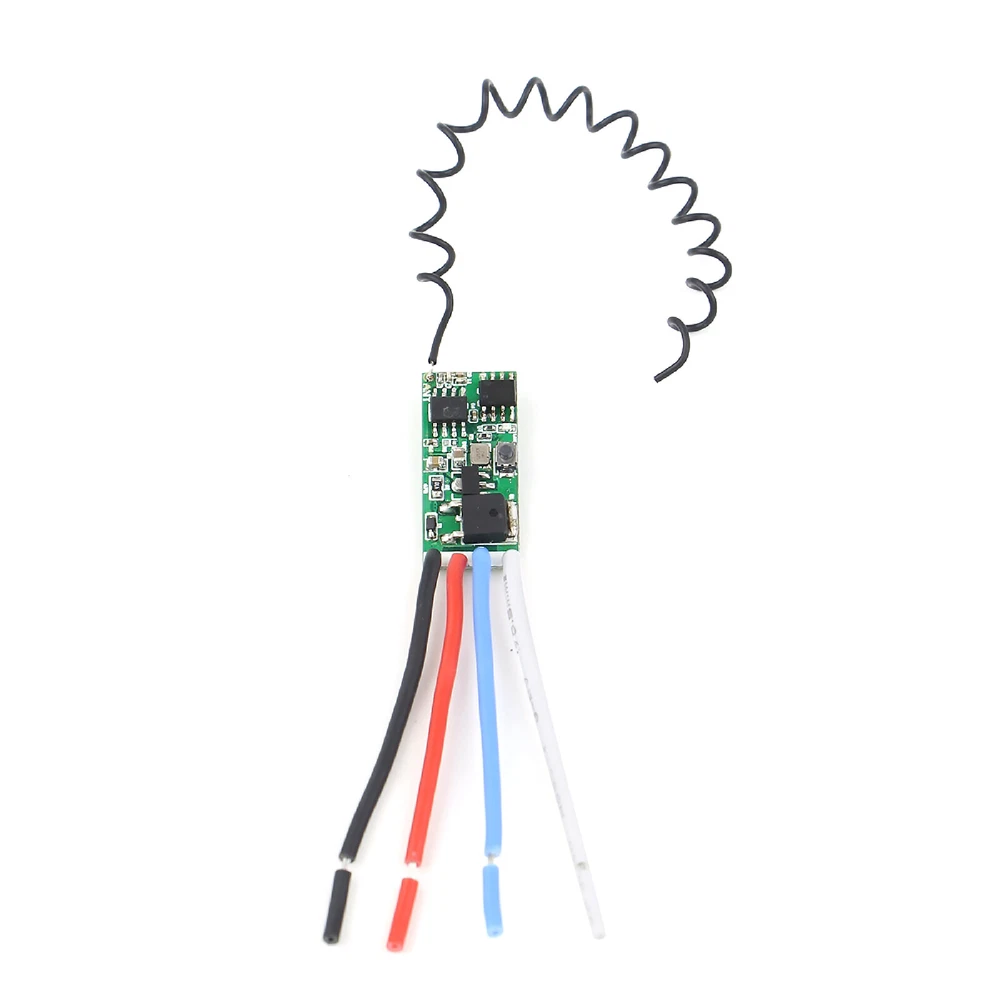

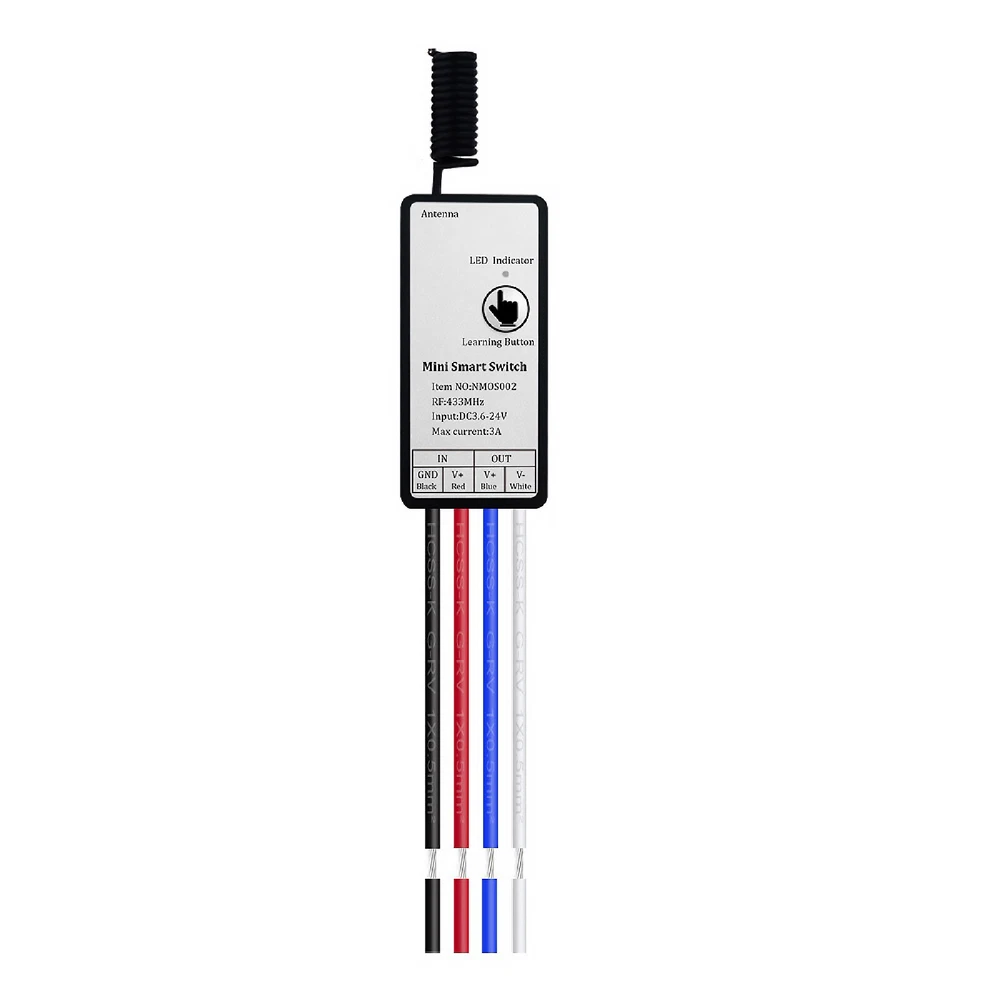

Mini Wireless RF Remote Control Light Switch Receiver module 1527 Encoding N

Description

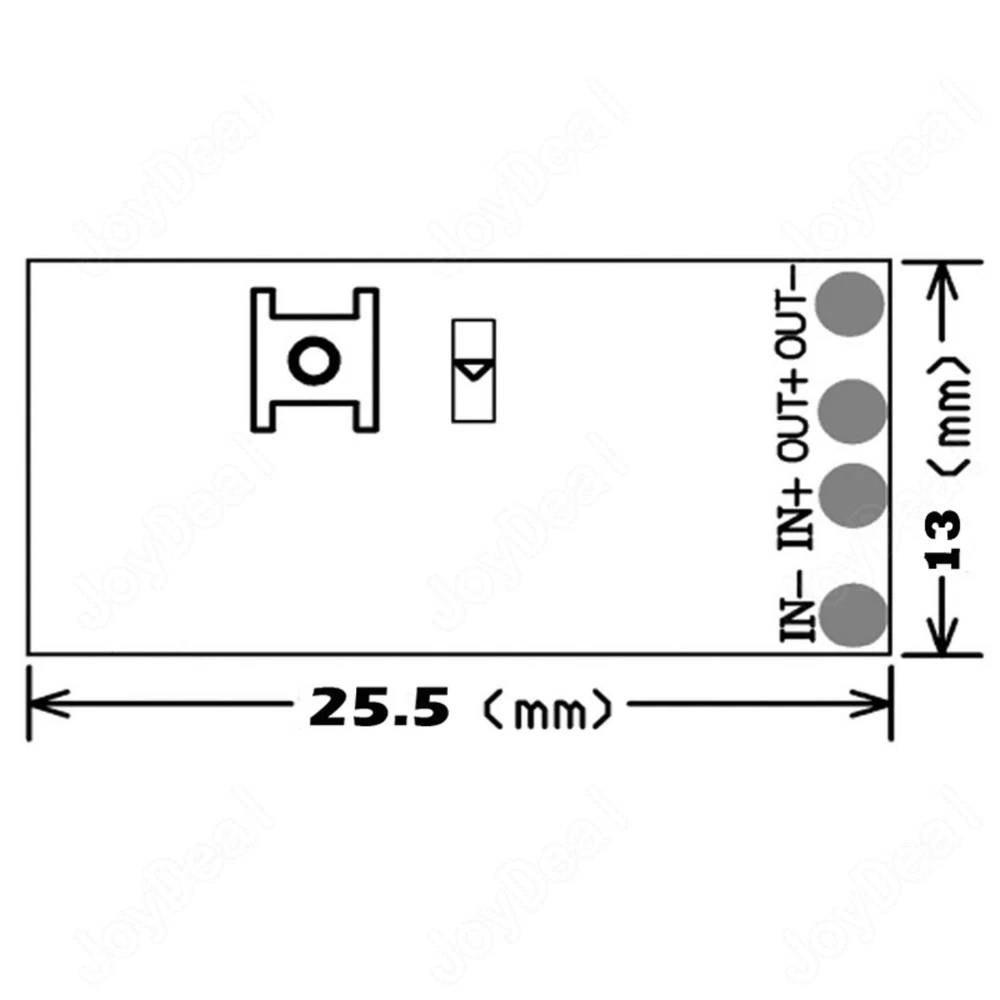

You may also like 2Pcs Replacement Full Range Speaker for JBL Charge 3 4ohm 10W Bluetooth Speaker 17.99 USD 20x Soft Golf Shoe Spikes Replacement Cleat Fast Twist Q-Lok For Footjoy Champ 12.99 USD 36X Phone Camera Telephoto Lens Zoom Fisheye Wide Angle Lens For iPhone 25.99 USD Metal 1/4" Boat Jack Plate for Fender Stratocaster Strat Style Guitar Parts b 9.89 USD For Insta360 X3 Camera Accessories Aluminum Alloy Protective Cage Housing Frame 58.99 USD Rivet Marking Tool& Handle Model Building For Galaxy Tools Accessories Part 22.99 USD SAFE & SECURE SHOPPING 100% SATISFACTION GUARANTEED FAST SHIPPING Mini Wireless RF Remote Control Light Switch Receiver module 1527 Encoding N Product Description 433mhz DC 3.6V 5V 12V 24V 1CH LED Lamp Controller Micro Receiver for Remote Control Switch Specification: Working voltage: DC 3.6V~24V Maximum load: 2A Static current: <5 mA Working frequency: 433MHz Reception sensitivity: <-108dBm Size: 25.5 mm x 13mm x 5mm (length × width × high) Mini size support coding format 1527 learning code Input: DC 3.6V ~ DC 24V Output: DC 3.6V ~ DC 24V Modulation mode:ASK (superheterodyne) Appearance size: 25.5mmx 13mm x 5mm (length × width × high) Number of stored remote controls: ≤ 10 Working mode: Momentary, Toggle, Latching Mode Learning style: Learning Button Working temperature: -20 degrees 80 degrees. Features: ·Application environment: Wireless control LED lamp string, Christmas tree light string, Light control switch. ·Long range working voltage ·Ultra low power,High sensitive response .Operating Voltage: DC 3.6V-24V .Encoding : EV1527 Learning code About Working mode: Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects. Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects. Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect. Tiem delay mode :Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s or 20s , the relay disconnect automatically. Automatic energize when power on mode: when power supply, the relay connects. Clearing the code : After push the receiver's learning button 9 times , the receiver Clear all the remote control data in its memory. When the LED flashes for 5 few times,it indicates that the clear function is completed. (After cleared the code in the receiver,all the remote control must study from receiver onece again to restart.） Receiver operating mode Settings 1.Learning the code :(momentary) Push the learning key on the receiver once time ,it comes into momentary setting mode. Wait for a moment ,the LED will be on, it comes into learning state .Push the remote button , LED indicator on the receiver board will flash 3 times and then come off ,learning successfully. 2.Learning the code : ( Toggle ) Push the learning key on the receiver twice time , it comes into toggle setting mode Wait for a moment ,the LED will be on , it comes into learning state .Push the remote button ,LED indicator on the receiver board will flash 3 times and then come off, learning successfully . 3.Learning the code :( Latching ) Note: When you choose for latching mode ,in order to learn more remote control ,you need to learn two different button,the first time learnt is for “ON”, the second time learnt for“OFF”. For example : button A = ON , button B = OFF ,Push the learning key on the receiver triple time , it comes into latching mode .Wait for a moment , the LED indicator on thereceiver board will be on, Push the remote button A,LED flash for 3 times .Push the remote button B .LED indicator flash for 3 times and then come off, learning successfully . 4.Learning the code :( Time delay mode ) Push the learning key on the receiver forth time , the time dealy for 5 seconds. Push the learning key on the receiver fifth time , the time delay for 10 seconds. Push the learning key on the receiver sixth time , the time delay for 15 seconds. Push the learning key on the receiver seven time , the time delay for 20 seconds. The LED indicator will be off. Push the remote button , LED flashes and off ，learning successfully. 5.Learning the code : (Automatic energize when power) Push the learning key on the receiver eight times , it comes into setting mode Wait for a moment, the LED will be on , it comes into learning state .Push the remote button,LED indicator on the receiver board will flash 3 times and then come off, learning successfully. NOTE: The system can store for 20 pcs of remotes , if the remote get more than 20 pcs , the initial remote control will be lost. Package Included: 1x Mini Wireless RF Remote Control Light Switch Receiver module (1527 Encoding ); About Us Payment Shipping Returns Contact Us About Us Welcome to our store! Our aim is to offer our clients items with high quality and fast delivery, also our price will be reasonable. We supply many products including video game, health & beauty, phone accessories, computers accessories, camera & camcorder,car accessories, games, toys & hobbies, jewelry, antique & craftwork. Excellent customer service and a reliable credit standing is our tenet. Payment We accept all verified payments from ebay. Orders will be shipped after receiving cleared payment. Payment due within 7 days after auction ends and for buy it now listings. Shipping We ship most of our orders within 24 hours, and may up to 48 hours. If you want faster shipping way. Please contact us before making payment. Sometimes due to problems with our transportation company system, your shipping information may be delayed to update. We recommend that you try again after 3-4 days. If you still haven't checked the shipping information, you can contact us by ebay message. Returns Always believe we can figure things out with communication, if it comes to return, the pacakge must be intact and the same as you receive. If you have any questions, please feel free to email our service specialists 24 Hours a Day, 7 Days a Week. We will reply you ASAP. Return/refund is accepted within 30 days after the buyer receives the item. NO exchange will be accepted after 30 days from the date when the item is received. Please contact us first before returning your product!!! Contact Us If you have any questions, our Customer Service staffs welcome you to email us. We strive to answer all questions and resolve any problems as quickly as possible. You can contact us 7*24, we will reply at the first time, and we will surely solve your problems. Note: 1.We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 1 business days for us to response. If you do not receive any reply from us, please check your email ensuring your mailbox has not reached full size. 2.Due to some ISP SPAM filter settings, you may not be able to receive our replies; if you have problems receiving our emails, you may need to use a different email account to contact us. 3.Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues. Please email us before leaving any negative feedback or open any dispute on PayPal. 4.We care about our valued customers, and will always try to help you. So if you have any problems, please e-mail us immediately. Copyright © 2022 Tongtool DIY Lockheed AC-130U Ghost Aerial Gunship Aircraft 1:100 Military Paper Model 14.99 USD DIY 8 Colors Luminated D-Pad Thumbsticks Face Buttons LED Kit for PS5 Controller 18.19 USD 50PCS 1/32 Model Car Rubber Tire Diorama Rubber Tire Display Accessories 17.99 USD 608 Hybrid Ceramic Bearing ABEC 9 Skate Bearings FreeLine Skate Skateboard Set c 23.99 USD Flex Ribbon Cable To Motherboard For Playstation PS4 CUH-1215A/B Blu-ray Drive S 12.39 USD Steel Long Gamebit Screwdriver Set For Nintendo (SNES) Game Cartridges 4.5mm b 9.88 USD Leather+Foam Ear Pads Cushion Earpads For Panasonic RP-HTX7 HTX9 HTX7A Headphone 7.99 USD For Fitbit Versa4 Smart Watch LCD Display Touch Screen Assembly Replacement 27.99 USD 10x Durable Fuel Filters for STIHL ZAMA ZF-1 ZF1 Homelite 49422 Chainsaw Trimmer 9.99 USD 100PCS Rockwool Cubes Soilless Culture Strong For Cuttings Plant Seed Starting d 16.99 USD 5 Pcs 64T Spur Differential Gear+ 4Pcs 17-29T Motor for HSP 1/10 94111 94123 RC 11.99 USD Wireless Bluetooth Remote Control Tripod for Gopro Hero 10 9 8 MAX Phone Shoot 36.99 USD 10*31B For Security Magnetic Reed Switch NC NO Combined Door Contact Sensor A 24.99 USD Dual PD+QC3.0 Port USB Car Fast Charger Cigarette Lighter Socket Power Plug Kit 19.99 USD Midnight Blue Protective Cover Replacement For Bose Soundwear Companion 15.59 USD For Garmin Varia/Edge 1040/1030 Mountain Bike Mount Stand Tail Light Bracket 10.79 USD 0.8M 32P Spur Gear 50T 52T 56T 60T For Traxxas Slash 2WD VXL XL-5 Bandit 1/10 15.99 USD High Quality Round Restrictor GT-C ROUND Circular Plate For SANWA JLF Joystick 8.99 USD 12Pack Fingerboard Deck Uncut Sandpaper Grip Tapes Protector Sticker 4.33"X1.38" 8.99 USD Electric Start Drill Bit Engine Starter Adapter for String Trimmer Leaf Blower g 9.99 USD 13 in1 Stainless Auxiliary Stencil Templates For 1/100 1/144 MG Gundam Models 14.69 USD 120W Mini ZVS Heating Machine DC 5-12.0V Input Voltage Induction Heater Module N 15.99 USD 48p Steel 83T Spur Gear For Traxxas Slash 2wd LCG Drag F-150 SVT 15.99 USD Aluminum Alloy Rear+Body Lens Cover Cap For Leica M39 L39 Screw Mount Camera C 13.39 USD 500Pcs/Set Assorted Mixed Size Watch Case Crown Tube Repair Replacement Part C 12.99 USD Ear Pads Cushion Earpads Earmuffs For Bose QuietComfort QC35/QC35 II Headset a 10.88 USD 1 Set Rotary Hammer Wrench Adapter Accessories 2-13mm Keyless Drill Chuck 21.99 USD 8318084 Washer Lid Switch Replacement Part For Inglis For Estate For Amana N 11.99 USD Right Angle Converter Adapter Kit Rotary Tool Attachment For Dremel Accessory 19.99 USD Replacement Ear Pads Cushions Earmuffs For AKG K361 K361BT K371 K371BT Headphone 13.69 USD
