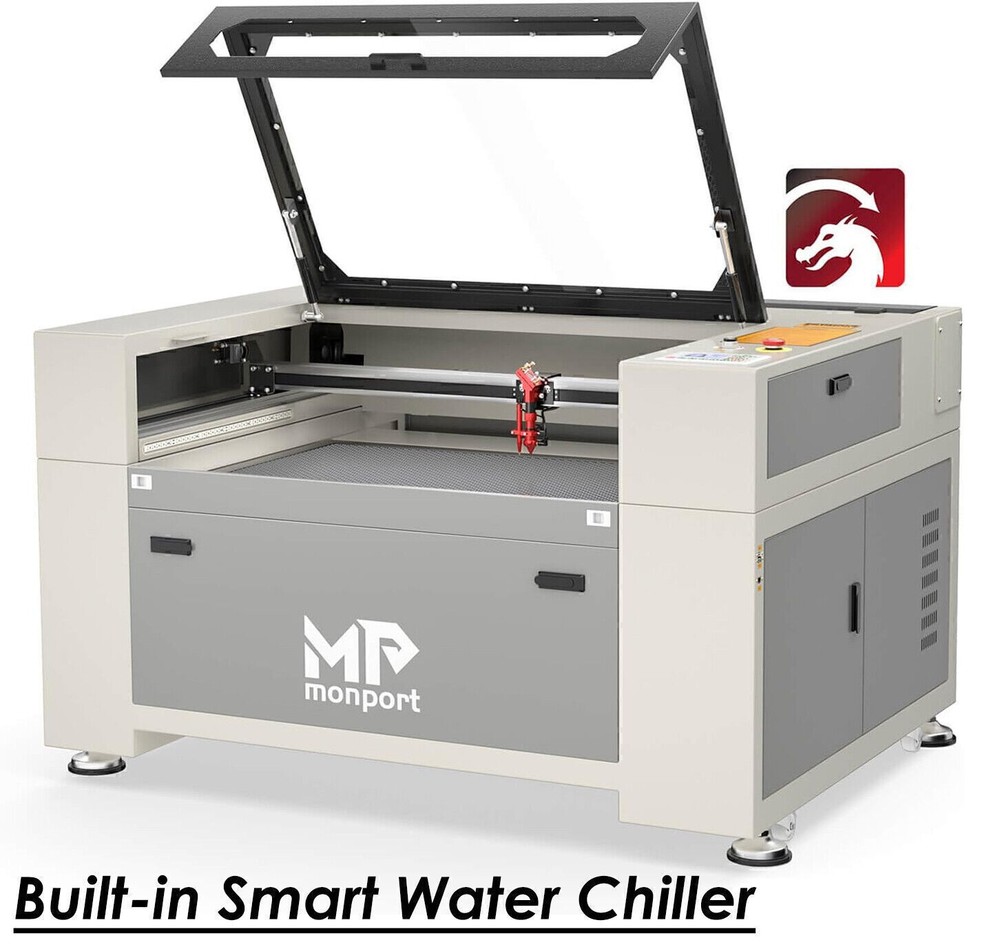

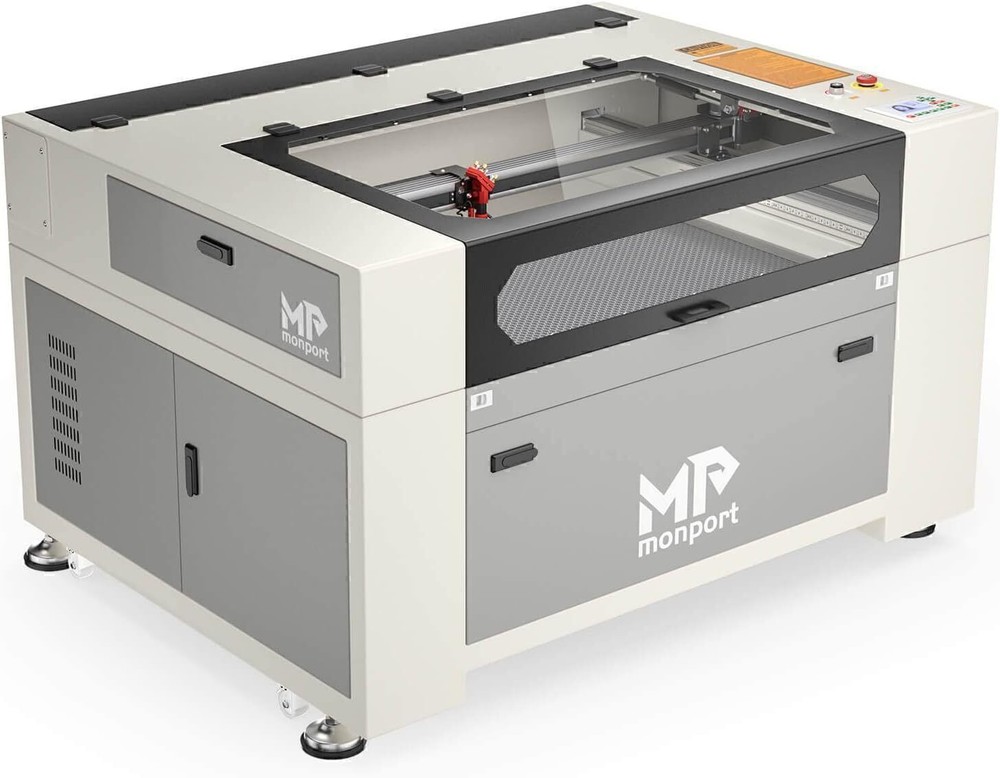

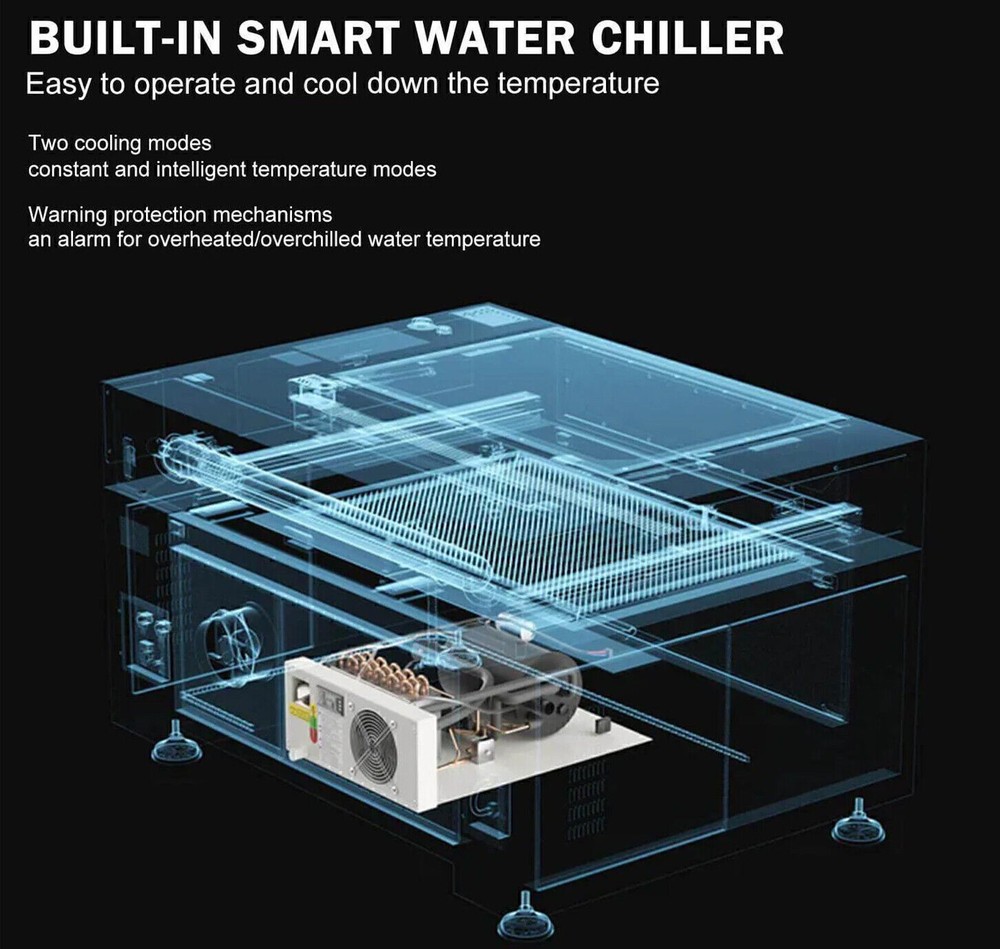

Monport 90W 36x24 Autofocus CO2 Laser Engraver Cutter Built-in Smart Chiller

Description

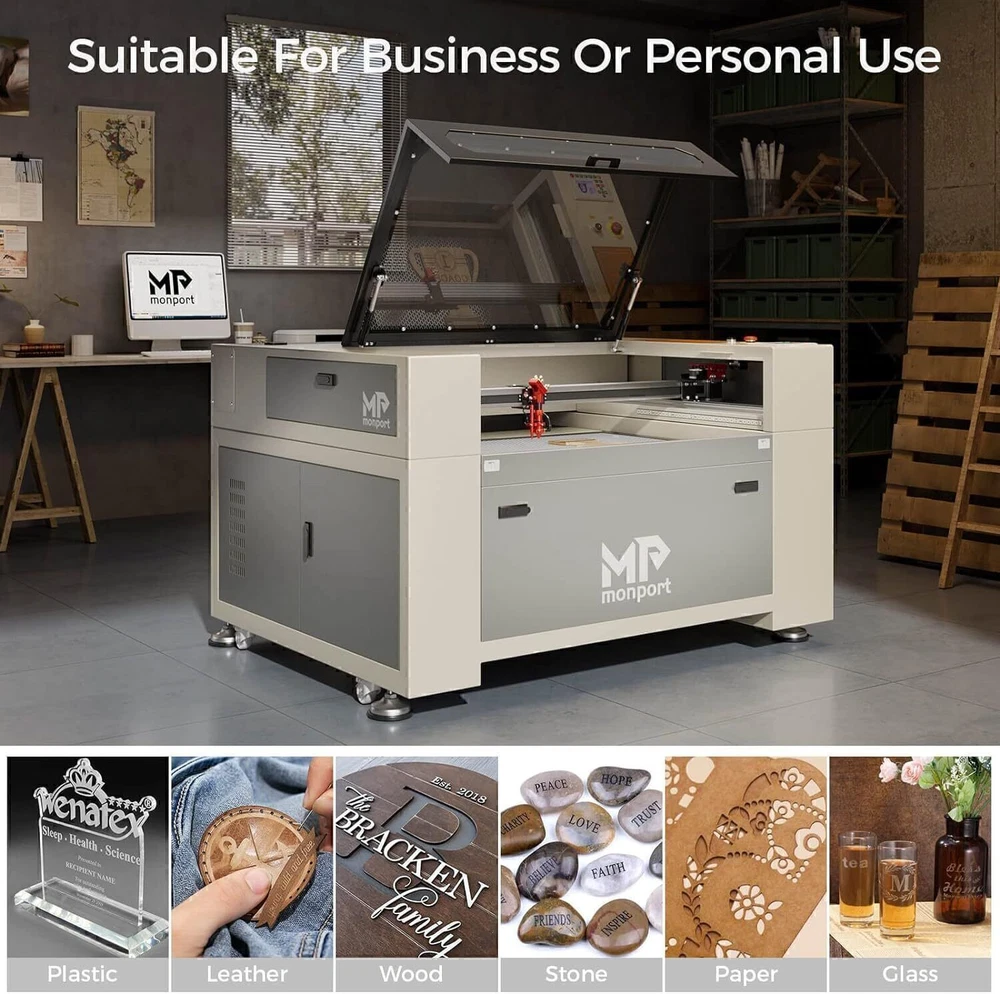

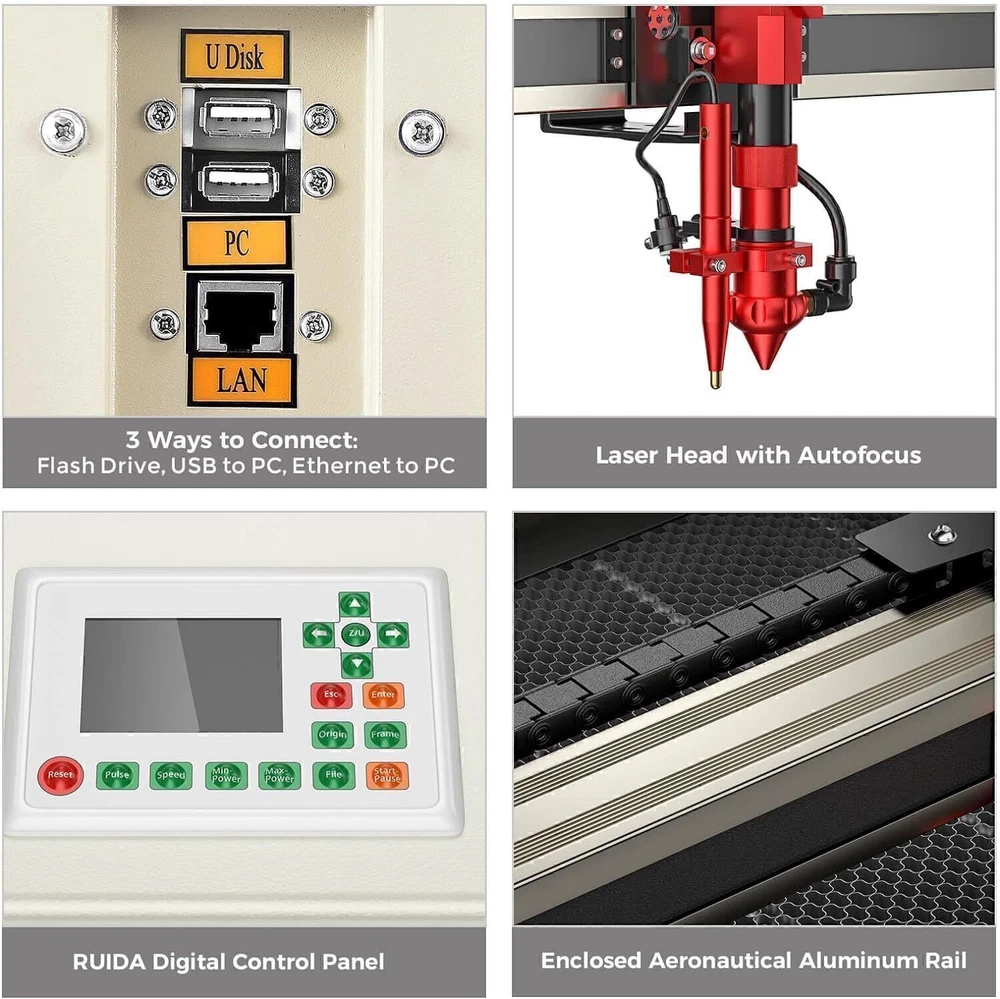

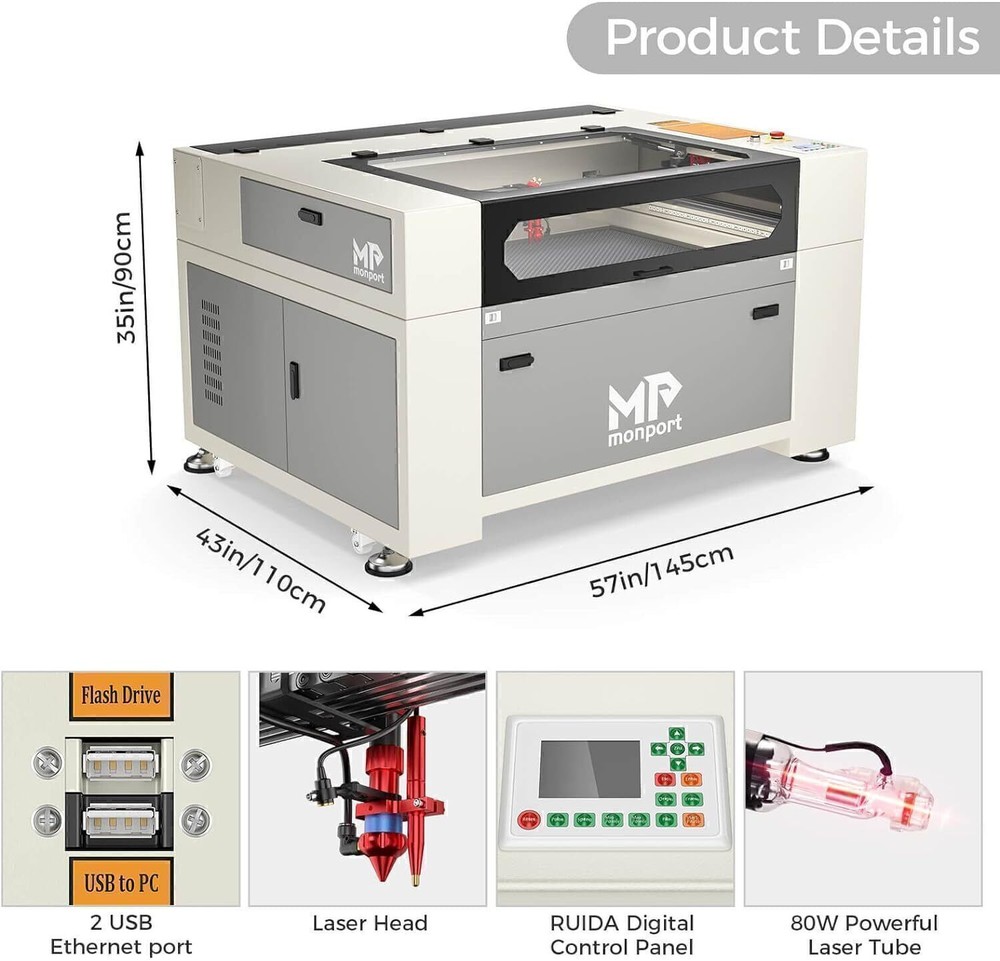

Monport 90W 36x24 Autofocus CO2 Laser Engraver Cutter Built-in Smart Chiller New Official Monport Upgraded 90W CO2 Laser Engraver＆Cutter Built in Water Chiller, 24x36 Larger Working Area with Autofocus＆Autolift, Digital Controls, Red Dot Pointer for Marker Wood Acrylic Glass More US STOCK CE & FDA Specification ⭐️ Dimension & Specifications Working Dimension: 24"x 40" ( 60 cm x 100 cm ) Pass-through Dimension：2.9'' x 43''（7.5cm x 109.5 cm ) Machine Dimension: 61'' x 43'' x 35'' ( 155cm x 110cm x 90cm） Max Engraving Speed: 800mm/s Max Cutting Speed: 30mm/s ( actual speed depends on material ) Max Engraving Depth: 19.05mm Min Engraving Depth : 0.01 mm Focal Lens Diameter: 18mm Mirror Diameter: 25mm Max Z-depth: 7" Package Dimension: 67.7" x 48.4" x 43.7" ( 172 cm x 123 cm x 111 cm ) Net Weight: 639.3 lbs ( 290 kg ) ⭐️ Material Capability Can safely engrave or cut any laser-compatible material Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber Contact us with questions on specific materials not listed. If necessary, we can test it for you ⭐️ Software Works on Windows XP, 2000, Vista, WIN 7, 8, 10 & 11, both 64 & 32 bit MacOS (Version 10.11 and higher) ONLY with LightBurn software Compatible with Lightburn, RDWorks, Coreldraw, Auto-CAD Supported image formats: BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others ⭐️ Laser System Laser Wavelength 10640 nm; Rated at over 90 watt; Recommended engraving speed: 100 - 500mm/s Recommended cutting speed: 1 - 30mm/s (actual speed depends on the thickness of material) ⭐️ Mechanics Linear System — Enclosed aeronautical aluminum rails Motion — Equipped with stepper X, Y, Z axis, plus mechanical limit switches Cooling — Built-in 4L water chiller with two operating modes Air Assist — Built-in air assist with no external compressor required Ventilation — On-board exhaust fan, as well as an exhaust hose so you can vent the fumes to the outdoors Standard 110V , AC power connection 4-pin port connection for rotary axis devices Temperature-- Recommended Operating Temperature: 60-104 °F (16C-40C). Attention: the CO2 water temperature must be maintained at 60-70°F (16-21°C) Monport 90W Benefits ⭐️【FIREPROOF VIEWING WINDOW】 This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials. ⭐️【BUILT-IN SMART WATER CHILLER 】 The built-in 3L water chiller is easy to operate and cools down the temperature without any other machines. To meet different needs, there are two cooling modes, constant and intelligent temperature modes. This professional water chiller has multiple warning protection mechanisms such as an alarm for ambient temperature, an alarm for overheated/overchilled water temperature, and so on. When the alarm occurs, the display will alternate between the water temperature and the error. ⭐️【ENCLOSED AERONAUTICAL ALUMINUM RAIL】 Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units. ⭐️【LASER PROTECTIVE GLASSES FOR FREE】 Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes). ⭐️【RUIDA DIGITAL CONTROLLER】 Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can control the laser head, start or stop projects, adjust laser power and speed settings and so on. 90W CO2 Engraver Features ⭐️ High Speed and Resolution The Engraving Speed is up to 800 mm/s; The Cutting Speed is up to 400 mm/s; The Resolution is up to 4500 dpi; 3 LED light strips above the work bed provide illumination for precision; 2.0" Focal distance provides high resolution and etching of tiny fonts ⭐️ Autofocus Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment. ⭐️ Built-in Air Assist A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise. ⭐️ 3-ways to Connect with PC End Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection. ⭐️ Red Dot Guidance The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance. ⭐️ Automatic Safety Sensor The safety shutdown sensor helps stopping the machine even if the window cover is on. Once closed, press the “Enter" button to continue operation. COMPATIBLE COMPUTER SYSTEMS ADVANCED FEATURES Buitl-in Smart Water Chiller The built-in 3L water chiller is easy to operate and cools down the temperature without any other machines. More space-saving and convenient Ruida Control Panel The RUIDA Motherboard and intuitive RD Control System is easy to use and offers advanced capabilities. Compatible with third party software like LightBurn and AutoCAD. Enclosed Aeronautical Aluminum Rail & Autofocus The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units. Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment. Autolift Platform Raise or lower the workbed easily using the control panel's Up & Down buttons, handling more products, increasing efficiency, and speeding production. Safe Observation The transparent acrylic window's sepia filter allows you to observe your engraver in action, as the tint blocks the laser beam and protects your eyes. Honeycomb and Knife Beds The honeycomb grid has high structural stability with noise & heat reducing properties for smaller items. The aluminum knife platform is height adjustable with a strong supportive frame for larger materials like acrylic. Indicator Lights & Emergency Stop Three indicator lights keep you easily aware of your machine's operation while the emergency stop immediately cuts the laser and stops all moving parts in the event of accident. Powerful 90W Laser Tube The 90W laser tube can reach a peak power wattage up to 100W, allowing you to cut deeper and engrave thicker materials. Warranty & Certifications 2-year warranty on all 90W laser machines and parts ( Monport official Warranty Provided ) 1-year warranty on laser tube FDA Approved & CE Certified Package Contents Laser Engraver Machine *1 A Pair of Laser Protective Glasses *1 Accessory Bag *1 Ethernet to Ethernet Cable *1 USB Type-A to Type-A Cable *1 Venting Exhaust Duct *1 USB Drive with Software *1 Hex Wrenches *10 Double-sided Tape *1 Power Cord *2 Keys *2 Silicone Sealant *1 Stainless Steel Clamp *1 Instruction Manual *1 DETAILED PARAMETERS Compare Monport High Power CO2 Laser Model Manchine Model Monport 90W CO2 Monport 100W CO2 Monport 130W CO2 Monport 150W CO2 Working Area 24"x 36" 24" x 40" 55" x 35" 64" x 40" Max. Marking Speed 800mm/s 800mm/s 800mm/s 800mm/s Machine Dimension 57"x 43" x 35" 61"x 43" x 35" 72.8" x 55" x 35" 84.6" x 59" x 35" Pass-through Dimension 2.9"x 37.4" 2.9" x 43" 2.9" x 54.9" 2.9" x 66.7" Wheels Height 3.9" 3.9" 3.9" 3.9" Output Power 90W 100W 130W 150W Provided Operating Software RDworks RDworks RDworks RDworks Laser Wavelength 10640nm 10640nm 10640nm 10640nm Expected Service Life 12,000hr 12,000hr 12,000hr 12,000hr Product Weight 396.8 lbs 578 lbs 790 lbs 1000 lbs Supported image formats BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others Compatible Software Lightburn, RDWorks, Coreldraw, Auto-CAD Lightburn, RDWorks, Coreldraw, Auto-CAD Lightburn, RDWorks, Coreldraw, Auto-CAD Lightburn, RDWorks, Coreldraw, Auto-CAD Payment policy We accept PayPal . We ship item to your verified address. Payment must be received within 3 days from the date of purchase. Shipping policy Shipping will always be Fast & Free. Whereas any payment upon the item was made, your item will be very well packed and sent within 1 to 3 business days (It's usually 1, and we put 3 just in case) , and it should be safely delivered within 2 to 5 business days. During these days, no worry shall be concerned, so please sit back and wait for your package along the delightful sunshine and peaceful moonlight. To be explicit, your item will be shipped either via USPS or FedEx depending on different circumstances. Your carrier tracking number will be immediately sent to the e-mail address associated with your eBay account as label generated. You may keep track of your order at will. If any question or problem is raised during transition, please let us know and we will help till the end. Terms of Sale Sometimes things can go wrong no matter what. As a responsible seller, we help in any problem, such as damaged goods, defective products, unclear descriptions, or etc., that you consider as a dissatisfaction, the door to our Customer Service is always widely opened for you. Please let us know how we can help if you needed ANYTHING ANYTIME! Yet please also notice that any collaboration needs time to reach a solution. * For a delayed or lost package, as we actively communicate with our colleagues and shipping carriers. This process could take up to 14 days, so if the item is needed urgently, we highly recommend you to place another order. * For a presumably defective product received, our customer service will work this out with you in a quick manner. In this case, please describe the issue as clear as possible. Pictures and videos can be extremely helpful and time-saving here. * For any confusing or false description in the listing that causes a mis-purchase, please kindly remind us so we can improve our listings and continuously offer a better purchasing experience to you and to all our customers as well. Did it occur to be our mistake for the faulty transaction, we would be responsible for the return cost. Among all sorts of the problem, before the puzzle resolved or time expired, a refund or replacement will NOT be issued. We wish you understand the pressures here, and our effort will always come to your aid. About US It's nothing about us. It's all about you. As informed above, the door to our Customer Service is constantly wide-open to you. If you were having any question, or just looking for someone to chat with, please feel free to contact us through Messages. We will get in touch promptly in 24 hours. Concerns wouldn't be necessary since we promised to be on your side. You can just enjoy a nice day while waiting for our reply. When there was an accident like business getting busy or filing bankruptcy or people taking a break or getting off work or getting fired or attacked by aliens or something else which delays our response, might us be forgiven. You know, things could happen. (Finger crossed) Last thing last. After a transaction is completed, our customers are always welcome to share their feelings about the product with us. As you are well satisfied, feel free to tell us and all fellow customers your story on Feedback or Ratings while convenient. Meanwhile, we do not escape from any negative feedback deserved. Yet before you put your fingers down and things get irretrievable, we are always ready to learn our lessons and make things right. Just contact us if you are not happy! Business is just not easy these days. (Sign) So, thank you so much for reading such a loooooooooooong description. We sincerely look forward to doing business with you. If business happens, I personally represent my company and my families who also feed on these transactions to send you our deepest gratitude. (Smile) Nevertheless, no matter what, please enjoy everyday, keep health, joy, and of course, wealth. We wish you all the best and wait to see you again along the journey of life. On Feb 12, 2025 at 02:59:53 PST, seller added the following information:
