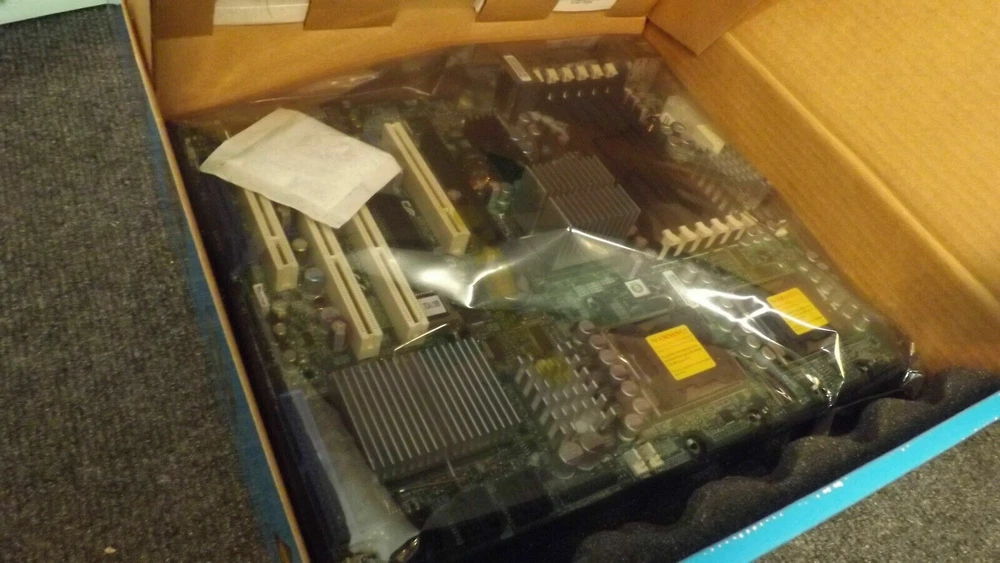

NEW SuperMicro ServerBoard MBD-X7DAL-E DUAL 64-BIT XEON 24GB 1333MHZ FSB, 5000X
$ 264.0
Description

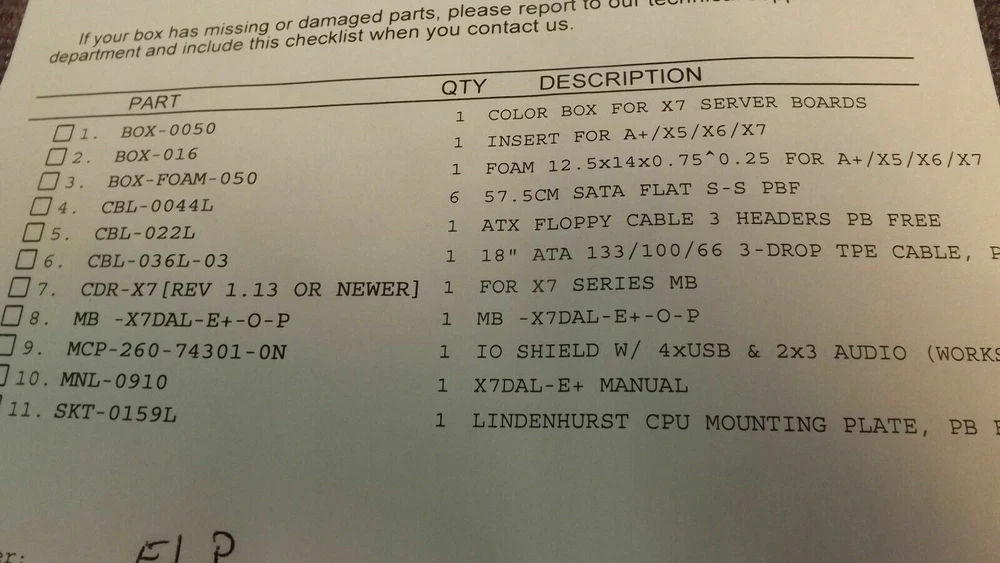

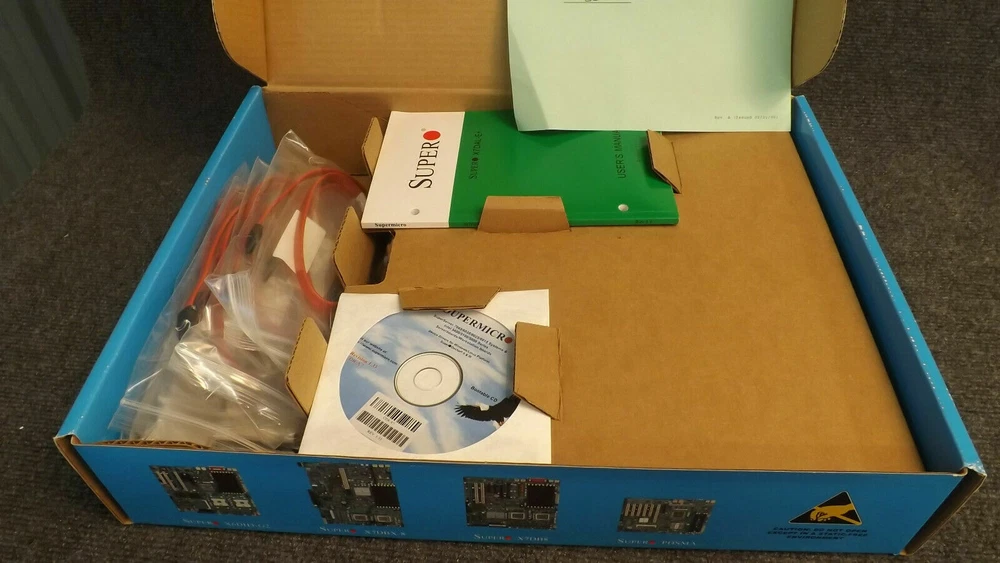

Item ; SuperMicro ServerBoard MBD-X7DAL-E Condition :New in sealed pack. Box contains everything on list (last picture) MBD-X7DAL-E-O X7DAL-E (Standard Retail Pack) MBD-X7DAL-E-B X7DAL-E (Bulk Pack) Physical Stats Form Factor ATX Dimensions 10" x 12" (25.4cm x 30.5cm) Processor/Cache CPU Dual 771-pin LGA Sockets Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz System Bus 1333 / 1066 / 667 MHz system bus Operating System Software Supports 64-bit Operating Systems Supports 32-bit Operating Systems System Memory Memory Capacity Six 240-pin DIMM sockets Supports up to 24 GB 667 / 533MHz DDR2 ECC FB-DIMM memory Dual branch memory bus Memory must be populated in pairs Memory Mirroring supported Memory Type 667 / 533MHz FB-DIMM (Fully Buffered DIMM) DDR2 ECC SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 256MB, 512MB, 1GB, 2GB, 4GB Memory Voltage 1.8V only Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC) On-Board Devices Chipset Intel® 5000X (GreenCreek) chipset MCH + ESB2 SATA ESB2 (3Gb/s) SATA Controller RAID 0, 1, 5, 10 support (Windows Only) RAID 0, 1, 10 support (Linux) Network Controllers Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/OAT support for fast, scaleable, and reliable networking Super I/O Winbond 83627HF chip Clock Generator ICS932S401EGLF Input / Output Serial ATA Six Serial ATA ports Six SATA hard drives supported IDE Single EIDE channel supports up to two UDMA IDE devices(IDE-M, IDE-S) Supports UDMA Mode 5, PIO Mode 4, and ATA/100 Floppy 1 Floppy controller; 1.44 MB, 2.88 MB LAN 2x RJ45 LAN ports USB 4x USB rear ports 1x USB internal header (for 2 ports) 6 total USB ports, 2.0 Compliant / 1.1 Compliant Audio AC97 Audio Line-in / Line-out / Microphone Ports Keyboard / Mouse PS/2 keyboard and mouse ports Serial Port / Header 1 Fast UART 16550 serial port 1 Fast UART 16550 serial header Parallel Port Parallel Port Header Chassis ( Optimized for X7DAL-E ) Tower / 4U Rackmount CSE-743T-645 (FAN-0091, CBL-0088 Required) CSE-743i-645 (FAN-0091, CBL-0088 Required) Important Chassis Notes To ensure system stability, a 560W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] Expansion Slots PCI-Express 1 (x16) PCI-e slot 1 (x4) PCI-et (using x16) slot PCI-X 2x 64-bit 133/100MHz PCI-X (3.3V) slots PCI 2x 32-bit 33MHz PCI (5V) slot UIO 1x UIO slot System BIOS BIOS Type 8Mb Flash EEPROM with Phoenix® BIOS BIOS Features Plug and Play (PnP) SMBIOS 2.3 DMI 2.3 PCI 2.2 ACPI 1.0 PCI-X 1.0 USB Keyboard support Hardware BIOS Virus protection Management Software SuperDoctor® III Watch Dog NMI Power Configurations ACPI Power Management Main Switch Override Mechanism Wake-On-Ring (WOR) header Wake-On-LAN (WOL) header Power-on mode for AC power recovery Internal/External modem remote ring-on PC Health Monitoring Voltage Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby & +5V Standby, VBAT CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V FAN Total of six 4-pin fans 6x fans with status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis, environment CPU thermal trip support Thermal Control for 6x Fan Connectors I 2 C temperature sensing logic Thermal Monitor 2 (TM2) support LED CPU / System Overheat LED Suspend-state Indicator LED +5V Standby Alert LED Other Features Chassis intrusion detection Chassis intrusion header SDDC Support Operating Environment Environmental Spec. Operating Temperature: 10°to 35°C (50°to 95°F) Non-operating Temperature: -40°to 70°C (-40°to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5 to 95% (non-condensing) Regulatory FCC Class B
