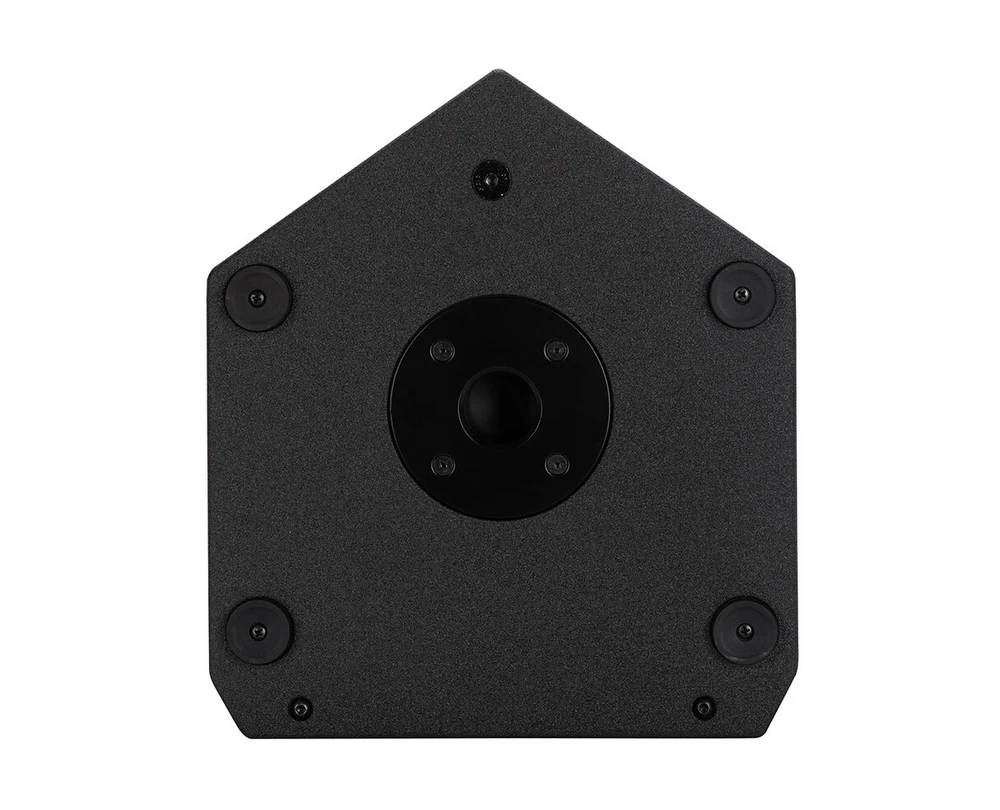

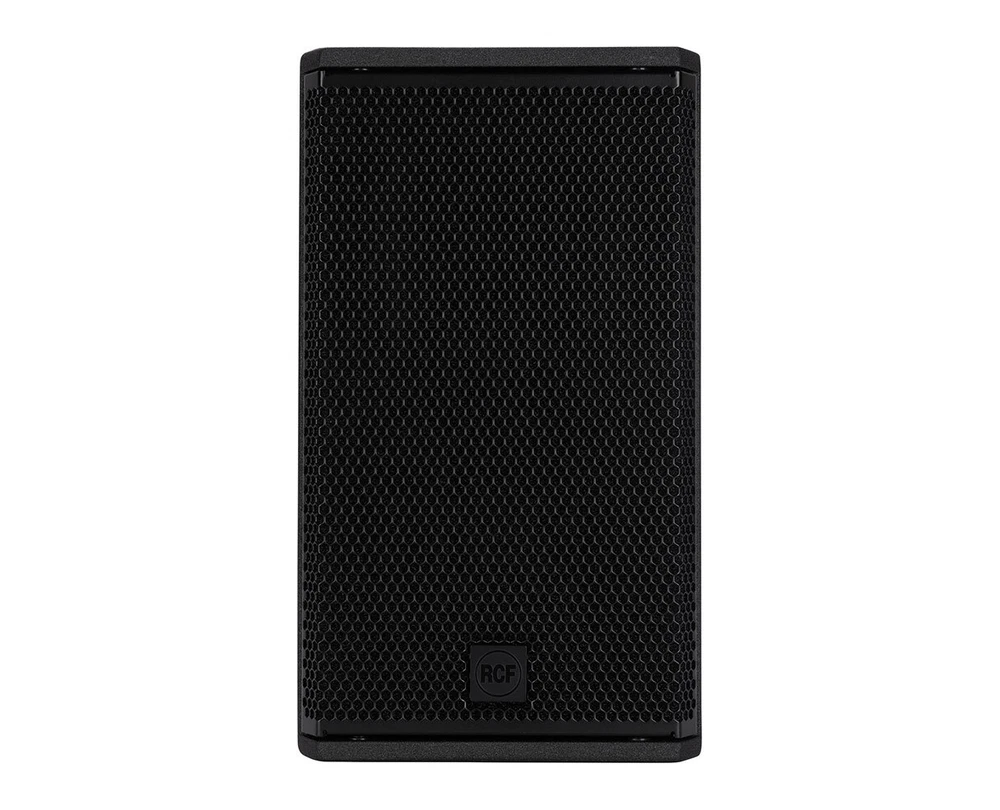

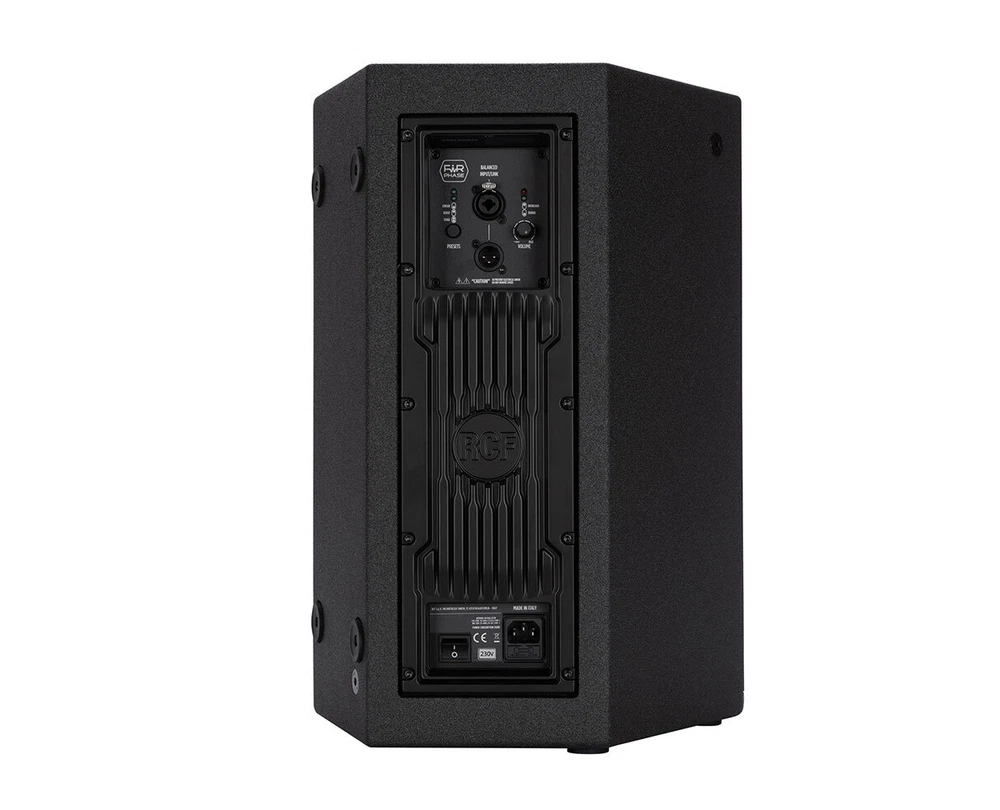

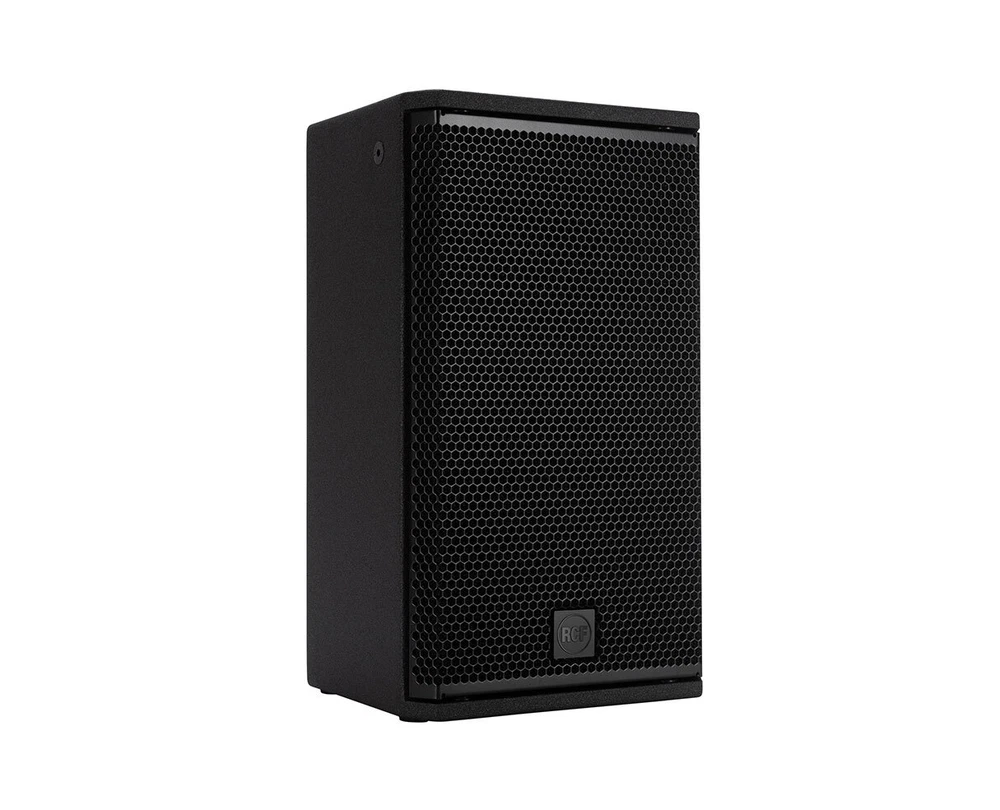

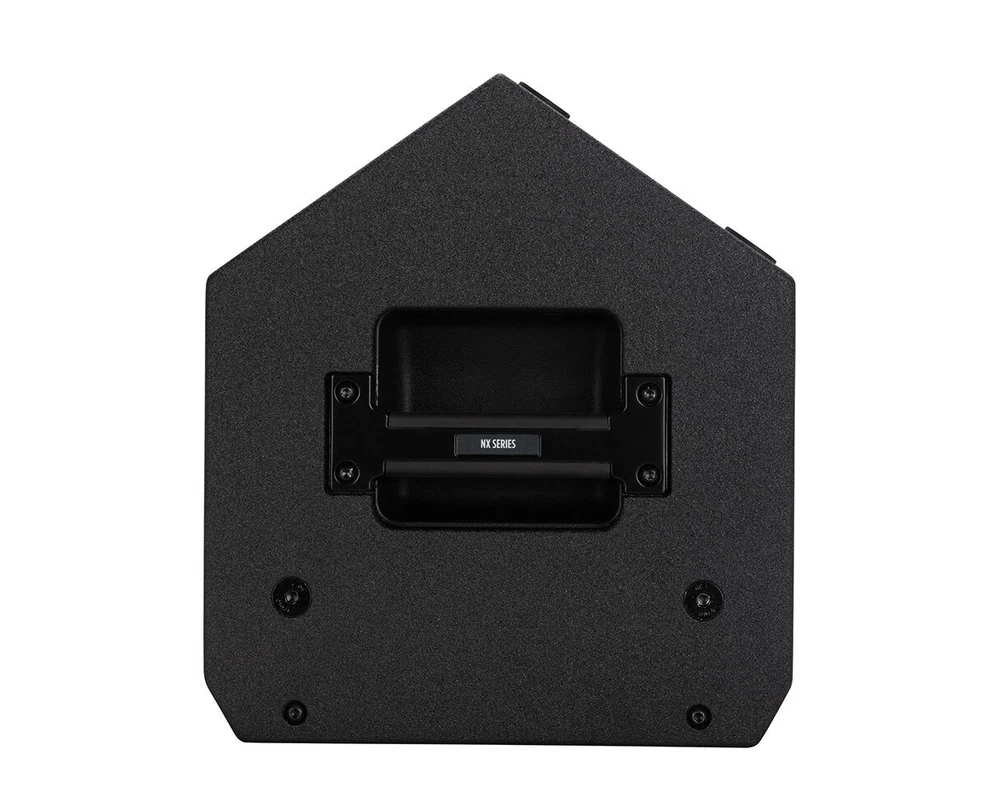

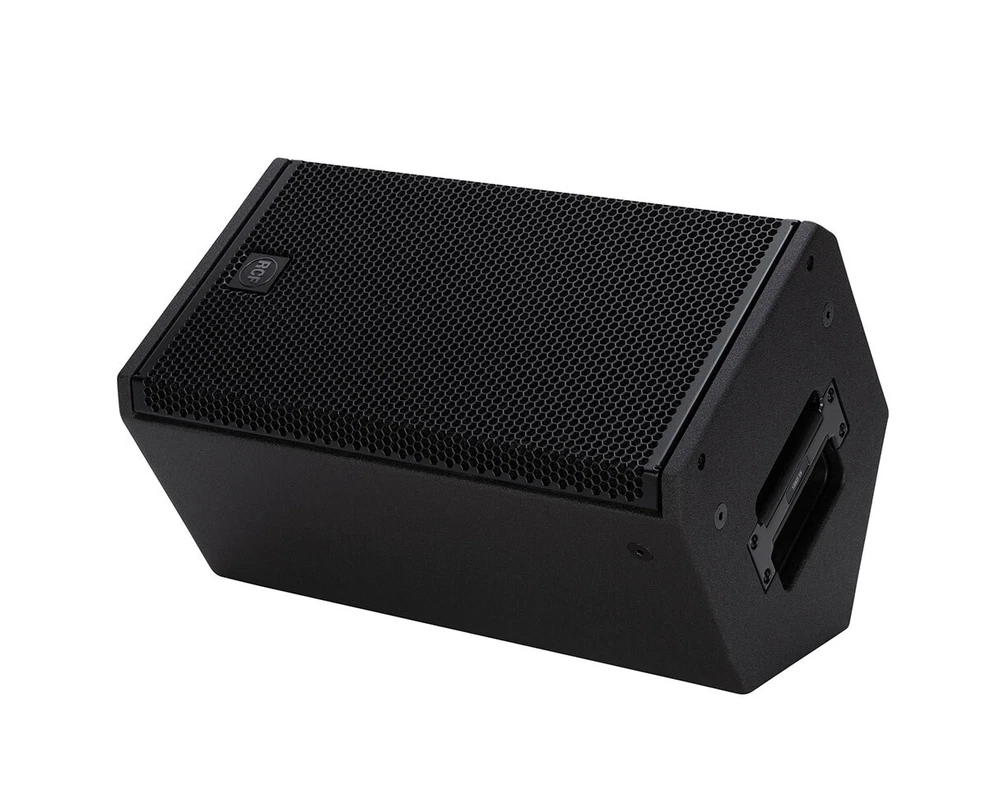

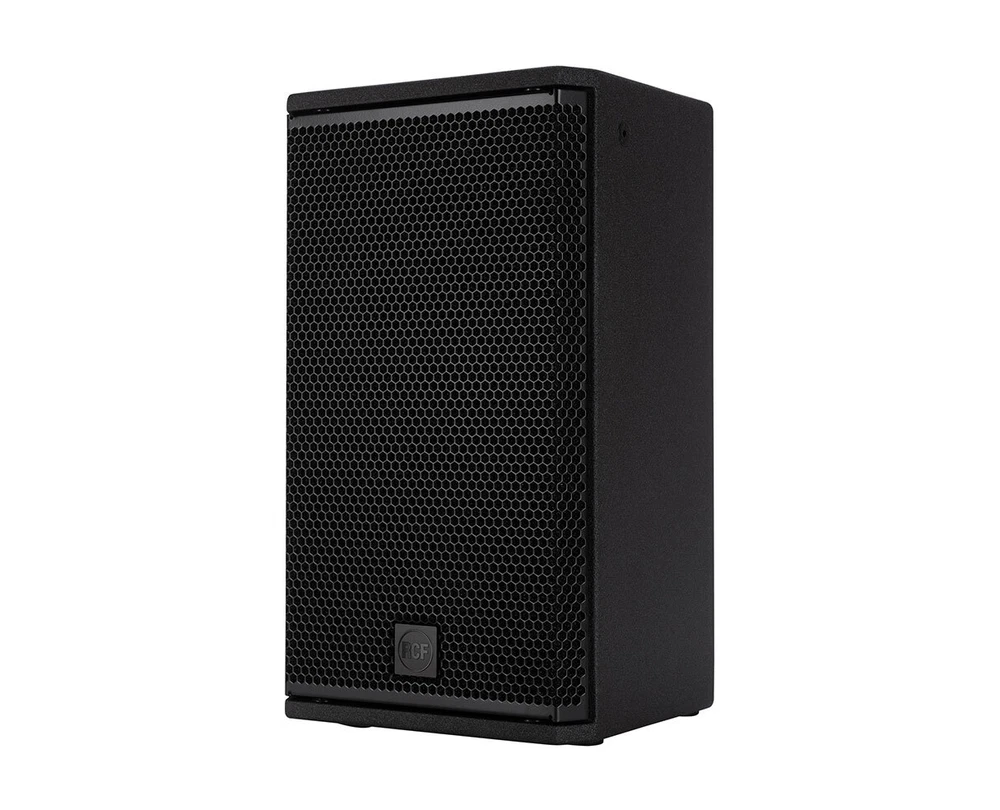

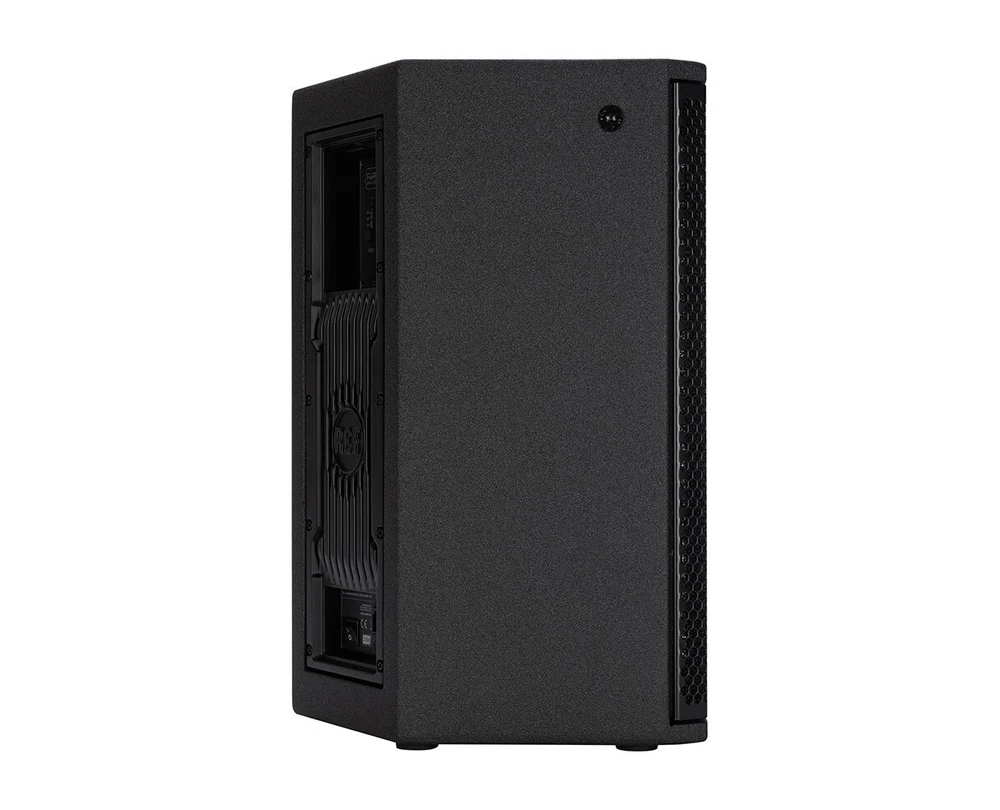

RCF NX-910A Active 10" 2-Way Powered Speaker/Monitor w/ 1.75" HF Driver NX910A

Description

ProAudioStar DJ GEAR INSTRUMENT GEAR LIVE SOUND RECORDING MICROPHONES HEADPHONES ACCESSORIES SOFTWARE LIGHTING BUNDLES Authorized Dealer - Full Warranty RCF NX-910A Active 10" 2-Way Powered Speaker/Monitor w/ 1.75" HF Driver NX910A Active 10" 2-way Powered Speaker - Brand New - Description NX 910-A Professional active speaker Up to 130 dB Sound Pressure Level 2100W Class-D Bi-Amplification 50-20000 Hz linear frequency response 1.75" Compression Driver 10" Woofer FiRPHASE zero degrees phase technology Bass Motion Control woofer excursion management NX 910-A is masterfully engineered from the ground up to deliver stellar audio performance for solo musicians, bands, and DJs. The combination of 1.75" compression driver, 10" woofer, two-channel 2100W amplifier, and a constant directivity waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL of distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 910-A blends high-performance and reliability in a compact package. Built specifically for demanding live sound applications, it also features multiple rigging points for fixed installation. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 9 Series speakers are perfectly tuned for each model, delivering absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available. Power that moves The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2100W power, the 2-channel NX 9 Class-D amplifier is 50% more powerful than previous models, able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. NX 9 is energy-efficient so there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet - with no moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NX 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight. Superior transducers Lightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The new 1.75" voice coil design with Polyimide-Kapton dome features a new bonding technology and reinforcement ribs making it 10 times more rigid than previous models, for increased accuracy and durability. The redesigned phase plug increases sound clarity with less distortion. Low-frequency transducer design gains more stability over higher currents, with less distortion and better heat handling. Bass motion control When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. NX 9 with BMC can handle the lowest audible frequencies without affecting the woofer stability, providing extended linearity and better sound integrity. The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive, but change the phase behavior, the new BMC algorithm breaks this rule. In combination with FiRPHASE technology, NX 9 has a new level of audio performance never achieved in this range of speakers. Tour-proven workhorse NX 9 can operate as either the main system or as a floor monitor. This flexibility makes it a smart choice for a wide range of live sound applications. The rugged all-wood cabinet is easy to carry, thanks to handles on both sides (one on top for NX 910-A). The lower side includes a steel pole socket for mounting on a stand or a subwoofer pole. Each model can also be flown, wall- or truss-mounted using the six included M10 rigging points and special accessories. From the wood cabinet to the final texture and the rugged protective grille, NX 9 offers maximum strength for intensive use on the road and can be used for fixed installation. New perspective on linearity RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system. Features/Specs Acoustical specifications Frequency response : 50 hz ÷ 20000 hz Max spl @ 1m : 130 db Horizontal coverage angle : 100° Vertical coverage angle : 60° Transducers Compression driver : 1 x 1.0'', 1.75'' v.c Woofer : 10'', 2.5'' v.c Input/output section Input signal : Bal/unbal Input connectors : Xlr, jack Output connectors : Xlr Input sensitivity : -2 dbu/+4 dbu Processor section Crossover frequencies : 1600 hz Protections : Thermal, rms Limiter : Soft limiter Controls : Linear, boost, stage, volume Power section Total power : 2100 w peak High frequencies : 700 w peak Low frequencies : 1400 w peak Cooling : Convection Connections : Vde Standard compliance Ce marking : Yes Physical specifications Cabinet/case material : Plywood Hardware : 2 x m10 top, 1 x m10 each side, 1 x m10 bottom, 1 x m10 rear Handles : 1 top Pole mount/cap : Yes Grille : Steel Color : Black Size Height : 510 mm / 20.08 inches Width : 295 mm / 11.61 inches Depth : 333 mm / 13.11 inches We are authorized dealers for all these brands. Click a logo to see our listings. ProAudioStar is also not responsible for any taxes, local duties, or fees outside of the USA and those are not included in the sale price or ship charge. If an item is refused by the buyer, ship costs to and from the destination in which the item was shipped to are not refunded. Please note the cost of return shipping is usually double of what the original ship cost. Shipping is not free to HI, AK, and PR. FREE SHIPPING ONLY TO THE LOWER 48 STATES. We provide free shipping to the contiguous 48 United States, on most items. Shipping fees to ALL OTHER LOCATIONS will be calculated individually and added to customer invoices. ProAudioStar is also not responsible for any taxes, local duties, or fees outside of the USA and those are not included in the sale price or ship charge. In the event that the customer refuses a shipment, all shipping costs to and from the country or State in which the item was shipped to are not refunded. Please note, in some cases return shipping can cost as much as double the original ship cost. We operate a 30-day return period. Items must be returned with all original packaging as well as all included items. Items that are not returned in original, resalable condition are subject to a 15% restocking fee. We charge a 15% restocking fee on returned items only if the item is clearly used and or the packaging is tarnished. A 10% re-stock is more likely if the unit comes back in mint condition. The ship cost we paid to ship your item will be deducted as well. In some cases restock fees and ship costs can be applied as a store credit. We will exchange a defective unit for the same unit within the 30-day period. After that period, you will have to work directly with the manufacturer for warranty service. Items that can not be returned include: software, units with contents or packaging that is damaged/missing, and items that are considered for personal use (such as earphones, headphones, microphones, instrument mouthpieces, harmonicas or other items that you wouldn't want to purchase if someone else had previously used them). Also, Items which we do not normally stock (i.e. "Special Orders", discontinued products, close-outs, used products, etc.) are non-returnable. We strongly suggest that you check your order after receiving it to be sure that it is in proper working order. Please contact us for a Return Authorization before returning any items.
