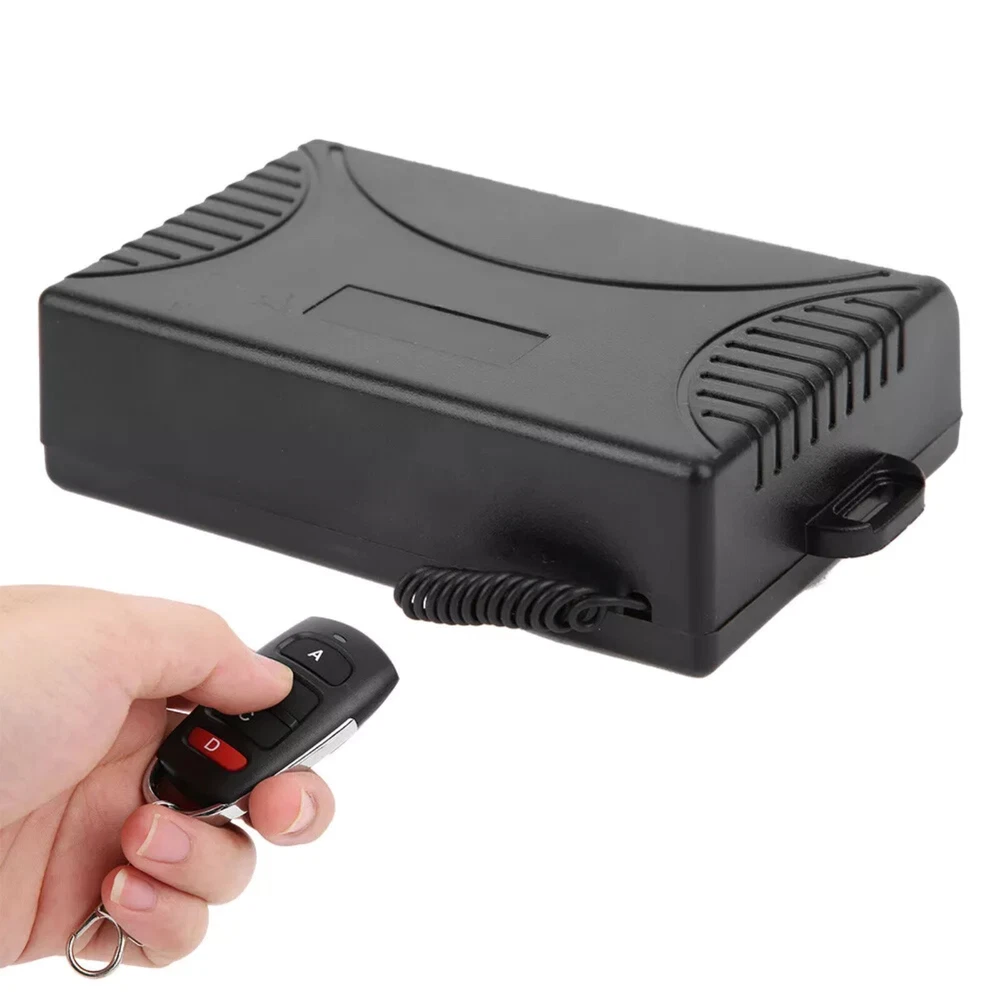

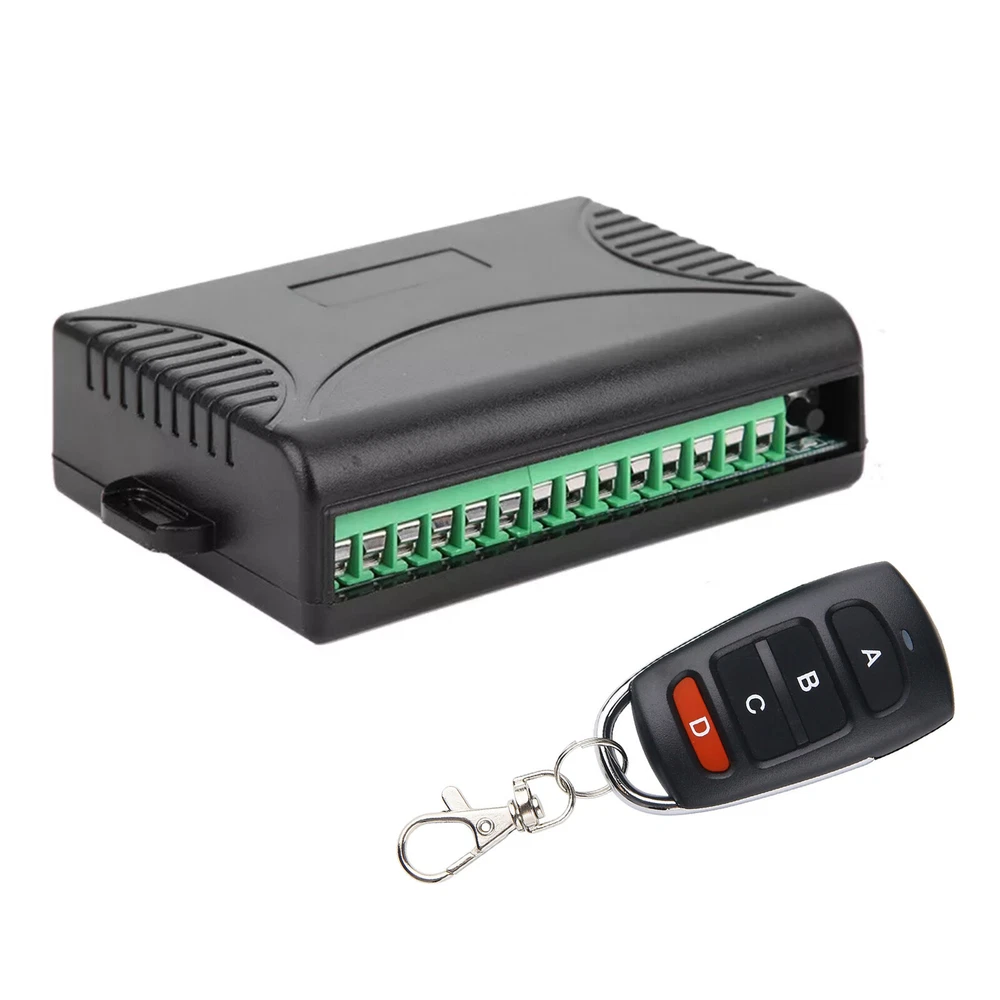

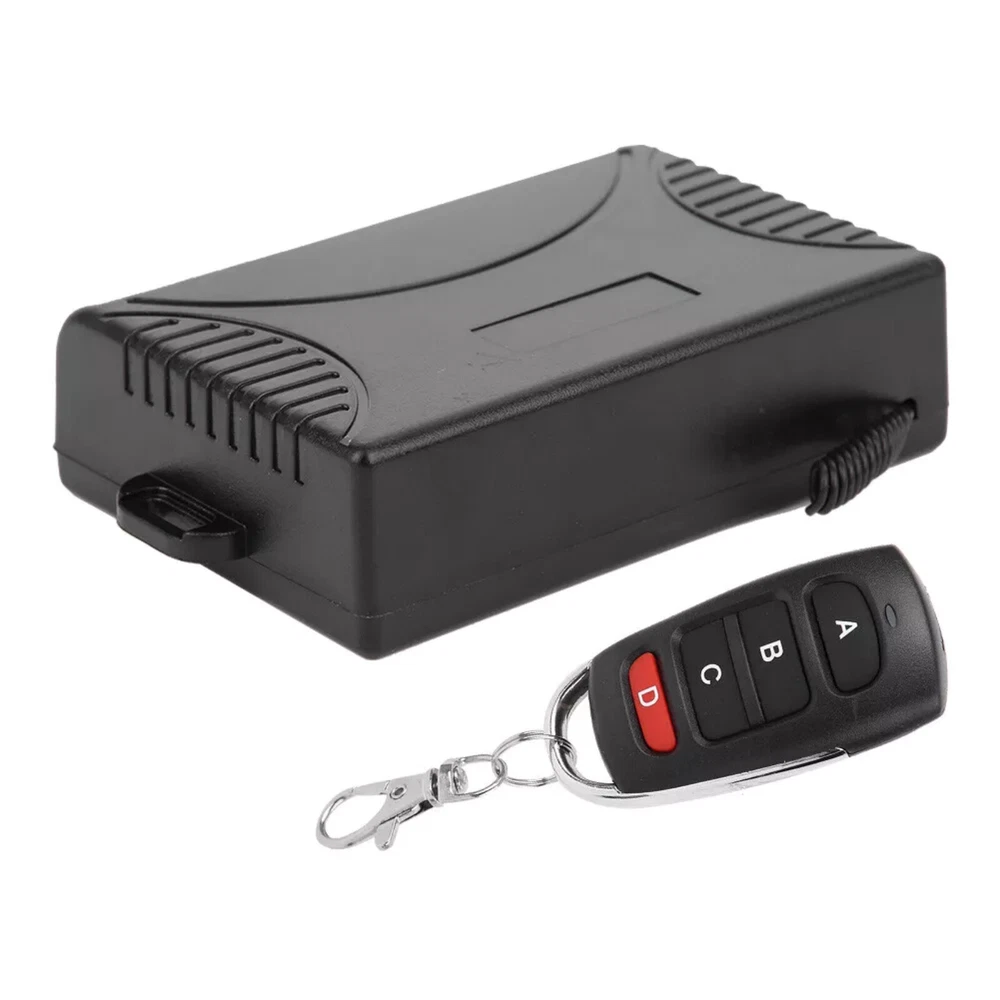

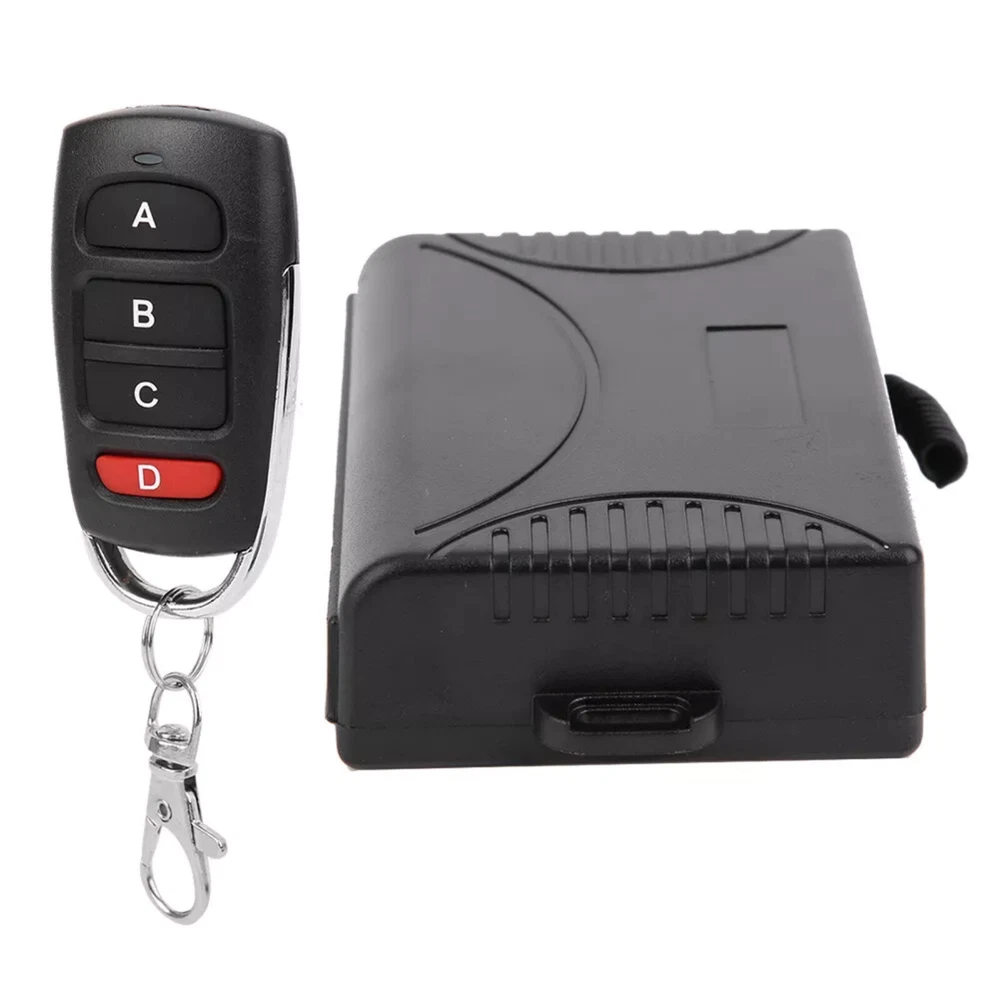

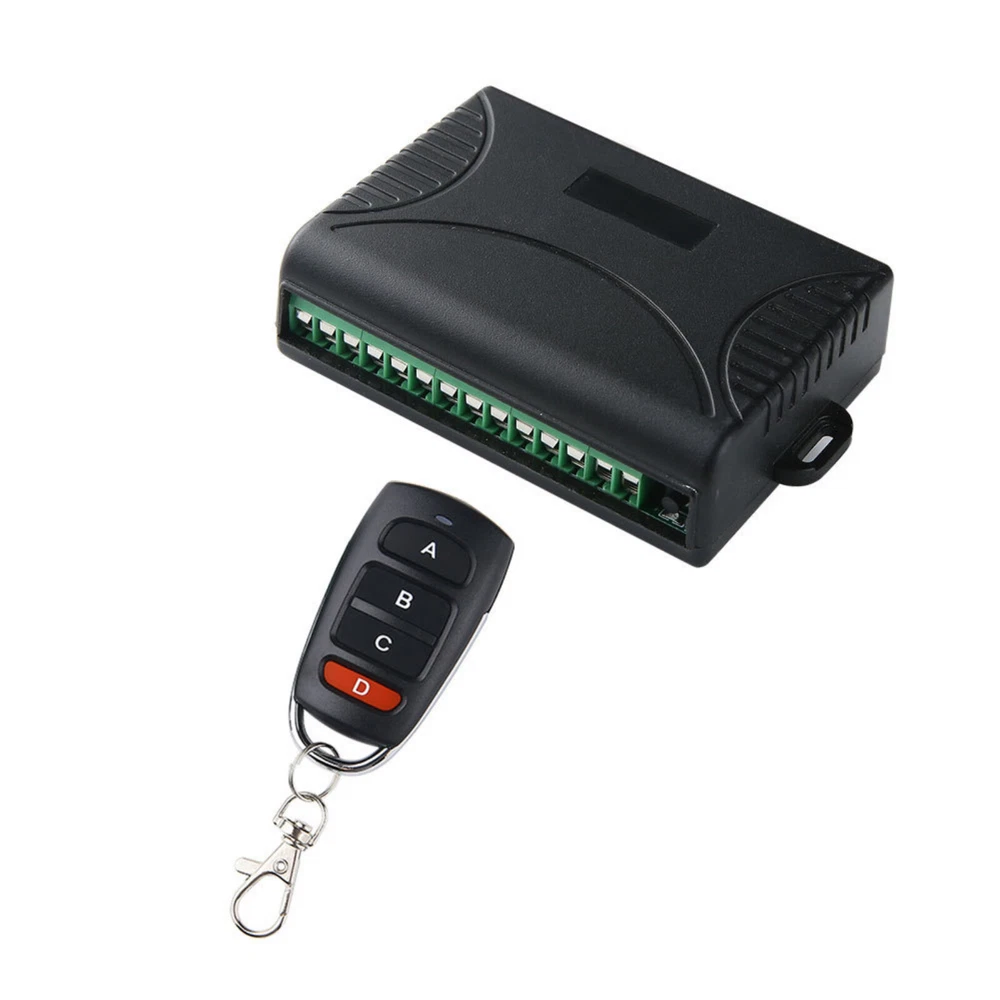

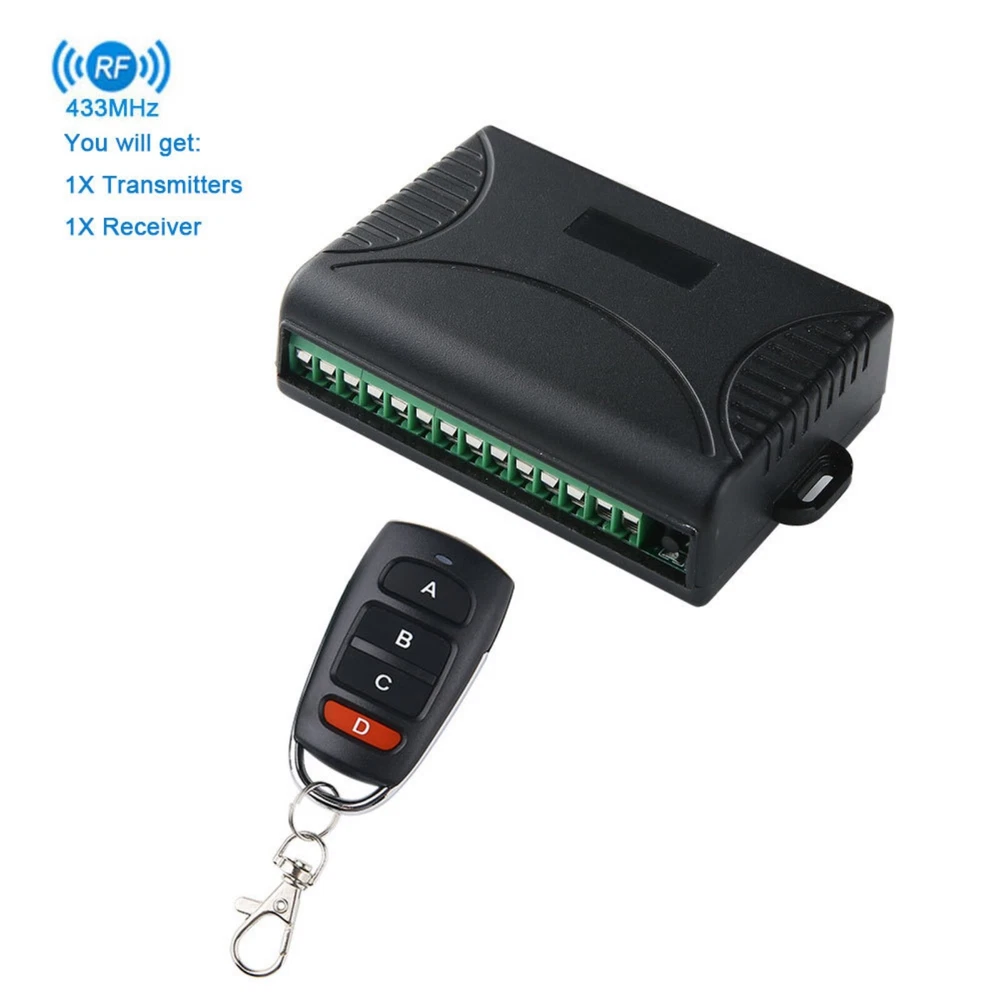

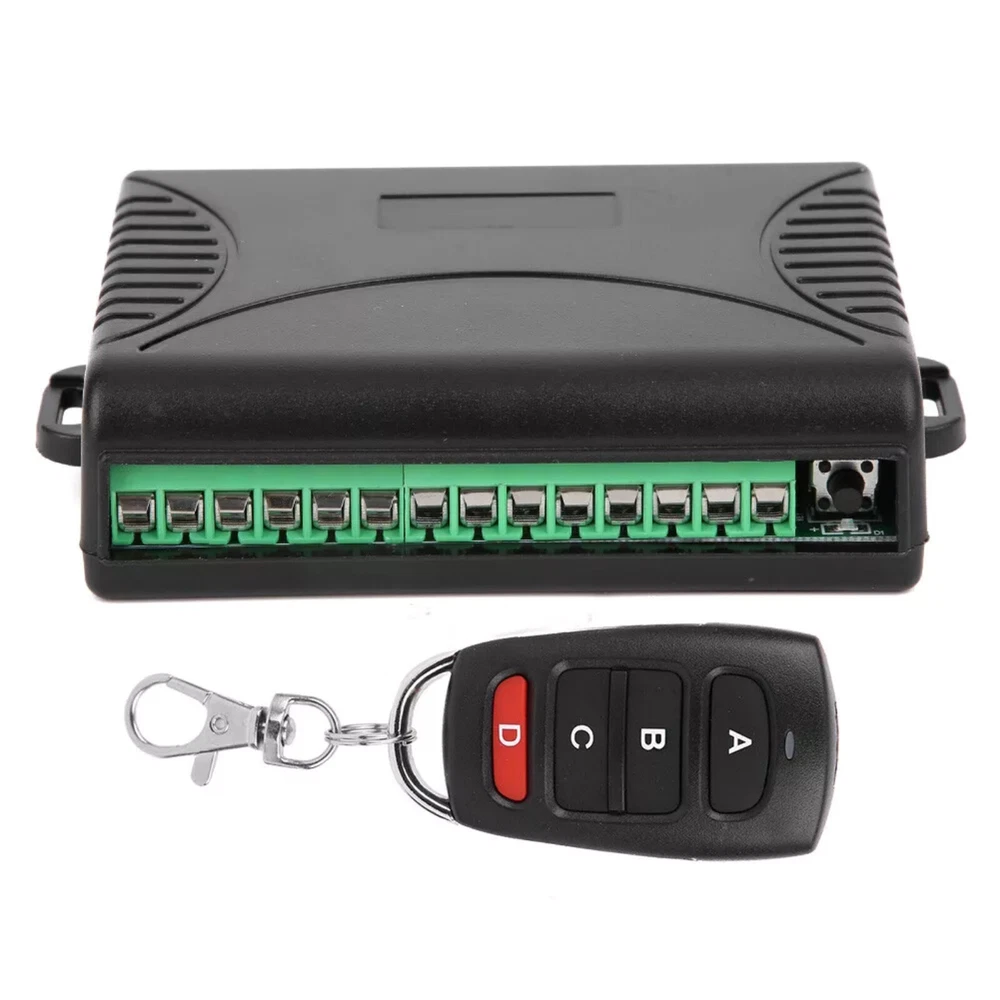

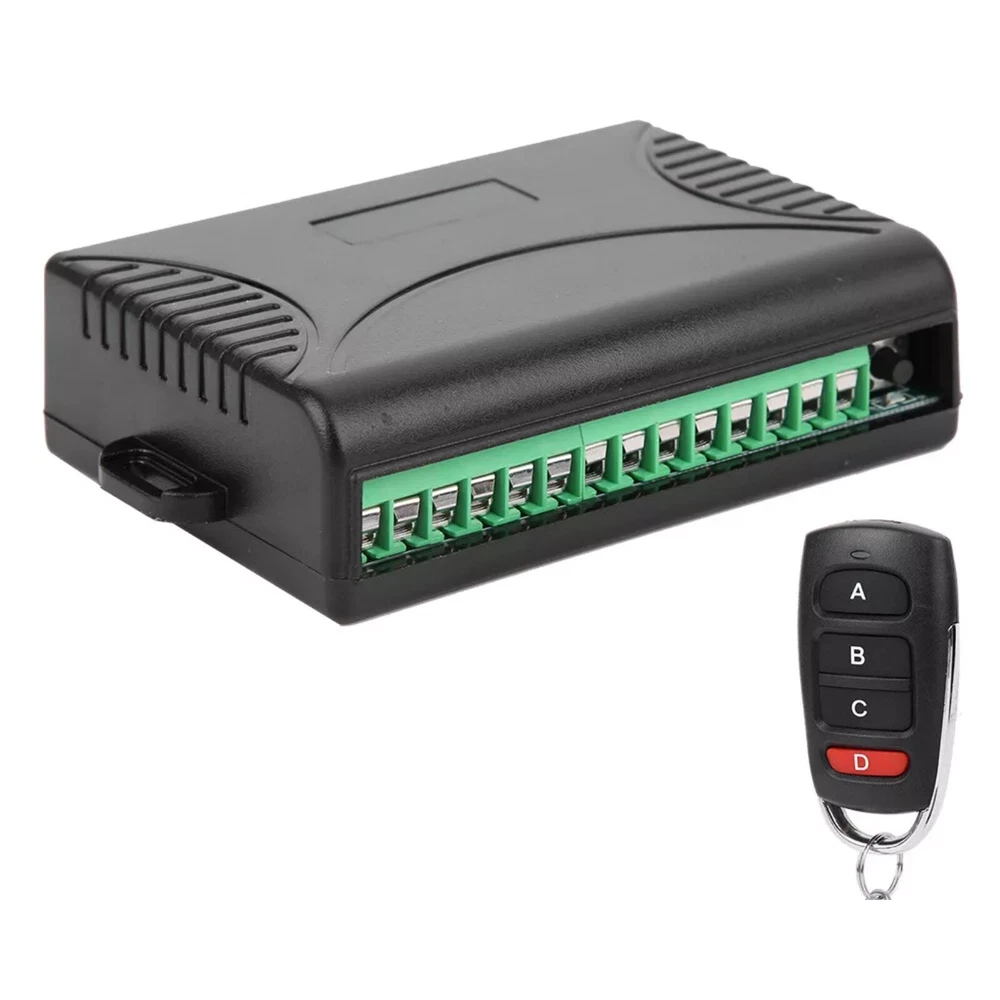

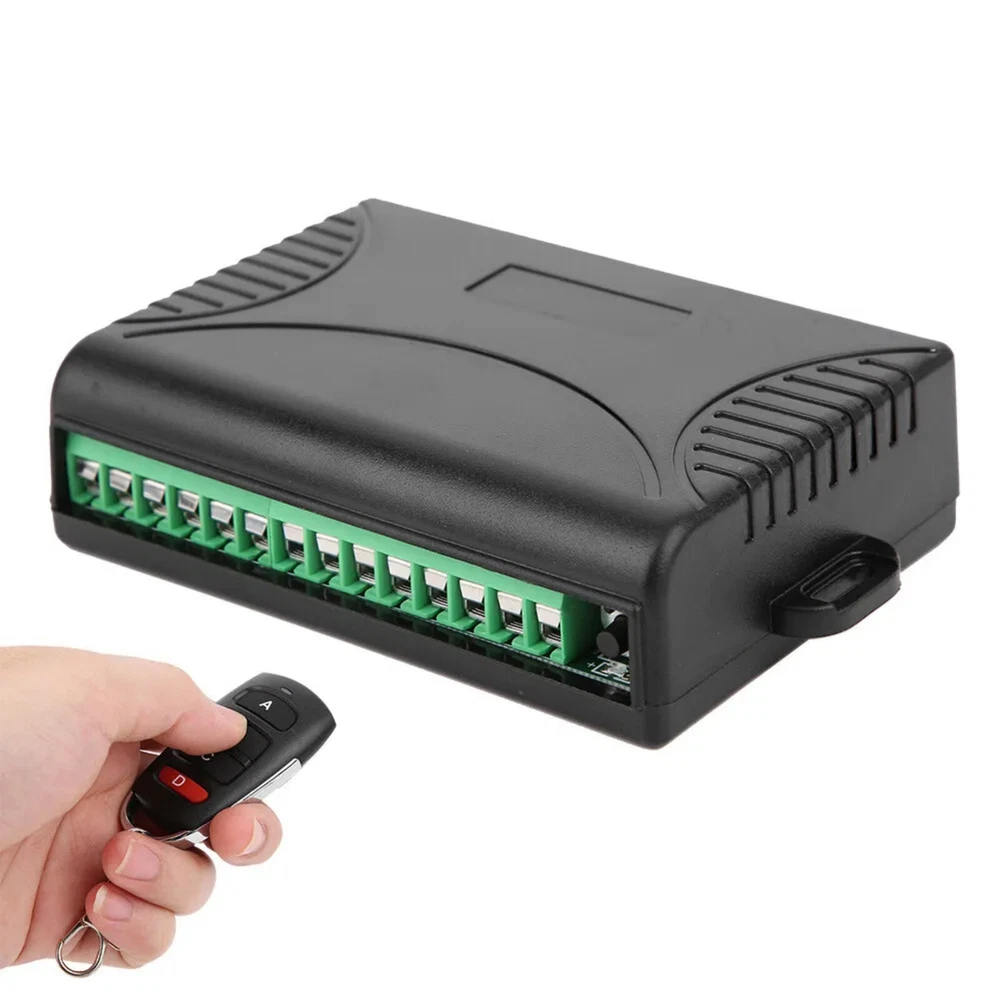

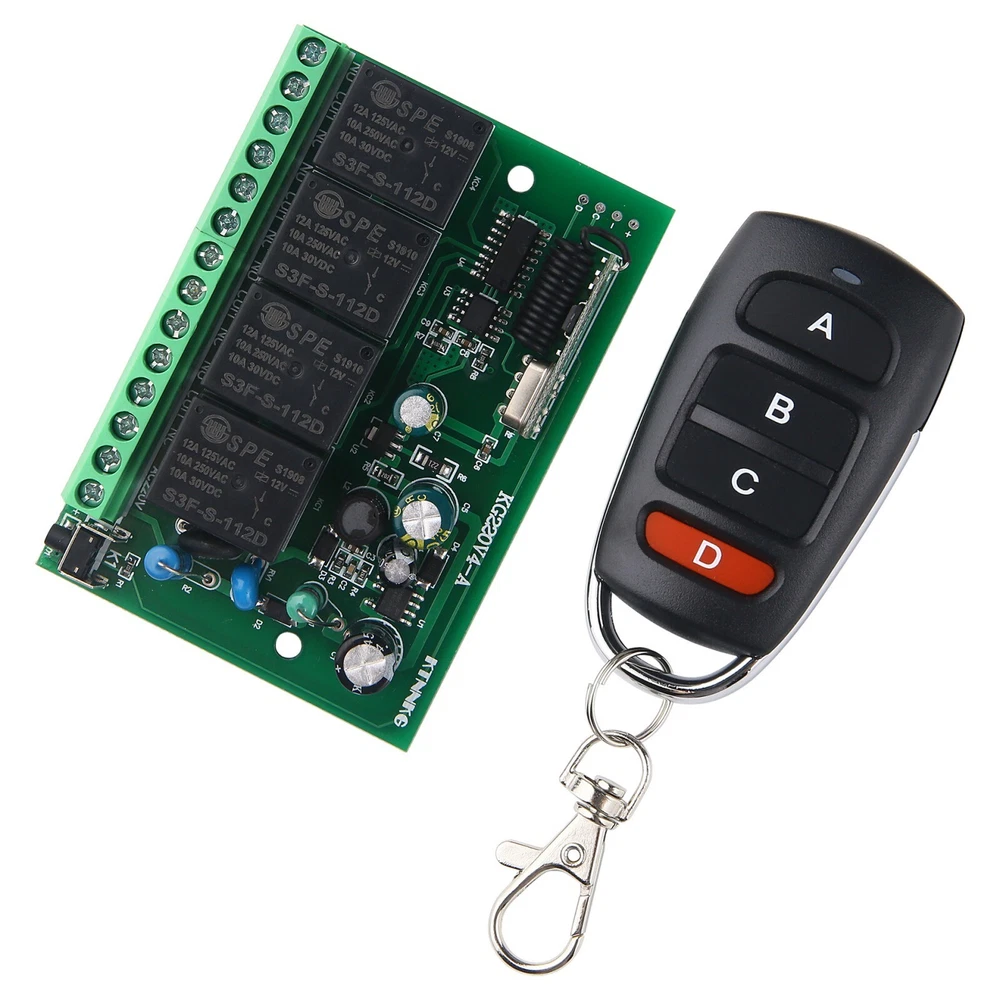

Receiver+Transmitter 4 Channel Remote Control Relay Switch Light Controller

Description

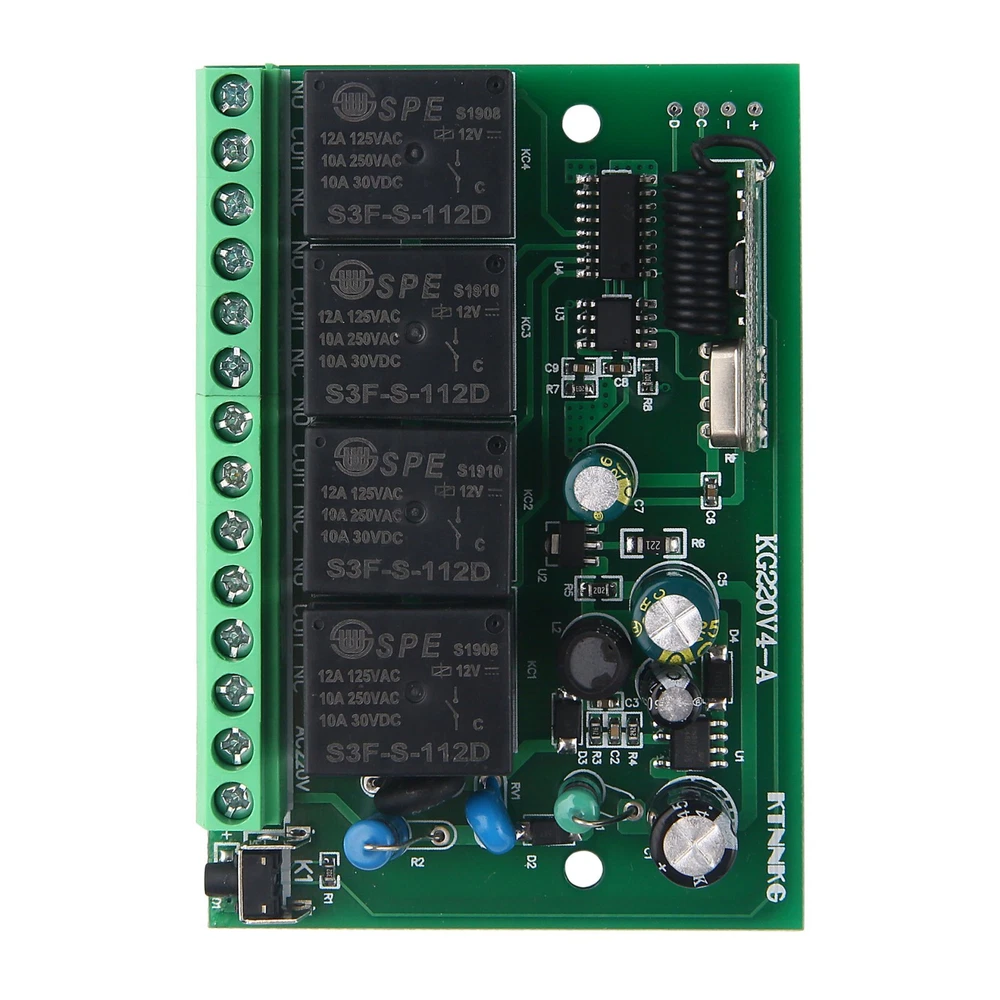

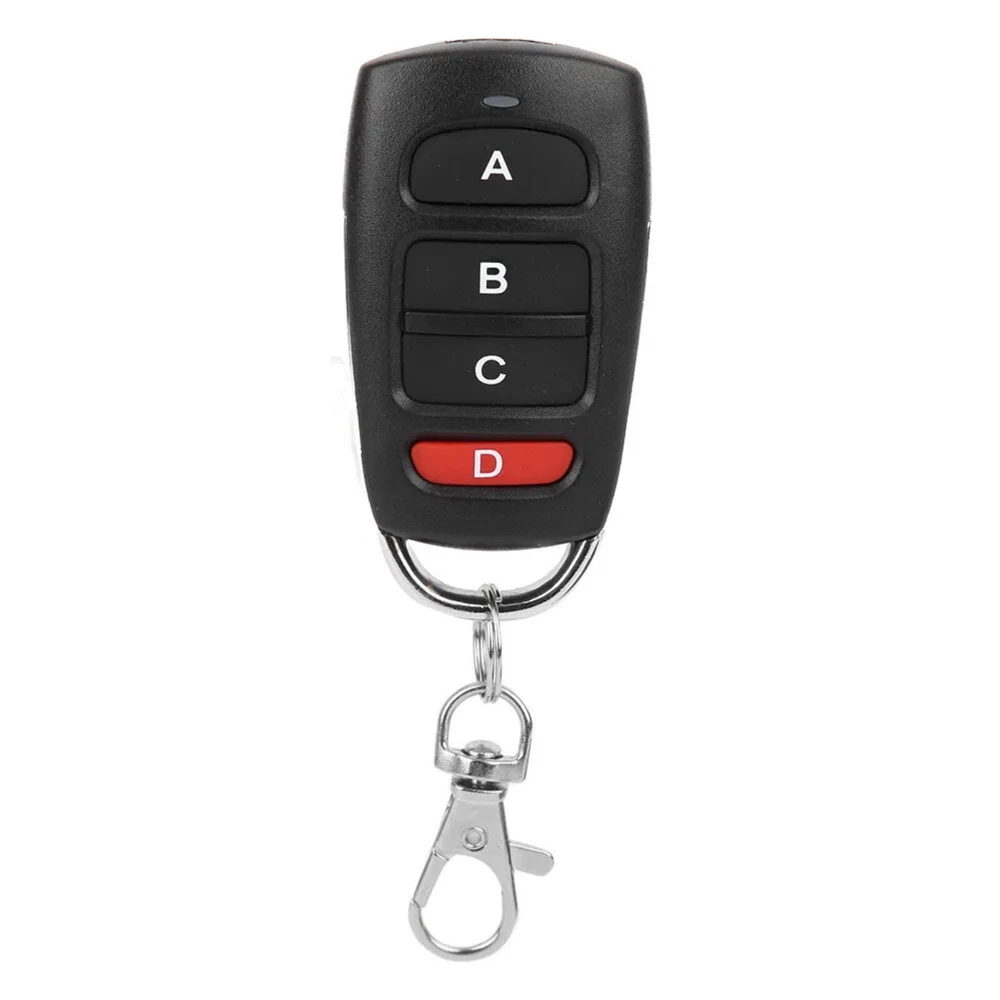

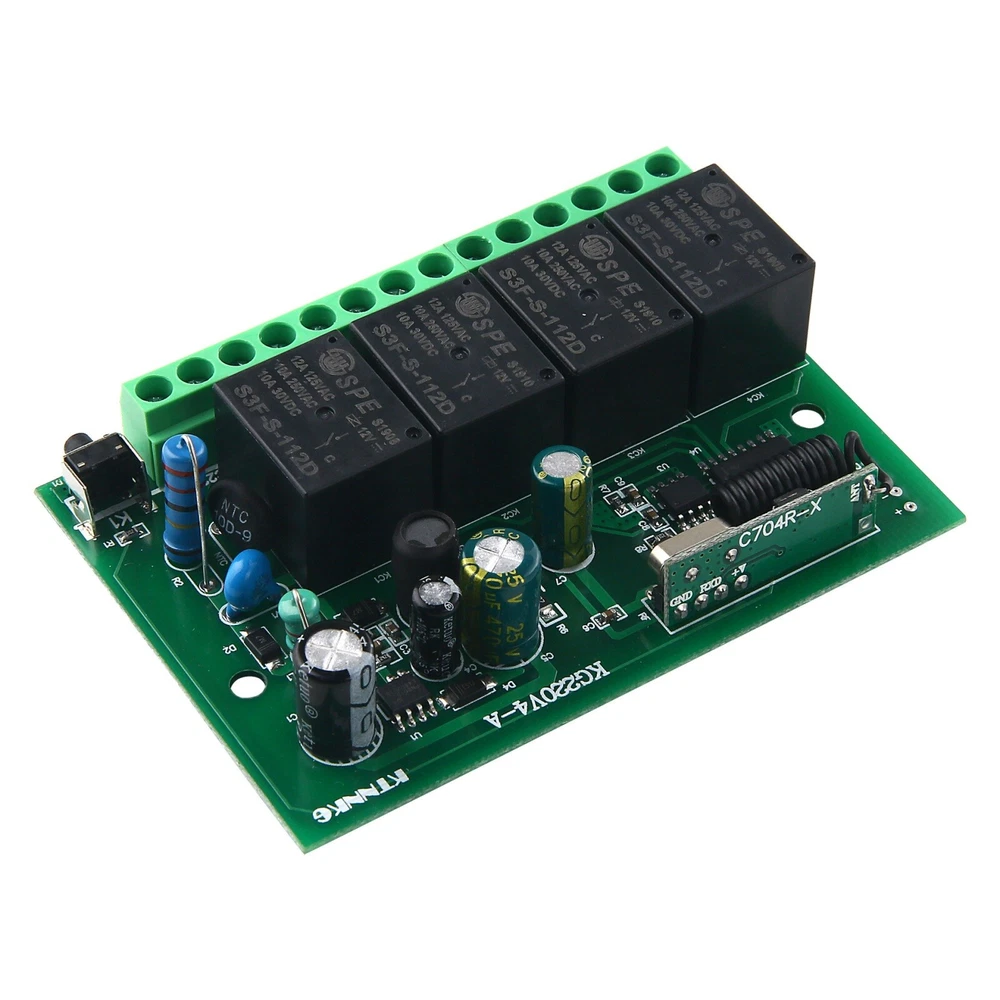

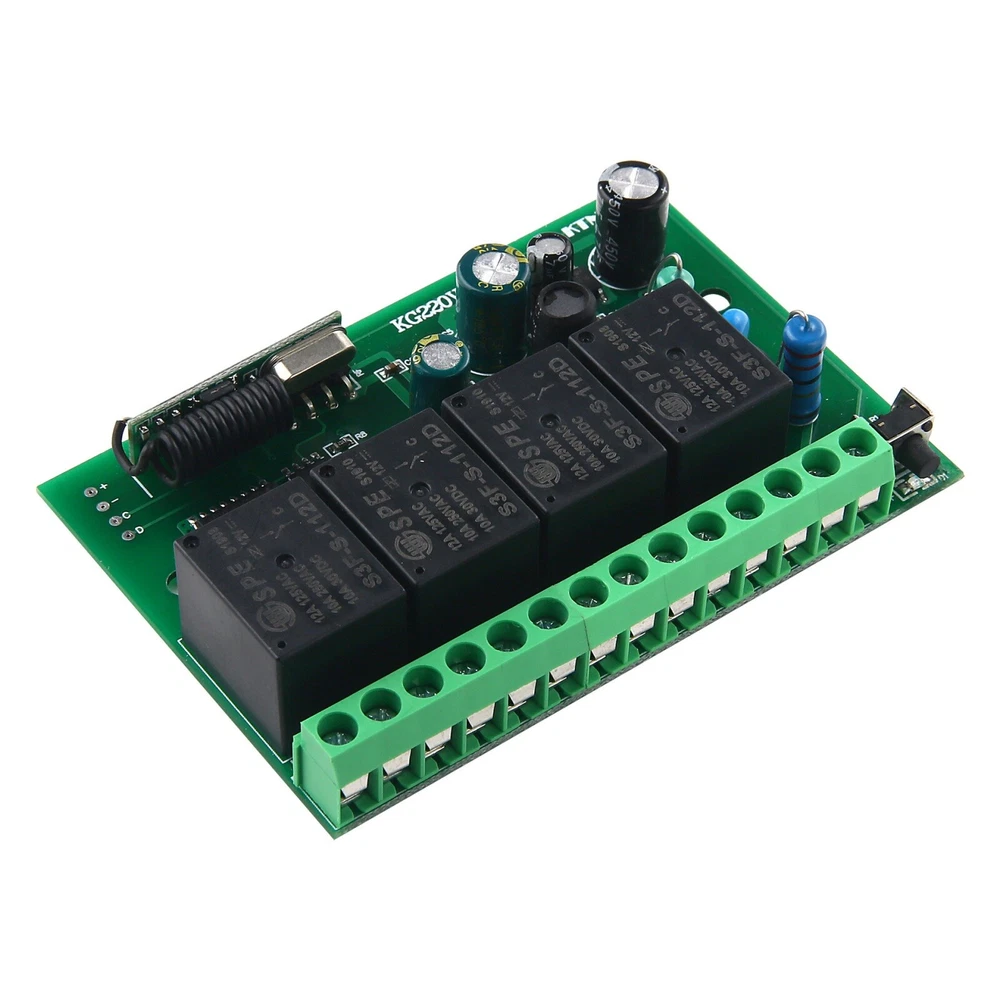

NEW-00023 Receiver+Transmitter 4 Channel Remote Control Relay Switch Light Controller PRODUCT DESCRIPTION Features: 1. Seven Functions, Jog, Self‑Lock, Interlock, 2 Jog + 2 Self‑Lock, 2 Jog + 2 Interlock, 2 Self‑Lock + 2 Interlock, Independent 2 Interlock + Independent 2‑Way Interlock. 2. Data Clearing Function, Press The Control Panel Pairing Button 8 Times Continuously, The Led Indicator Will Flash 8 Times, The Led Indicator Will Flash 8 Times Continuously, Then The Is Cleared And All The Remote Control Key S Learned Before Are Cleared. 3. Made Of High‑Quality Abs Plastic, Good Low Temperature Impact Resistance, Imensional Stability, Electrical Property, Wear Resistance, High Heat Resistance And Flame Retardant. 4. Self‑Learning Function, 4‑Channel Wireless Remote Control Radio Relay Switch Transceiver. It Is A Learning Wireless Remote Control Switch (Receiver). The Output Mode/Working Mode Can Be Changed At Will, And It Is Easy To Match The Transmitter. Four Relays That Enable The Device To Turn Or Reverse, On/Off, Etc. 5. Wide Range Of Applications, Small Size, Stable And Reliable Performance, High Receiving Sensitivity, Application Range From Simple Household Remote Control To Automatic Control, Such As Car Doors, Window.  Specifications: Material: ABS Plastic Working Voltage: AC90-250V Working Frequency: 433MHz Total Load Power: 1000W Remote Control Distance: 100m/328ft Working Temperature: -15℃-75℃ Type: Four Receiving Switch Receiver Size: 100 X 65 X 26mm/3.9 X 2.6 X 1in Remote Control Size: 70 X 30 X 10mm/2.8 X 1.2 X 0.4in Remote Control Battery Model: 1* Cr2032 Battery（Battery Included）  Learning To Code: 1. Jogging Learning Method: Press The Code Matching Button On The Control Board Once, And The Led Indicator Light Will Flash Once. After The Led Indicator Light Is On, Press The Remote Control Button That Requires Code Matching, And The Led Indicator Light On The Control Board Will Flash Continuously For 3 Times To Successfully Match The Code. 2. Self Locking Learning Method: Press The Code Matching Button On The Control Board Twice In A Row, And The Led Indicator Light Will Flash Twice. After The Led Indicator Light Is On, Press The Remote Control Button That Requires Code Matching, And The Led Indicator Light On The Control Board Will Flash Three Times In A Row To Successfully Match The Code. 3. Interlocking Learning Method: Press The Code Matching Button On The Control Board Three Times In A Row, And The Led Indicator Light Will Flash Three Times. After The Led Indicator Light Is On, Press The Remote Control Button That Requires Code Matching, And The Led Indicator Light On The Control Board Will Flash Three Times In A Row To Successfully Match The Code. 4. Two Way Jog And Two Way Self-Locking Learning Methods: Press The Code Matching Button On The Control Board Four Times In A Row, And The Led Indicator Light Will Flash Four Times. After The Led Indicator Light Is On, Press The Remote Control Button That Requires Code Matching, And The Led Indicator Light On The Control Board Will Flash Three Times In A Row To Successfully Match The Code. 5. Two Way Jog And Two Way Interlock Learning Methods: Press The Code Matching Button On The Control Board 5 Times In A Row, And The Led Indicator Light Will Flash 5 Times. After The Led Indicator Light Is On, Press The Remote Control Button That Requires Code Matching, And The Led Indicator Light On The Control Board Will Flash 3 Times In A Row To Successfully Match The Code. 6. Two Way Self-Locking And Two Way Interlocking Learning Methods: Press The Code Matching Button On The Control Board 6 Times In A Row, And The Led Indicator Light Will Flash 6 Times. After The Led Indicator Light Is On, Press The Remote Control Button That Requires Code Matching, And The Led Indicator Light On The Control Board Will Flash 3 Times In A Row To Successfully Match The Code. 7. Two Way Interlock And Two Way Interlock Learning Methods: Press The Code Matching Button On The Control Board 7 Times In A Row, And The Led Indicator Light Will Flash 7 Times. After The Led Indicator Light Is On, Press The Remote Control Button That Requires Code Matching, And The Led Indicator Light On The Control Board Will Flash 3 Times In A Row To Successfully Match The Code. Clear Data: Press The Code Button On The Control Board 8 Times In A Row, And The Led Indicator Light Will Flash 8 Times. At This Time, The Led Indicator Light Will Automatically Flash 8 Times In A Row, Indicating That The Code Clearing Is Complete And All Previously Learned Remote Control Key Codes Will Be Cleared.  Explanation Of Output Method: 1. Self Locking: Press The Same Remote Control Button Once To Turn On The Relay, And Press It Again To Turn Off The Relay. 2. Interlock: Press The "A" Button On The Remote Control To Turn On The Relay, And Press The "B" Button On The Remote Control To Turn Off The Relay. 3. Jogging: Press The "A" Button On The Remote Control To Turn On The Relay, Release The "A" Button On The Remote Control To Turn Off The Relay. If You Keep Pressing The "A" Button On The Remote Control, The Relay Will Remain On. When You Release The Remote Control, The Relay Will Turn Off.  Package Included: 1 X Receiver 1 X Remote Control Shipping Contact Us Our products have been sent to the US warehouse. All items will be shipped via WINIT CORPORATION. In 2-5 working days, you will receive your items. Thank you and have a nice day. If you have any question about us or items, please contact us, we will reply it as soon as possible. Shipping Our products have been sent to the US warehouse. All items will be shipped via WINIT CORPORATION. In 2-5 working days, you will receive your items. Thank you and have a nice day. Contact Us If you have any question about us or items, please contact us, we will reply it as soon as possible. PaymentShippingReturn policyAbout usContact us Copyright © - Tongtool All rights reserved | Design:Tongtool
