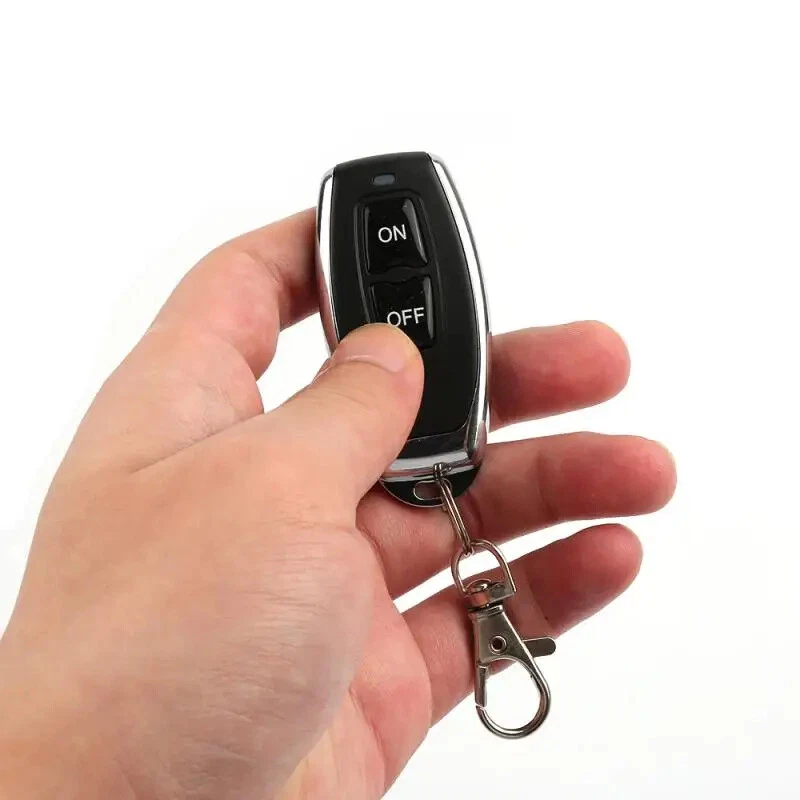

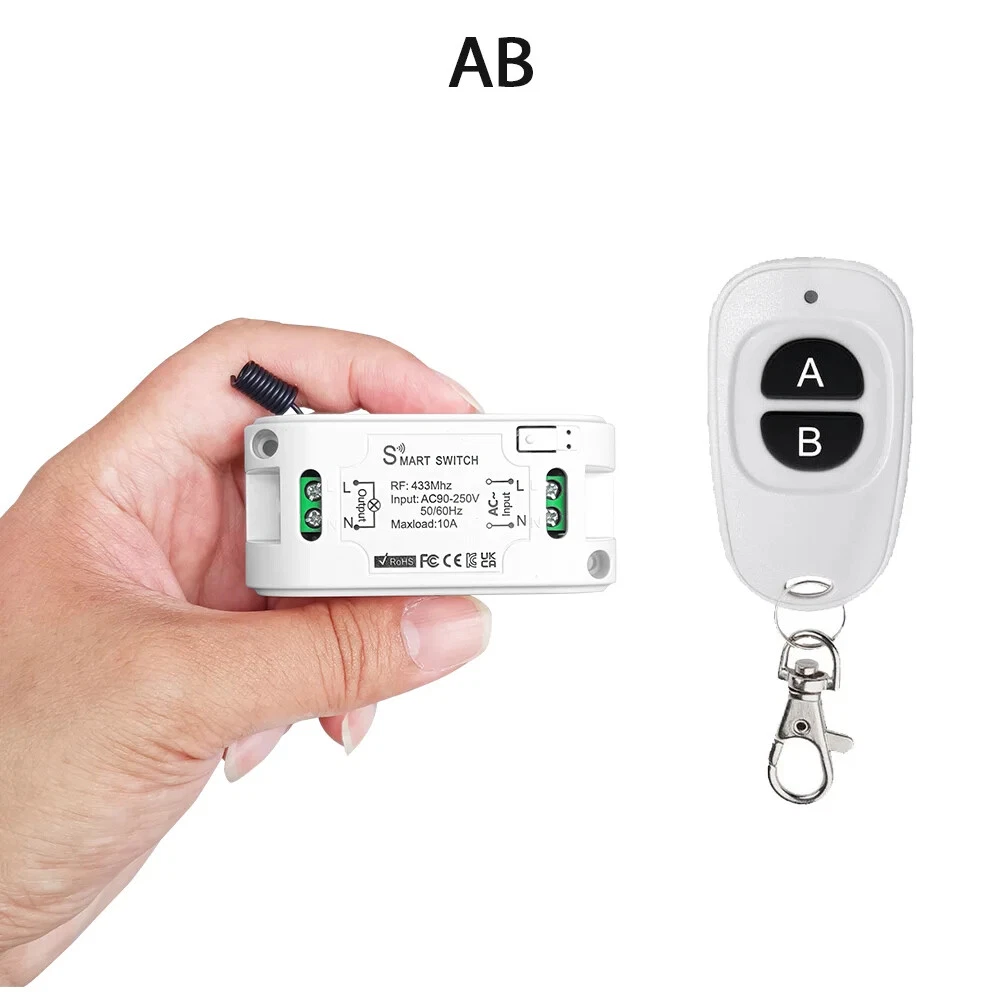

Remote Control Switch Remote Controls Wireless Relay Receiver Remote Transmitter
$ 7.6
Description

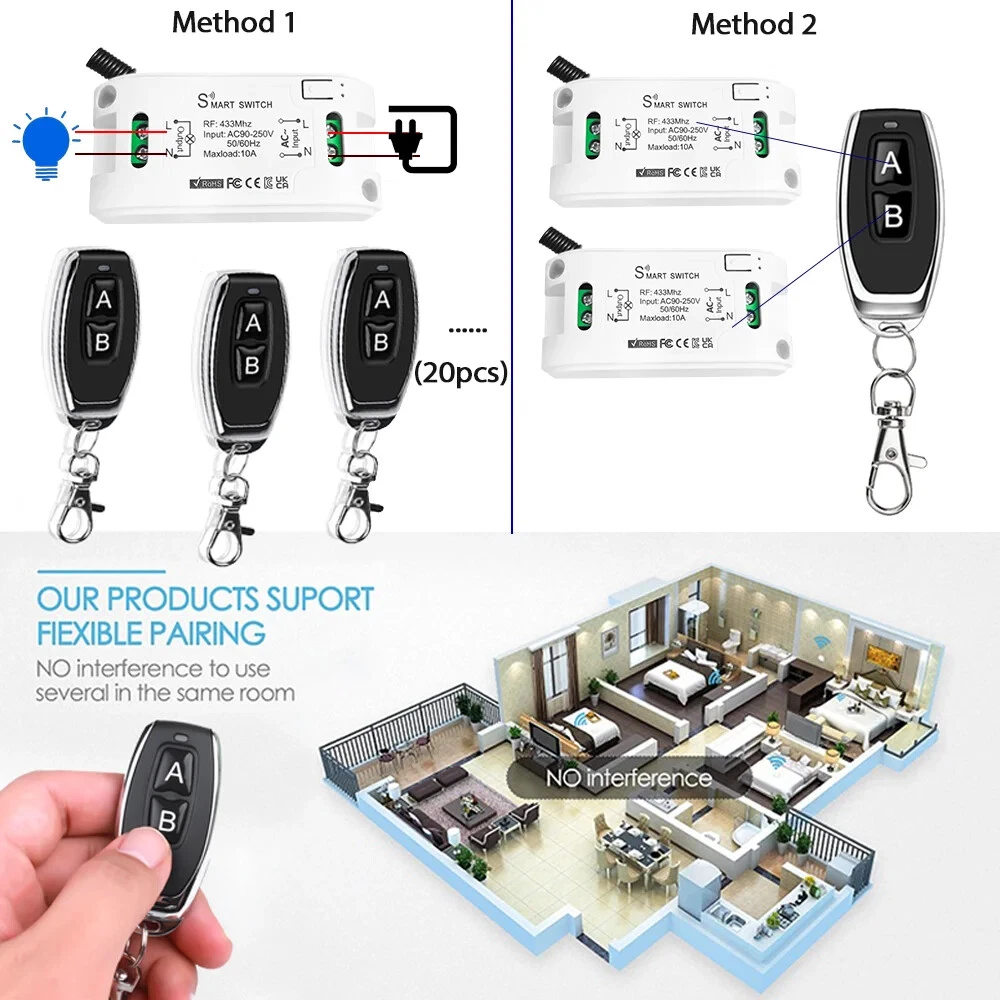

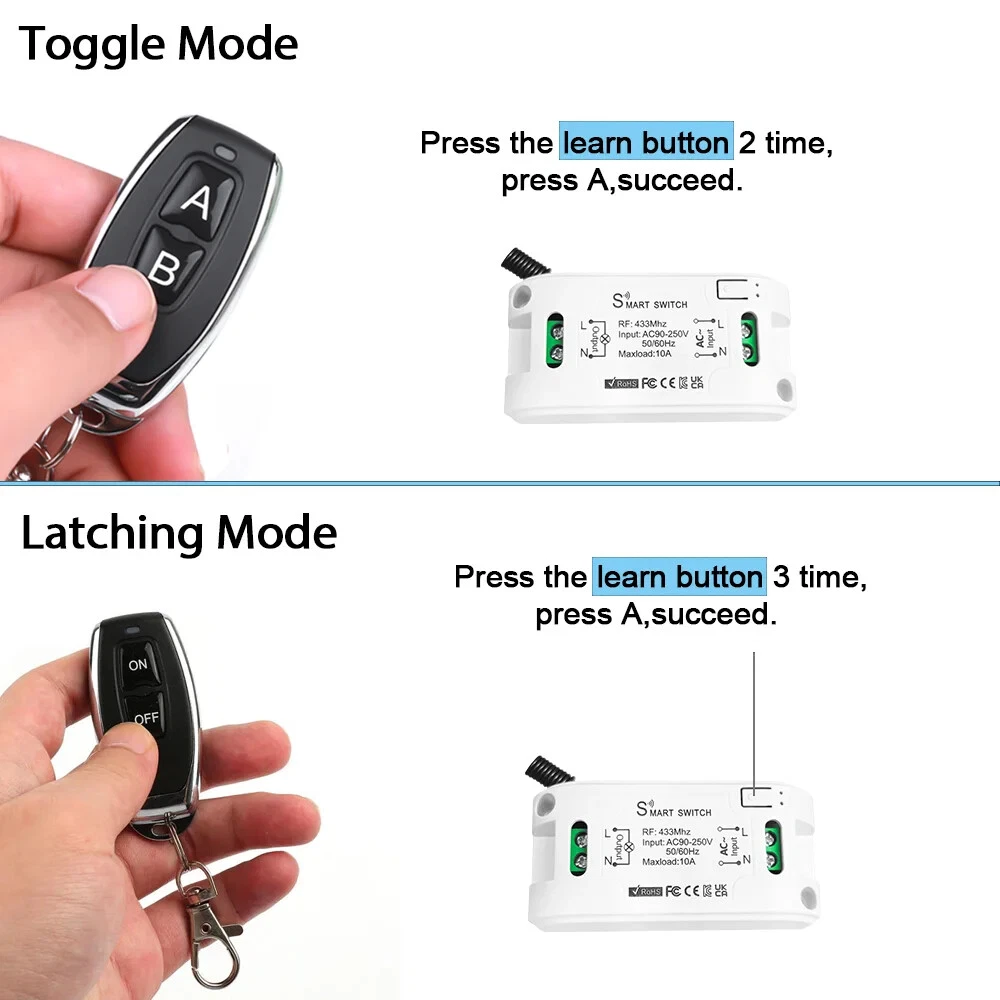

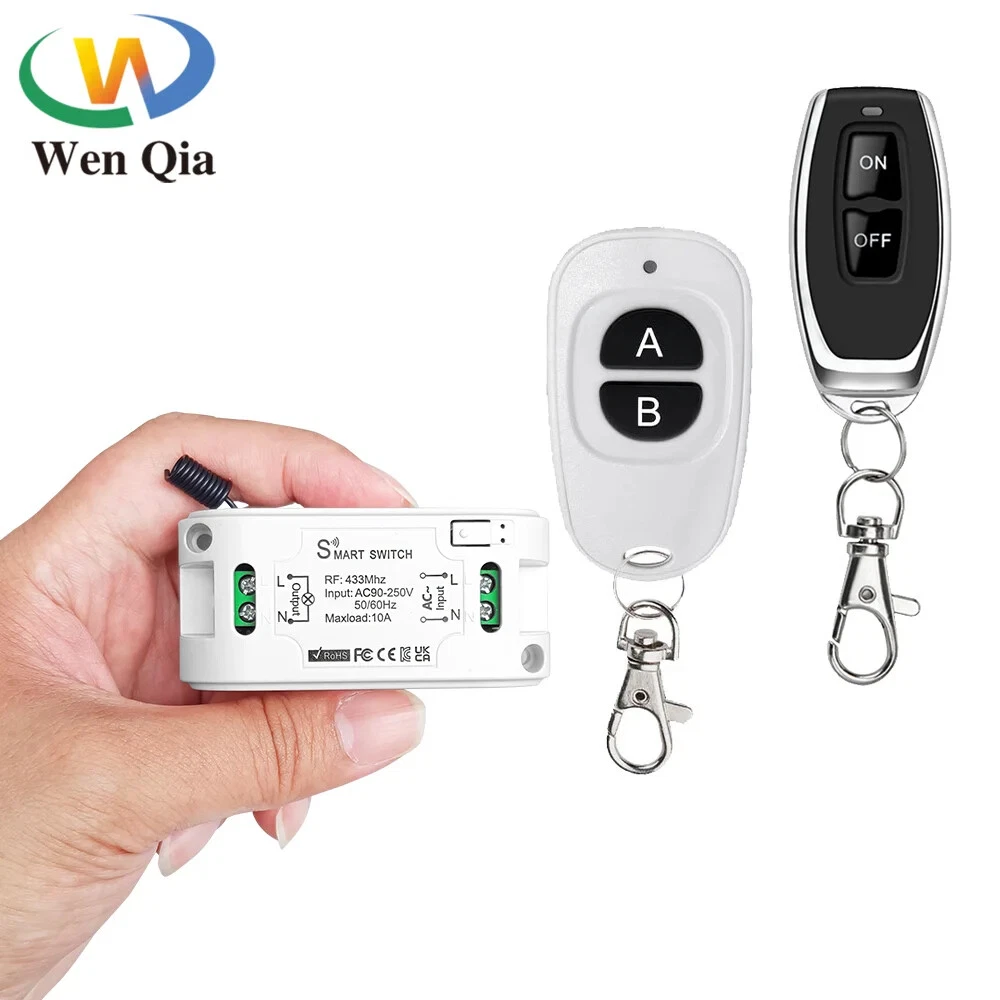

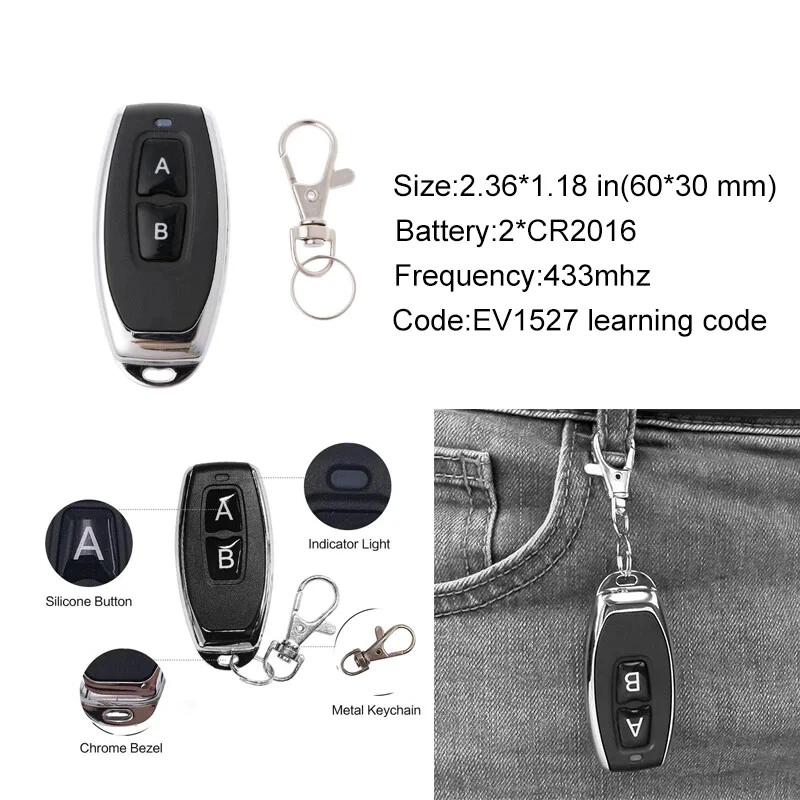

110V 220V Remote Control Switch 433 Mhz Remote Controls Wireless Relay Receiver Remote Transmitter For Led Lights Bulb DIY Relay Receiver Board Parameter Working voltage : AC 85V~250V Quiescent Current : <5MA Max current : 10A Max load: 2200W RF frequency : 433MHz Pin : L \ N Working temperature : -30~+80 Celsius Receiving Sensitivity : >97dbm Amount of storage remote controls : 20 pieces Support encoding : 1527 Learning code /2262 fixed code RF Operating mode : ASK superheterodyne wireless reception Receiving range : Open space is more than 50 meters Remote operating mode : Momentary Mode / Toggle Mode / Latched Mode Working Modes You can set up in 3 modes: Momentary mode,Toggle mode and Latched mode. Momentary mode: Press and hold A button,this relay will work;Release A button,this relay will stop. Toggle mode: Press A button,the relay will work;press A button again,this relay will stop. Latched mode: Press A button,the relay will work;press B button again,this relay will stop,second relay will work. How to Set up Momentary mode: Press learning button once,press A button once,succeed. Toggle mode: Press learning button twice,press A button once,succeed. Latched mode: Press learning button 3times,press A button once,succeed. Clean data: Press learning button 8times,the data will be cleaned.All remotes cannot control this receiver. If u want to change modes,u need to clean the data first.
