SE01-NB NB-IoT Soil Moisture & EC Sensor
$ 88.08
Description

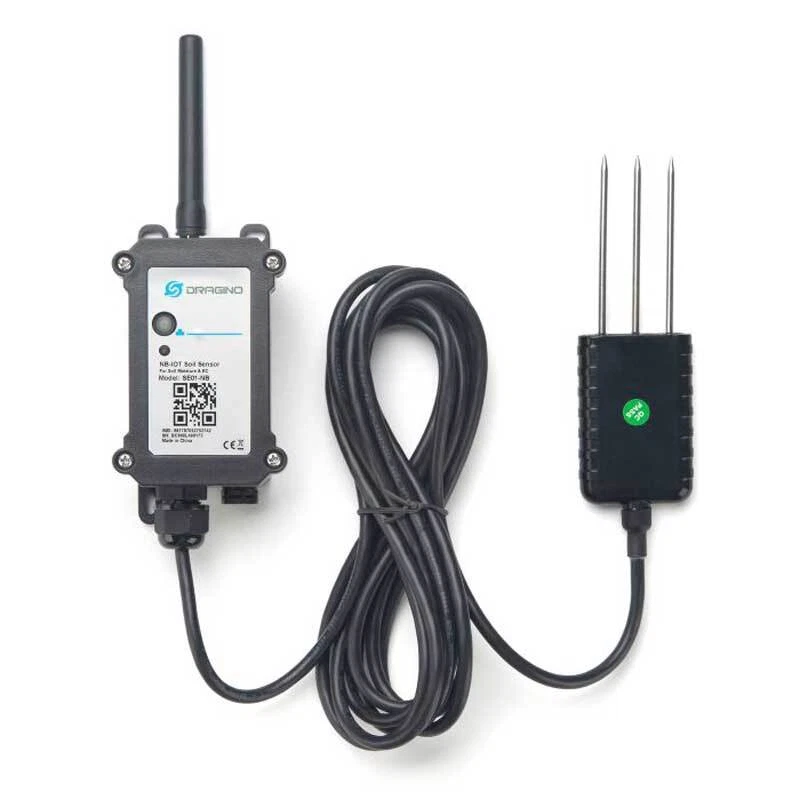

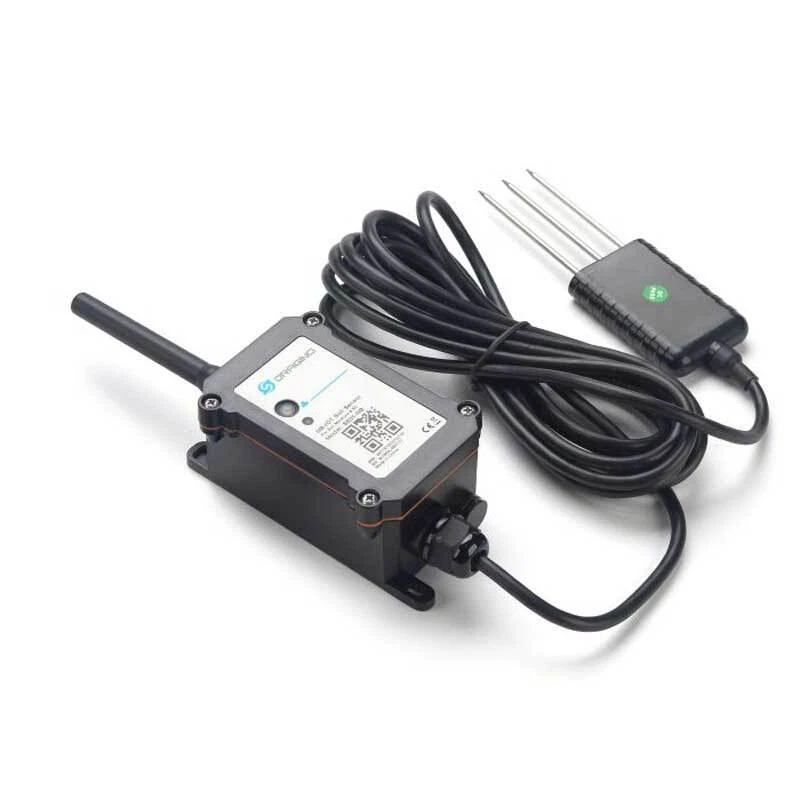

SE01-NB NB-IoT Soil Moisture & EC Sensor The Dragino SE01-NB is a NB-IoT Soil Moisture & EC Sensor for IoT of Agriculture. It is designed to measure the soil moisture of saline-alkali soil and loamy soil . The soil sensor uses FDR method to calculate the soil moisture with the compensation from soil temperature and conductivity. It also has been calibrated in factory for Mineral soil type. It detects Soil Moisture , Soil Temperature and Soil Conductivity , and uploads the value via wireless to NB-IoT IoT Server.SE01-NB NB-IoT Soil Moisture & EC Sensor SE01-NB supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirement, and support uplinks to various IoT Servers. SE01-NB supports BLE configure and OTA update which make user easy to use. SE01-NB is powered by 8500mAh Li-SOCI2 battery , it is designed for long-term use up to several years. SE01-NB has optional built-in SIM card and default IoT server connection version. Which makes it works with simple configuration. NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17 /B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD Ultra-low power consumption Monitor Soil Moisture Monitor Soil Temperature Monitor Soil Conductivity Multiply Sampling and one uplink Support Bluetooth v5.1 remote configure and update firmware Uplink on periodically Downlink to change configure 8500mAh Battery for long term use Nano SIM card slot for NB-IoT SIM Applications: Smart Agriculture Common DC Characteristics: Supply Voltage: built in 8500mAh Li-SOCI2 battery , 2.5v ~ 3.6v Operating Temperature: -40 ~ 85°C Soil Moisture: Range: 0-100.00 V/V % Resolution: 0.01 V/V % Accuracy: ±3% (0-53%)V/V %, ±5% (>53%) V/V % Measure Method: FDR , with temperature &EC compensate Soil Temperature: Range: -40.00℃～85.00℃ Resolution: 0.01℃ Accuracy: -10℃～50℃:<0.3℃ ,All other: <0.6℃ Measure Method: RTD, and calibrate Soil Conductivity: Range: 0-20000 uS/cm(25℃)(0-20.0EC) Resolution: 1 uS/cm Accuracy: 2%FS Measure Method: Conductivity , with temperature compensate NB-IoT Spec: NB-IoT Module: BC660K-GL Support Bands: B1 @H-FDD: 2100MHz B2 @H-FDD: 1900MHz B3 @H-FDD: 1800MHz B4 @H-FDD: 2100MHz B5 @H-FDD: 860MHz B8 @H-FDD: 900MHz B12 @H-FDD: 720MHz B13 @H-FDD: 740MHz B17 @H-FDD: 730MHz B18 @H-FDD: 870MHz B19 @H-FDD: 870MHz B20 @H-FDD: 790MHz B25 @H-FDD: 1900MHz B28 @H-FDD: 750MHz B66 @H-FDD: 2000MHz B70 @H-FDD: 2000MHz B85 @H-FDD: 700MHz Battery: Li/SOCI2 un-chargeable battery Capacity: 8500mAh Self-Discharge: <1% / Year @ 25°C Max continuously current: 130mA Max boost current: 2A, 1 second Power Consumption: STOP Mode: 10uA @ 3.3v Max transmit power: 350mA@3.3v Package Includes: SE01-NB NB-IoT Soil Moisture & EC Sensor x 1 External antenna x 1 Dimension and weight: Device Size: 195 * 125 * 55 mm Device Weight: 420 g Ultra-low power consumption Monitor Soil Moisture Monitor Soil Temperature Monitor Soil Conductivity Multiply Sampling and one uplink Support Bluetooth v5.1 remote configure and update firmware Uplink on periodically Downlink to change configure 8500mAh Battery for long term use Nano SIM card slot for NB-IoT SIM
