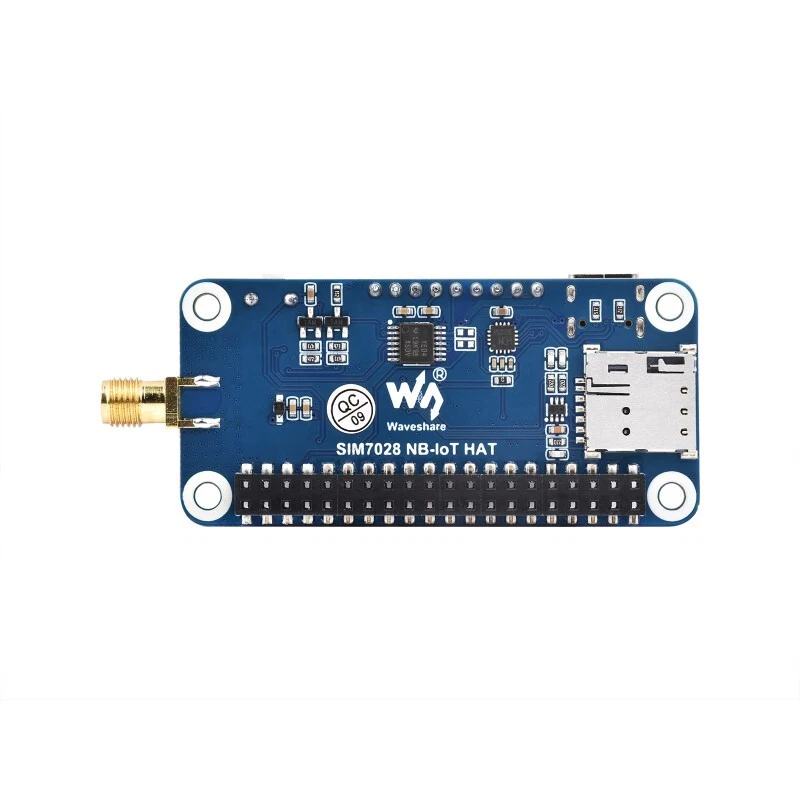

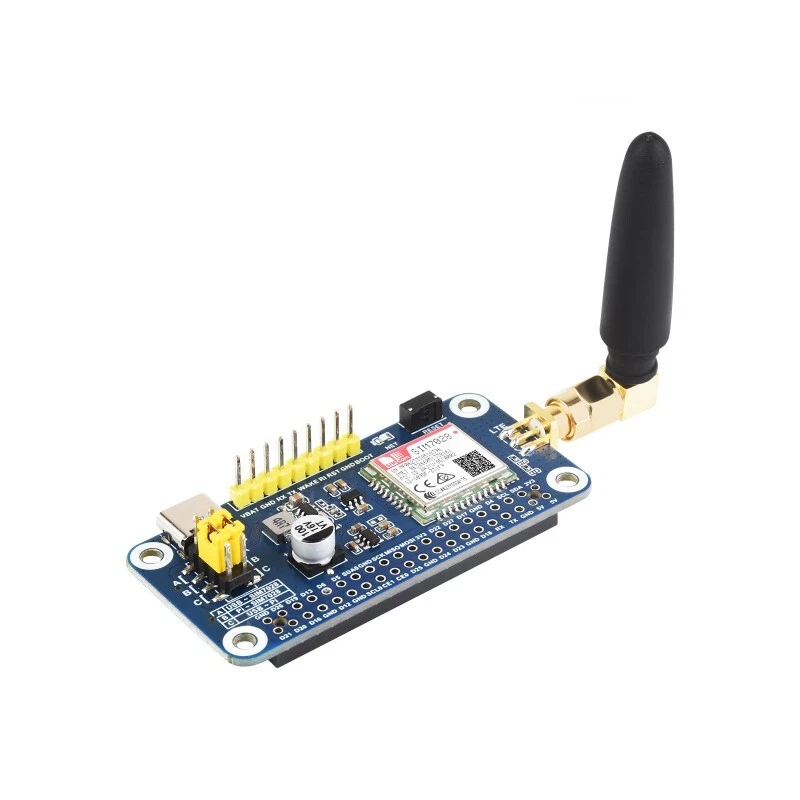

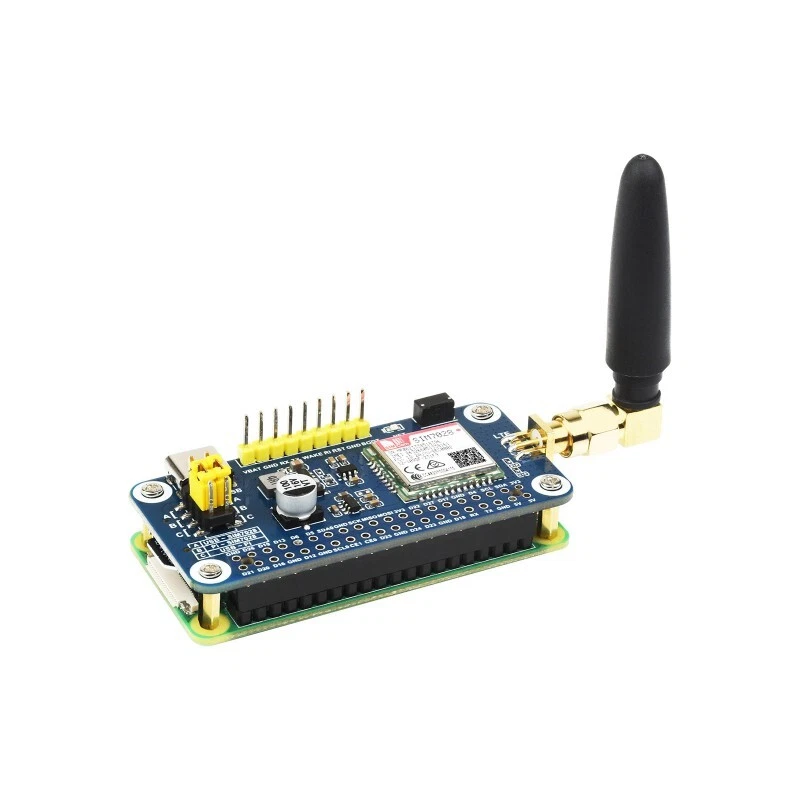

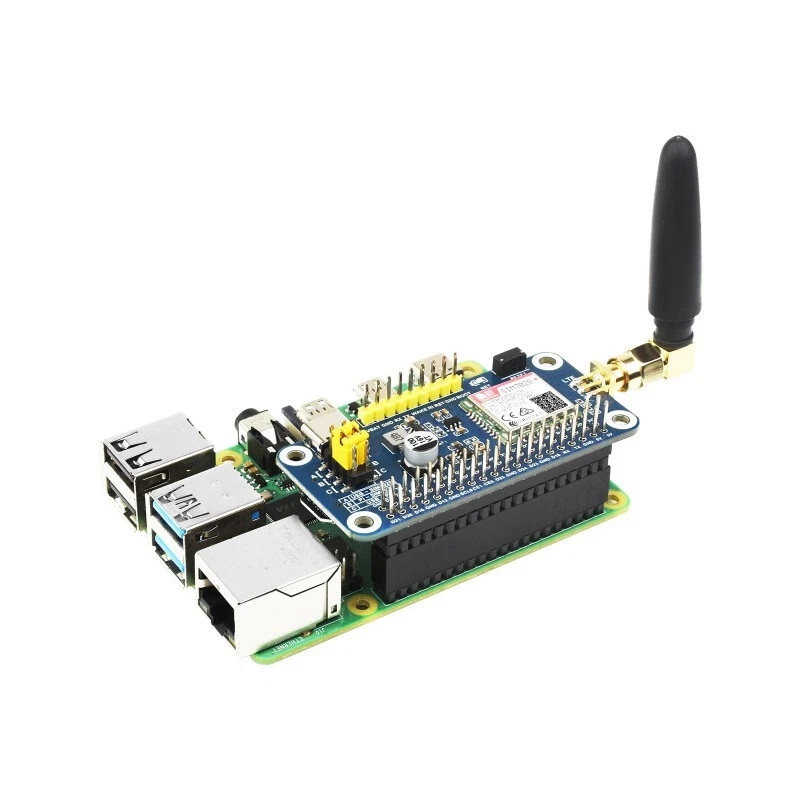

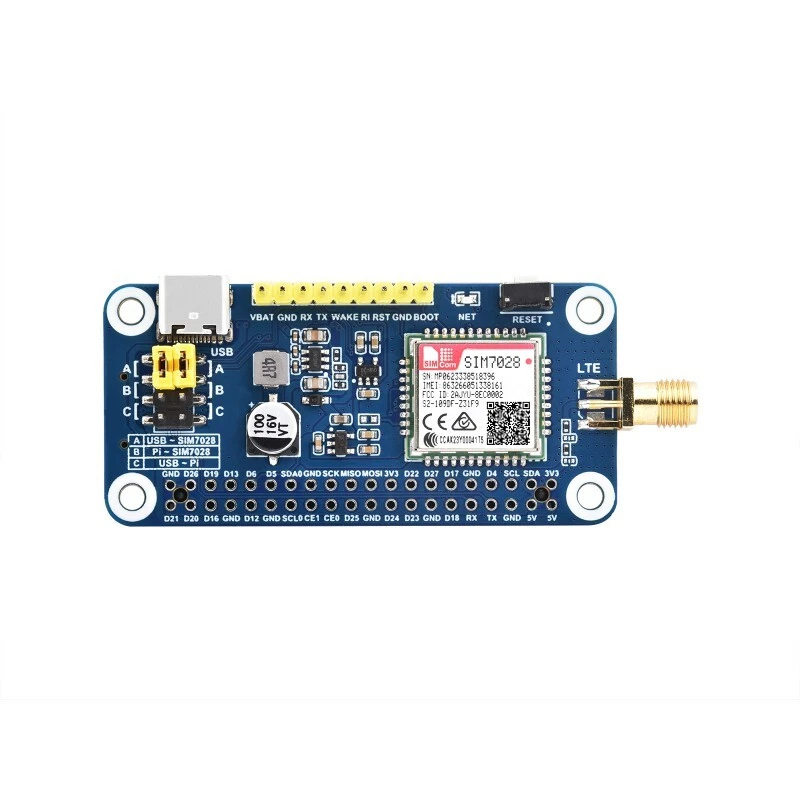

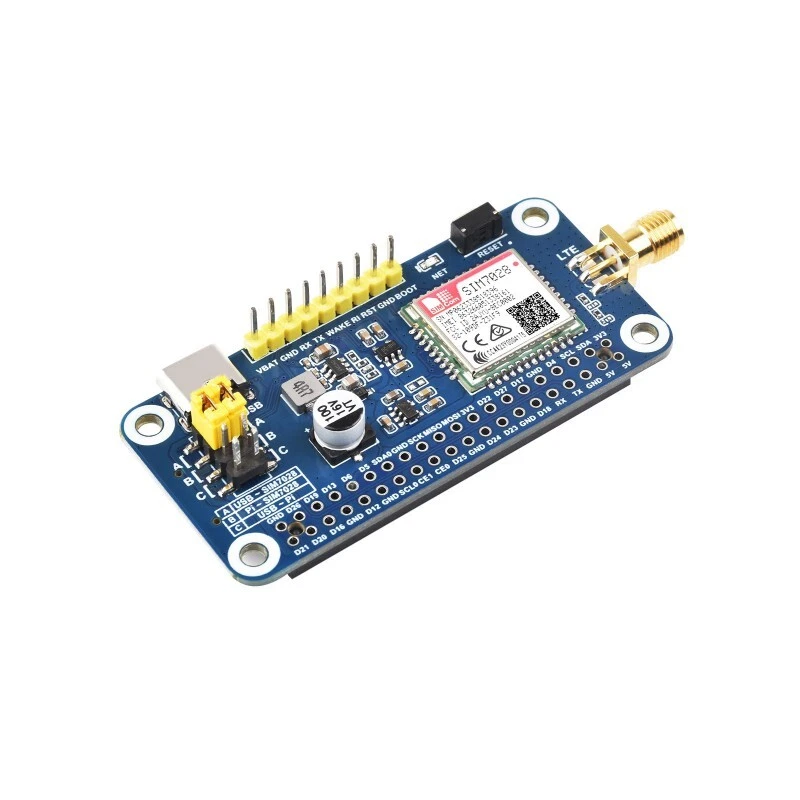

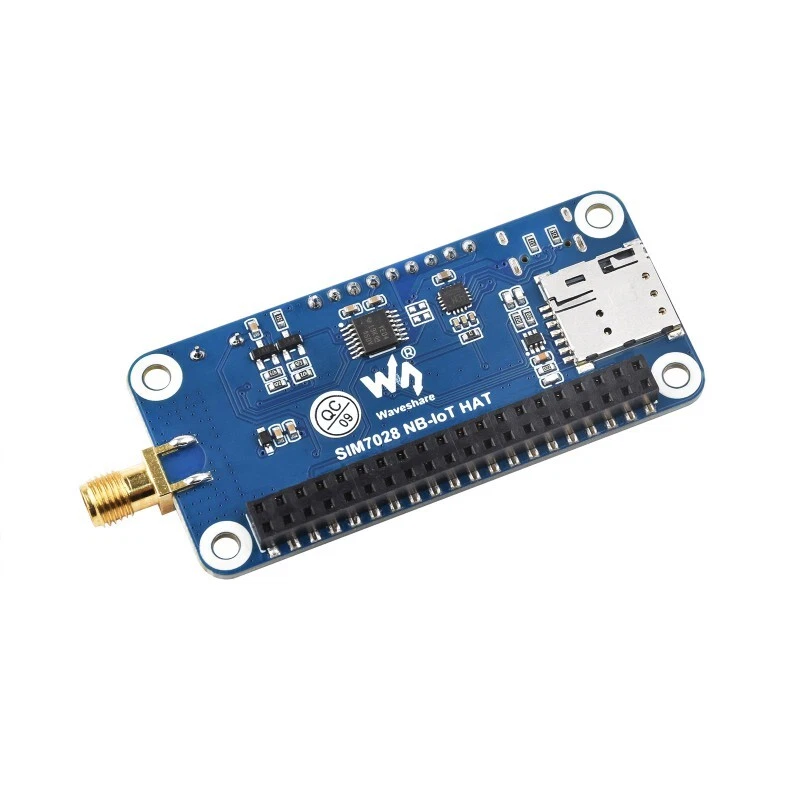

SIM7028 NB-IoT HAT for Raspberry Pi Supports Global Band NB-IoT Communication
$ 10.92
Description
Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian. SIM7028 NB-IoT HAT For Raspberry Pi, Supports Global Band NB-IoT Communication, Small In Size And Low Power Consumption, Onboard 40PIN GPIO Header, Comes With GSM Antenna SIM7028 NB-IoT HAT For Raspberry Pi Supports Global Band NB-IoT Communication, Small In Size, Low Power Consumption Features At A Glance The SIM7028 NB-IoT HAT is a small size, low-power, and powerful Raspberry Pi HAT with NB-IoT (Narrow-Band Internet of Things) function, supports global band and supports TCP, UDP, LWM2M, COAP, DTLS, DNS, NTP, PING, HTTP(S), MQTT(S), TLS/SSL, etc. It is designed for applications that need low delay, low power, and low throughput, also suitable for IoT applications such as meters, remote control, asset tracking, remote monitoring, remote healthcare, bicycle-sharing, and so on. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano, etc. Supports TCP, UDP, LWM2M, COAP, DTLS, DNS, NTP, PING, HTTP(S), MQTT(S), TLS/SSL, etc. Onboard Type-C interface for software debugging Onboard UART control pins, for connecting with host boards like Arduino/STM32 1x LED indicators, easy to monitor the working status Onboard USB to UART chip, the UART communication pin can be configured via jumper Onboard nano SIM card slot, compatible with NB-IoT specific card Baudrate: 2400bps ~ 460900bps (115200bps by default) Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands) Supports SIM application toolkit: SAT Class 3, GSM 11.11, USAT Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/ESP32) Specifications COMMUNICATION PARAMETERS Band B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B66/B70/B85 Data rate ≤159Kbps(UL) ≤127Kbps(DL) OPERATING PARAMETERS Power supply 5V Logic level 5V/3.3V (3.3V by default) Overall current (idle mode) 4mA Single module current (VBAT=3.3V) Idle mode: 2.8mA PSM mode: 0.8uA DRX mode: 0.11mA@Idle(DRX=2.56s) eDRX mode: 0.018mA@Idle(eDRX=163.84s; PTW=25.6s) Standard Raspberry Pi 40PIN GPIO Compatible With Raspberry Pi Series Boards, Jetson Nano, Etc. Connect to Raspberry Pi Zero Connect to Raspberry Pi 4B Connect to Jetson Orin for reference only, the above control boards are NOT included Global Band Support Supports Communication Protocols Including TCP, UDP, LWM2M, COAP, DTLS, DNS, NTP, PING, HTTP(S), MQTT(S), TLS/SSL, Etc. Application Example Provides Multiple Networking Demos With Waveshare.Cloud, AWS IoT Core, And Aliyun IoT Support, Using The Lightweight MQTT Protocol To Achieve Data Visualization Services Waveshare.Cloud Support Provides Tutorial And Demo For Quick Start Of Smart IoT Solutions, With Large-Screen Data Visualization Display To Meet Various Application Scenarios Pinout Definition Product Show Outline Dimensions Development Resources Wiki: https://www.waveshare.com/wiki/SIM7028_NB-IoT_HAT Package contains SIM7028 NB-IoT HAT x1 GSM Antenna x1 USB Type-A to Type-C cable x1 2×20PIN female header x1 Standoffs pack x1
