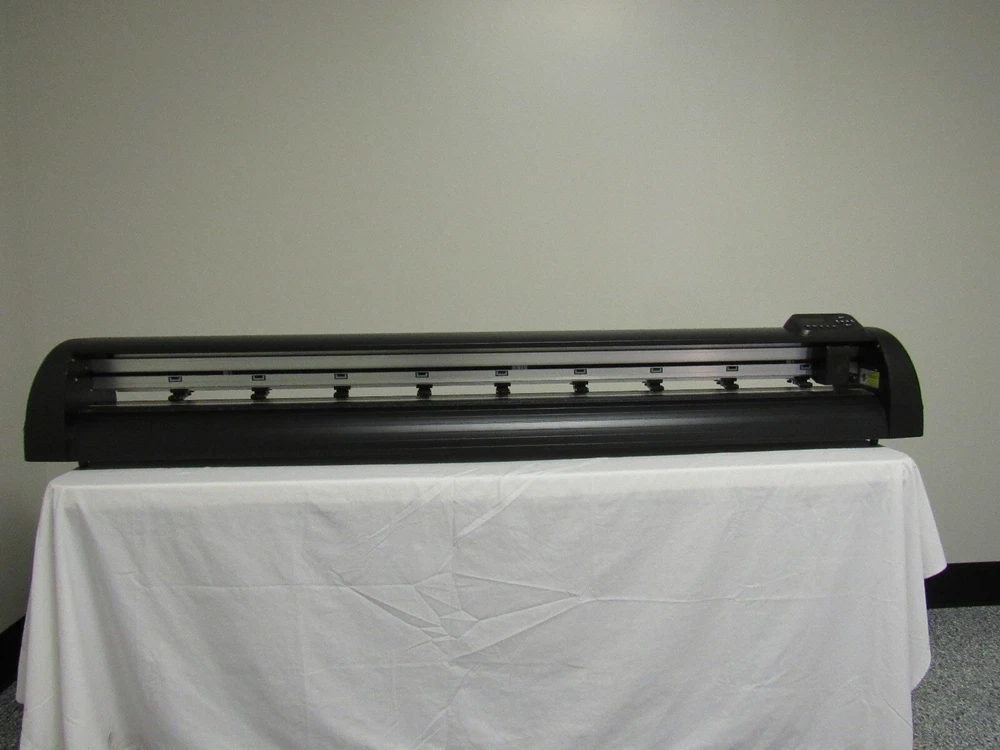

Saga P1800IIT2 Precision Servo Vinyl Cutter - VinylMaster - 5Yr Warranty 240607
$ 777.22
Description

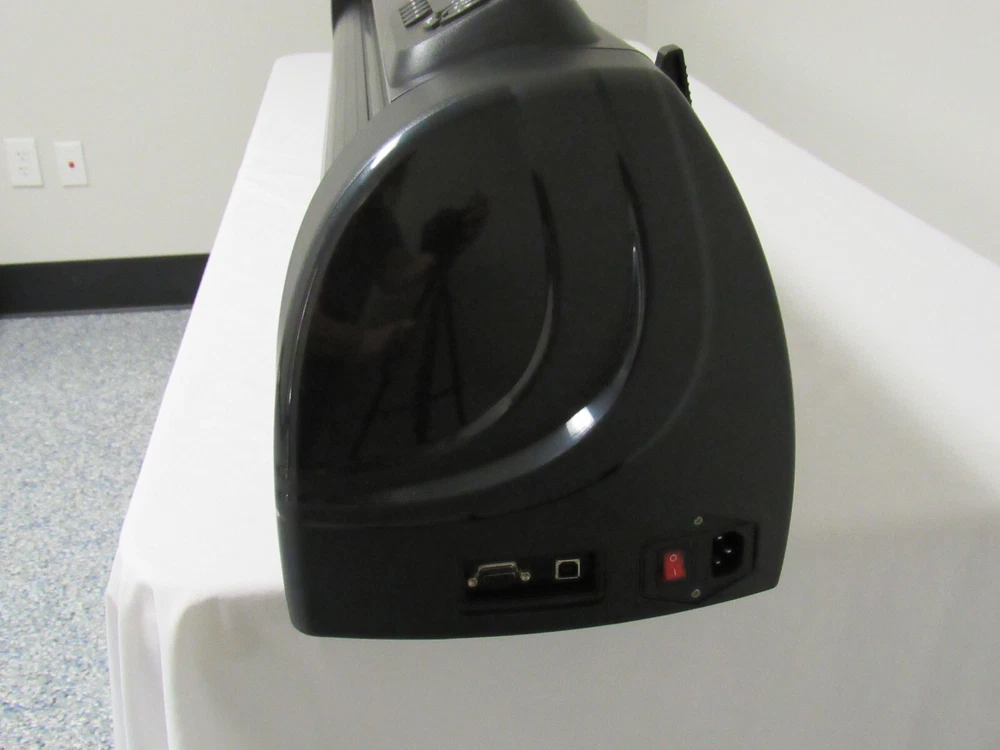

Includes 5 Year Warranty Includes VinylMaster Cut Great for cutting window tint, template material, paint protection film, sign vinyl, heat transfer material. Motor: Servo Maximum Cutting Width (mm): 1680 Maximum Media Width (mm): 1800 Measurements (cm): 207 x 51 x 38 Gross Weight (kg): 54 Net Weight (kg): 49 Feed System: Direct Pull Construction: Aluminum Alloy, ABS End Caps Maximum Drawing Speed (mm/s): 960 Maximum Cutting Speed (mm/s): 960 Control System: Servo Motor Power (w): 25 Tracking: 3 Maximum Force (g): 750 Maximum Force Increment (g/step): 3 Mechanical Resolution (mm/pulse): .01254 Connections: RS-232, USB Power Supply: AC 110V-240V / 50-60HZ 6A Maximum Noise (dB (A)): 35 Ambient Temperature Range °C: 5 - 35 Command Language: HPGL Media: Release liner backed materials, magnet, stencil Pen Included: Yes Included Blades: 30°, 45°, 60° Packaging: Machine in carton box, stand in carton box, two carton boxes are individual Computer Connection: True USB, no driver needed, direct connection to USB Printer Carriage Type: Cutting head with 4 wheels Contour Cutting: Laser target, semi-manual Straight Line Speed (mm/s): 0 - 960 Curve Speed (mm/s): 0 - 600 Motor Speed (RPM): 0 - 3500 0-3000 RPM Time Idle Load (miliseconds): 20 0-3000 RPM Time Working Load (miliseconds): 1200 Encoder Signal Physical (line / round): 1016 Encoder Signal Logical (line / round): 4060 Processor (bits): 64 DSP Processor Flash (M): 32 Accuracy (?mm): .01 Repeating Precision (mm): .082 Stand Availability: Upright Basket Availability: Yes Perf Cut Capable: No CE Certification: Yes Color: Black
