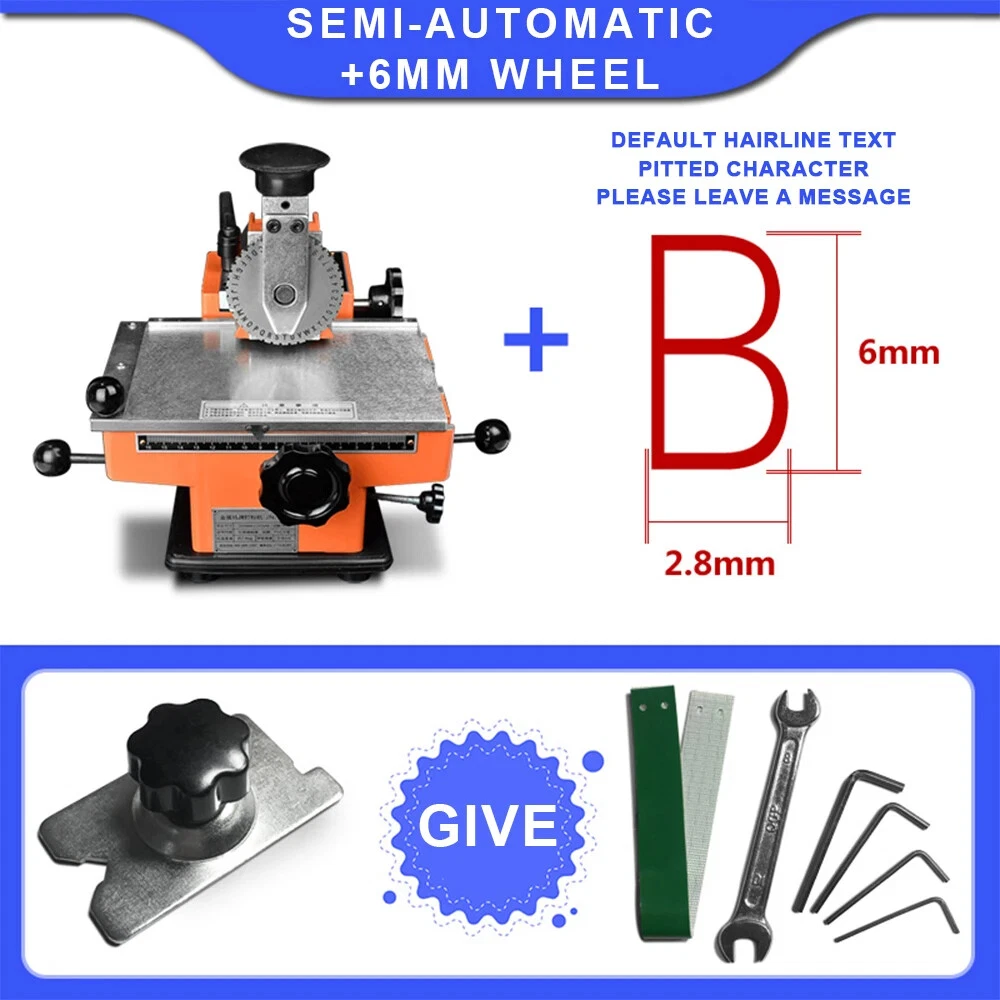

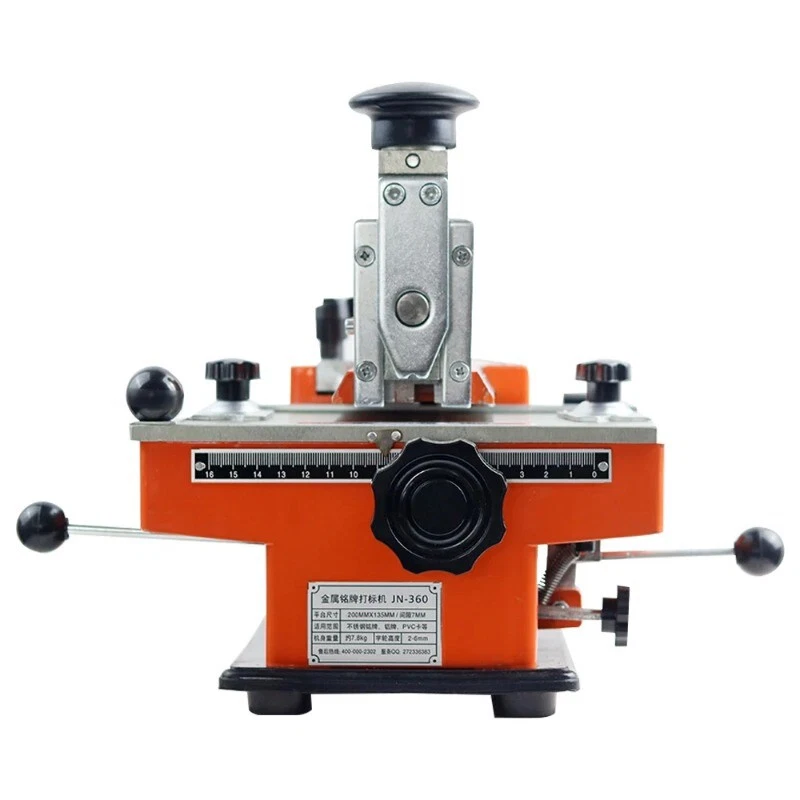

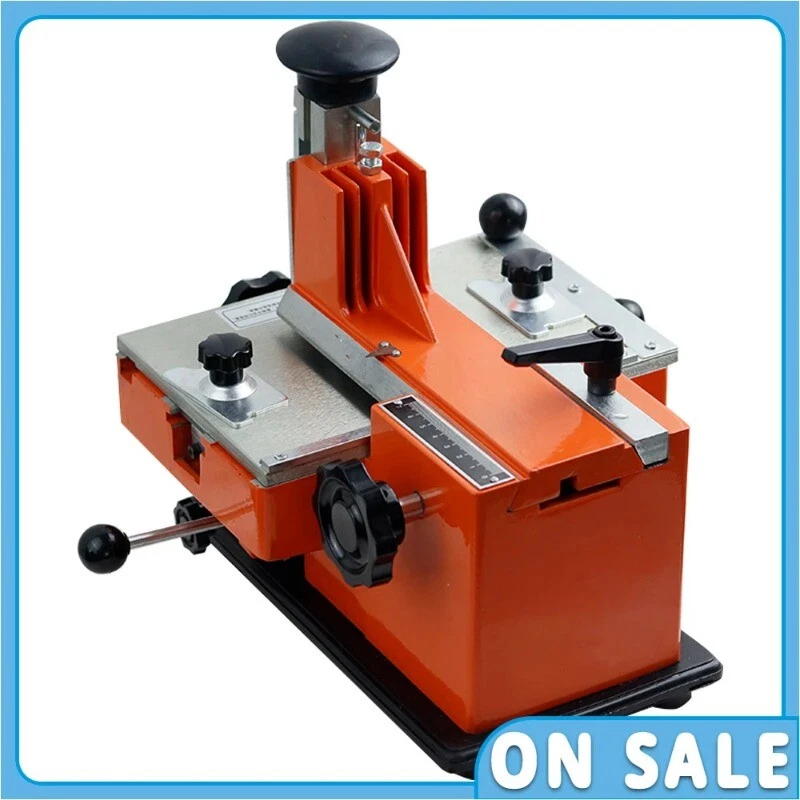

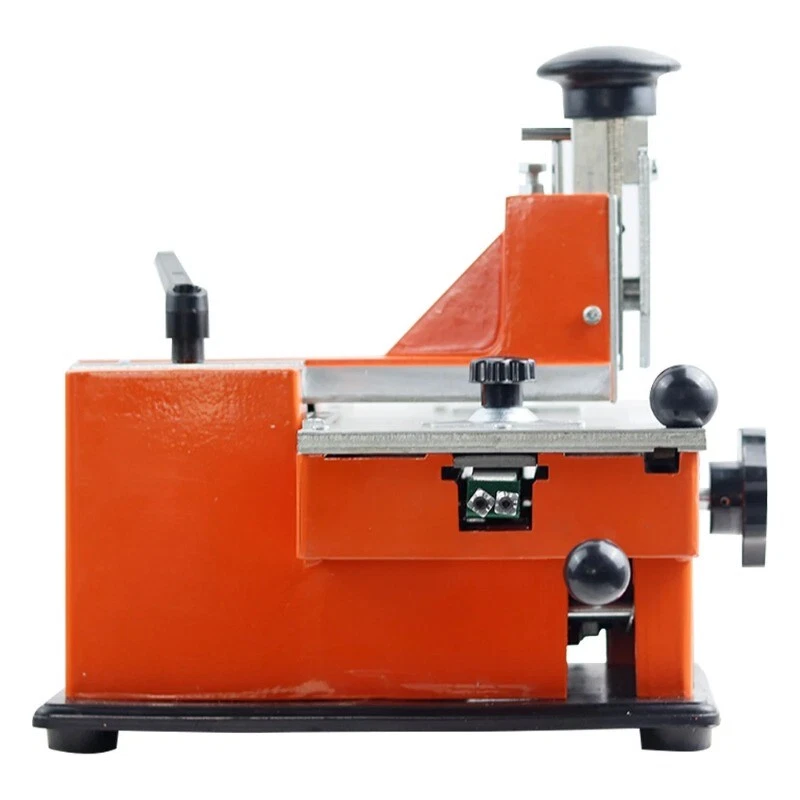

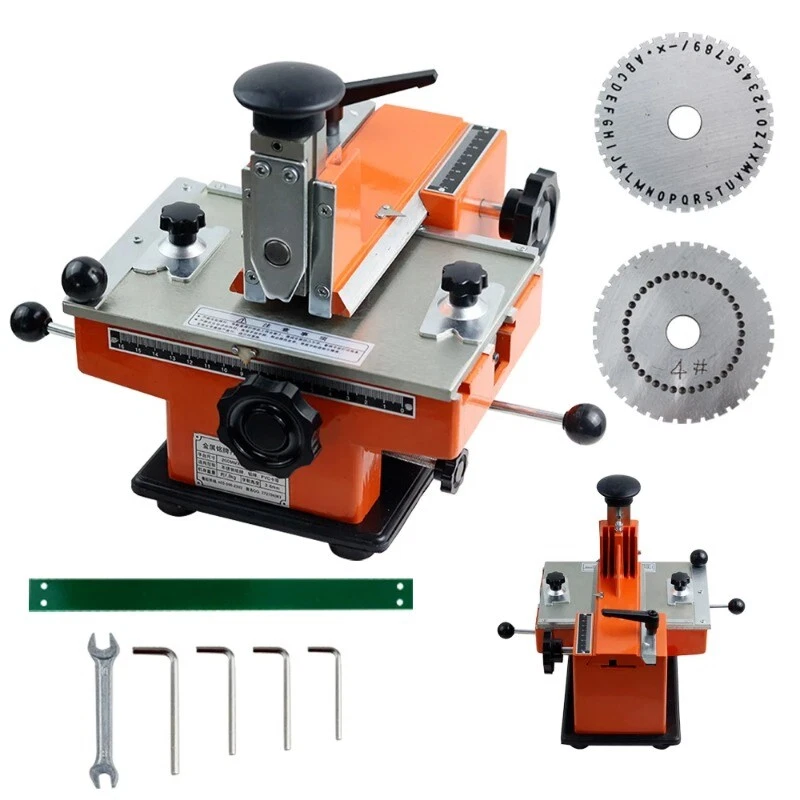

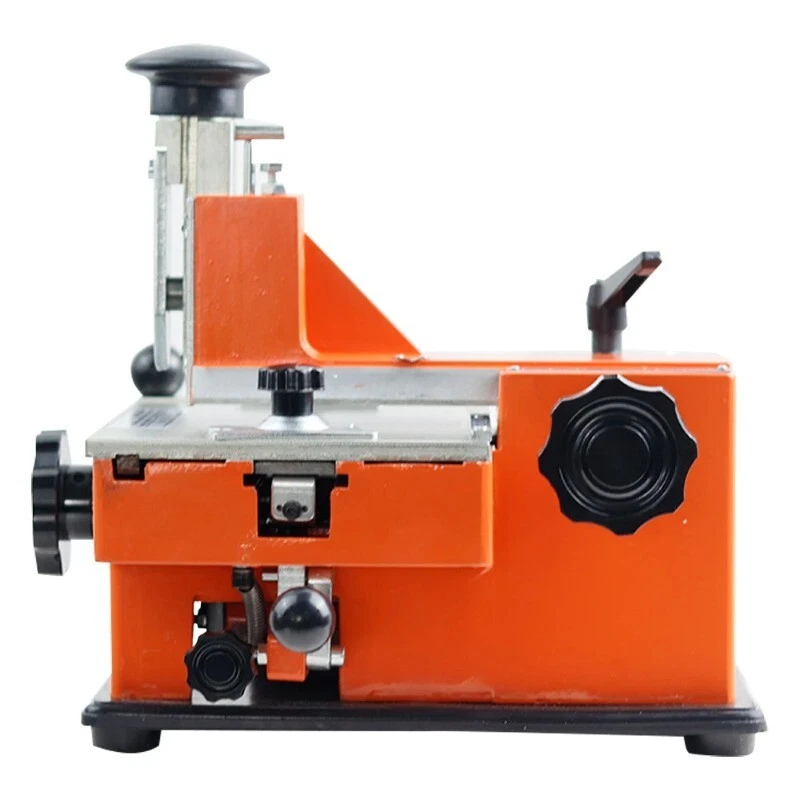

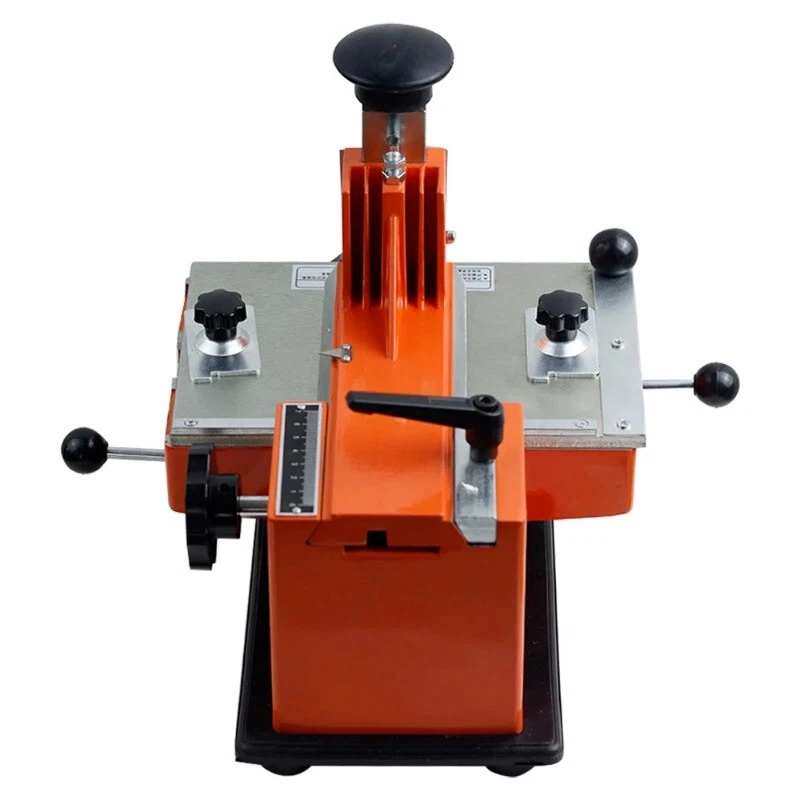

Semi-automatic Nameplate Marking Machine Stainless Steel Sign Marking Machine
$ 116.16
Description
Semi-automatic Nameplate Marking Machine Stainless Steel Sign Marking Machine Aluminum Labeling Coding Numbers Letters Printing Default sending line text, requires dotted text, please contact customer service. Parameter: Name: Manual/Semi-automatic marking machine Model: LY-01/02 Package weight: 8KG Packing size: 30*35*38 Printing depth: 0.1-0.3mm Whether to supply power: No Printing speed: 2-5/10 seconds. Marking range: 165X 135mm Dial material: 12CrMO high-quality die steel Print content: letters, numbers, symbols Optional sub-disk: 2, 2.5, 3, 4, 5, 6 Product weight: 7.5Kg Dimensions: 280 X 220 X 260mm Use: Metal signs _ engraved on the changed parameters: such as specific model, date, batch number, serial number, serial number, etc. Typical application: All kinds of aluminum, copper, stainless steel, plastic nameplates on machinery, electromechanics, water pumps, valves, automobiles and motorcycles, and electrical appliances. Working principle: The alloy steel turntable after high frequency quenching heat treatment is under the action of external force (hand pressure or rubber hammer), and letters or numbers with a certain depth(0.1~0.3mm deep) are engraved on the metal sign; The heat-treated steel dial can be rotated to the required letters or numbers, and the font can be easily replaced; the marking position and line spacing are steplessly adjusted by a special mechanical mechanism; the character spacing depends on manual adjustment; different character heights can be realized by changing the dial; Signs of various shapes smaller than 200x 135mm can be clamped and engraved. Character wheel material: chrome steel 12CrMo Character wheel hardness: >60 degrees Character wheel thickness: 6 mm, (No. 6 font 7 mm) Character wheel diameter: 80mm Character wheel shaft hole: 14mm The positioning error of the full circle of the character wheel is plus or minus 0.10mm (to avoid overlapping printed characters or uncontrollable kerning) Number of characters: 40 English letters: ABCDE FGHIJKLMNOPQRSTUVWXY Z Arabic numerals: 1234567890 Simple notation: *x /一 Theoretical service life: the single character code of the stainless steel nameplate can be printed more than 200,000 times continuously Character wheel font height specifications: No. 2 code plate: font height 2mm, font width 1 mm No. 2.5 code plate: font height 2.5mm, font width 1.25 mm No. 3 code plate: font height 3mm, font width 1.5 mm No. 4 code plate: font height 4mm, font width 2 mm No. 5 code plate: font height 5mm, font width 2.5 mm No. 6 code plate: font height 6mm, font width 2.8 mm So you can choose a suitable code plate according to your needs.
