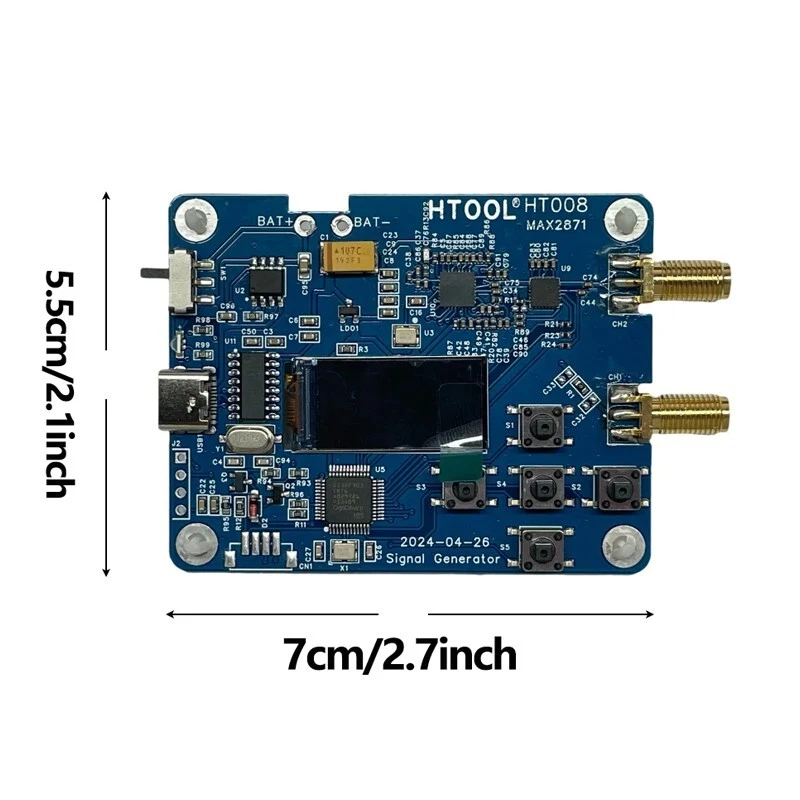

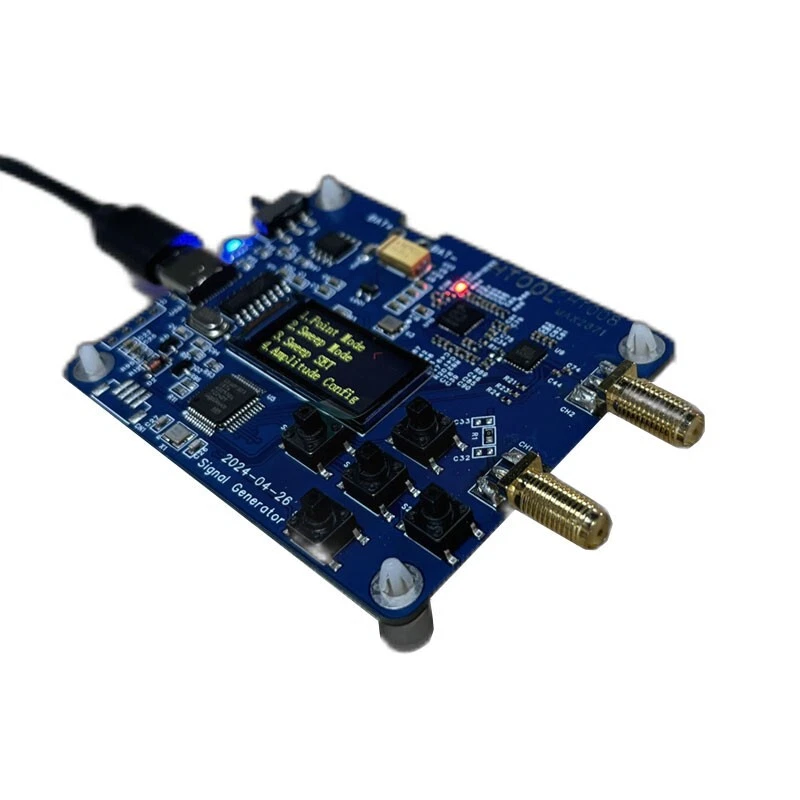

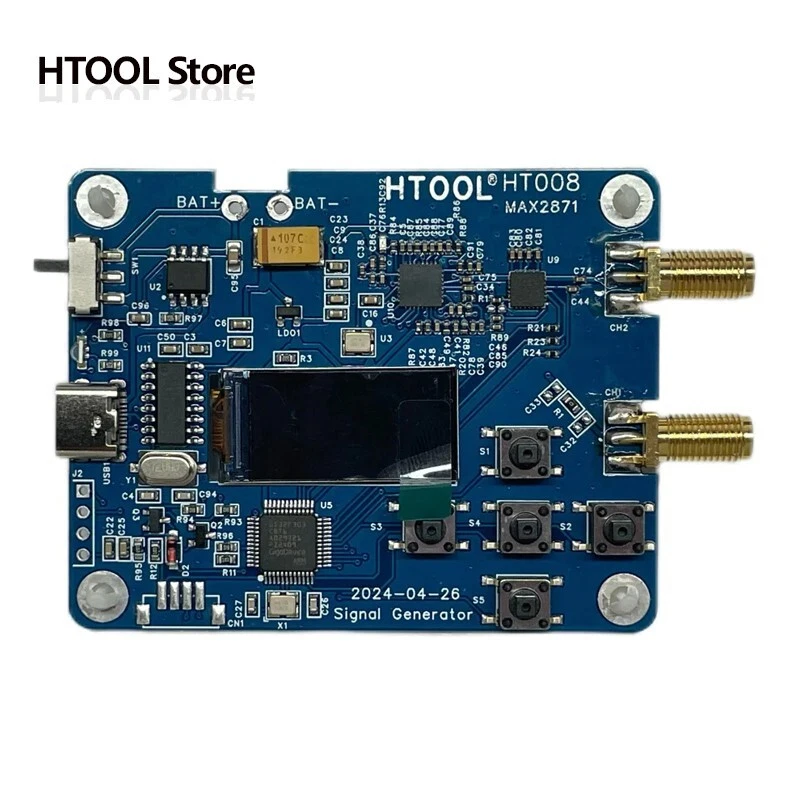

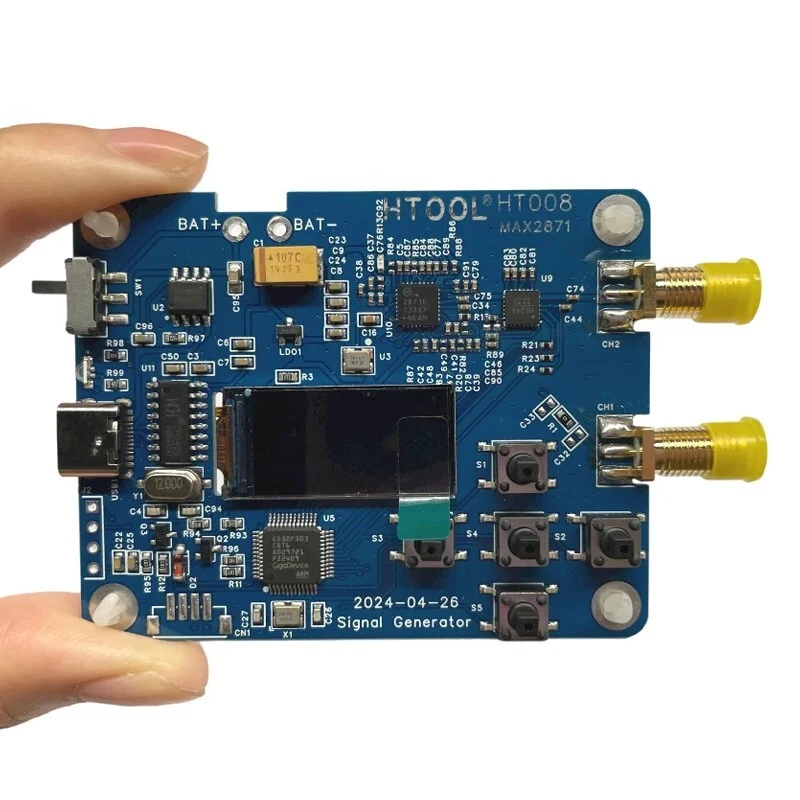

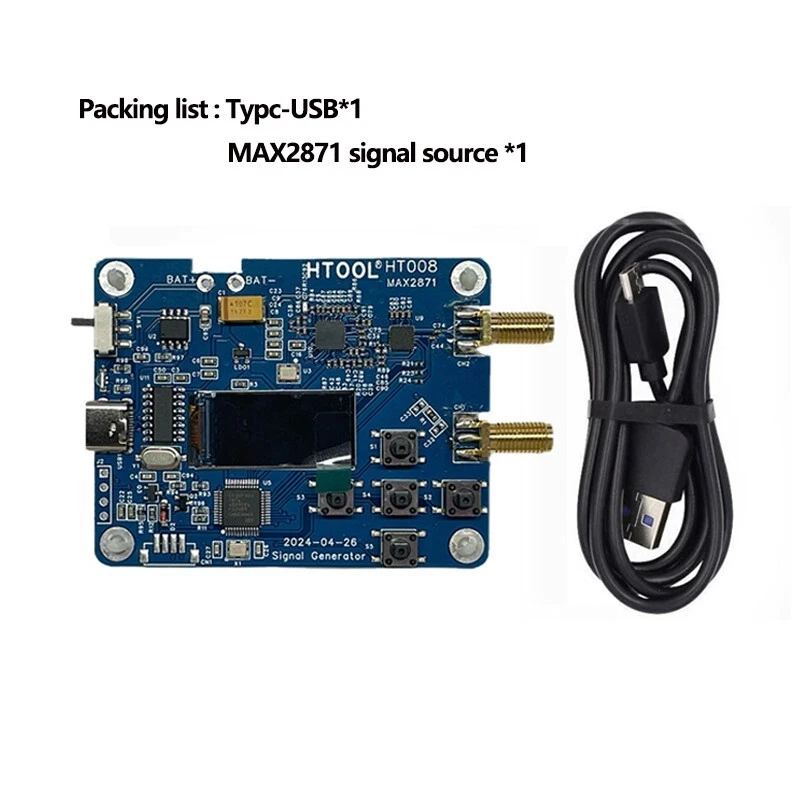

Signal Generator 23.5-6000Mhz RF Frequency Generator Serial control MAX2871
$ 20.54
Description

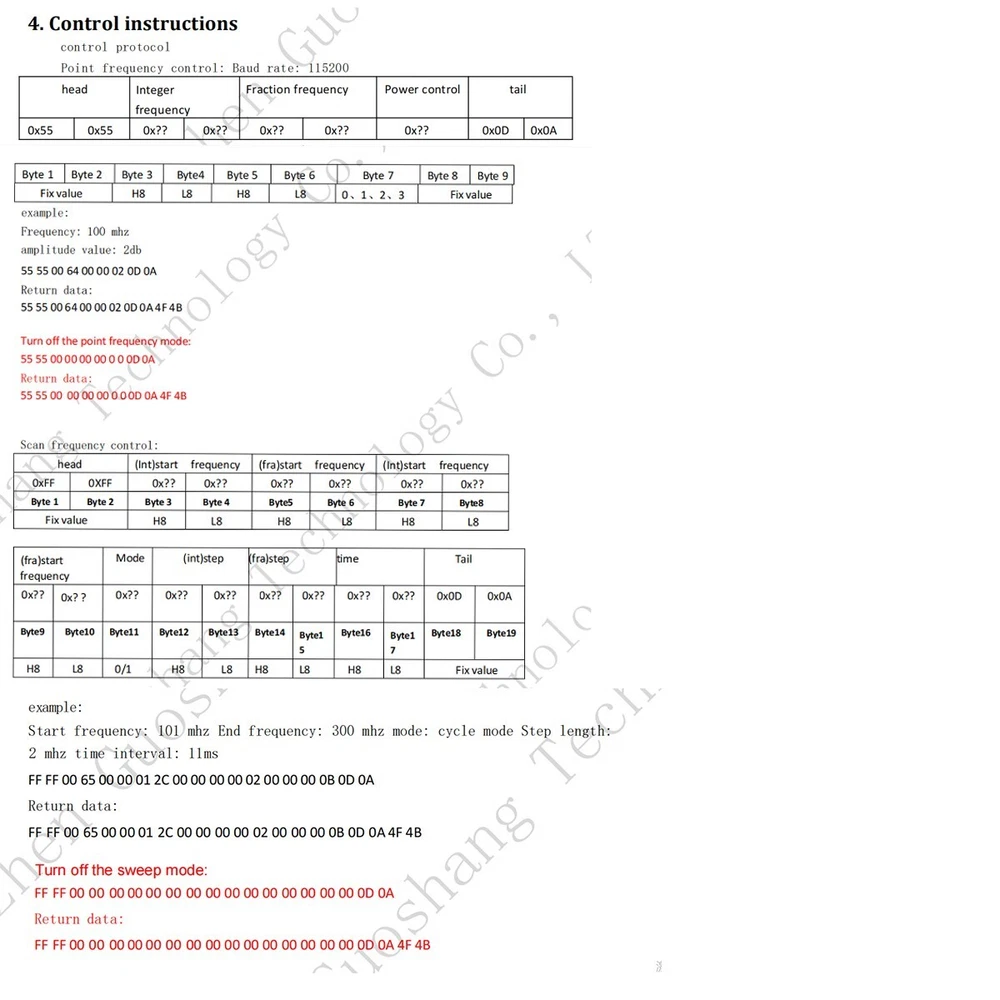

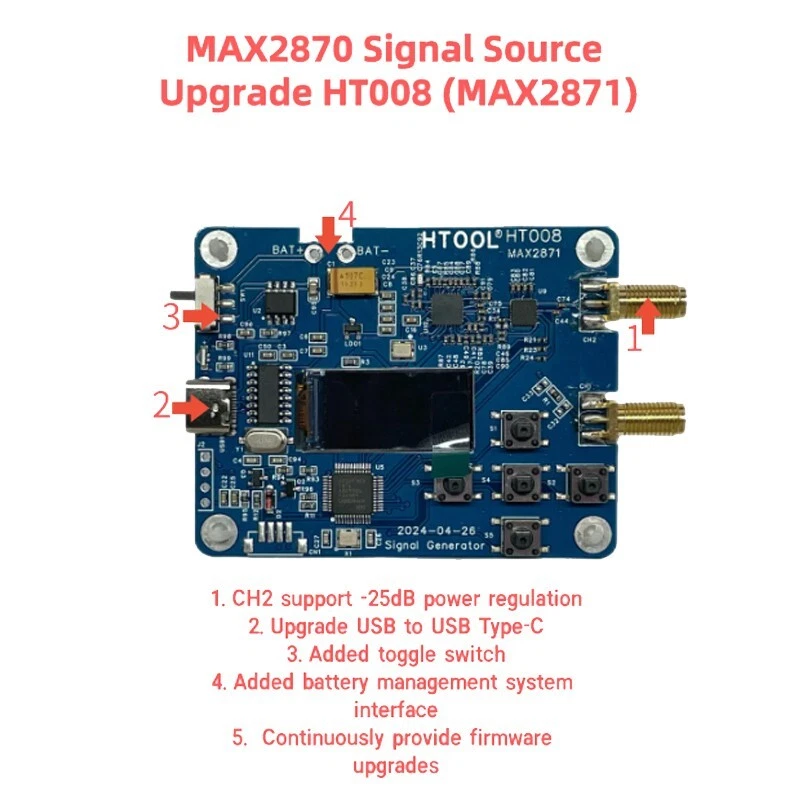

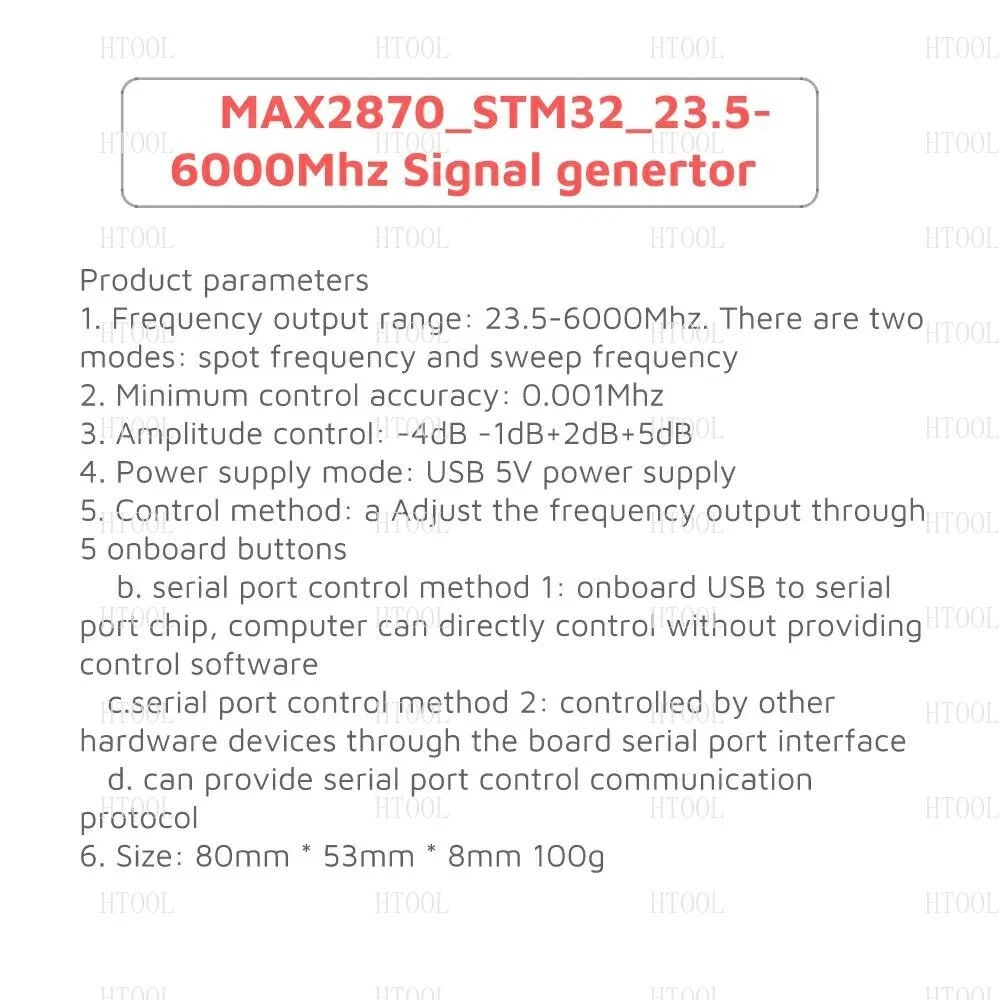

1. Product Description MAX2871, 90*160 (0.96inch) OLED screen, CH340G USB for serial communication. Yes The following functions are available. (1) 23.5MHz to 6000MHz frequency transmission; (2) Accuracy: 0.01MHz; (3) Power output of -4dB, -1dB, 2dB, 5dB: (4) Support frequency sweep: (5) Support serial port communication, and control the start frequency and end frequency of the sweep frequency selection by the host computer and serial port. (6) Channel 1 (CH1) supports -4db, -1db, 2db, 5db Channel 2 (CH2) supports power output from -15 to -25 (7) Support USB serial port control, sweep frequency, point frequency and other operations (8) Support USB power supply and 5V 1A lithium battery power supply 2. Point frequency description Use the left and right buttons to control the left and right movement of the coordinate point, and use the up and down keys to change the frequency and select the channel OK key to enter and exit the point frequency interface 3. Sweep command Use the left and right keys to move the cursor left and right, use the up and down keys to change the start and end frequency, as well as switch modes and switches on and off 4. Sweep description This function needs to set the start frequency and end frequency of the productNote: If the start frequency is less than the end frequency, the operation will not be performed, and when the step size and interval time are not set, it will not be executed, and the start frequency, end frequency, step size and interval time of the product should be set first during use. Then turn on the enable switch to control. The product now only opens the power setting of channel 1 in sweep mode, and the sweep power of channel 2 will be upgraded in the future.
