Small Brushed PM Motor for E-Scooter Speed Control

$ 29.33

Type: Does not apply Item Package Quantity: 1 Horsepower: 350.0 UPC: Does not apply gtin13: Does not apply Speed: 3000.0 Model Number: Yz011 Material: Aluminum Voltage: 24.0 Included Components: 350W 3000Rpm Electric Motor Style: 350W 3000Rpm Package Dimensions LxWxH: 5.47x5.35x5.2 Inches Wattage: 350.0 Size: 350W Part Number: Yz010 Yz011 Weight: 4.96 Pounds Brand: Does not apply

Description

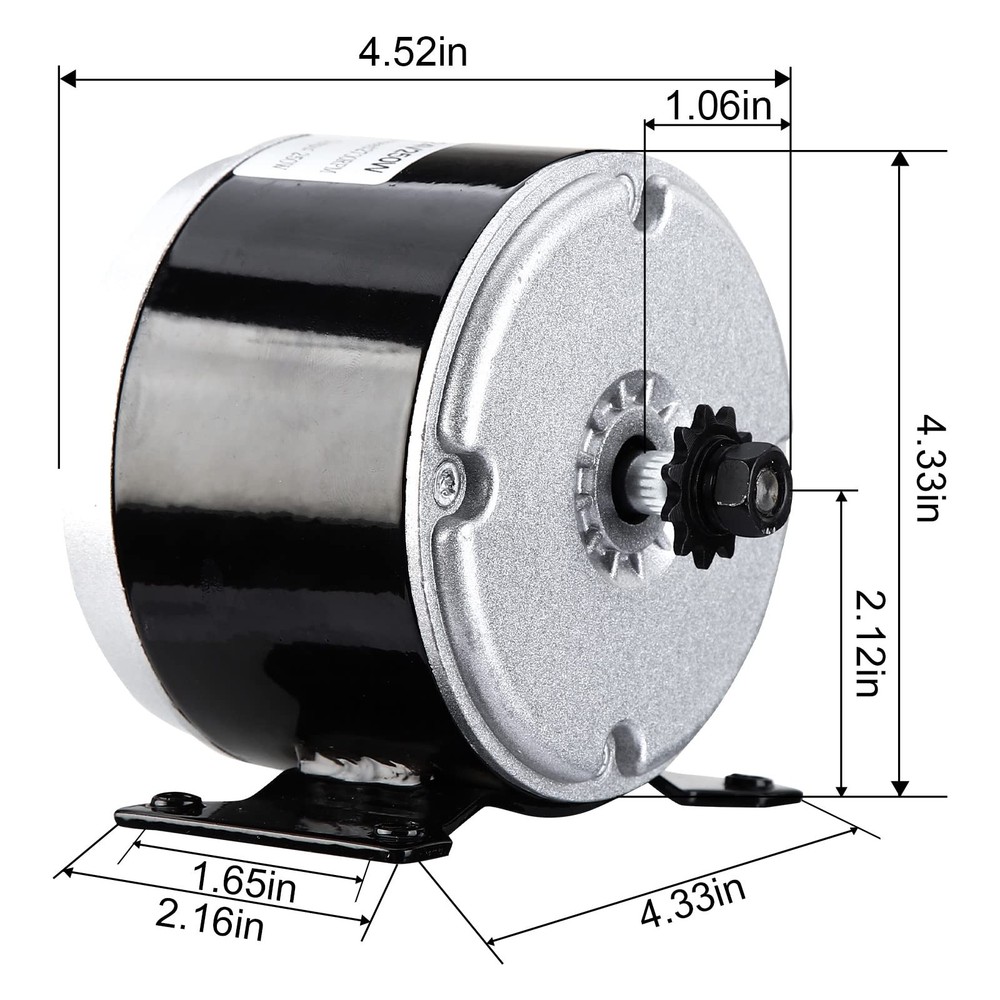

Features: All aluminum body copper movement, Electric Motor with Forward and Reverse Design, Motor clockwise Running is the correct direction, counterclockwise is the recersing (The counterclockwise rotating speed will be 200-300rpm less than working in the clockwise). Application: Replacement Motor is for Bicycle, Scooter, Dirt Quad Scoot, E-Scooter, Go-kart, E Bike, ATV, Go Karter, Skateboard, Minibike, E-ATV, Bike etc. Specification: - Voltage: 24V - Rated Current: 20A - Chain drive (11 teeth sprocket): #25H Chain 6.35 pitch - Sprocket Diameter: 25mm - Output: 350W - Rated Speed: 3000 RPM - Wiring: 2 (Black & Red) - Type of motor: DC, Brushed - Torque: 1.25Nm (0.92 ft·lb) - Load capacity: 85KG - Motor Weight: 4 Lbs Distance between holes on each tab is about 42mm(1 3/4") Distance between holes across the tabs is about 95mm(3 3/4") The Size of Threaded Holes: 5.6mm(1/4") Motor Dimension: 5.11 x 3.94 x 4.72" Cable Length: Approx. 13.4" Package Includes: 1 x 350W Permanent Magnet Electric Motor Note: During working, the motor will be a little fever, it is a normal. Premium Material - Electric Brushed DC Motor, Aluminum Body, Full Copper Coil, Heat Resistant, Naturally Air Cooled, Low Noise High Quality More Long Life. High Performance - Powerful Electric Motor, High-speed brushed electric motor, 24VDC Permanent Magnet Generator 3000RPM,20A Current. Specification - Voltage-24V DC; Shaft Diameter: 8mm, Rated Speed-3000 RPM; Current: 20A Reversible Motor - This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires. Wide Application - Widely fit for wind turbine scooter, small dolphin electric car, mechanical equipment, Mini Electric Motorcycle DIY Engine Kit, work for Razor Electric Scooter, Ebike Bicycle, Go Karts, E-bike, E Tricycle, Mid Drive Motor Kit, DIY Engine System, Cycling Part, even mower and more other machine.
