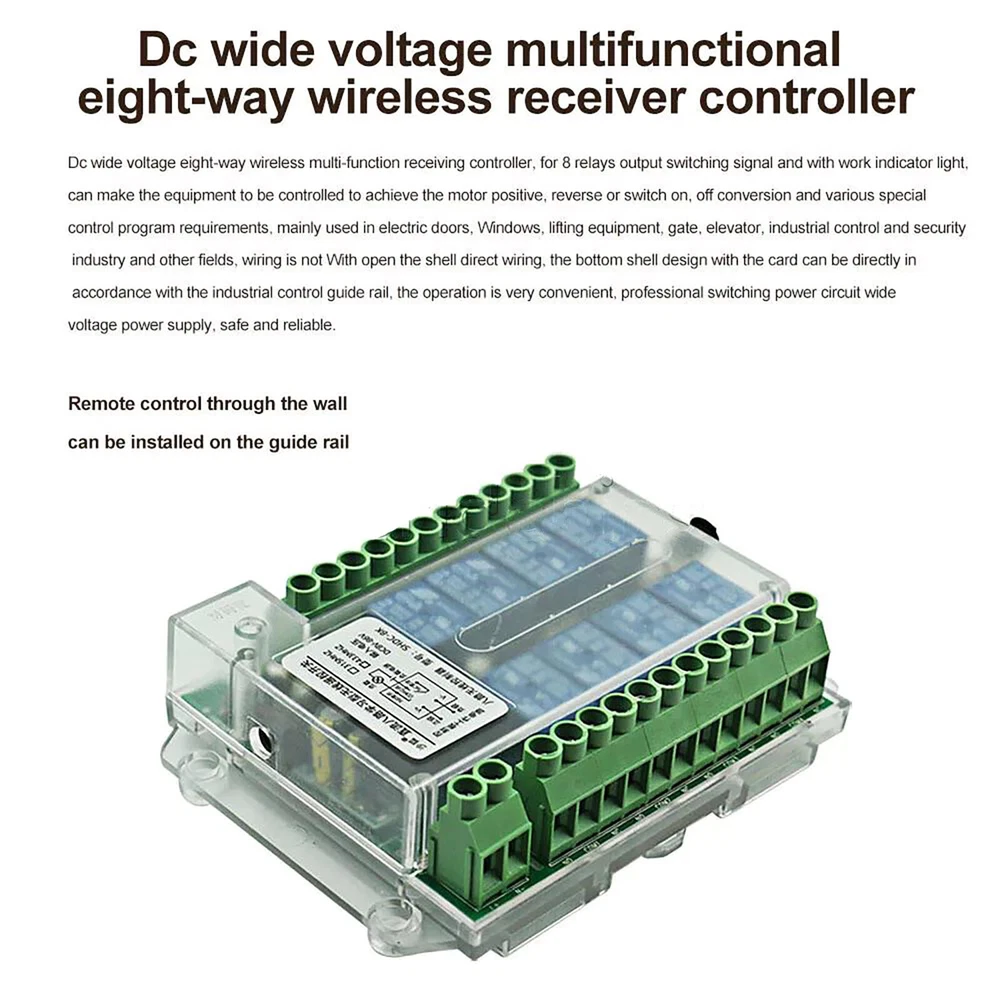

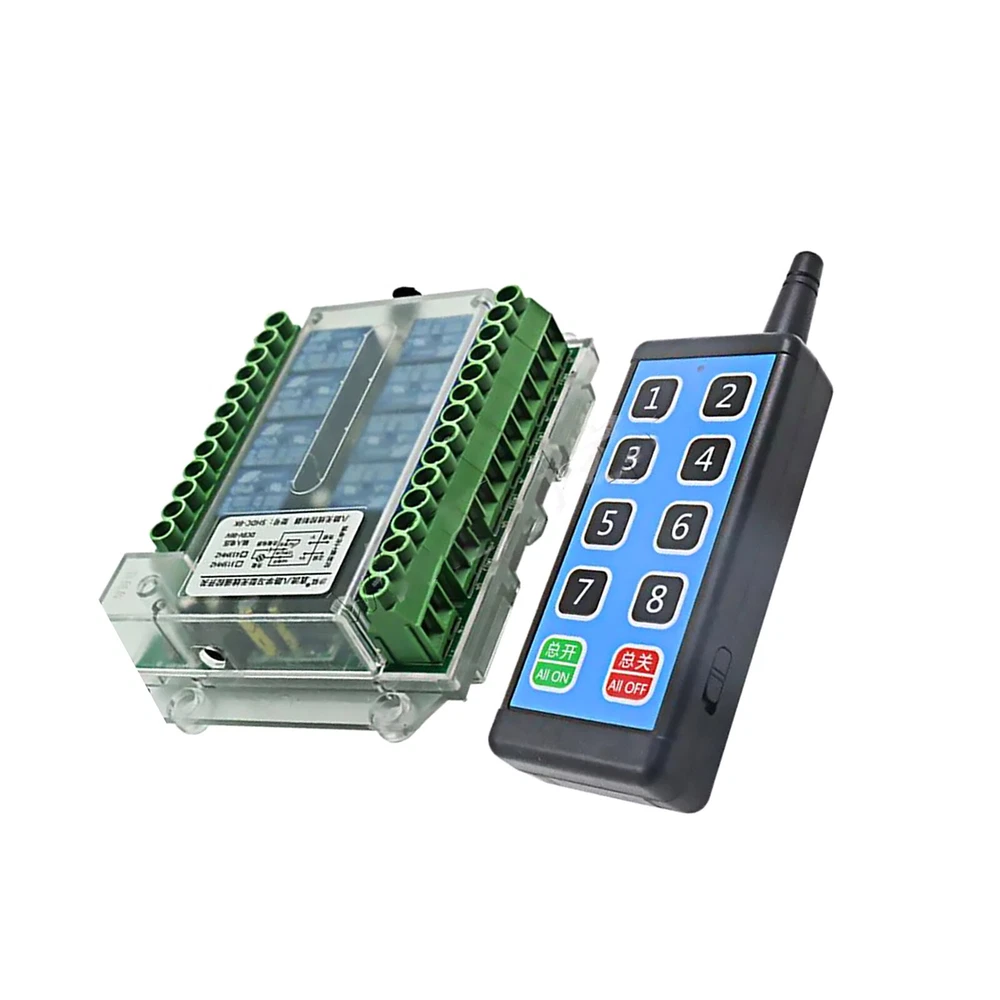

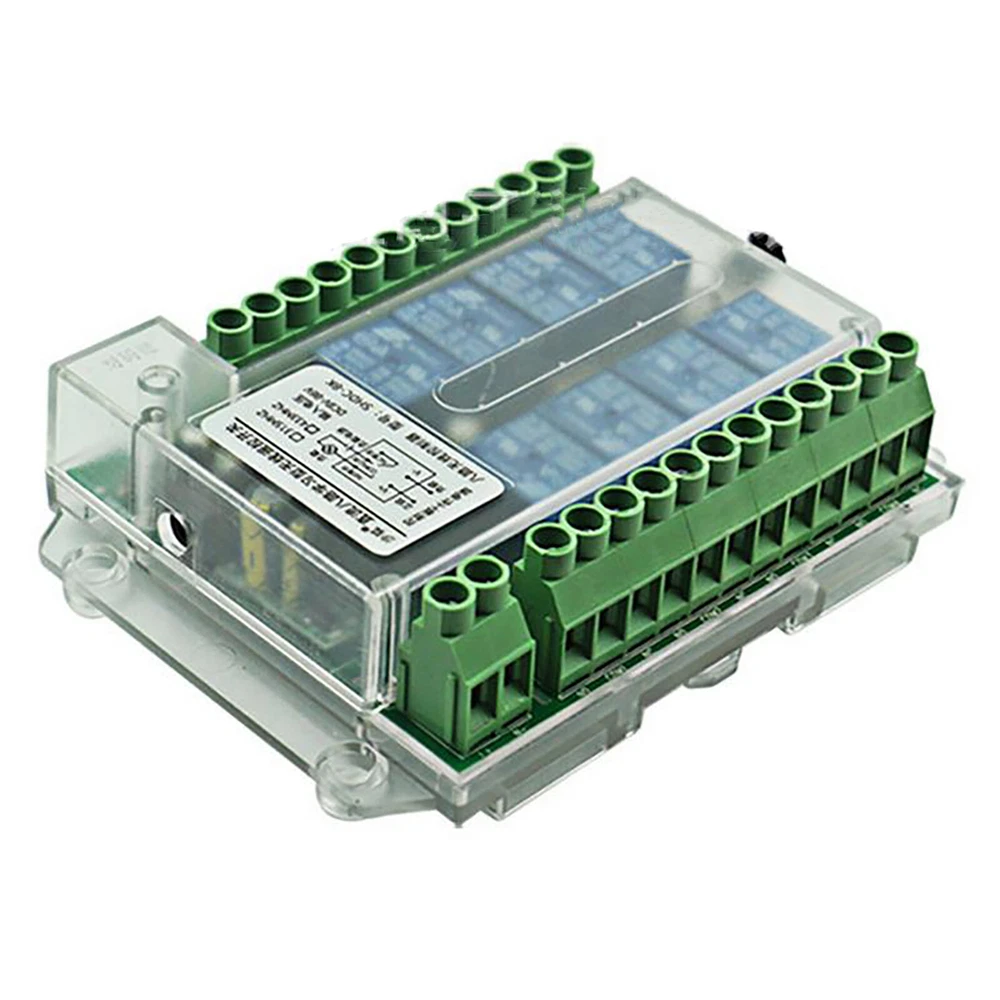

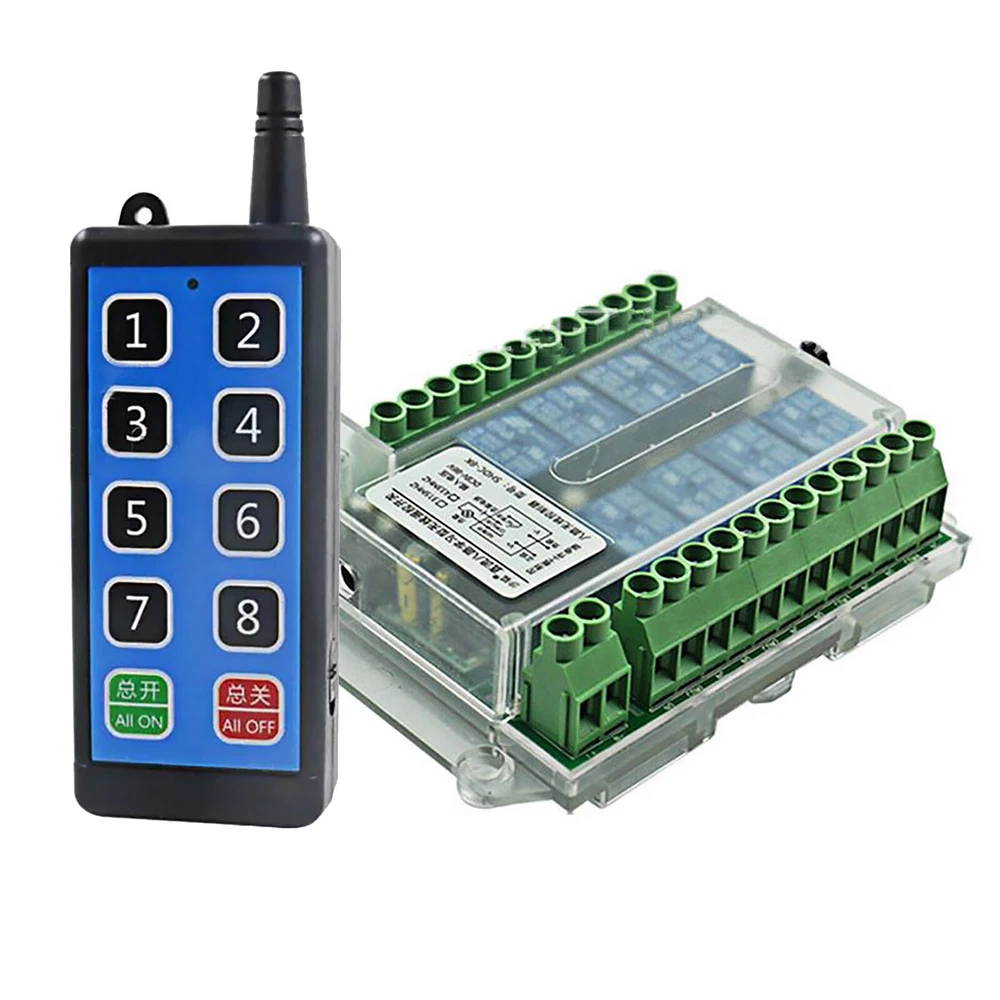

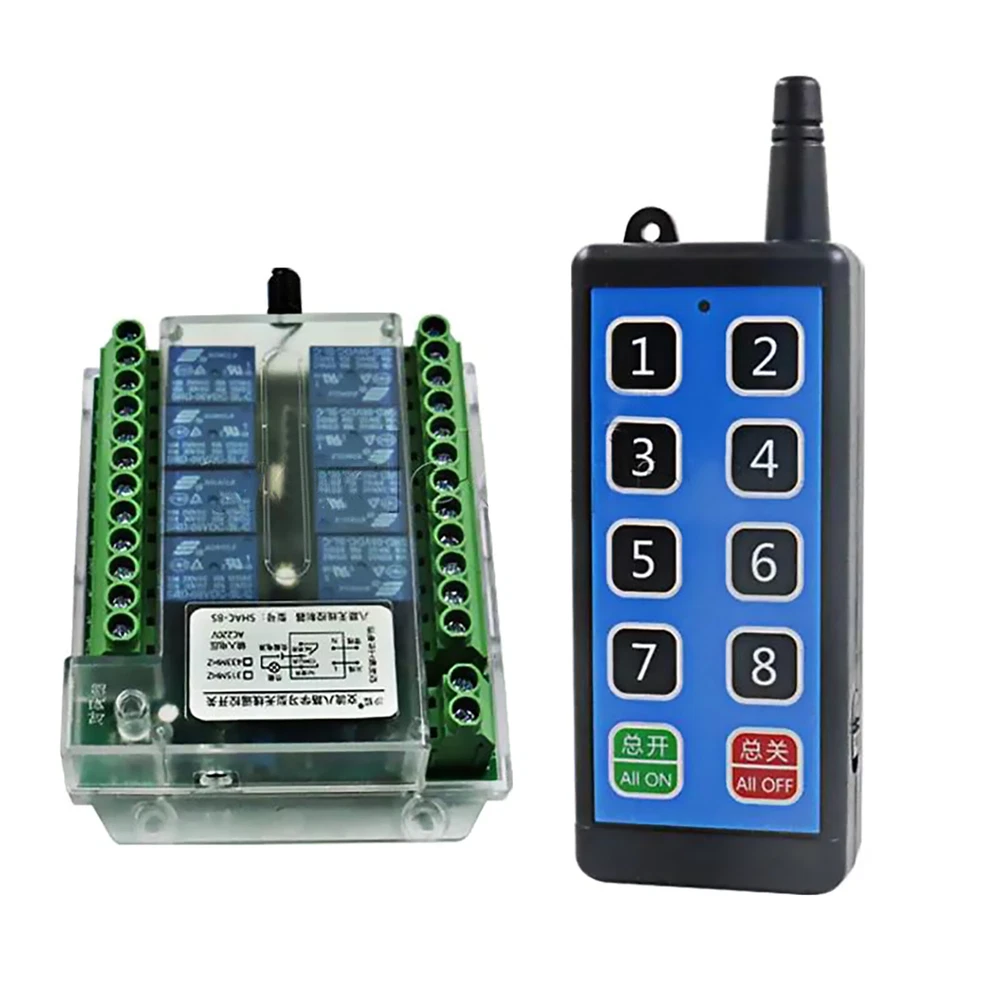

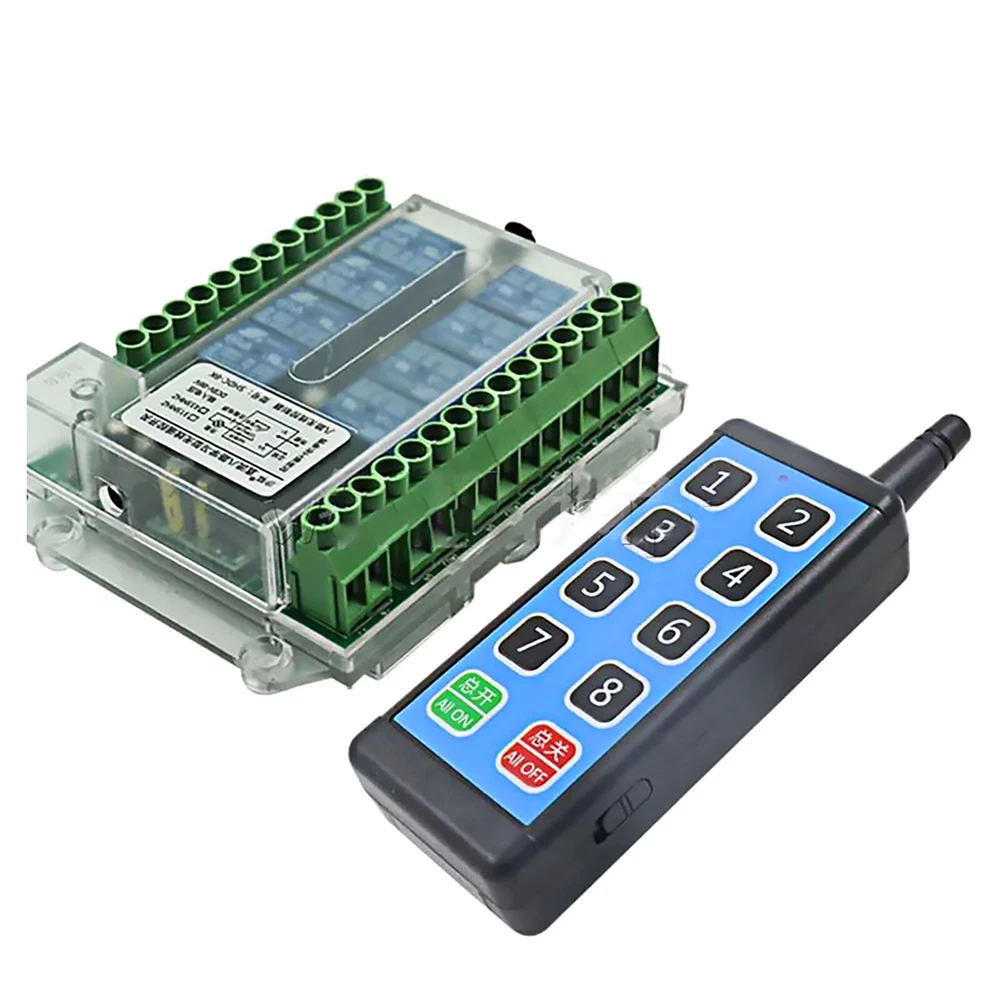

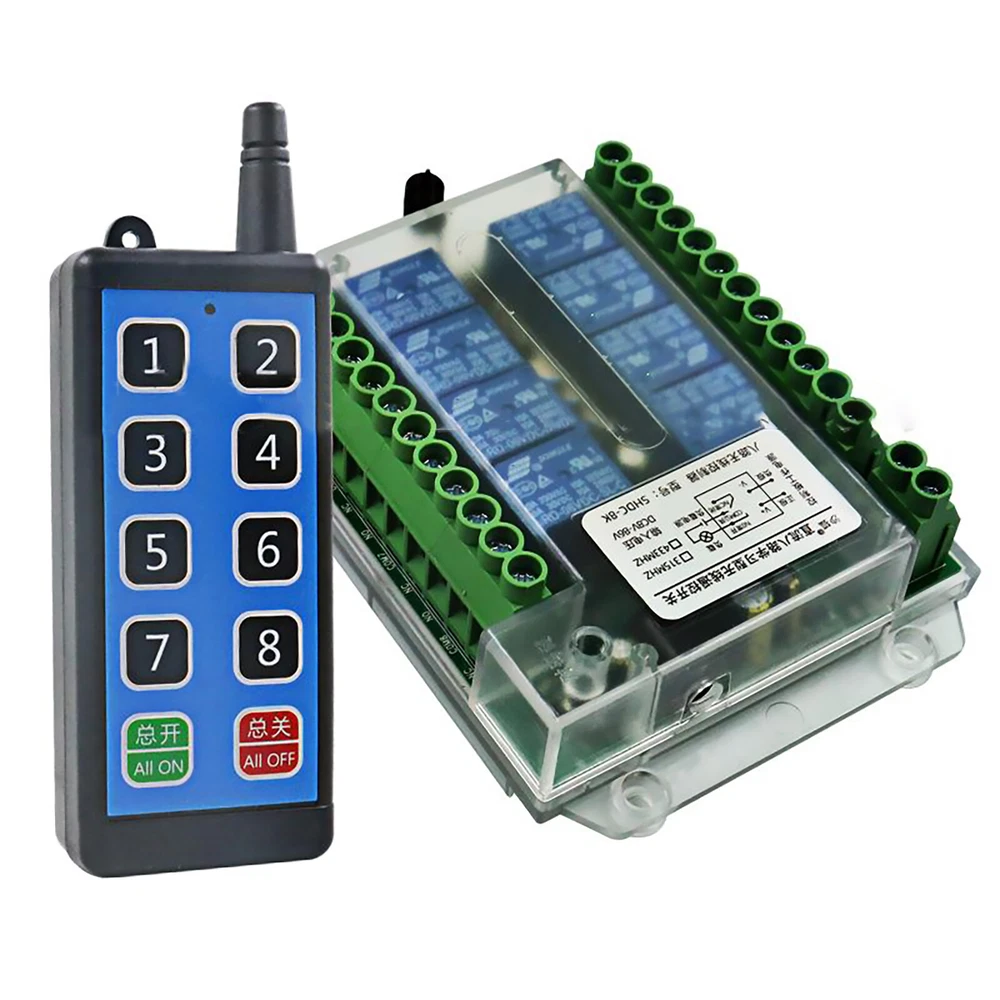

Stable 8 Channel Wireless RF433MHz Remote Control Switch Relay Module DC8-86V

Description

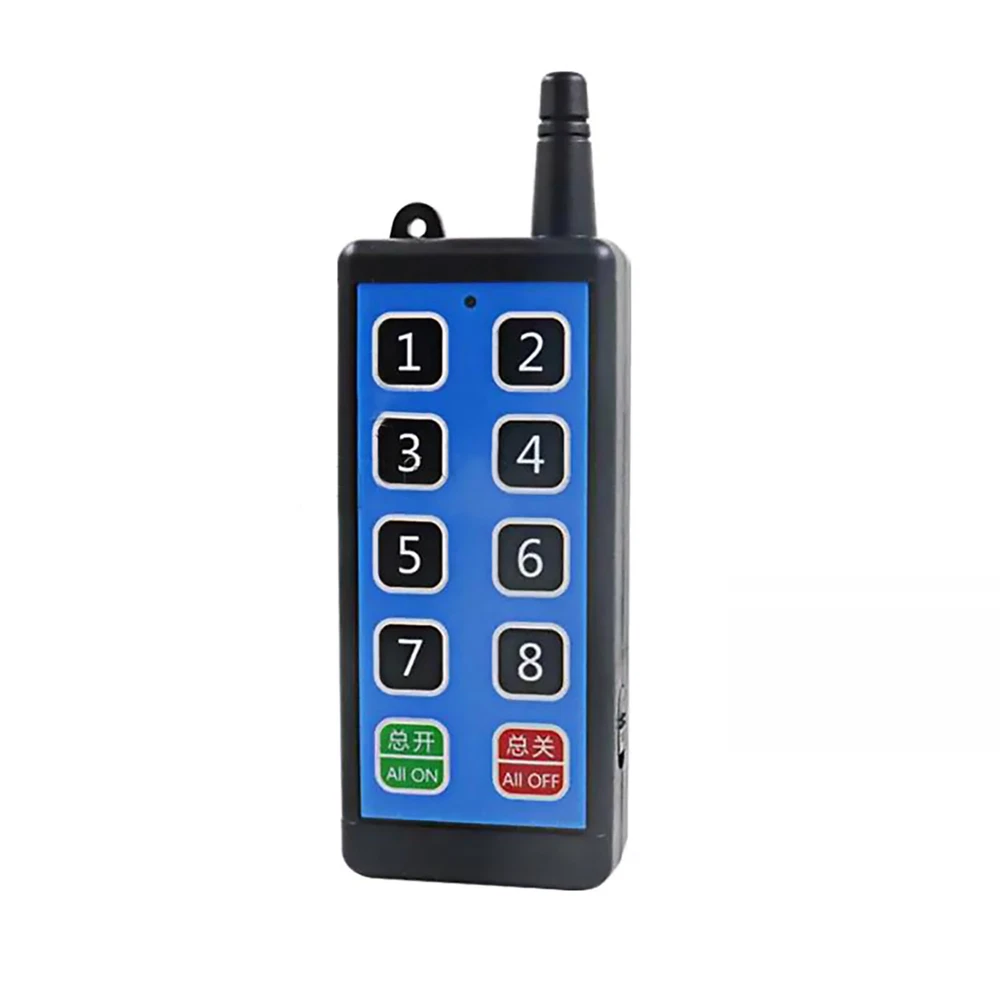

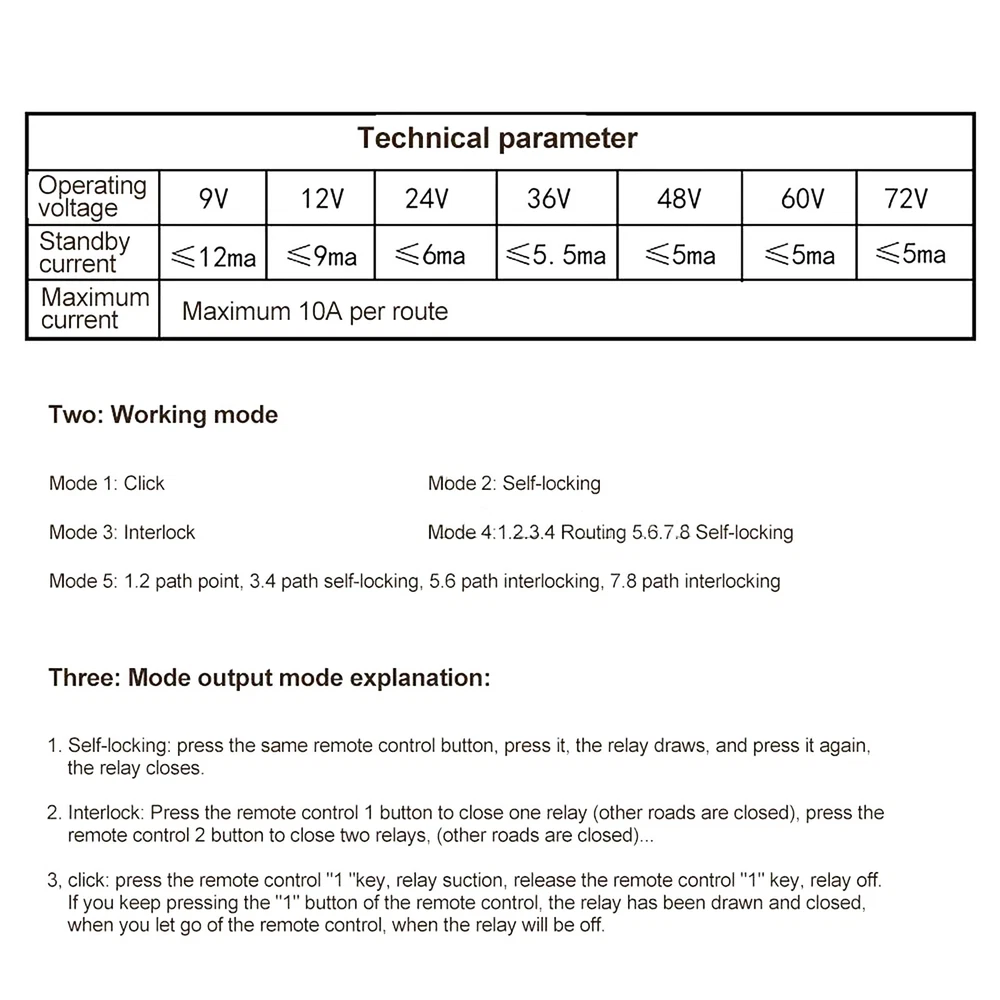

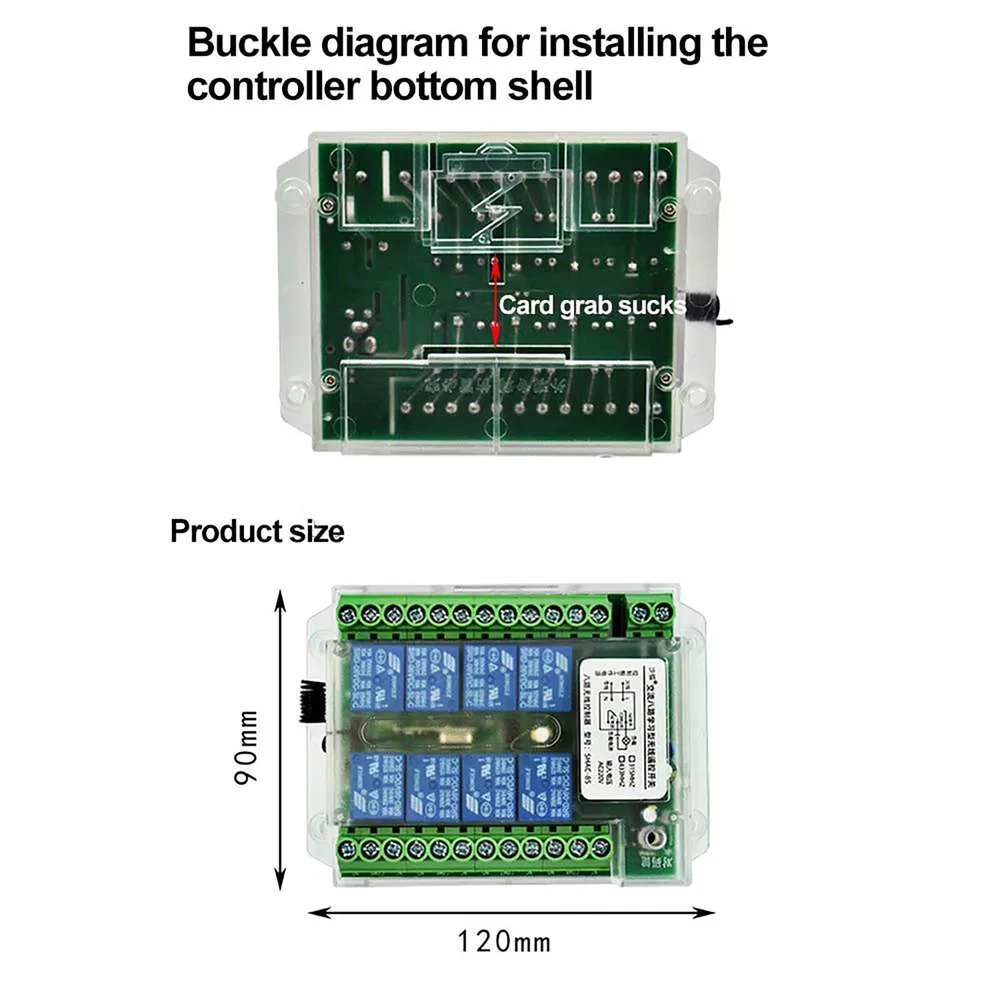

Product Description Stable 8 Channel Wireless RF433MHz Remote Control Switch Relay Module DC8-86V Features: 1. Compact Product, With Working Indicator Light 2. Simple Operation, Wiring Without Disassembling The Shell Direct Wiring 3. Wide Voltage Power Supply, Safe And Reliable, Stable Performance, Low Power Consumption 4. Loss Of Remote Control, Can Clear The Information Stored In The Acceptance Of The Controller 5. Wide Range Of Use: Applied To Electric Doors, Windows, Lifting Equipment, Gates, Elevators And Other Fields  Specifications: Working Voltage: DC8-86V Operating Temperature: -10℃-+55℃ Coding Mode: Learning Type Controller Size: 120mm* 90mm* 35mm Remote Control Battery: 2* AAA Battery(Not Included) Operating Frequency: 433mhz Maximum Current: 10A Remote Control Distance: 100m-200m  Working Mode: Mode 1: Tap Mode 2: Self-Locking Mode 3: Interlock Mode 4: 1. 2. 3. 4-Way Tap 5. 6. 7. 8 Self-Locking Mode 5: 1. 2-Way Tap, 3. 4-Way Self-Locking, 5. 6-Way Interlocking, 7.8-Way Interlocking Mode 6: Tap + Total Open Mode 7: Self-Locking + ALL ON ALL OFF  Explanation Of Mode Output: Self-Locking: Press The Same Remote Control Button, Press It Once, The Relay Will Absorb, Press It Again, The Relay Will Turn Off. Interlocking: Press The Remote Control 1 Key, One - Way Relay Will Be Engaged (The Other Way Will Be Closed), Press The Remote Control 2 Key, Two - Way Relay Will Be Engaged (The Other Way Will Be Closed). Tap: Press The Remote Control "1" Key, The Relay Will Absorb, Release The Remote Control "1" Key, The Relay Will Turn Off. If You Keep Pressing The Remote Control "1" Key, The Relay Is Always Active, When To Let Go Of The Remote Control, When The Relay Is Off. +: Connect To The Positive Terminal Of The Power Supply -: Connect To The Negative Pole Of Power Supply Nc: Normally Closed Terminal Com: Common Terminal No: Normally Open Terminal  Learning Code: 1. Mode 1 (Pointing) Learning Method: Press The Control Panel Code Button Once, Wait For The Led Indicator To Light Up And Then Press Any Key Of The Remote Control That Needs To Be Coded, And The Led Indicator Of The Control Panel Will Blink 3 Times In A Row For The Code To Be Successfully Coded. 2. Mode 2 (Self-Locking) Learning Method: Continuously Press The Control Board 2 Times To The Code Button, Wait For The Led Indicator Is Lit, Press Any Key Of The Remote Control That Needs To Be Coded, The Control Board Led Indicator Blinks 3 Times In A Row To The Code Successfully. 3. Mode 3 (Interlock) Learning Method: Continuously Press The Control Board 3 Times To The Code Button, Wait For The Led Indicator Is Lit, Press Any Key Of The Remote Control That Needs To Be Coded, The Control Board Led Indicator Blinks 3 Times In A Row To The Code Successfully. 4. Mode 4 (Point + Self-Locking) Learning Method: Continuously Press The Control Board 4 Times The Code Button, Wait For The Led Indicator Light Up And Then Press Any Key Of The Remote Control Need To Code, The Control Board Led Indicator Flashes 3 Times To Code Successfully. 5. Mode 5 (Tap + Self-Locking + Interlocking) Learning Method: Continuously Press The Control Board 5 Times The Code Button, Wait For The Led Indicator Light Up And Then Press Any Key Of The Remote Control That Needs To Be Coded, The Control Board Led Indicator Flashes 3 Times In A Row To The Code Successfully. 6. Mode 6 (Tap+Total) Learning Method: Press The Control Panel Code Button 11 Times In A Row, Wait For The Led Indicator To Light Up And Then Press Any Key Of The Remote Control That Needs To Be Coded, The Led Indicator Of The Control Panel Will Flash 3 Times In A Row And The Code Will Be Successfully Coded. 7. Mode 7 (Self-Locking + ALL ON ALL OFF) Learning Method: Continuously Press The Control Board 12 Times To Code Button, And So On The Led Indicator Light, Light, Press Any Key Of The Remote Control That Needs To Code, The Control Board Led Indicator Blinks 3 Times In A Row To Code Successfully. Clear Data Press The Learning Button On The Control Board For 11 Consecutive Times, It Will Automatically Clear All The Remote Controls That Have Learned The Code. After Clearing, The Original Remote Control Will No Longer Be Controlled.  Packege Included: 1* Relay Module 1* Remote Control If you have any questions, please feel free to contact us via ebay. We usually respond within 24 hours. Payment Shipping Returns Contact Us We accept all verified payments from ebay. Orders will be shipped after receiving cleared payment. Payment due within 7 days after auction ends and for buy it now listings. We ship most of our orders within 24 hours, and may up to 48 hours for. If you want faster shipping way. Please contact us before making payment. Sometimes due to problems with our transportation company system, your shipping information may be delayed to update. We recommend that you try again after 3-4 days. If you still haven't checked the shipping information, you can contact us by ebay message. Always believe we can figure things out with communication, if it comes to return, the pacakge must be intact and the same as you receive. If you have any questions, please feel free to email our service specialists 24 Hours a Day, 7 Days a Week. We will reply you ASAP. Return/refund is accepted within 30 days after the buyer receives the item. NO exchange will be accepted after 30 days from the date when the item is received. Please contact us first before returning your product!!! If you have any questions, our Customer Service staffs welcome you to email us. We strive to answer all questions and resolve any problems as quickly as possible. You can contact us 7*24, we will reply at the first time, and we will surely solve your problems. Note: 1.We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 1 business days for us to response. If you do not receive any reply from us, please check your email ensuring your mailbox has not reached full size. 2.Due to some ISP SPAM filter settings, you may not be able to receive our replies; if you have problems receiving our emails, you may need to use a different email account to contact us. 3.Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues. Please email us before leaving any negative feedback or open any dispute on PayPal. 4.We care about our valued customers, and will always try to help you. So if you have any problems, please e-mail us immediately. Payment We accept all verified payments from ebay. Orders will be shipped after receiving cleared payment. Payment due within 7 days after auction ends and for buy it now listings. Shipping We ship most of our orders within 24 hours, and may up to 48 hours for. If you want faster shipping way. Please contact us before making payment. Sometimes due to problems with our transportation company system, your shipping information may be delayed to update. We recommend that you try again after 3-4 days. If you still haven't checked the shipping information, you can contact us by ebay message. Returns Always believe we can figure things out with communication, if it comes to return, the pacakge must be intact and the same as you receive. If you have any questions, please feel free to email our service specialists 24 Hours a Day, 7 Days a Week. We will reply you ASAP. Return/refund is accepted within 30 days after the buyer receives the item. NO exchange will be accepted after 30 days from the date when the item is received. Please contact us first before returning your product!!! Contact Us If you have any questions, our Customer Service staffs welcome you to email us. We strive to answer all questions and resolve any problems as quickly as possible. You can contact us 7*24, we will reply at the first time, and we will surely solve your problems. Note: 1.We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 1 business days for us to response. If you do not receive any reply from us, please check your email ensuring your mailbox has not reached full size. 2.Due to some ISP SPAM filter settings, you may not be able to receive our replies; if you have problems receiving our emails, you may need to use a different email account to contact us. 3.Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues. Please email us before leaving any negative feedback or open any dispute on PayPal. 4.We care about our valued customers, and will always try to help you. So if you have any problems, please e-mail us immediately. powered by
