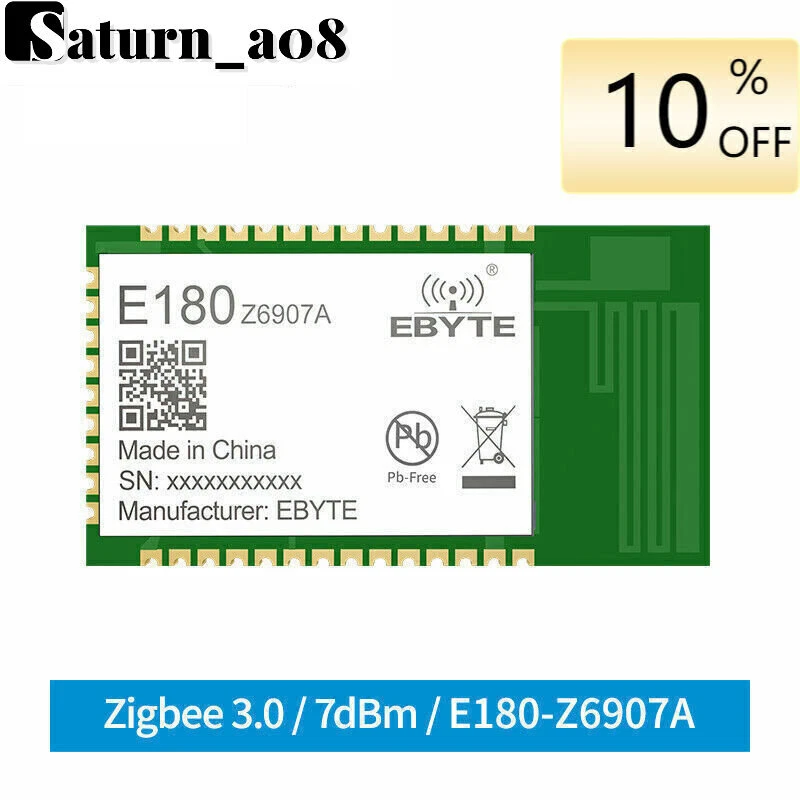

TLSR8269 IoT Wireless Soc Transceiver ZigBee 3.0 2.4GHz 7dBm 130m 32 Bit Module

$ 4.21

Brand: Peakelect Modified Item: No Antenna: PCB Power: 7dBm Type: ZigBee Module Model: E180-Z6907A Distance: 130m IC: TELINK TLSR8269 Country/Region of Manufacture: China Frequency: 2405~2480MHz MPN: Does Not Apply Custom Bundle: No Size: 11.5*22mm gtin13: Does not apply Protocol: Zigbee 3.0 UPC: Does not apply

Description

TLSR8269 IoT Wireless Soc Transceiver ZigBee 3.0 2.4GHz 7dBm 130m 32 Bit Module RF Parameter Value Remark Working frequency 2405~2480MHz Support ISM band Max Tx power 7 dBm - Air data rate 250kbps - Distance for reference 130m Between two points (ZigBee network supports routing multi hop function, and the transmission distance can be extended by increasing the router). Hardware Parameter Value Remark Size 11.5*22 mm - Antenna PCB 50 ohm impedance Connector 1.27mm Stamp hole Packing SMD - IC TELINK TLSR8269 - Protocol Zigbee 3.0 - FLASH 512KB - RAM 32KB - Core 32-bit MCU - Electronic parameter Min. Typ. Max. Unit Condition Operating voltage 1.9 3.3 3.6 V ≥3.3 V ensures output power Communication level - 3.3 - V For 5V TTL, it may be at risk of burning down Working temperature -40 - +85 ℃ Industrial design TX current - 40 - mA Instant power consumption RX current - 35 - mA - Sleep current - 16.5 - μA Software shutdown
