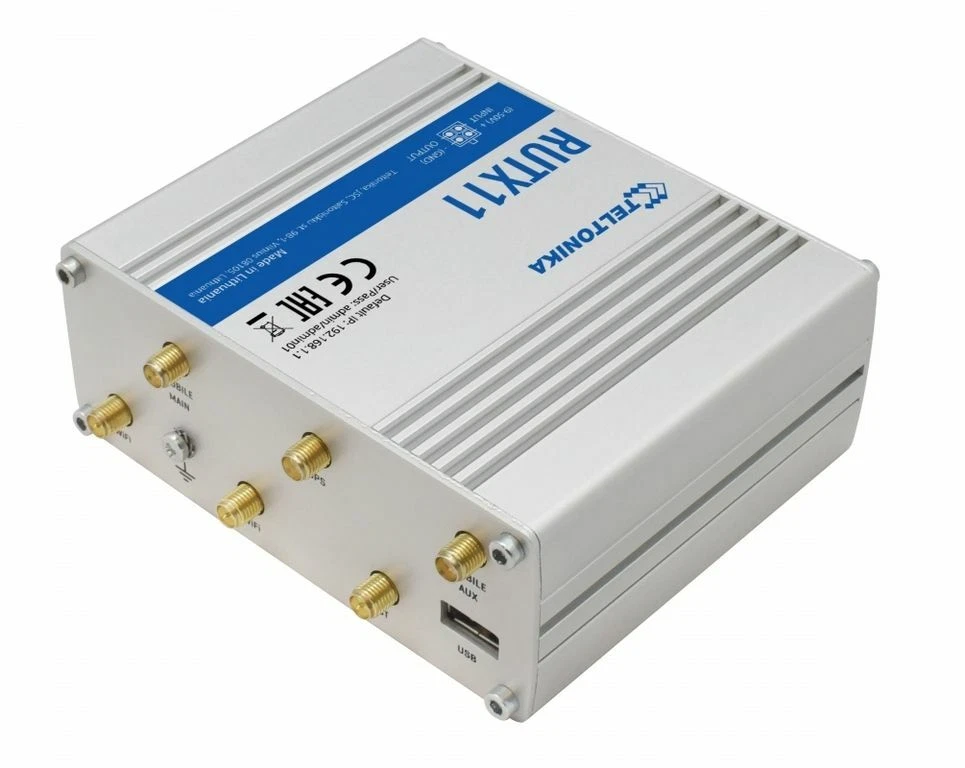

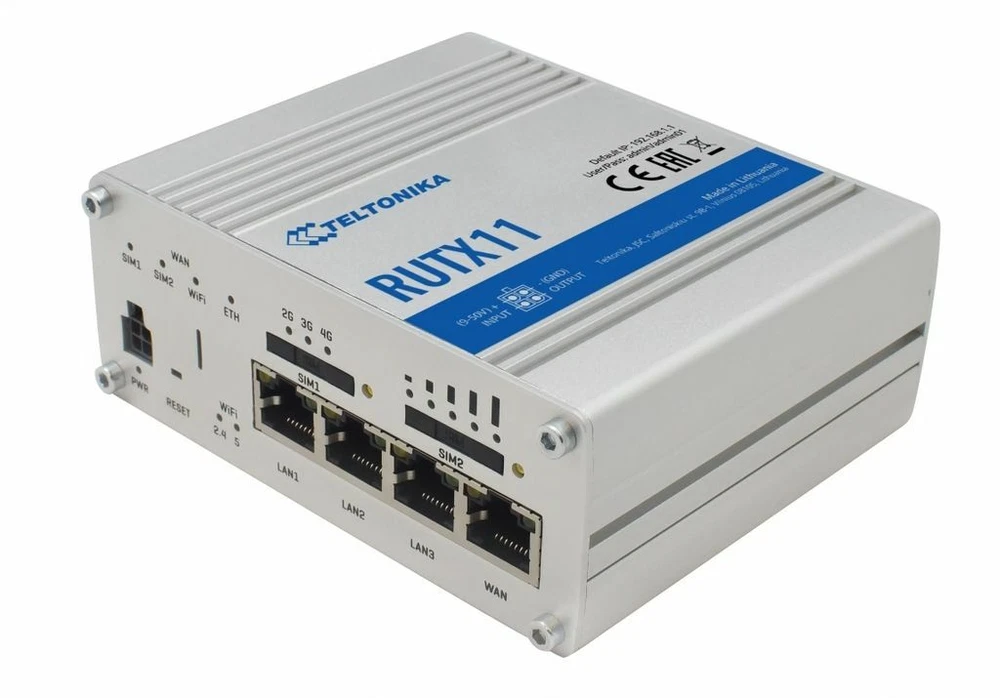

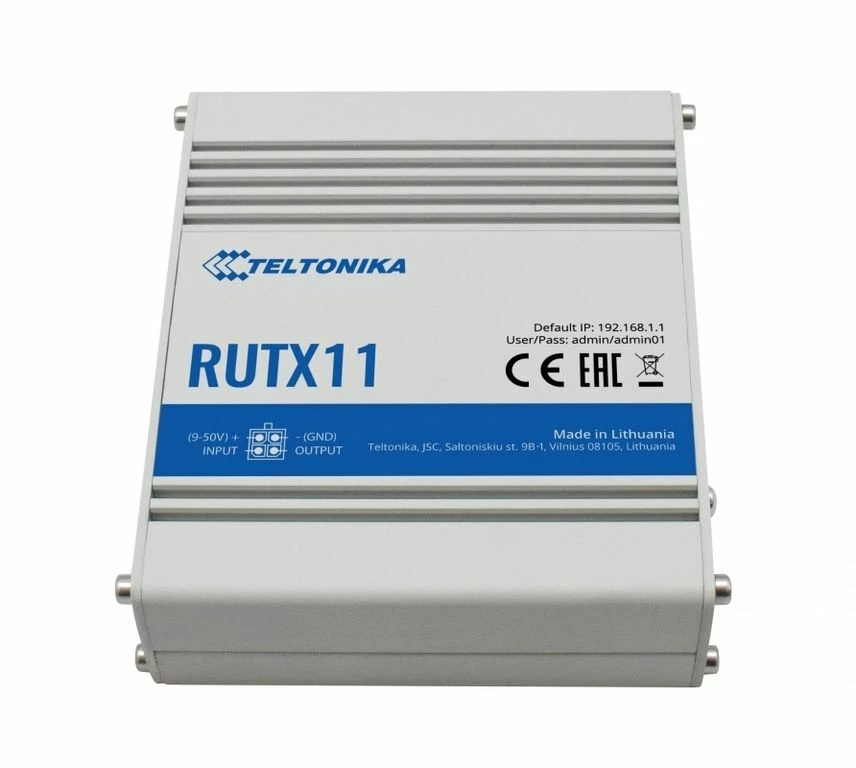

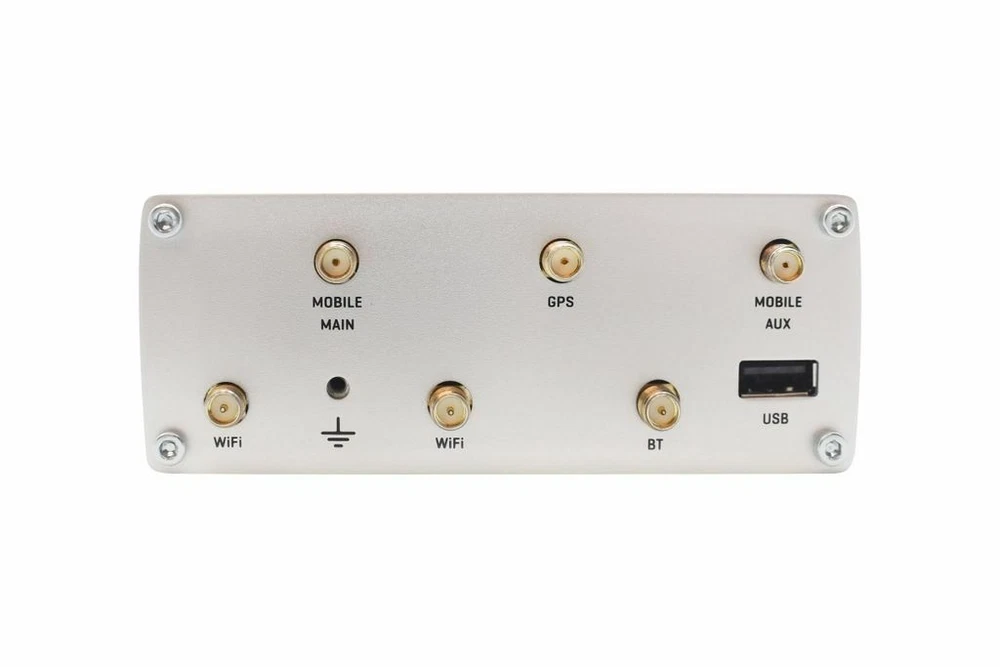

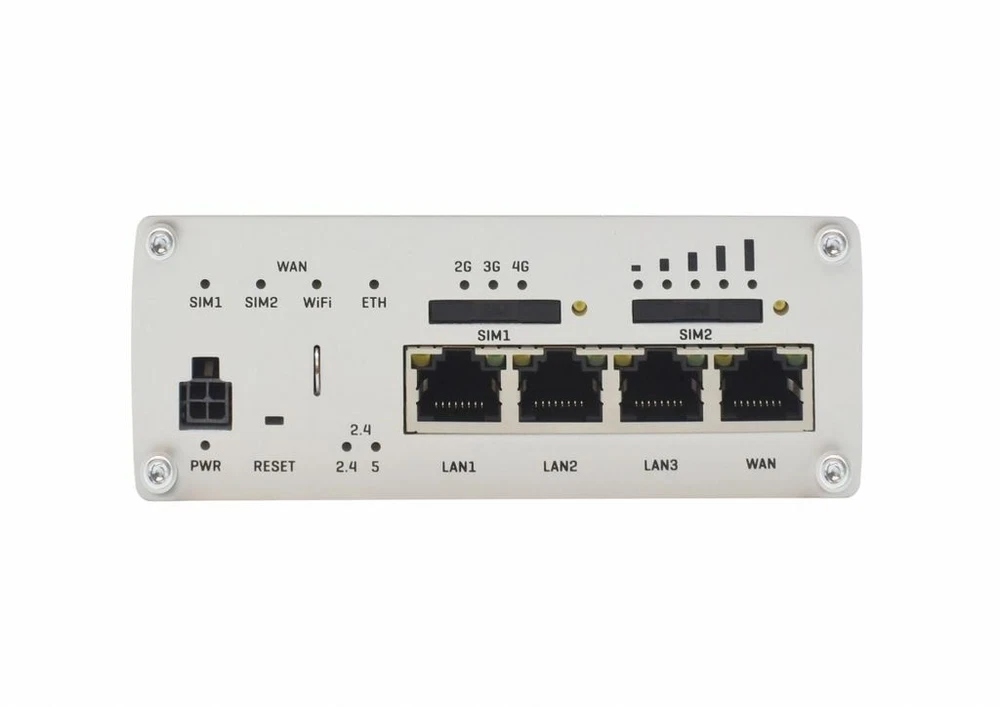

Teltonika Cat6 Industrial Cellular Router RUTX11 4x Gigabit LAN Dual Band WiFi

Description

Features: Most powerful and feature rich device within Teltonika Networking products range. Equipped with Dual-SIM, 4 x Gigabit Ethernet ports, Dual-Band AC WiFi, Bluetooth LE and USB interfaces. RUTX11 comes with all RutOS software and security features. This device is perfect for advanced Industrial and Enterprise applications. Specification: MOBILE Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps SIM switch (planed): 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection Status: Signal strength, SINR, RSRP, RSRQ, Bytes sent/received SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed) Black/White list: Operator black/white list Multiple PDN (planed): Possibility to use different PDNs for multiple network access and services Band management: Band lock, Used band status display WIRELESS Wireless mode: 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) WiFi security: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation ESSID: ESSID stealth mode ETHERNET WAN: 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover LAN: 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover BLUETOOTH Bluetooth LE: Bluetooth low energy (LE) for short range communication NETWORK Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) NetSnapper (optional): Mobile connection management, data compression VPN client (not available in standard FW) Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall: Port forwards, traffic rules, custom rules DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd QoS: Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS: Supported >25 service providers, others can be configured manually Network backup: VRRP (planed), Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover Load balancing: Balance your Internet traffic over multiple WAN connections SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW) SECURITY Authetication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port based and tag based VLAN separation Mobile quota control: Set up custom data limits for both SIM cards WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter VPN OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC IPsec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) GRE: GRE tunnel PPTP, L2TP: Client/Server services can run simultaneously Stunnel (planed): Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code DMVPN: Method of building scalable IPsec VPNs MONITORING & MANAGEMENT WEB UI: HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log FOTA: Firmware update from server, automatic notification SSH: SSH (v1, v2) SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET TR-069 (planed): OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem SNMP: SNMP (v1, v2, v3), SNMP trap JSON-RPC: Management API over HTTP/HTTPS Modbus (planed): Modbus TCP status/control, master and slave modes MQTT: MQTT Broker, MQTT publisher RMS: Teltonika Remote Management System (RMS) SYSTEM CHARACTERISTICS CPU: Quad-core ARM Cortex A7, 717 MHz RAM: 256 MB, DDR3 FLASH memory: 256 MB SPI Flash FIRMWARE / CONFIGURATION WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup FOTA: Update FW/configuration from server RMS: Update FW/configuration for multiple devices Keep settings: Update FW without losing current configuration FIRMWARE CUSTOMIZATION Operating system: RutOS (OpenWrt based Linux OS) Supported languages: Busybox shell, Lua, C, C++ Development tools: SDK package with build environment provided (planed) LOCATION TRACKING GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS NMEA: NMEA 0183 Server software: Supported server software: TAVL, RMS Mobile Network Geolocation: Get approximate device location on RMS based on mobile cell tower position (without using GPS) Geofencing: Configurable multiple geofence zones USB Data rate: USB 2.0 Applications: Samba share (planed), custom scripts (planed) External devices: Possibility to connect external HDD, flash drive, additional modem, printer Storage formats: FAT, FAT32, NTFS INPUT/OUTPUT Input: 1 x Digital Input Output: 1 x Digital Output Events: SMS, Email, RMS POWER Connector: 4 pin industrial DC power socket Input voltage range: 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards Power consumption: 11 W Max PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps I/Os: 1 Digital Input, 1 Digital Output on 4 pin power connector Status LEDs: 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders Power: 4 pin DC connector Antennas: 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS USB: USB A port for external devices Reset: Factory reset button PHYSICAL SPECIFICATION Casing material: Full aluminium housing Dimensions: 115 mm x 95 mm x 44 mm (H x W x D) Weight: 456 g Mounting options: DIN rail (can be mounted on two sides), flat surface placement OPERATING ENVIRONMENT Operating temperature: -40 C to 75 C Operating humidity: 10 % to 90 % non-condensing Ingress Protection Rating: IP30 Standard package contains Router RUTX11 PSU 2 x LTE antennas (swivel, SMA male) 2 x WiFi antennas (swivel, RP-SMA male) 1 x GNSS antenna (adhesive, SMA Male) 1 x Bluetooth antenna (magnetic, RP-SMA male) Ethernet cable (1.5 m) QSG (Quick Start Guide) Packaging box
