USB Desktop Chassis Power Supply ATX Adapter Board Take Power Board Lead Module
$ 3.43
Description

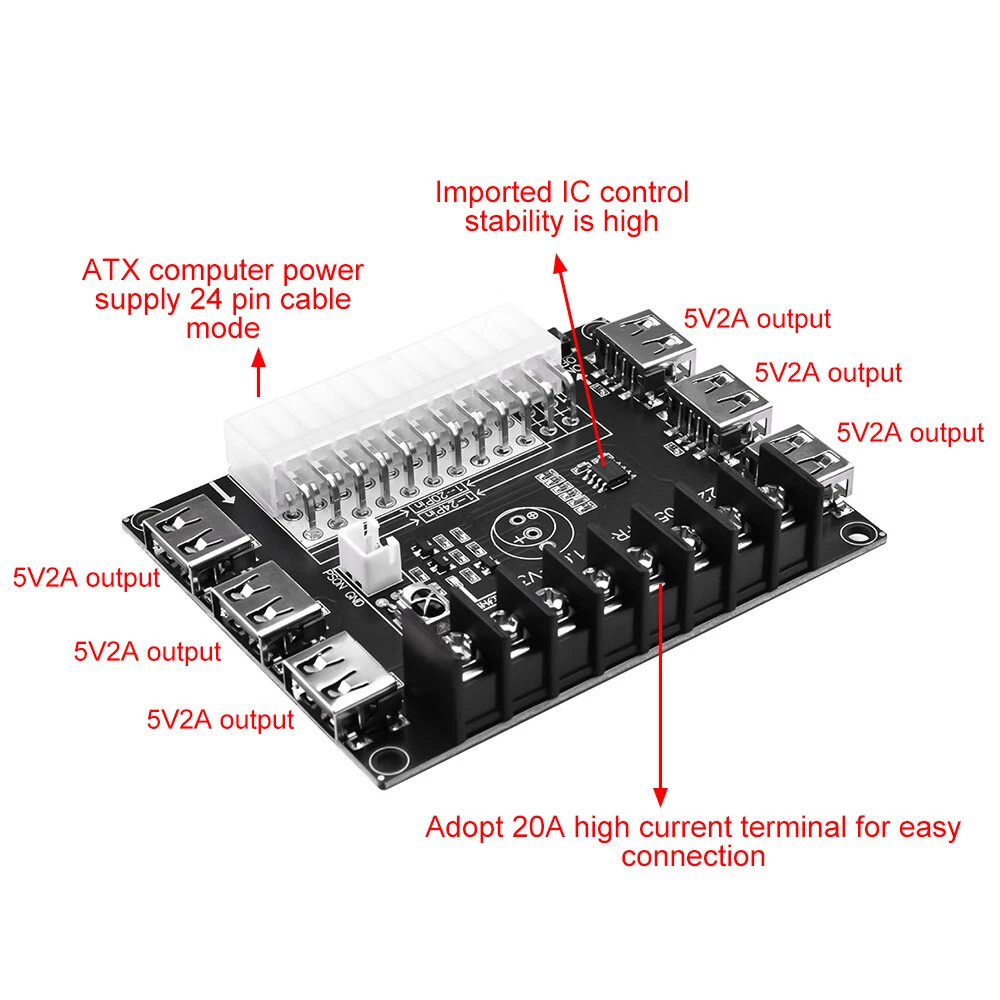

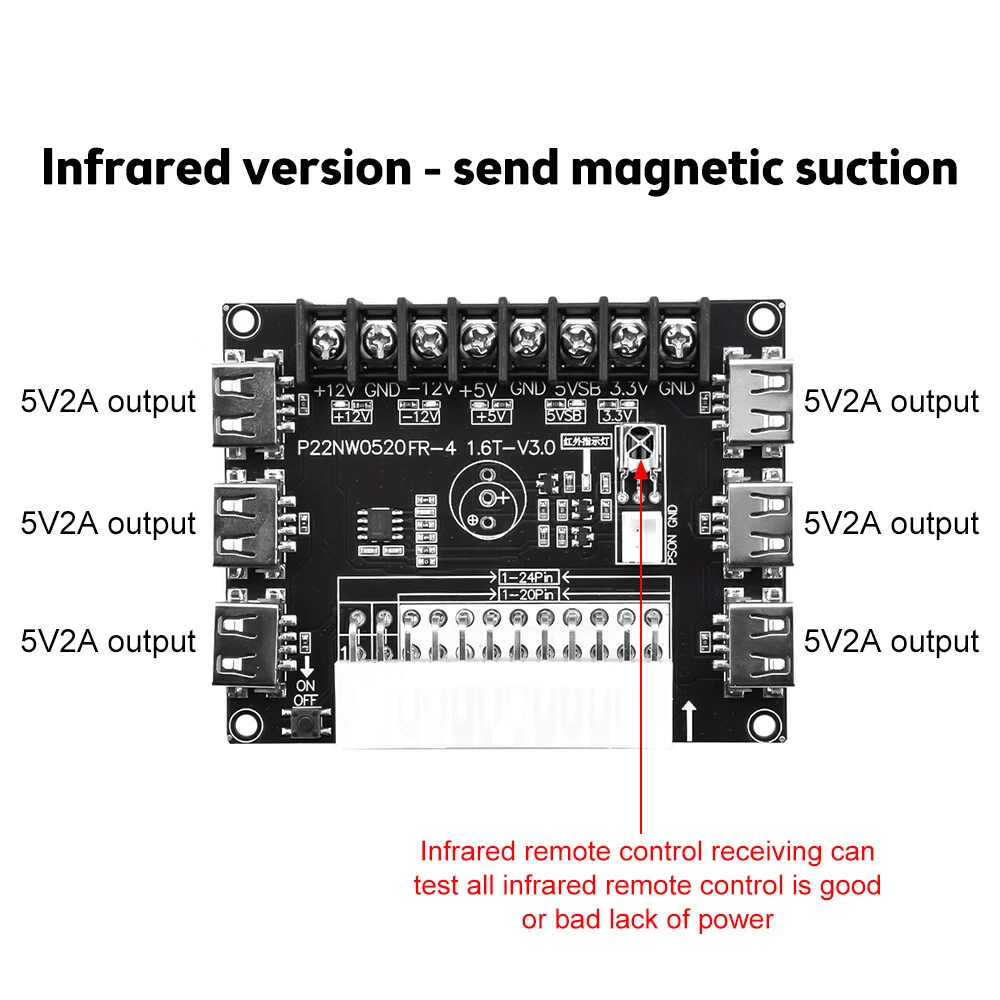

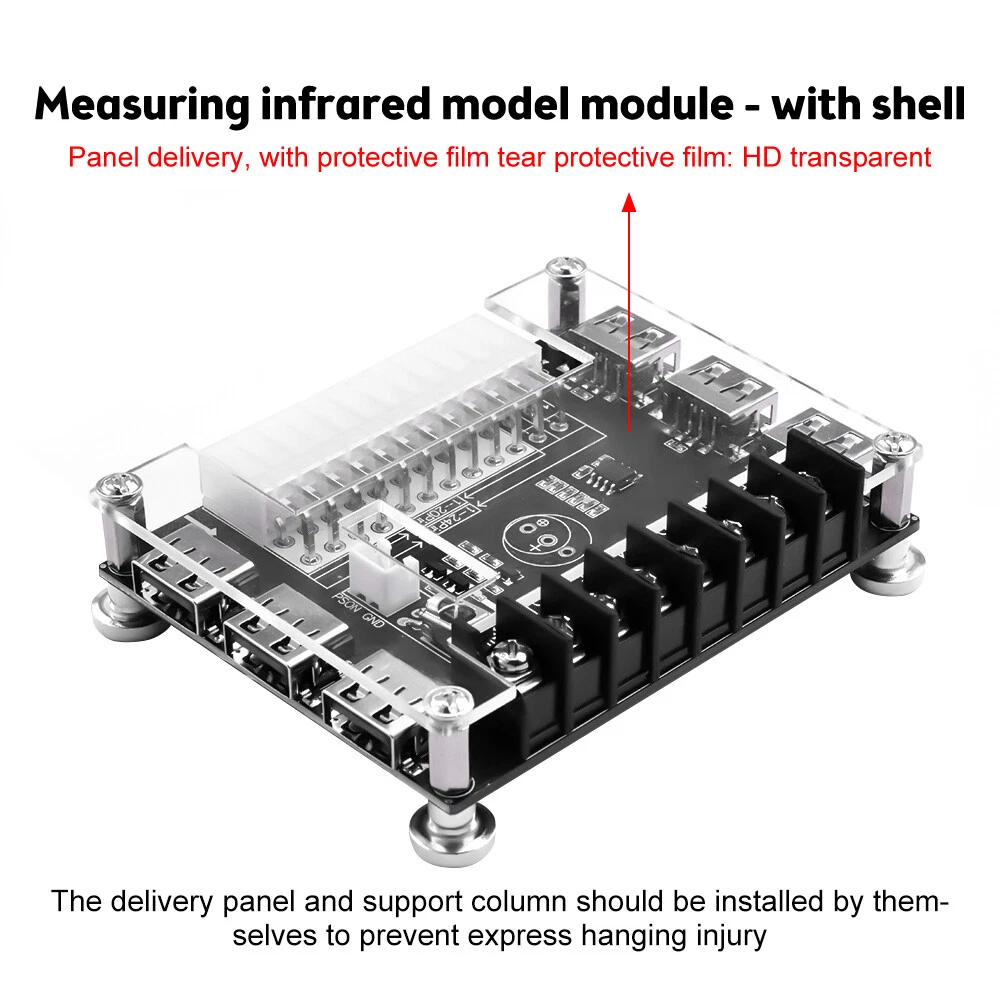

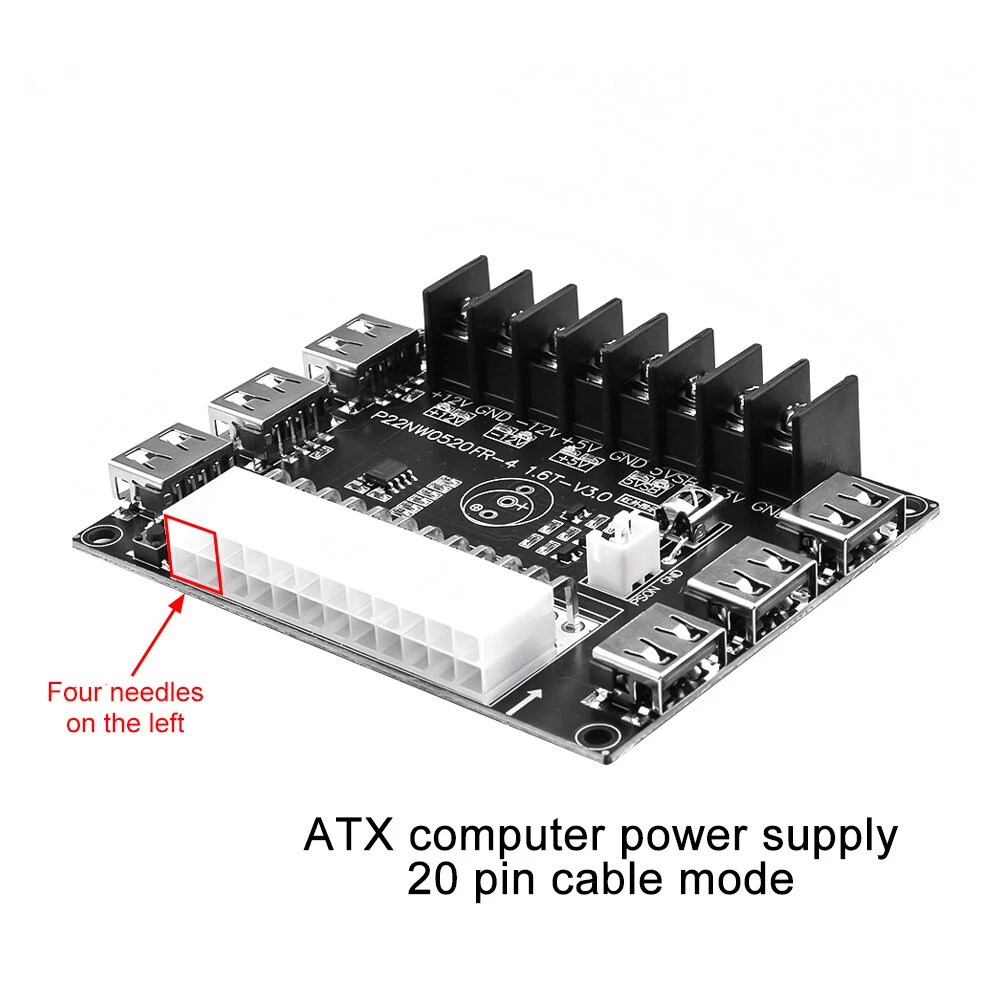

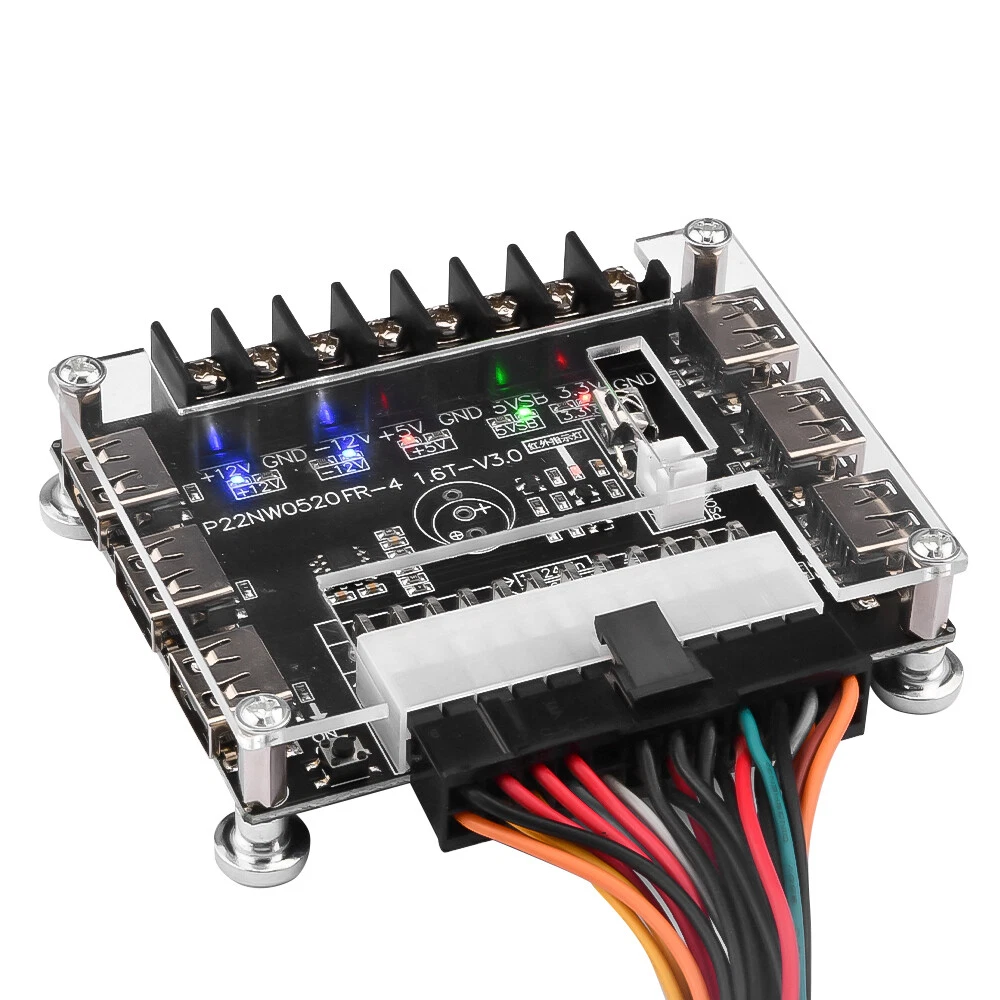

Visit store Items for sale About us Product Details Product features: With infrared function, can test like TV, air conditioner, water heater, amplifier, etc., remote control good or bad or lack of power. Module board is compatible with all 20Pin and 24Pin ATx computer power supply. Adopt light touch switch with 550,000 times service life, more convenient operation. Reserved XH2.54-2P terminal (overhang), can be external two lines using the microcontroller Io port (5V) or switch to control the ATX power supply switch (easy to add a shell to modify). The board contains six USB ports, each USB port can output 5V, MAX = 2.1A current, can be powered to cell phones, tablets, mobile power, flashlights, electronic products aging, etc. Module using high-current terminals (terminal withstand voltage 300V / can pass 20A current), to solve the terminal block, screw type terminals caused by the wiring is not solid, bad wiring problems. Module output +12V, -12v, +5V, 5VSB, +3.3V after power on a total of five groups of power, can make you better use of ATX power supply, convenient for your use. Product parameters: Output: 5V/2A Wiring terminal:Maximum 20A output USB interface: 6 groups 5 power outputs: +12V, -12v, +5V, 5V USB, +3.3V 5 kinds of power output indicator: +12v normal output=display blue -12V normal output=display blue +5V normal output=display red 5VSB normal output=display red 3.3V normal output=display red Compatible: Compatible with all 20-pin and 24-pin computer power supplies Product List: 1x USB Desktop Chassis Power Supply ATX Adapter Board Take Power Board Lead Module with/without Housing Payment Method Shipping Policy Feedback Payment Method Payment must be received in 5 business days of auction closing. Please leave note for your special request (e.g. Colors or Size) when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Shipping Policy 1. We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. 2. Orders will be processed instantly and dispatched within 1-3 business days except hoilday, so we do NOT accept any email/message note after you place orders. 3. All package need to wait 30 days,Please take care it.Less than 30 days,we can't take a refund. Feedback We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you keep in touch with us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
