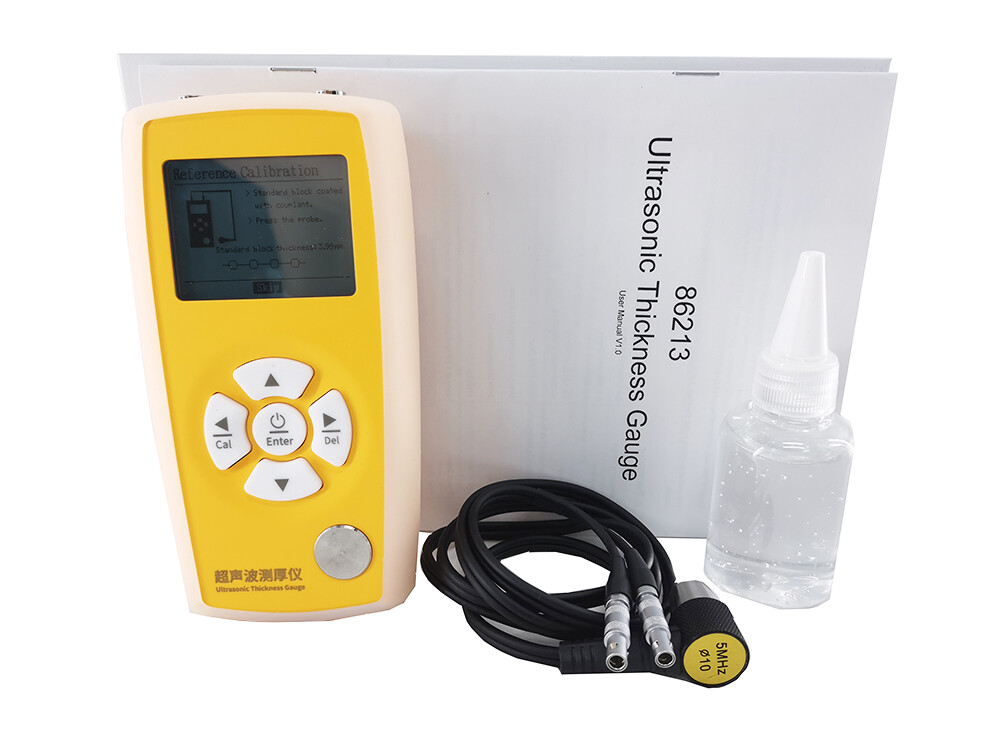

Ultrasonic Thickness Gauge for Metal Pipes Steel Glass Plastics Testing
$ 97.16
Description

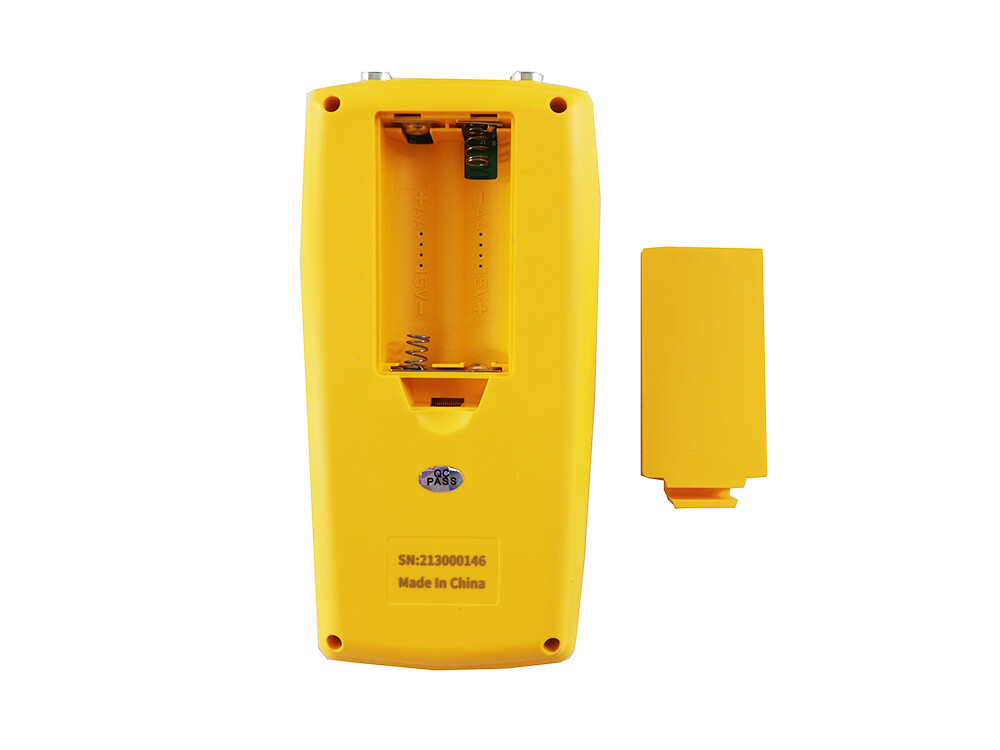

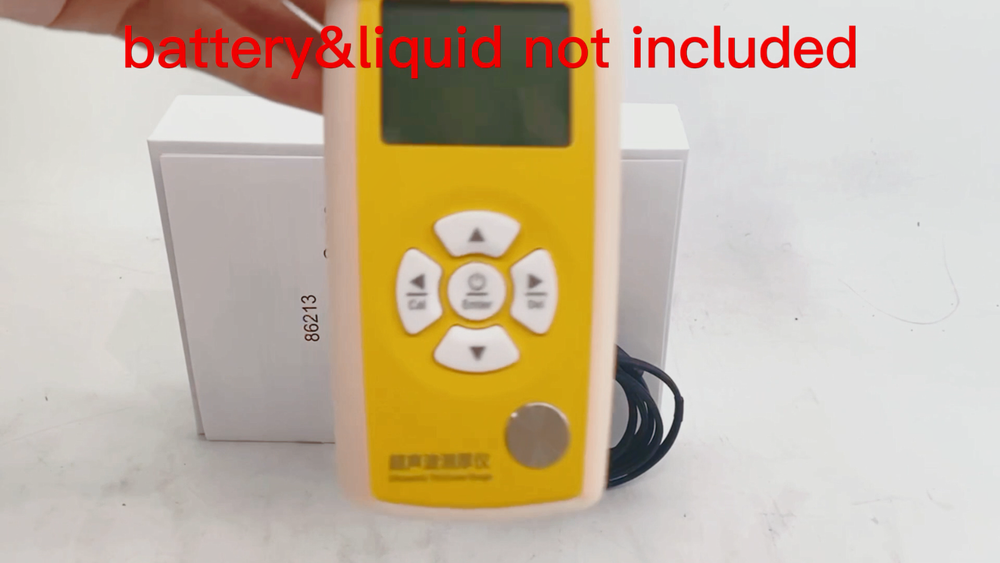

Ultrasonic Thickness Gauge Tester Meter for Metal Pipe Wall Steel Glass Plastics Note: Battery&Liquid not Included During The Shipping !!! Application In many industries, It is essential to measure the wall thickness to confirm the condition of the material for the normal running of the items or structure safety. ultrasonic thickness gauge can be widely used in testing the thickness of various accessories or metallic structure to check them whether to be repaired or changed such as ships, tanks, pipes or steel structure. The gauge is applicable for petroleum, chemical, metallurgical, shipbuilding, aviation and aerospace various fields. Parameters Parameters Values Measuring Range 0.8-350mm(45#steel) Resolution 0.8-100mm：0.01mm 100-350mm：0.1mm Accuracy 0.8-10mm：±0.05mm 10-350mm：±0.5%reading Sound Velocity Range 1000~9999m/s Probe Specification 5MHz φ10 dual-crystal probe Display 240 * 160 dot matrix LCD Unit mm/inch Power Supply 2 * AA alkaline dry batteries (not include) Host Size 142 * 72 * 28 mm Weight about 230g Working temperature range -10~50℃，0~85%RH（No condensation） Storage temperature range -10~60℃，0~85%RH（No condensation） Feature 1. Ultrasonic double crystal probe The gauge probe employs a double crystal transducer consisted of two independent crystals separated by an acoustic barrier. One crystal sends ultrasonic pulses, and another is responsible for receiving them. The probe is highly sensitive and can effectively reduce clutter, and the probe housing is made of stainless steel, which is hard and durable 2. Automatic Gain switchable Some materials are good conductors of sound and some are not. For the latter, the meter can switch the Gain freely which is to amplify the ultrasonic signal so that the emitted pulse is accurately captured by the transducer as it propagates, and obtains accurate data 3. Two measurement modes: QC Mode/Statistics Mode Ultrasonic thickness tester features two measurement mode: QC mode and statistics mode. Allowing to set upper and lower limits to check the problem areas by prompting NG under the QC mode. It will count maximum, minimum and average values of data in Statistics mode. 4. Excellent Timer chips provide fast, accurate readings Ultrasonic thickness gauge calculates the material thickness by sound velocity and the time taken between the emitted pulse and the detected echo, a precision timing chip can bring the user the accurate time to get the accurate data 5. Built-in sound velocity of multiple materials It already contains the velocities of several common metallic (such as iron, copper, aluminum) and non-metallic materials (plastics, ceramics, plexiglass) as well as other objects and the user are not required to find them separately 6. Sound velocity can be measured according to thickness T he tester can reverse the sound velocity of the material based on the known thickness and measurement results. And the instrument can test irregular materials of the same components as the materail whose thickness can be measured
