Universal 433mhz RF Remote Control Switch Relay Receiver DC 3.6V to 24V 1CH
$ 8.01
Description

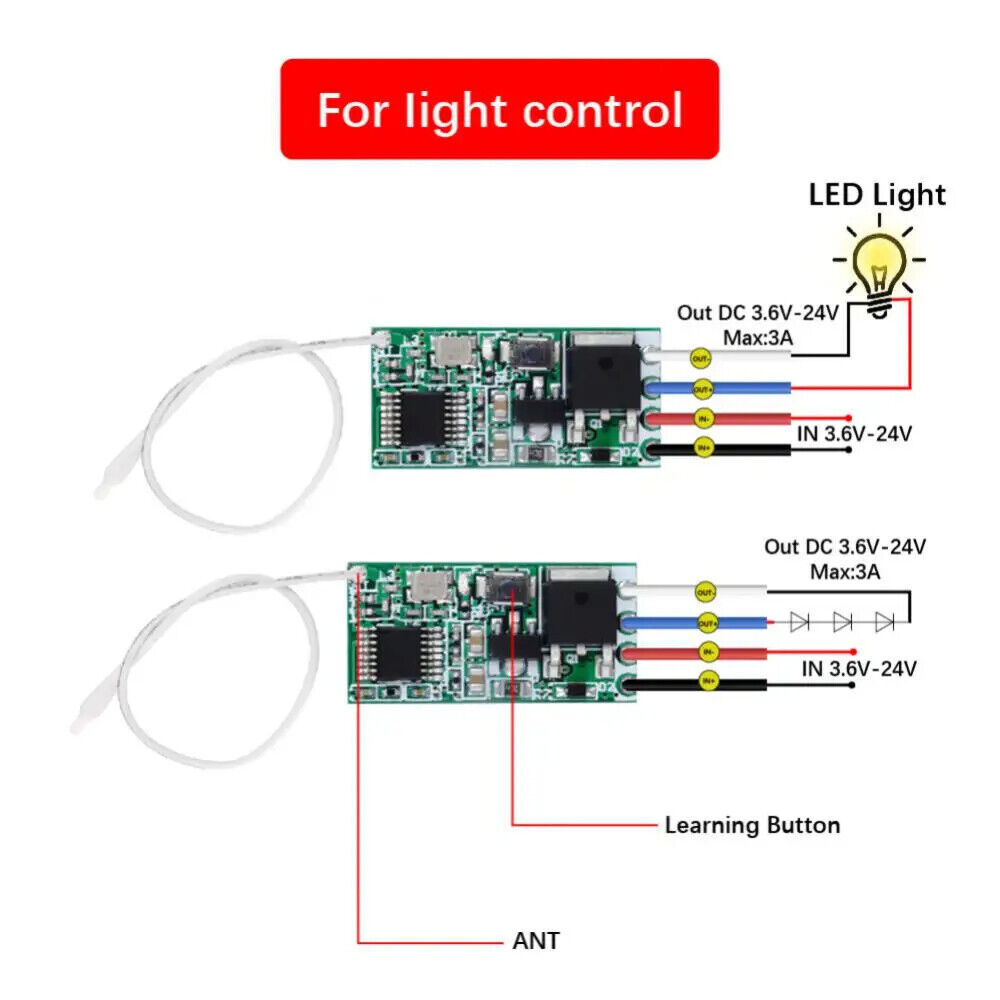

Universal Remote Control Switch 433mhz RF Relay Receiver DC 3.6V 6V 12V 24V 1CH Radio Module and Transmitter for LED Lamp DIY Description: Ultra low power,High sensitive response Taking function mode as the storage unit, a module can only store 5 (pairs) functions at most, such as: The module can remember 5 "jog keys", or 5 pairs of "interlock keys", or 5 "self-lock keys", or a mixed 5 functions, such as remembering two jog keys Key, two self-locking keys, a pair of interlocking keys. Remote control distance: about 30 meters in an open environment, can be used on partition walls Scope of application LED light, LED light string, Christmas tree light string, light control switch Specifications: Working voltage: DC 3.6V~24V Maximum load: 2A Static current: 3.6 mA ~ 5.5mA Working frequency: 433MHz Reception sensitivity: ≥ -107dBm Output DC3.6V~DC24V Size: 22.5 mm x 11mm x 8mm (length × width × high) Mini size support coding format 1527 learning code Input: DC3.6V~DC24V Output: DC3.6V~DC24V Modulation mode:ASK (superheterodyne) Appearance size: 22.5mmx 11mm x 8mm (length × width × high) Number of stored remote controls: ≤ 10 Working mode: Momentary, Toggle, Latching Mode Learning style: Learning Button Working temperature: -20 degrees 80 degrees Package Included: 1 pcs * Light Switch Receiver Module
