WIFI Kit 32 Compatible Arduino IoT Development Board ESP32-S3 Chip OLED WIFI
$ 10.85
Description

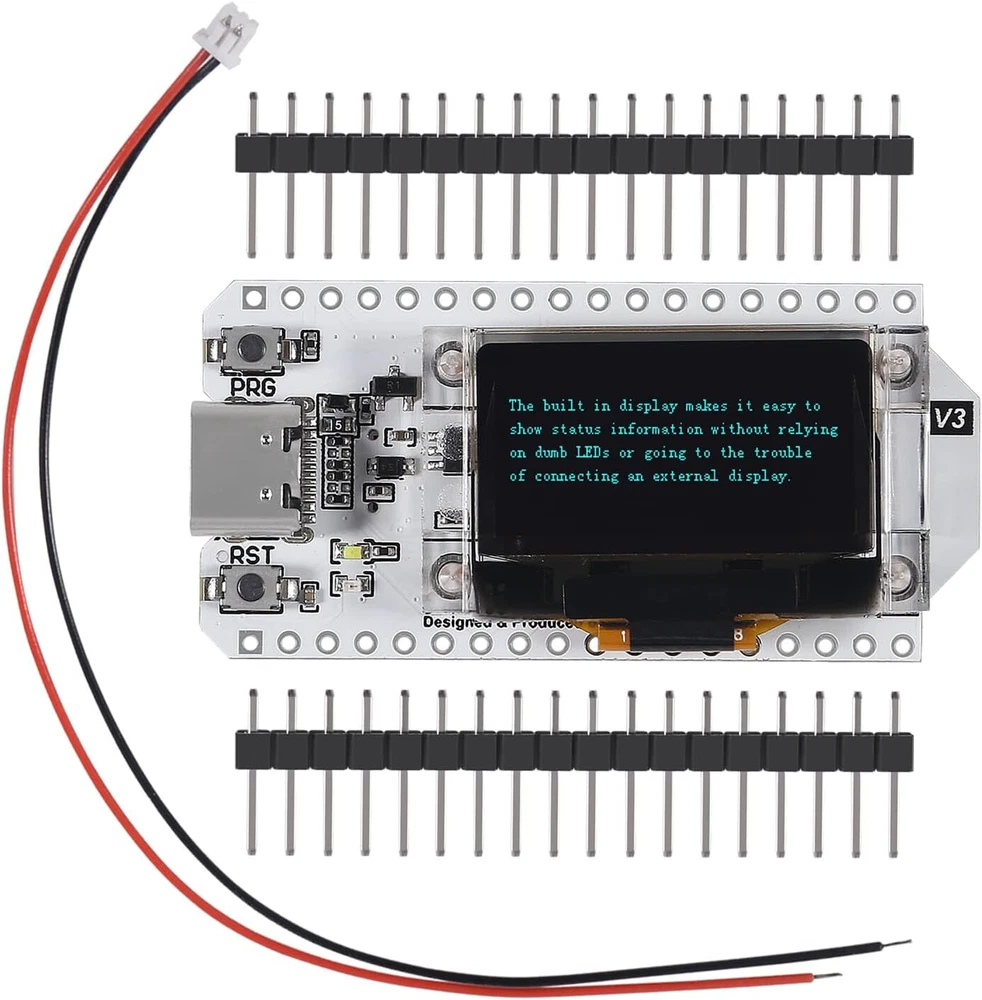

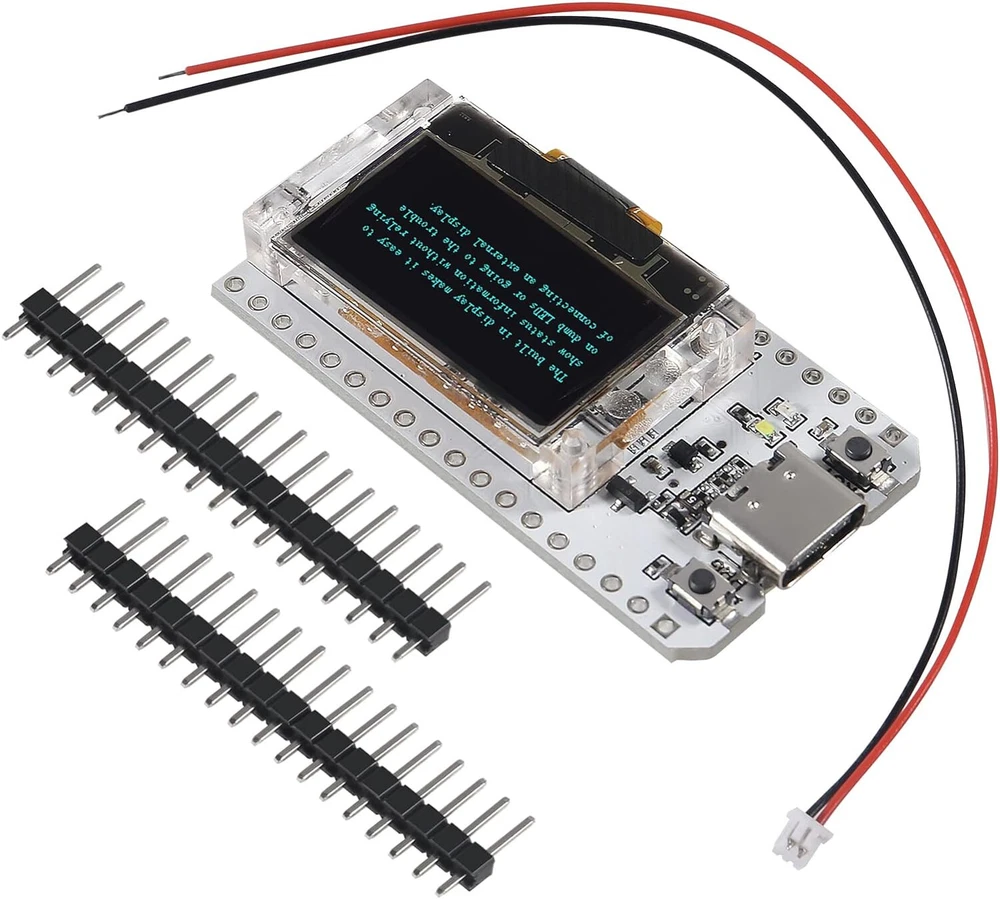

Product Description If you have any questions, please contact customer service first, do not open disputes easily, thank you! Features : Microprocessor: ESP32-S3FN8(Xtensa® 32-bit LX7 dual-core processor up to 240mhz) TYPE-C USB interface with full voltage regulation, ESD protection,short circuit protection,RF shielding and other protective measures On-board SH1.25-2 battery interface,integrated lithium battery management system (Charge/discharge management,overcharge protection,battery level detection,USB/battery level automatic switching) Support Arduino development environment Integrated CP2102 USB to serial chip,convenient for program download, debugging information printing Specification : Host controller:ESP32-S3FN8 USB to Serial Chip:CP2102 WIFI:802.11B/G/N,UP to 150bps Hardware Resources:7ADC1+2*ADC2,3*UART,2*I2C,2*SPI Interface:TYPE-C,2*1.25 battery connector,2*18*2.54 pins Battery:Supports 3.7V Li-ion battery charge/discharge Temperature:-20~70°C Size:50.2*25.5*10.2 mm Power consumption:deep sleep 10uA Package Includes : 1 Set* Development Board Note : Only include the above package products Specifications are manually tested and are for reference only Please allow 0-1cm error due to manual measurement Please make sure you don't mind before bidding Due to the difference between different monitors Pictures may not reflect the actual color of the item.Thank About Us We accept all payments authorized by eBay. About Us We accept all payments authorized by eBay. powered by
