Waveshare SIM7028 NB-IoT HAT for Raspberry Pi Global Band NB-IoT Communication
$ 13.2
Description

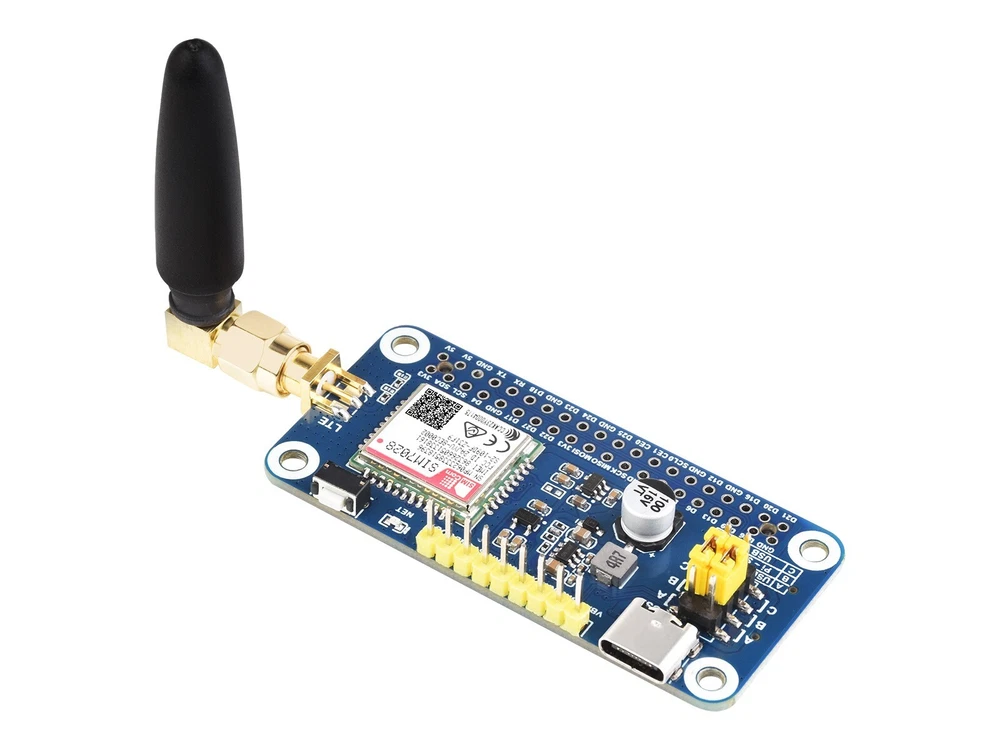

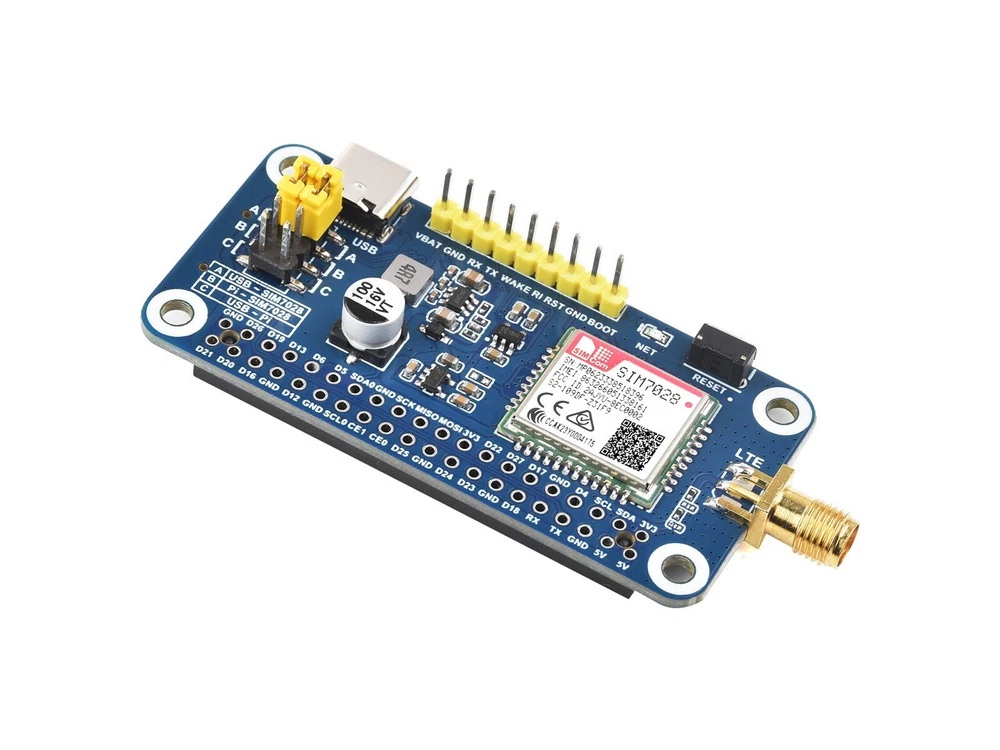

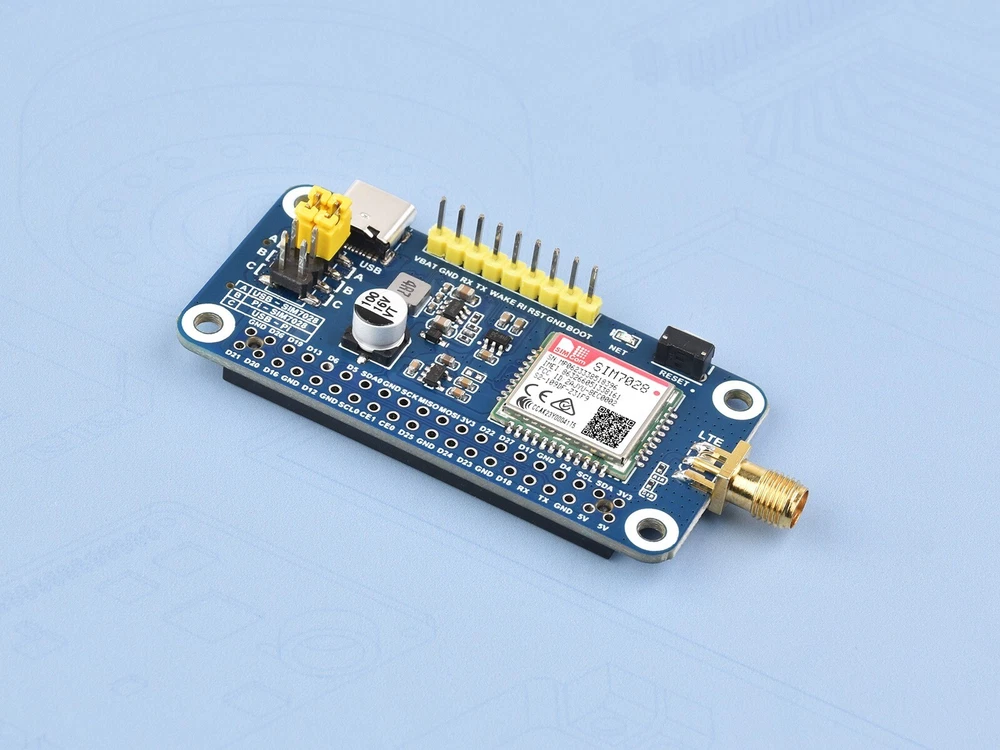

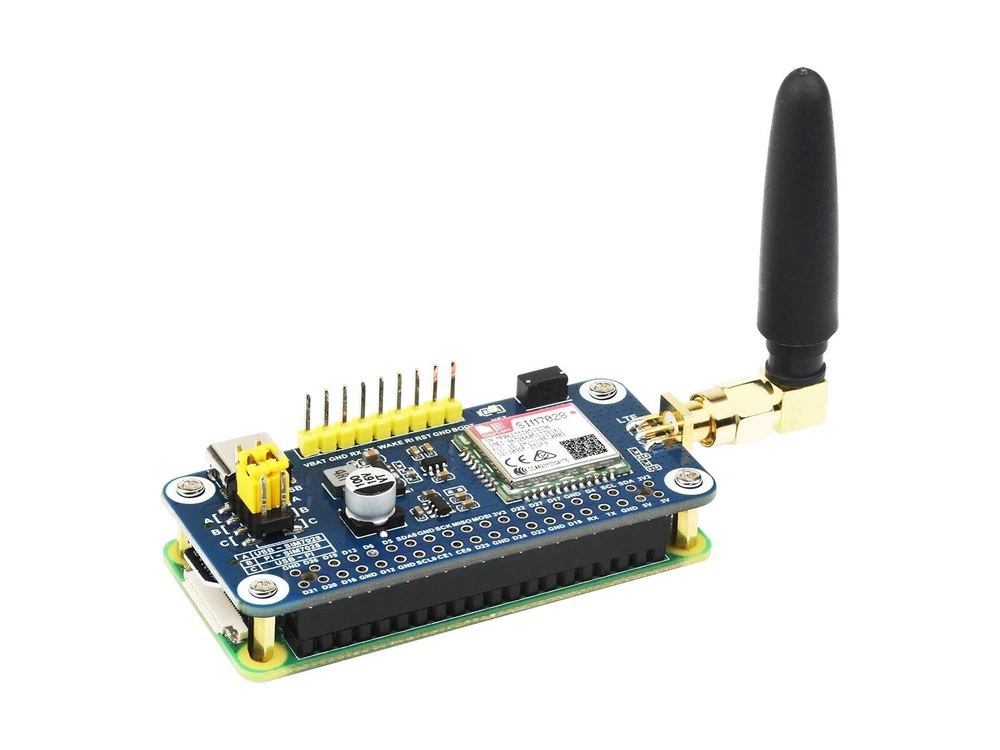

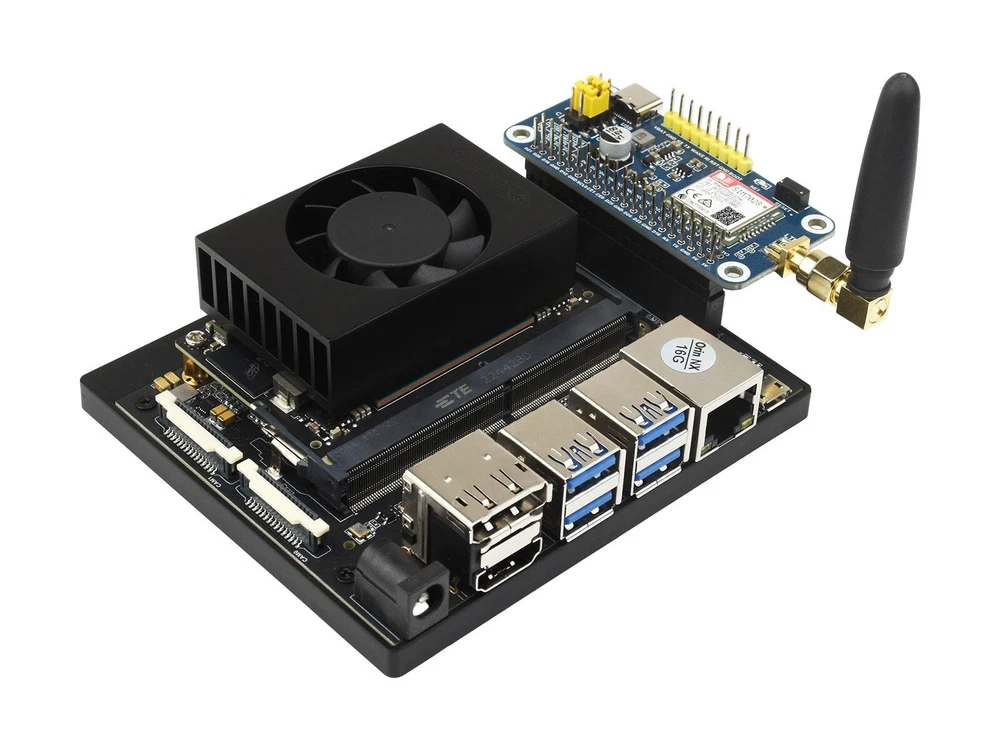

DESCRIPTION Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian. SIM7028 NB-IoT HAT For Raspberry Pi, Supports Global Band NB-IoT Communication, Small In Size And Low Power Consumption, Onboard 40PIN GPIO Header, Comes With GSM Antenna SIM7028 NB-IoT HAT For Raspberry Pi Supports Global Band NB-IoT Communication, Small In Size, Low Power Consumption Features At A Glance The SIM7028 NB-IoT HAT is a small size, low-power, and powerful Raspberry Pi HAT with NB-IoT (Narrow-Band Internet of Things) function, supports global band and supports TCP, UDP, LWM2M, COAP, DTLS, DNS, NTP, PING, HTTP(S), MQTT(S), TLS/SSL, etc. It is designed for applications that need low delay, low power, and low throughput, also suitable for IoT applications such as meters, remote control, asset tracking, remote monitoring, remote healthcare, bicycle-sharing, and so on. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano, etc. Supports TCP, UDP, LWM2M, COAP, DTLS, DNS, NTP, PING, HTTP(S), MQTT(S), TLS/SSL, etc. Onboard Type-C interface for software debugging Onboard UART control pins, for connecting with host boards like Arduino/STM32 1x LED indicators, easy to monitor the working status Onboard USB to UART chip, the UART communication pin can be configured via jumper Onboard nano SIM card slot, compatible with NB-IoT specific card Baudrate: 2400bps ~ 460900bps (115200bps by default) Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands) Supports SIM application toolkit: SAT Class 3, GSM 11.11, USAT Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/ESP32) Specifications COMMUNICATION PARAMETERS Band B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B66/B70/B85 Data rate ≤159Kbps(UL) ≤127Kbps(DL) OPERATING PARAMETERS Power supply 5V Logic level 5V/3.3V (3.3V by default) Overall current (idle mode) 4mA Single module current (VBAT=3.3V) Idle mode: 2.8mA PSM mode: 0.8uA DRX mode: 0.11mA@Idle(DRX=2.56s) eDRX mode: 0.018mA@Idle(eDRX=163.84s; PTW=25.6s) Standard Raspberry Pi 40PIN GPIO Compatible With Raspberry Pi Series Boards, Jetson Nano, Etc. Connect to Raspberry Pi Zero Connect to Raspberry Pi 4B Connect to Jetson Orin for reference only, the above control boards are NOT included Global Band Support Supports Communication Protocols Including TCP, UDP, LWM2M, COAP, DTLS, DNS, NTP, PING, HTTP(S), MQTT(S), TLS/SSL, Etc. Application Example Provides Multiple Networking Demos With Waveshare.Cloud, AWS IoT Core, And Aliyun IoT Support, Using The Lightweight MQTT Protocol To Achieve Data Visualization Services Waveshare.Cloud Support Provides Tutorial And Demo For Quick Start Of Smart IoT Solutions, With Large-Screen Data Visualization Display To Meet Various Application Scenarios Pinout Definition Product Show Outline Dimensions Resources & Services * Resources for different product may vary, please check the wiki page to confirm the actually provided resources. Selection Guide CAT-M & NB-IOT & GSM CAT-M & NB-IOT NB-IOT SIM7000C / SIM7000E SIM7000G SIM7070G SIM7080G SIM7020C / SIM7020E SIM7028 Applicable regions SIM7000C : China SIM7000E : Europe / Africa / Australia / Southeast Asia Global SIM7020C : China SIM7020E : Europe / Africa / Australia / Southeast Asia Global Band NB-IoT SIM7000C : LTE-FDD: B1, B3, B5, B8 SIM7000E : LTE-FDD: B3, B8, B20, B28 B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28 B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B71, B85 SIM7020C : LTE-FDD: B1, B3, B5, B8 SIM7020E : LTE-FDD: B1, B3, B5, B8, B20, B28 B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B66, B70, B85 Cat-M B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B39 B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B27, B28, B66, B85 N/A GSM GPRS/EDGE 900/1800 MHz GSM/GPRS/EDGE 850/900/1800/1900MHz N/A N/A GNSS SIM7000C/SIM7000G : GPS, GLONASS, BeiDou SIM7000E/SIM7070G/SIM7080G : GPS, GLONASS, BeiDou, Galileo N/A Data Rate NB-IoT(Kbps) 34(DL)/66(UL) 136(DL)/150(UL) 26.15(DL)/62.5(UL) 127(DL)/159(UL) Cat-M(Kbps) 300(DL)/375(UL) 589(DL)/1119(UL) EDGE(Kbps) 236.8(DL)/236.8(UL) 236.8(DL)/236.8(UL) GPRS(Kbps) 85.6(DL)/85.6(UL) 85.6(DL)/85.6(UL) Software Features Network protocol TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT, etc. Firmware upgrade USB UART UART/USB Hardware Interfaces SIM card slot 1.8V/3V 1.8V 1.8V 1.8V/3V 1.8V/3V UART Supports AT commands Supports AT commands, firmware upgrading USB Supports AT commands testing, GPS positioning, firmware upgrading, etc. For external power supply ONLY Supports AT commands, firmware upgrading Antenna connector LTE antenna (SMA) + GNSS antenna (IPEX) LTE antenna (IPEX) + GNSS antenna (IPEX) LTE antenna (SMA) Applications Examples Meters, remote control, smart home, smart city, intelligent agriculture, and so on PACKAGE CONTENT Weight: 0.06 kg SIM7028 NB-IoT HAT x1 GSM Antenna x1 USB Type-A to Type-C cable x1 2×20PIN female header x1 Standoffs pack x1
