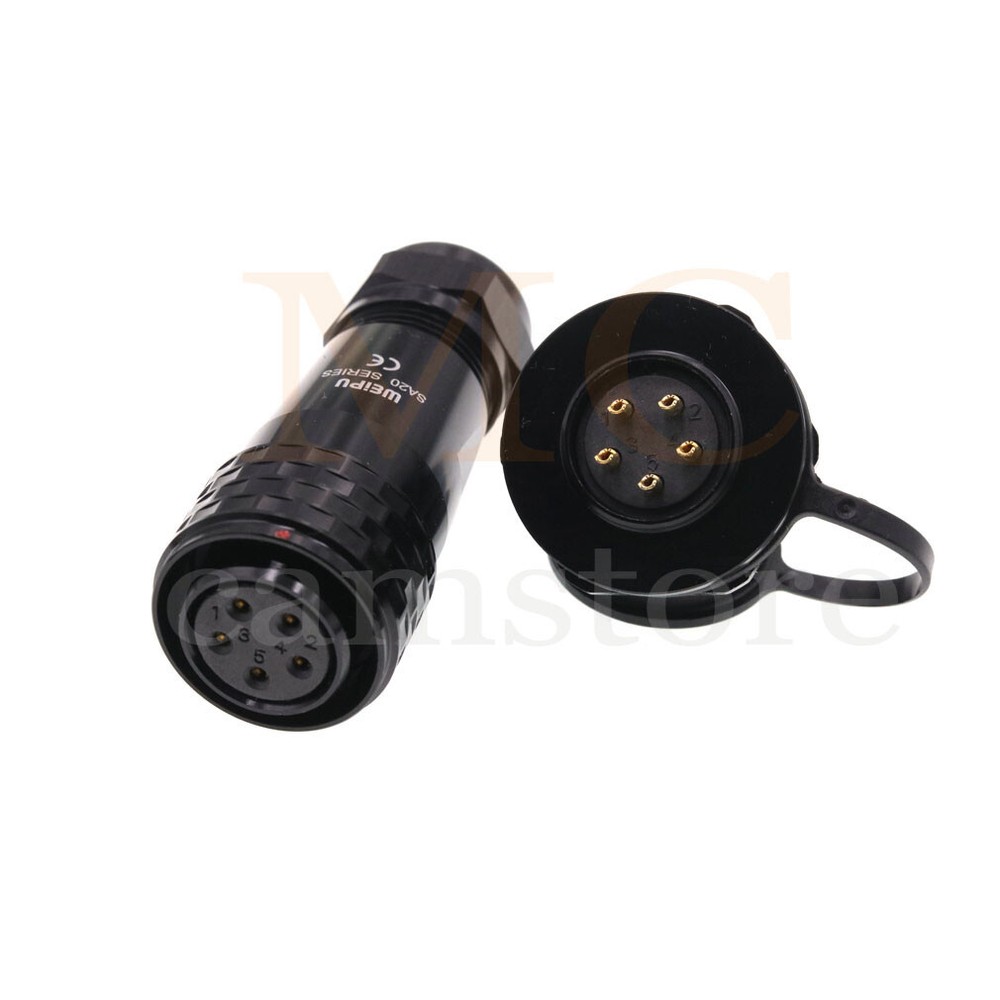

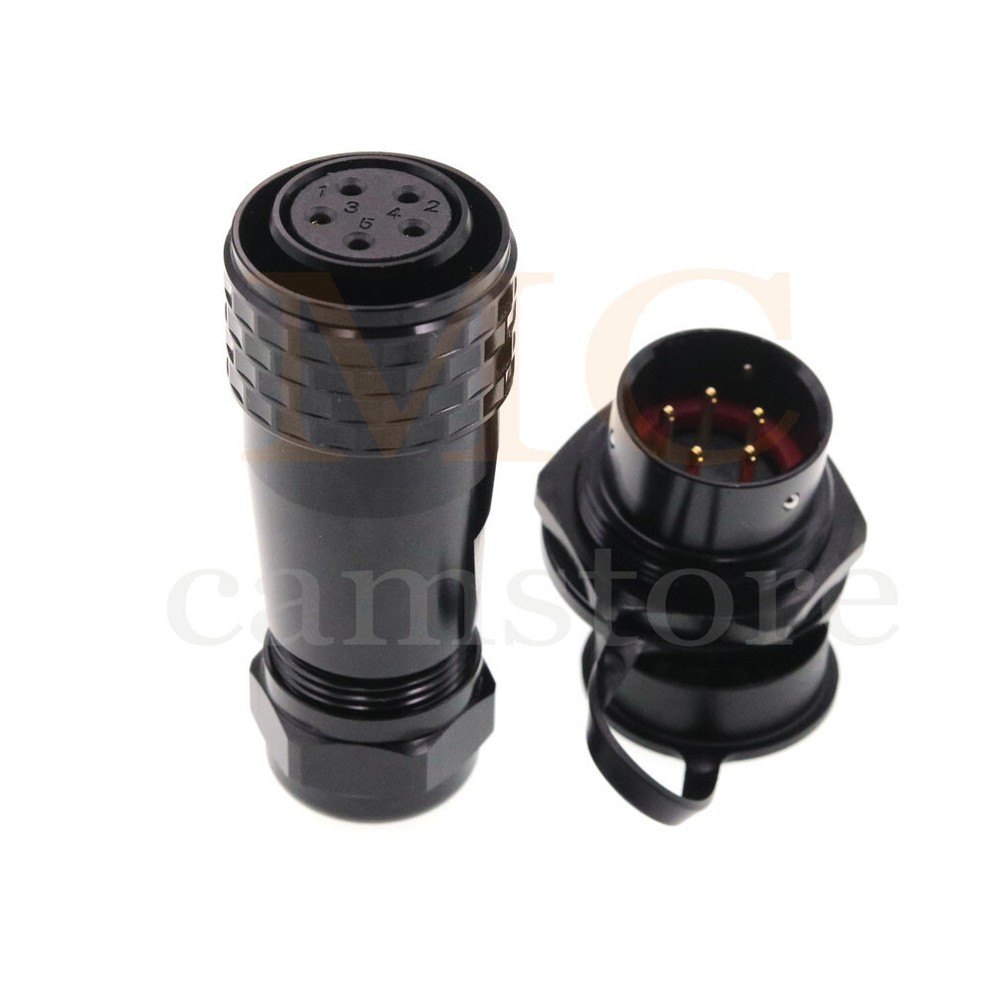

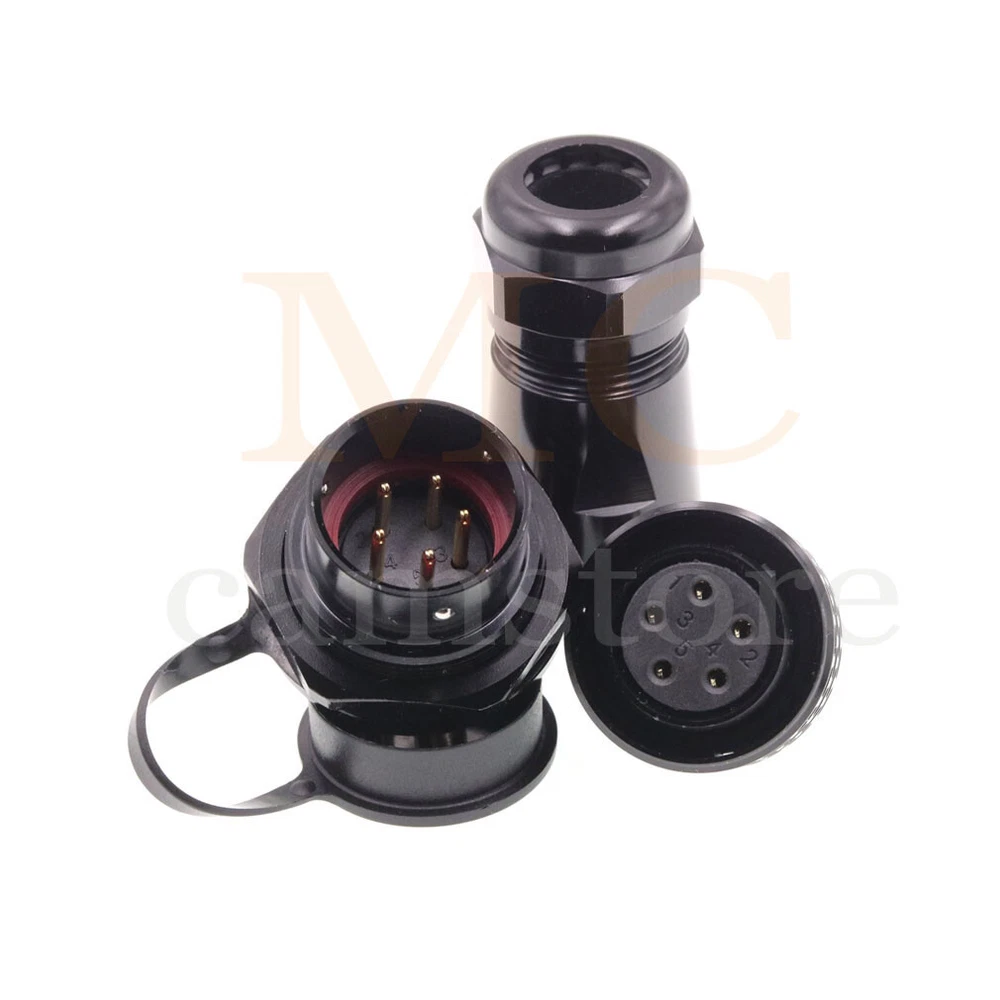

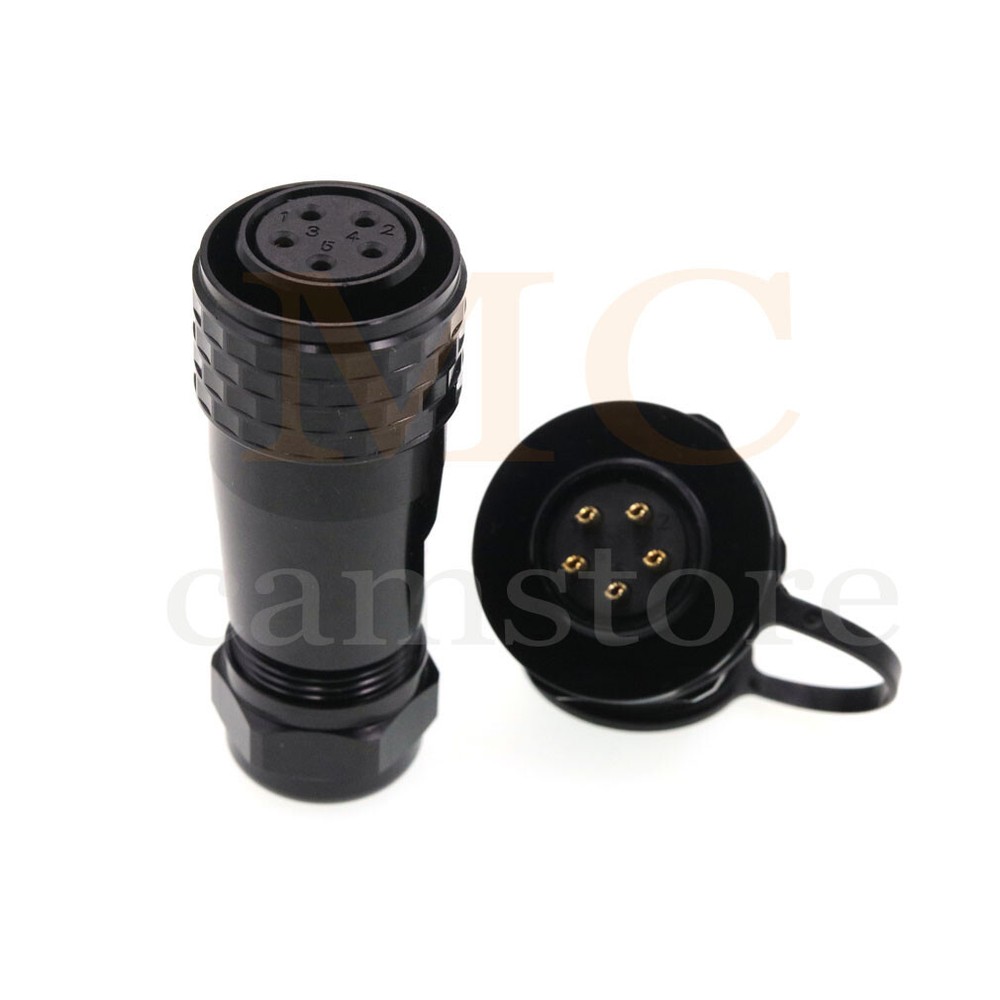

Weipu SA20 IP67 5Pin Panel Aviation Connector 10A Automated Electrical

$ 12.44

Rated voltage: 500V/AC Number of Ports: 5 UPC: Does not apply Gender: Female plug-male socket Country/Region of Manufacture: China Compatible Mounting Type: Panel Waterproof level: IP67 Temperature range: -40 ~ +85 degrees MPN: SA20 Termination Type: Solder Material: aluminum Rated current: 10A Test voltage: 1500V/AC Shell Material: Anodized aluminium Contact diameter: Φ1.5mm x 5 Brand: WEIPU SA20 Color: Black Number of Pins: 2 3 4 5 6 7 9 12 15pin Number of Poles: 2 Contact Material: Brass with gold plated Item Length: NO gtin13: Does not apply Wire: ≤2mm/ AWG14 Type: Push pull self lock connector Connector Style: Circular connector

Description

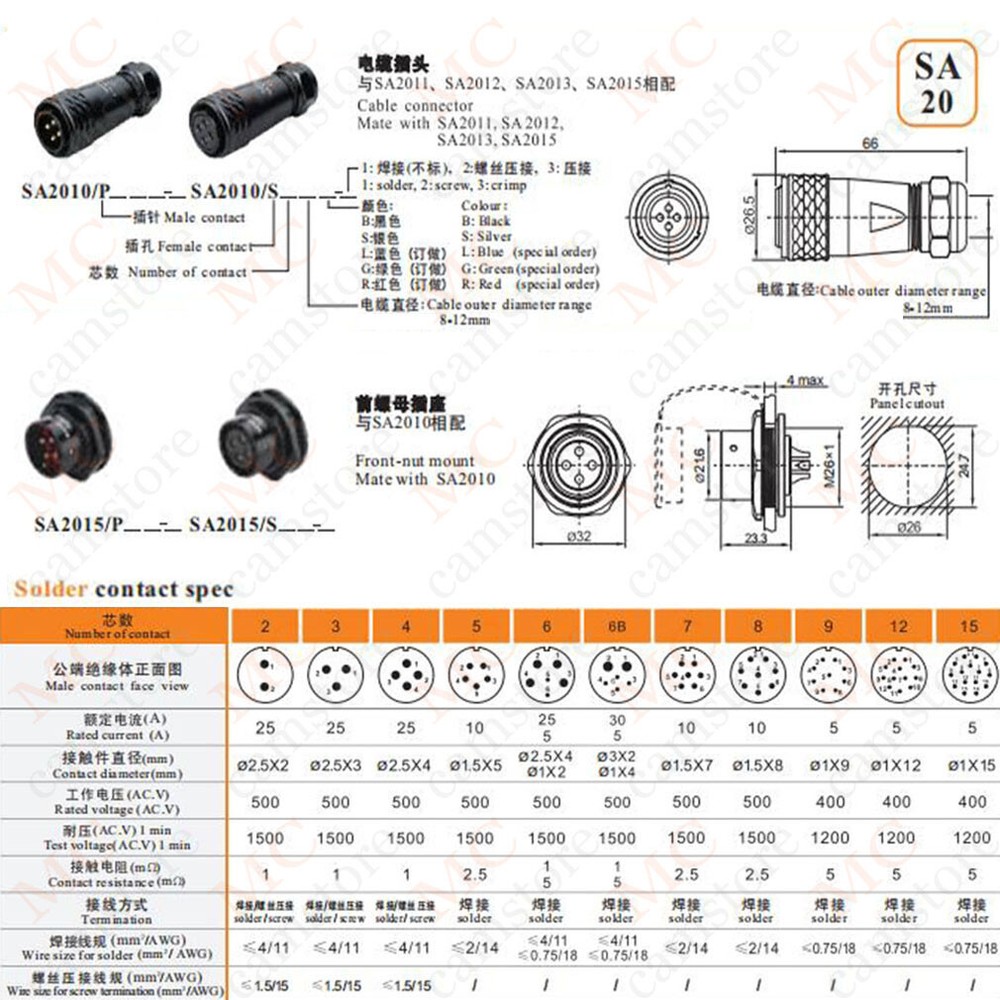

Weipu SA20 2 3 4 5 6 7 8 9 12 15 pin Waterproof IP67 Connector High Voltage Power Cord Bulkhead Aviation Connector 2pin, 3pin, 4pin: Rated Current (A): 25A Contact diameter × number: Φ2.5x2 / Φ2.5x 3 / Φ2.5x 4 Rated voltage (AC.V.): 500V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 1mΩ Cable specification: <4m㎡/11AWG 5pin, 7pin , 8pin : Rated Current (A): 10A Contact diameter × number: Φ1.5 Rated voltage (AC.V.): 500V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 2.5mΩ Cable specification: <2.0m㎡/14AWG 6pin: Rated Current (A): 25、5A Contact diameter × number: Φ1.5x4+Φ1.0x2 Rated voltage (AC.V.): 500V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 1、5mΩ Cable specification: <4m㎡/11AWG - <0.75m㎡/18AWG 9pin, 12pin, 15pin: Rated Current (A): 5A Contact diameter × number: Φ1.0 Rated voltage (AC.V.): 400V Withstanding Voltage (AC.V) 1 minute: 1200V Contact resistance: 5mΩ Cable specification: <0.75m㎡/18AWG Coupling: Threaded Coupling Shell Materia: anodized aluminium Insert Material: PPS man temperature 260° Contact materia: Brass (gold-plated) Termination: solder Cable outer diameter range：8-12mm Protection level: IP67 Durability: ≥500 times Working temperature: -40℃～+85℃ What's in the package: 1 plug + 1 socket with cover
