Winext LoRa GPS Assets Tracker Wireless LoRaWAN IoT Solution US915MHz EU868MHz

$ 28.99

Voltage - Supply: DC4.2V Operating Temperature: -20℃~60℃ MOQ: 1PC Measurement accuracy: 5 meters Output Type: Digital Server and software: Supported Current Type: DC UPC: Does not apply Compatible Mounting Type: Panel Brand: Winext Mounting Type: Bracket installation,Install plate Voltage - Max: DC4.2V gtin13: Does not apply Wireless module: LORA/LORAWAN/GPS Country/Region of Manufacture: China Place of Origin: Shenzhen,China Application: Assets tracking Warranty: 1 Year Under Normal Usage: Assets Tracking MPN: AN-122-A03 Description: LoRaWAN GPS Tracker Features: High precision,High accuracy Sensitivity: -141dBm （SF12） Material: ABS Shield: Unshielded Product name: LoRa GPS Tracker Model Number: AN-122-A03 Size / Dimension: 111*65*33.5mm

Description

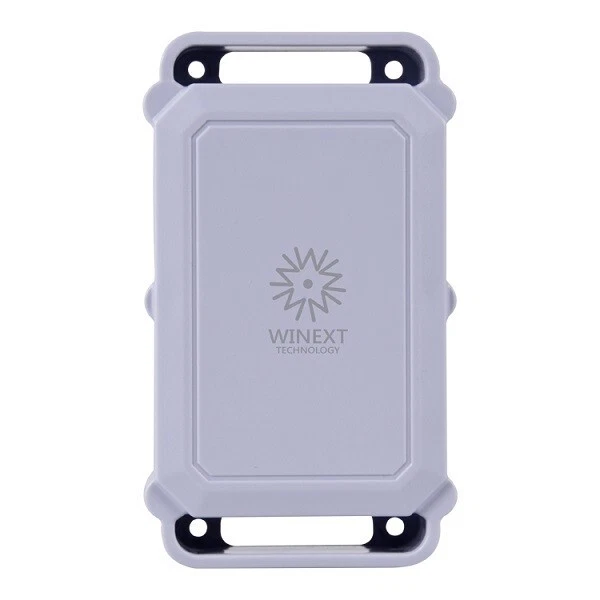

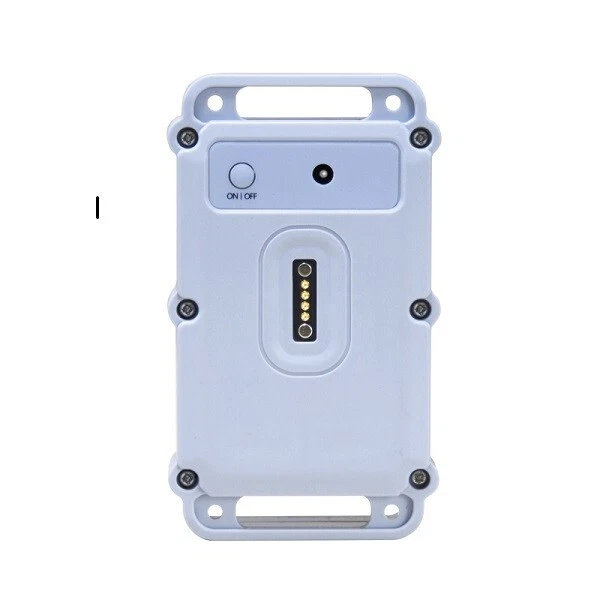

LoRa+GPS Tracker Description: AN-122-A03 LoRa+GPS Tracker is a wireless tracker that operates based on the LoRaWAN standard protocol. It features an integrated GPS, G-sensor, anti-tamper switch sensor, and power switch module. The device is equipped with anti-theft and alarm capabilities, and it acquires GPS positioning data when it is in motion. Characterized by its small size, long battery life, and low power consumption, it is Widely used in the supervision of asset tracking, livestock supervision, commodity supervision, Shared bicycles and other fields. Features: Ø Supports the standard LoRaWAN protocol; Ø Supports GPS positioning with an accuracy of 5 to 10 meters; Ø Built-in G-sensor gravity sensor, support object movement detection; Ø Ingress Protection Rate: IP65 ； Ø Supports anti-theft tracking for personnel or objects; Ø Built-in anti-dismantle sensor ； Ø Built-in 2400mAh rechargeable battery ； Ø Low power consumption ； Ø LORA transmission Range up to 1200m(It depends on the working conditions) parameter Item Description CPU ARM-Cotex M3 CPU Core Clock Speed 32MH 32bit Memory 128KB Flash 16KB RAM 4KB EEPROM G-sensor Gravity Detection：2g/4g/8g/16g GPS High precision: within 5m, support GPS and Beidou positioning Anti-dismantle switch Closure removed or dismantled detection Power on/off physical button for power on/off GPS antenna 1575.42MHZ, bandwidth±2MHZ, 50Ω, gain: 2dbi LoRa Antenna 1575.42MHZ, bandwidth:±2MHZ, impedance:50Ω, gain: 2dbi Data Tx rate 300bps～5.4Kbps Frequency Band CN470MHz~510MHz; EU863MHz~870MHz; US902MHz~928MHz; AS920~923MHz; AS923MHz~925MHz; AU 915MHz~928MHz Protocol Support LoRaWAN, P2P Max Tx power 19dbm Rx Sensitivity -141d Bm （SF12） Battery Volume 4.2V/2400mAh rechargeable Li-SOCl2 battery Power input 5V/1000mA Working Temperature -20℃~+60℃ Working humidity 10%-90% Power Supply Built-in Li-SOCL2 battery Power Voltage DC4.2V Standby Current ≤20uA Rx Current ≤16mA Tx Current ≤125mA Ingress Protection IP65 Dimension 111*65*33.5mm Notes: 1. Frequency Bands is optional: EU863MHz~870MHz; US902MHz~928MHz; AS920~923MHz; AS923MHz~925MHz; AU 915MHz~928MHz . 2.Please send us frequency bands after order.
