XBee USB Adapter UART Communication Board XBee Interface USB Interface Onboar...

$ 8.71

Type: Does not apply ISBN: 0778365986221 UPC: 778365986221 Color: XBee USB Adapter gtin13: 0778365986221 Weight: 0.2 Pounds EAN: 0778365986221 Brand: waveshare Package Dimensions LxWxH: 2.6x1.18x0.59 Inches

Description

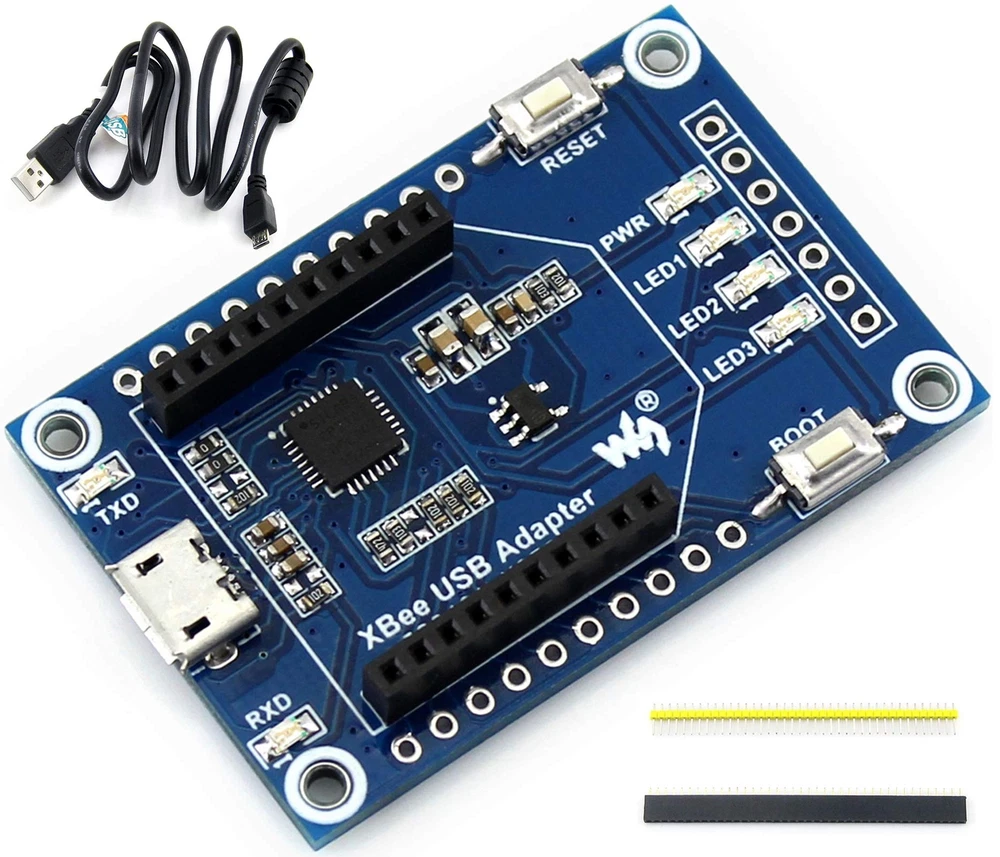

UART communication board, XBee interface, USB interface XBee USB Adapter Overview XBee USB Adapter is a UART communication board which supports XBee connectivity, features UART interface, USB interface, and onboard buttons/LEDs, provides an easy way for developing/debugging. It can be used in the following situations : Test XBee modules: onboard buttons/LEDs for easy testing Program/Configure XBee modules: make it easy to program/configure the XBee modules frequently USB to UART module: features CP2102, provides UART interface and power output interface, connect it to your system easily Note : XBee modules above refer to modules with XBee-interface, like: Core2530 (B), Dual-mode Bluetooth, etc. Package Content 1.XBee USB Adapter x 1 2.40-pin male pinheader & 40-pin female pinheader x 1 3.USB Type A Plug to Micro B Plug Cable x 1 UART communication board, XBee interface, USB interface XBee USB Adapter is a UART communication board which supports XBee connectivity, features UART interface, USB interface, and onboard buttons/LEDs, provides an easy way for developing/debugging. Test XBee modules: onboard buttons/LEDs for easy testing. Program/Configure XBee modules: make it easy to program/configure the XBee modules frequently USB to UART module: features CP2102, provides UART interface and power output interface, connect it to your system easily Note:The XBee/ZigBee modules and Core2530 (B) in the photos are NOT included.
