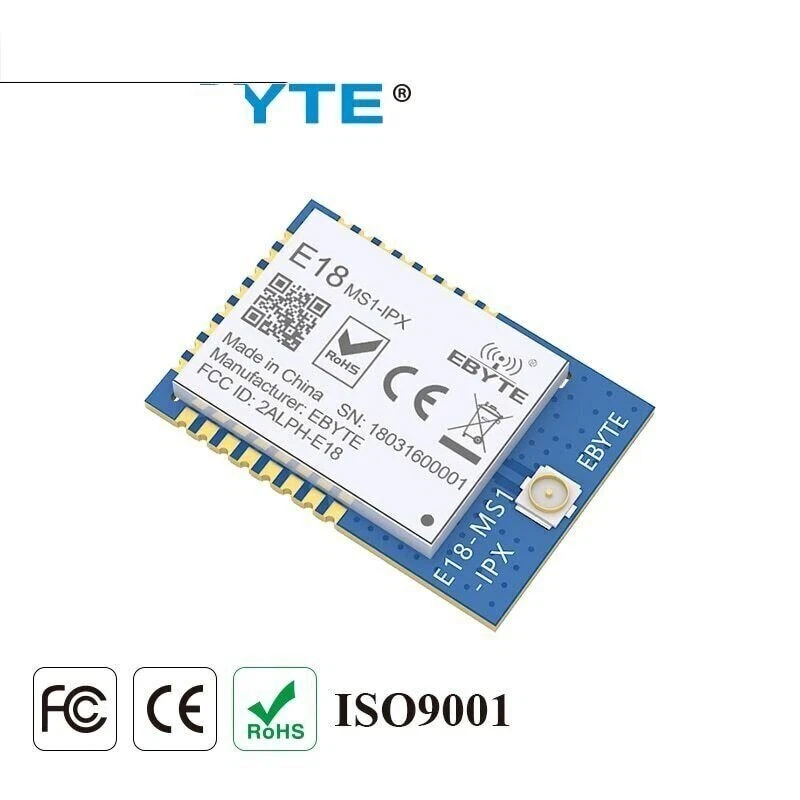

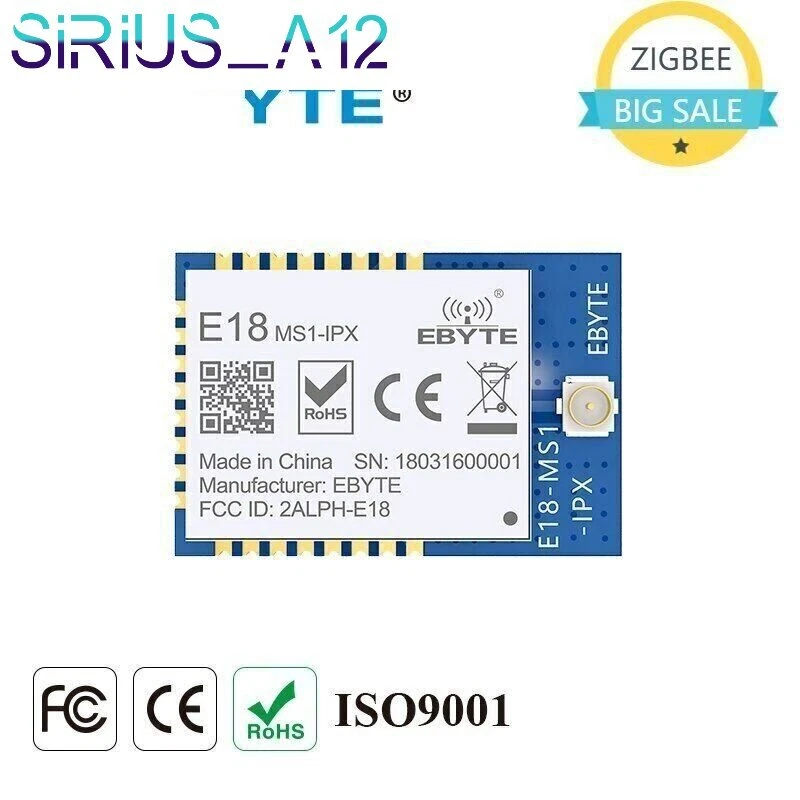

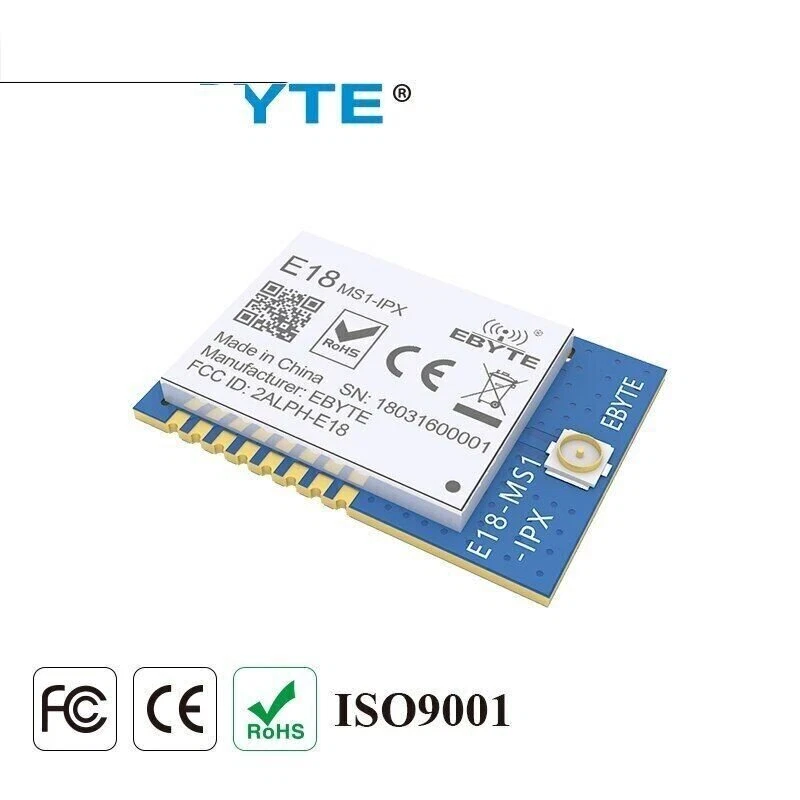

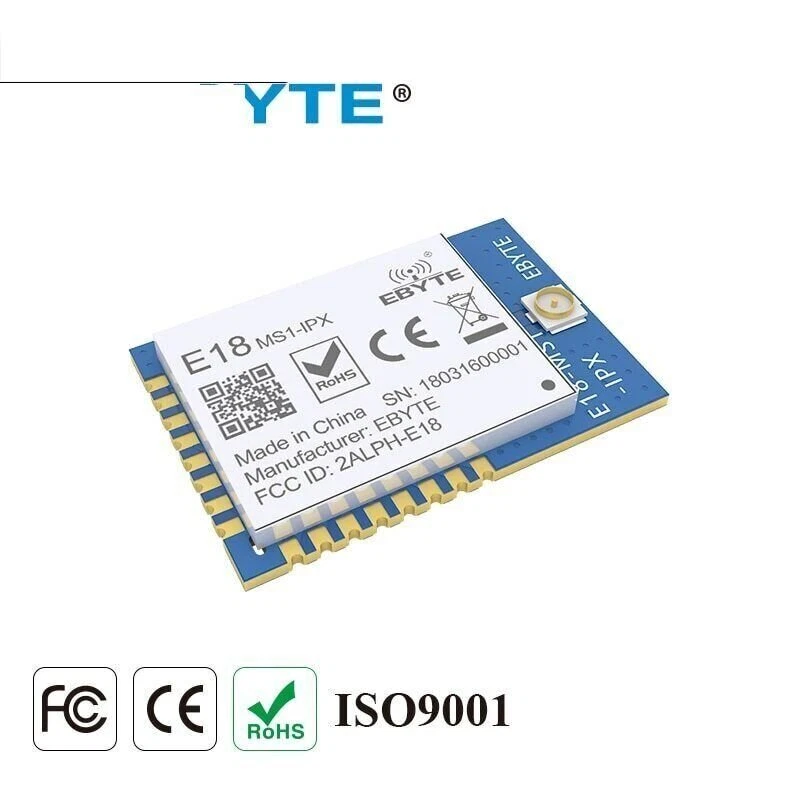

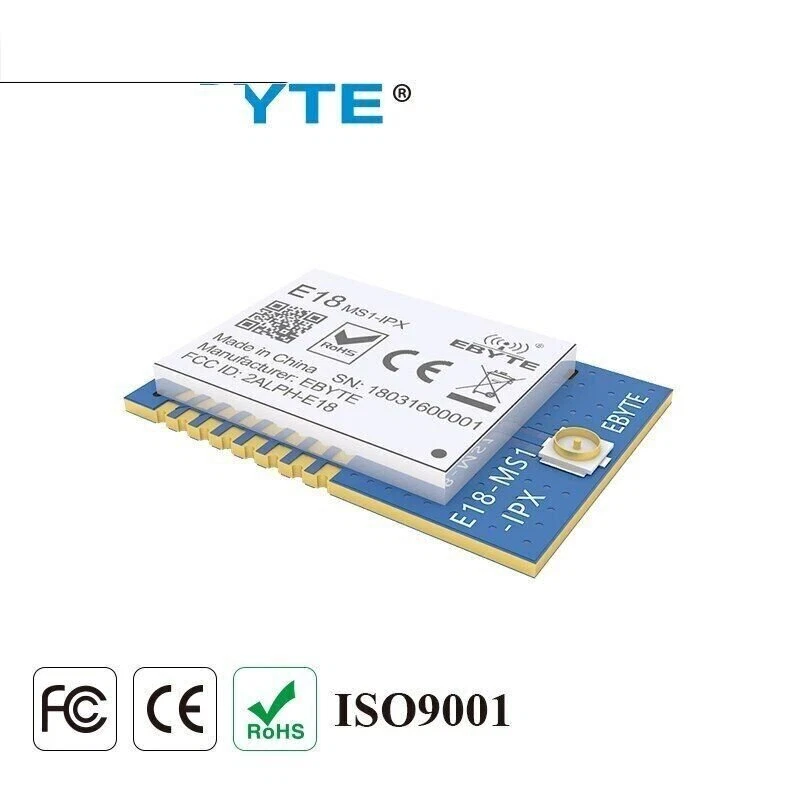

Zigbee IO CC2530 2.4GHz 2.5mW IPX Antenna IoT Wireless Transceiver RF Module

$ 4.45

UPC: Does not apply Model: E18-MS1-IPX MPN: Does Not Apply Brand: Peakelect gtin13: Does not apply Custom Bundle: No Country/Region of Manufacture: China Type: Zigbee IO CC2530 Modified Item: No

Description

E18-MS1-IPX Zigbee IO CC2530 2.4Ghz 2.5mW IPX Antenna IoT uhf Mesh Network Wireless Transceiver Transmitter Receiver RF Module RF Parameter Value Remark Working frequency 2400~2480 MHz Default: 2.4GHz (32MHz oscillator) Transmitting power 4 dBm About 2.5mW Receiving sensitivity -96.4 dBm Air data rate: 250kbps Communication protocal ZigBee - Test distance 240m In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps Hardware Parameter Value Remark IC CC2530F256RHAT/QFN40 - FLASH 256 KB - RAM 8 KB - Core Industry-standard enhanced 8051 MCU - Size 14.1 * 20.8 mm - Antenna type IPEX - Communication interface SoC - Package SMD - Electronic parameter Min. Typ. Max. Unit Condition Power supply 2.0 3.3 3.6 V Communication level 2.0 3.3 3.6 V Transmitting current 26 28 31 mA 4dBm(2.5mW) Receiving current 25 27 30 mA Sleep current 0.6 1.2 1.8 μA Operating temperature -40 20 +85 ℃ Operating humidity 10 60 90 % Storage temperature -40 20 +125 ℃
