nRF24L01P 20dBm 2.4Ghz SPI Wireless Module IPX Transmitter Receiver E01-ML01SP4

$ 4.18

Non-Domestic Product: No Brand: Peakelect MPN: Does Not Apply Modified Item: No Custom Bundle: No Type: SPI Model: E01-ML01SP4 Interface: SPI UPC: Does not apply Size: 14.5*18mm Power: 20dBm IC: nRF24L01P Country/Region of Manufacture: China gtin13: Does not apply Frequency: 2.4~2.525GHz Range: 2000m

Description

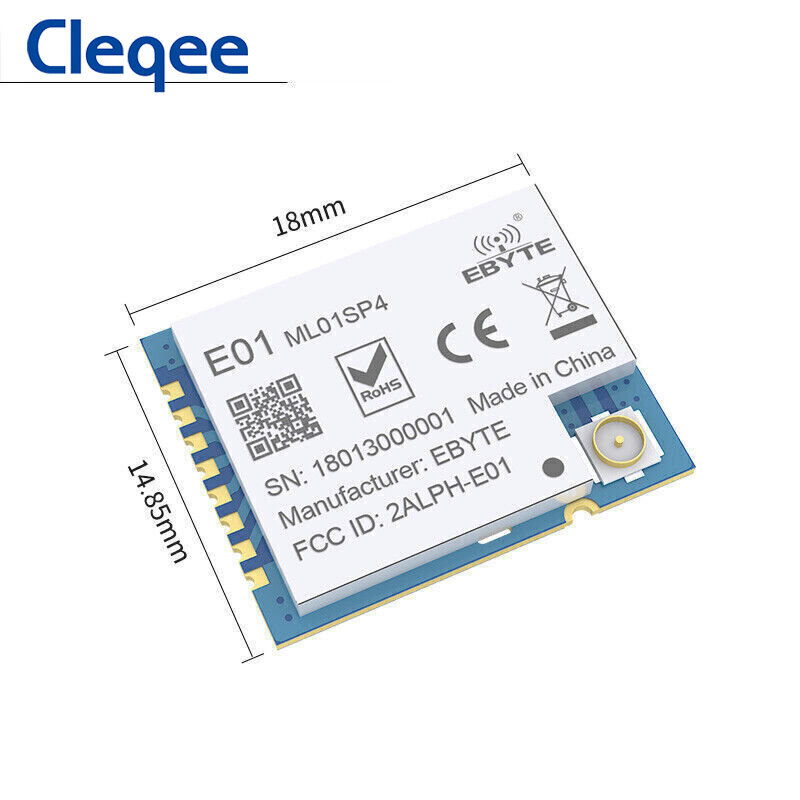

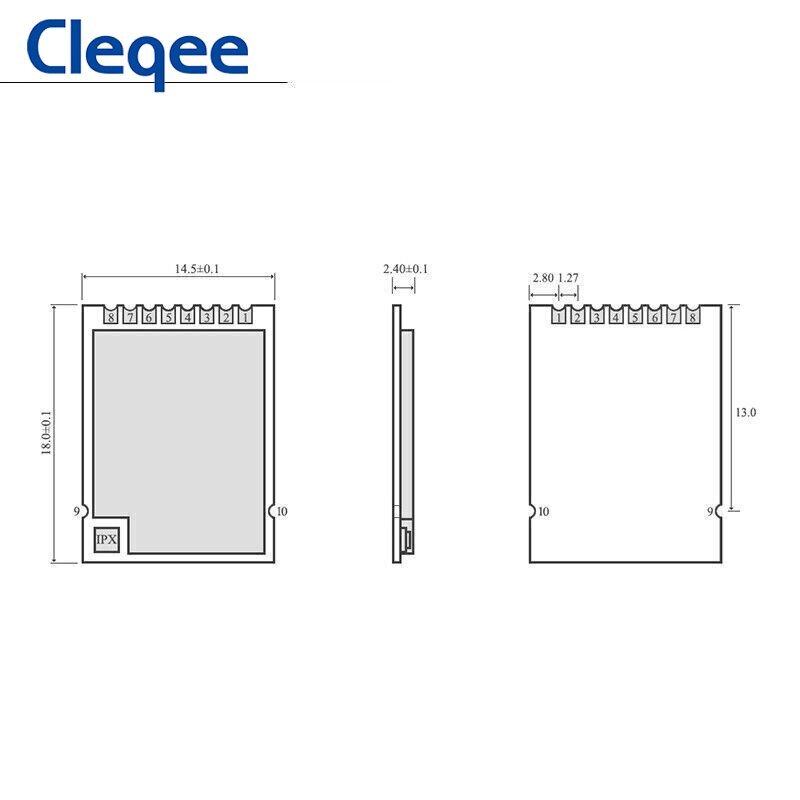

20dBm 2.4Ghz nRF24L01P SPI Wireless Module IPX Transmitter Receiver E01-ML01SP4 RF Parameter Value Remark Working frequency 2400~2525 MHz Default: 2.4GHz (16MHz oscillator) Transmitting power 20 dBm Max. Power (100mW) Receiving sensitivity -96 dBm Air data rate: 250kbps Air data rate 250k~2Mbps Default: 250kbps Test distance 2000m In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps Hardware Parameter Value Remark Size 14.8 * 18 mm Without SMA Antenna type IPEX Communication interface SPI Package SMD Electronic parameter Min. Typ. Max. Unit Condition Power supply 2.0 3.3 3.6 V Communication level 2.0 3.3 3.6 V Transmitting current 110 120 130 mA 20dBm（100mW） Receiving current 24 26 28 mA Sleep current 0.5 1.0 2.0 μA Operating temperature -40 20 +85 ℃ Operating humidity 10 60 90 % Storage temperature -40 20 +125 ℃
