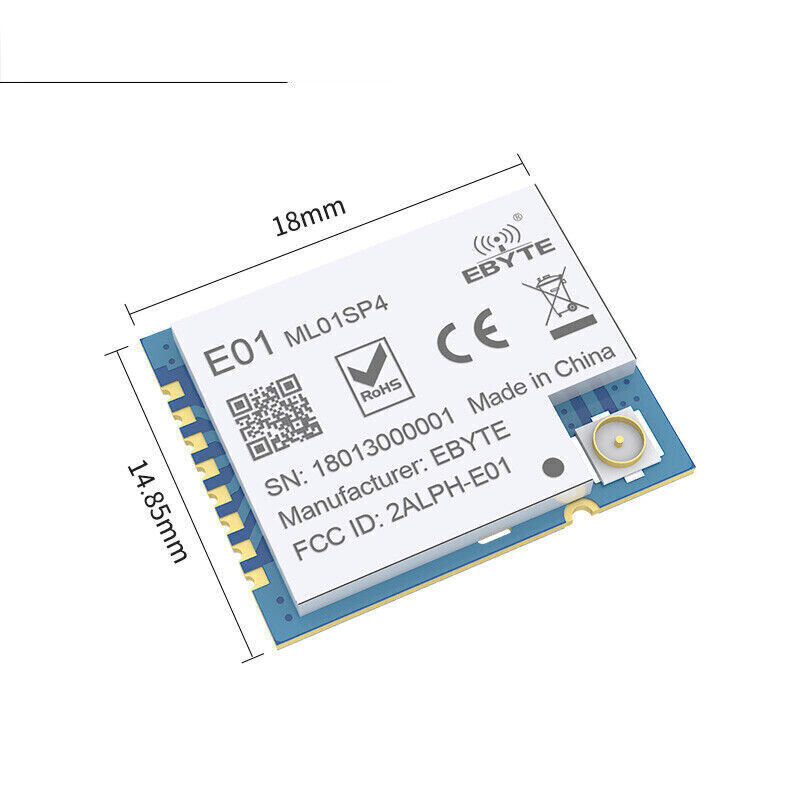

nRF24L01P 20dBm 2.4Ghz SPI Wireless Module IPX Transmitter Receiver E01-ML01SP4

$ 4.18

MPN: Does Not Apply Model: E01-ML01SP4 UPC: Does not apply Type: SPI Country/Region of Manufacture: China Interface: SPI Size: 14.5*18mm gtin13: Does not apply Frequency: 2.4~2.525GHz Brand: Peakelect Power: 20dBm Non-Domestic Product: No IC: nRF24L01P Custom Bundle: No Modified Item: No Range: 2000m

Description

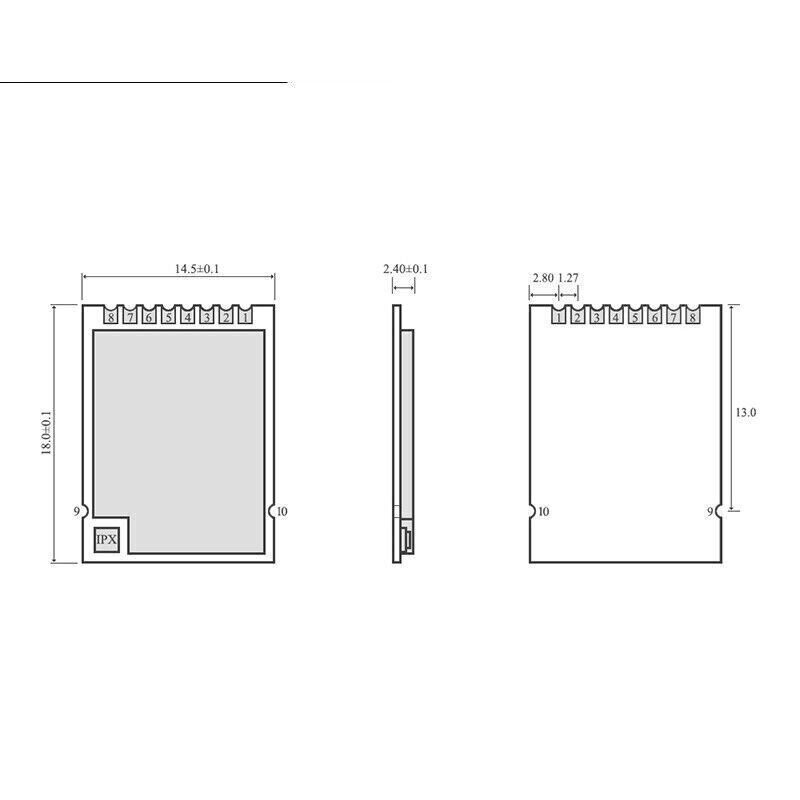

20dBm 2.4Ghz nRF24L01P SPI Wireless Module IPX Transmitter Receiver E01-ML01SP4 RF Parameter Value Remark Working frequency 2400~2525 MHz Default: 2.4GHz (16MHz oscillator) Transmitting power 20 dBm Max. Power (100mW) Receiving sensitivity -96 dBm Air data rate: 250kbps Air data rate 250k~2Mbps Default: 250kbps Test distance 2000m In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps Hardware Parameter Value Remark Size 14.8 * 18 mm Without SMA Antenna type IPEX Communication interface SPI Package SMD Electronic parameter Min. Typ. Max. Unit Condition Power supply 2.0 3.3 3.6 V Communication level 2.0 3.3 3.6 V Transmitting current 110 120 130 mA 20dBm（100mW） Receiving current 24 26 28 mA Sleep current 0.5 1.0 2.0 μA Operating temperature -40 20 +85 ℃ Operating humidity 10 60 90 % Storage temperature -40 20 +125 ℃
