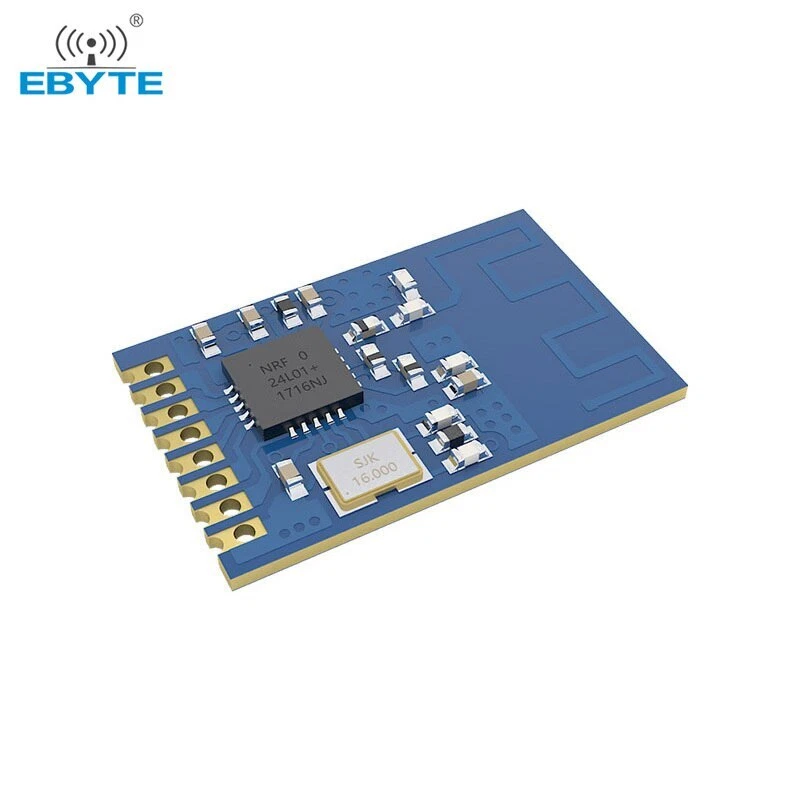

nRF24L01P SPI 2.4GHz 1mW IOT Wireless Transceiver Module PA LNA PCB AntennaEBYTE-image

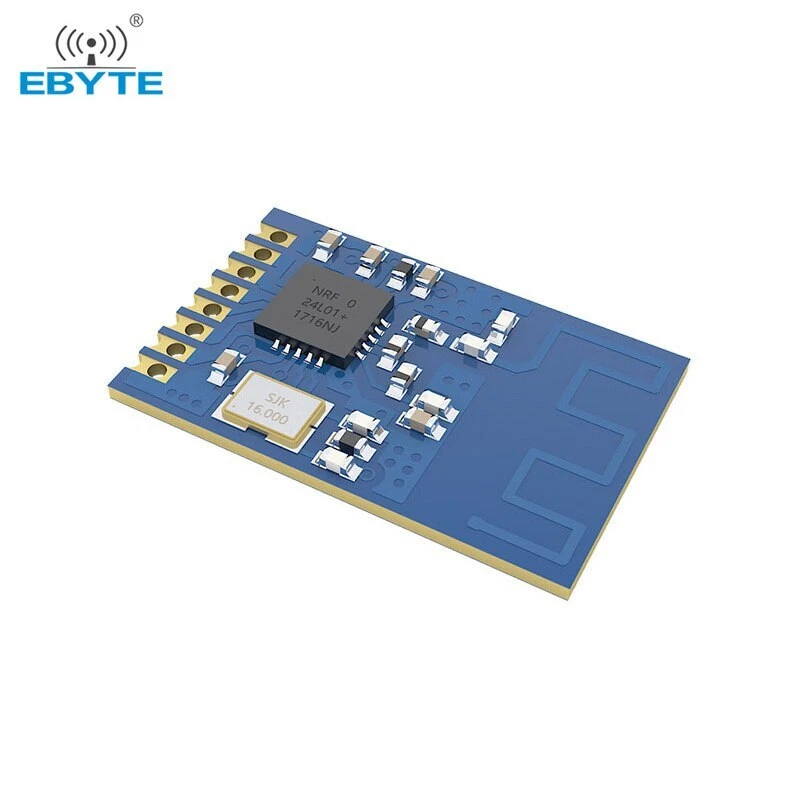

nRF24L01P SPI 2.4GHz 1mW IOT Wireless Transceiver Module PA LNA PCB AntennaEBYTE-image

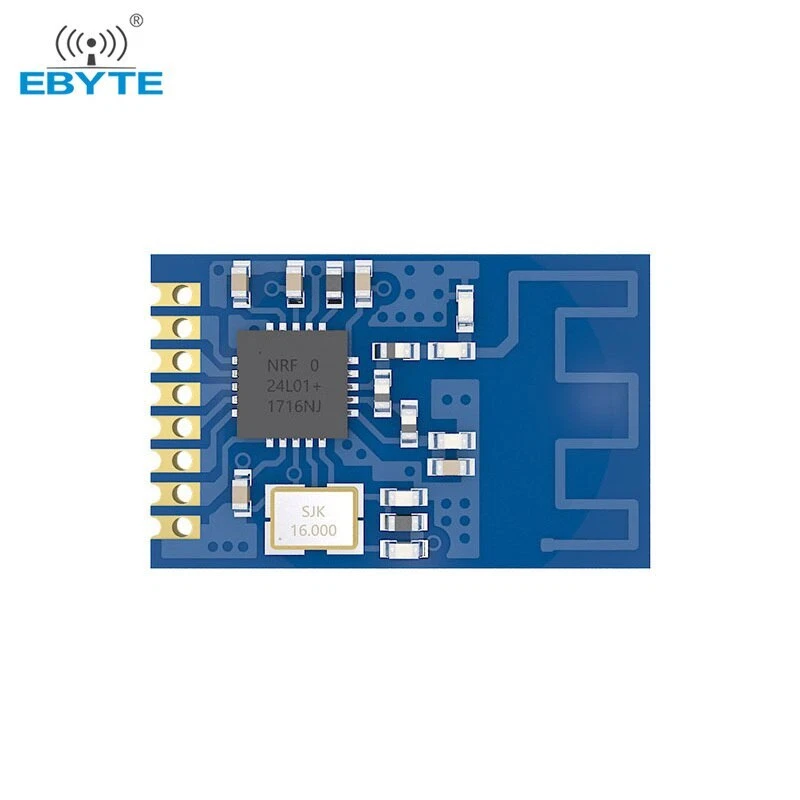

nRF24L01P SPI 2.4GHz 1mW IOT Wireless Transceiver Module PA LNA PCB AntennaEBYTE-image
nRF24L01P SPI 2.4GHz 1mW IOT Wireless Transceiver Module PA LNA PCB AntennaEBYTE-image
nRF24L01P SPI 2.4GHz 1mW IOT Wireless Transceiver Module PA LNA PCB AntennaEBYTE-image
nRF24L01P SPI 2.4GHz 1mW IOT Wireless Transceiver Module PA LNA PCB AntennaEBYTE-image
nRF24L01P SPI 2.4GHz 1mW IOT Wireless Transceiver Module PA LNA PCB AntennaEBYTE-image

nRF24L01P SPI 2.4GHz 1mW IOT Wireless Transceiver Module PA LNA PCB AntennaEBYTE

$ 0.74

MPN: Does Not Apply Modified Item: No Brand: EBYTE Custom Bundle: No UPC: Does not apply gtin13: Does not apply Model: E01-ML01S Type: Wireless Transceiver Module Country/Region of Manufacture: China

Description

RF Parameter Value Remark Working frequency 2400~2525 MHz Default: 2.4GHz (16MHz oscillator) Transmitting power 0 dBm Max. Power (1mW) Receiving sensitivity -93 dBm Air data rate: 250kbps Air data rate 250k~2Mbps Default: 250kbps Test distance 100m In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps Hardware Parameter Value Remark Size 12 * 19 mm Without SMA Antenna type PCB Communication interface SPI Package SMD Electronic parameter Min. Typ. Max. Unit Condition Power supply 2.0 3.3 3.6 V Communication level 2.0 3.3 3.6 V Transmitting current 12 13 14 mA 0dBm(1mW) Receiving current 11 12 13 mA Sleep current 0.5 1.0 2.0 μA Operating temperature -40 20 +85 ℃ Operating humidity 10 60 90 % Storage temperature -40 20 +125 ℃
