nRF52805 BLE5.0 Wireless Transmitter Module 2.4GHz LowEnergy Bluetooth LOT Board

$ 4.4

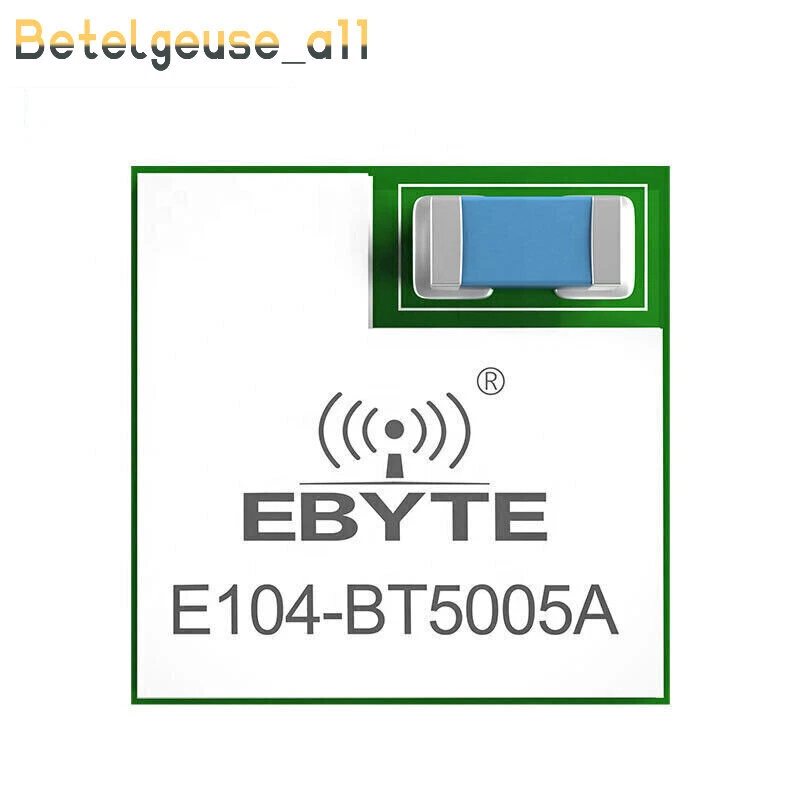

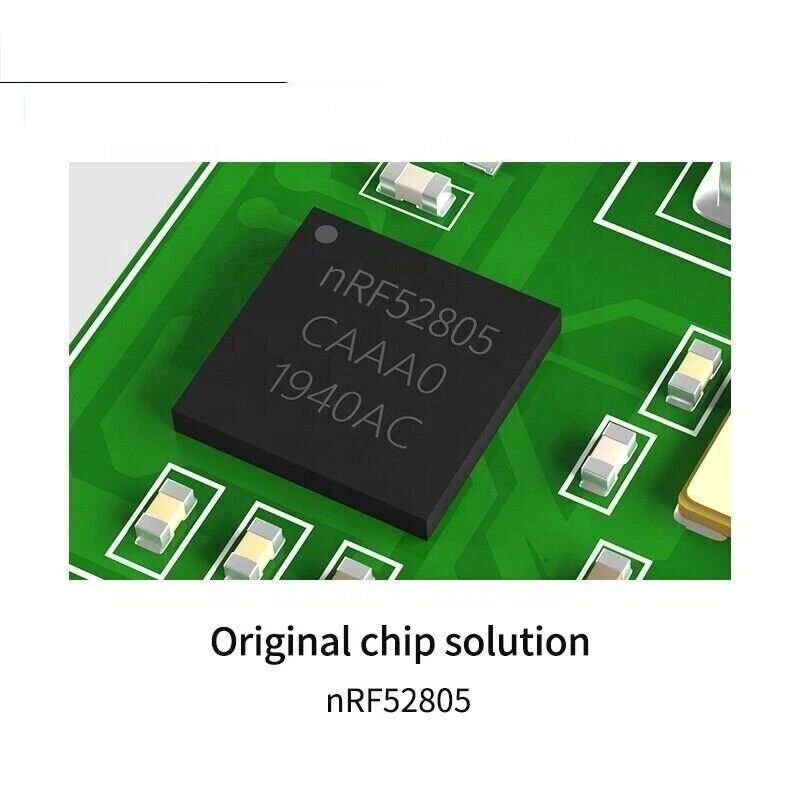

Modified Item: No Model: E104-BT5005A Country/Region of Manufacture: China Frequency: 2.4GHz Origin: CN(Origin) Brand: Peakelect Package: SMD MPN: Does Not Apply Bluetooth protocol: BLE5.0 Distance: 70 m Antenna Type: Ceramic Antenna Chipset: nRF52805 Type: Bluetooth module Interface: UART Custom Bundle: No is_customized: Yes

Description

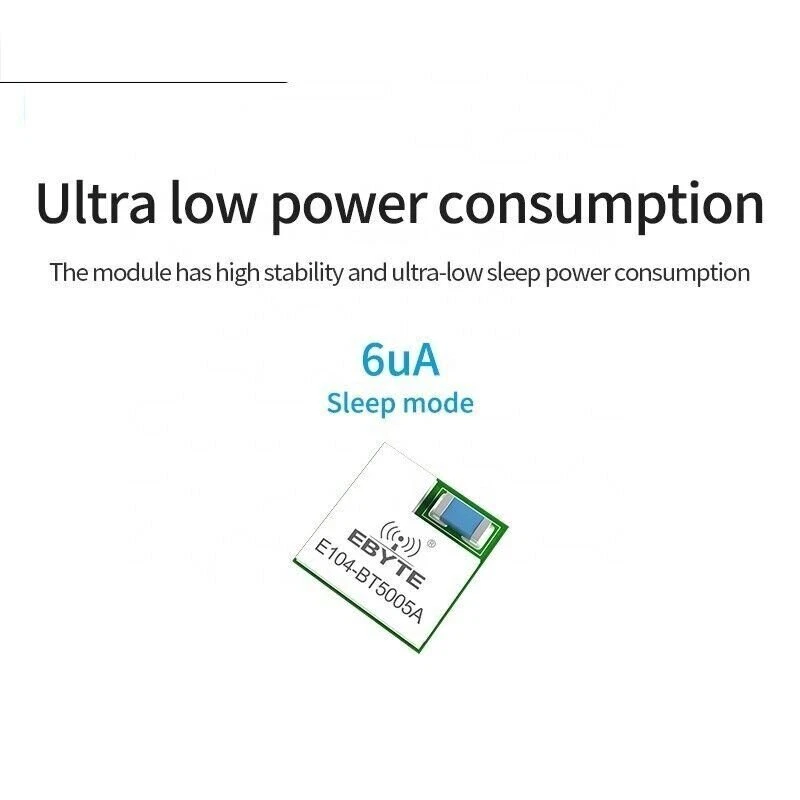

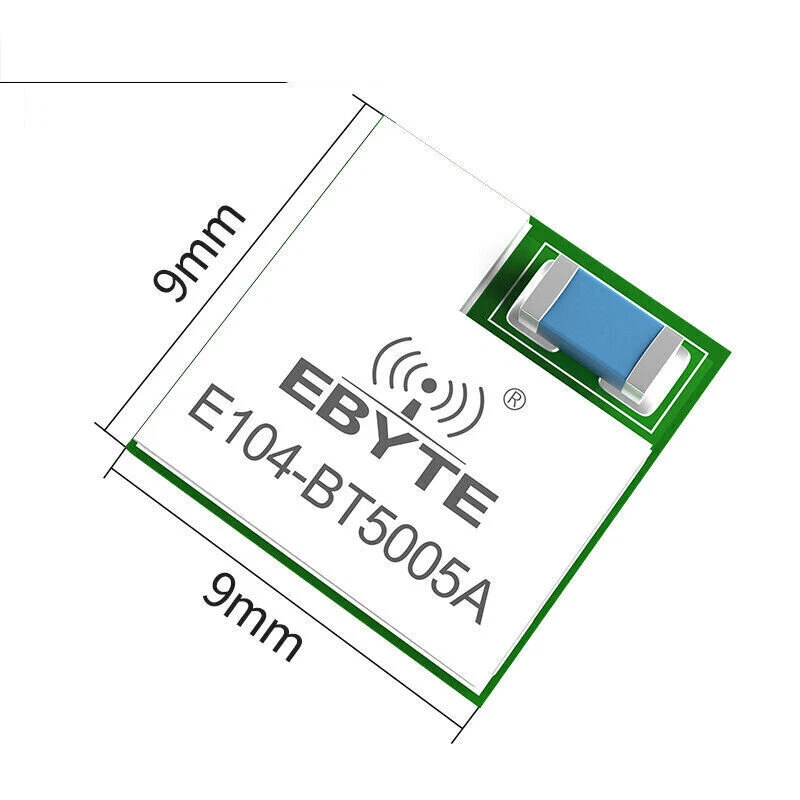

nRF52805 BLE5.0 Wireless Transmitter Module 2.4GHz LowEnergy Bluetooth LOT Board The main parameters Description Remarks Reference distance 70m Clear and open environment, height 2.0 meters; @4dBm; air speed: 2Mbps Bluetooth protocol BLE5.0 - Communication Interface UART serial port - Packaging method SMD - Interface method 1.1 mm - Dimensions 9*9mm - Antenna type Ceramic antenna Equivalent impedance is about 50Ω The main parameters Min. Typ. Max. Unit Remark Operating Voltage 1.7 3.3 3.6 V ≥3.3V can guarantee output power Communication level - 3.3 - V Using 5V TTL is risky to burn Operating temperature -40 - 85 ℃ Industrial design Working frequency 2402 - 2480 MHz Support ISM frequency band Emission current - 7.2 - mA - Receive current - 6.4 - mA - Maximum transmit power -3.5 3.8 4 dBm - Receiving sensitivity - -96 - dBm Bluetooth®lowenergymode Sleep broadcast current (default) - 6 - uA The default broadcast interval is 1s Wake up broadcast current (default) - 5.8 - mA The default broadcast interval is 1s Wake up without broadcast current (default) - 1.8 - mA The default connection gap is 500ms
