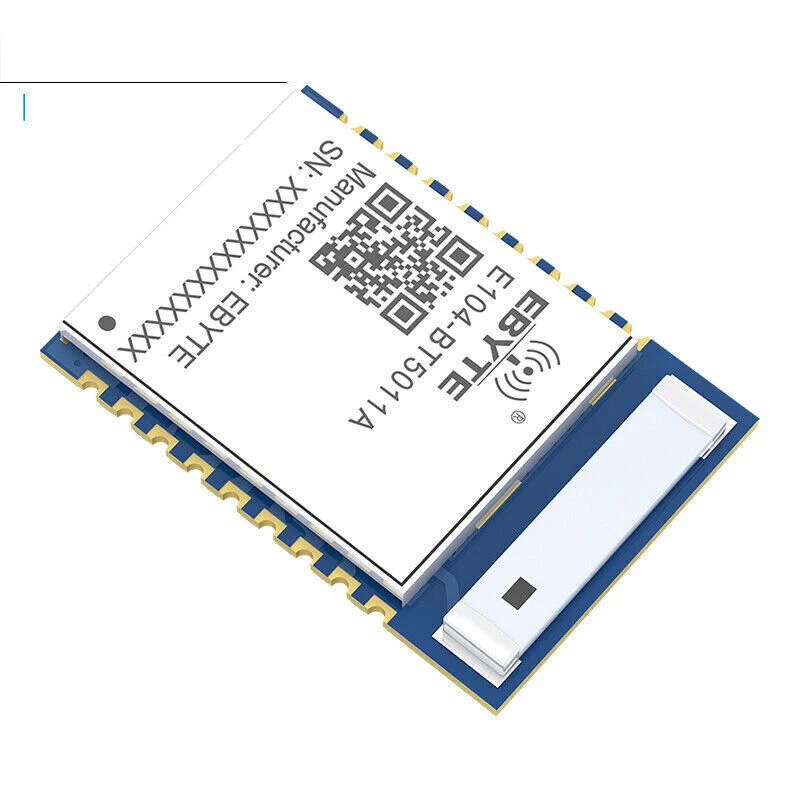

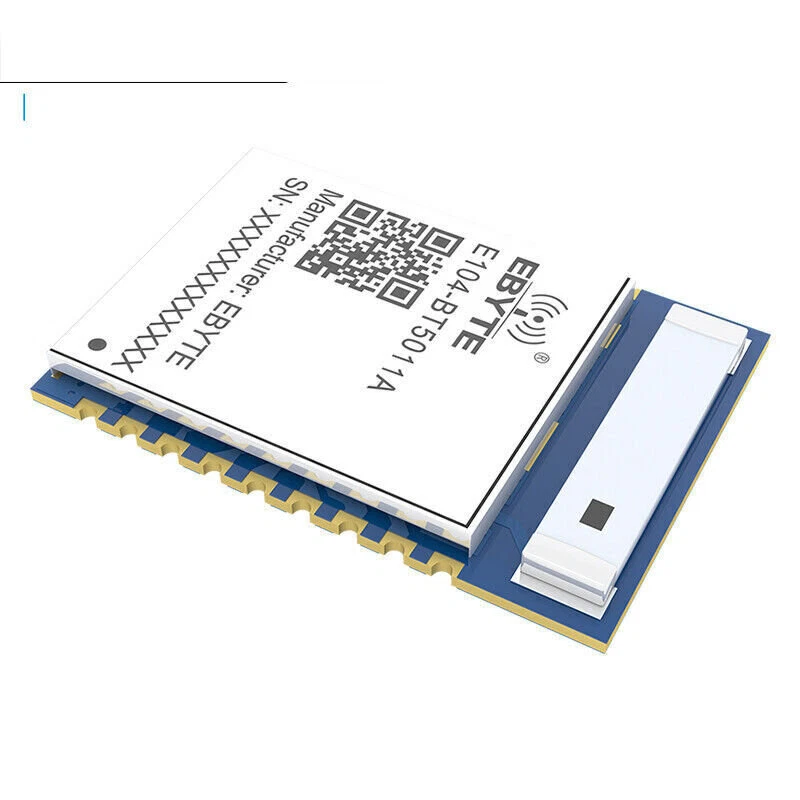

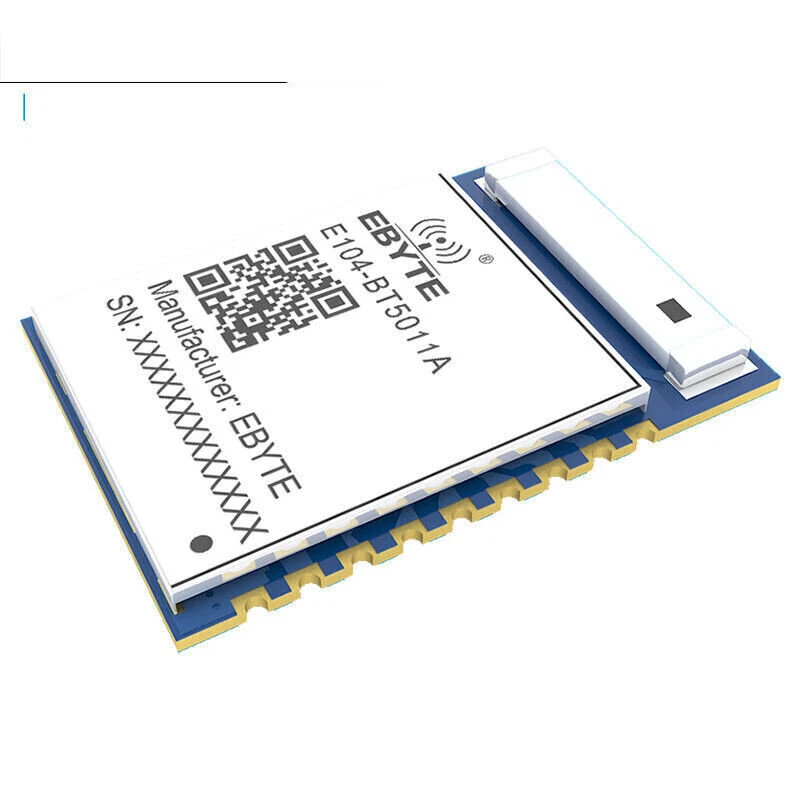

nRF52811 long-range BLE 5.1 wireless module E104-BT5011A transceiver

$ 5.06

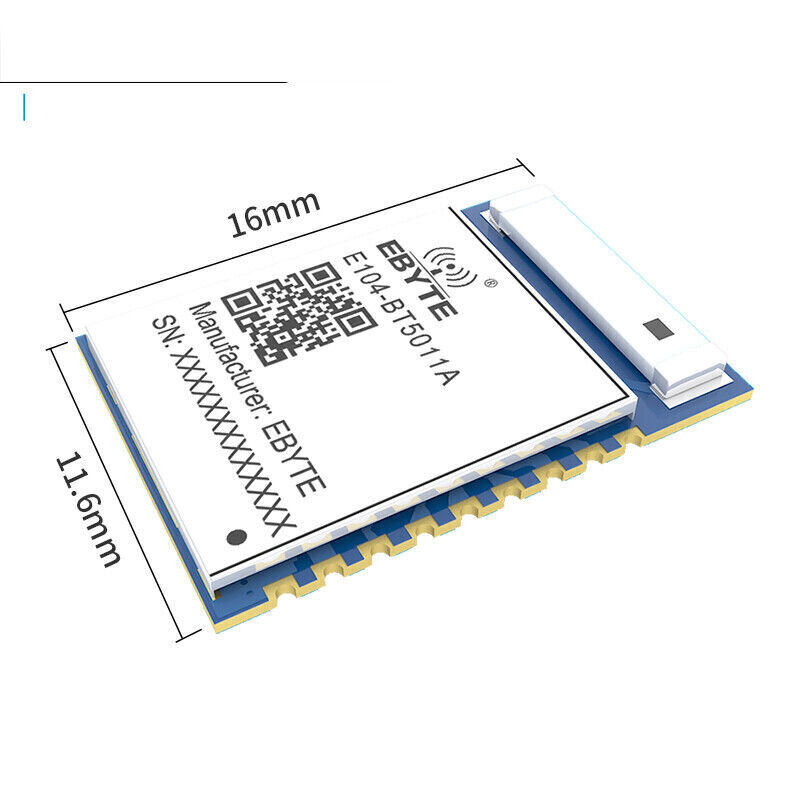

Model: E104-BT5011A Distance: 70m MPN: Does Not Apply gtin13: Does not apply Custom Bundle: No Frequency: 2.402~2.480GHz Type: Bluetooth Module Antenna: Ceramic antenna Brand: Peakelect Protocol: BLE5.1 Modified Item: No Size: 11.6*16mm IC: nRF52811 Communication interface: UART UPC: Does not apply

Description

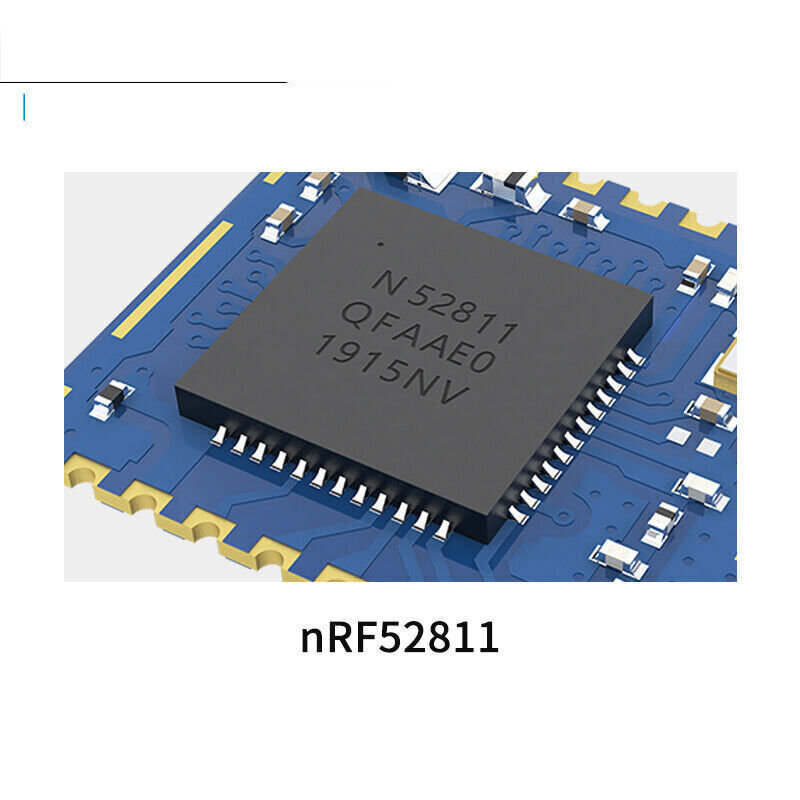

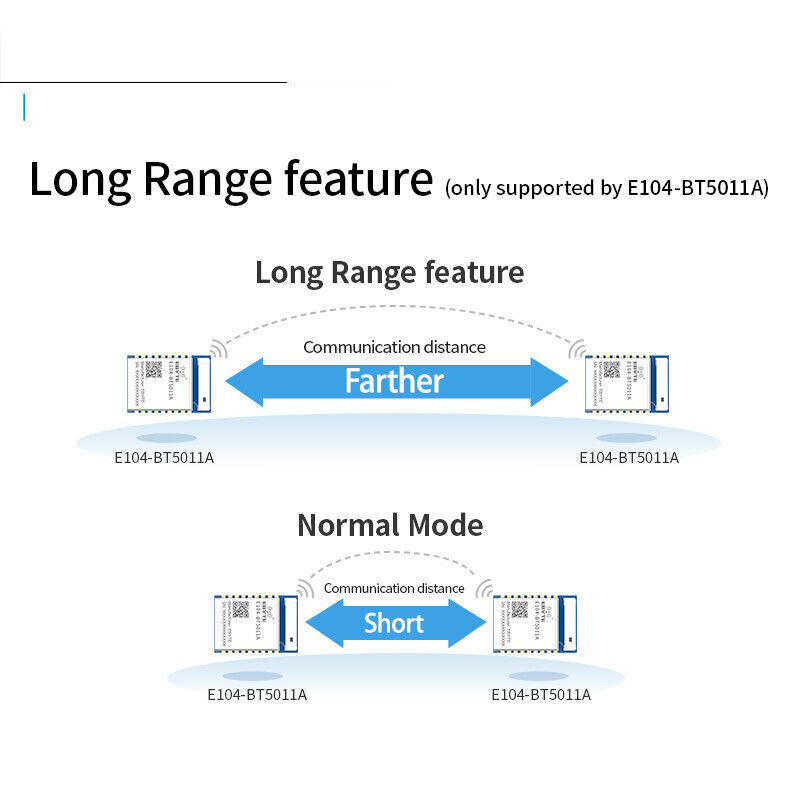

nRF52811 wireless module Long range transceiver E104-BT5011A BLE 5.1 module Product Description Electrical Parameter RF parameters Parameter value Remarks Working frequency 2402~2480 MHz Support ISM frequency band Maximum transmit power 4 dBm - Receiving sensitivity -96 dBm Bluetooth®lowenergymode Measured distance 70m Clear and open environment, height 2.0 meters; @4dBm; air speed: 1Mbps Ardware parameters Parameter value Size 11.5 * 16 mm Antenna form Ceramic antenna Communication Interface UART serial port Packaging method Patch Electrical parameters Min. Typical value Max. Unit Condition voltage 1.7 3.3 3.6 V ≥3.3V Guaranteed output power Communication level - 3.3 - V Using 5V TTL is risky to burn Emission current - 13 19 uA - Receive current - 13 - mA - Sleep current - 8 - mA - Sleep broadcast current (default) - 13.83 - mA Broadcast gap is 1s Operating temperature -40 - 85 ℃ Industrial grade Storage temperature -40 - 125 ℃ -
