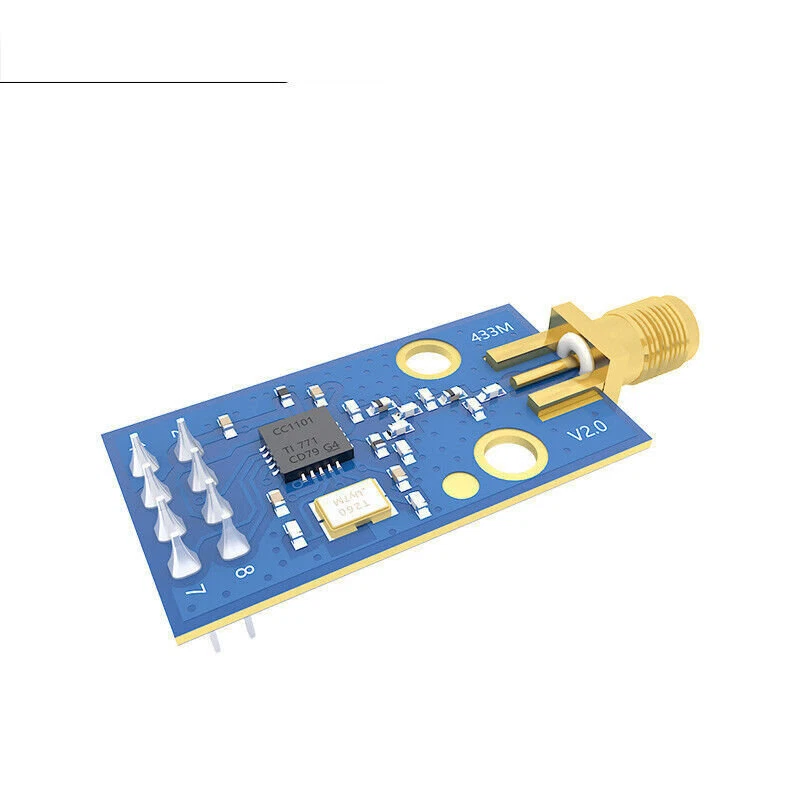

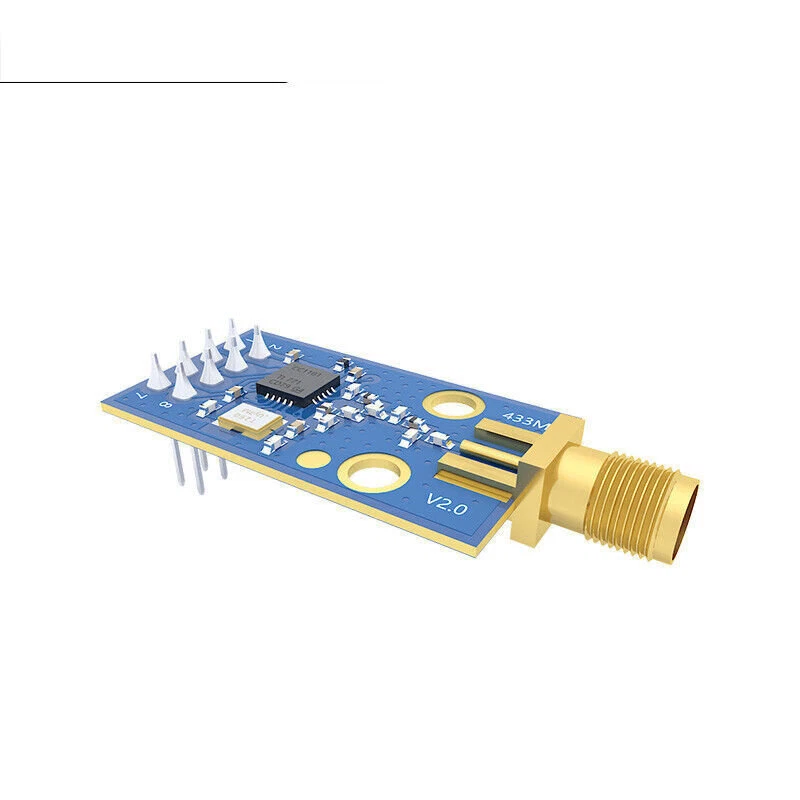

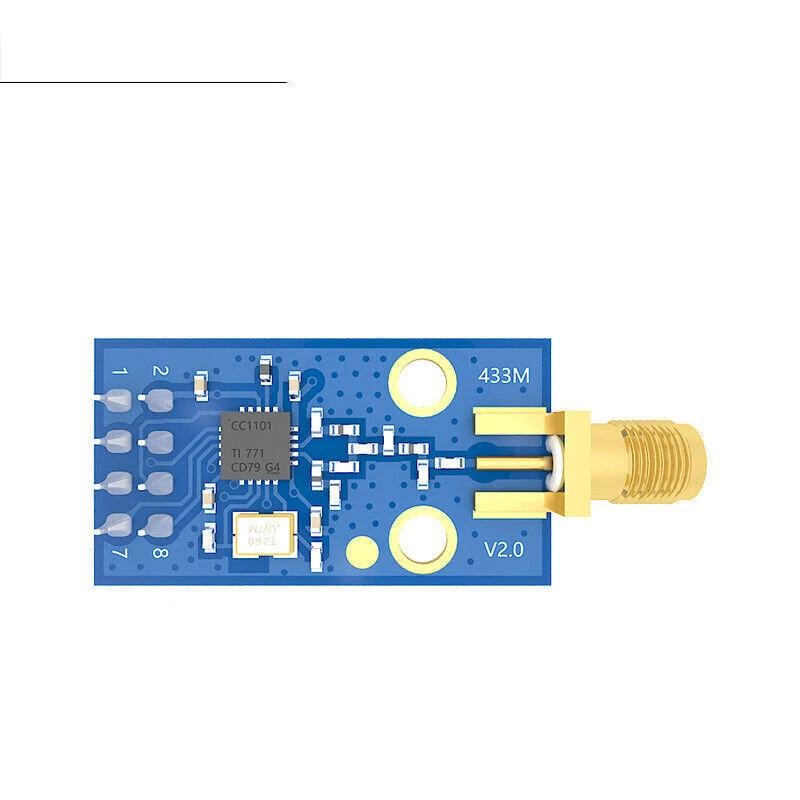

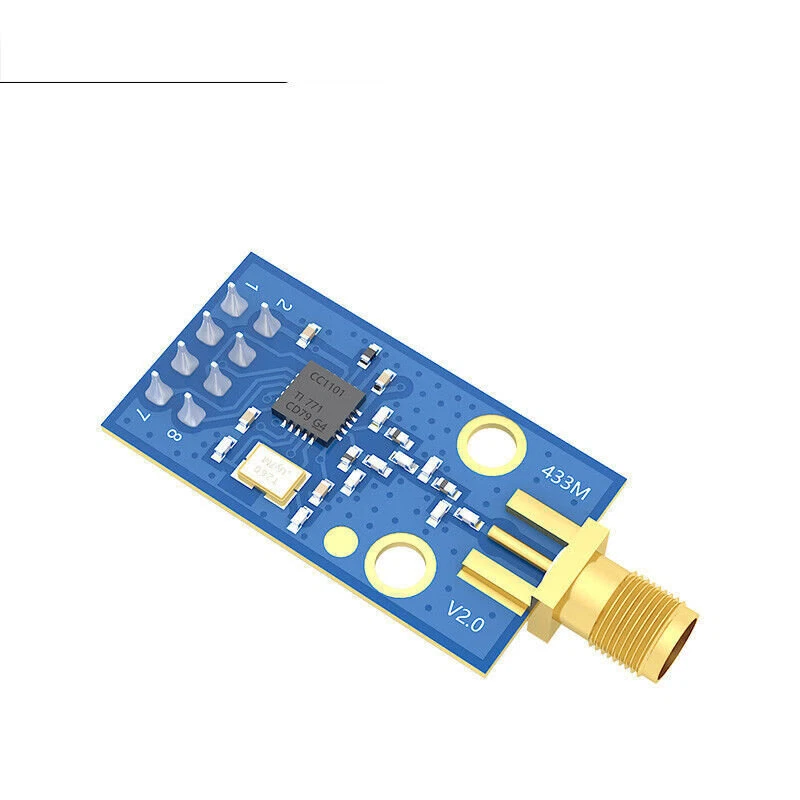

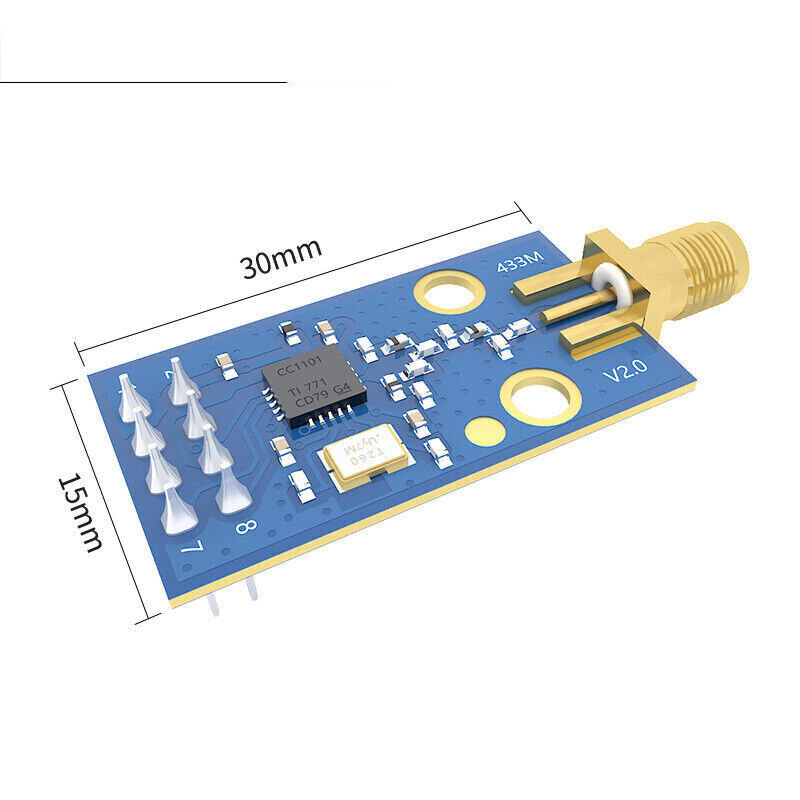

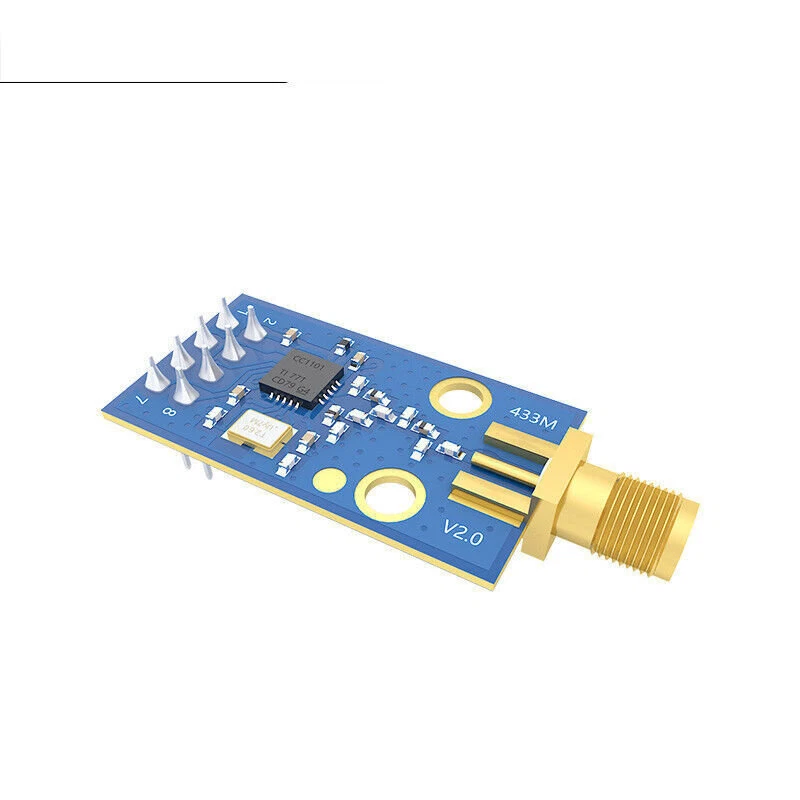

1/5PCS CC1101 SPI 433MHz Range 10 dBm Wireless Transceiver Module SMA EBYTE
$ 4.18
Description

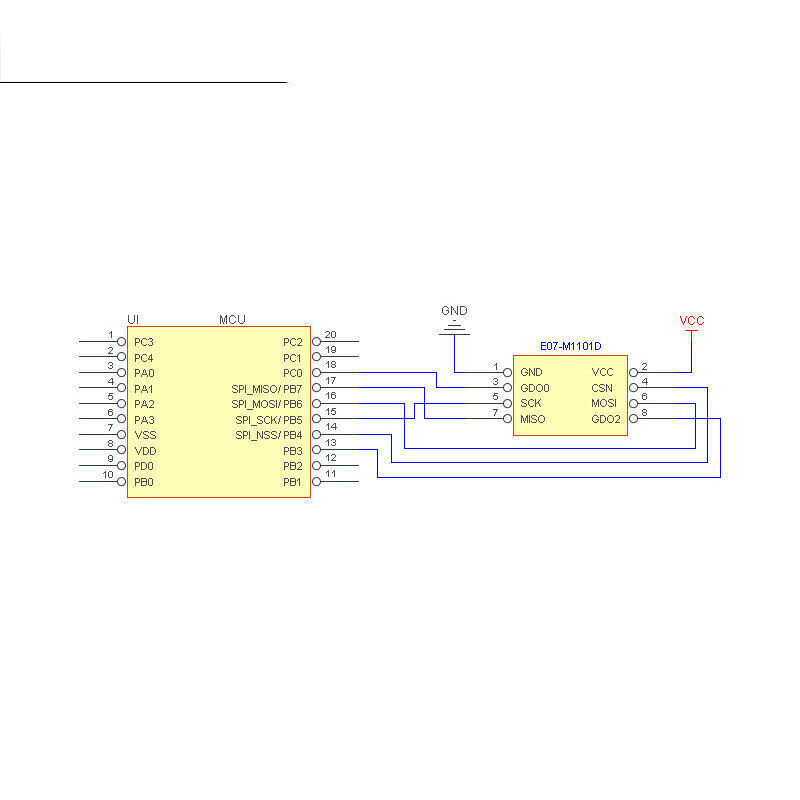

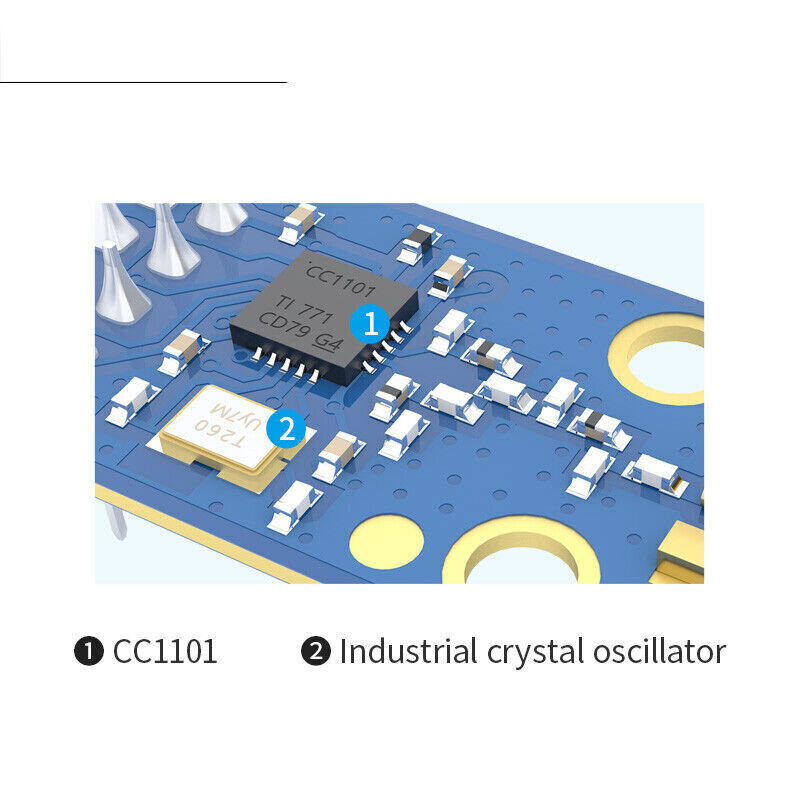

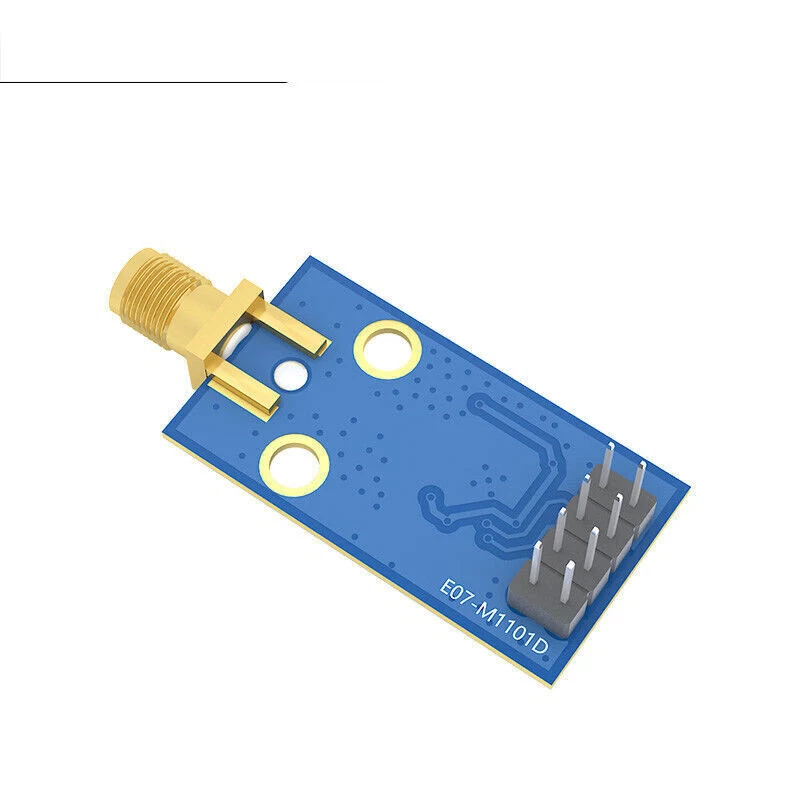

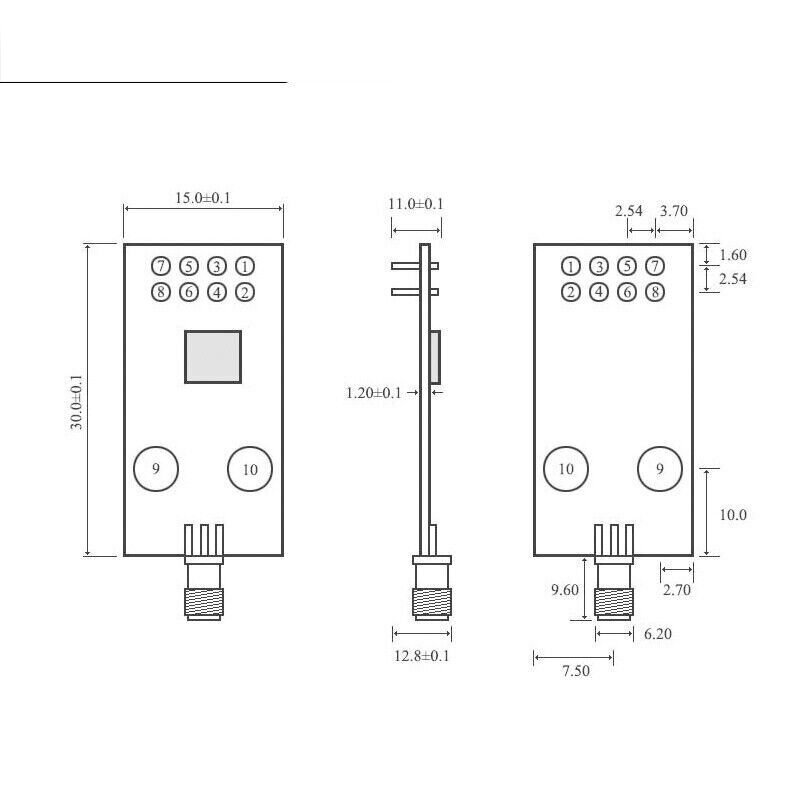

Buy more than 20 pieces, send the antenna gift, please note when placing an order E07-M1101D-SMA CC1101 SPI 433MHz Long Range Wireless Transceiver Module RF Parameter Value Remark Working frequency 387~464 MHz Default: 433MHz (26MHz oscillator) Transmitting power 10 dBm Max. Power (10mW) Receiving sensitivity -108 dBm Air data rate: 0.6kbps Air data rate 0.6k~500kbps Default: 0.6kbps Test distance 1000m In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 0.6kbps Hardware Parameter Value Remark Size 15 * 30 mm Without SMA-K Antenna type SMA-K Communication interface SPI Package DIP Electronic parameter Min. Typ. Max. Unit Condition Power supply 1.8 3.3 3.6 V Communication level 1.8 3.3 3.6 V Transmitting current 27 29 32 mA 10dBm（10mW） Receiving current 16 18 20 mA Sleep current 0.3 0.6 2.1 μA Operating temperature -40 20 +85 ℃ Operating humidity 10 60 90 % Storage temperature -40 20 +125 ℃
