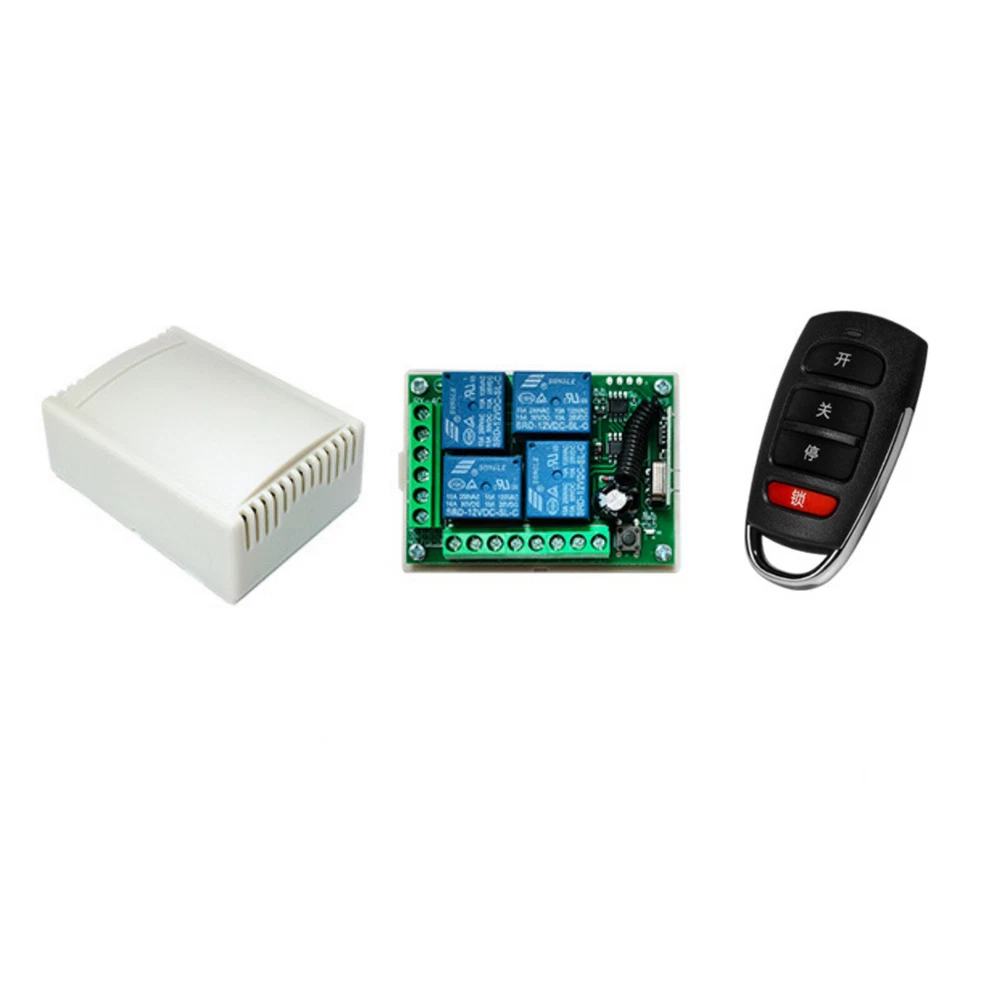

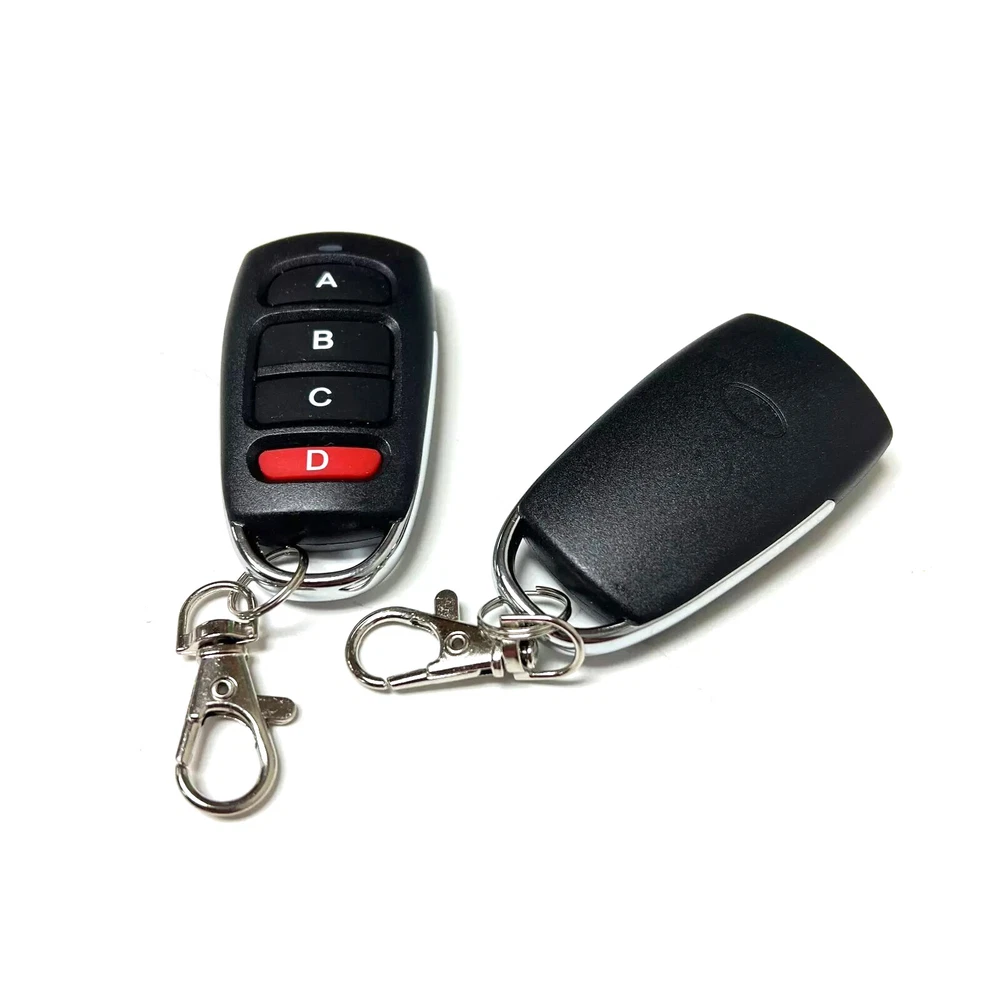

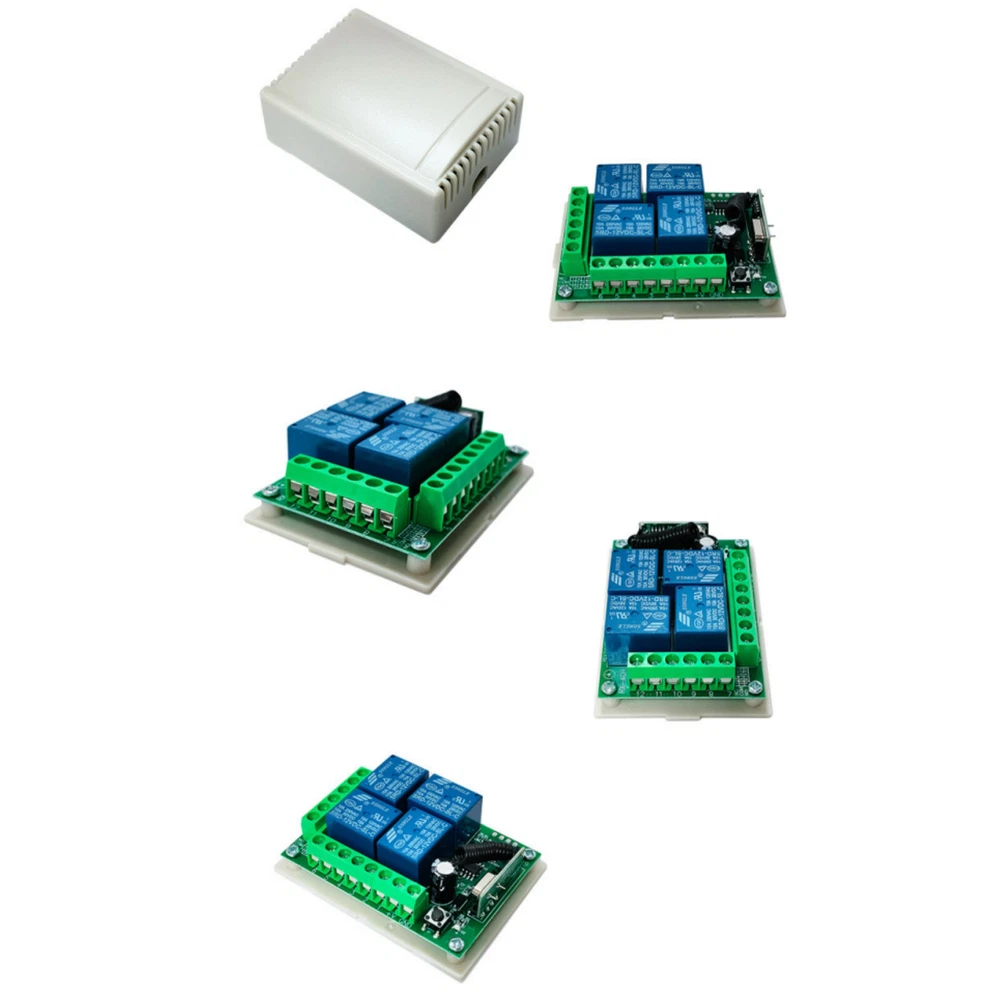

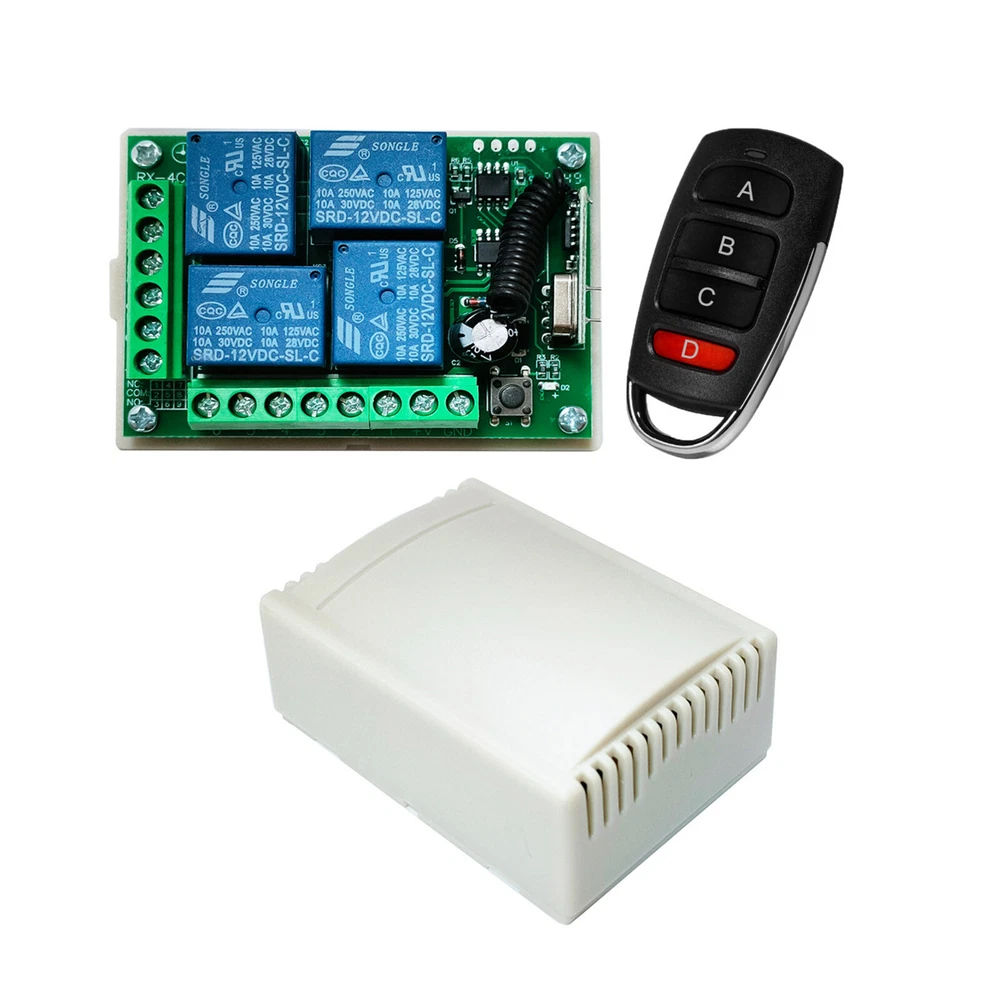

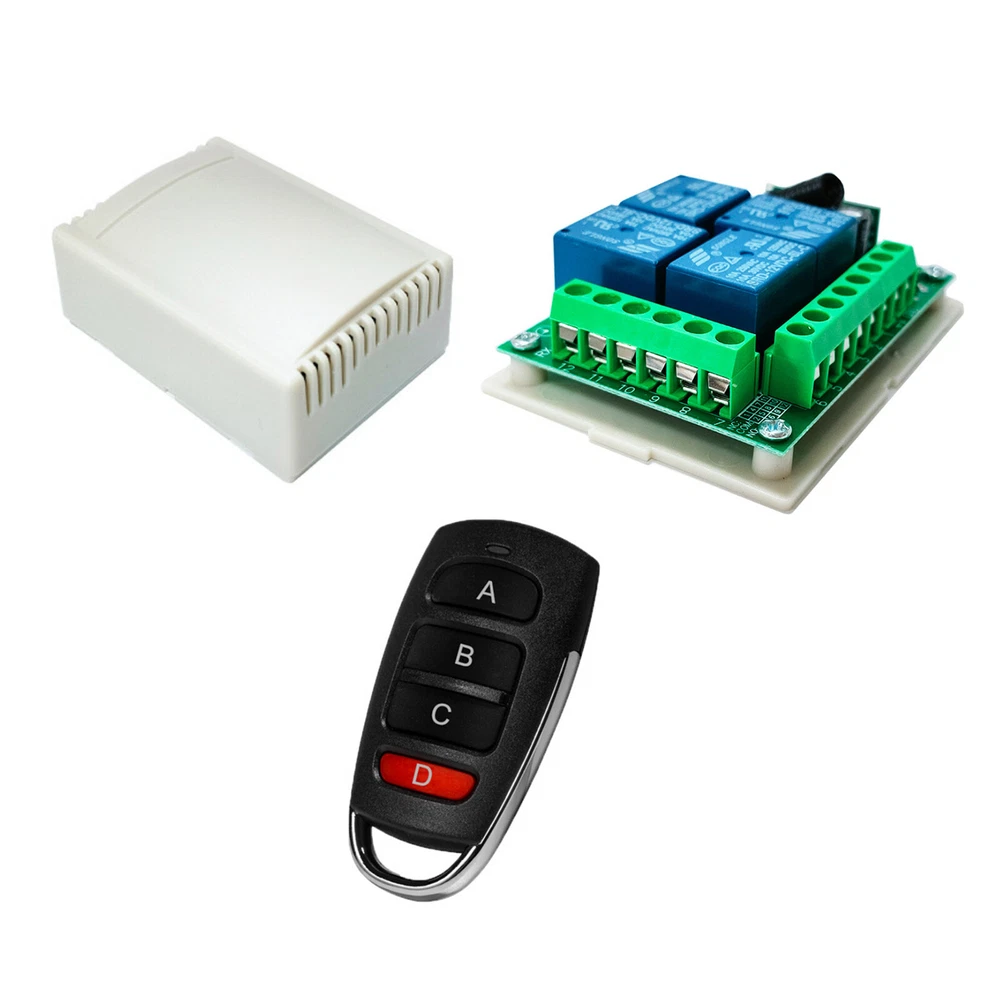

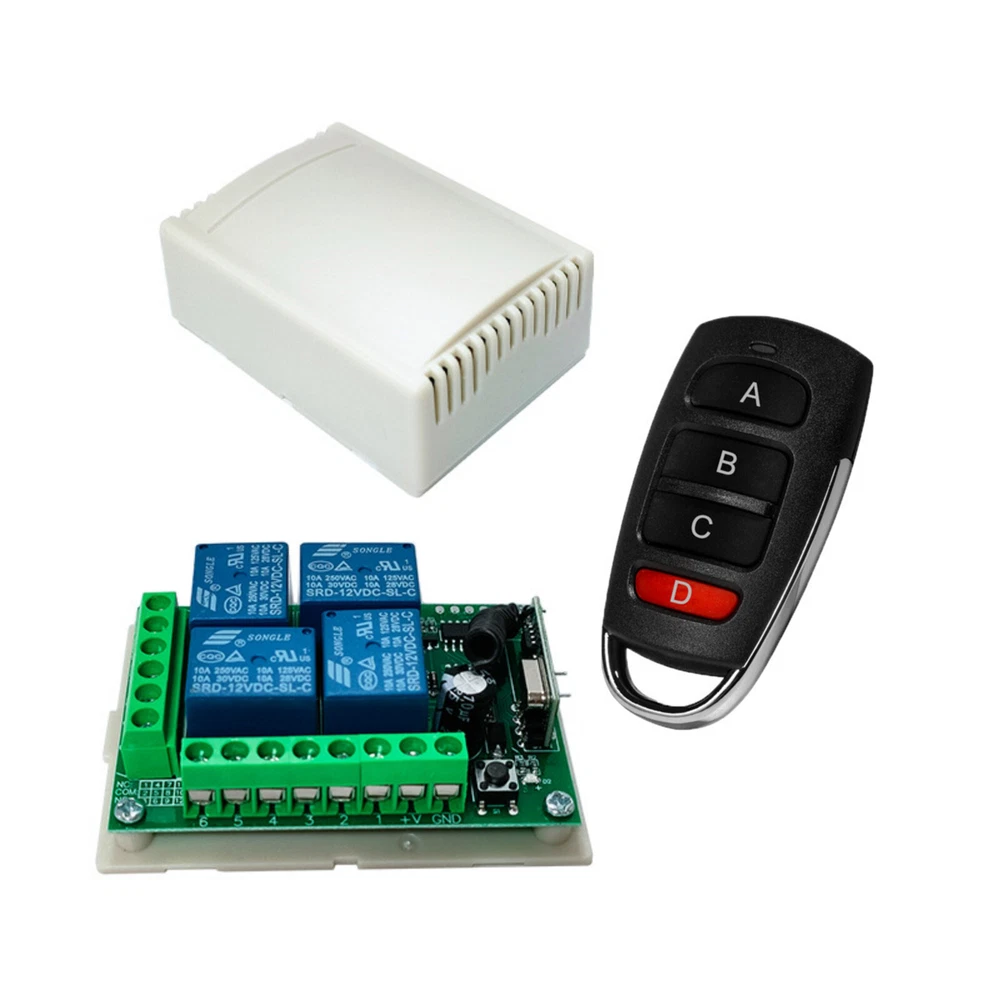

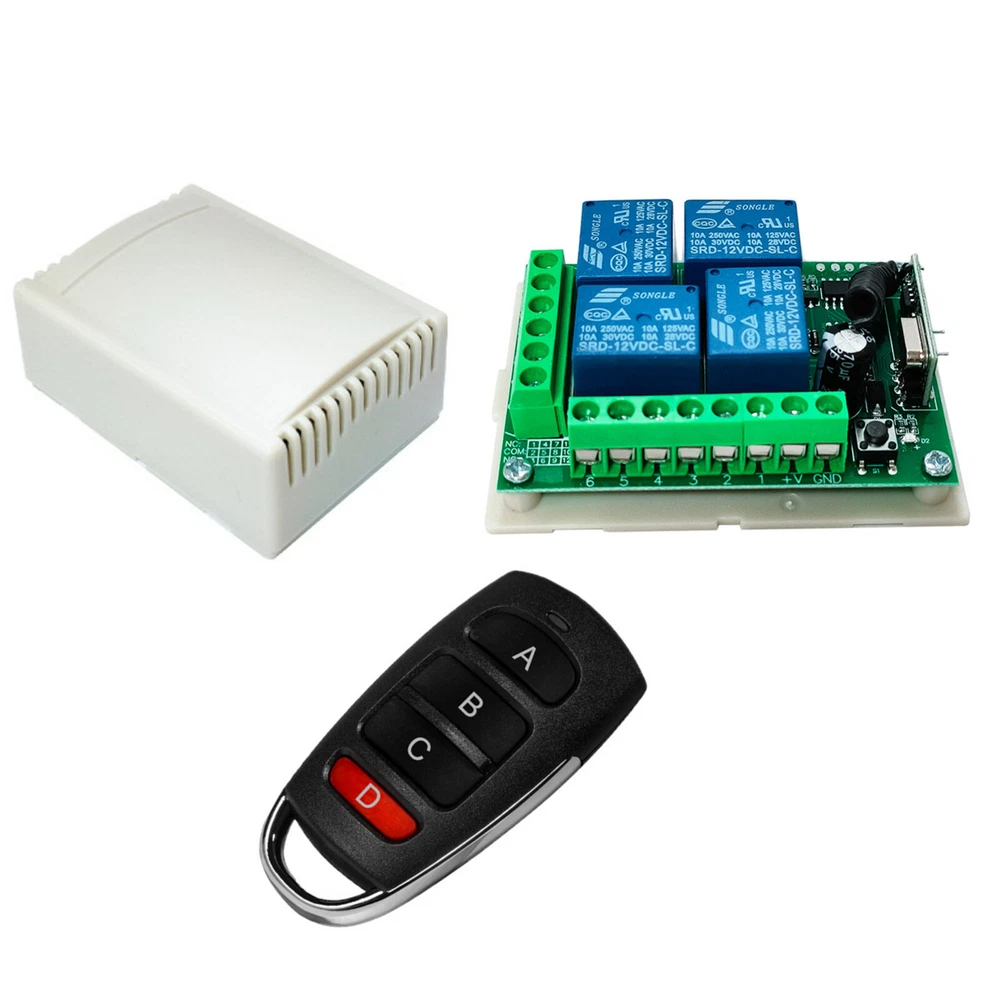

4CH Channel Relay RF Wireless Remote Control Switch Transmitter+Receiver ABS

Description

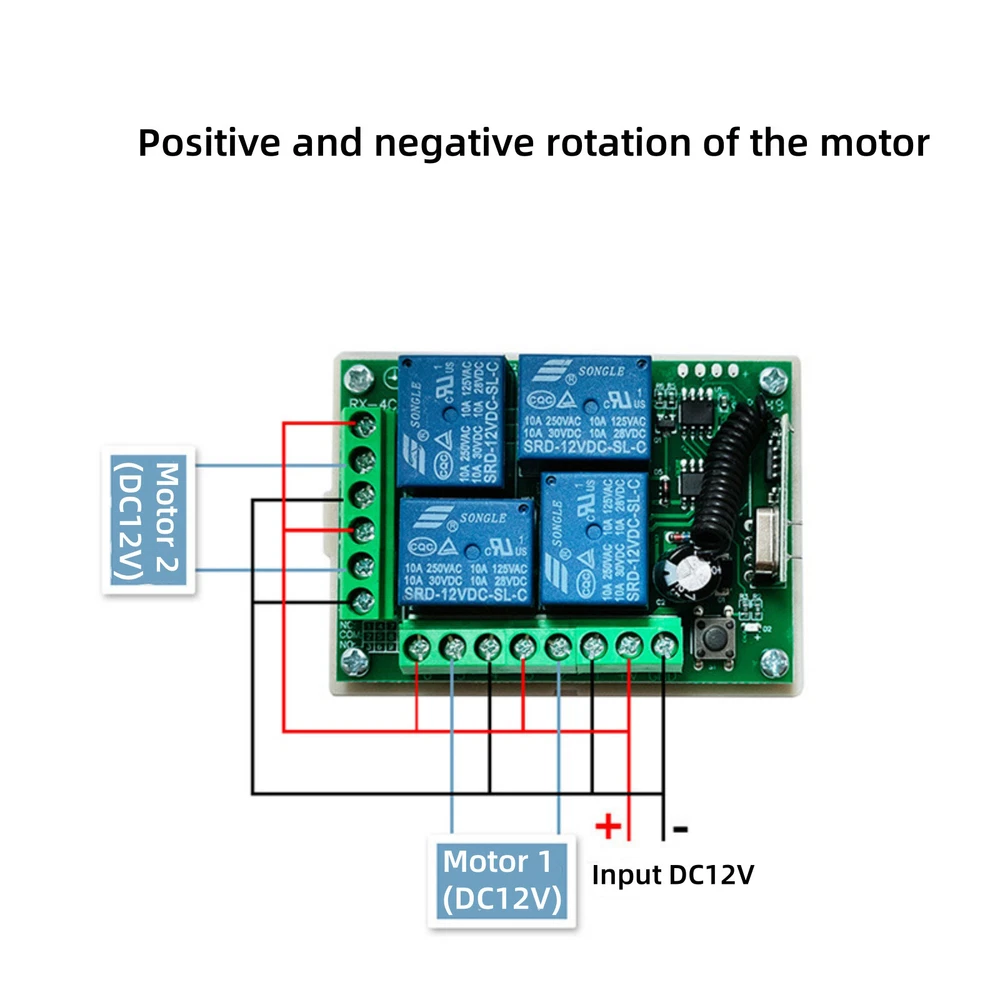

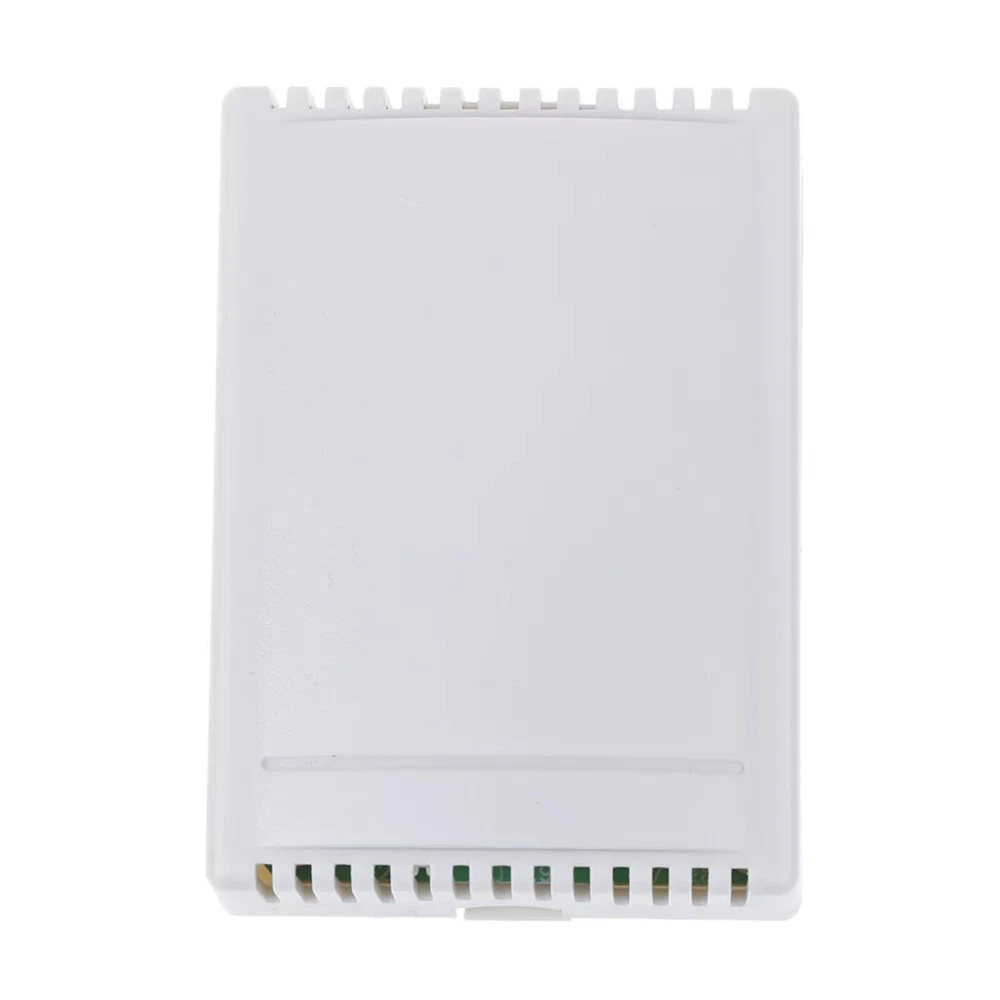

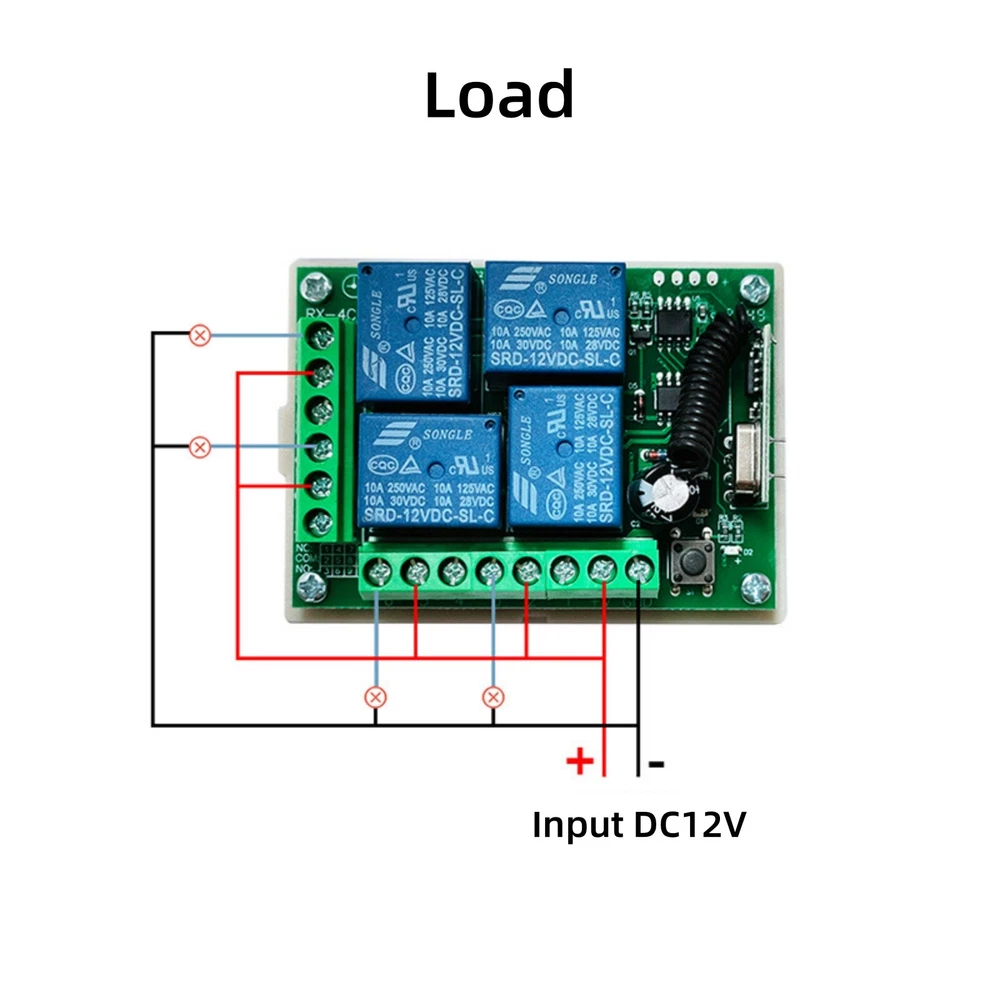

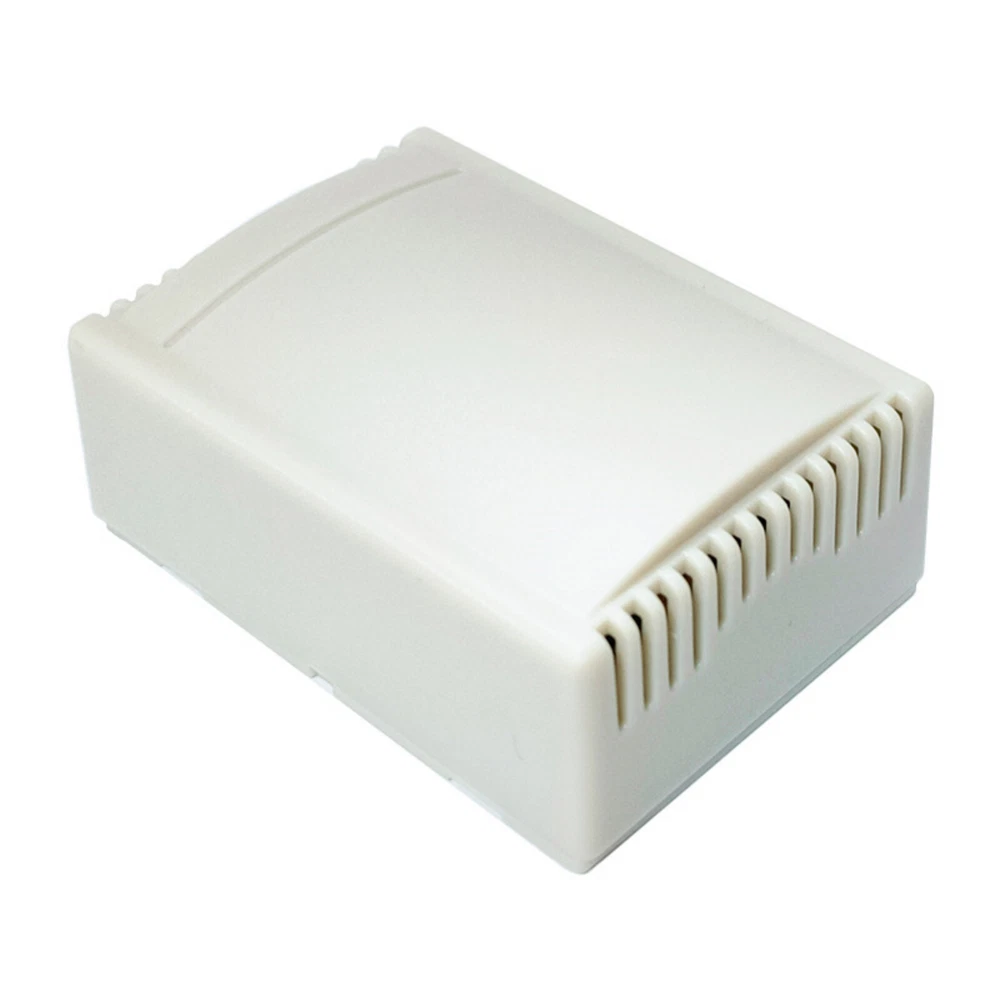

Product Description 4CH Channel Relay RF Wireless Remote Control Switch Transmitter+Receiver ABS Features: Long Range: Signal Can Pass Through Walls, Floors And Doors, Steadily Control Receiver From Any Place Within A Reliable Distance. Max Range Is Up To 70m With No Obstacle. 4ch For More Control: Adjustable Working Way, Control Equipment Turn/Reverse, On/Off. Switch Self-Lock, Jog, Inter-Lock. Security Control: Learning Code Has High-Level Security For Its Low Repetitive Rate And Re-Learn Mode, By Which It Can Delete The Old Code And Re-Learn A New Code When A Remote Control Get Lost, So You Are Always In Control Of It. Easy To Use: Extremely Easy To Setup, Learn, Relearn And Control. Stable And Reliable Performance, High Receive Sensitivity. Wide Application: Wide Range Of Applications From Simple Domestic Remote Control To Autonomous Control Such As, Window, Entrance, Garage Doors, Alarm System, Lifting Equipment And So On.  Specifications: Working Voltage: DC12V Product Type: 4-Channel Remote Control Switch Rf Frequency: 315mhz Receiving Sensitivity: -113dbm Shell Material : ABS Support Coding Chip: EV1527 Load Power: 120W * 4(12V/10A) Working Temperature: -10℃～+70℃ Remote Control Battery: 1* Cr2032 Battery(Battery Included)  Matters Needing Attention: 1. When The Voltage Of The Remote Control Is Insufficient, Please Replace The Battery In A Timely Manner (When The Voltage Of The Remote Control Battery Is Insufficient, The Distance Of The Remote Control Will Generally Become Closer), 2. When Using Wireless Electronic Products, Attention Should Be Paid To Avoiding Strong Sources Such As Metal Surfaces, Large Electronic Devices, Electromagnetic Fields, Etc. To Prevent The Remote Control From Having A Short Receiving Distance Or Not Working Properly. 3. Do Not Use This Electronic Product Abnormally. Abnormal Use Can Reduce Product Performance And Lifespan, And In Severe Cases, It Can Damage The Product And Pose A Safety Hazard To You. 4. All Wiring Operations Should Be Carried Out In A Power-Off State! It Is Recommended To Have A Professional Electrician Perform The Wiring Operation. Matching Methods: Set Jog Mode: Press The Code Matching Button On The Control Board Once, And The Led Indicator Light Will Turn On. Then Press The Remote Control Button (Such As The A Button) That Requires Code Matching, And The Led Indicator Light On The Control Board Will Flash Continuously Three Times To Indicate Successful Code Matching. Set Self-Locking Mode: Press The Code Matching Button On The Control Board Twice, And The Led Indicator Light Will Turn On. Then Press The Remote Control Button (Such As The A Button) That Requires Code Matching, And The Led Indicator Light On The Control Board Will Flash Continuously Three Times Indicates Successful Code Matching. Set Interlock Mode: Press The Code Matching Button On The Control Board Three Times, And The Led Indicator Light Will Turn On. Then Press The Remote Control Button (Such As Button A) That Requires Code Matching, And The Led Indicator Light On The Control Board Will Flash Continuously Three Times To Indicate Successful Code Matching. Set Two-Way Self-Locking And Two-Way Jog Modes: Press The Code Matching Button On The Control Board 4 Times, And The Led Indicator Light Will Turn On. Then Press The Remote Control Button (Such As The A Button) That Requires Code Matching, And The Led Indicator Light On The Control Board Will Flash Continuously 3 Times Indicates Successful Code Matching. Set Two-Way Interlock And Two-Way Self-Locking Mode: Press The Code Matching Button On The Control Board 5 Times, And The Led Indicator Light Will Turn On. Then Press The Remote Control Button (Such As The A Button) That Requires Code Matching, And The Led Indicator Light On The Control Board Will Flash Continuously 3 Times To Indicate Successful Code Matching. Set Two-Way Interlock And Two-Way Jog Mode: Press The Code Matching Button On The Control Board 6 Times, And The Led Indicator Light Will Turn On. Then Press The Remote Control Button (Such As The A Button) That Requires Code Matching, And The Led Indicator Light On The Control Board Will Flash Continuously 3 Times To Indicate Successful Code Matching. Set Two-Way Interlock And Two-Way Interlock Mode: Press The Code Matching Button On The Control Board 7 Times, And The Led Indicator Light Will Turn On. Then Press The Remote Control Button (Such As The A Button) That Requires Code Matching, And The Led Indicator Light On The Control Board Will Flash Continuously 3 Times To Indicate Successful Code Matching. Set Clear Code: Press The Code Matching Button On The Control Board 8 Times In A Row, And Then The Led Indicator Light Will Automatically Flash 3 Times In A Row, Indicating That The Code Clearing Is Complete And All Previously Learned Remote Control Button Codes Will Be Cleared Working Modes: Jogging: After Successful Pairing Of This Mode, Press The Remote Control Button (Such As Button A), And The Corresponding Relay On The Remote Control Switch Will Be Engaged; Release The Remote Control Button And Disconnect The Corresponding Relay On The Remote Control Switch. Self Locking: After Successful Pairing Of This Mode, Press The Remote Control Button (Such As Button A), And The Corresponding Relay On The Remote Control Switch Will Be Engaged; Press The Remote Control Button Again (Such As Button A), And The Corresponding Relay On The Remote Control Switch Will Disconnect. Interlocking: After Successful Pairing Of This Mode, Press The Remote Control Button (Such As Button A), And The Corresponding Relay On The Remote Control Switch Will Be Engaged; Press The Remote Control Button (Such As Button B), And The Relay On The Remote Control Switch Corresponding To Button A Will Be Disconnected, While The Relay On The Remote Control Switch Corresponding To Button B Will Be Engaged Two Way Self-Locking And Two Way Inching: After Successful Pairing Of This Mode, Press The Remote Control Button (Such As A Or B Button), And The Corresponding Relay On The Remote Control Switch Will Be Engaged; Press The Remote Control Button Again (Such As A Or B), And The Corresponding Relay On The Remote Control Switch Will Disconnect; Press The Remote Control Button (Such As C Or D), And The Corresponding Relay On The Remote Control Switch Will Be Engaged; Release The Remote Control Button (Such As C Or D), And The Corresponding Relay On The Remote Control Switch Will Disconnect Two Way Interlock And Two Way Self-Locking: After Successful Pairing Of This Mode, Press The Remote Control Button (Such As Button A), And The Corresponding Relay On The Remote Control Switch Will Be Engaged; Press The Remote Control Button (Such As Button B), The Relay On The Remote Control Switch Corresponding To Button A Will Be Disconnected, And The Relay On The Remote Control Switch Corresponding To Button B Will Be Engaged; Press The Remote Control Button (Such As C Or D), And The Corresponding Relay On The Remote Control Switch Will Be Engaged; Press The Remote Control Button Again (Such As C Or D), And The Corresponding Relay On The Remote Control Switch Will Disconnect Two Way Interlock And Two Way Jog: After Successful Pairing Of This Mode, Press The Remote Control Button (Such As Button A), And The Corresponding Relay On The Remote Control Switch Will Be Engaged; Press The Remote Control Button (Such As Button B), The Relay On The Remote Control Switch Corresponding To Button A Will Disconnect, And The Relay On The Remote Control Switch Corresponding To Button B Will Close. Press The Remote Control Button (Such As Button C Or D), And The Relay On The Remote Control Switch Will Close; Release The Remote Control Button (Such As The Key Or D Key), And The Corresponding Relay On The Remote Control Switch Will Disconnect Two Way Interlock And Two Way Interlock: After Successful Pairing Of This Mode, Press The Remote Control Button (Such As Button A), And The Corresponding Relay On The Remote Control Switch Will Be Engaged; Press The Remote Control Button (Such As Button B), The Relay On The Remote Control Switch Corresponding To Button A Will Disconnect, And The Relay On The Remote Control Switch Corresponding To Button B Will Close. Press The Remote Control Button (Such As Button C), And The Relay On The Remote Control Switch Will Close; Press The Remote Control Button (Such As The D Button) And The Relay On The Remote Control Switch Corresponding To The C Button Will Disconnect, While The Relay On The Remote Control Switch Corresponding To The D Button Will Engage Packaging Includes: 1* Remote Switch 1* Receiver If you have any questions, please feel free to contact us via ebay. We usually respond within 24 hours. Payment Shipping Returns Contact Us We accept all verified payments from ebay. Orders will be shipped after receiving cleared payment. Payment due within 7 days after auction ends and for buy it now listings. We ship most of our orders within 24 hours, and may up to 48 hours for. If you want faster shipping way. Please contact us before making payment. Sometimes due to problems with our transportation company system, your shipping information may be delayed to update. We recommend that you try again after 3-4 days. If you still haven't checked the shipping information, you can contact us by ebay message. Always believe we can figure things out with communication, if it comes to return, the pacakge must be intact and the same as you receive. If you have any questions, please feel free to email our service specialists 24 Hours a Day, 7 Days a Week. We will reply you ASAP. Return/refund is accepted within 30 days after the buyer receives the item. NO exchange will be accepted after 30 days from the date when the item is received. Please contact us first before returning your product!!! If you have any questions, our Customer Service staffs welcome you to email us. We strive to answer all questions and resolve any problems as quickly as possible. You can contact us 7*24, we will reply at the first time, and we will surely solve your problems. Note: 1.We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 1 business days for us to response. If you do not receive any reply from us, please check your email ensuring your mailbox has not reached full size. 2.Due to some ISP SPAM filter settings, you may not be able to receive our replies; if you have problems receiving our emails, you may need to use a different email account to contact us. 3.Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues. Please email us before leaving any negative feedback or open any dispute on PayPal. 4.We care about our valued customers, and will always try to help you. So if you have any problems, please e-mail us immediately. Payment We accept all verified payments from ebay. Orders will be shipped after receiving cleared payment. Payment due within 7 days after auction ends and for buy it now listings. Shipping We ship most of our orders within 24 hours, and may up to 48 hours for. If you want faster shipping way. Please contact us before making payment. Sometimes due to problems with our transportation company system, your shipping information may be delayed to update. We recommend that you try again after 3-4 days. If you still haven't checked the shipping information, you can contact us by ebay message. Returns Always believe we can figure things out with communication, if it comes to return, the pacakge must be intact and the same as you receive. If you have any questions, please feel free to email our service specialists 24 Hours a Day, 7 Days a Week. We will reply you ASAP. Return/refund is accepted within 30 days after the buyer receives the item. NO exchange will be accepted after 30 days from the date when the item is received. Please contact us first before returning your product!!! Contact Us If you have any questions, our Customer Service staffs welcome you to email us. We strive to answer all questions and resolve any problems as quickly as possible. You can contact us 7*24, we will reply at the first time, and we will surely solve your problems. Note: 1.We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 1 business days for us to response. If you do not receive any reply from us, please check your email ensuring your mailbox has not reached full size. 2.Due to some ISP SPAM filter settings, you may not be able to receive our replies; if you have problems receiving our emails, you may need to use a different email account to contact us. 3.Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues. Please email us before leaving any negative feedback or open any dispute on PayPal. 4.We care about our valued customers, and will always try to help you. So if you have any problems, please e-mail us immediately. powered by
