8 Port PoE Switch With 2 Uplink 120W Extend to 250Meter Unmanaged 803.af/at
$ 15.31
Description

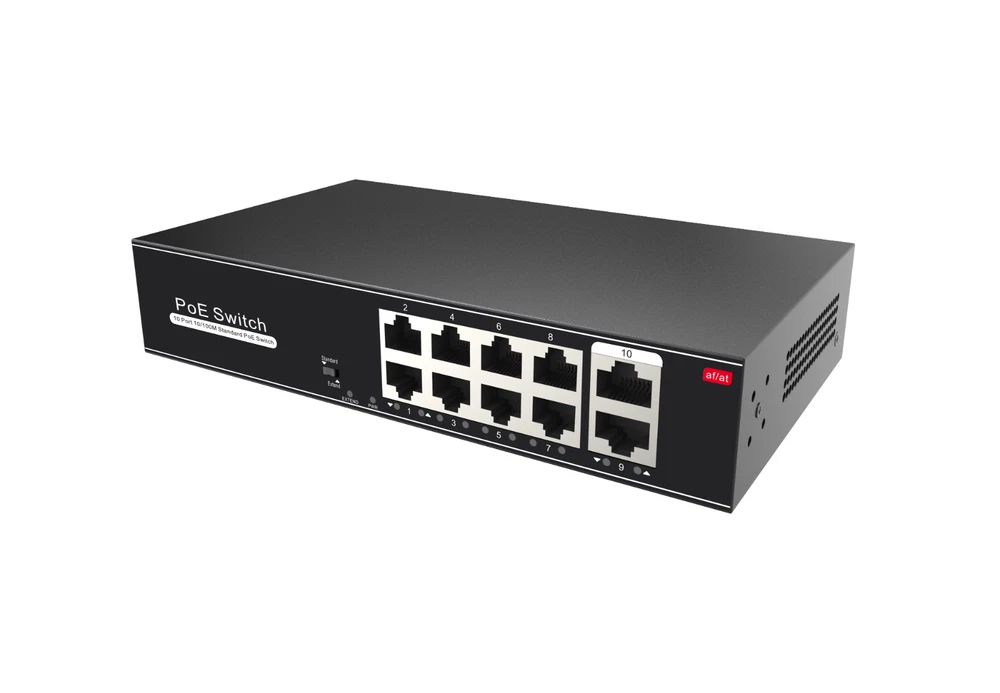

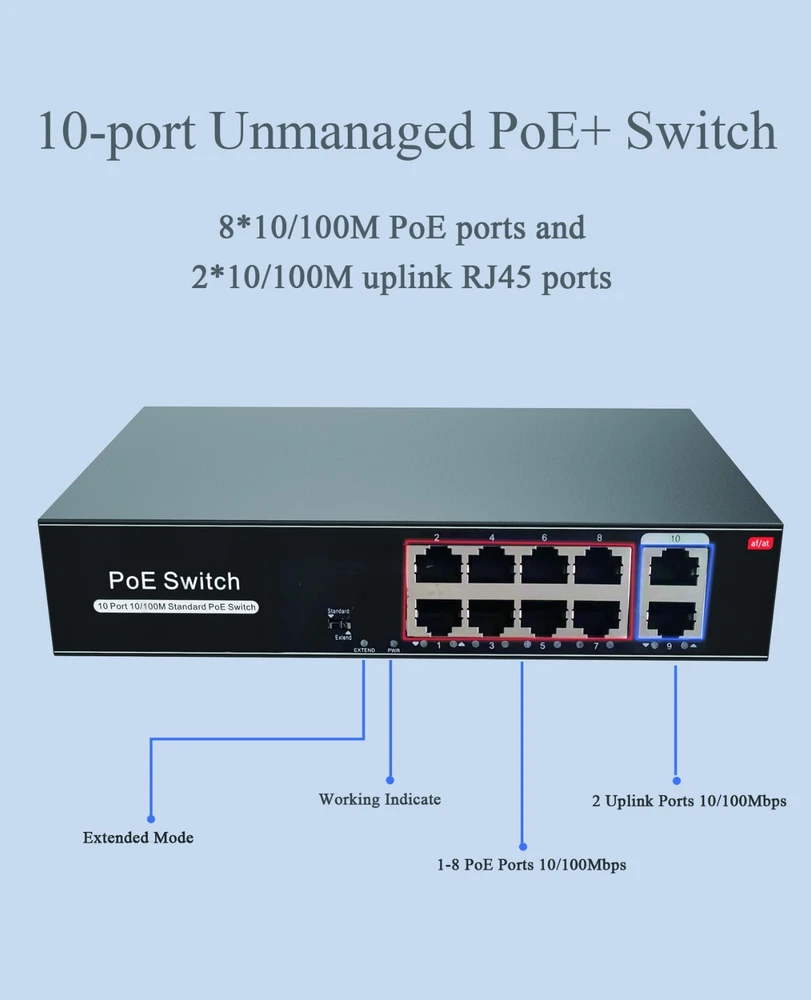

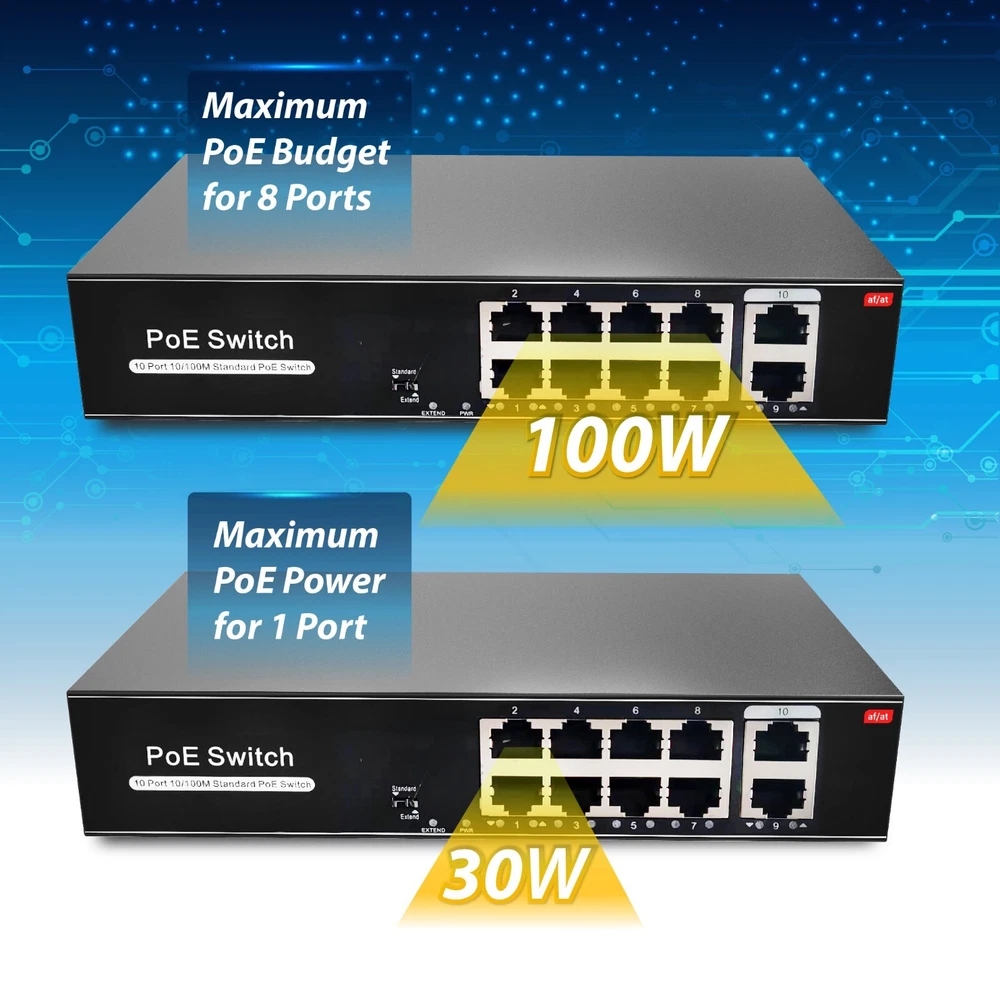

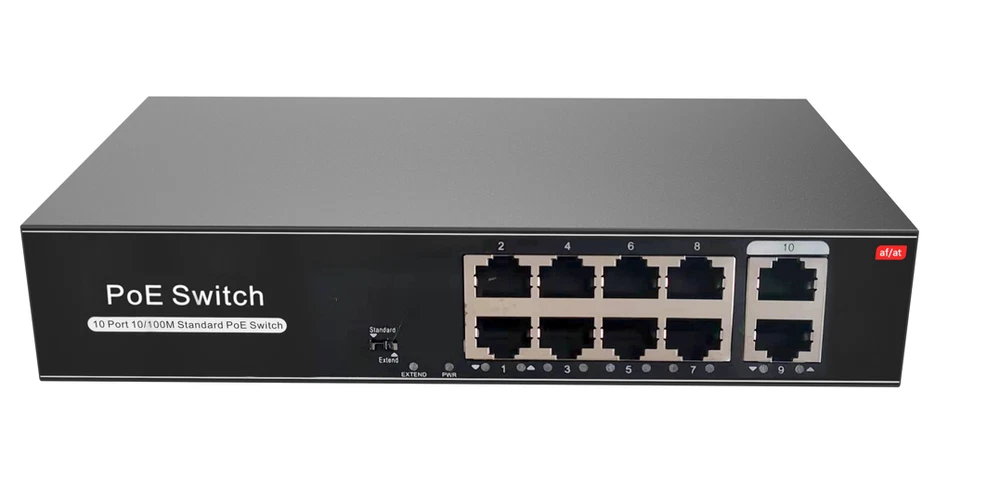

PS-82-96 The H1108PLS series is a 10/100Mbps unmanaged PoE switch , it has 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports, Port 1-8 can support IEEE 802.3af/at standard PoE power supply, single port PoE power up to 30W, and the maximum POE output power is 120W. 10/100 Mbps access, Dual RJ45 port uplink — Provides 8*10/100 Base-TX RJ45 ports and dual uplink power ports, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios — Support non-blocking wire-speed forwarding. — Support full-duplex based on IEEE802.3x and half-duplex based on backpressure. Intelligent PoE power supply function — 8 *10/100 Base-TX RJ45 ports support PoE power supply, which meets the needs of PoE power supply in various scenarios in the security field — Comply with IEEE 802.3af /at PoE power supply standard, automatically identify PoE devices for power supply without damaging non-PoE devices. The maximum PoE output power is 65W, and the maximum PoE output power of a single port is 30W Innovative function (only with function switch type) — Long distance file: When opening, the speed of 1-8 port is reduced to 10M. With the existing twisted pair cable, the transmission limit of the twisted pair line can be broken, and the transmission distance can reach 250 meters; on the other hand, It can solve the problem of poor transmission caused by line aging. — Video monitoring mode: Open with the long distance switch, 1-4 ports are isolated from each other but communicate with 9-10 ports to prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms. The equipment is stable and reliable — The host has low power consumption, no fan and silent design, galvanized steel and metal casing, and excellent heat dissipation to ensure stable operation of the product — The equipment fully complies with the CCC, CE, FCC, RoHS safety requirements, and is safe and reliable. The equipment is stable and reliable — The host has low power consumption, no fan and silent design, galvanized steel and metal casing, and excellent heat dissipation to ensure stable operation of the product — The equipment fully complies with the CCC, CE, FCC, RoHS safety requirements, and is safe and reliable. Model PS-82-96 Interface Characteristics Fixed Port 8*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX uplink RJ45 ports (Data) Ethernet Port Port 1-8 can support IEEE802.3af/at standard PoE power supply Functional Switch 1*(Extender+ CCTV) Note: when the switch state changes, it must be restarted before the PoE switch function can take effect Chip Parameter Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x PoE Standard IEEE802.3af/at international standard Ethernet Port Port 1-10 can support 10/100BaseT (X) auto detect, full / half duplex MDI / MDI-X adaptive Forwarding Mode Store and Forward(Full Wire Speed) Switching Capacity 2Gbps (Non-blocking)2Gbps Forwarding Rate@64byte 1.488Mpps Mac 1K Buffer Memory 768K Twisted Pair Transmission 10BASE-TX: Cat5 or later UTP(≤250 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) LED Indicator power indicator: PWR (green); network indicator: Link (yellow); POE working indicator: PoE (green) functional switch indicator:EXTEND(green) PoE & Power PoE Port Port 1 to 8 IEEE802.3af/at @ POE Power Supply Pin Default 1/2(+), 3/6(-);Optional 4/5(+), 7/8(-) 2-pairs power supply Max Power Per Port 30W/15.4W Total PWR / Input Voltage 120W (AC100-240V) Power Supply Built-in switching power supply, AC100~240V 50-60Hz 2.2A Power Consumption Standby <5W; Full load <120W Physical Parameter Operation TEMP / Humidity -20~+55°C;5%~90% RH Non condensing Storage TEMP / Humidity -40~+75°C;5%~95% RH Non condensing Dimension (L*W*H) 195*130*40mm Net /Gross Weight <0.8kg / <1.2kg Installation Desktop, Wall-mounted Certification & Warranty Lightning protection Lightning protection: 4KV 8/20us; Protection level: IP30 Certification CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS Warranty 1 years, lifelong maintenance. Free Shipping
