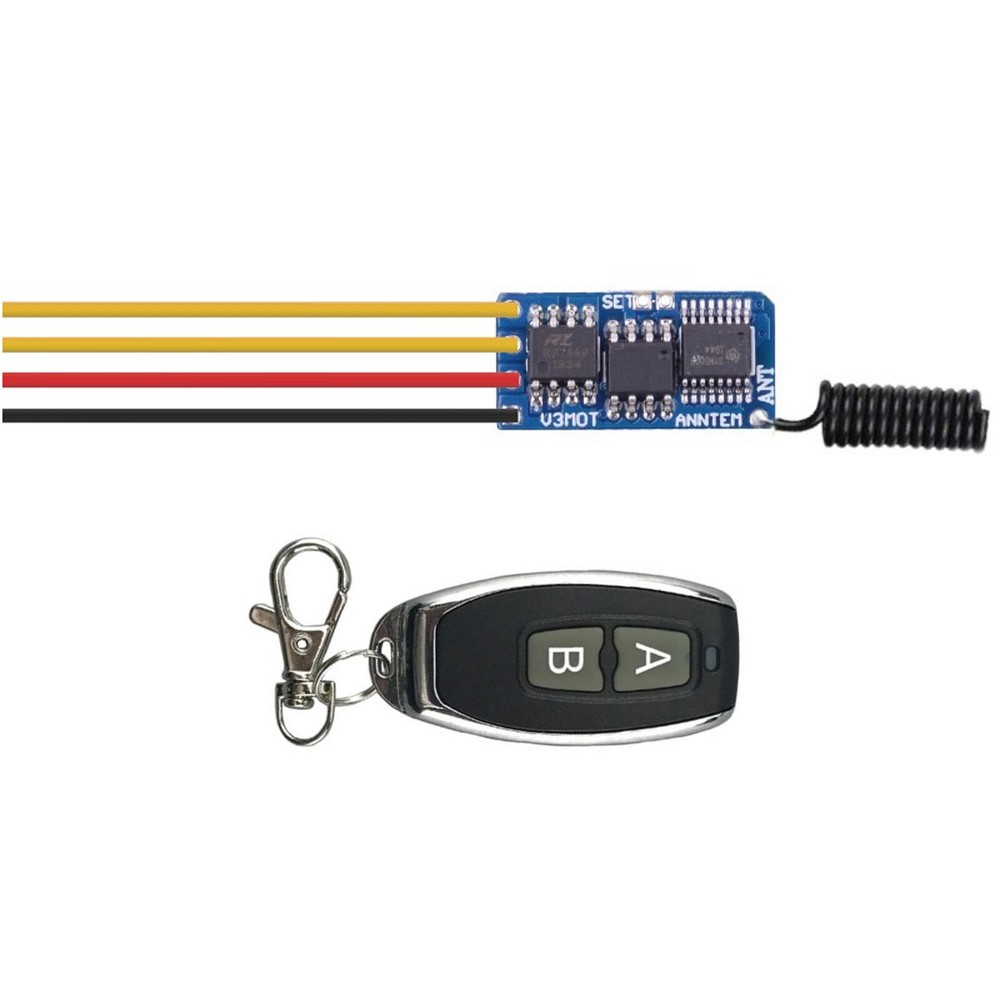

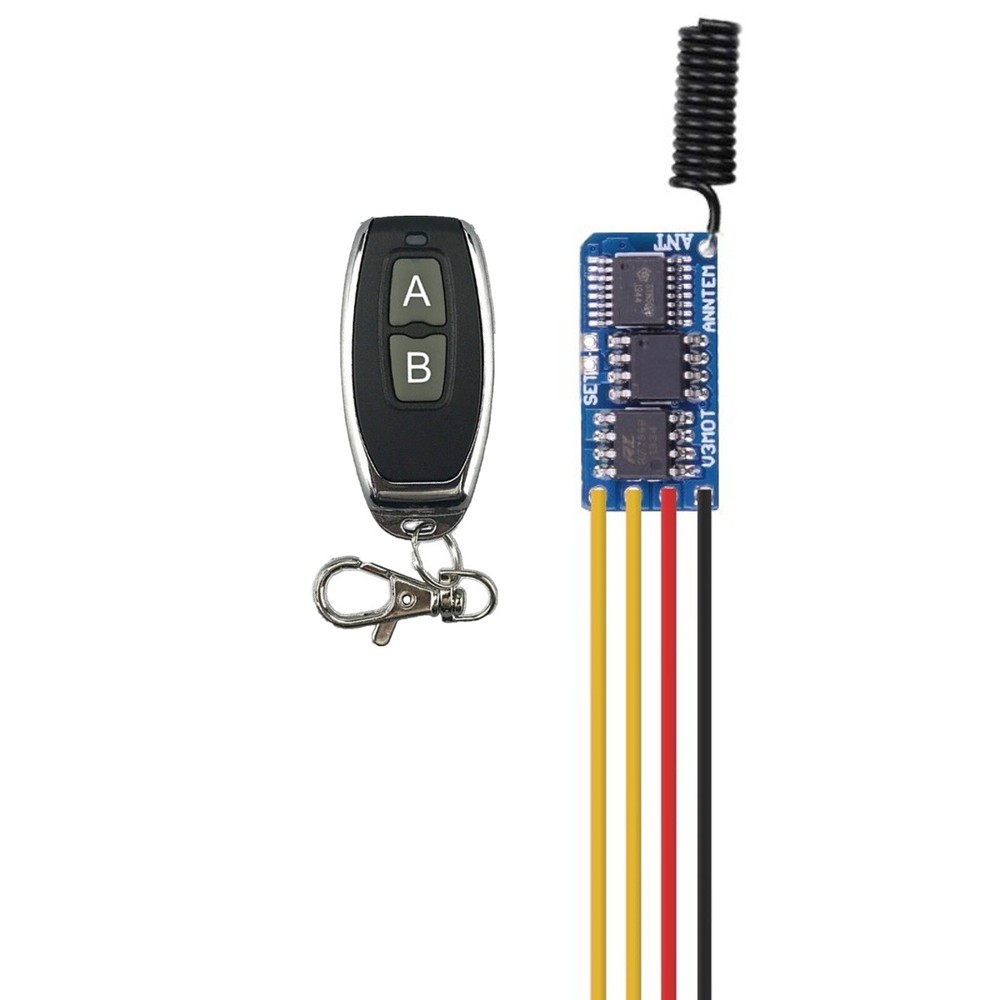

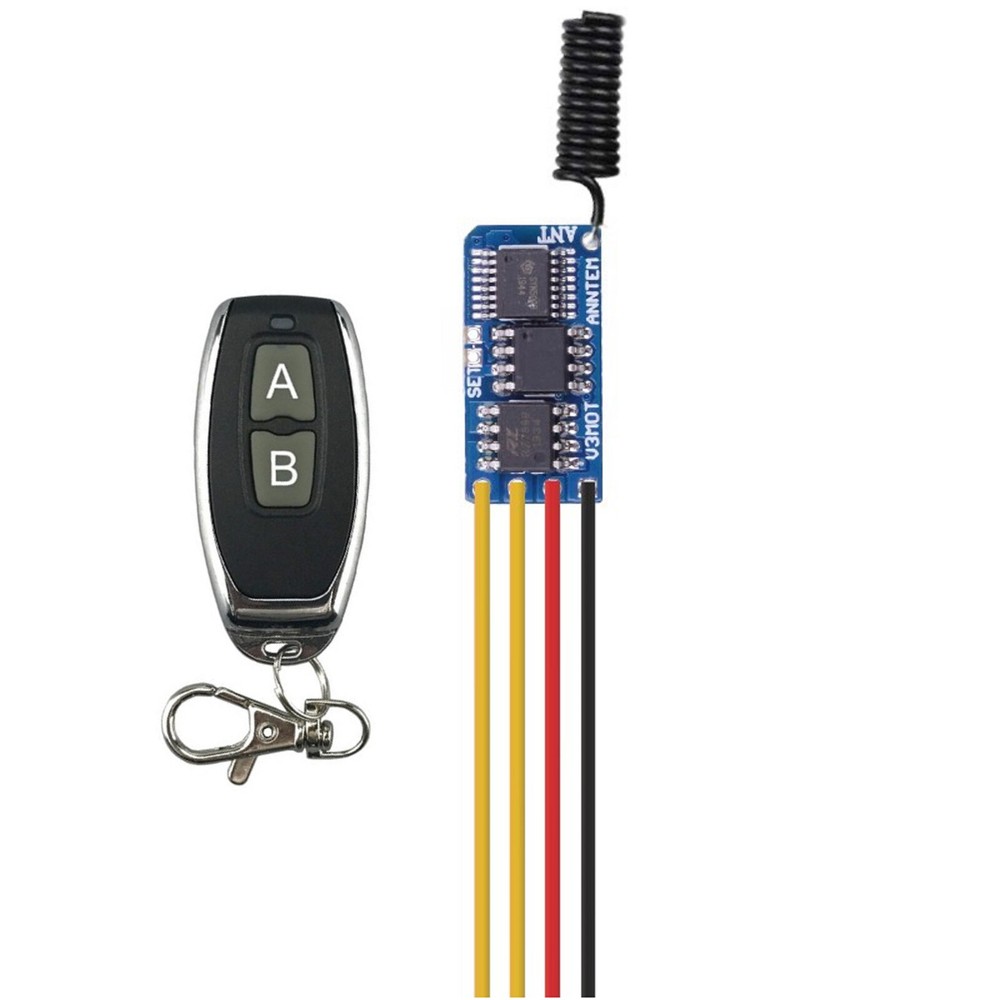

DC3.7-12V 433MHz RF Wireless Remote Control Transmitter DIY Module
$ 4.97
Description
Product Description DC3.7-12V 433mhz RF Wireless Receiver Remote Control Transmitter DIY Module Wireless remote control switch 433mhz rf transmitter receiver 3.7v 4.5v 9v 12v motor Forward Reverse steering Controller module Specifications: Size: 21*11*5mm Input voltage: DC3.7-12V Output voltage: DC3.7-12V Frequency: 433.92MHz Standby current: 0.2MA Maximum load current: less than 0.4A (less than 4 watts of equipment),Suggested load less than 0.2A Working current: 6MA Output voltage: Consistent with the Input supply voltage Remote control battery: 2 x CR2016 Batteries(InCluded) Remote control distance: <=20m Feature: Remote distance receiving, has stable performance, good signal and sensitive response. It can be controlled remotely, making work smarter and more convenient. Ultra low standby current, it is suitable for battery-powered, when it is standby will automatically enter the low-power sleep state, please press the remote control button hold for 0.5 seconds or more) The receiver itself with overcurrent protection,when the current exceeds the rated current,will be entered into turn off power protection,such as the motor to start or block the current is doubled,beyond the rated current will be flash Controller indicator: Momentary - Press and hold the up button to rotate forward, release to stop,Press and hold the down button to reverse and release to stop Delay for 5 seconds - Press and hold the up button to rotate forward, stop 5 seconds after releasing the hand, press and hold the down button to reverse, and stop 5 seconds after releasing the hand, Instruction Manual: 1. Clearing Code: PRESS the Learning Button,until the receiver guidance indicator light does not light up,it mean Clearing Code 2. Learning Code: PRESS the Learning Button,The receiver Led indicator ON.Press remote button A 1 time,Led indicator flash for 1 times, Then Press remote button B 1 time,Led indicator flash for 1 times again,it mean learning successfully Package Includes: 1x DC3.7-12V Wireless Receiver 1x Remote control Note: *For your convenience, the remote control and receiver have been paired *it is the world's smallest motor controller, the motor's voltage and current goes through the receiver,before your purchase .please measure your motor exact working voltage and Current .thank you for your cooperation. *Don't operate control buttons rapidly and frequently , because the controller is controlled by microprocessor , each operation state will response in 1second. *If discover the LED lights darken or remote distance shorter, please replace the battery. About Us Welcome to the our store! You can chat with us about anything to do with our products. we dedicated to provide best products and services. Payment All ebay verified payments are accepted, if you have any questions about the payments, you can let us know, we will try our best to solve this for you. Shipping We usually ship all packages within 24 hours after payment and 48 hours at latest for a small part of our products. Returns Always believe we can solve your questions about our products with communication. And if it comes to a return at last, the item must be intact and the same condition when you received it, also the return is only available within 30 days after delivery. Contact Us You can contact us at any time via ebay messages, we will reply at the first time in the working times. We will always be here for you! Working time: 9am to 6pm, Monday to Friday. You may also like 20 Pack Self-Adhesive 3M Wire Tie Cable Clamp Clip Holder For Car Dash Camera 6.99 AUD 18/19/20mm Width Optional Leather Watch Wrist Band Straps Bracelet For DW Watch 19.98 AUD Bathroom Prank Real Fake Party Pooper Crap Turd Human Dog Poop Funny Joke Poo 5.99 AUD Lightweight 20-100°Temperature Thermoelectric Power Generator Peltier TEG Module 8.49 AUD 5.99 AUD 1 Pair L+R Ear Pads Earcups Cushion Cover For Sony WH-CH500/WH-CH510 Headphone 16.98 AUD CTL1616 CTL1616F 1616 CTL Solar Power Rechargeable Battery 1/2/5/10Pcs Optional 26.18 AUD powered by
