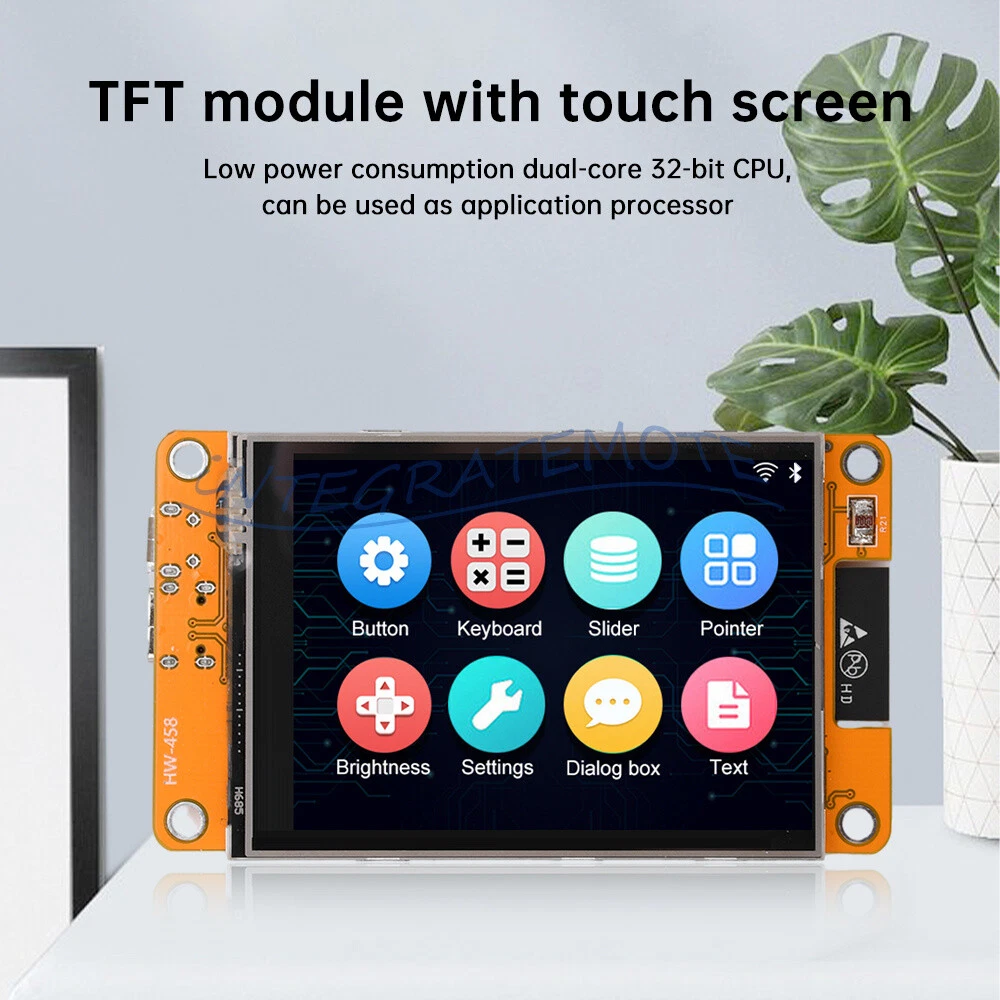

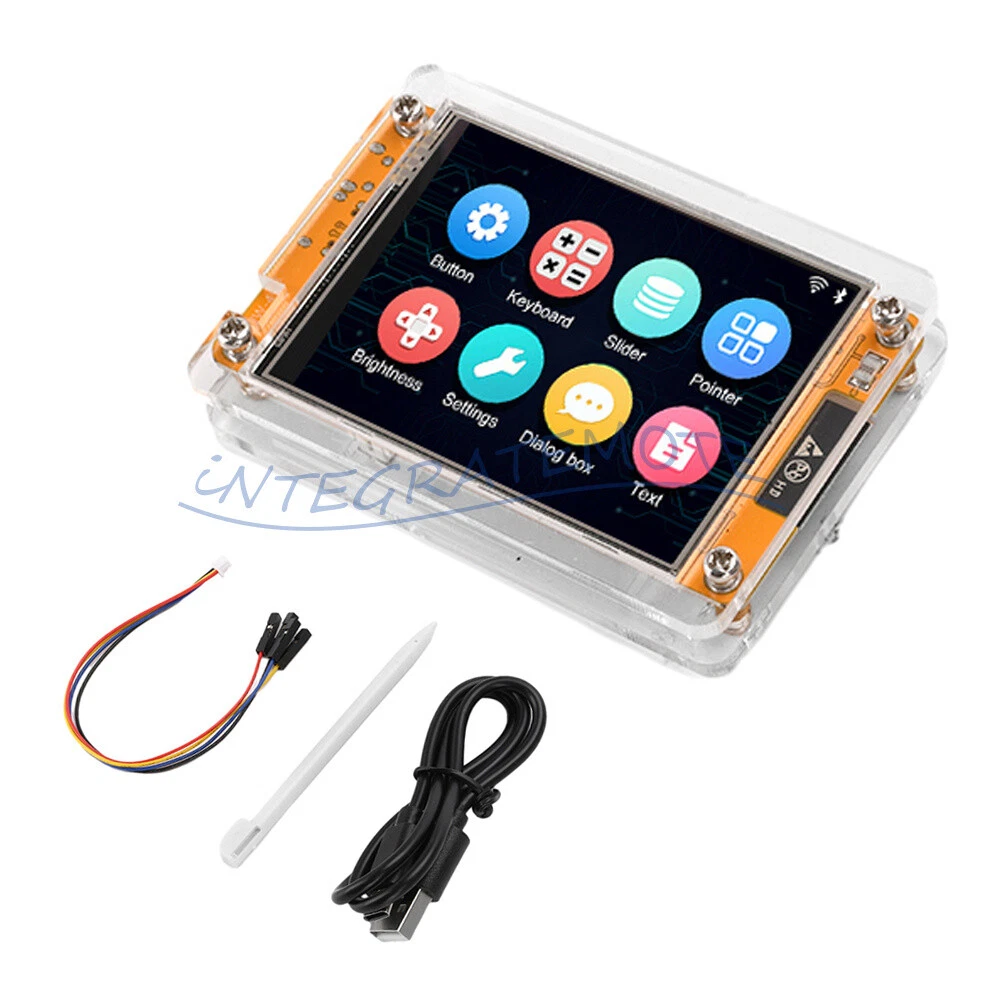

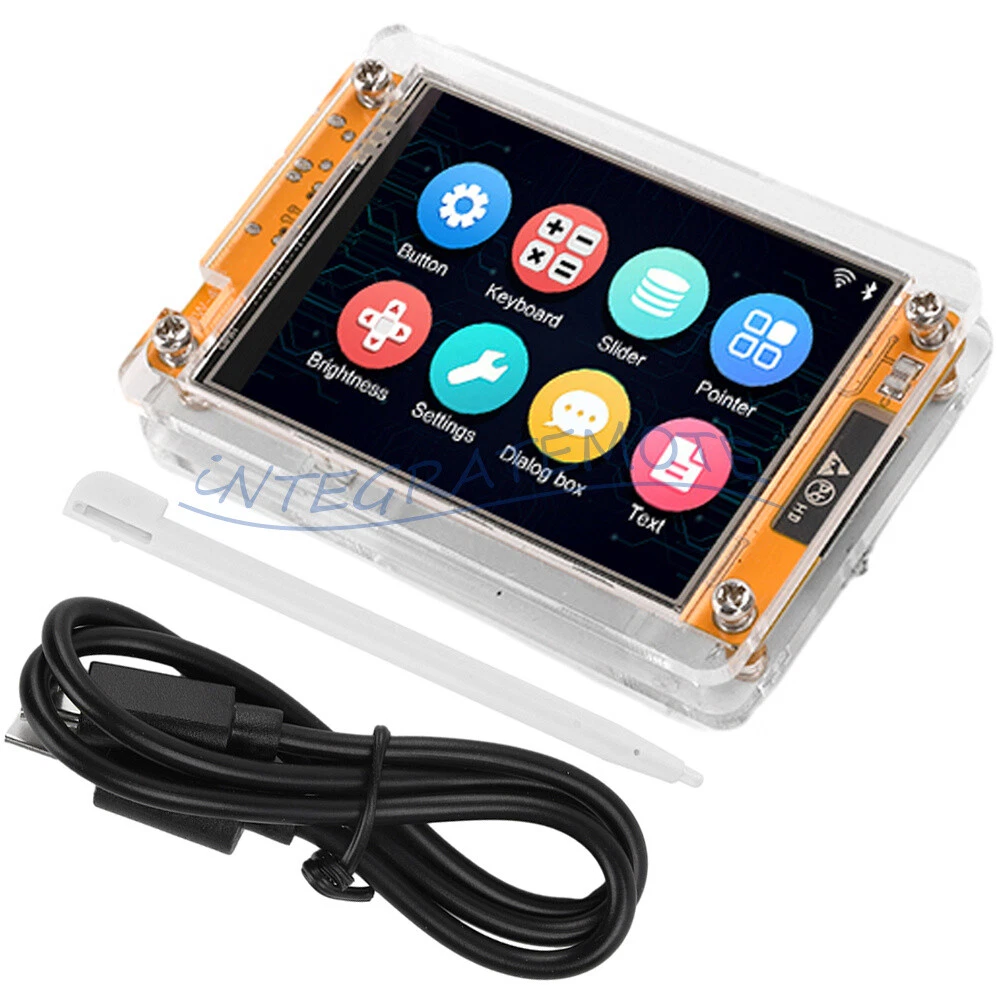

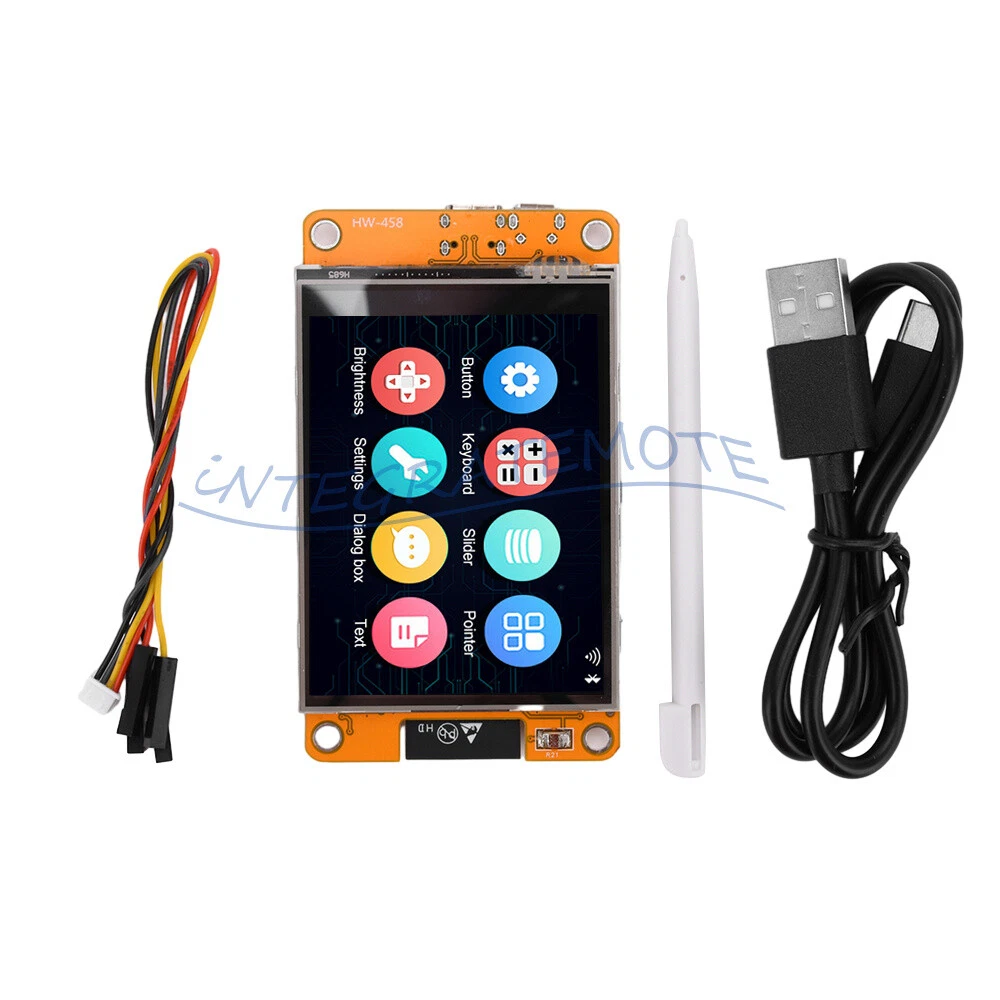

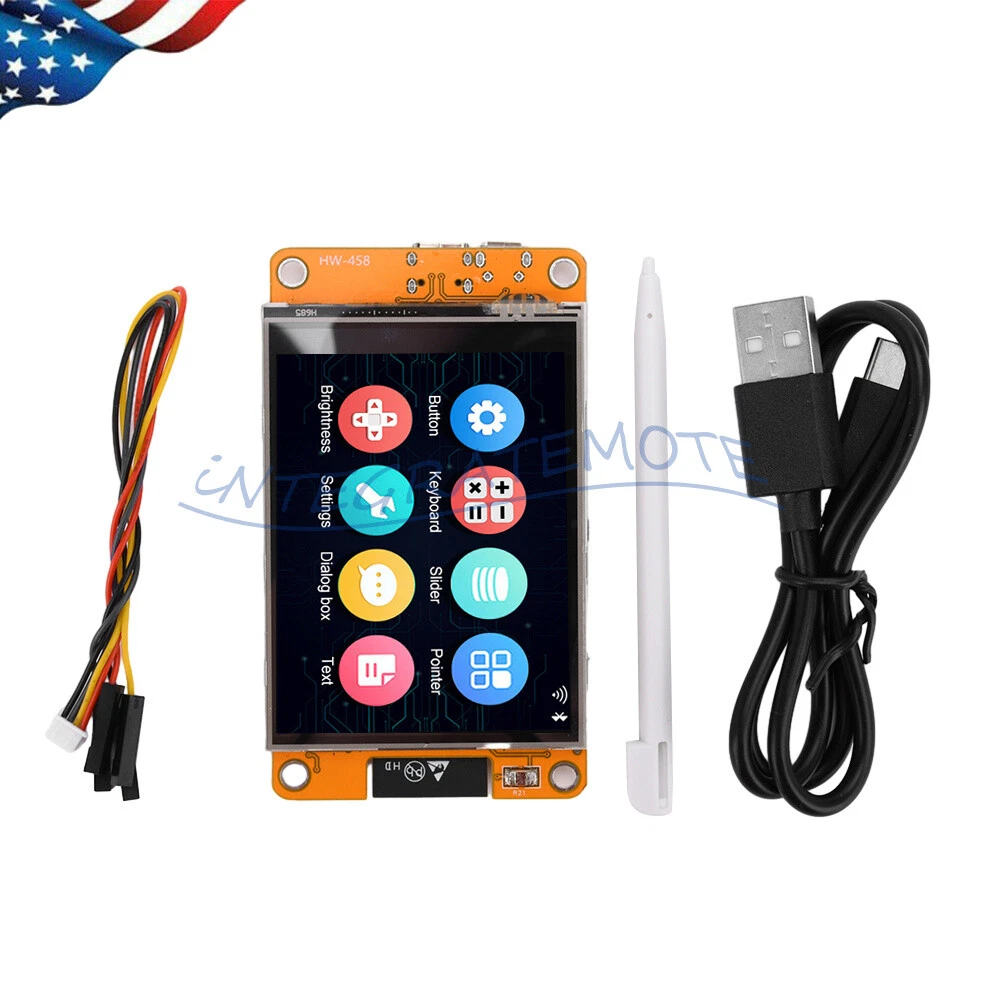

ESP32 WIFI Bluetooth Development Board 2.8" LCD TFT Touch Screen Module + Case
$ 7.96
Description

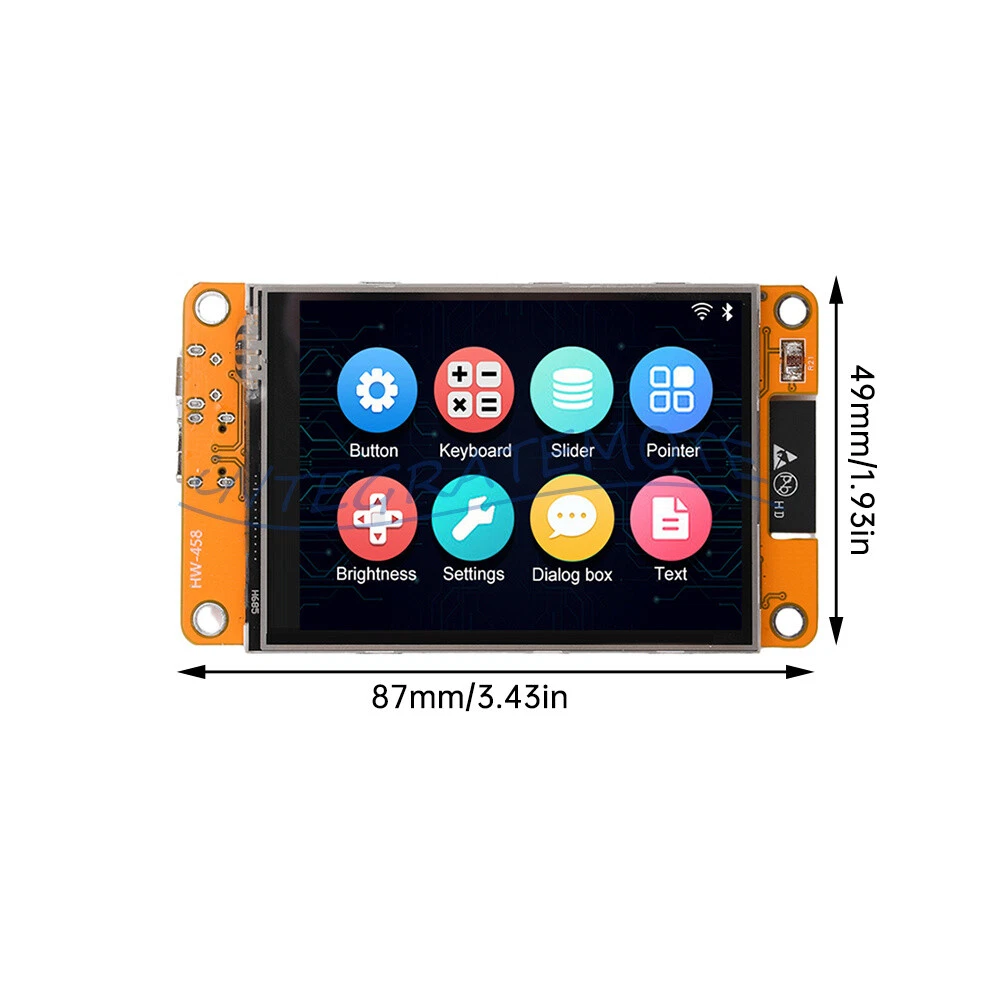

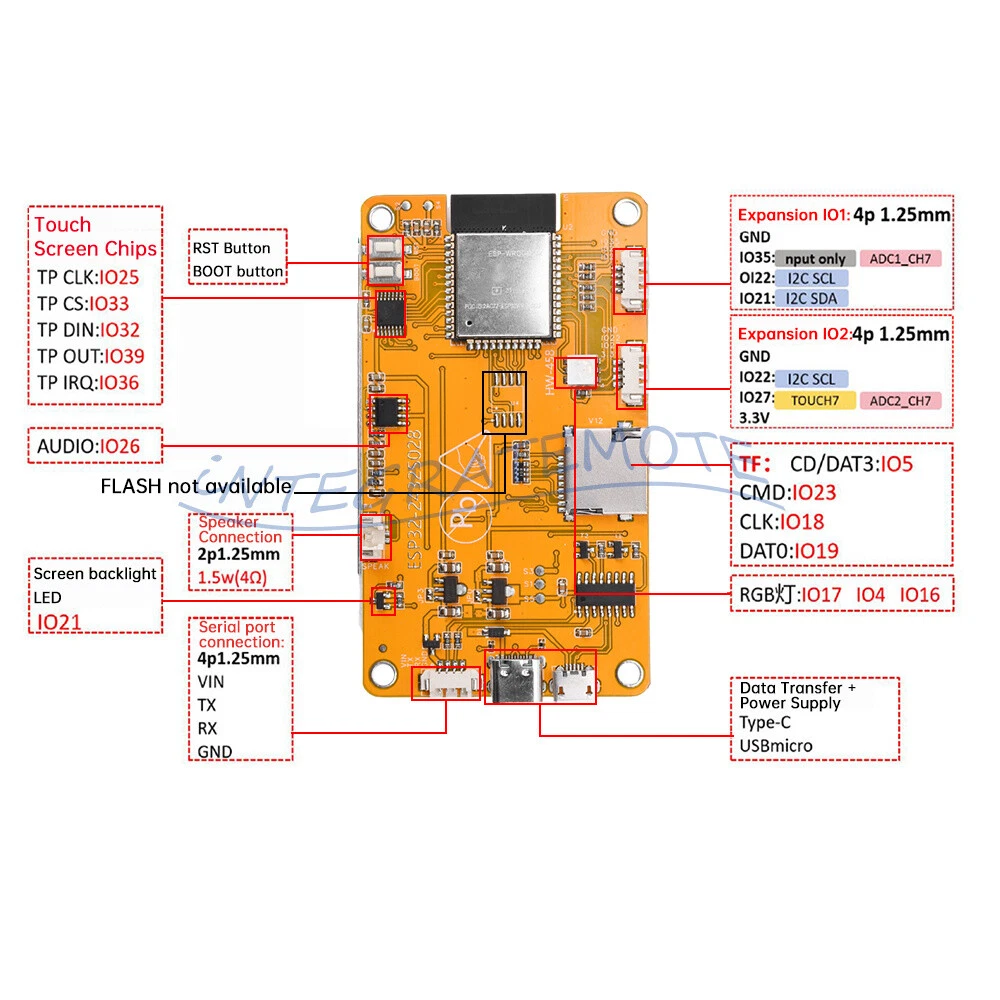

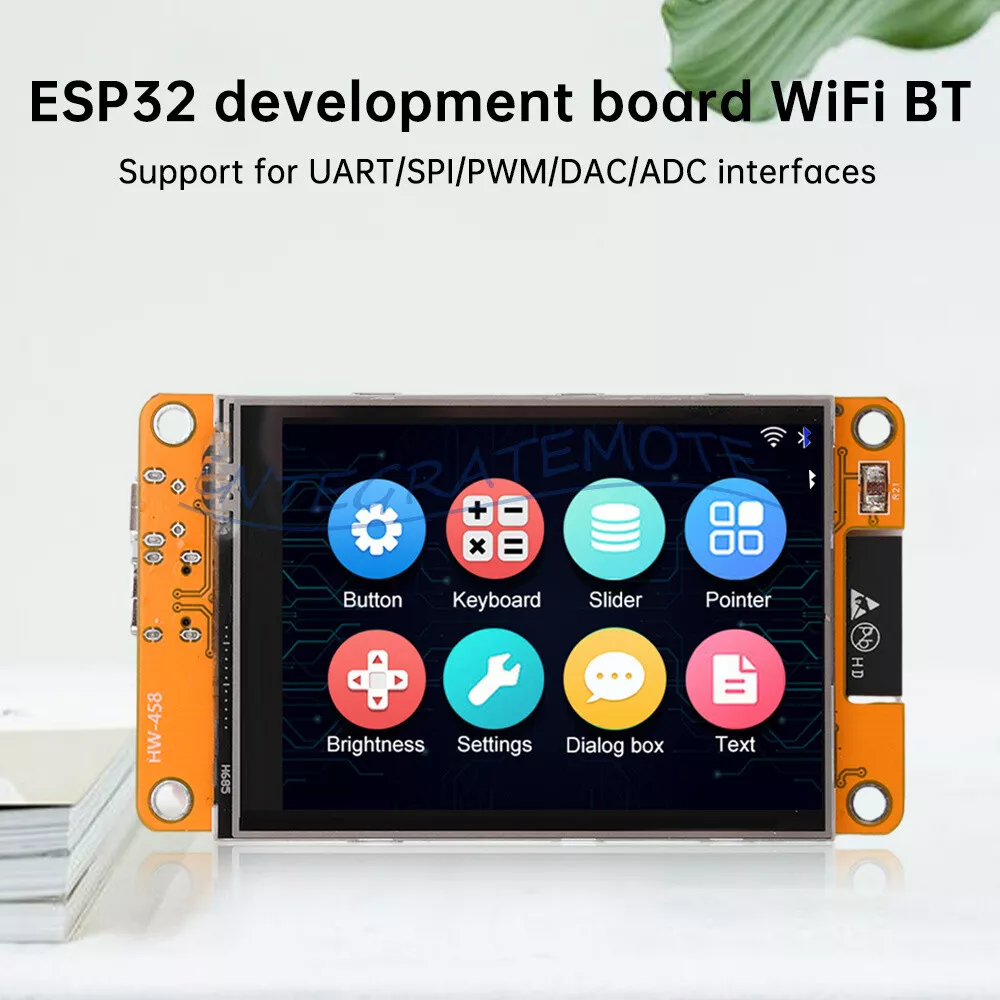

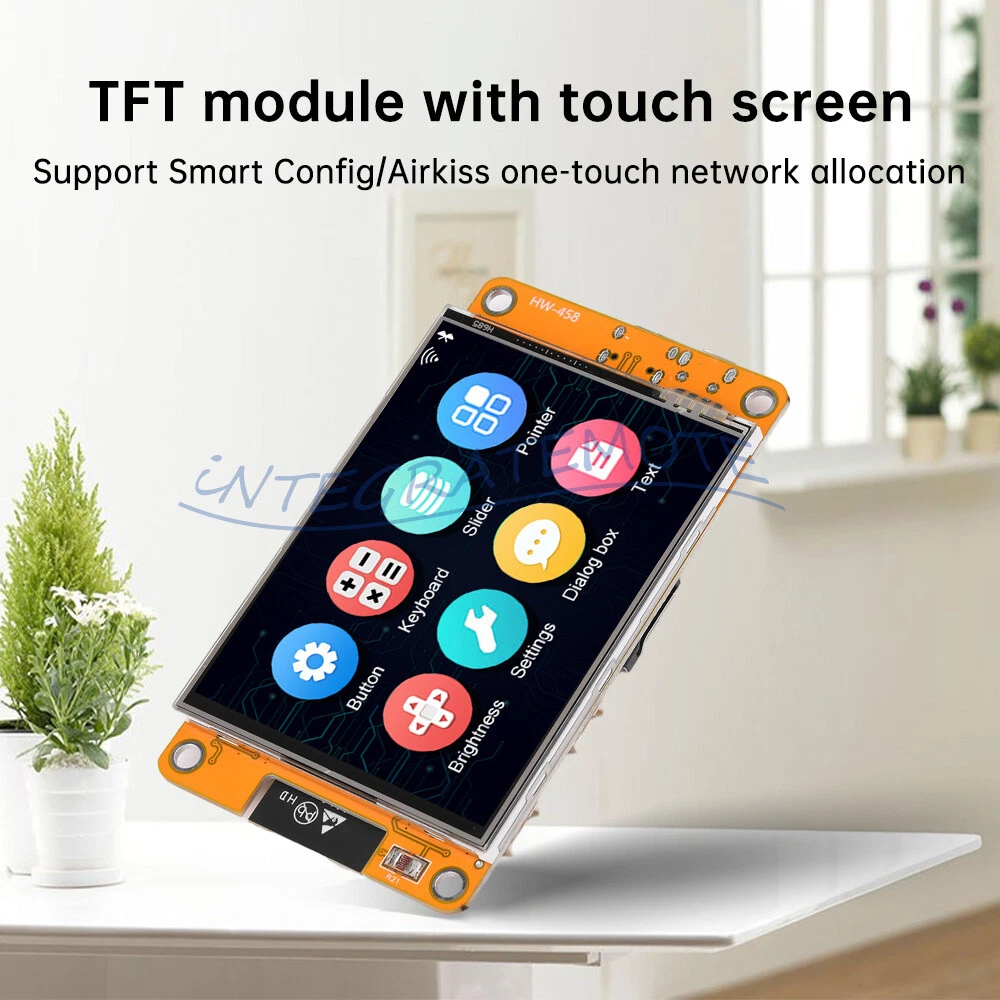

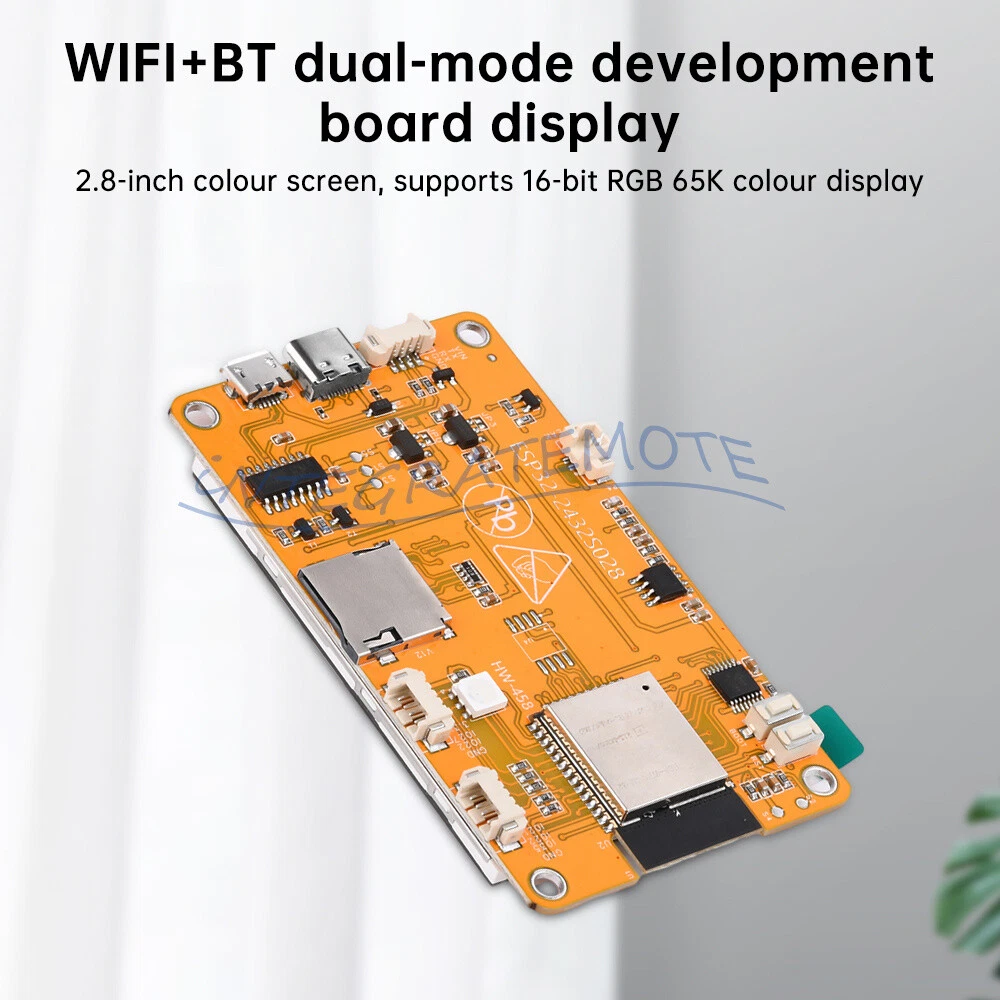

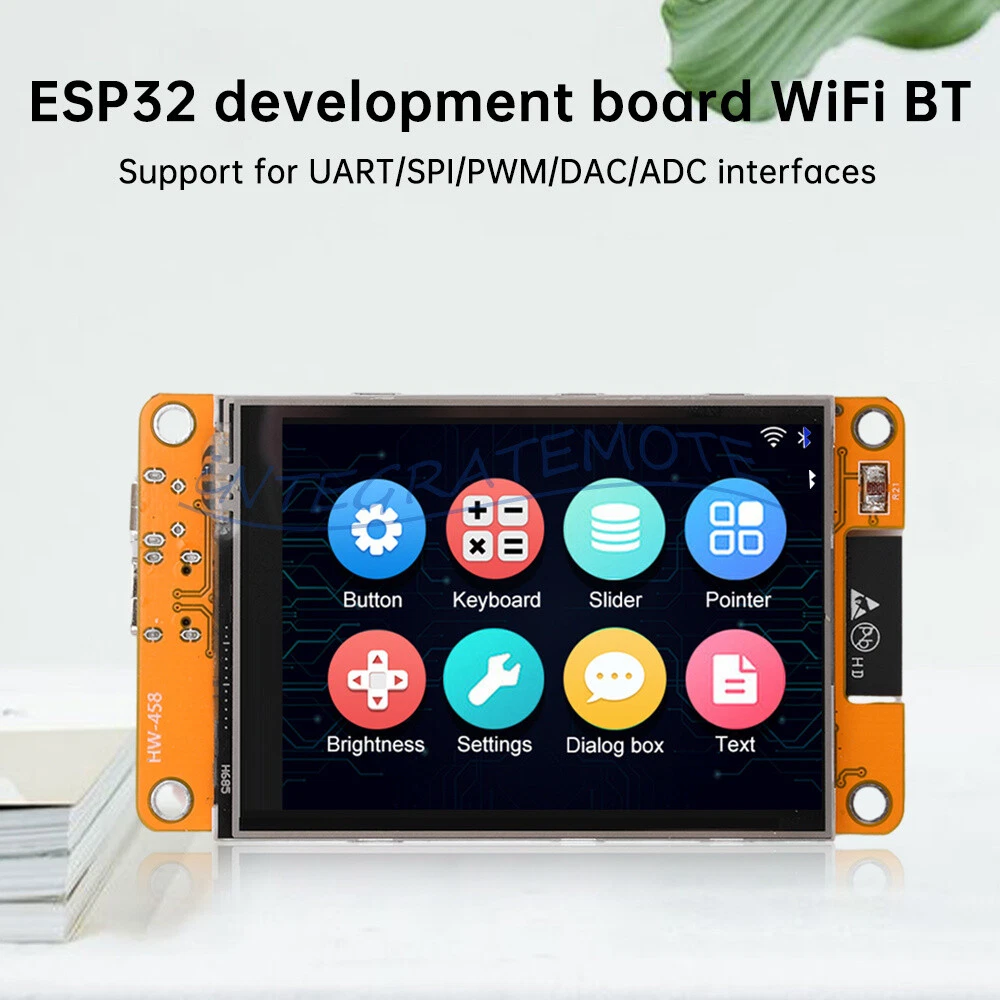

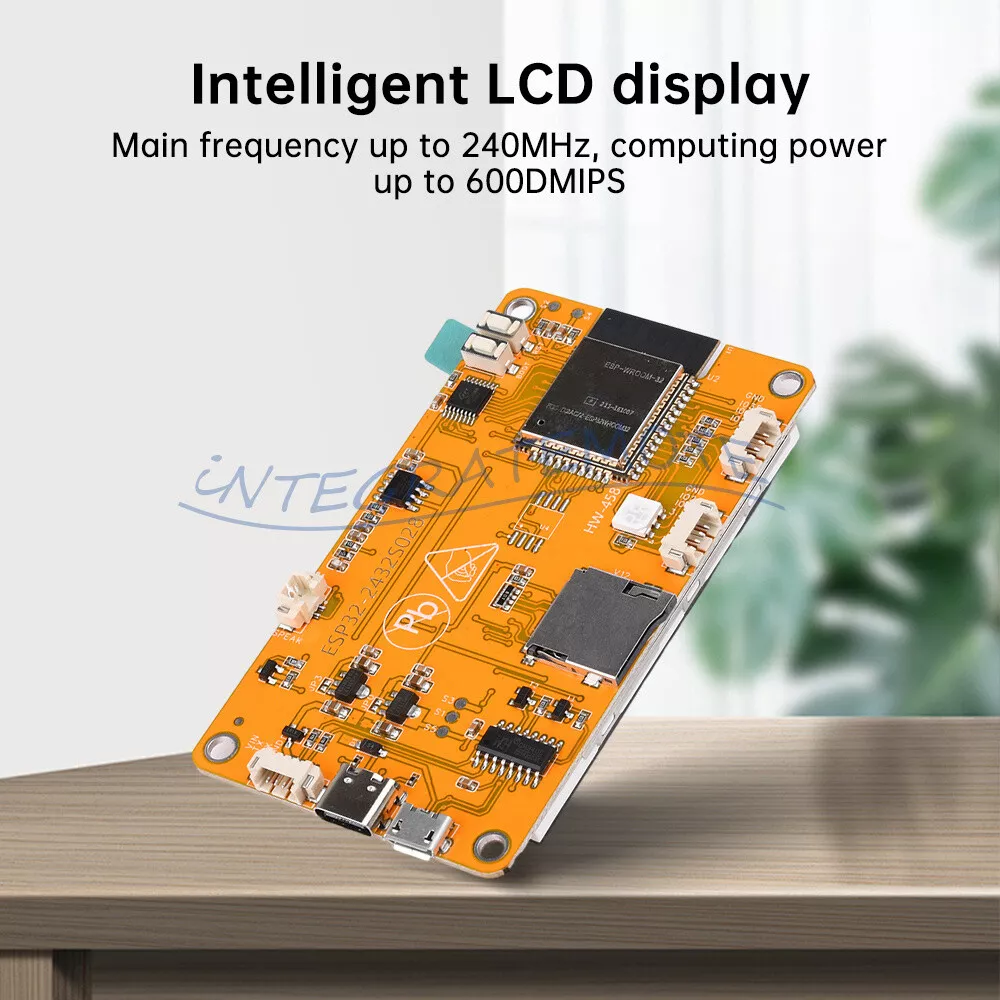

integratemote integratemote Recommended New product ESP32 WIFI Bluetooth Development Board 2.8" LCD TFT Touch Screen Module + Case Product Features 1.Low power consumption dual-core 32-bit CPU, can be used as application processor. 2. Main frequency up to 240MHz, computing power up to 600DMIPS 3. Built-in 520KB SRAM 4. Support UART/SPI/PWM/DAC/ADC interfaces. 5. With TF card slot, easy to expand storage 6.2.8-inch colour screen, support for 16-bit RGB 65K colour display 7.Support Smart Config/Airkiss one-key networking Product Parameter Product name: ESP32 WIFI + BT dual-mode development board display Display colour: RGB 65K colour Size: 2.8 inch Type: TFT Driver chip：ILI9341 Resolution: 320*240 Viewing area: 43.2*57.6mm Viewing Angle：＞60° Operating Temperature: -20~70°C Operating voltage: 5V Power consumption: 115mA Bluetooth: Bluetooth 4.2BR/EDR and BLE standard WIFI: 802.11b/g/n/ Support interface: UART, SPI, SDIO, I2C, IR, ADC, DAC, PWM IO port: 22 Serial port rate: default 115200bps Spectrum range: 2412~2484MHZ Antenna Format: On-board PCB antenna, gain 2dBi Security: WPA/WPA2/WPA2-Enterprise/WPS Transmit Power: 802.11b:17±2dBm(@11Mbps) /802.11b:14±2dBm(@54Mbps) /802.11b:13±2dBm(@MC57) Interface Sensitivity: CCK,1Mbps:-90dBm CCK,11Mbps:-85dBm 6Mbps(1/2BPSK):-88dBm 54Mbps(3/464-QAM):-70dBm MCS7(65Mbps,72.2Mbps)-67dBm List 1 x Display(With or without a case depending on your choice) 1 x Touch pen 1 x TYPE-C cable 1 x 4P terminal to Dupont cable About us Payment Shipping Feedback Return Policy Contact Us About us 1.A large number of products for you to choose 2.We have an independent customer service team to quickly answer your questions Payment 1.We accept PayPal payment ONLY, and must be received within 5 days from the date of purchase. 2. It is easy and safe for you to pay by credit cards, debit cards, bank transfers and PayPal account balances. 3.Buyers are responsible for import duties,custom fees and taxes, if any, please check your country. Shipping 1.We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. 2.Orders will be processed instantly and dispatched within 1-2 business days except hoilday, so we do NOT accept any email/message note after you place orders. 3.All package need to wait 30 days,Please take care it.Less than 30 days,we can't take a refund. Feedback 1.We greatly appreciate your POSITIVE feedback. Please do NOT leave negative feedback without asking for help. 2.Please DON'T leave negative or neutral feedback if you haven't received item in 30 days, because we have mentioned the shipping time repeatedly. Return Policy 1.We believe our items are so outstanding. We are convinced you will be happy with your Purchase. 2. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund or resend the item to you after the returned item arrived at our warehouse. 3. Please include your eBay ID and item number with any email requests. Contact Us 1. If you have any questions, please feel free to email our service specialists. 2.Just contact us using the " Ask the seller a question" link on eBay. 3.Our aim is to provide Top Level Customer Service, normally so we will try our best to solve any problem.
