Hantek 25MHz 2CH Arbitrary Waveform Generator with Pulse and Harmonic Meter

Description

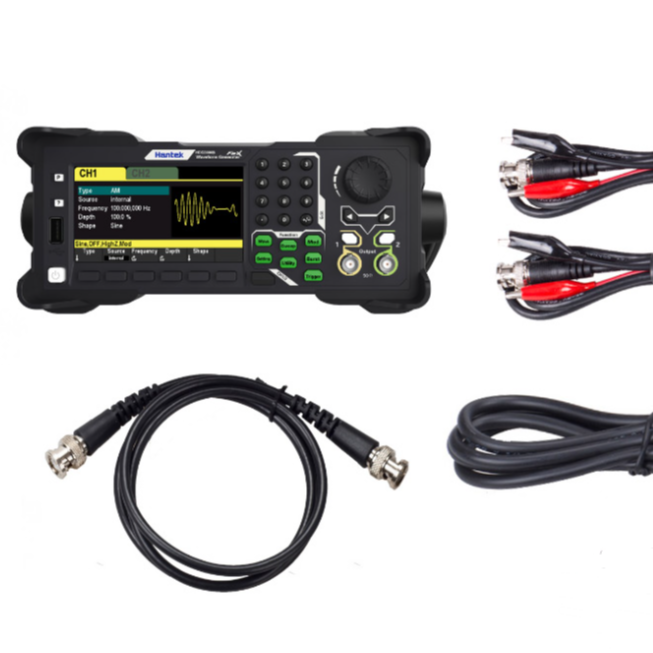

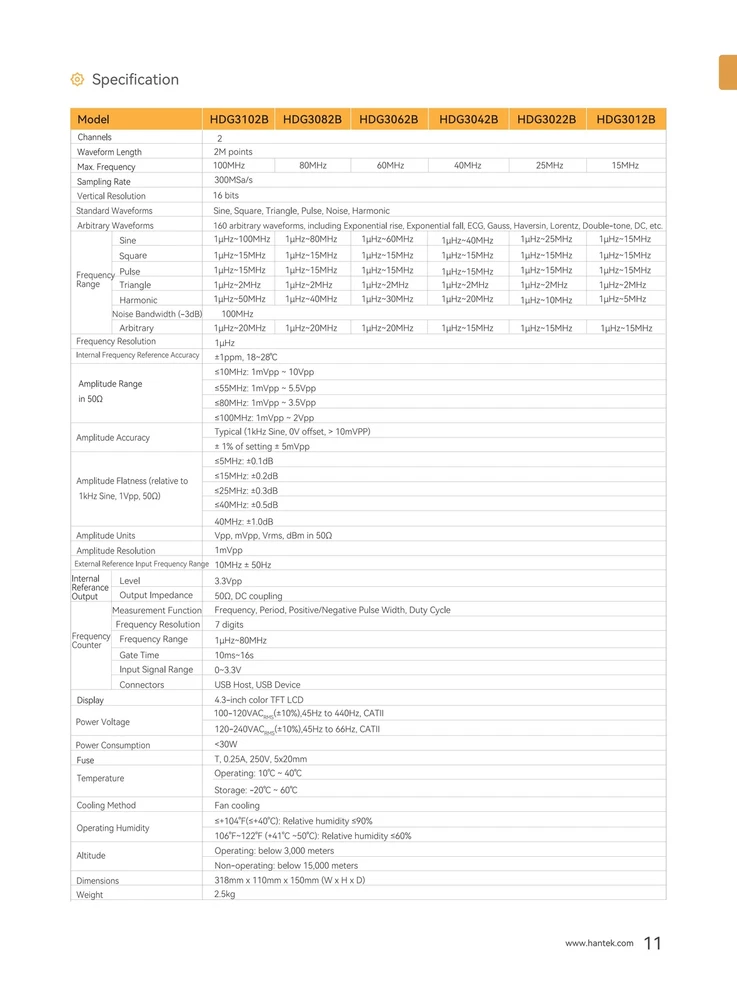

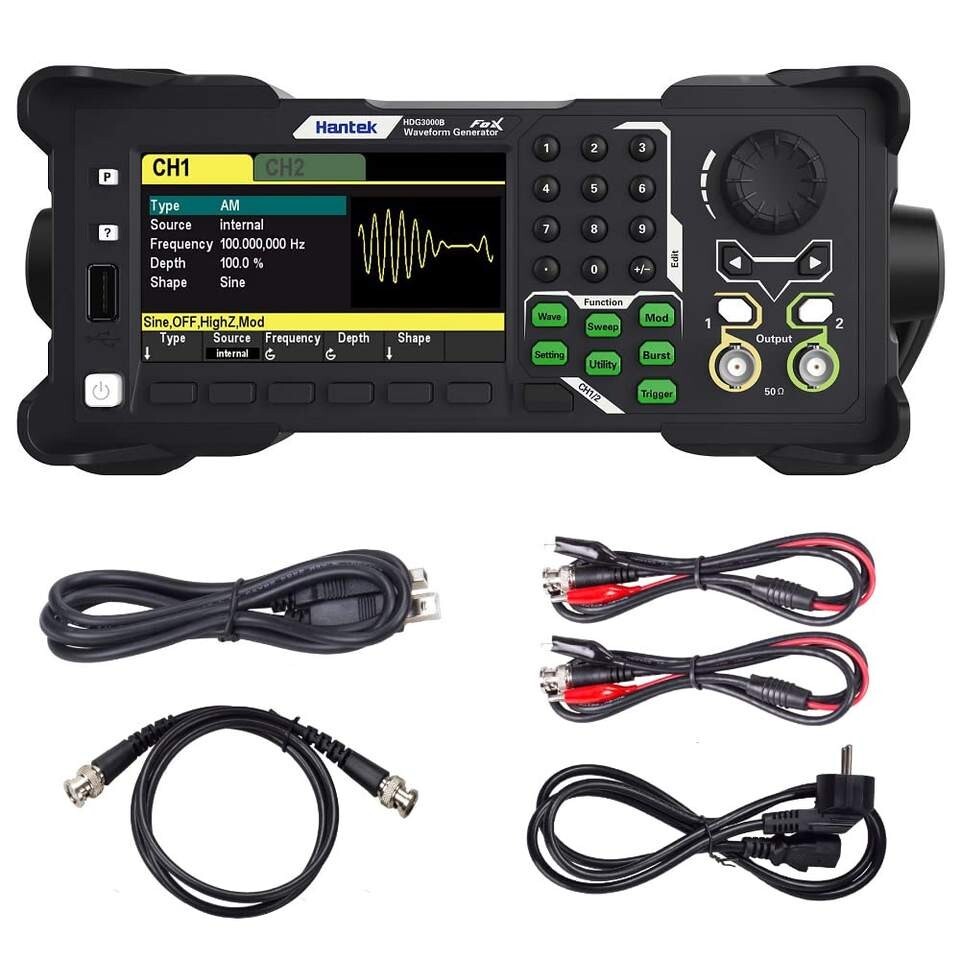

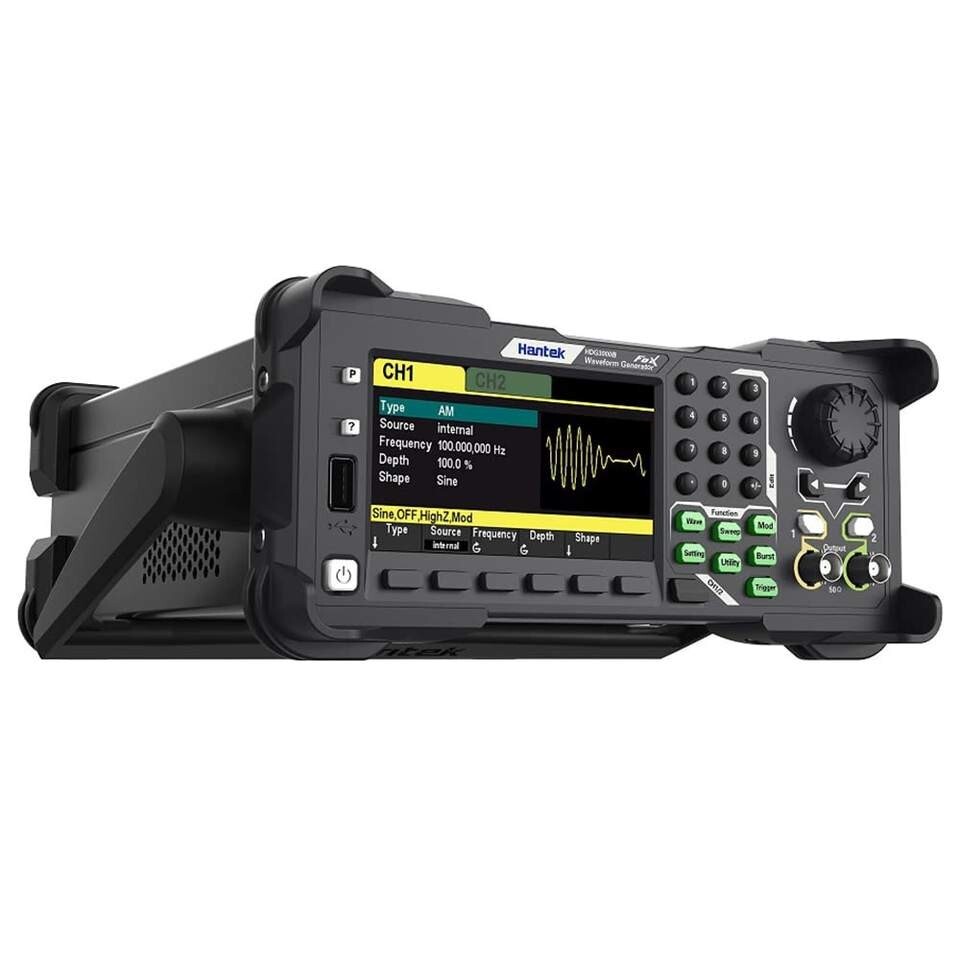

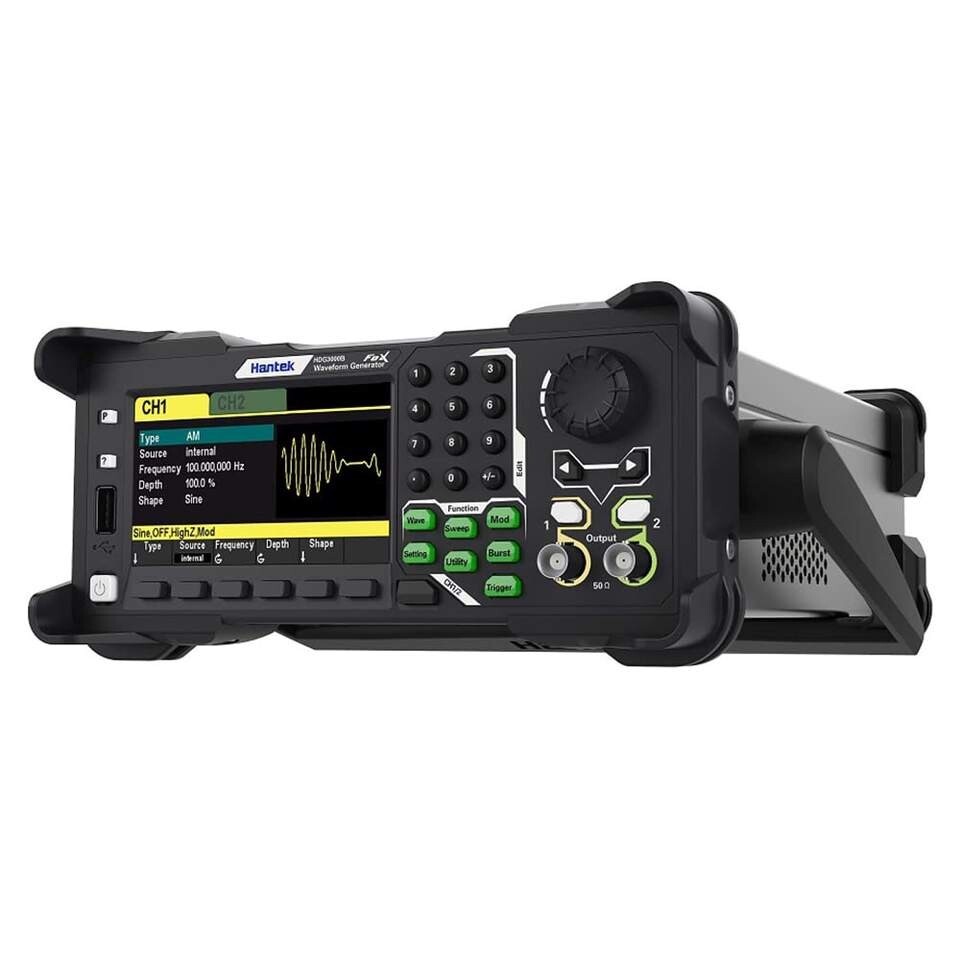

Hantek Arbitrary Function Waveform Generator Pulse Harmonic Frequency Meter HDG3022B 1μHz- 25Mhz Frequency Range Introduction: HDG3000B sets arbitrary waveform generator, pulse generator, function generator, harmonic generator, frequency meter 5 functions in one. It uses the DDS (Direct Digital Synthesizer) technology, and can generate stable, pure, and low-distortion output signal. Humanized interface design and keyboard layout give users extraordinary experience. Rich configuration interfaces can easily achieve computer control of the instrument, which provides users with more solutions for measurement. Features: Frequency range: 1μHz ~ 100MHz/80MHz/60MHz/40MHz/25MHz/15MHz. Up to 300MSa/s sampling rate, no distortion of analog waveforms. 16-bit vertical resolution ensures the accuracy of waveform amplitude. Equip with dual channels with equal performance, equivalent to two independent signal sources. The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details. A 4.3-inch color TFT LCD screen, a clear and intuitive user interface. Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc. 1μHz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ω, the amplitude range is 1mV~10Vpp. Built-in 80MHz high-resolution frequency meter. Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device). More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc. Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test. Function: 1. Equip with the sine wave with the maximum output bandwidth of 100MHz. Frequency range: 1 μ Hz~100MHz; Adjustable offset: ± 5V; Adjustable phase: 0 ° ~ 360 ° . 2. Equip with the square wave with the maximum output bandwidth of 15MHz. Frequency range: 1 μ Hz~15MHz; Adjustable offset: ± 5V; Adjustable phase: 0 ° ~ 360 ° . 3. Equip with the triangle wave with the maximum output bandwidth of 2MHz. Frequency range: 1 μ Hz~2MHz; Adjustable offset: ± 5V; Adjustable phase: 0 ° ~ 360 ° ; Adjustable symmetry: 0%~100%. 4. Equip with more than 160 kinds of arbitrary waveform output. Index rise, index fall, ECG signal, Gauss, half vector, Lorentz, dual tone multi-frequency, DC voltage and other more than 160 kinds of arbitrary signals. 5. Equip with dual channel output modulation waveform AM/FM. Rich modulation functions, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc. 6. Equip with dual channel output burst function. Support control of burst output by internal, manual or external trigger sources. Three burst types are supported, including multi cycle, infinite cycle, and gated. 7. Equip with an 80MHz frequency meter. The instrument can measure the frequency, period, duty cycle, positive pulse width and negative pulse width and other parameters of the external input signal. Specifications: Model HDG3102B HDG3082B HDG3062B HDG3042B HDG3022B HDG3012B Channel 2 Wavelength 2M Frequency range 100MHz 80MHz 60MHz 40MHz 25MHz 15MHz Sampling rate 300MSa/s Voltage resolution 16Bits Waveform Standard waveform output sine wave, square wave, triangular wave, pulse wave, noise, harmonics Arbitrary waveform output 160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μ lti-frequency, DC voltage, etc Frequency property Sine wave 1 μ Hz ~ 100 MHZ 1 μ Hz ~ 80 MHZ 1 μ Hz ~ 60 MHZ 1 μ Hz ~ 40 MHZ 1 μ Hz ~ 25 MHZ 1 μHz ~ 15 MHZ Square wave 1 μ Hz ~ 15MHZ 1 μ Hz ~ 15 MHZ 1 μ Hz ~ 15 MHZ 1 μ Hz ~ 15 MHZ 1 μ Hz ~ 15 MHZ 1 μHz ~ 15 MHZ Pulse wave 1 μ Hz ~ 15 MHZ 1 μ Hz ~ 15 MHZ 1 μ Hz ~ 15 MHZ 1 μ Hz ~ 15 MHZ 1 μ Hz ~ 15 MHZ 1 μHz ~ 15 MHZ Triangle wave 1 μ Hz ~ 2 MHZ 1 μ Hz ~ 2 MHZ 1 μ Hz ~ 2 MHZ 1 μ Hz ~ 2 MHZ 1 μ Hz ~ 2 MHZ 1 μHz ~ 2 MHZ Harmonic 1 μ Hz ~ 50 MHZ 1 μ Hz ~ 40 MHZ 1 μ Hz ~ 30 MHZ 1 μ Hz ~ 20 MHZ 1 μ H z ~ 10 MHZ 1 μHz ~ 5 MHZ Noise (3 db) 100 MHZ bandwidth Arbitrary wave 1 μ Hz ~ 20 MHZ 1 μ Hz ~ 20 MHZ 1 μ Hz ~ 20 MHZ 1 μ Hz ~ 15 MHZ 1 μ Hz ~ 15 MH Z 1 μHz ~ 15 MHZ Resolution 1 μ Hz Precision ± 1ppm, 18~28 ℃ Triangular wave property Linear ≤ 1% of peak output (typical, 1kHz, 1Vpp, symmetry 100%) Symmetry 0% ~ 100% Arbitrary wave property Wavelength 2M Vertical resolution 16 Bits Sampling rate 1 μ Sa/s~62.5 MSa /s, 1 μ Sa/s resolution Time of rise/fall Ns of 9 or higher Overshoot Typical (1Vpp) ≤ 5% Harmonic property Harmonic frequency ≤ 16 Harmonic type Even harmonics, odd harmonics, all harmonics Harmonic amplitude All harmonic amplitude can be set. Harmonic phase All harmonic amplitude can be set. Amplitude property (50 Ω terminal) Shipping policy 1. We will send out your order within 3 working days, the tracking number will be updated to you once your order has been shipped. Standard shipping will take 8-12 business days for delivery and expedited shipping takes 2-7 business days. If there is any delay, it may be caused by bad weather or custom inspection which is not in our control, but don't worry, we will keep to follow your order until you receive it. 2. We try our best to make you get desired products as soon as possible. In case you receive wrong products, please contact us timely for exchange or refund. If damaged, please refuse to sign and send us the message ASAP. 3. Shipping cost does not include DHL/FedEx /UPS Remote area service charge , buyer will afford if your address belongs to it ,it is USD45 for it . Warranty&Return Policy: 1.-We encourage all customers to communicate with us through eBay messages. If you have any questions or comments whatsoever regarding our products function or listing questiones, we are waiting to hear from you 2.-A 1 year warranty is offered for this product.If the product malfunctioned under proper usage per instructions manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs. Import Taxes or Duties 1.- Import duties, taxes and other charges happened in your side are not included in the item price. These fees not included in our price. 2.- Please check with your country's importing policy about the duties and charges before purchase. Feedback 1.- As your feedback is very important to our development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. 2.- Please contact us before you leave a neutral or negative feedback, we will try our best to solve the problems.
