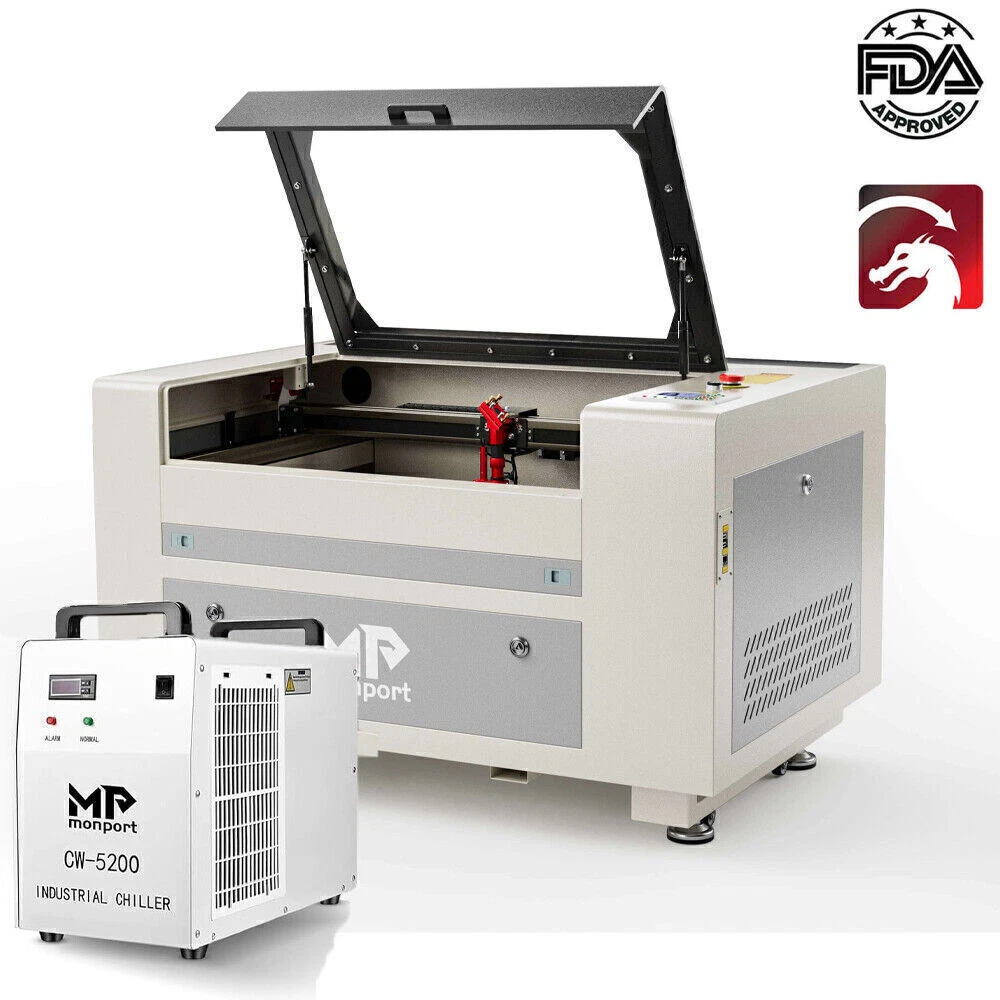

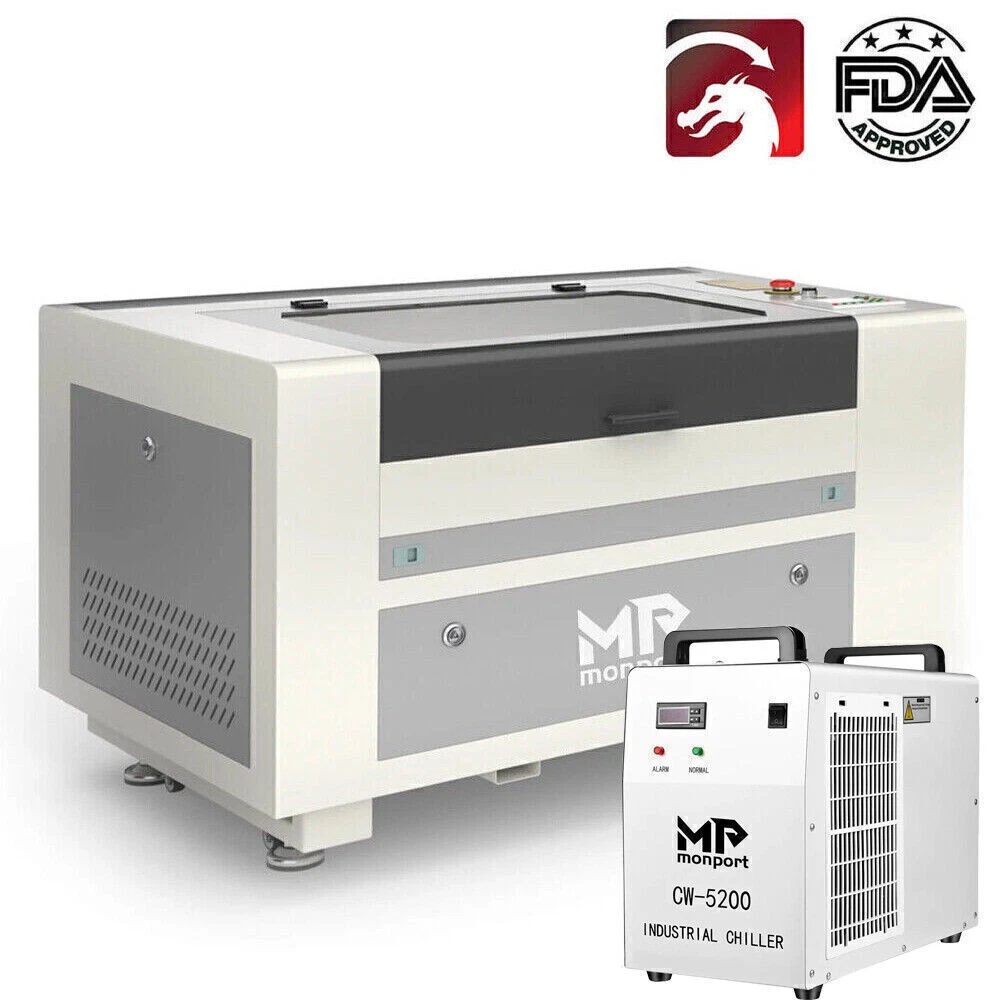

Monport 60W 16x24in Autofocus CO2 Laser Engraver Cutter w. CW5200 Water Chiller

Description

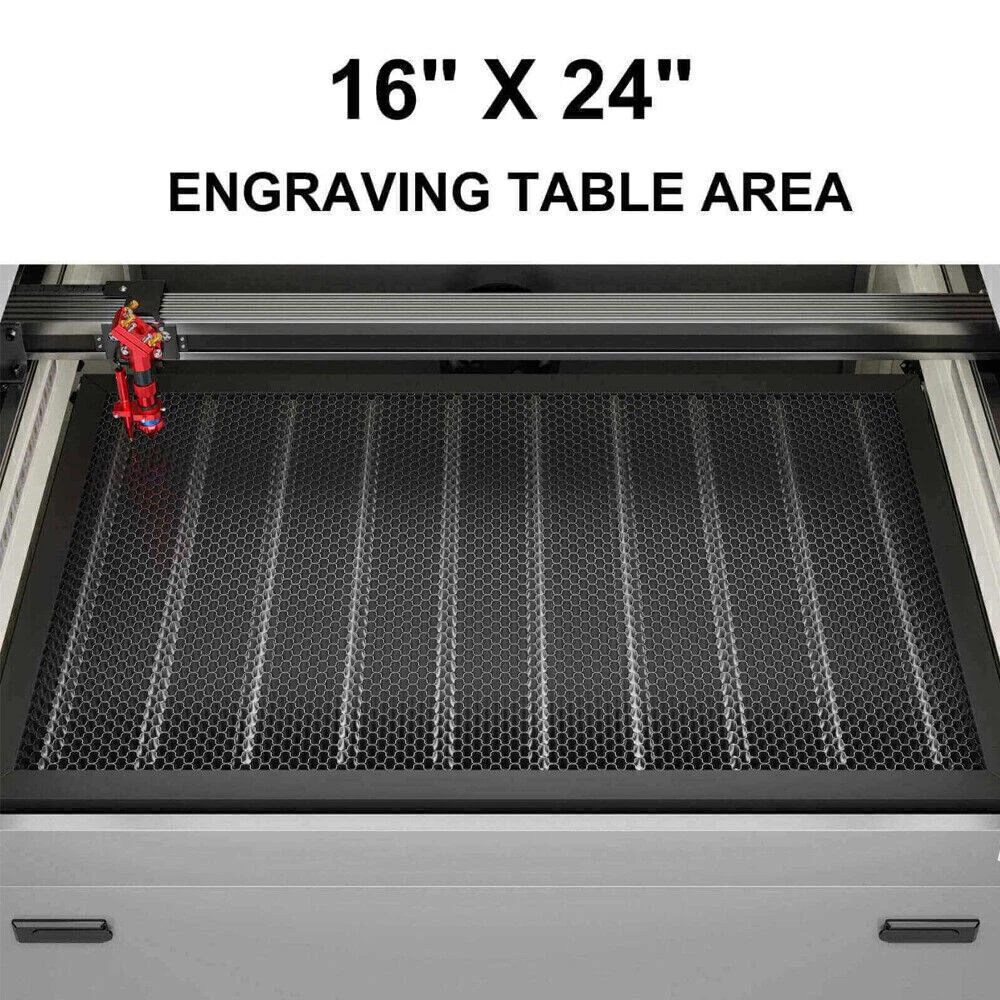

Monport 60W 16x24in Autofocus CO2 Laser Engraver Cutter w. CW5200 Water Chiller NEW ORIGINAL Monport 60W CO2 Laser Engraver Cutter with CW5200 Water Chiller, 16 x 24 Inch Workarea, with Ruida Controls, Autofocus, and Air Assist, Laser Cutting Machine for Wood Acrylic More Specification ⭐️ Dimension & Specifications Machine Dimension: 44.1'' x 29.5'' x 25'' ( 112cm x 75cm x 64cm） Package Dimension: 48.8" x 33" x 32.6" ( 124cm x 84 cm x 83 cm ) Working Dimension: 16" x 24" ( 40 cm x 60 cm ) Pass-through Dimension：1.5'' x 28''（4cm x 73 cm ) Max Engraving Speed: 600mm/s Max Cutting Speed: 400mm/s Max Engraving Depth: 10mm Min Engraving Depth: 0.01mm Focal Lens Diameter: 18mm Mirror Diameter: 25mm 9” Standard Z-depth and 10” Max Z-depth Net Weight: 209 lbs ( 95 kg ) Package Weight: 253.5 lbs ( 115 kg ) ⭐️ Software Works on Windows XP, 2000, Vista, WIN 7, 8, 10 & 11, both 64 & 32 bit MacOS (Version 10.11 and higher) ONLY with LightBurn software Compatible with Lightburn, RDWorks, Coreldraw, Auto-CAD Supported image formats: BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others ⭐️ Laser System Custom CO2 glass laser tube capable of continuous operation at 10,640 nm; Rated at over 60 watt; Easy-to-adjust Optical path; 18mm Focal lens diameter & 2" Focal distance; 25mm Mirror diameter; Recommended engraving speed: 100 - 500mm/s Recommended cutting speed: 1 - 30mm/s (actual speed depends on the thickness of the material) ⭐️ Material Capability Can safely engrave or cut any laser-compatible material Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber Contact us with questions on specific materials not listed. If necessary, we can test it for you Monport 60W Benefits & Features 🔥【Fireproof Viewing Window】 This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials. 🔥【Enclosed Aeronautical Aluminum Rail】 Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units. 🔥【Laser Protective Glasses for Free】 Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes). 🔥【Ruida Digital Controller】 Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can control the laser head, start or stop projects, adjust laser power and speed settings and so on. 🔥【High Speed and Resolution】 The Engraving Speed is up to 800 mm/s; The Cutting Speed is up to 400 mm/s; The Resolution is up to 4500 dpi; 3 LED light strips above the work bed provide illumination for precision; 2.0" Focal distance provides high resolution and etching of tiny fonts 🔥【Autofocus】 Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment. 🔥【Built-in Air Assist】 A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise. 🔥【3-ways to Connect with PC End】 Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection. 🔥【Red Dot Guidance】 The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance. 🔥【Automatic Safety Sensor】 The safety shutdown sensor helps stopping the machine even if the window cover is on. Once closed, press the “Enter” button to continue operation. CW5200 Water Chiller Benefits & Features 【Multiple Safety Guarantee】 This professional chiller has multiple warning protection mechanisms such as alarms for ambient temperature, alarms for overheated/overchilled water temperature. When an alarm occurs, the display will alternate between the water temperature and the error. 【Large Water Cooling Capacity】 1.6 gallon (6L) water tank features a closed design to reduce water evaporation and ensures a powerful cooling performance. The water level observation window at the back of the machine lets you keep track of use and know when to refill the tank. 【Digital Screen with Real-time Data】 It is very easy to monitor the real-time temperature on the screen. Besides, you can get immediate information about whether the water/room temperature is abnormal. It never deviates outside of the range defined in the setup. 【Super Quiet】 It's about as loud as a mini-fridge (only around 50 dB) when the built-in air compressor is cooling and is almost silent when cooling is cycled off. 【High-Grade Ports】 Monport CW5200 chiller’s inlet and outlet ports are made of high-quality brass to keep long-term, non-corrosion performance and prevent any issues with leaks as it operates. 【Dual Operating Mode】 There are two cooling modes of CW5200, constant temperature mode and intelligent temperature mode. The intelligent mode will keep your laser tube within 2°C of the ambient room temperature. The constant mode allows you to set the temperature range manually. Warranty & Certifications (Official Monport Warranty provided) 2 year warranty on all 60W laser machines and parts 6 month warranty on 60W laser tubes and Water Chiller FDA Approval & CE Certified Package Contents A Pair of Laser Protective Glasses *1 Laser Engraver Machine *1 CW5200 Water Chiller *1 Water Pump *1 Ethernet to Ethernet Cable *1 USB Type-A to Type-A Cable *1 Venting Exhaust Duct (4 ft. max. length) *1 Water Hoses *2 USB Drive with Software (RDworks) *1 Hex Wrenches *10 Double-sided Tape *1 Power Cord *2 Hose Clamp *1 Accessory Bag *1 Keys *2 Silicone Sealant *1 Instruction Manual *1 Compatible Computer Systems ADVANCED FEATURES Rapid Autofocus The preinstalled autofocusing tool lets you quickly correct the focus of your laser directly from the control panel without any need to bother with troublesome acrylic tools and tedious manual adjustment. Honeycomb and Knife Beds This engraver includes 2 workbeds—one honeycomb and one aluminum blade—for handling projects large and small with maximal safety and efficiency. Powerful 60W Laser Tube Estimated lifetime of up to 2,000 operation hours, allowing you to cut deeper and engrave thicker materials. Fireproof Viewing Window This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials. Enclosed Aeronautical Aluminum Rail Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units. Ruida Control Panel The RUIDA Motherboard and intuitive RD Control System is easy to use and offers advanced capabilities. Compatible with third party software like LightBurn and AutoCAD Payment policy We accept PayPal . We ship item to your verified address. Payment must be received within 3 days from the date of purchase. Shipping policy Shipping will always be Fast & Free. Whereas any payment upon the item was made, your item will be very well packed and sent within 1 to 3 business days (It's usually 1, and we put 3 just in case) , and it should be safely delivered within 2 to 5 business days. During these days, no worry shall be concerned, so please sit back and wait for your package along the delightful sunshine and peaceful moonlight. To be explicit, your item will be shipped either via USPS or FedEx depending on different circumstances. Your carrier tracking number will be immediately sent to the e-mail address associated with your eBay account as label generated. You may keep track of your order at will. If any question or problem is raised during transition, please let us know and we will help till the end. Terms of Sale Sometimes things can go wrong no matter what. As a responsible seller, we help in any problem, such as damaged goods, defective products, unclear descriptions, or etc., that you consider as a dissatisfaction, the door to our Customer Service is always widely opened for you. Please let us know how we can help if you needed ANYTHING ANYTIME! Yet please also notice that any collaboration needs time to reach a solution. * For a delayed or lost package, as we actively communicate with our colleagues and shipping carriers. This process could take up to 14 days, so if the item is needed urgently, we highly recommend you to place another order. * For a presumably defective product received, our customer service will work this out with you in a quick manner. In this case, please describe the issue as clear as possible. Pictures and videos can be extremely helpful and time-saving here. * For any confusing or false description in the listing that causes a mis-purchase, please kindly remind us so we can improve our listings and continuously offer a better purchasing experience to you and to all our customers as well. Did it occur to be our mistake for the faulty transaction, we would be responsible for the return cost. Among all sorts of the problem, before the puzzle resolved or time expired, a refund or replacement will NOT be issued. We wish you understand the pressures here, and our effort will always come to your aid. About US It's nothing about us. It's all about you. As informed above, the door to our Customer Service is constantly wide-open to you. If you were having any question, or just looking for someone to chat with, please feel free to contact us through Messages. We will get in touch promptly in 24 hours. Concerns wouldn't be necessary since we promised to be on your side. You can just enjoy a nice day while waiting for our reply. When there was an accident like business getting busy or filing bankruptcy or people taking a break or getting off work or getting fired or attacked by aliens or something else which delays our response, might us be forgiven. You know, things could happen. (Finger crossed) Last thing last. After a transaction is completed, our customers are always welcome to share their feelings about the product with us. As you are well satisfied, feel free to tell us and all fellow customers your story on Feedback or Ratings while convenient. Meanwhile, we do not escape from any negative feedback deserved. Yet before you put your fingers down and things get irretrievable, we are always ready to learn our lessons and make things right. Just contact us if you are not happy! Business is just not easy these days. (Sign) So, thank you so much for reading such a loooooooooooong description. We sincerely look forward to doing business with you. If business happens, I personally represent my company and my families who also feed on these transactions to send you our deepest gratitude. (Smile) Nevertheless, no matter what, please enjoy everyday, keep health, joy, and of course, wealth. We wish you all the best and wait to see you again along the journey of life. On Feb 12, 2025 at 01:25:27 PST, seller added the following information:
