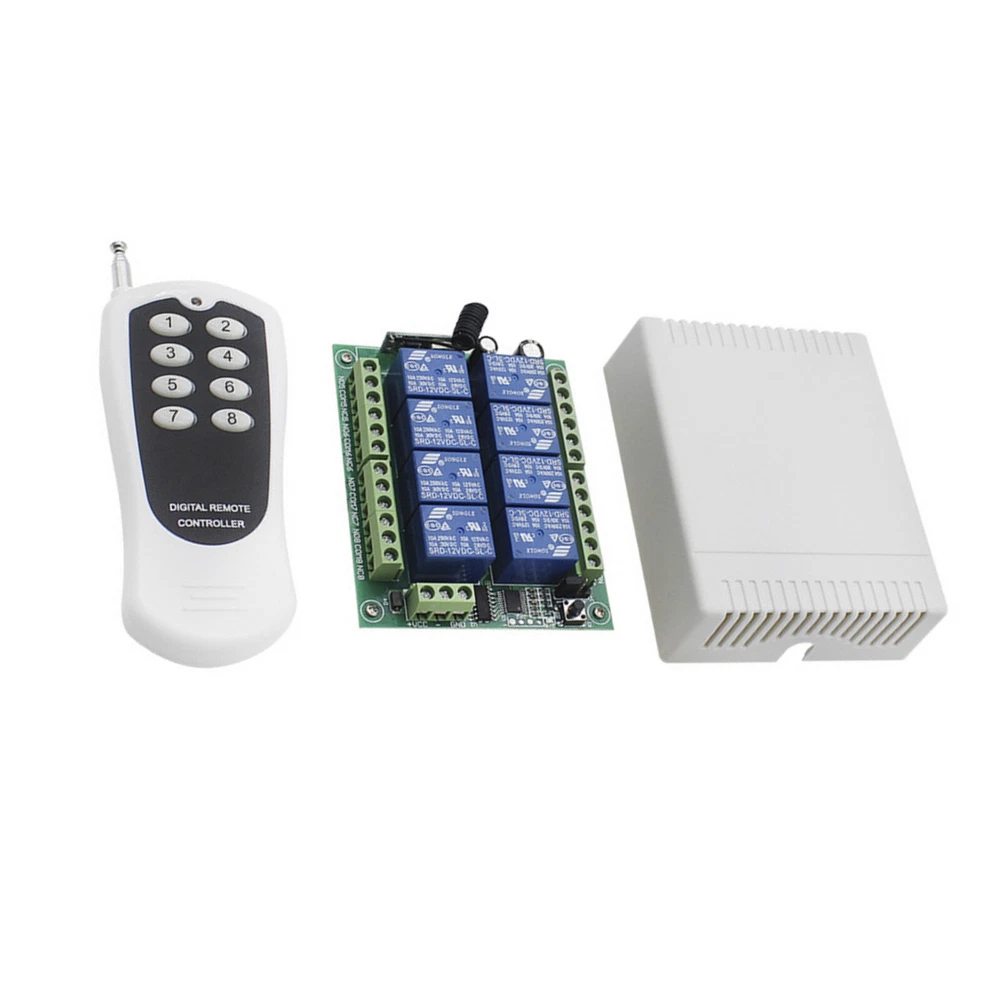

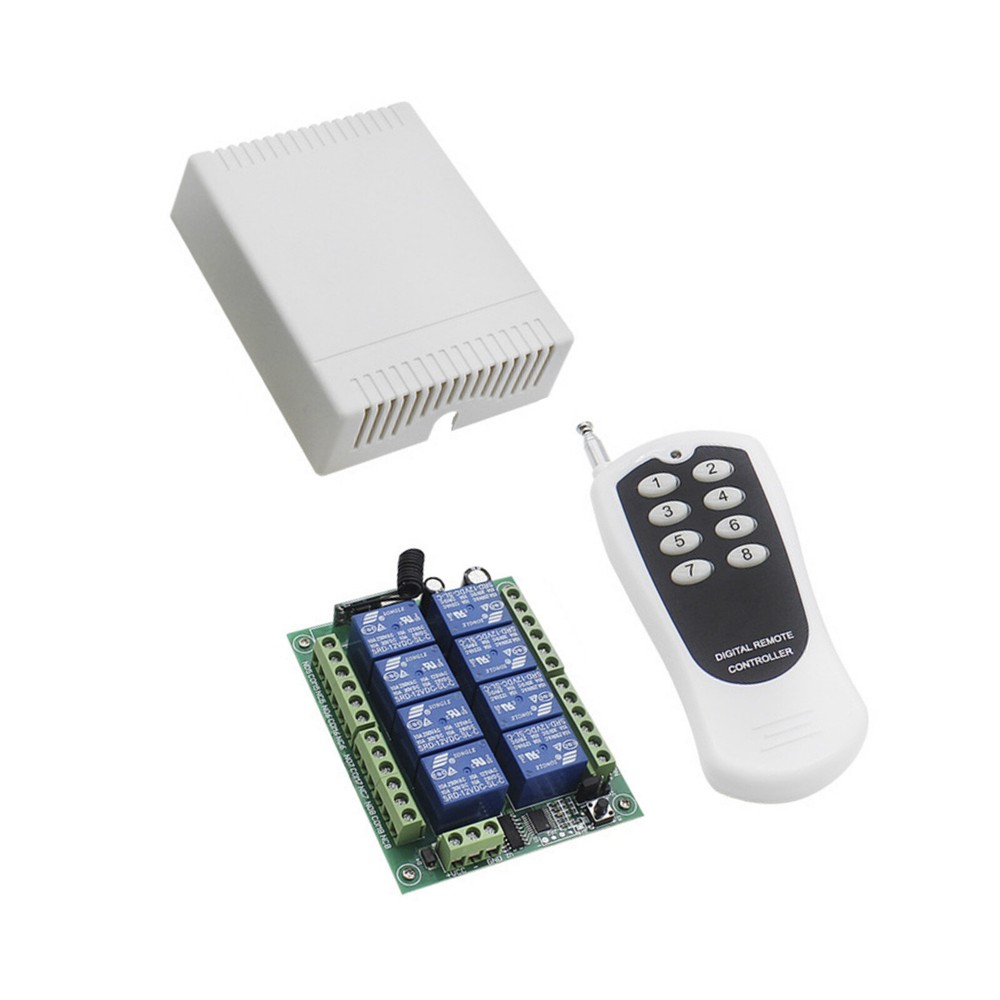

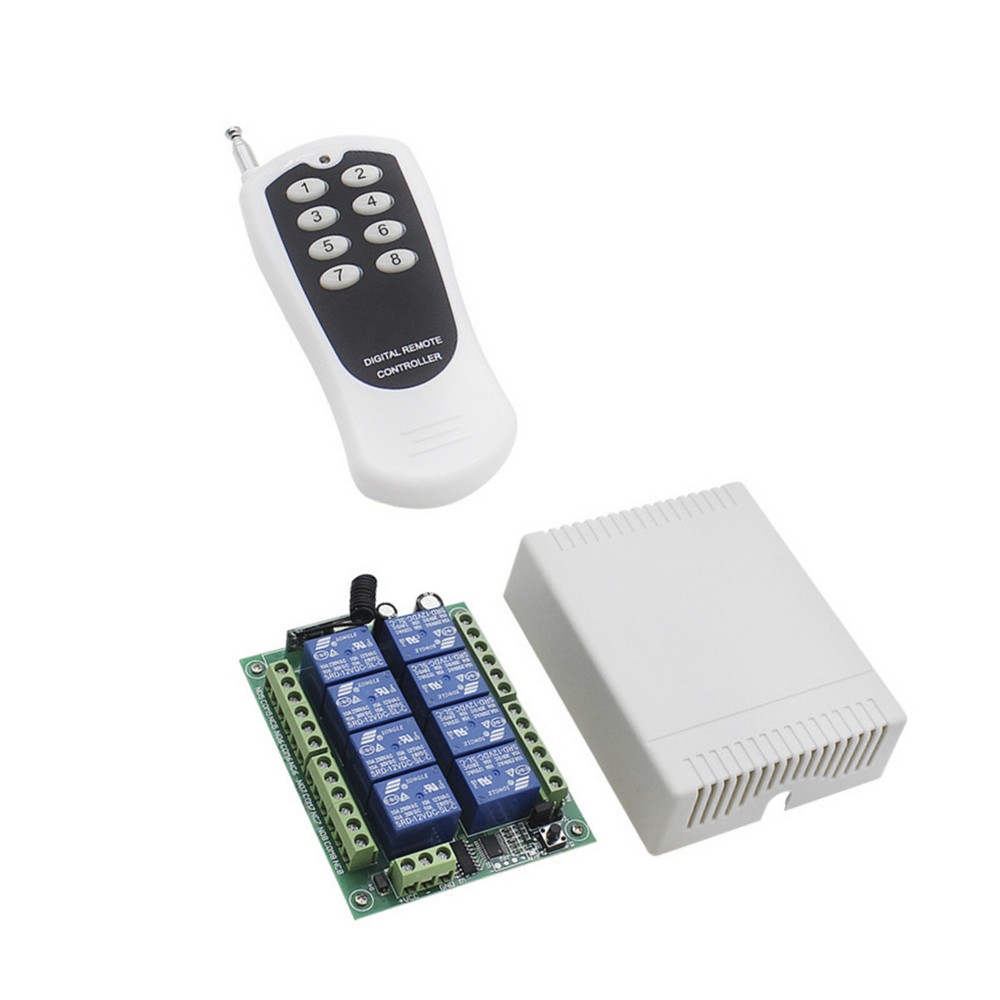

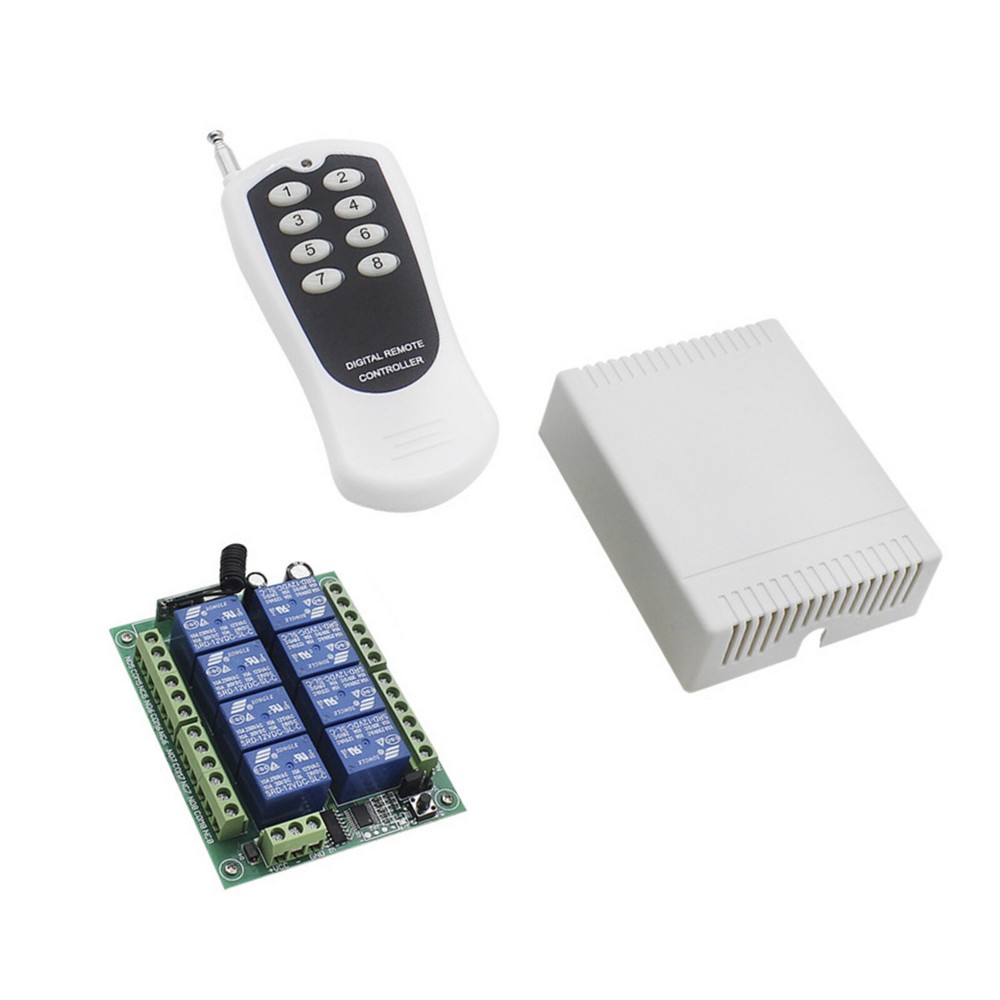

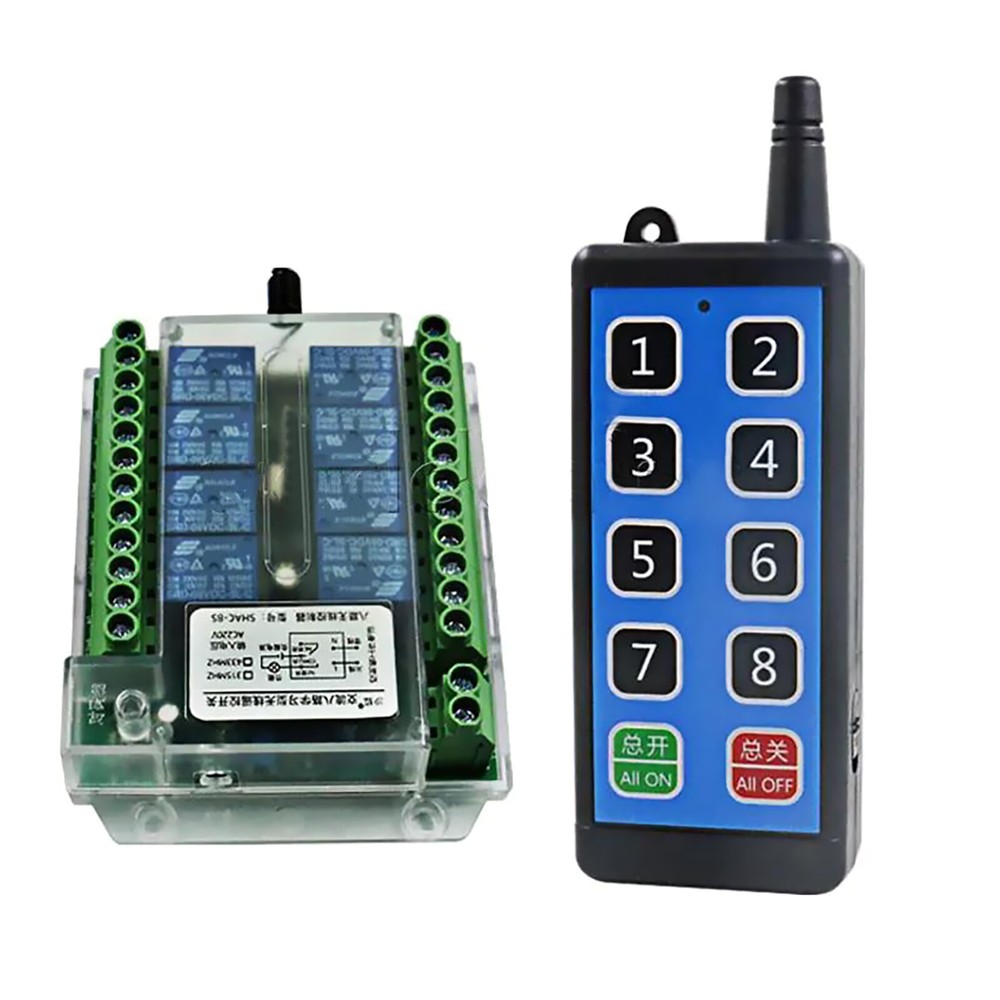

Multi Functional 8CH Wireless RF Remote Control Switch with DC12V Relay
$ 12.67
Description

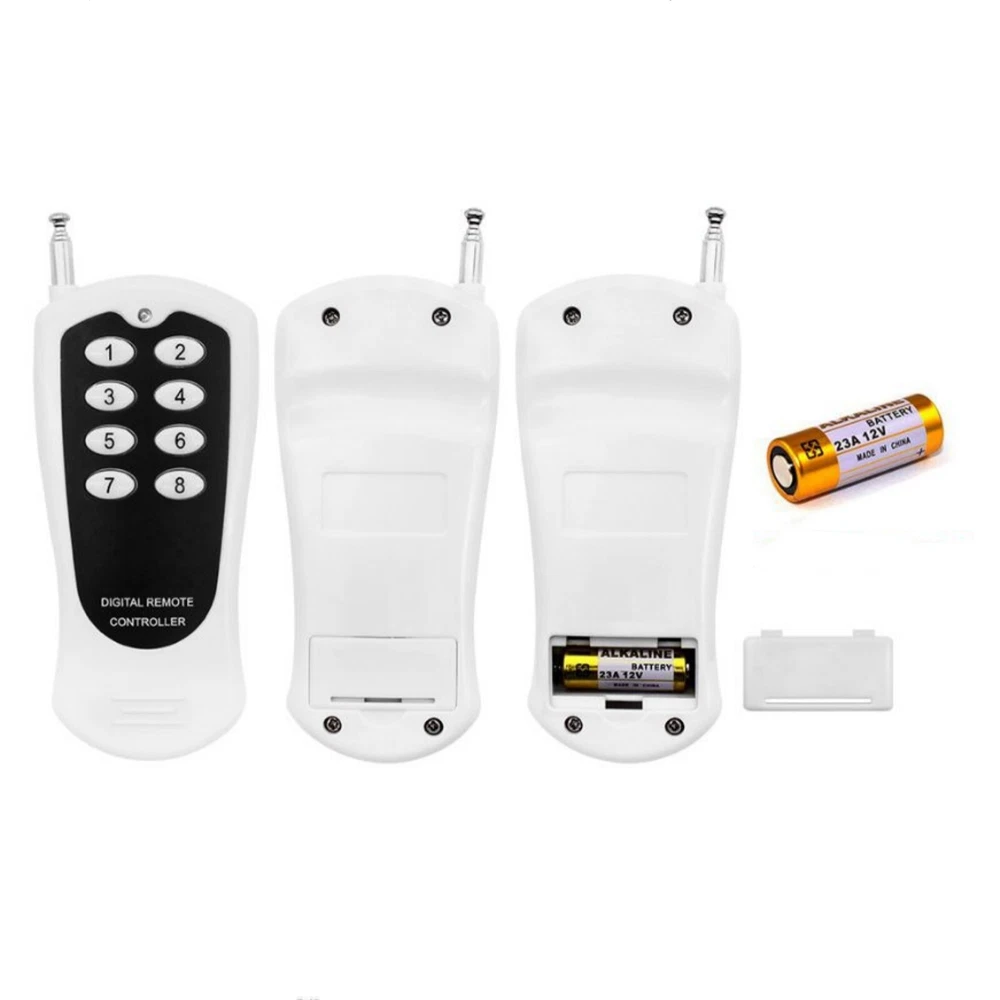

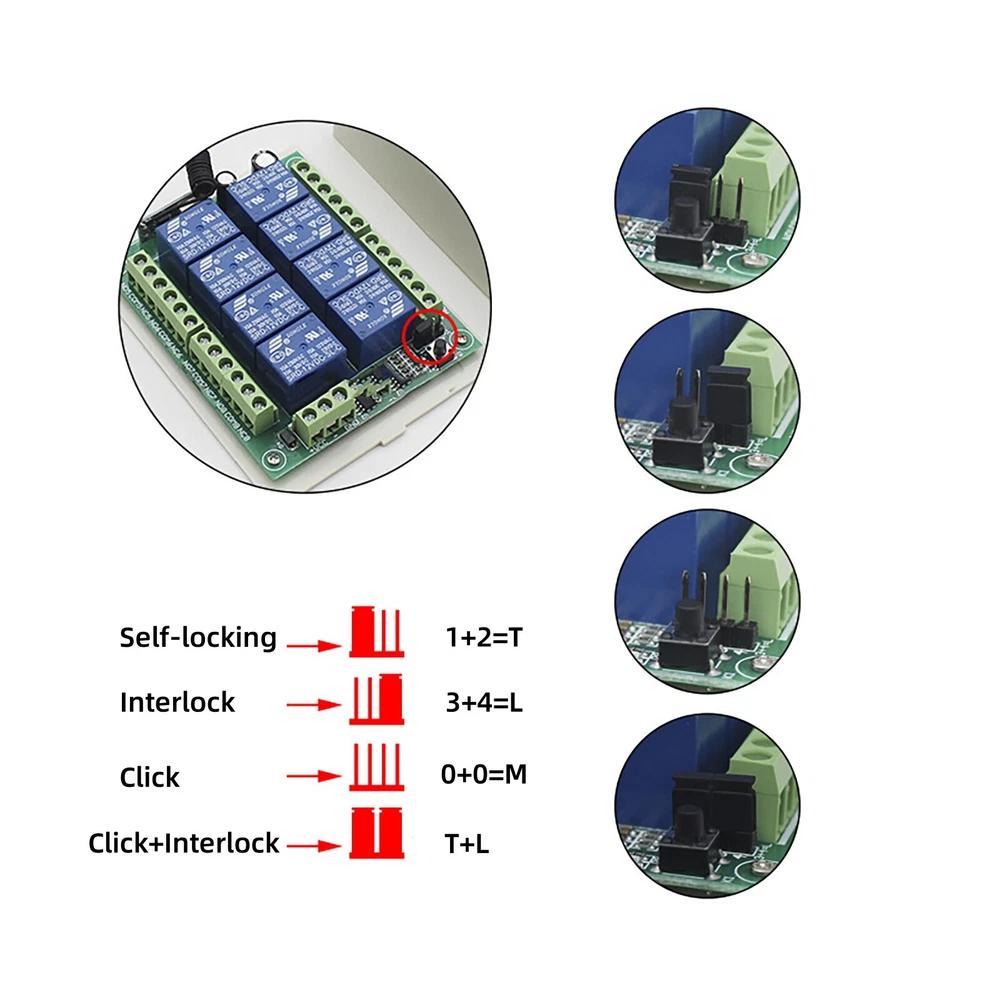

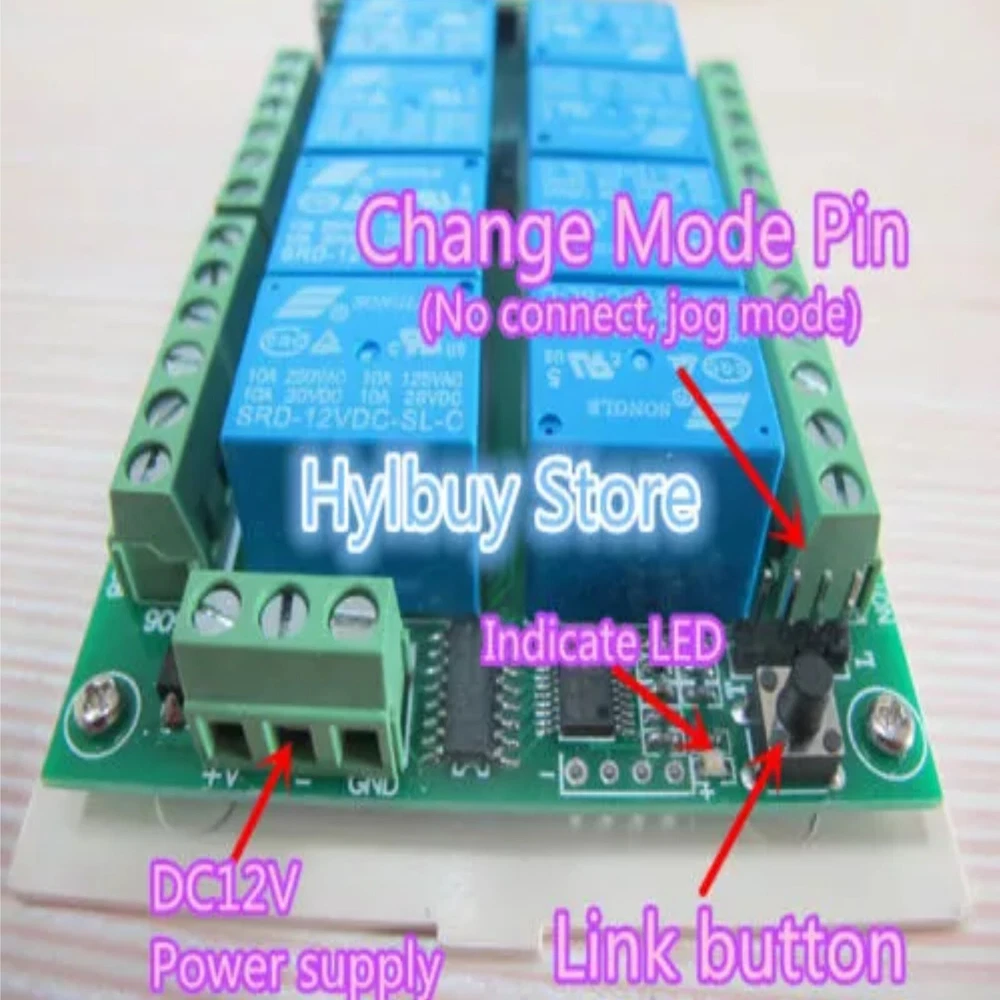

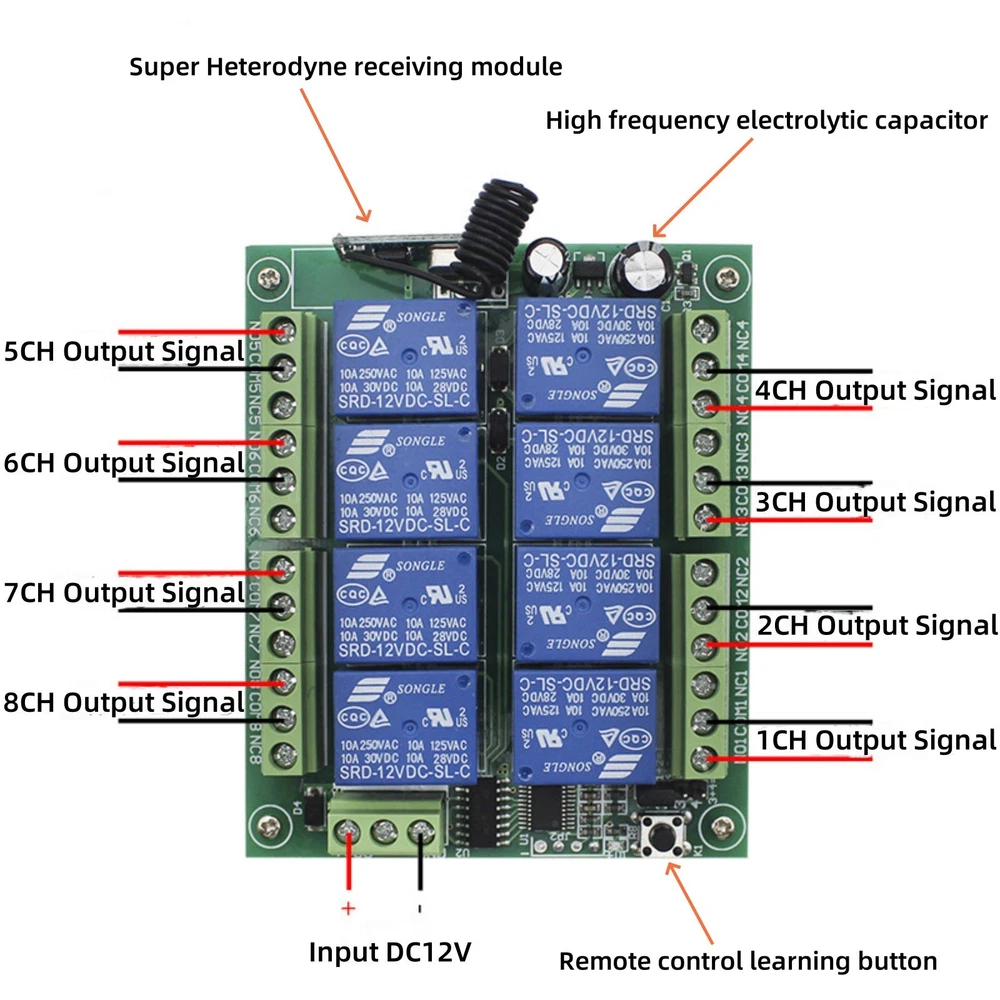

SAFE & SECURE SHOPPING 100% SATISFACTION GUARANTEED FAST SHIPPING Store Categories Store Categories You may also like New Multi Functional 8CH wireless RF Remote Control Switch With DC12V Relay Product Description Features: Multi Functional Eight Channel Wireless Intelligent Remote Control Switch, Outputting Switch Signals For Eight Relays, Can Enable The Controlled Equipment Or Motor To Meet The Requirements Of Switch Or On/Off Conversion, As Well As Various Special Control Programs The Wireless Receiver Controller Has The Characteristics Of High Confidentiality, Stable Performance, Low Power Consumption, And Is Easy To Use, By Using The Traditional Jumper Cap Adjustment Function, The Wireless Signal Transmitted By The Remote Control Can Be Received And Saved By The Receiving Controller, And It Can Be Used Together. Specifications: Frequency: 433mhz Operating Voltage: 12V DC Decode: Learning Code Operating Type: Self Locking T, Interlock L, Jogging M, Self Locking Interlock T+L Remote Control Battery: 1* 23A 12V Battery(Battery Included) Transmitting Distance: 1000m Learning Methods: Self Locking Learning Method: Short Circuit The Jumper Cap To 1+2=T, Press The Learning Button, And The Red Light Will Turn Off Within 7 Seconds To Verify The Code. Interlock Learning Method: Short Circuit The Jumper Cap With 3+4=L, Press The Learning Button, And The Red Light Will Turn Off Within 7 Seconds To Verify The Code Jogging Learning Method: Do Not Plug In The Jumper Cap, Press The Learning Button, And The Red Light Will Turn Off Within 7 Seconds To Check The Code, Self Locking+Interlocking Learning Method: Insert 2 Jumper Caps, 1/2/3/4 Self-Locking, 5/6/7/8 Interlocking. Code Clearing Method: Press And Hold The Learning Button For 10 Seconds, The Led Indicator Light Flashes For 5 Seconds, And The Code Clearing Is Complete, *(Attention: When Switching Working Modes, Please Turn Off The Power And Then Plug In The Power To Clear And Match The Code) Working Modes: Self Locking T: Press The Same Remote Control Button, Press Once To Turn On The Relay, Press Again To Turn Off The Relay. Interlock L: Press The 1 Key On The Remote Control To Turn On The Relay, Press The 2 Key On The Remote Control To Turn Off The Relay. Jogging M: Press The 1 Key On The Remote Control To Turn On The Relay, Release The 1 Key On The Remote Control To Turn Off The Relay. If You Keep Pressing The 1 Key And Don' T Release It, The Relay Will Remain On. When You Release It, The Relay Will Turn Off. Self Locking Interlock T+L: 1/2/3/4 Way Self-Locking, 5/6/7/8 Way Interlocking. Package Including: 1* Receiver 1* Transmitter Shipping Returns Contact Us Payment Shipping We ship most of our orders within 24 hours, and may up to 48 hours. If you want faster shipping way, please contact us before making a payment. Sometimes due to problems with our transportation company system, your shipping information may be delayed to update. We recommend that you try again after 3-4 days. If you still haven't checked the shipping information, you can contact us via ebay message. Returns 1. 30 days warranty from the purchased date. Please contact us via email before returning the defective item. 2.Our warranty does not extended to any product that are physically damaged or that are not under normal operating conditions as result of misuse or improper installation on the buyer/user's part. 3.Return items should include the original packaging and all accessories. buyers MUST contact us for the returning address. 4.In all cases, buyers pay shipping fees at their own cost to return products for exchange or refund. We will be responsible for the postage of replacements. Refund will be made upon receipt of the returned item. Contact Us Pls contact us if you have any problems,we will try our best to solve for you Payment We accept all verified payment from eBay. Copyright © 2022 Tongtool
