S10 Bluetooth IoT Gateway admite protocolos BLE y Wi-Fi | Fuente de alimentación PoE
$ 27.78
Description

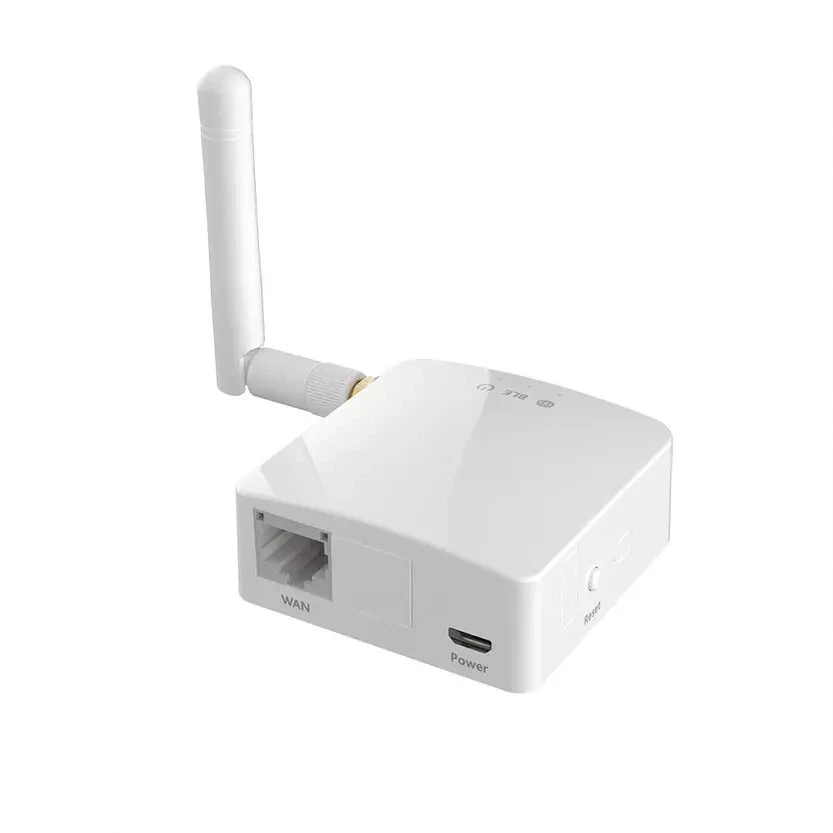

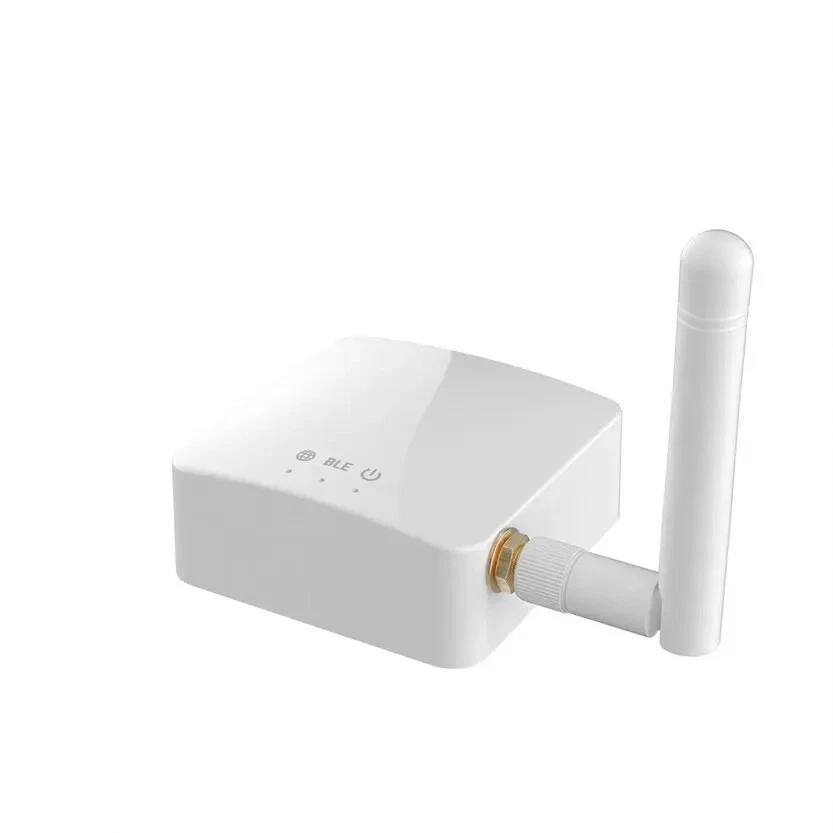

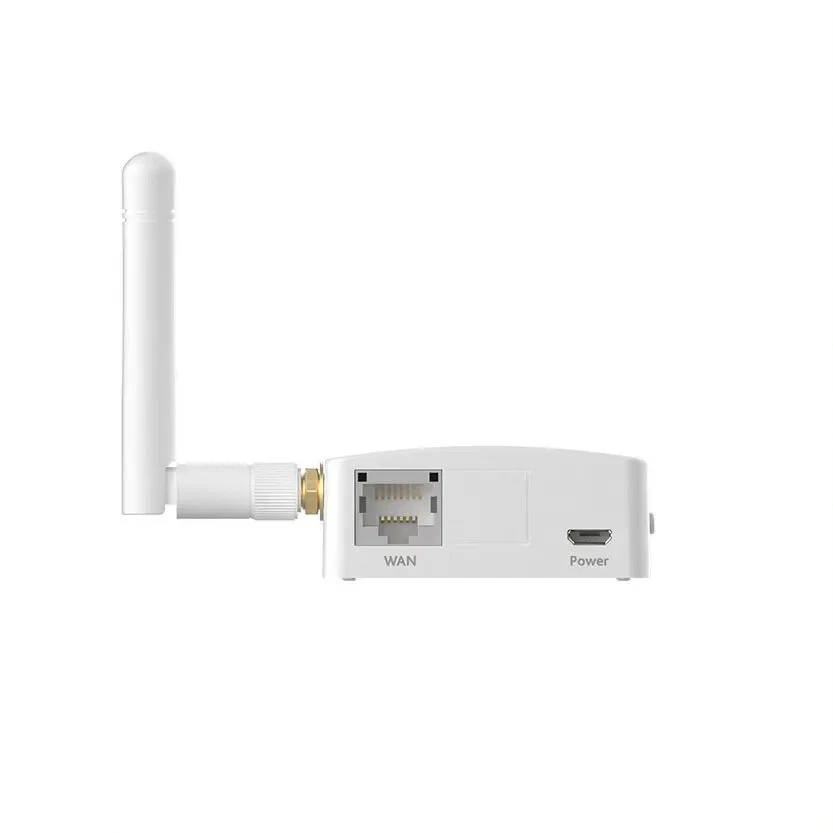

NOTE It is now shipping with version V2.1 GL-S10 Bluetooth IoT Gateway | PoE Power Supply GL-S10 is an IoT gateway that supports BLE and Wi-Fi protocols, providing a simple and cost-efficient solution for transmitting BLE data to a cloud server. BLE supports GAP and GATT specifications and can be used as either Master-mode or Slave-mode to connect and exchange data with other Bluetooth devices. Besides, it can use Wi-Fi as a station to connect to a parent router, and it can also connect to the Internet through a WAN port. It has a built-in standard MQTT client that can connect to any standard MQTT server and forward incoming BLE messages to the cloud server. Product Description • Built-in Bluetooth Module: BLE communication distance is measured up to 80 meters (in an open and non-interference environment) • Device Filtering and Identification: Use our GL-S10 application to deploy and configure your BLE to MQTT transmission protocols. • PoE Power Supply: Supports 802.3at/af standard POE input power supply Specifications • CPU: ESP32-D0WD • RAM: 8MB • Nor-Flash: 4MB • Interface: 1 x (10/100M) WAN port, 3 x LEDs, 1 x Reset Button • Bluetooth: V4.2, BLE • WiFi: IEEE 802.11 b/g/n, 2.4GHz (Wi-Fi Speed 150Mbps) • Antenna Type: 1 x External antenna • Power Supply: 5V/1A DC Input or PoE Power Input • Typical Consumption: <0.5W • Working Temperature: 0~40°C (32~104°F) • Dimension / Weight: 57 x 57 x 25mm / 53.6g
